How to Create a Honeycomb Pattern in Fusion: A Step-by-Step Guide
Updated July 19, 2026
Honeycomb patterns are both visually striking and highly practical, making them a popular choice for lightweight, strong, and material-efficient designs. In this tutorial, you'll learn how to create a reusable parametric honeycomb pattern in Autodesk Fusion (formerly Fusion 360) that can be adapted to virtually any shape.
Along the way, you'll combine solid and surface modeling techniques to trim, refine, and finish the design while keeping the entire workflow fully editable. By the end of this guide, you'll know how to build, customize, and reuse honeycomb patterns for decorative projects, functional parts, and other 3D printable designs—all with a flexible workflow that can save hours on future projects.
What You'll Learn
How to create a reusable parametric honeycomb pattern
Why construction geometry makes patterning easier and more accurate
How to calculate proper hexagon spacing for seamless tiling
How to trim a repeating pattern to any custom shape
How to add clean borders using surface and thicken operations
How to combine multiple bodies into a single printable model
Practical 3D printing considerations including wall thickness and edge finishing
Pros and cons of this parametric honeycomb workflow for future design reuse
Watch the Workflow — or Read It Step by Step
You can follow this guide in two ways:
Read the steps below if you want quick written instructions, reference images, and modeling notes.
Watch the full video at the end of this post to see the workflow in real time — including extra tips, camera angles, and shortcuts that don’t fit neatly into text.
Both formats build on each other.
Reading helps you understand why each step matters, while watching shows how to move faster in Fusion.
Why Use a Honeycomb Pattern?
The honeycomb structure is lightweight, strong, and efficient—perfect for reducing material use while maintaining strength. It’s widely used in aerospace, architecture, and 3D printing. And in Fusion, you can create a parametric version that updates automatically when you change dimensions.
Step 1: Set Up Your Design Environment

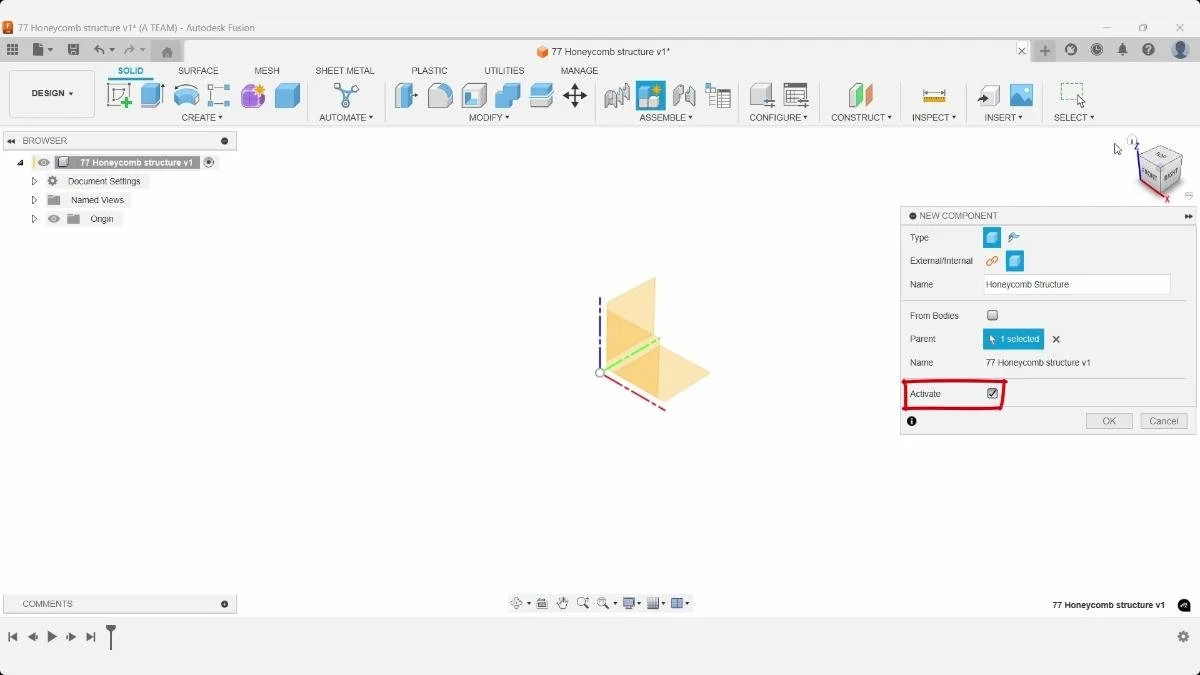

Start by creating a new component in Fusion and making it active. Then, create a sketch on the horizontal construction plane.
Creating a separate component at the start keeps the design organized and makes it easier to reuse or modify later. Activating the component ensures that every sketch, body, and feature is created inside the correct design context instead of the root assembly.
Draw a polygon centered at the origin. This keeps your design clean and symmetrical.
Set the radius to 5 mm for this tutorial.
Draw two lines from the origin to guide the honeycomb pattern. Snap one to the midpoint of a polygon side.
Convert these lines into construction lines for reference.

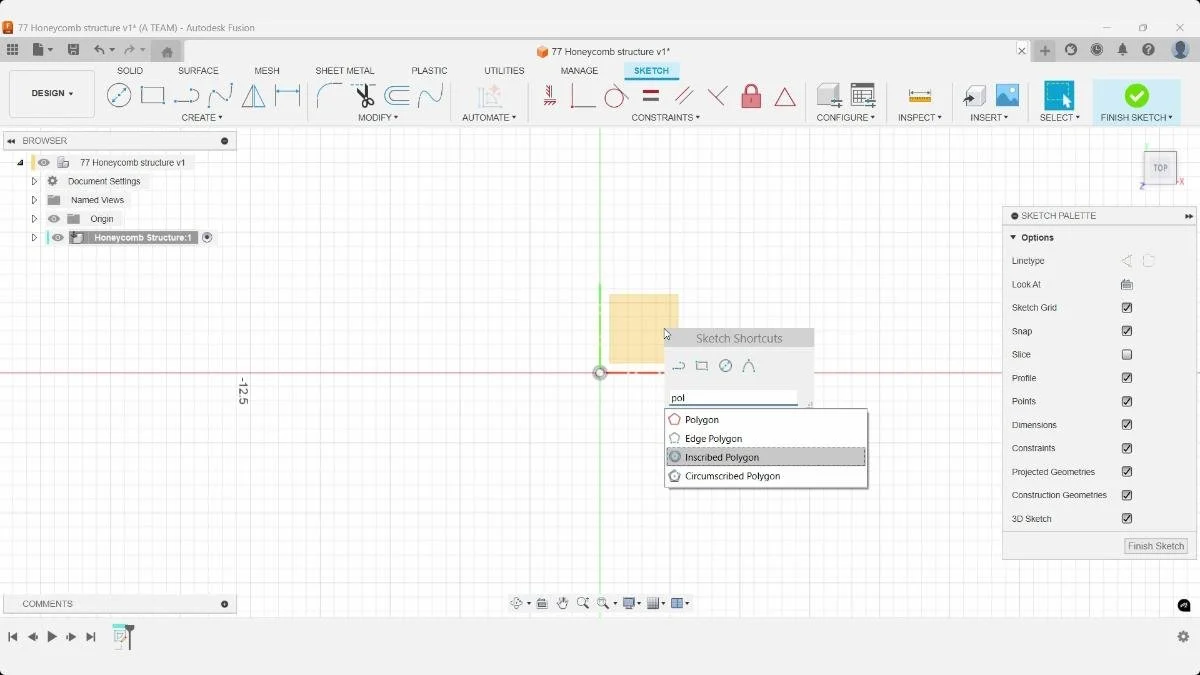

Choosing an inscribed polygon defines the hexagon by its distance from the center to each vertex. This makes it straightforward to control the cell size with a single dimension and produces a consistent starting point for the honeycomb pattern.

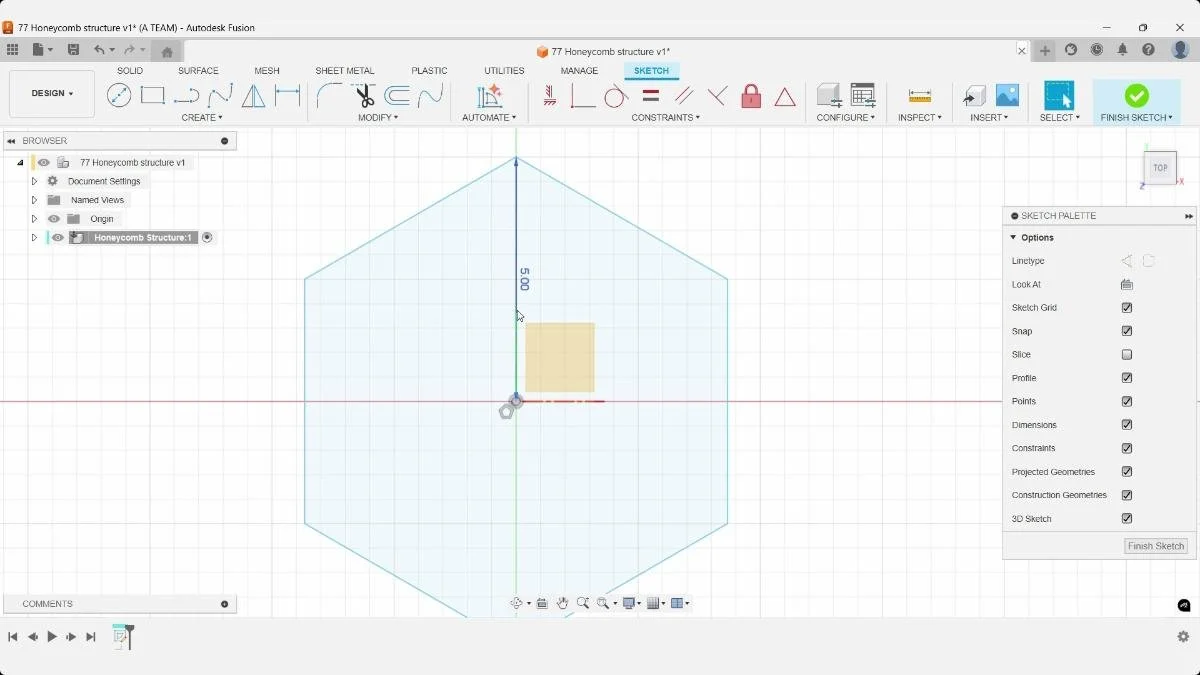

The hexagon is dimensioned with a 5 mm radius to establish the size of every honeycomb cell. Because the design is parametric, changing this single dimension automatically updates the entire pattern later in the workflow.

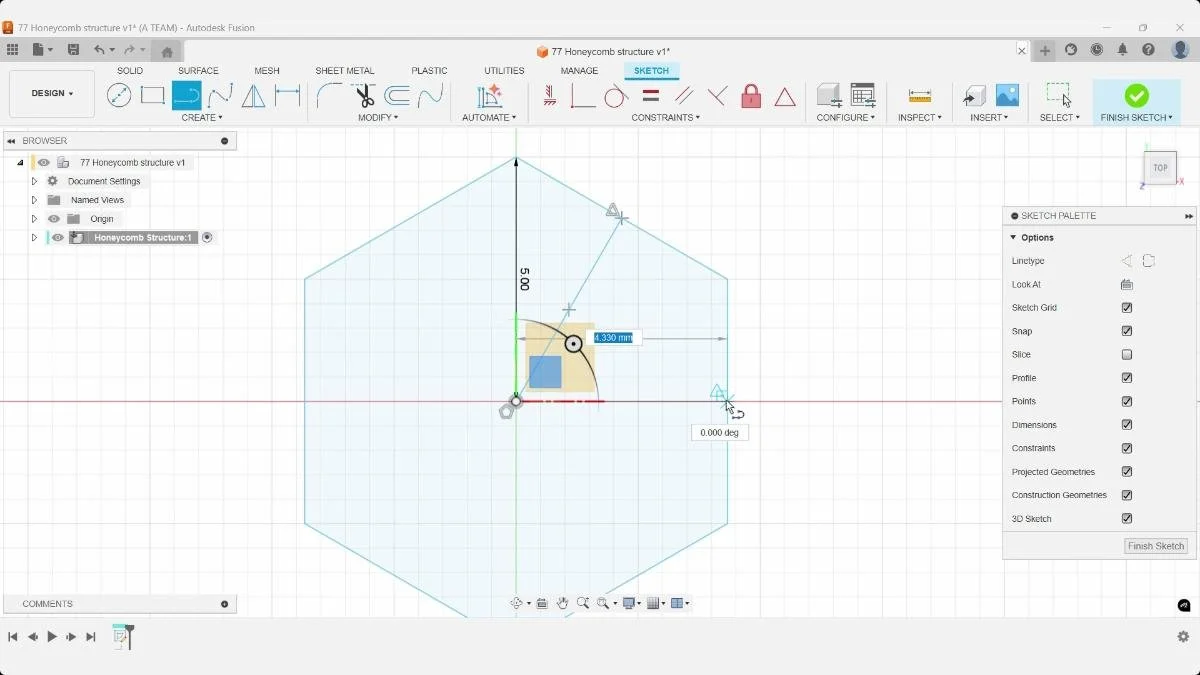

A construction line is added from the origin to the midpoint of one hexagon edge. This reference geometry is used to define the correct spacing direction for the rectangular pattern without affecting the solid model.

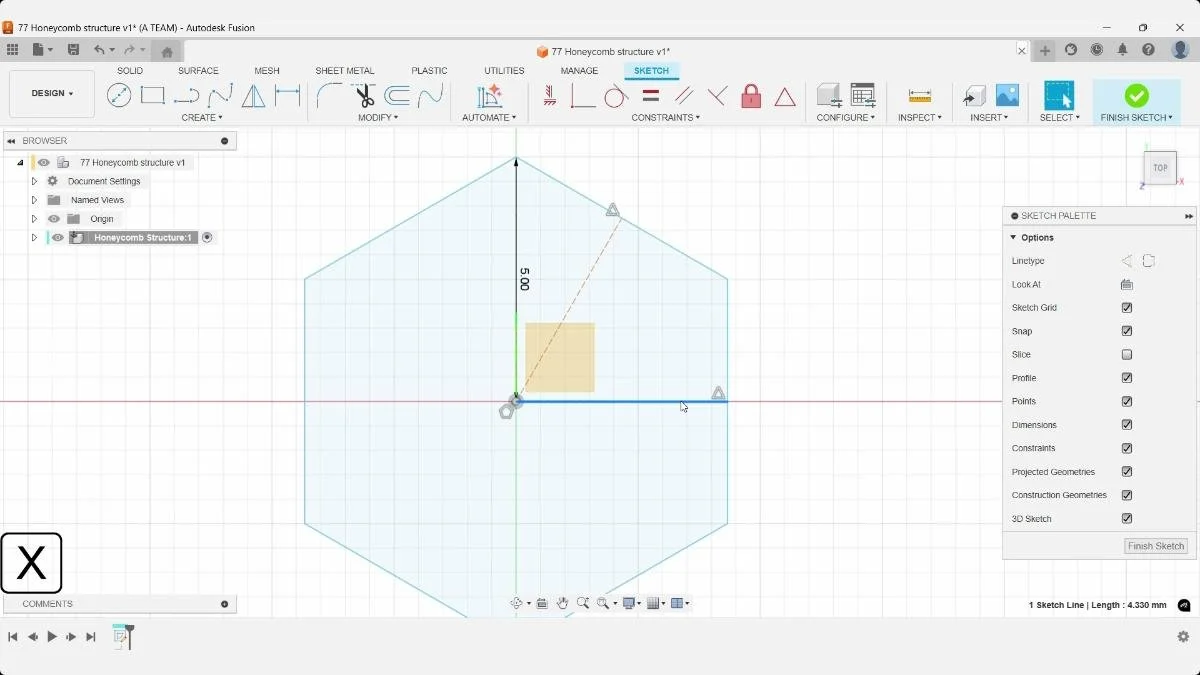

A second construction line (keyboard shortcut X) establishes the horizontal pattern direction. Using construction geometry instead of regular sketch lines keeps the sketch clean while providing reliable references for pattern placement.
Once done, extrude your sketch 4 mm to form a solid body.

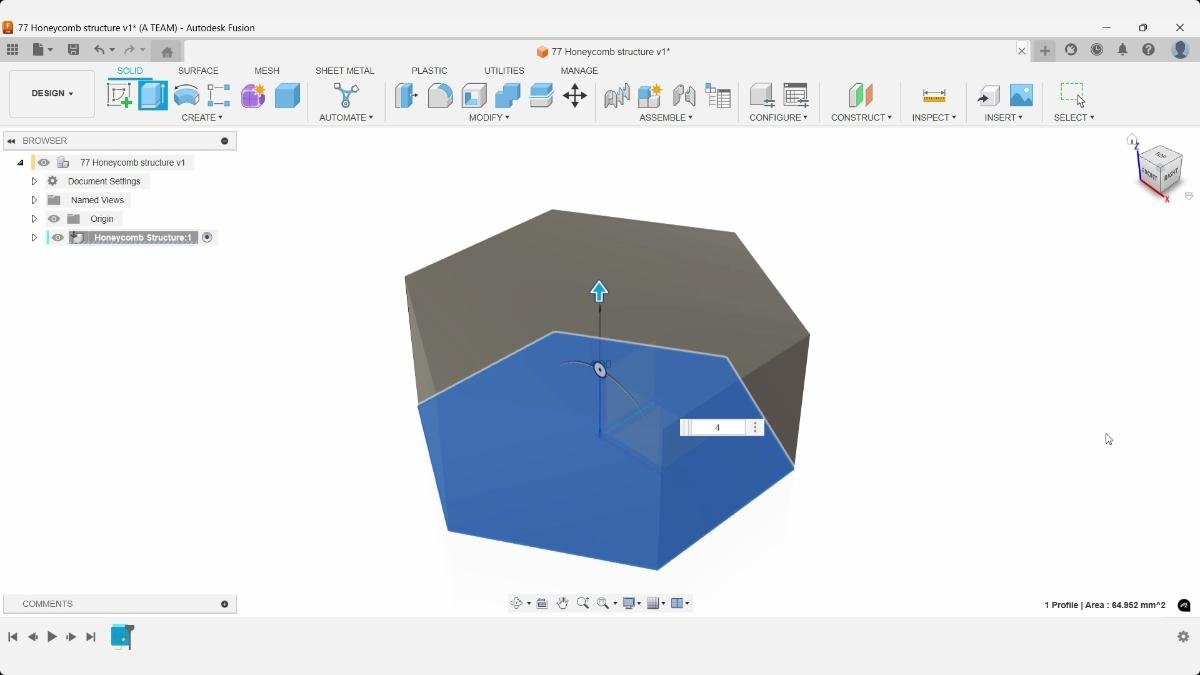

The hexagon profile is extruded 4 mm to create the base solid used for the repeating pattern. Converting the sketch into a body at this stage allows the Rectangular Pattern tool to duplicate solid geometry instead of sketch entities.
Step 2: Build the Honeycomb Pattern
Turn the sketch visibility back on in the browser—it’s essential for the next steps.
To create the pattern:
Change Object Type to Bodies if the solid polygon isn’t selectable.
Select both construction lines.
Set Distribution to Spacing and Direction to Symmetric for Axis 1 and Axis 2.

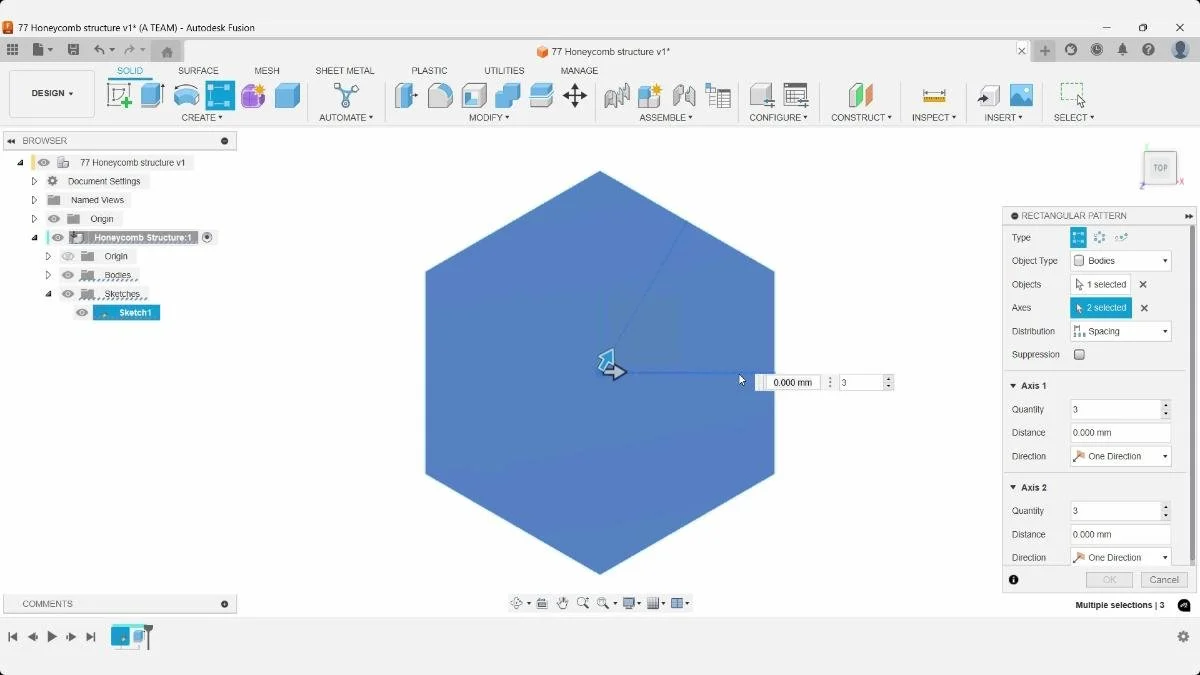

The Rectangular Pattern command is configured to duplicate the hexagon body. Patterning bodies preserves feature history and makes it easier to trim the geometry into the final shape later in the modeling process.
Remember: The distance between polygon centers isn’t the polygon radius. For a 5 mm radius, the center-to-center distance is about 8.66 mm. In this example, we’ll round it slightly to 9 mm for simplicity.

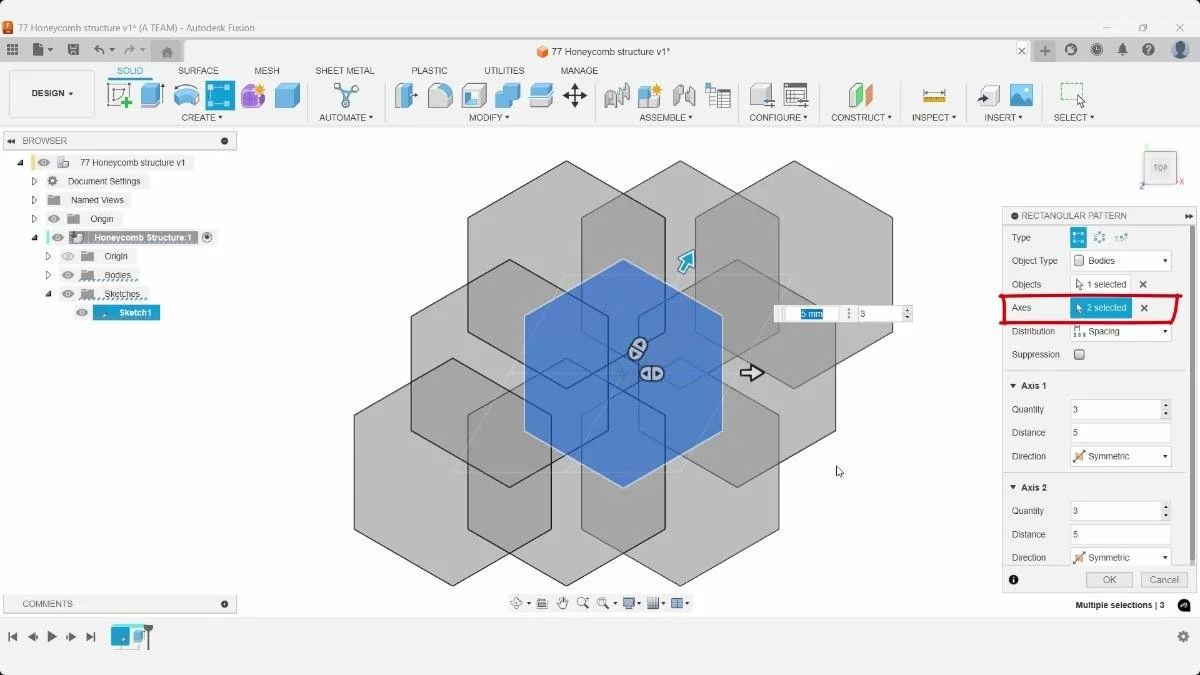

The two construction lines define the pattern directions, while the distribution is set to Symmetric. Expanding the pattern equally around the original body keeps the honeycomb grid centered on the model.
Increase the quantity of polygons until the pattern fully covers your planned shape. Creating extra elements now lets you trim excess later.

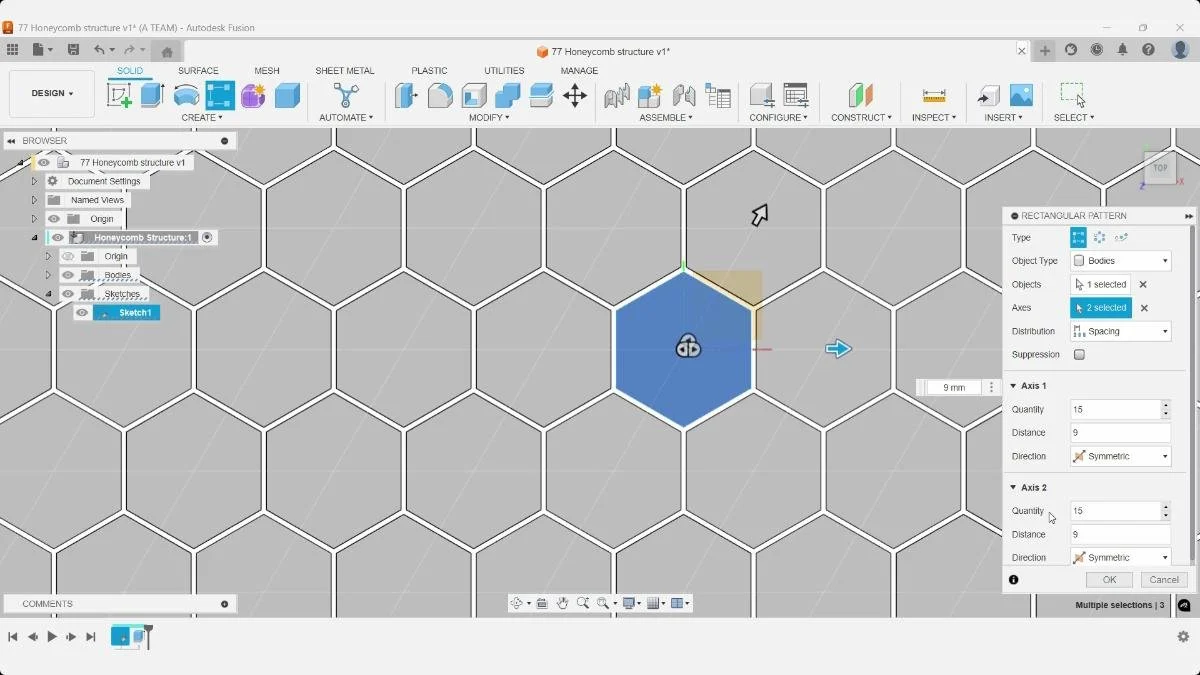

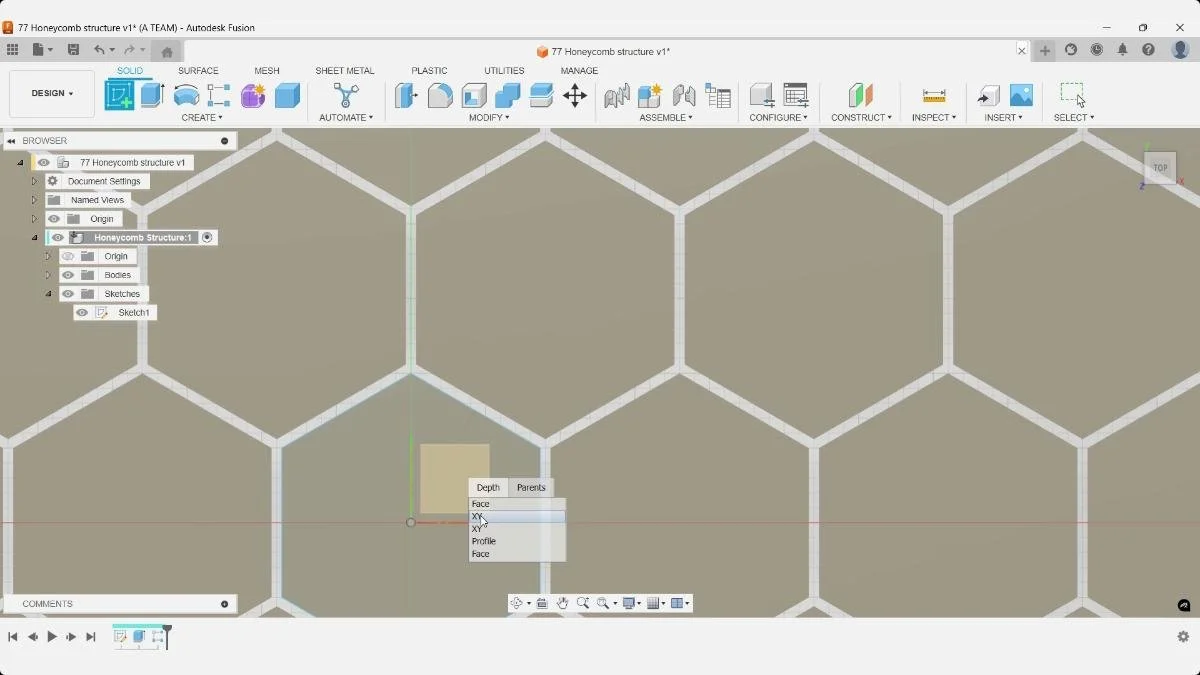

Pattern spacing is adjusted so adjacent hexagons align correctly without overlapping or leaving gaps. Generating a larger pattern than required ensures there is enough geometry to trim cleanly to the final outline.
Step 3: Define the Outer Shape
Next, sketch the outer shape of your design:
The finished honeycomb grid completely covers the intended design area. Creating the full pattern before defining the outer boundary simplifies the workflow because excess geometry can be removed in a single cut operation rather than adjusting individual cells.
Start a new sketch on the horizontal plane.
Draw a center diameter circle at 100 mm.
Offset a second circle for a border thickness of 1 mm (final diameter: 102 mm).
Align these circles to the honeycomb pattern for a clean edge.

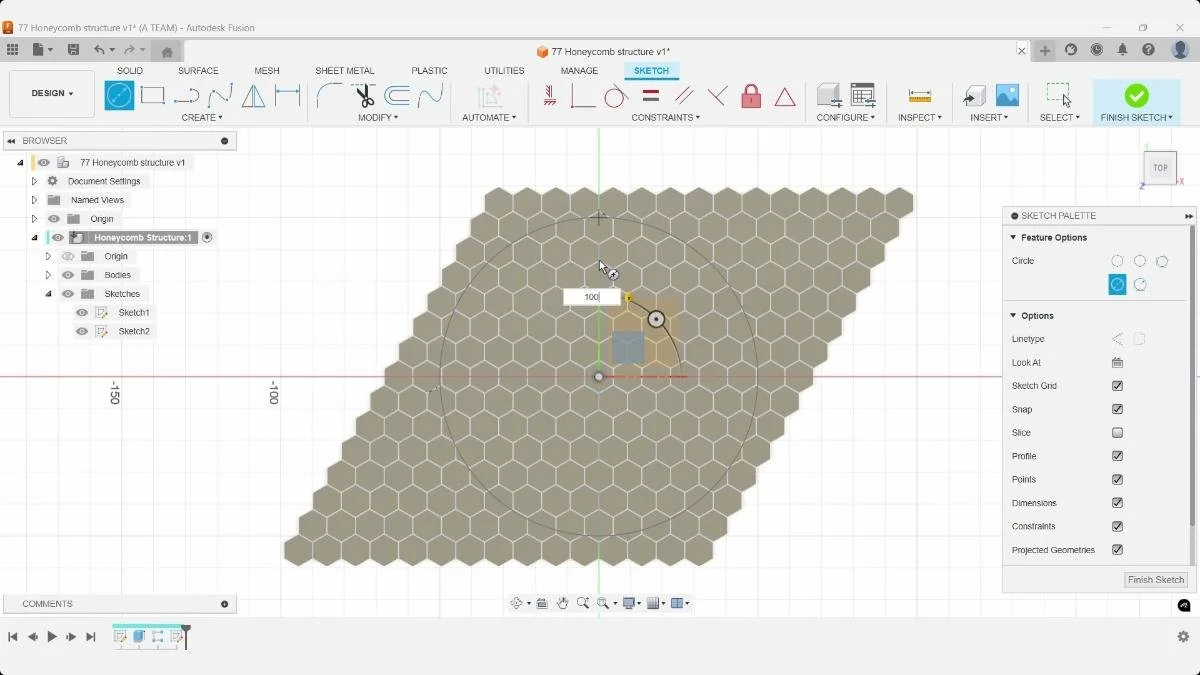

A center diameter circle defines the finished outline of the honeycomb design. Creating the boundary after generating the full pattern makes it possible to reuse the same workflow for different shapes by simply replacing the outer sketch.

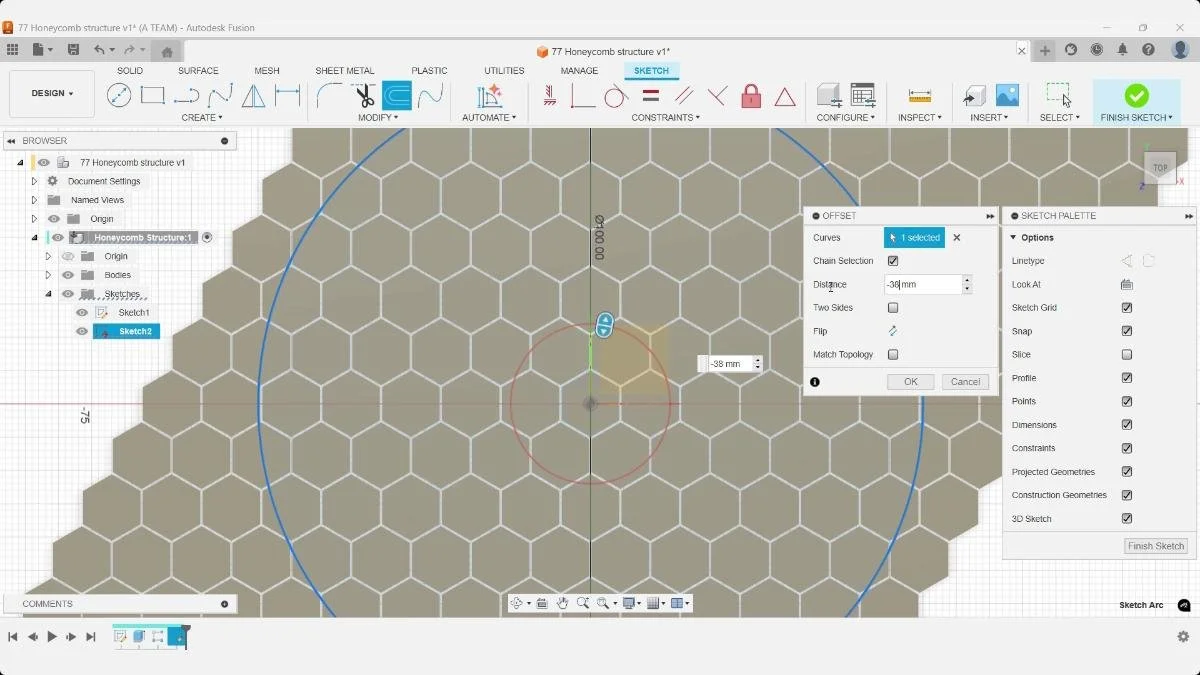

An offset circle creates a consistent border around the honeycomb pattern. Defining the border as sketch geometry ensures the frame maintains a uniform width even if the overall diameter changes later.
Step 4: Trim the Pattern to Shape
With your sketch ready:
Extrude it up to the top of the honeycomb pattern.
Turn off sketch visibility for easier selection.
Set your new body as the Target Body, and all honeycomb polygons as Tool Bodies.
Change the operation type to Cut.
This trims the honeycomb to your circular boundary.

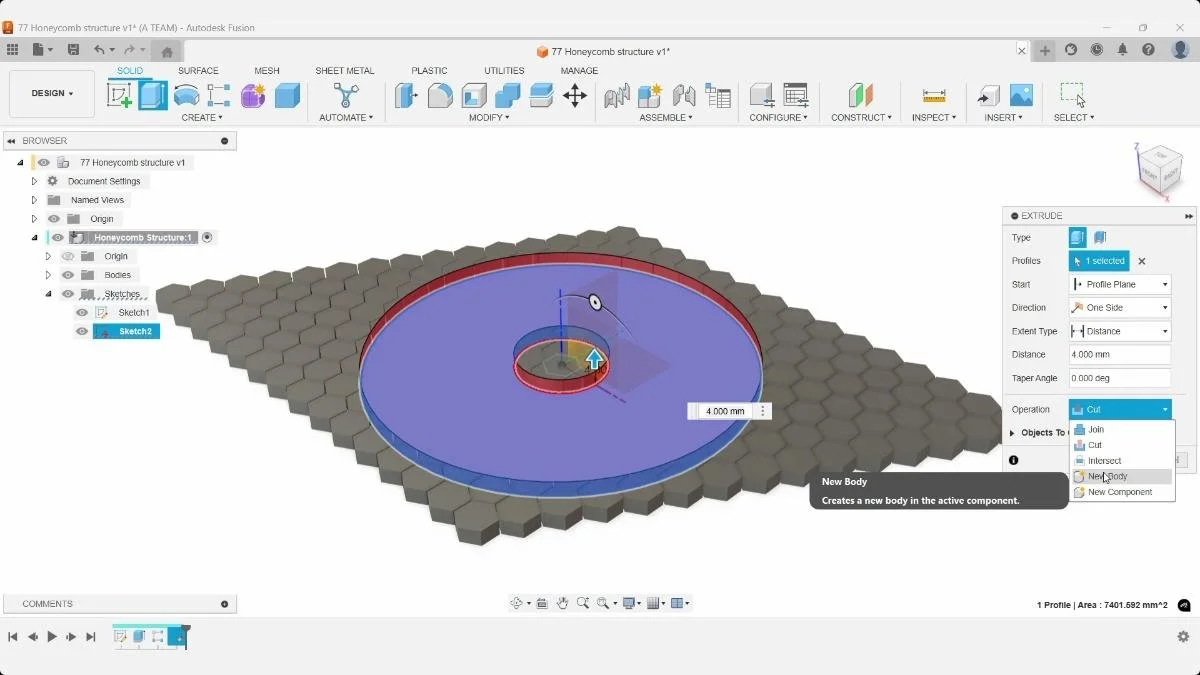

The circular profile is extruded upward to create a solid body that intersects the honeycomb pattern. Rather than trimming individual cells, this body becomes the cutting tool for a single Boolean operation.

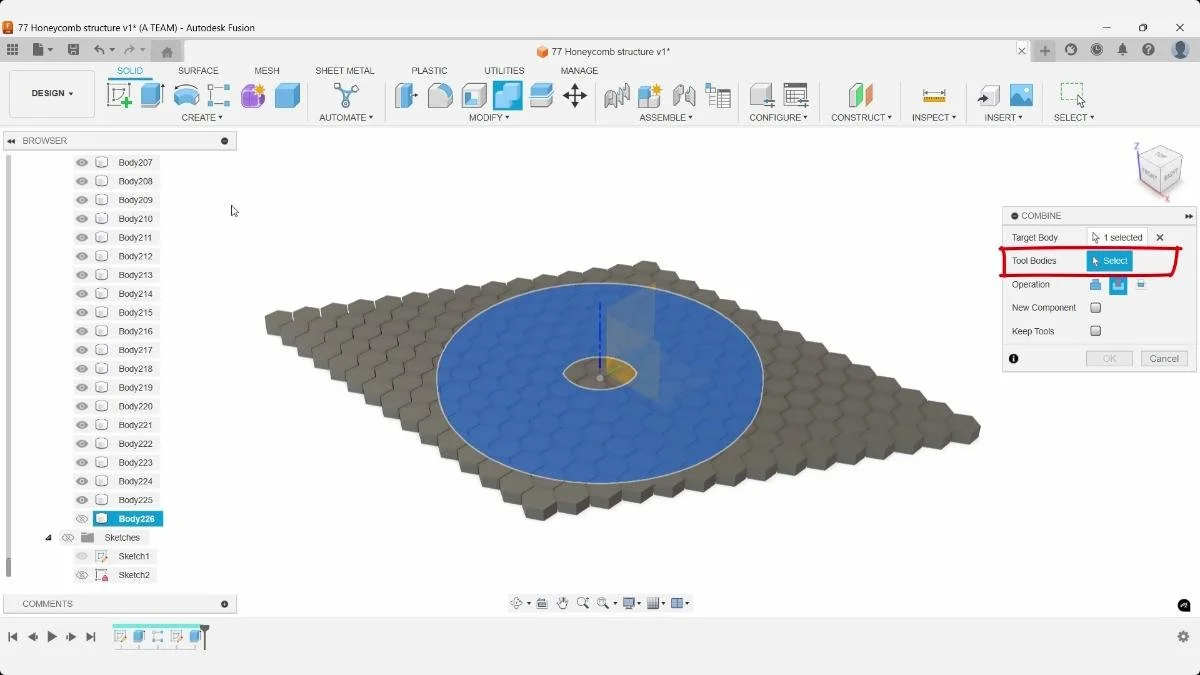

The newly extruded cylinder is selected as the target body before performing the cut. Defining the correct target and tool bodies is essential because the Combine command applies different results depending on the body roles.

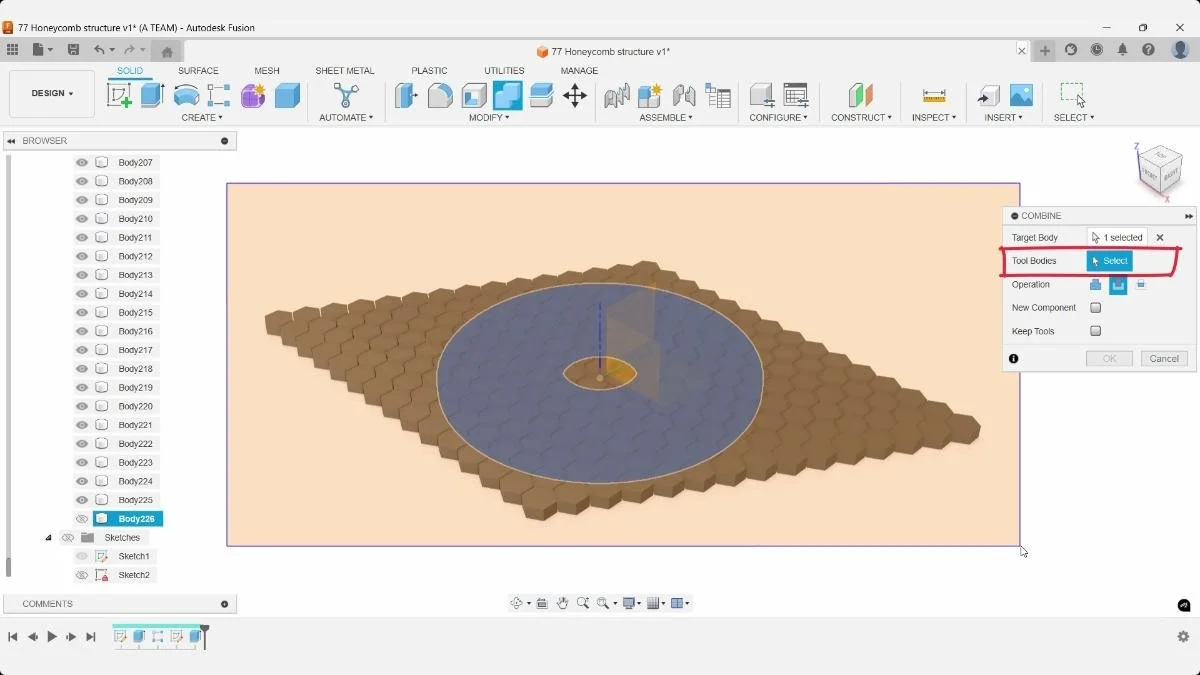

All hexagonal bodies are selected as tool bodies for the Combine operation. Window selection is an efficient way to capture a large number of patterned bodies without selecting each one individually.

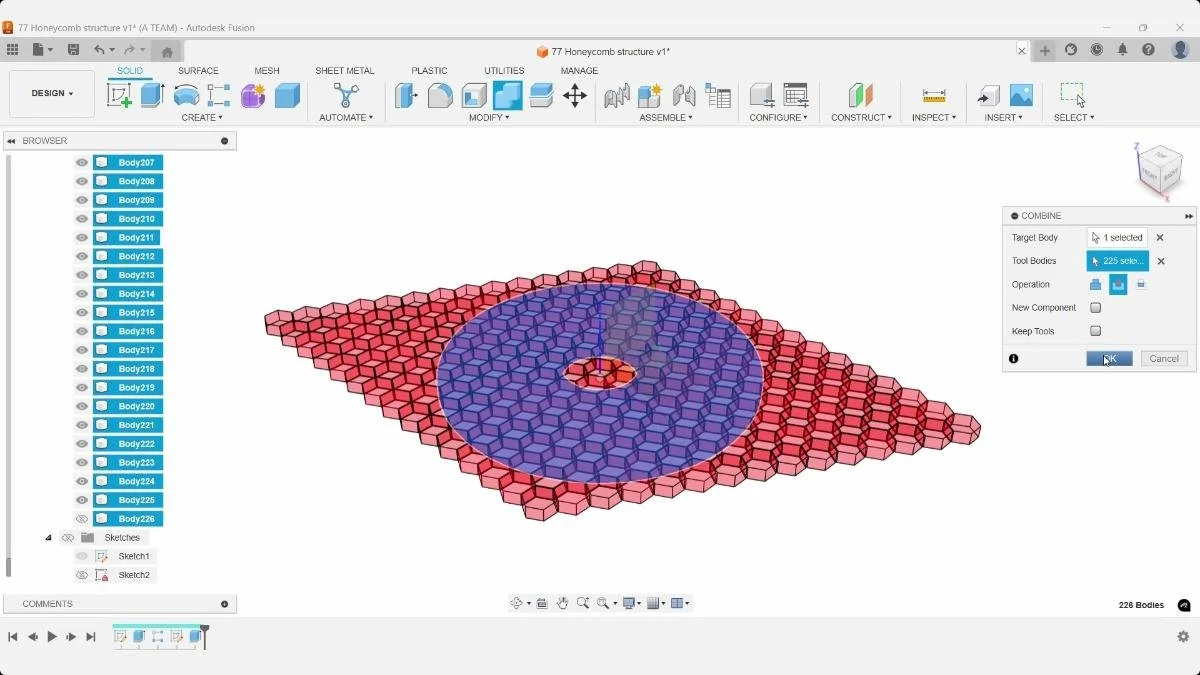

The Combine command trims the honeycomb pattern to the circular boundary in a single operation. Performing one Boolean cut is faster and more reliable than editing or deleting individual patterned bodies.
Step 5: Add an Outer Border
To strengthen your design and add a clean edge:
Use Surface Extrude on the outer circle.
Apply the Thicken command for both inner and outer circles (1 mm thickness).
Make sure the inner border thickness is applied inward to avoid overlapping the honeycomb pattern.

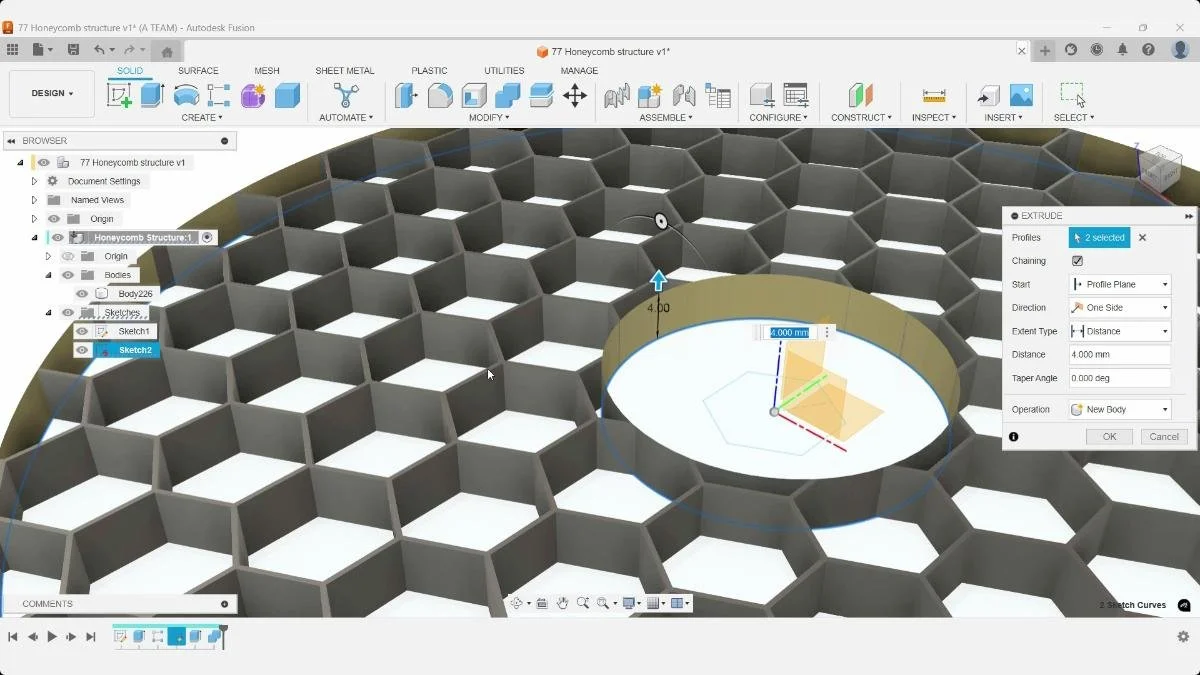

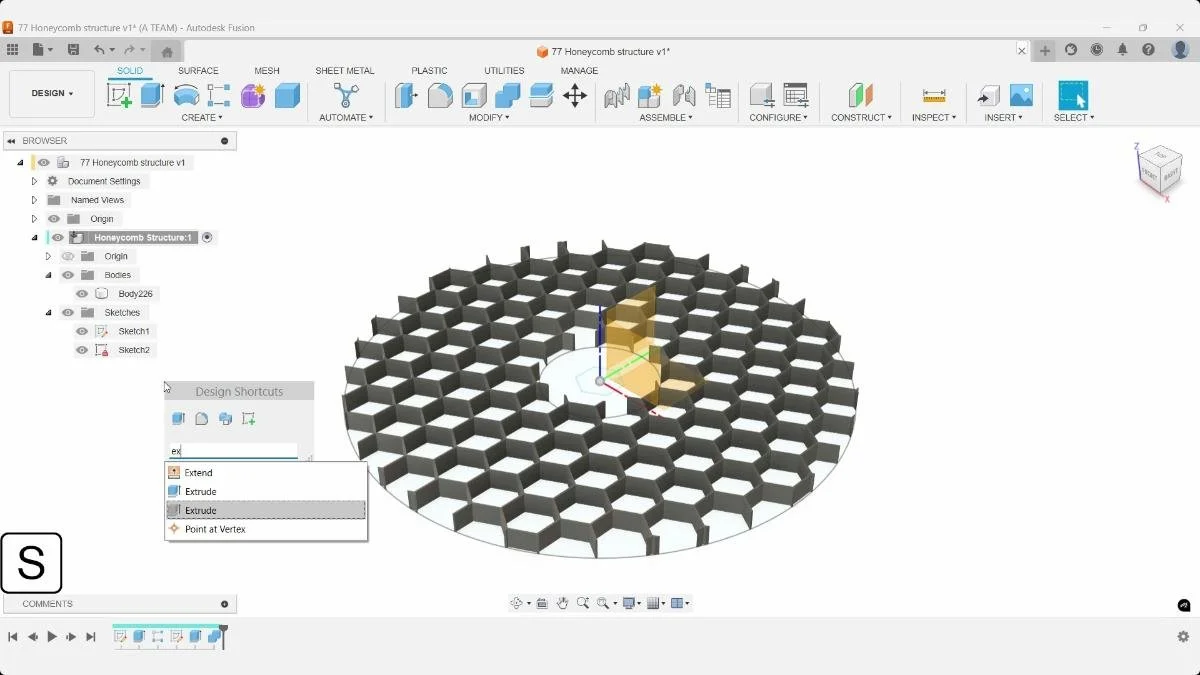

The outer circular profile is extruded as a surface rather than a solid. Surface features provide a lightweight way to create reference geometry that can later be converted into printable walls using the Thicken command.
A second surface extrusion creates the inner edge of the border. Defining the inner and outer surfaces separately provides precise control over the frame thickness before converting them into solids.

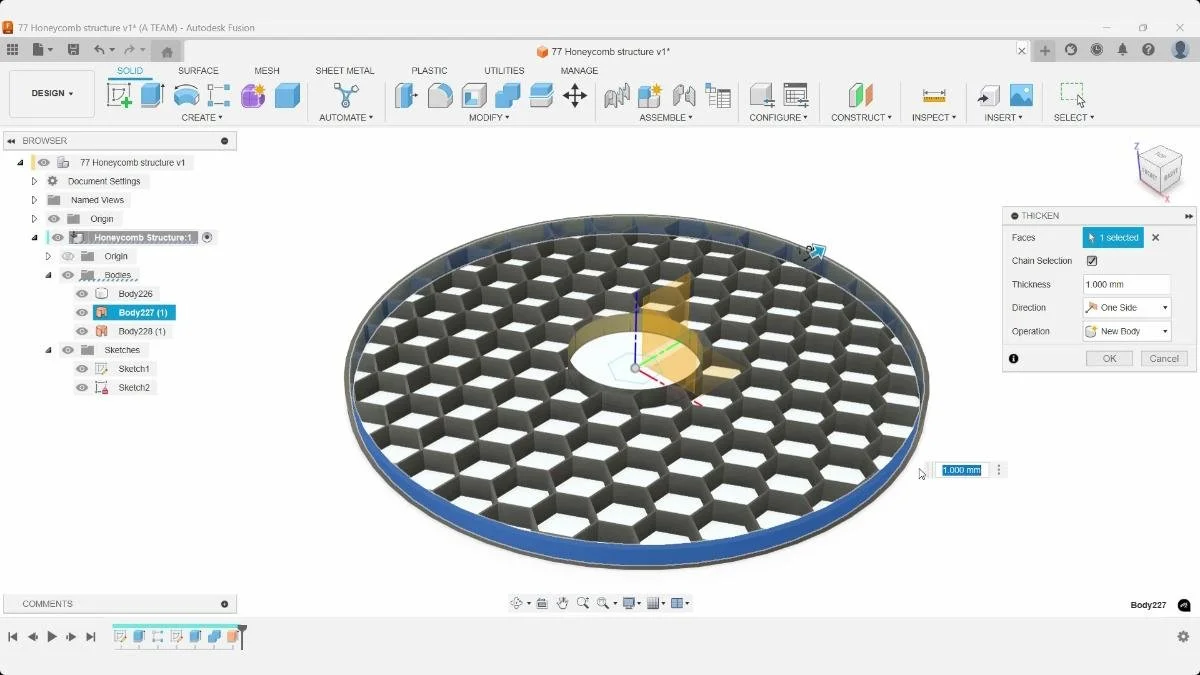

The outer surface is converted into a solid using the Thicken command. This approach preserves the original surface geometry while producing a printable wall with a controlled thickness.

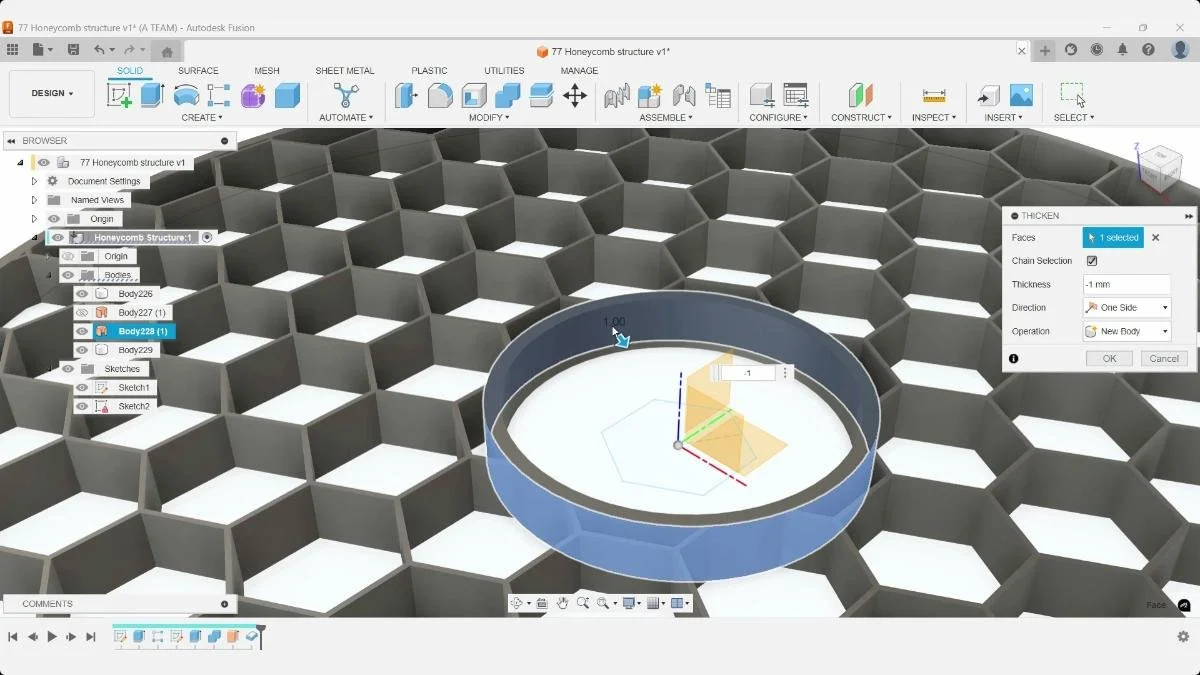

The inner surface is thickened inward to complete the border geometry without overlapping the honeycomb cells. Applying thickness in the correct direction prevents unwanted intersections and produces clean, manufacturable geometry.
Step 6: Refine with Fillets and Join Bodies
Adding fillets improves appearance and user experience—especially for 3D-printed objects. Select all exposed edges and apply a small radius.

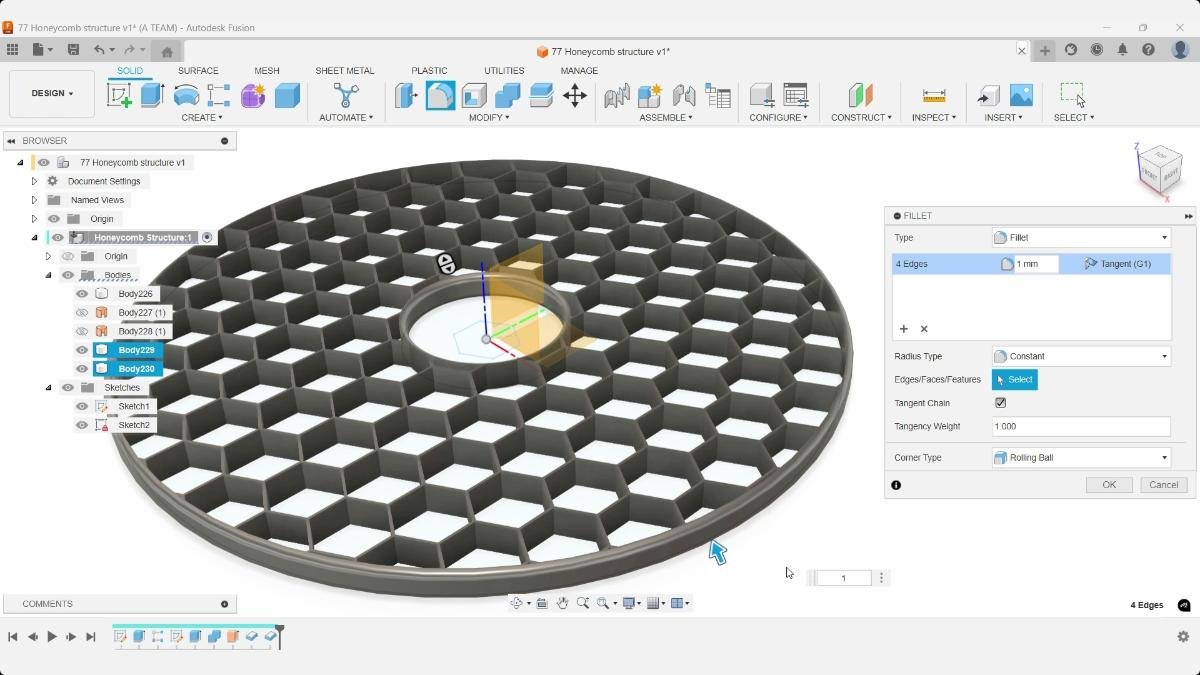

Small fillets round the exposed edges of the border to improve both appearance and usability. Rounded edges are generally more comfortable to handle and reduce sharp transitions that can sometimes affect print quality on FDM printers. Applying fillets before the final combine operation also keeps the feature timeline easier to manage.
When ready, join all bodies together:
Select your border as the Target Body.
Select all other parts as Tool Bodies.
Change the operation type to Join.
This simplifies your project and reduces clutter in the browser.

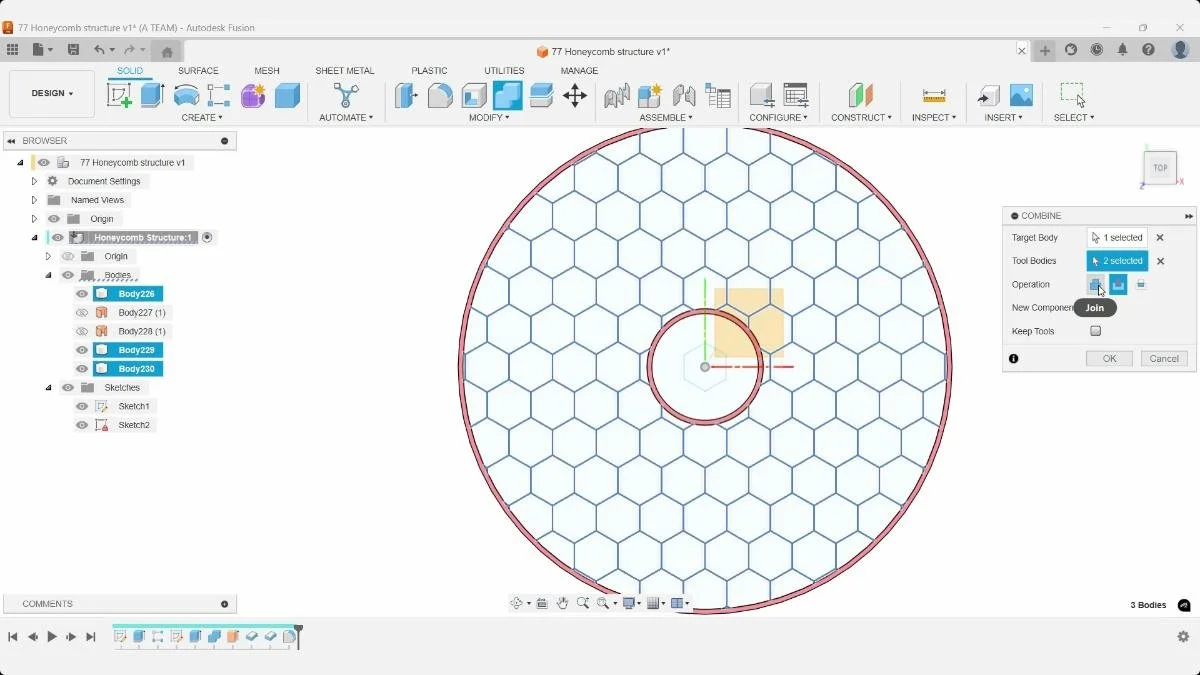

The border is selected as the target body while the remaining geometry is added using the Join operation. Merging the model into a single solid body simplifies the browser, produces a cleaner feature tree, and creates watertight geometry that is better suited for exporting as an STL file.
Step 7: Apply Finishing Touches
Before exporting for 3D printing, assign appearances to your model. Fusion’s library lets you preview materials and colors digitally.
Pro tip: Search for styles like glossy or matte, or combine with colors (e.g., “glossy yellow”) for faster results.

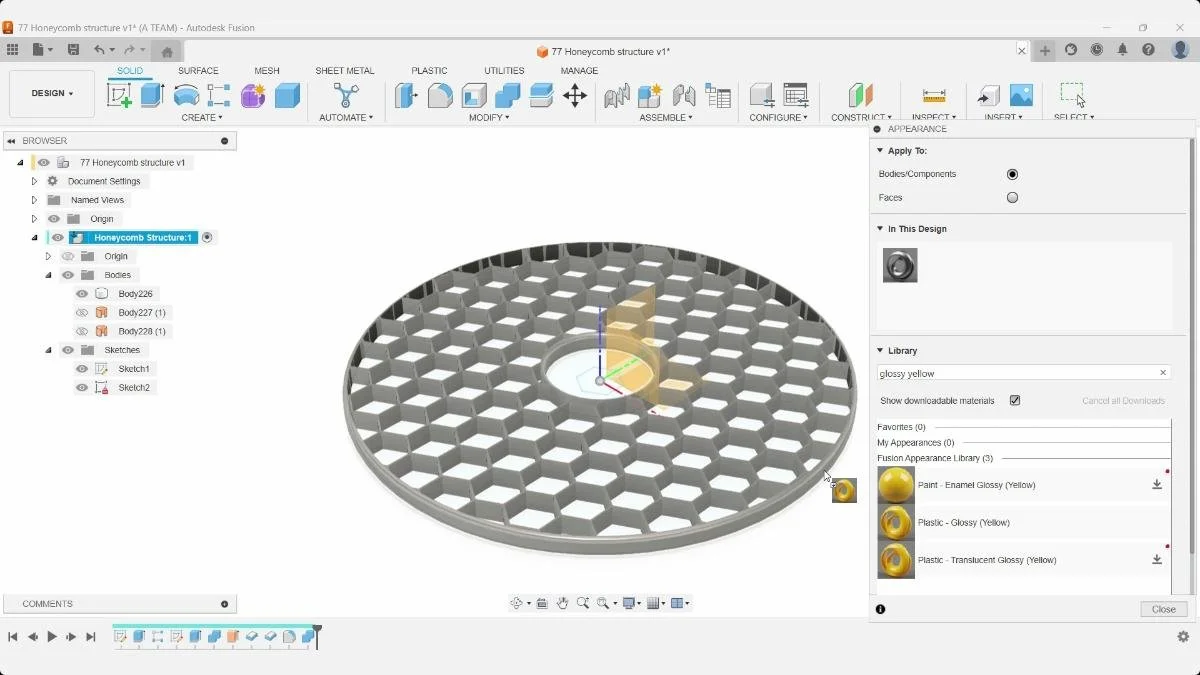

Fusion's Appearance workspace makes it possible to preview different materials and colors before 3D printing or rendering. Assigning appearances has no effect on the exported STL geometry, but it helps visualize the finished design and produce higher-quality presentation images for documentation, client reviews, or online publishing.
Bonus: Make Your Design Parametric
Since we built the honeycomb and outer shape using constraints and references, adjusting dimensions later automatically updates the whole design. This makes your pattern reusable for multiple projects.
Key Takeaways
- Surface and solid modeling complement each other, making it easier to create complex organic designs while keeping the model fully editable.
- Building only a small section of a symmetrical model significantly reduces design time and simplifies future changes.
- Surface lofts provide greater control over smooth, flowing geometry than solid features alone.
- Parametric sketches and spline-driven features make it easy to adjust the vase's proportions without rebuilding the model.
- The Emboss tool is an efficient way to add decorative details that follow curved surfaces.
- Thickening surfaces inward preserves the exterior shape, which is especially useful when designing to specific dimensions.
- Circular patterns allow you to create complex geometry from a single, well-designed feature.
- Considering wall thickness, print orientation, and watertight geometry early results in more reliable 3D prints.
