How to Model a Bottle Prototype in Fusion: A Step-by-Step Surface Modeling Guide
Updated July 5, 2026
Designing organic shapes for 3D printing doesn't always require complex solid modeling. Surface modeling gives you exceptional control over curves, transitions, and details, making it perfect for creating concept models, product prototypes, and printable designs with smooth, professional-looking geometry.
In this tutorial, you'll build a bottle prototype in Autodesk Fusion (formerly Fusion 360) using surface modeling techniques including Sweep, Split Face, Loft, Offset Face, Patch, and Stitch before finishing the model with grip-enhancing cutouts designed for 3D printing.
What You'll Learn
- How to create a bottle prototype using surface modeling
- Why sweeping an open profile requires surface modeling tools
- How to use Split Face and Offset Face to create recessed details
- How to repair failed Split Face operations
- How to convert surfaces into a solid body using Patch and Stitch
- How to create grip features using Pattern on Path
- Why simple sketches make parametric models easier to edit
- Best practices for preparing a model for 3D printing
Watch the Workflow — or Read It Step by Step
You can follow this guide in two ways:
- Read the steps below if you want quick written instructions, reference images, and modeling notes.
- Watch the full video at the end of this post to see the workflow in real time — including extra tips, camera angles, and shortcuts that don’t fit neatly into text.
Both formats build on each other.
Reading helps you understand why each step matters, while watching shows how to move faster in Fusion.
Step 1. Create a New Component
Start by creating a new component.
This keeps your bottle prototype organized from the beginning and follows one of the most important Fusion workflows. Keeping each design inside its own component makes assemblies, edits, and future reuse much easier.

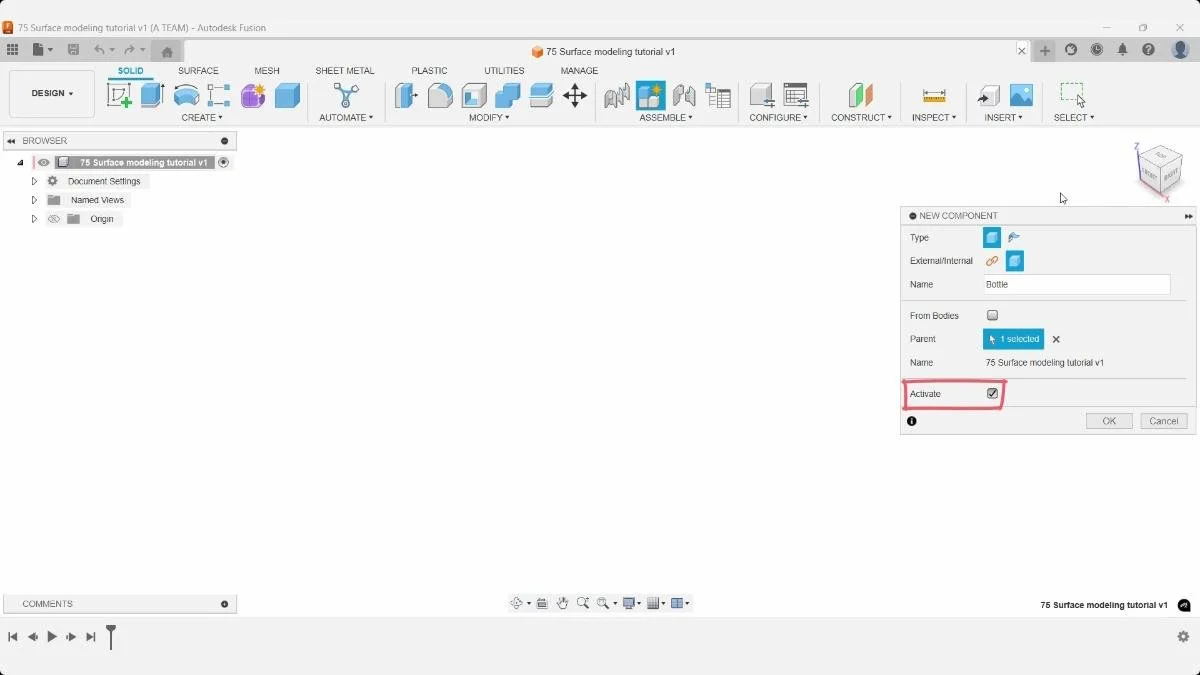

Start by creating a dedicated component before modeling any geometry. Keeping the bottle inside its own component creates a cleaner timeline, simplifies future assembly work, and keeps sketches and bodies organized as the project grows.
Step 2. Sketch the Bottle Profile
Create a sketch on the horizontal construction plane.

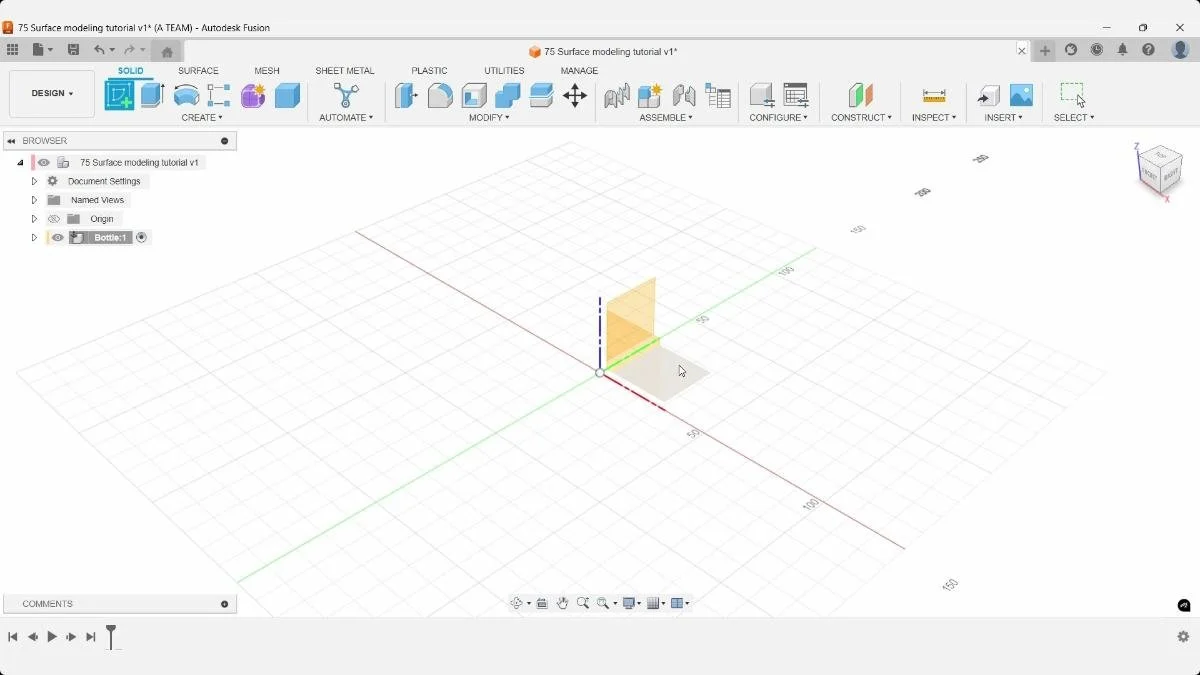

The origin and default construction planes define the model's coordinate system. Centering the design on the origin makes it easier to mirror geometry later and keeps sketches aligned with the primary reference planes.
Use the Center Diameter Circle and place it directly on the origin so the model stays centered on the construction planes.
Use these dimensions:
- Circle diameter: 100 mm

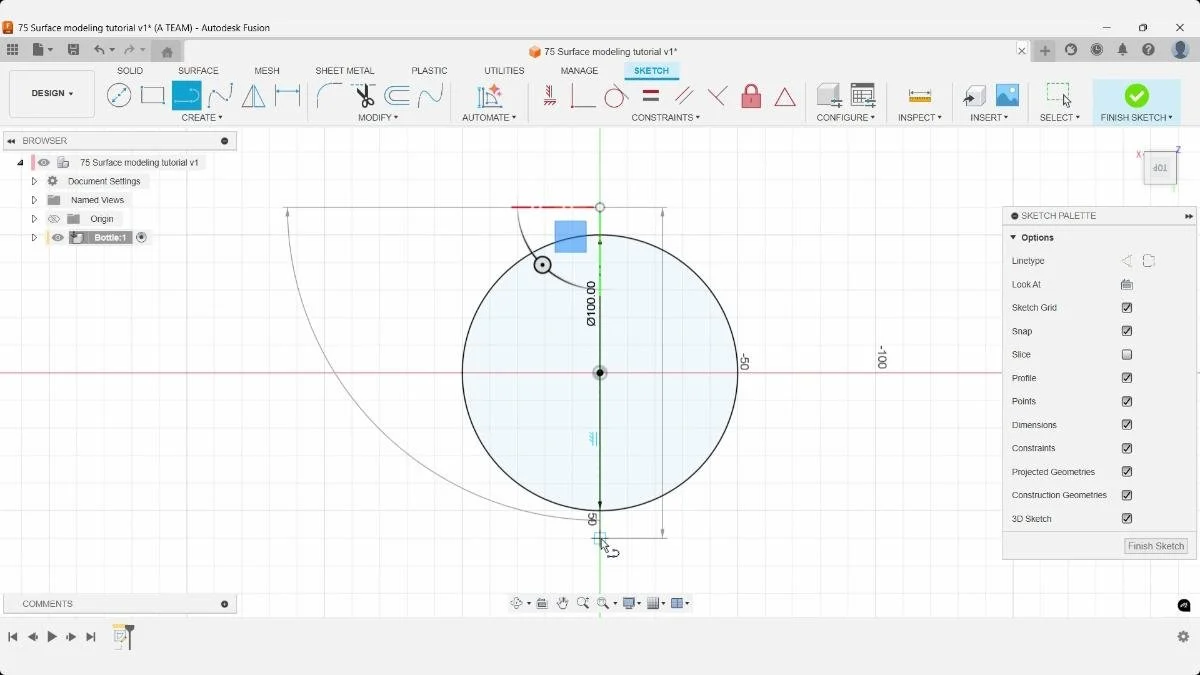

A Center Diameter Circle creates the starting profile for the bottle. Positioning the circle at the origin ensures the model remains symmetric around the construction planes while the 100 mm diameter establishes the overall bottle width.
Draw a line through the center of the circle.

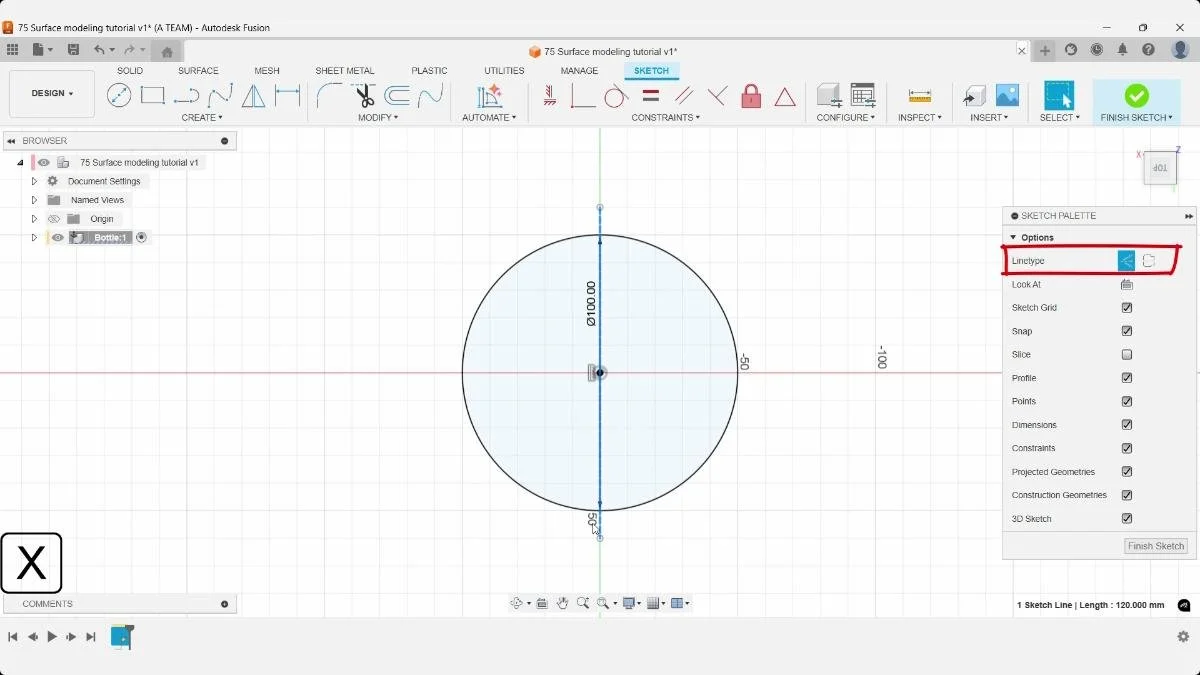

A vertical sketch line is converted into construction geometry to create a mirror reference. Construction lines guide sketch relationships without contributing to the profile used for modeling operations.
Convert the line into a construction line, then trim away one half of the circle.

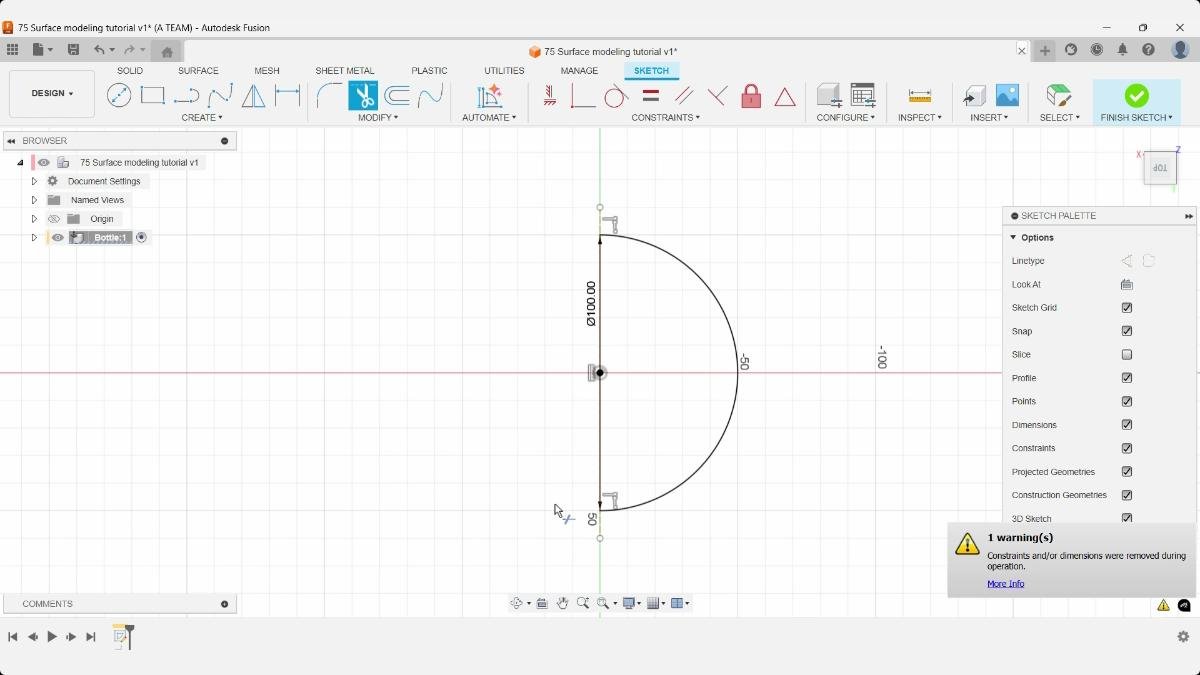

Only one half of the circular profile is retained before creating the surface model. Modeling half of a symmetric object reduces sketch complexity and allows the finished geometry to be mirrored later.
Modeling only half the bottle reduces sketch complexity and allows you to mirror the finished surfaces later for perfect symmetry.

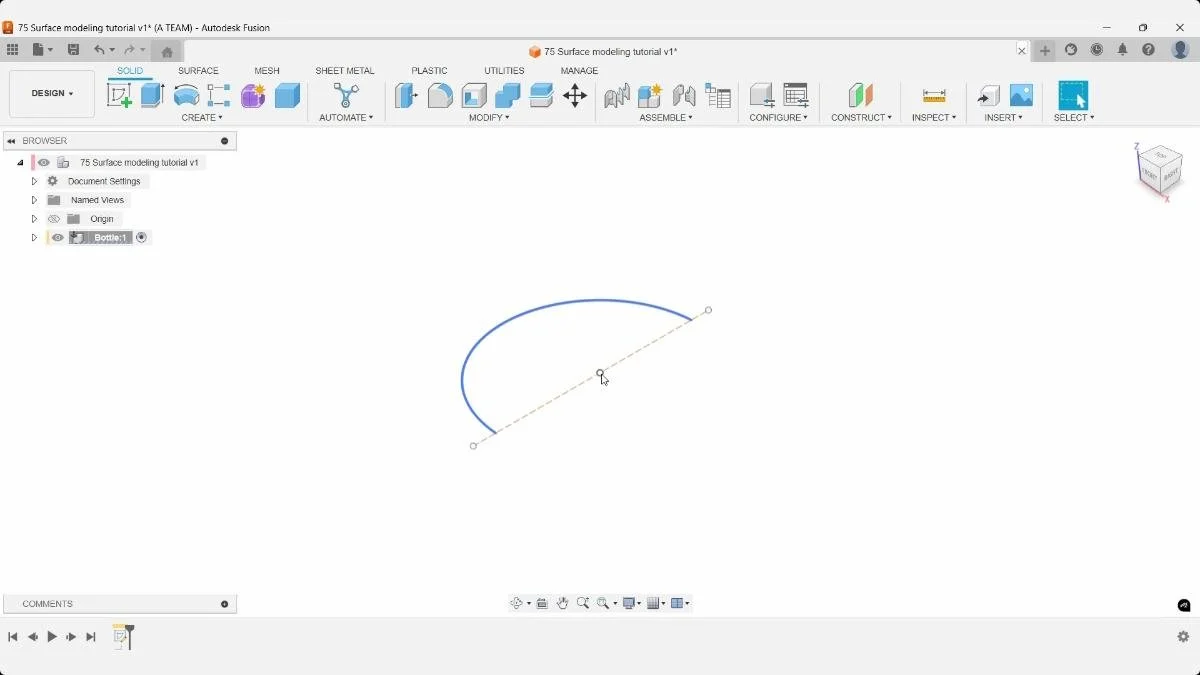

The trimmed semicircle becomes an open profile suitable for surface modeling. Open profiles generate surface bodies instead of solids, providing greater flexibility when creating organic shapes.
Step 3. Create the Sweep Path
Create a new sketch on the vertical construction plane.
Use a Fit Point Spline beginning at the origin.
The spline forms the centerline that controls the bottle's overall shape.

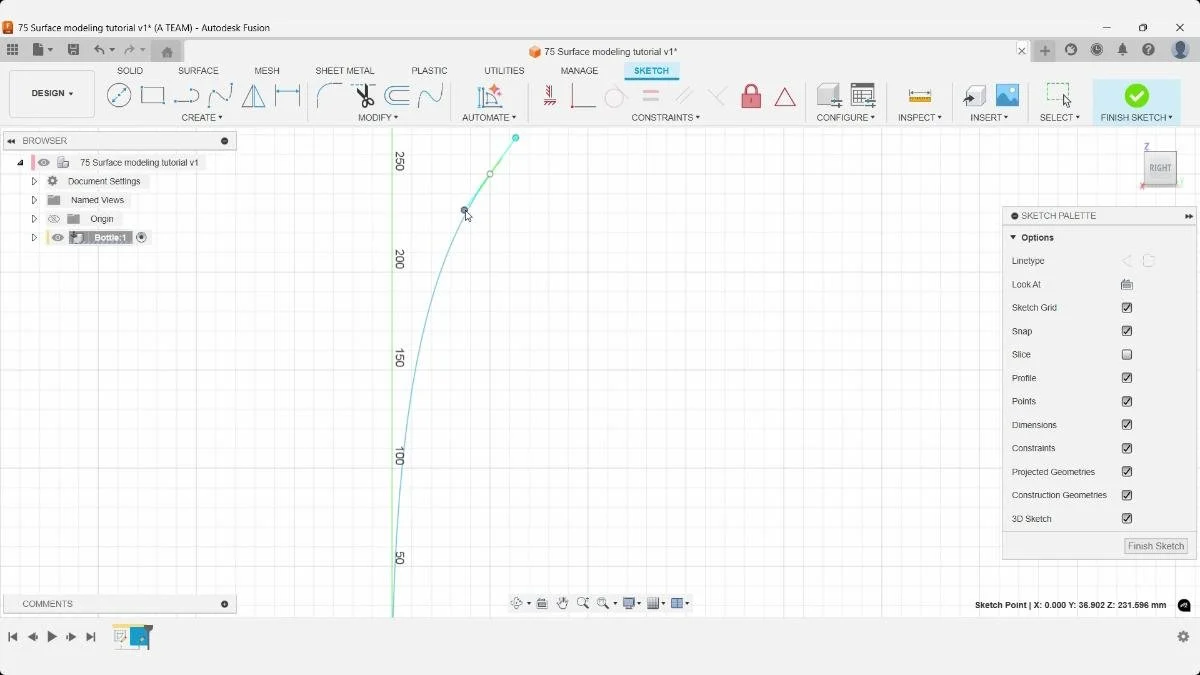

A Fit Point Spline creates the path that controls the bottle's overall curvature. Individual spline points and handles make it easy to refine the silhouette without rebuilding the sketch.
For this demonstration:
- Dimension: 50 mm
The Fit Point Spline is an excellent choice because its green control handles make it easy to refine the curvature without rebuilding the sketch.

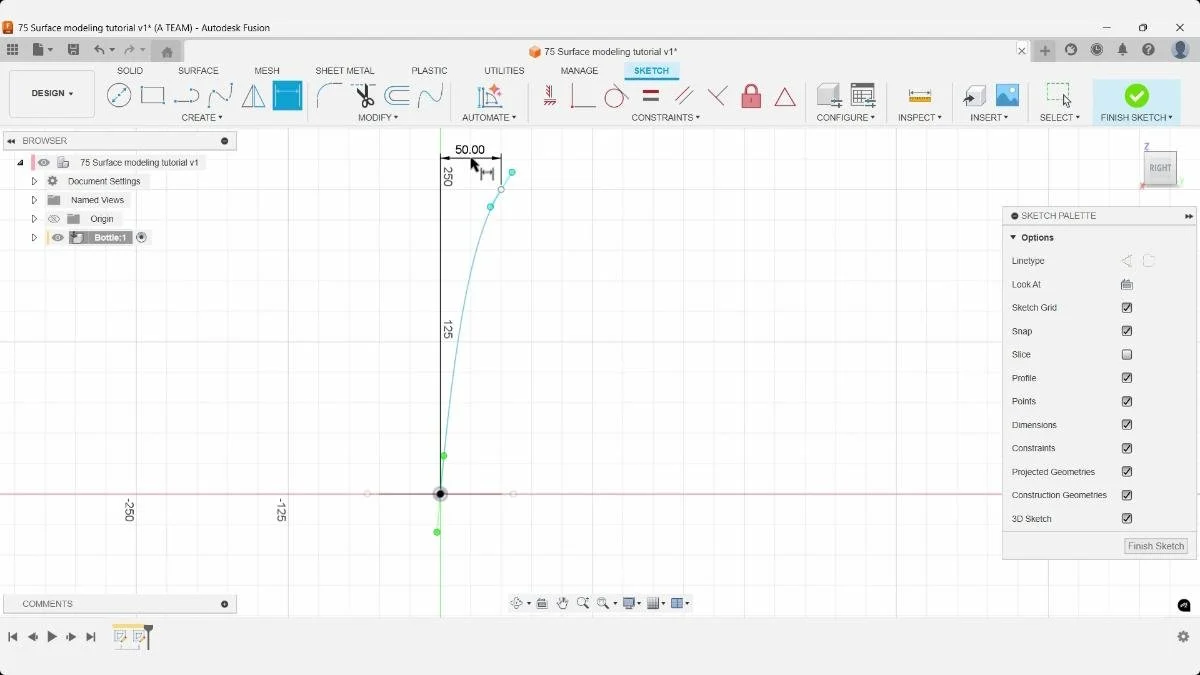

Applying a 50 mm dimension constrains the spline while still allowing smooth adjustments through its control handles. Adding dimensions early helps maintain predictable edits throughout the parametric timeline.
Step 4. Sweep the Surface
Switch to the Surface workspace.

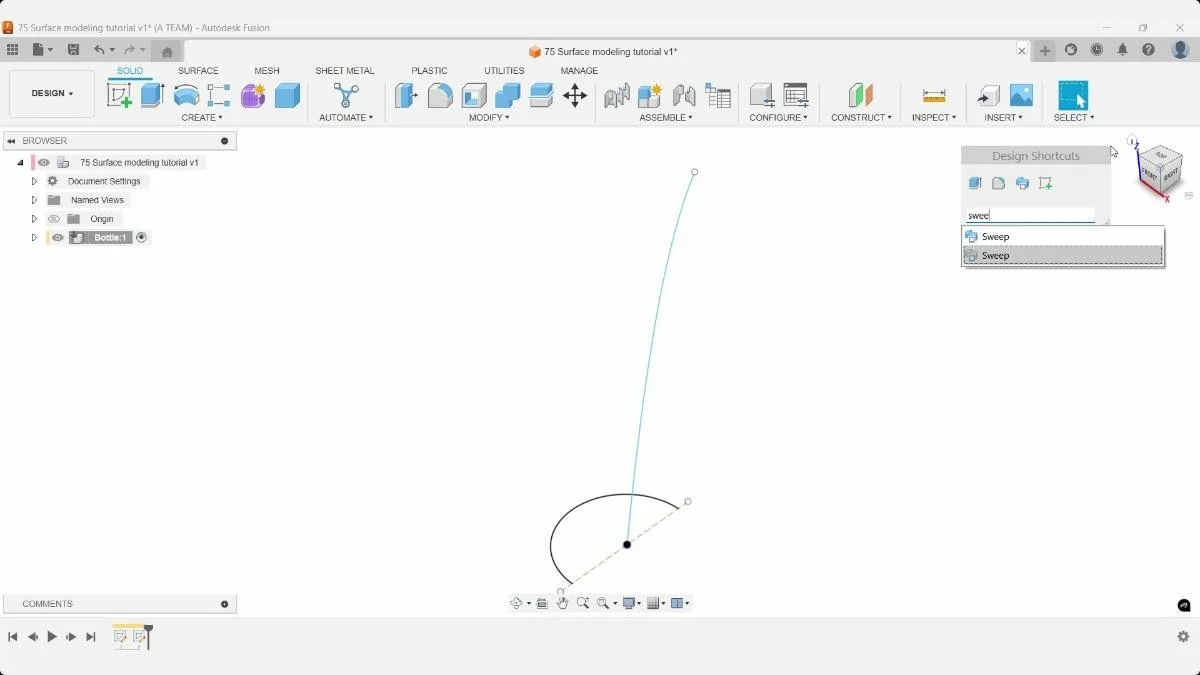

Use the Sweep command.
The Sweep command creates geometry by moving a profile along a path. Since the profile is open, the operation produces a surface body rather than a solid, making it ideal for this workflow.
Select:
- Profile: half circle
- Path: spline
- Settings: Default
Because the profile is open, a surface sweep is the correct modeling method.
Surface modeling allows you to build complex organic geometry that can later be converted into a solid after all major design decisions have been made.

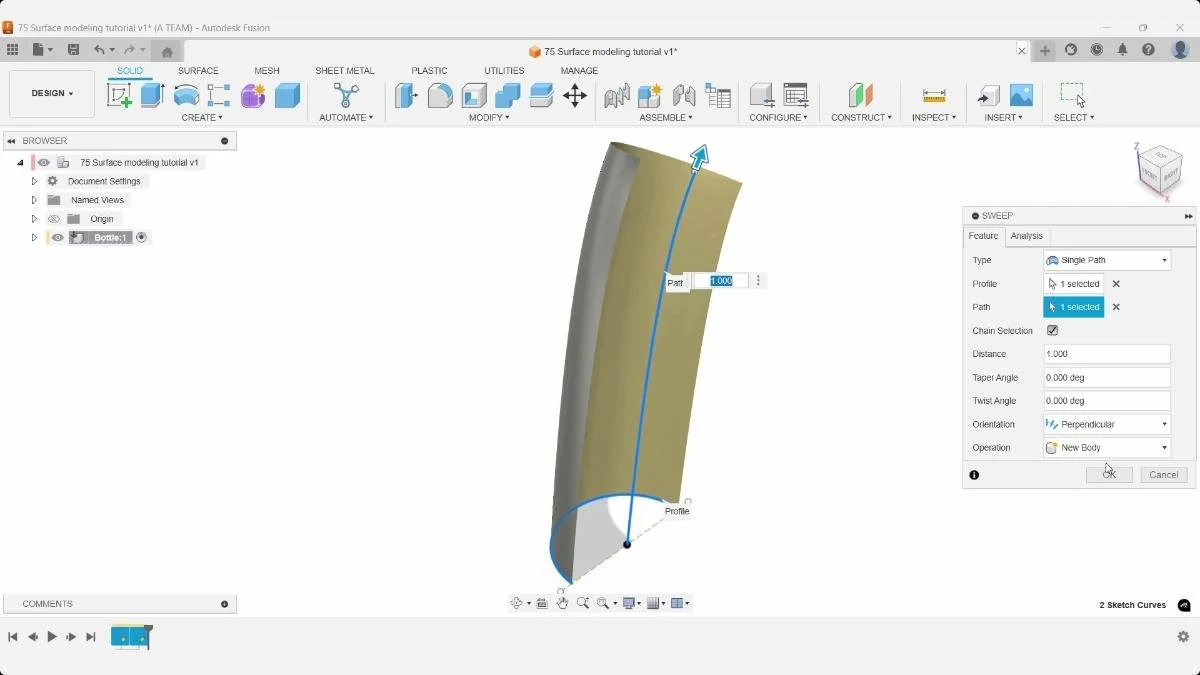

The half-circle profile is swept along the spline to generate the primary bottle surface. Surface modeling allows the overall form to be developed first before adding recessed details and eventually converting the model into a solid body.
Step 5. Create the First Cutting Surfaces
Rotate the model and switch to the Left View using the ViewCube.
Create a sketch on the vertical construction plane.
Draw a 3-Point Arc that slightly overlaps the existing surface.

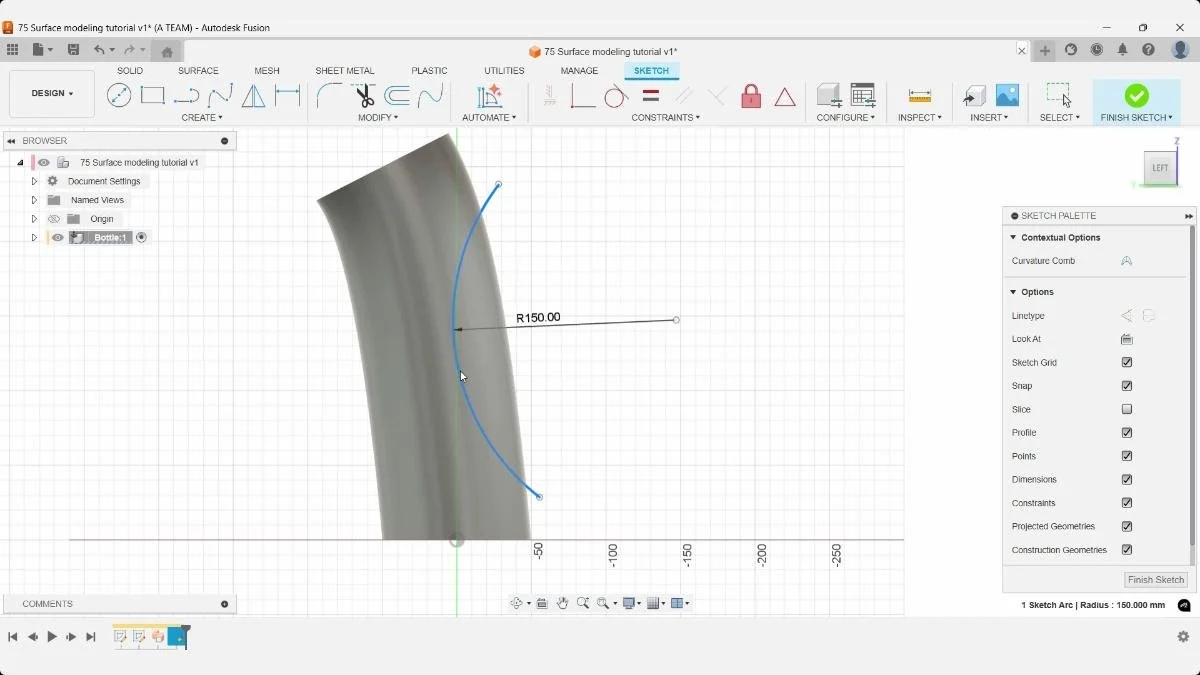

A 3-Point Arc is positioned to overlap the existing surface. The arc defines the boundary for a recessed panel and remains easy to reshape as the bottle design evolves.
The arc remains intentionally underdefined so you can freely adjust its shape.
Next:
- Offset distance: 10 mm

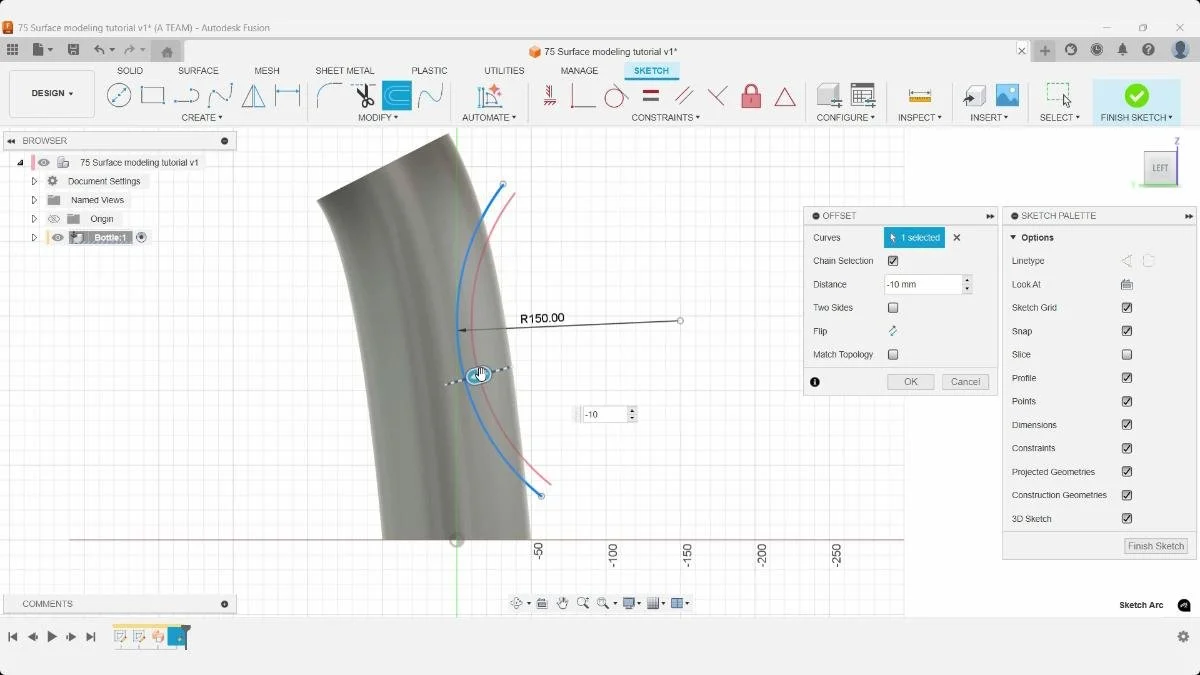

The Offset tool creates a second arc with a 10 mm spacing. Maintaining a linked offset allows both curves to update together, producing a consistent-width recessed feature while reducing sketch edits.
This creates a second arc while allowing the first arc to control both profiles simultaneously.
Extrude both arcs using the Surface Extrude command.
The exact extrusion distance isn't important.
Simply extend them completely through the bottle with additional margin.
For 3D modeling in general, oversized cutting surfaces are often more reliable than trying to terminate them exactly at the model boundaries.

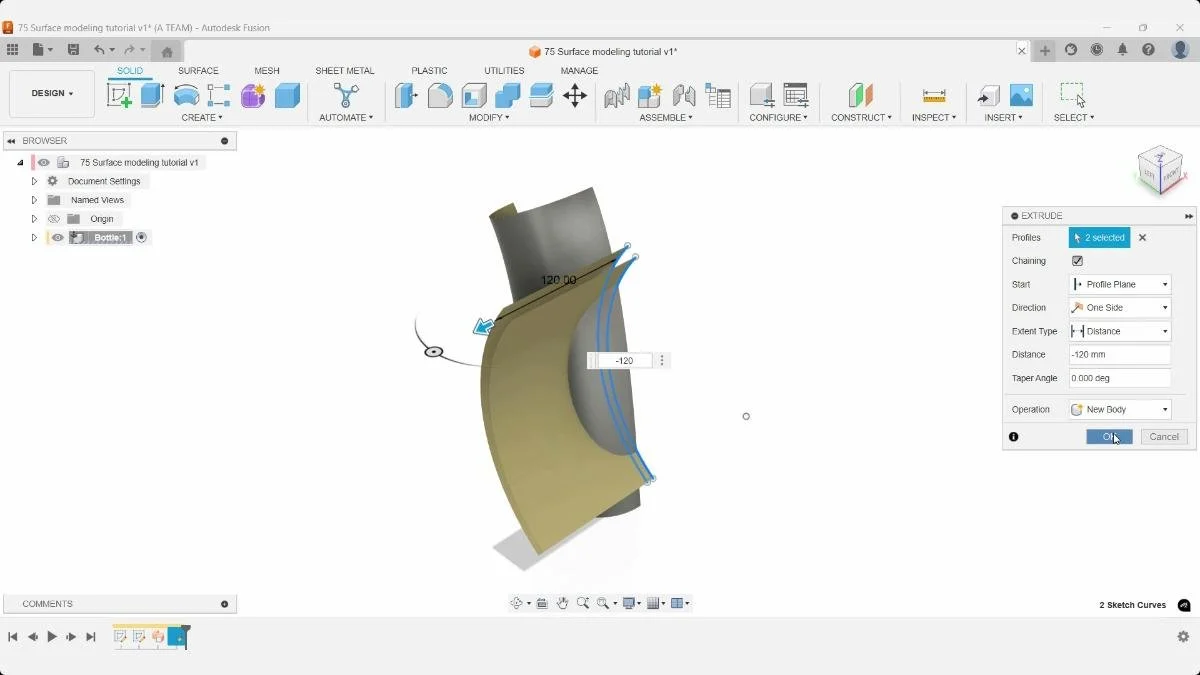

Both arc profiles are extruded as surface bodies that extend well beyond the bottle geometry. Oversizing construction surfaces improves reliability because they fully intersect the model during later surface operations.
Step 6. Split the Surface
Use Split Face.
Select:
- Face to Split: original bottle surface
- Splitting Tool: the two extruded surfaces

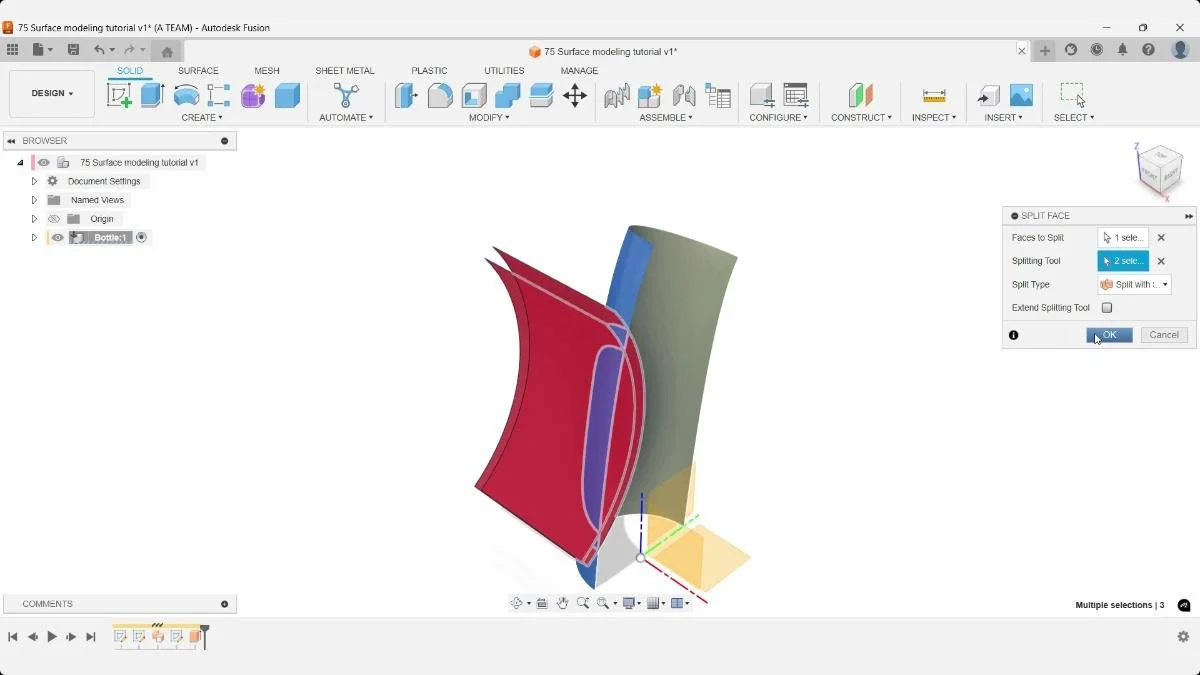

The Split Face command divides the bottle surface using the two extruded surfaces as splitting tools. Splitting creates separate surface regions that can be modified independently without changing the overall bottle shape.
After the split:
- Delete the newly created surface section.
- Hide the two splitting surfaces.
Keeping construction geometry hidden makes complex surface models much easier to work with.

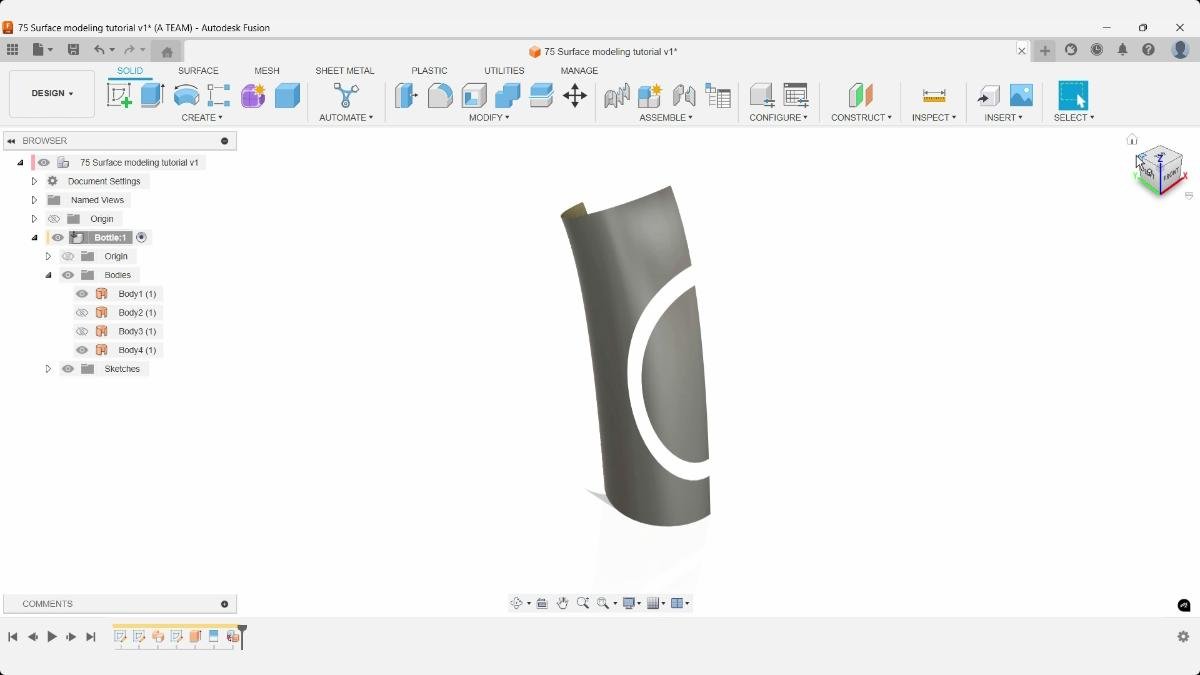

After the split operation, the unwanted surface section is removed while the remaining surface bodies define the recessed panel area. Hiding temporary construction surfaces keeps the Browser and workspace easier to manage.
Step 7. Create the Recessed Panel
Select the smaller visible surface.
Use Offset Face.
Offset:
- -5 mm
This creates a second surface body positioned inside the original surface.

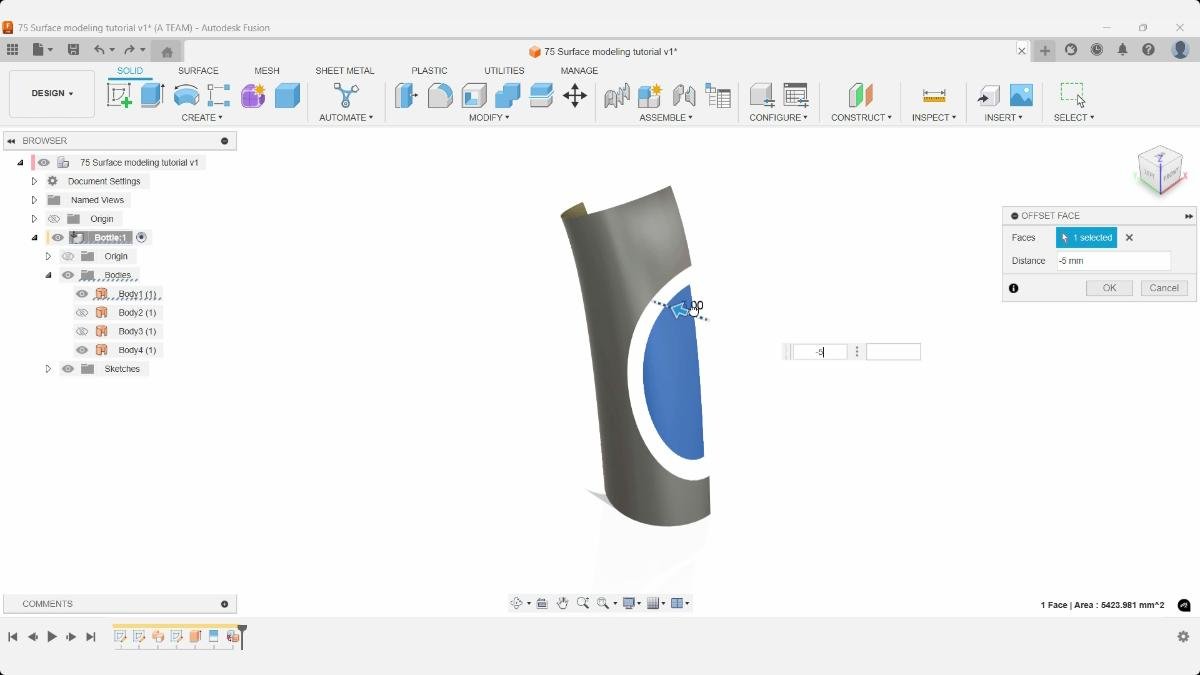

Offset Face moves the selected surface 5 mm inward, creating a second surface body inside the original. Working with Offset Face preserves the surrounding geometry while generating a clean recessed feature.
Then connect both surfaces using Loft.
The tutorial uses a straight transition, although Fusion also offers:
- G0
- G1
- G2 continuity
These options provide increasing levels of smoothness between surfaces and become increasingly useful when creating production-quality consumer products.

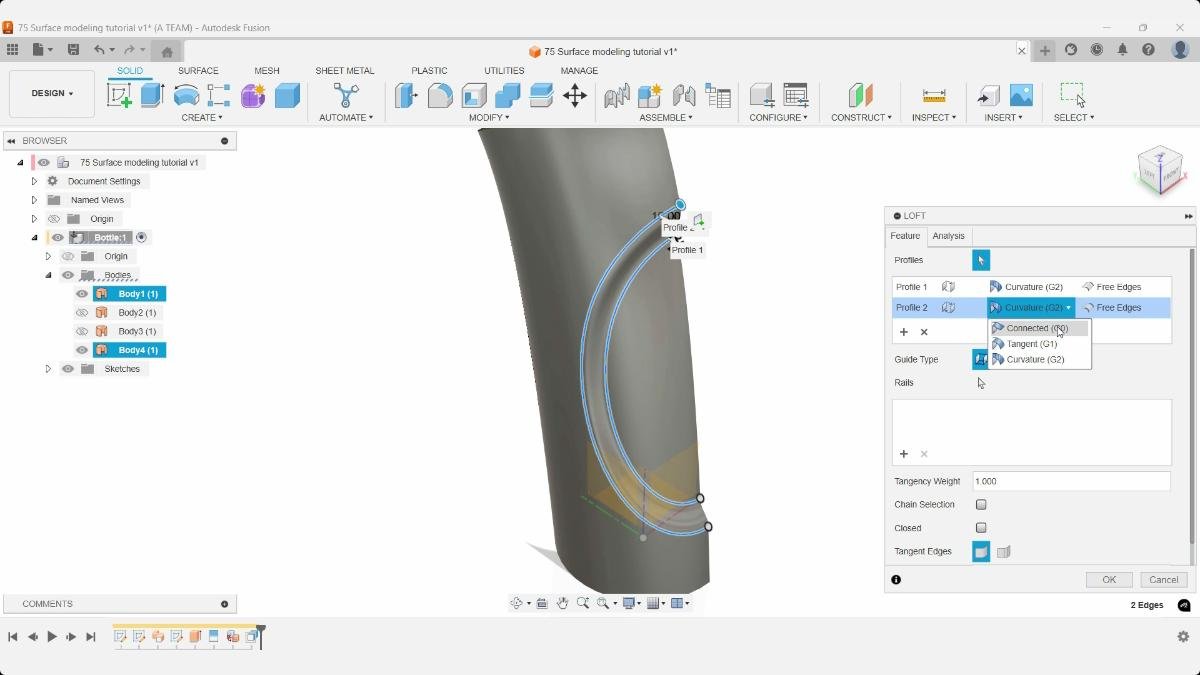

The Loft command creates a smooth transition between the original surface and the recessed offset surface. Fusion also offers G0, G1, and G2 continuity options for controlling tangency and curvature when designing more advanced surface models.
Step 8. Create the Second Surface Split
Switch to the Left View.
Create another sketch on the rear vertical construction plane.
Project the upper edge of the bottle.
The Project command copies an existing edge into a new sketch while keeping the projection linked. Linked geometry updates automatically when the original model changes, helping maintain a robust parametric workflow.
Create two offsets:
- First offset: 20 mm
- Second offset: 25 mm
An offset sketch line is created 20 mm from the projected edge. This line defines the first cutting surface used to create the upper recessed detail while remaining associated with the original projected geometry.

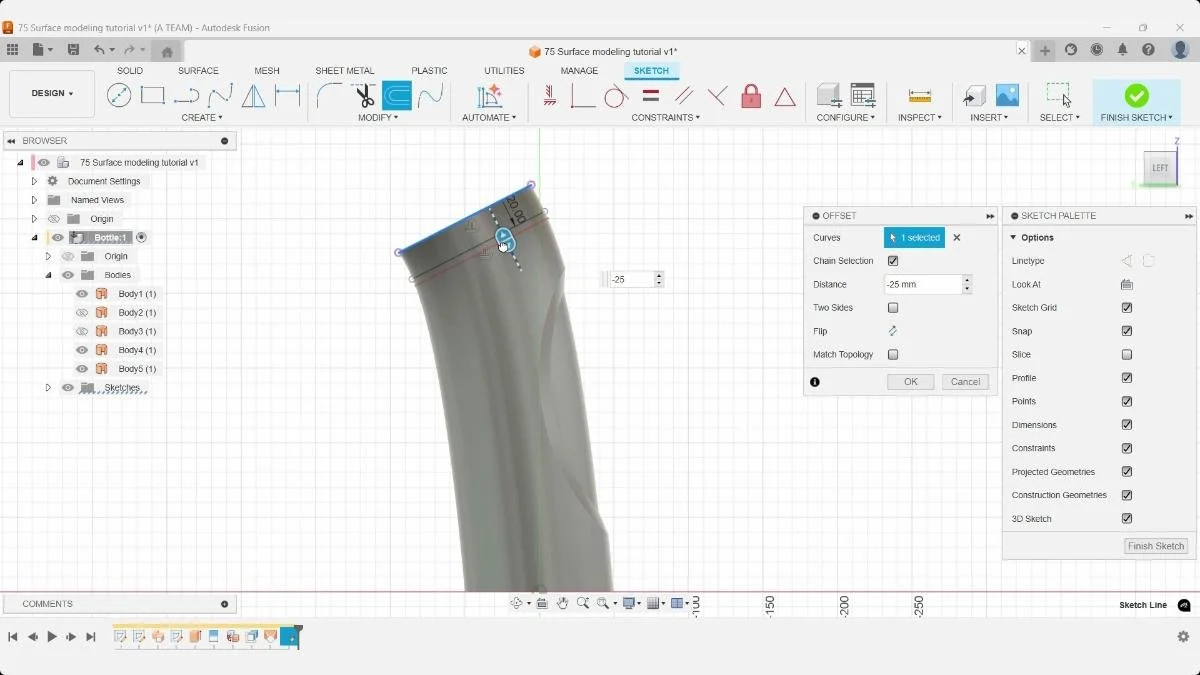

A second offset line is created 25 mm from the projected edge using Repeat Offset. Both offset lines become profiles for surface extrusions that will split the bottle surface into additional editable regions.
Extrude both projected lines as surfaces completely through the bottle.
Again, leave generous extra length so the cutting surfaces fully intersect the model.

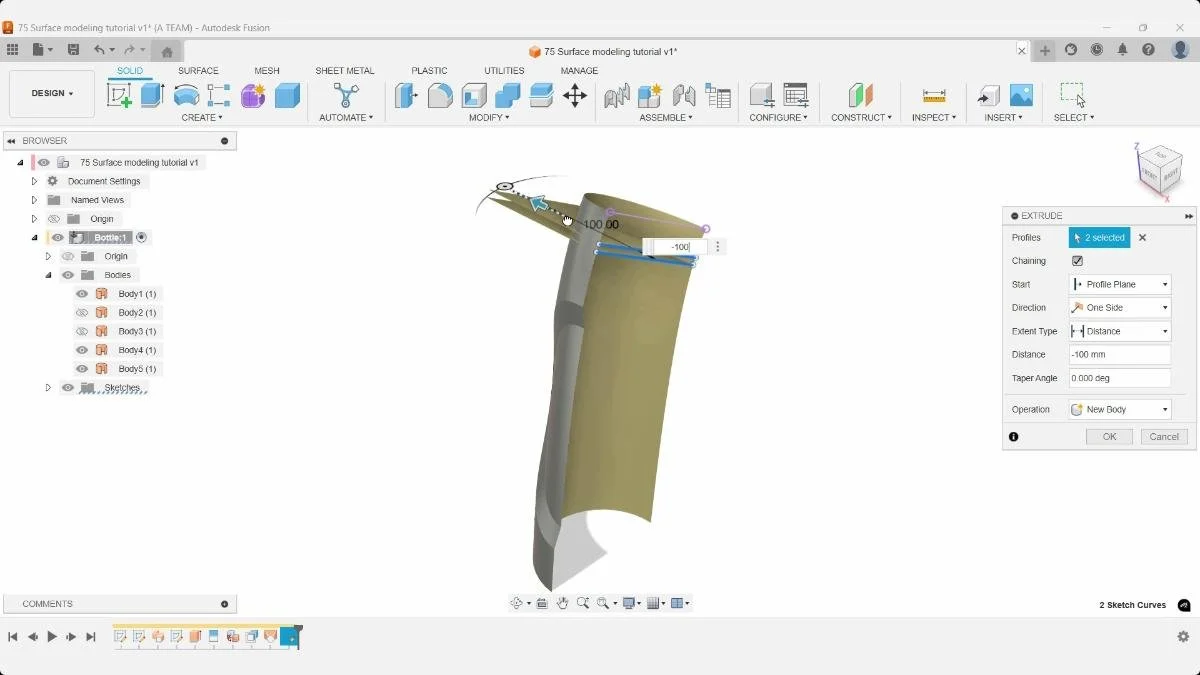

Two sketch profiles are extruded as new surface bodies that will later act as trimming tools. Creating separate surface cutters instead of modifying the main body directly provides greater control over where decorative grooves begin and end while keeping the feature history easier to edit.

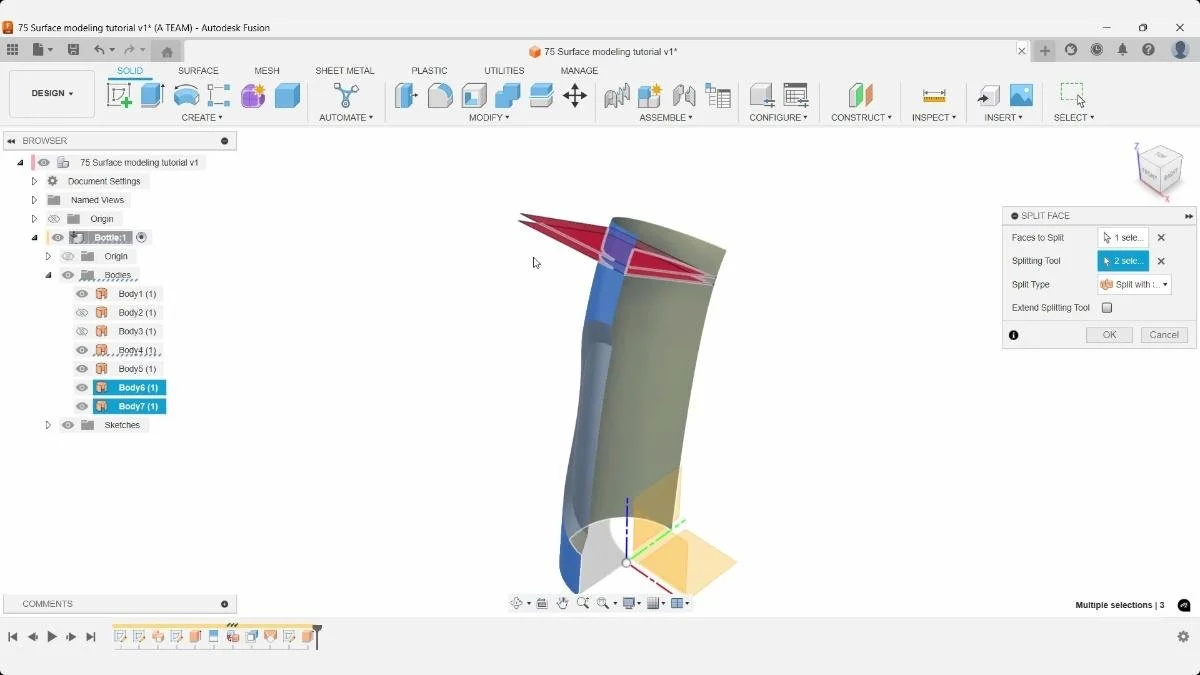

The Split Face command uses the newly created surface bodies to divide the bottle's outer face into separate regions. Splitting a face creates independent surface areas without changing the solid geometry, allowing localized operations such as offsets or fillets.
Step 9. Fix the Split Face Error
Attempt another Split Face operation.
If Fusion reports an error, inspect the sketch rather than the extrusion.

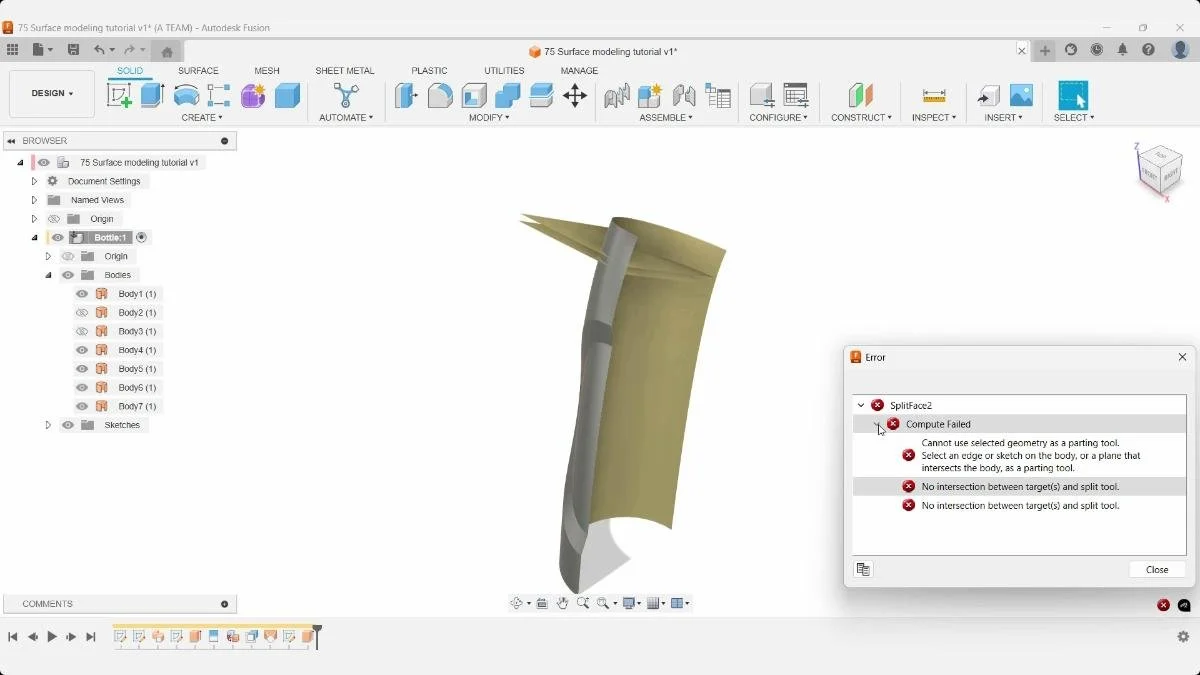

Fusion reports that the splitting tool does not intersect the target face, preventing the operation from computing. Split Face requires the cutting geometry to fully cross the selected face, making sufficient overlap an important part of reliable surface workflows.

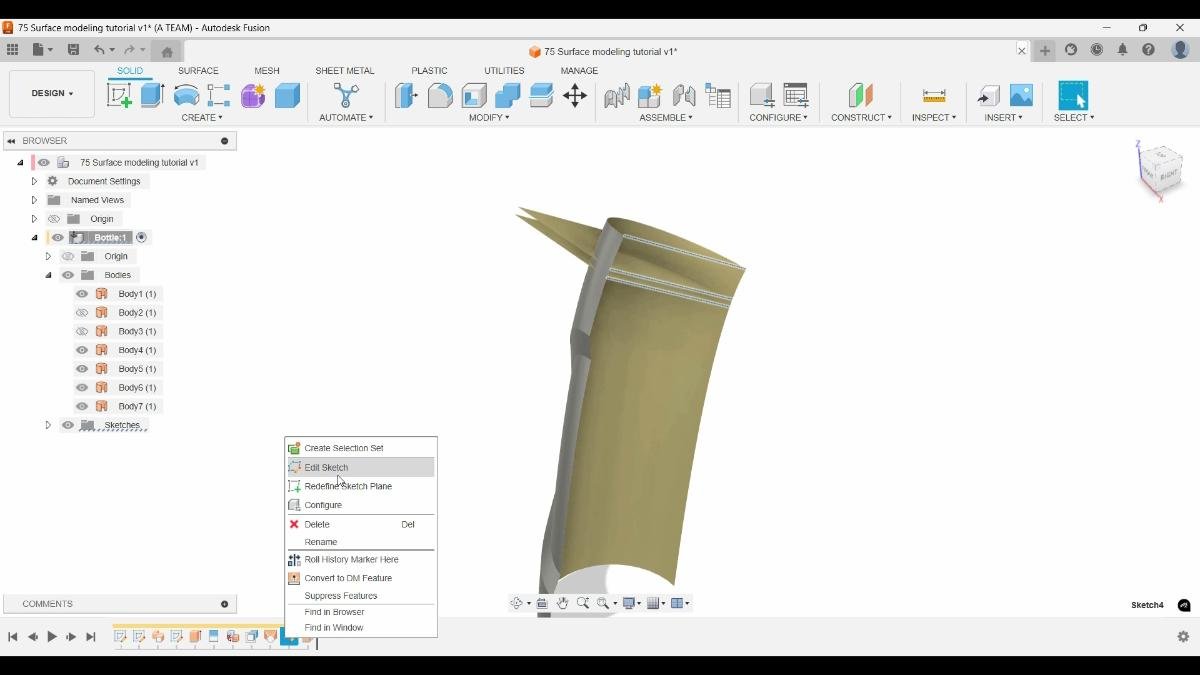

The original sketch is reopened to adjust the cutting geometry after the failed Split Face operation. Editing the driving sketch preserves the parametric model and updates all dependent features automatically once the operation succeeds.
Simply extend the sketch lines so they completely cover the model with extra margin.

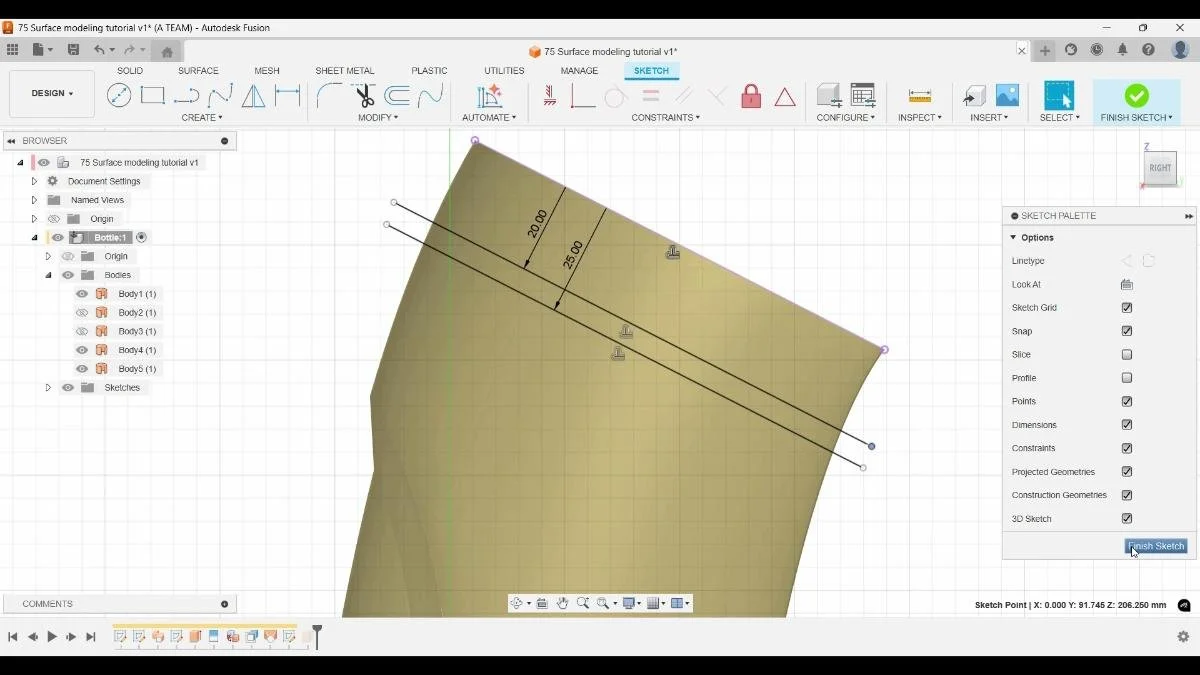

The sketch lines are lengthened so they extend well past the bottle surface. Oversizing cutting geometry helps ensure clean intersections even if the model changes later, improving the robustness of the design timeline.
Run Split Face again using:
- Split Type: Split with Surfaces
Troubleshooting failed operations is an important part of learning Fusion. Many failures originate from the underlying sketch rather than the feature itself.

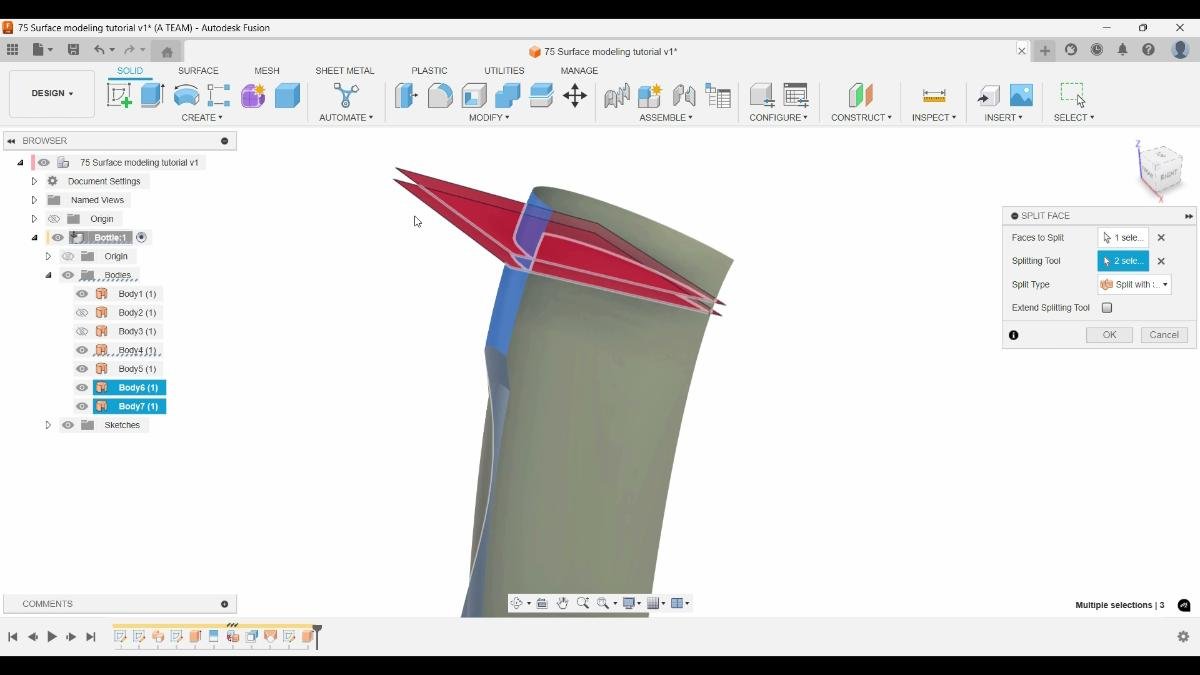

After extending the sketch, the extruded surfaces fully intersect the bottle, allowing Split Face to complete successfully. The bottle now contains a separate face region that can be modified independently of the surrounding geometry.
Step 10. Offset and Fillet the New Surface
Hide the cutting surfaces.
Select the newly created surface.
Apply:
- Offset Face: -2 mm

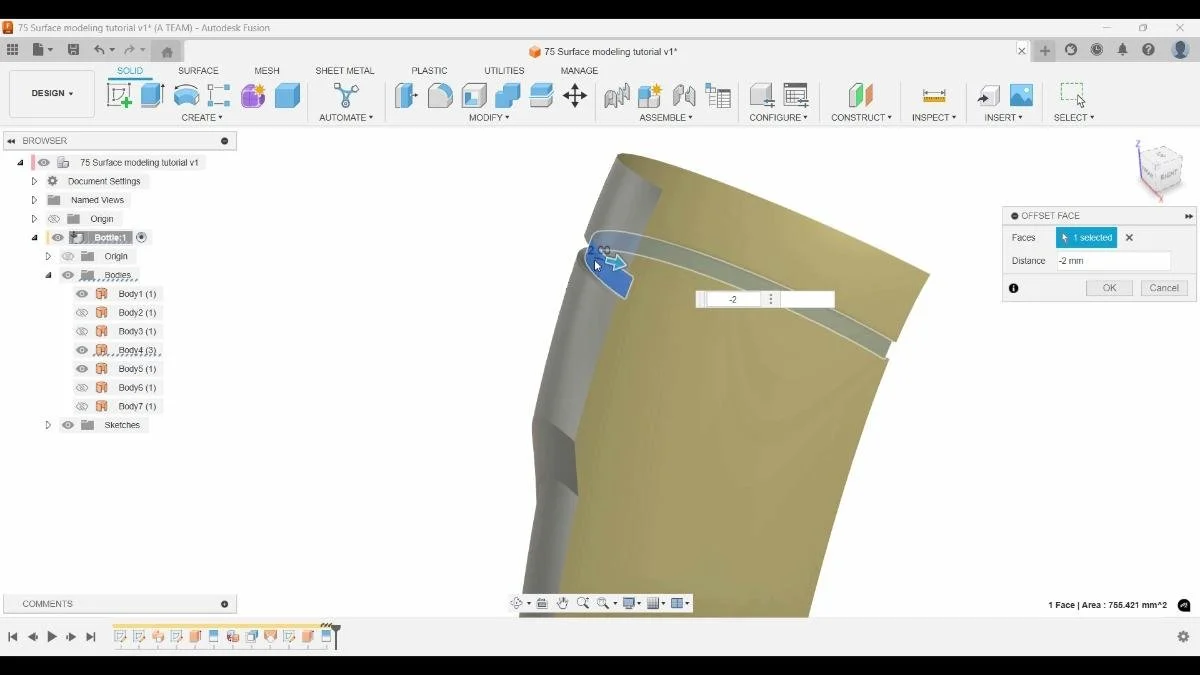

The isolated face is offset inward by 2 mm to create a recessed decorative band. Offset Face modifies only the selected region while preserving adjacent geometry, making it ideal for embossed or engraved design details.
Then soften the transition with:
- Fillet: 2 mm
Small fillets reduce sharp transitions while giving the bottle a more refined appearance.

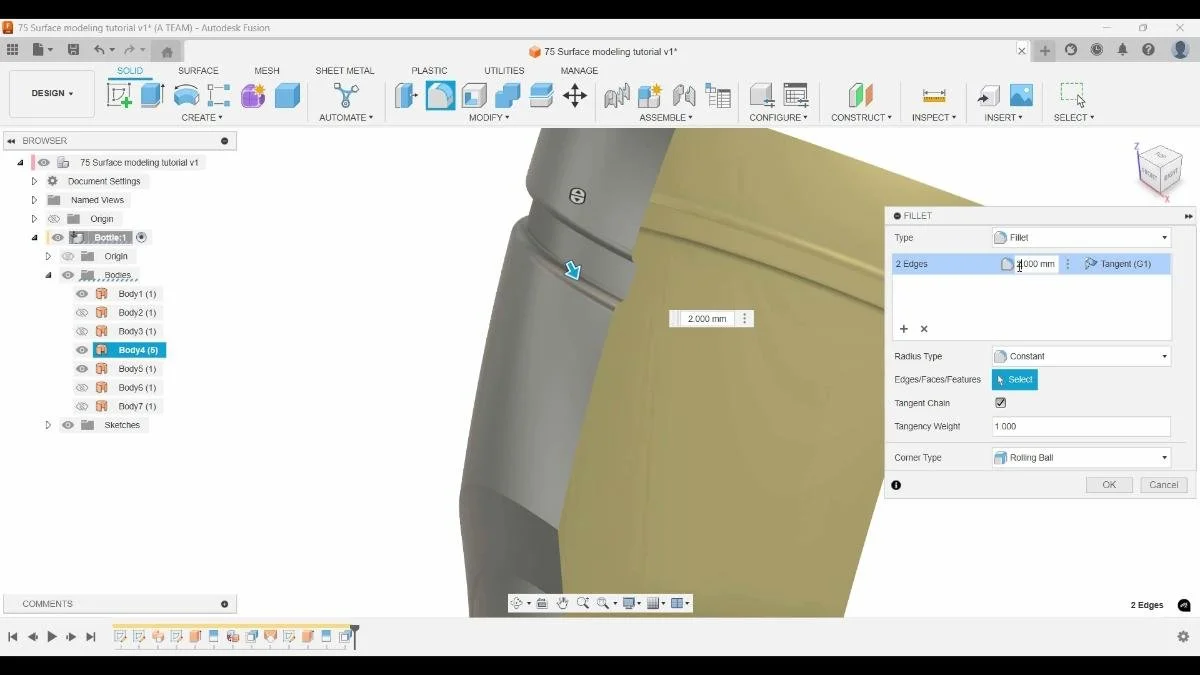

Fillets soften the sharp transition around the recessed band by rounding the surrounding edges with a constant radius. Adding fillets after the offset operation creates smoother surface transitions and produces a more realistic manufactured appearance.
Step 11. Mirror the Surface Bodies
Save your project before continuing.
Window-select all surface bodies from left to right.
Use Mirror.
Settings:
- Operation: Join
- Tolerance: Default
Since only half the bottle was modeled, mirroring dramatically reduces work while guaranteeing perfect symmetry.

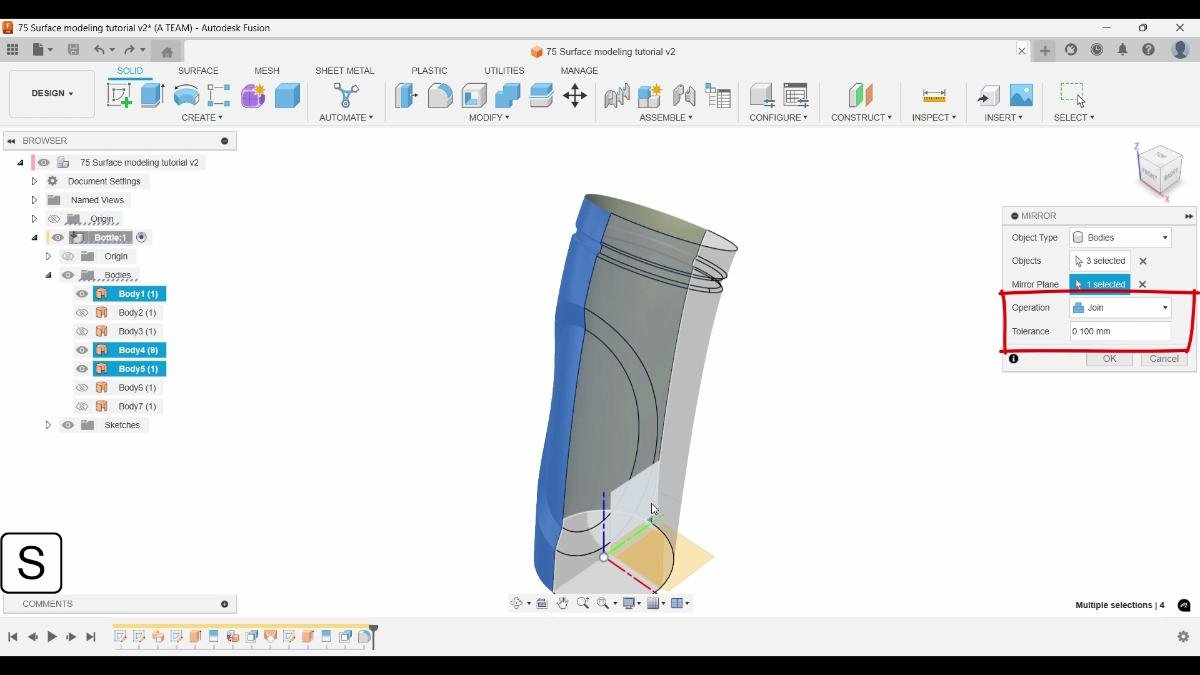

The completed half of the bottle is mirrored across the center plane with the operation set to Join, creating a symmetrical model. Mirroring only after one side is finished reduces duplicate work and ensures both halves remain perfectly identical.
Step 12. Convert the Surface Model into a Solid
Close the open ends using Patch.

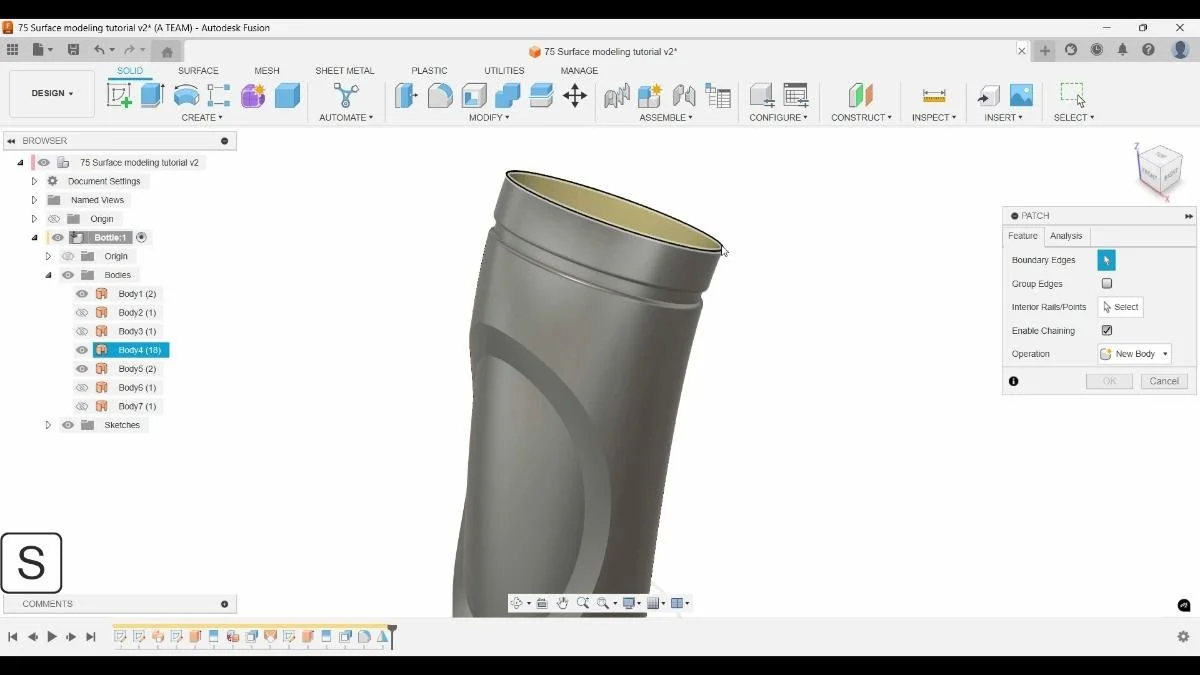

The Patch command fills the remaining open boundary at the bottle's rim by creating a new surface. Patching open edges is a common finishing step in surface modeling before stitching surfaces together into a watertight solid suitable for manufacturing or 3D printing.

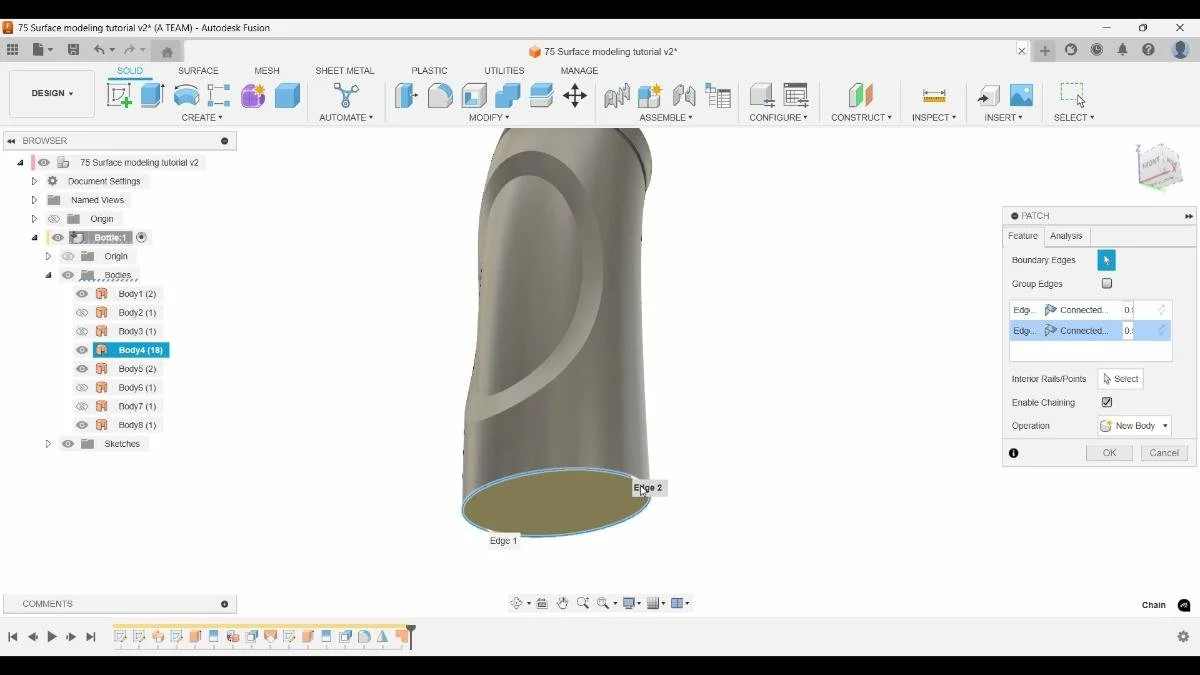

The Patch command creates a surface across the open bottom edge of the bottle. Closing all remaining openings is required before stitching the surfaces into a watertight solid body.
Once every opening has been sealed, use Stitch.
Fusion converts the enclosed surfaces into a solid body, which you'll see reflected in the Browser.
This workflow is common in advanced product design because surface modeling offers greater flexibility during shape creation before committing to a solid model.

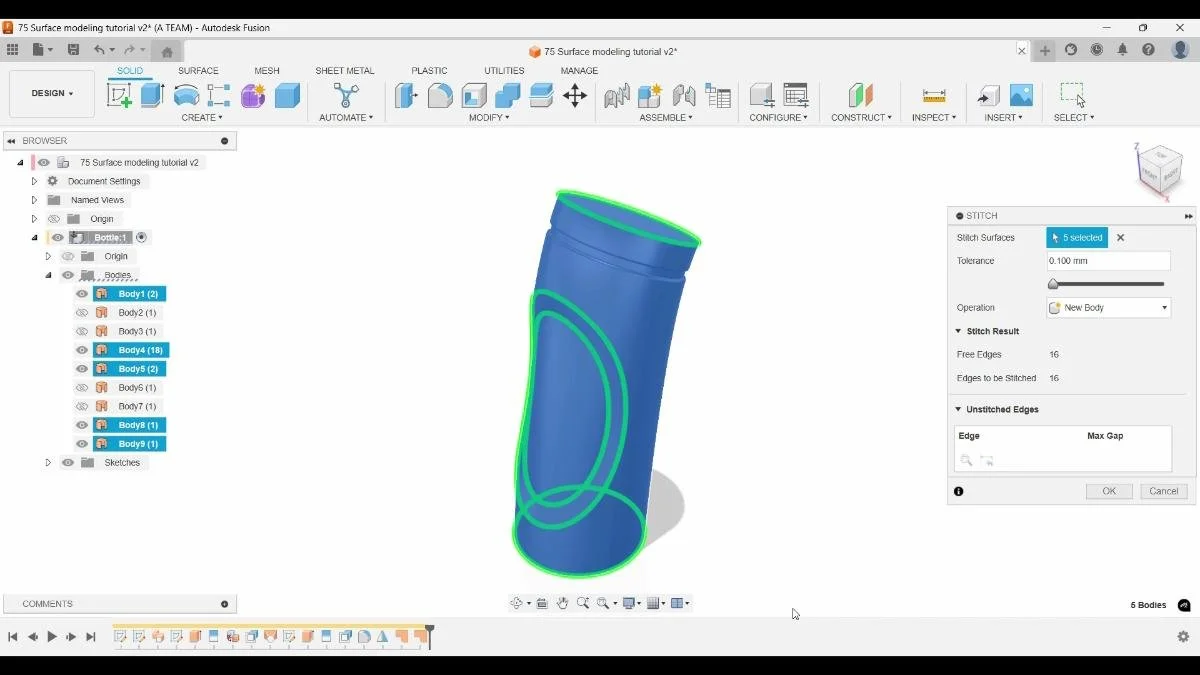

All surface bodies are selected with the Stitch command using a 0.1 mm tolerance. When every edge is successfully stitched, Fusion converts the collection of surfaces into a single solid body that can be edited with standard solid modeling tools.
Step 13. Create the Grip Feature
Start a new sketch on the center vertical construction plane.
Project the bottle edge.

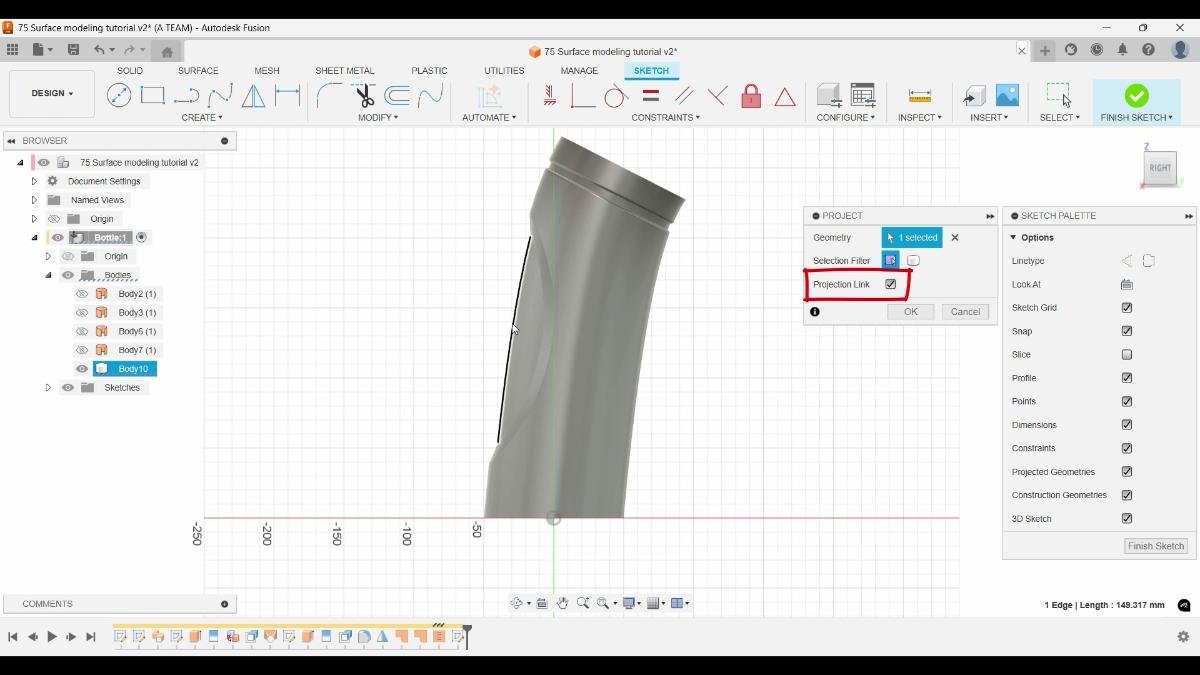

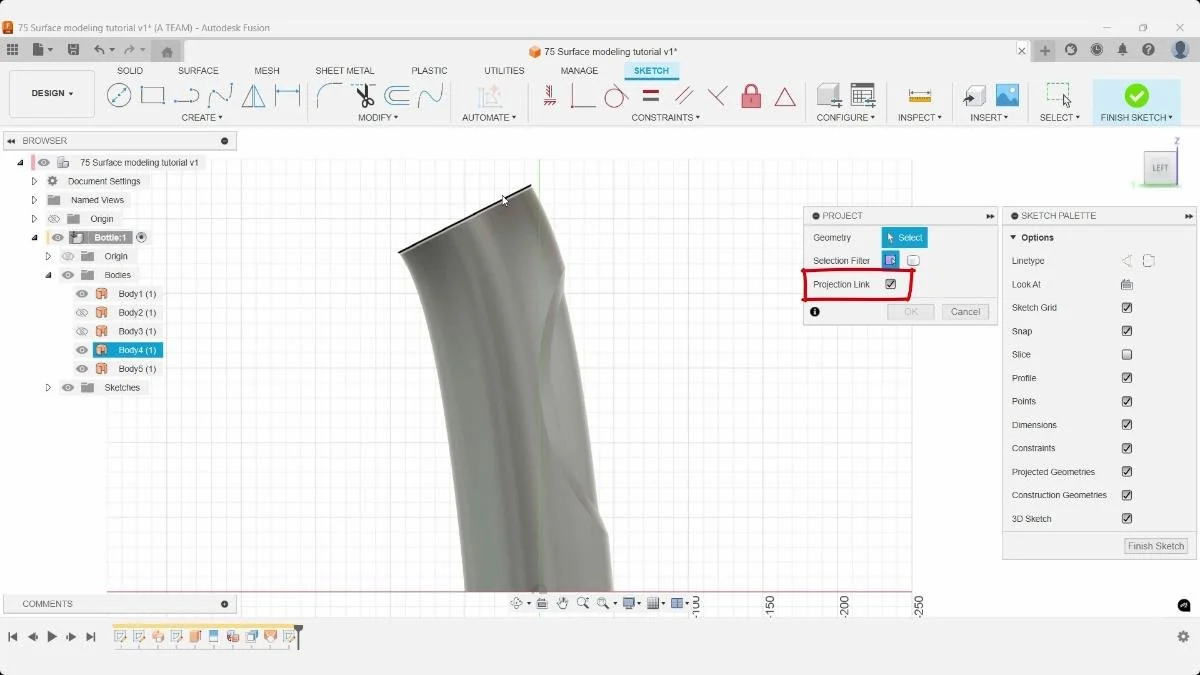

The bottle edge is projected into a new sketch with Projection Link enabled. Keeping the projection associative allows the grip pattern to follow future design changes without recreating the sketch.
Leave Projection Link enabled so future edits automatically update the sketch.
Create a Center Diameter Circle.
Dimensions:
- Circle diameter: 10 mm
- Position: 27 mm from the top of the projected edge

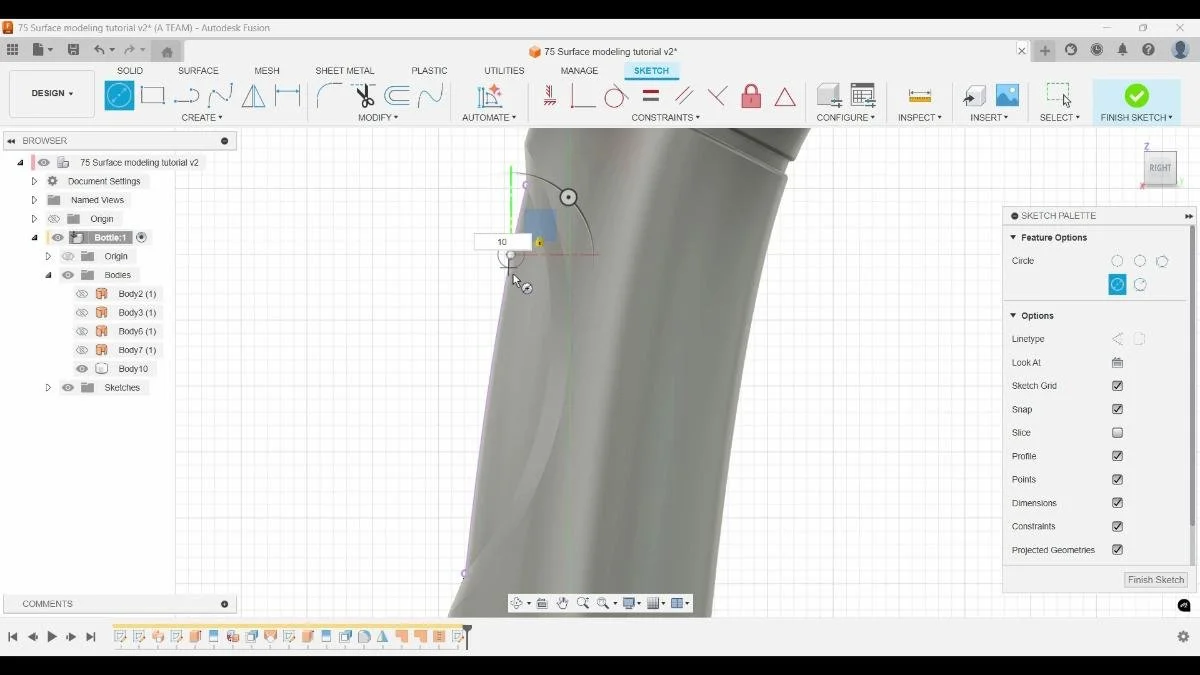

A 10 mm diameter circle is added to define a single grip indentation. Using one fully constrained sketch feature makes it easy to duplicate the design later with a feature pattern.
The grip circle is constrained and dimensioned 27 mm from the projected reference edge. Fully defining the sketch prevents unintended movement when other dimensions or features are modified.
Use Extrude Cut.
Settings:
- Direction: Symmetric
There's no need to stop exactly at the opposite side.
Over-extruding ensures the cut continues to work even if the bottle thickness changes later.
For 3D printing, fully defined through-cuts are generally more robust than cuts that terminate exactly at a surface.

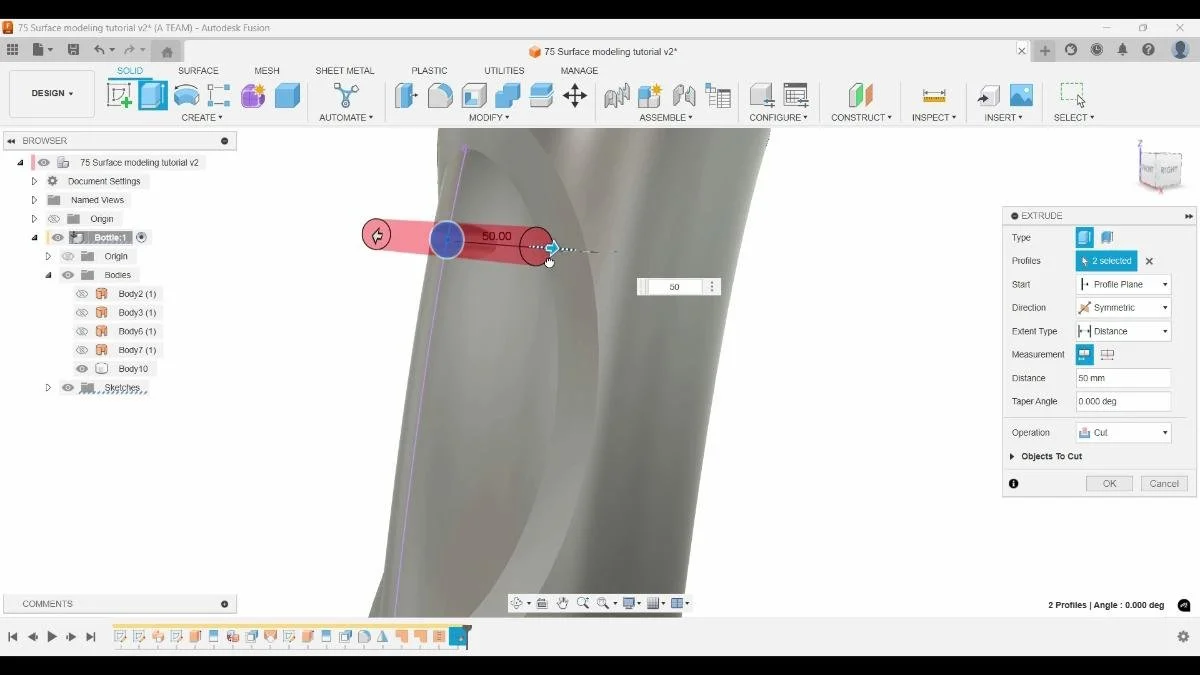

The circle profile is cut using a Symmetric Extrude. Removing material equally in both directions keeps the feature centered on the curved bottle surface and produces a balanced recess.
Step 14. Pattern the Grip Along the Bottle
Use Pattern on Path in the solid workspace.
Settings:
- Orientation: Follow Path
- Compute Type: Optimized
- Quantity: 6
Creating the pattern as a feature instead of inside the sketch keeps the timeline cleaner and makes future edits significantly easier.
As a general rule, simple sketches combined with modeling features create stronger parametric designs.

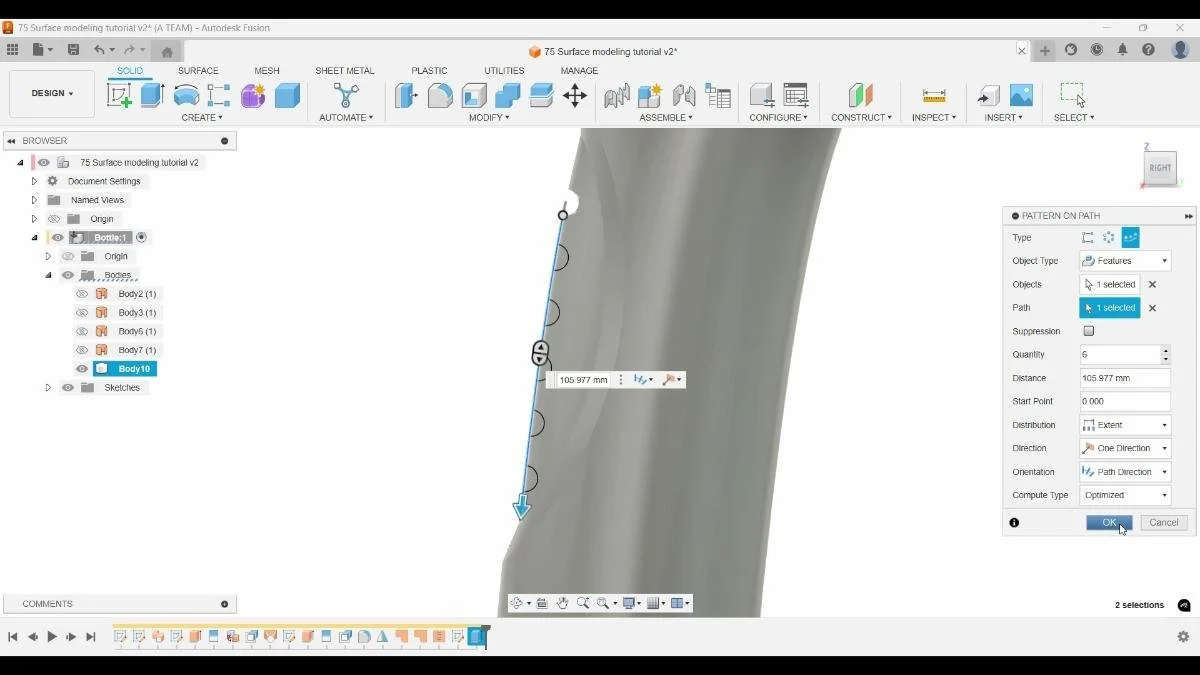

Pattern on Path copies the grip cut feature along the projected curve. Patterning the feature instead of sketch geometry preserves design intent and allows spacing, quantity, and distribution to be adjusted from a single feature.
Step 15. Apply Appearances
If you want different colors on different parts of the bottle:
Set:
- Apply To: Faces
Applying appearances before mirroring saves time because the mirrored geometry inherits the same appearance automatically.

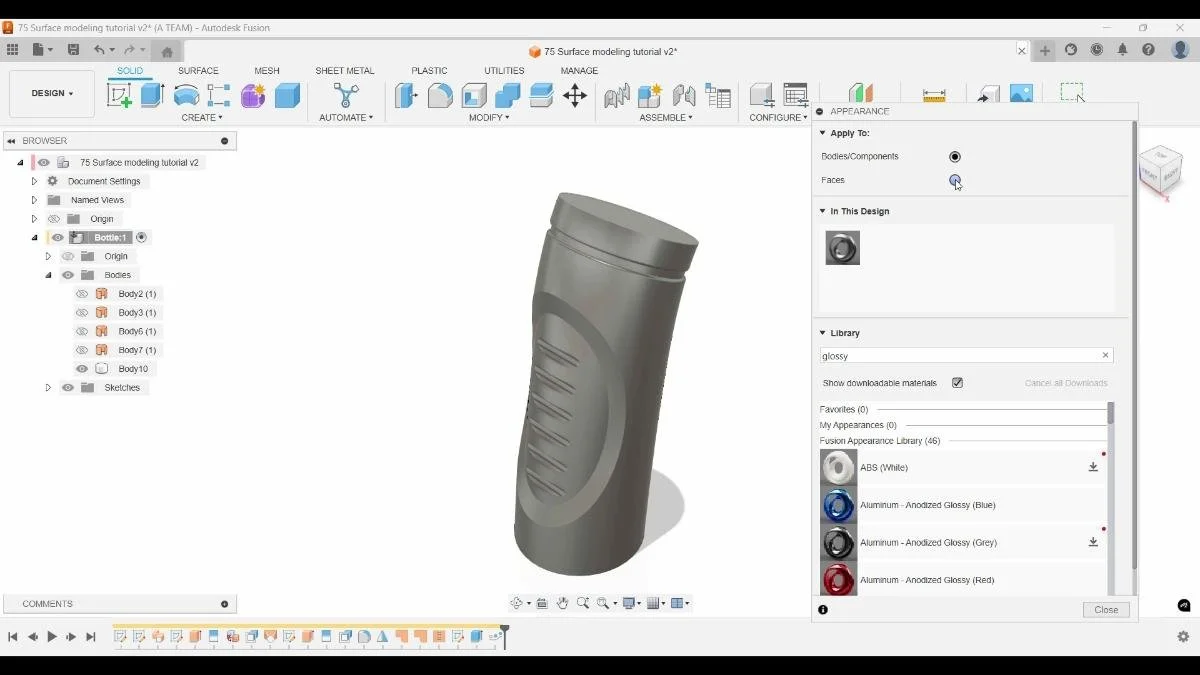

The Appearance workspace is used with Faces selected as the target, allowing individual regions of the bottle to receive different materials or finishes. Applying appearances at the face level provides greater flexibility than assigning a material to the entire body.
Step 16. Prepare for 3D Printing
Although this workflow focuses on modeling, a few design decisions also improve printability.
- The bottle remains symmetrical, making orientation decisions much easier during slicing.
- The recessed grip features are created as smooth transitions instead of sharp internal corners, reducing stress concentrations.
- Over-extruding cutting features creates more robust parametric models that continue working after future edits.
- Surface modeling allows you to experiment with organic shapes before converting to a printable solid.
- Keeping sketches simple makes later modifications faster and reduces the likelihood of failed features.
Before exporting an STL, inspect the model carefully to ensure Stitch created a single watertight solid body.
Key Takeaways
- Begin with a new component for a clean timeline.
- Center the model on the origin for easier symmetry.
- Use surface Sweep for open profiles.
- Split Face and Offset Face are powerful tools for creating recessed design features.
- Patch and Stitch convert surface models into printable solids.
- Pattern on Path is easier to edit than sketch patterns.
- Keep sketches as simple as possible.
- Design features with future edits and 3D printing in mind.
🧰 Tools & Deals
I’ve gathered some of the tools, software, and gear I personally use and recommend for CAD work, 3D printing, and making things in one place. Some links may include discounts or special offers that can help you level up your workflows.
Please note: some of the links are affiliate links, which means I may earn a small commission at no extra cost to you. This helps support the site and the creation of free Fusion tutorials.
Explore everything here:
The Maker Letters – Tools & Deals
.
You Might Also Like
Want to continue improving your Autodesk Fusion skills? These three projects expand on the techniques used in this bottle tutorial, including surface modeling, parametric design, and creating functional 3D printable products.
Together, these tutorials cover practical Fusion workflows for surface modeling, parametric CAD, and creating production-ready 3D printable designs that can be adapted to your own projects.
Chapters:
00:08 Create a New Component with Keyboard Shortcuts in Fusion
00:19 Start the First Sketch for the Bottle Prototype
00:30 Draw a Center Diameter Circle in Fusion
00:44 Trim the Circle to Prepare for Surface Modeling
01:05 Sketch a Path for the Sweep Command
01:27 Create and Adjust a Fit Point Spline
02:15 How to Sweep a Surface in Autodesk Fusion
02:48 Sketch the Bottle’s Profile Design
03:08 Create, Move, and Dimension a 3-Point Arc
03:46 Offset the Arc for Bottle Wall Thickness
04:08 Surface Modeling: Extrude to Create Trimming Tools
04:32 Split a Surface Model with the Split Face Tool
05:15 Use Offset Face to Push or Pull Surfaces
05:37 Loft Between Surfaces to Connect Sections
05:48 Set Curvature Types: G0, G1, and G2 Explained
06:12 Use the ViewCube and Project Geometry for New Sketches
07:05 Extrude Lines on a Surface Model
07:27 Fix a Failed Split Face Operation in Fusion
07:57 Edit Sketches via the Timeline to Update Surface Geometry
08:22 Split the Surface Body to Refine the Design
09:06 Offset Surface Faces for Thickness Adjustments
09:22 Smooth Edges with Fillet Commands in Surface Modeling
09:52 Mirror a Surface Model to Complete the Bottle Shape
10:19 Close Open Surfaces with the Patch Tool
10:44 Convert Surface Bodies into a Solid with Stitch
11:07 Add a Grip Feature to the Bottle Prototype
11:20 Project Edges Using the Projection Link Tool
11:51 Create a Symmetrical Extrude Cut
12:15 Pattern Features Along a Path in Fusion
13:15 Apply Appearances to Individual Faces for Rendering
