From Sketch to Product: 10 Fusion Tips from a Real 3D Printing Project
You don't need weeks of product development to create something useful.
This compact garden irrigation stake went from idea to printable product in under an hour using Fusion. Along the way, it highlighted several techniques that can speed up product development while also improving printability, strength, and manufacturing efficiency.
Whether you're designing your first functional product or you're looking to improve your CAD workflow, these ten practical tips can help you move from idea to finished part much faster.
What You'll Learn
- How to use AI to generate product concepts
- Why sketching over a reference image can be faster than converting SVG files
- A simple sketching workflow for symmetrical products
- When to use fillets instead of sketching complex curves
- Why mirroring solid bodies is often more reliable than mirroring sketches
- How Project and Offset can speed up design iterations
- How to design snap-fit features for 3D printed parts
- Why chamfers improve both appearance and usability
- How print bed size affects production efficiency
- Why adding a brim can improve print success rates
Watch the Workflow — or Read It Step by Step
You can follow this guide in two ways:
- Read the steps below if you want quick written instructions, reference images, and modeling notes.
- Watch the full video at the end of this post to see the workflow in real time — including extra tips, camera angles, and shortcuts that don’t fit neatly into text.
Both formats build on each other.
Reading helps you understand why each step matters, while watching shows how to move faster in Fusion.
Step 1: Use AI for Concept Generation
One of the fastest ways to start a product design project is by using AI-generated concept sketches.
Instead of beginning with a blank screen, describe the product you want to create and ask an AI image generator for a rough concept. The goal is not to produce a final design. The goal is to explore ideas quickly and identify useful features worth keeping.
For simple functional products like this irrigation stake, an AI-generated sketch can help define:
- Overall proportions
- Product silhouette
- Structural features
- Attachment methods
- Opportunities for weight reduction
This approach dramatically reduces the time spent staring at an empty sketch.

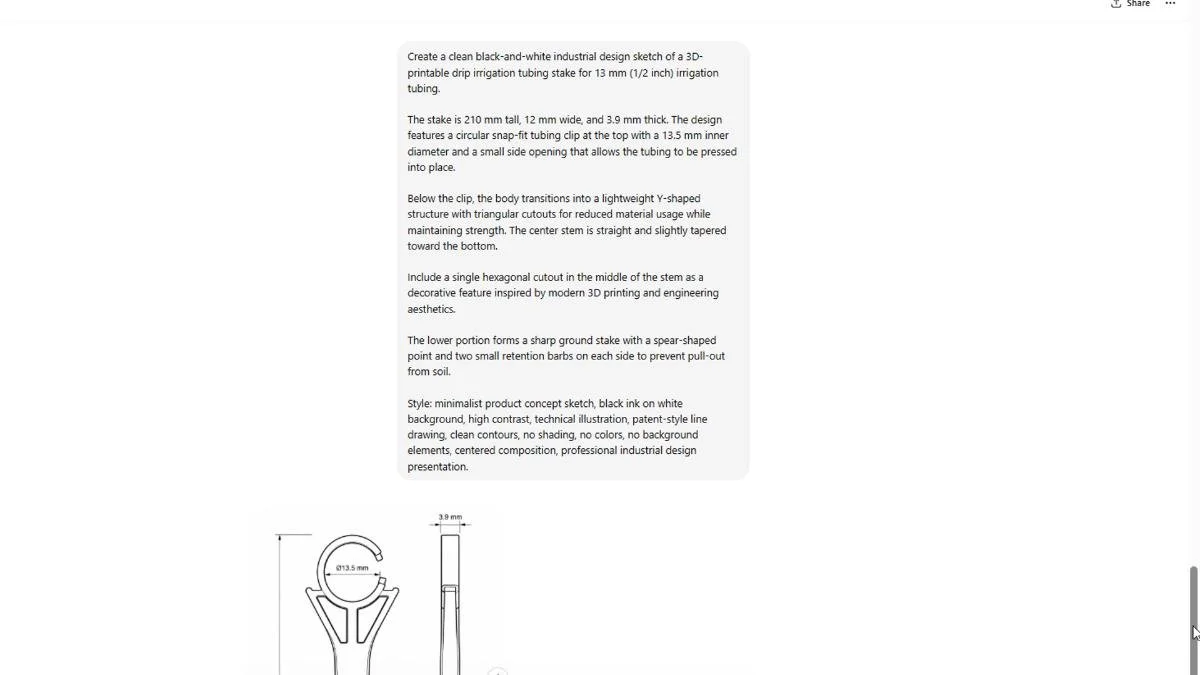

A text prompt is used to generate a concept sketch for a custom drip irrigation stake. AI-generated sketches can be a fast way to explore proportions, clip geometry, and structural features before opening CAD software. The sketch serves as a visual reference rather than production-ready geometry.
Step 2: Insert and Calibrate a Canvas
After generating a concept image, insert it as a canvas in Fusion.
Many designers attempt to convert images into SVG files, but that workflow often creates unnecessary cleanup work. Extra spline points, broken geometry, and imported sketch artifacts can easily consume more time than simply redrawing the design.

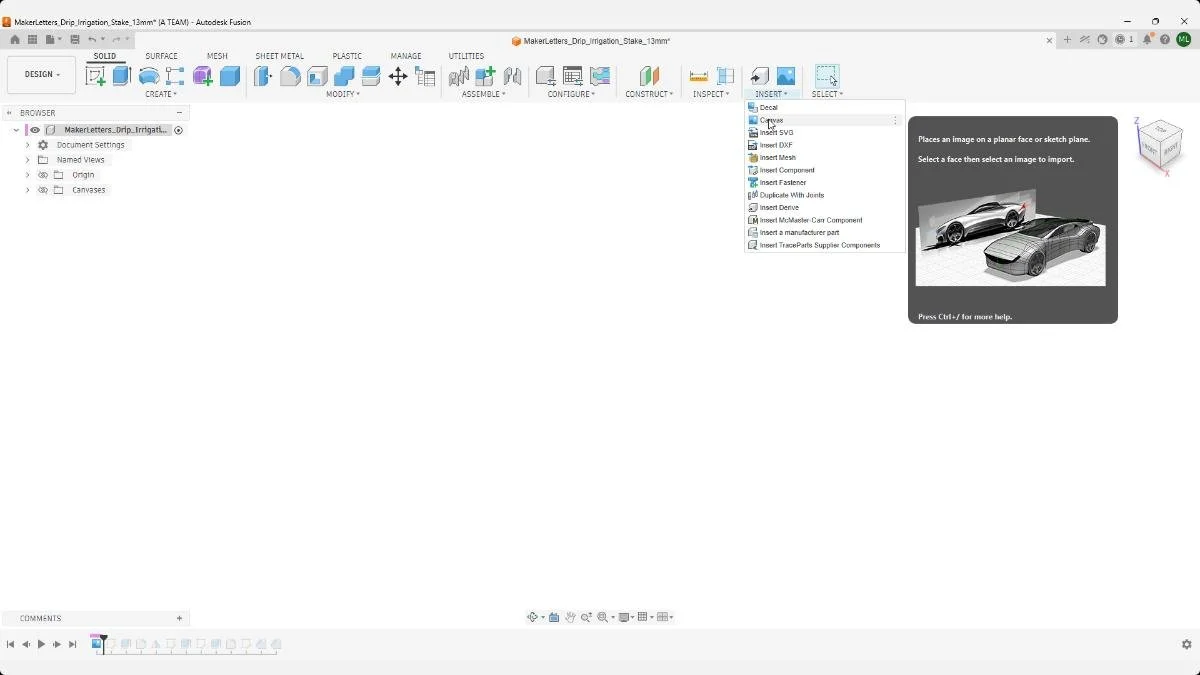

The Insert Canvas command places the concept sketch onto a modeling plane in Fusion. Using a canvas allows direct tracing of key shapes while maintaining control over dimensions and constraints in the CAD model.
Instead:
- Insert the image as a canvas.
- Calibrate it to the desired size.
- Sketch directly on top of the image.
This provides complete control over the geometry while maintaining accurate proportions.
For simple products, this workflow is usually faster and produces cleaner results.

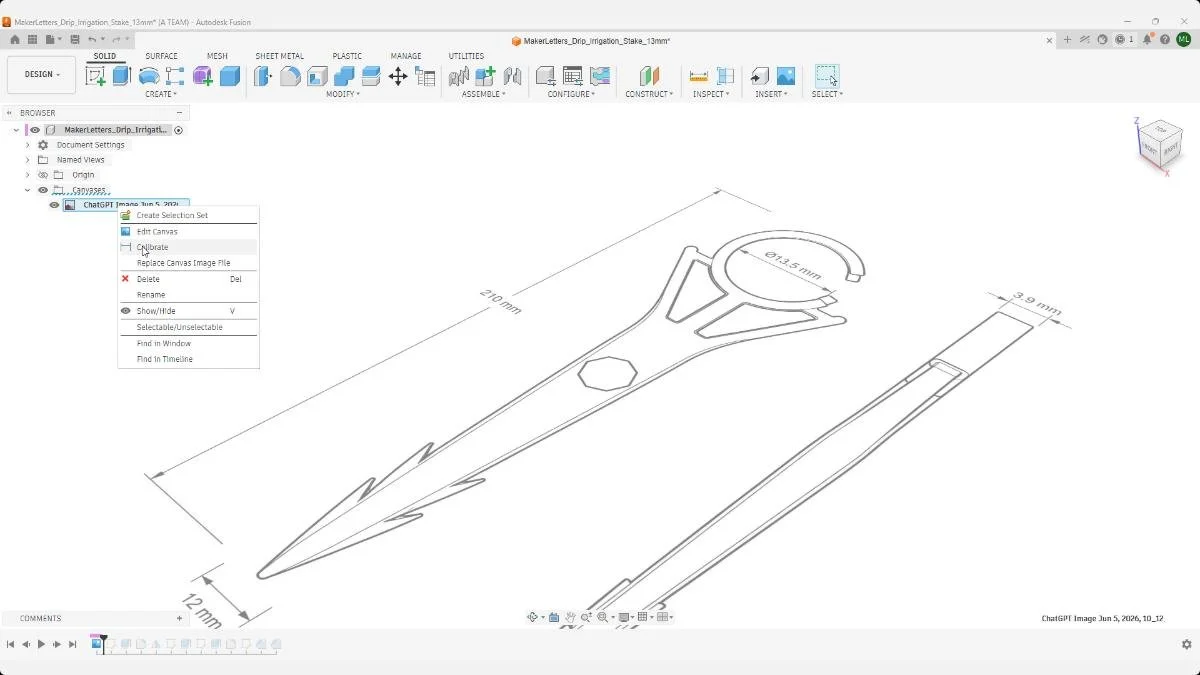

The imported sketch is calibrated using the known 13.5 mm head diameter. Calibration ensures the reference image matches real-world dimensions so that traced geometry is created at the intended size.
Step 3: Keep the Sketch Simple
When creating a symmetrical product, resist the urge to fully define every feature in the sketch.
For this design, only half of the profile was created using the Line tool.
This offers several advantages:
- Fewer sketch constraints
- Faster editing
- Greater stability
- Easier modifications later
Many beginners spend too much time creating perfect curves in sketches. In reality, many of those shapes can be created more efficiently during solid modeling.
A simple sketch is often a robust sketch.

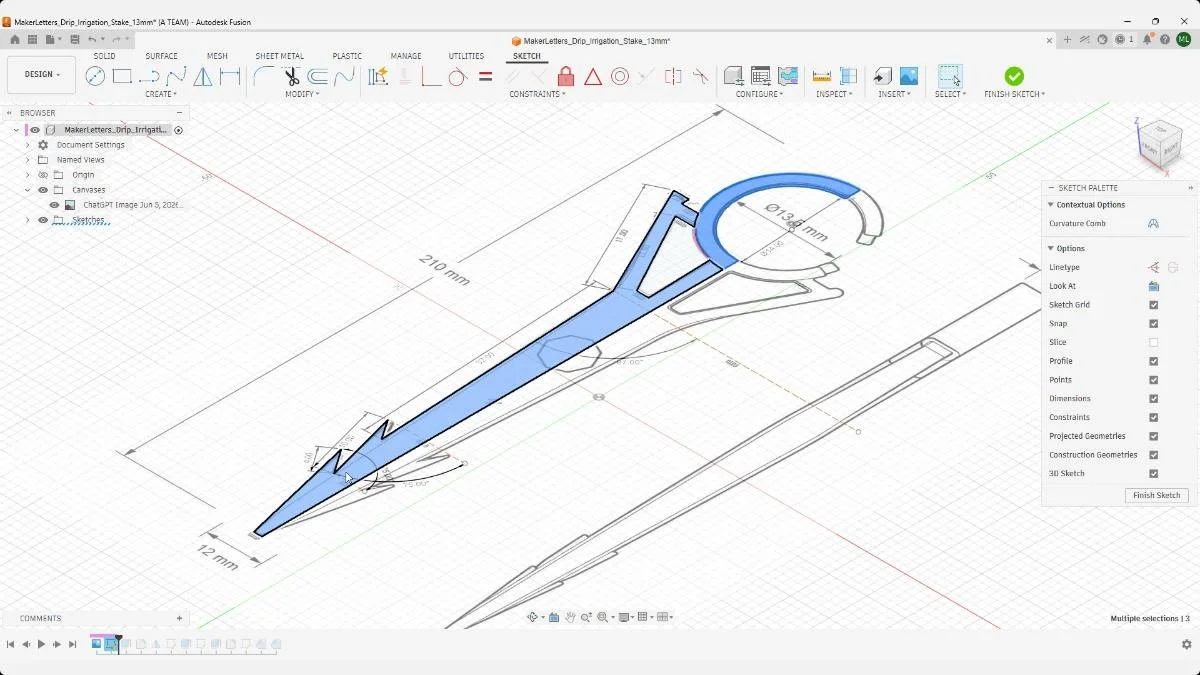

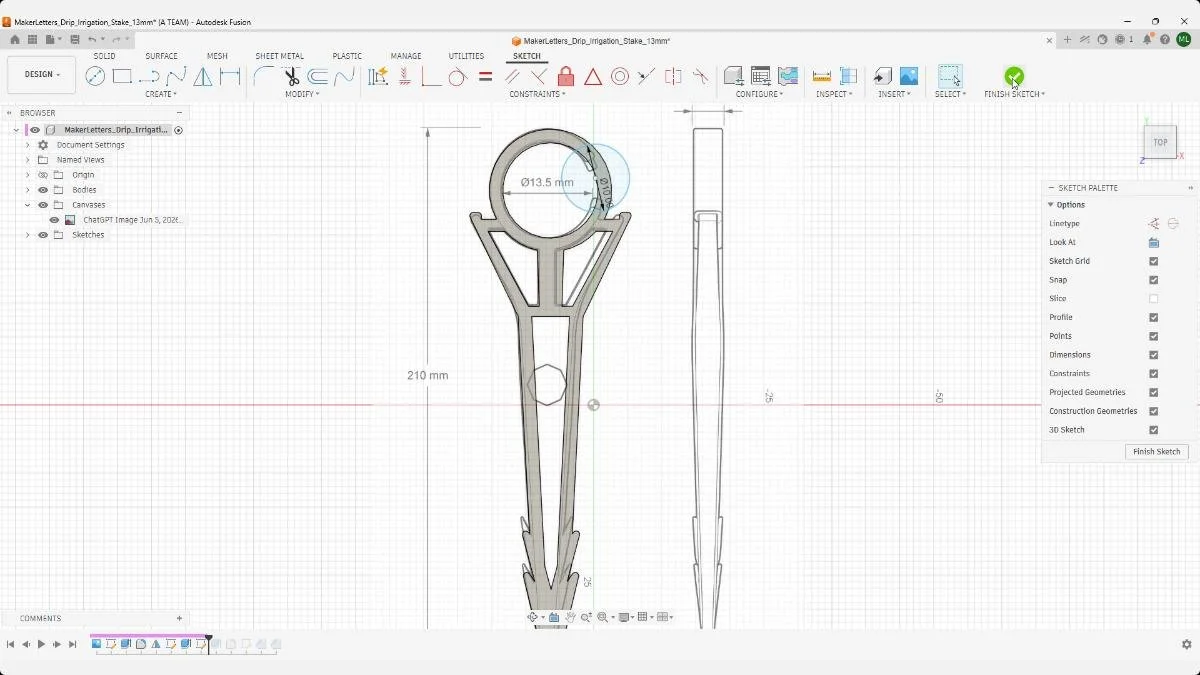

A basic sketch is created by tracing only the essential outer profile. Keeping the sketch simple reduces constraint complexity and makes later modifications easier. Small details and edge refinements can be added later in the modeling process.
Step 4: Use Fillets to Soften the Design
After creating the basic shape, use the Fillet tool to add rounded edges.
Fillets provide several benefits:
- Improved appearance
- Reduced stress concentrations
- Better ergonomics
- Smoother handling
For 3D printed products, fillets can also improve strength because loads are distributed more gradually through the geometry.
Rather than sketching every curve manually, use solid modeling features whenever possible. It keeps sketches cleaner and makes future design changes easier.

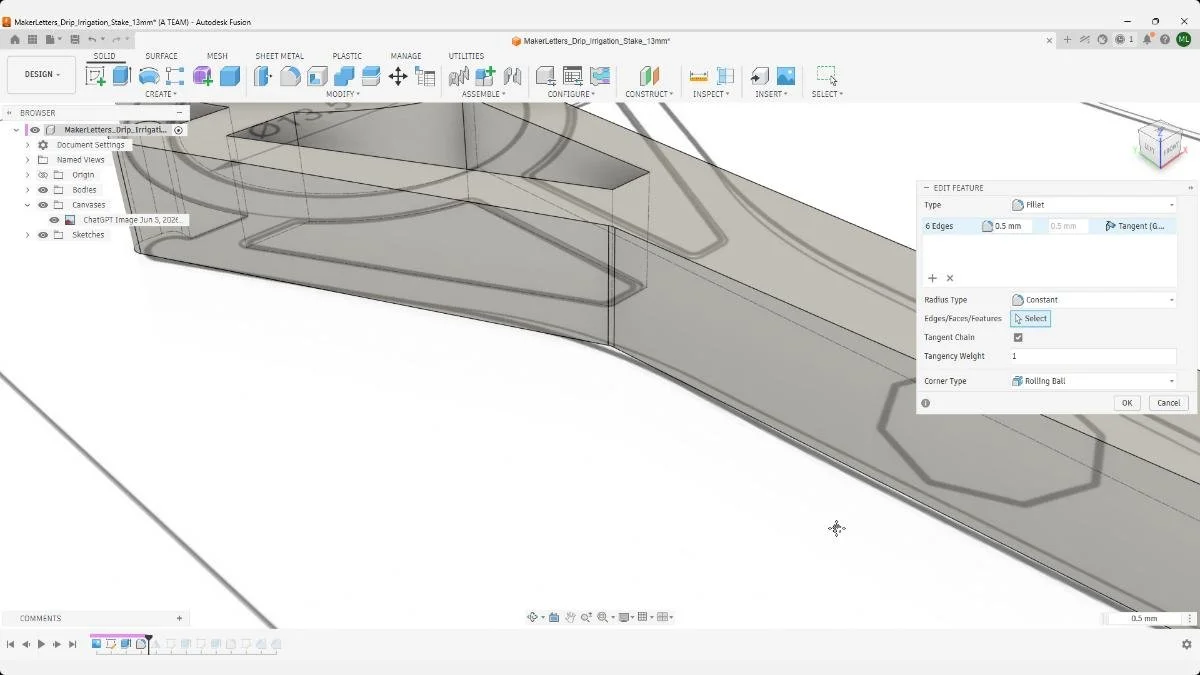

Fillets soften transitions between straight edges and improve the appearance of the model. Rounded corners also reduce stress concentrations compared to sharp internal corners, which can improve durability in printed parts.
Step 5: Mirror the Design in the Solid Modeling Environment
Although Fusion allows sketch mirroring, mirroring solid geometry is often more reliable.
When tracing over a concept image, the original sketch may not be perfectly centered. Rather than spending time adjusting the sketch location, create half of the model and mirror it later.
For this project, one of the internal faces was used as the mirror plane.
Benefits include:
- Perfect symmetry
- Faster workflow
- Reduced sketch complexity
- Easier future edits
This is one of the most useful techniques for symmetrical products.

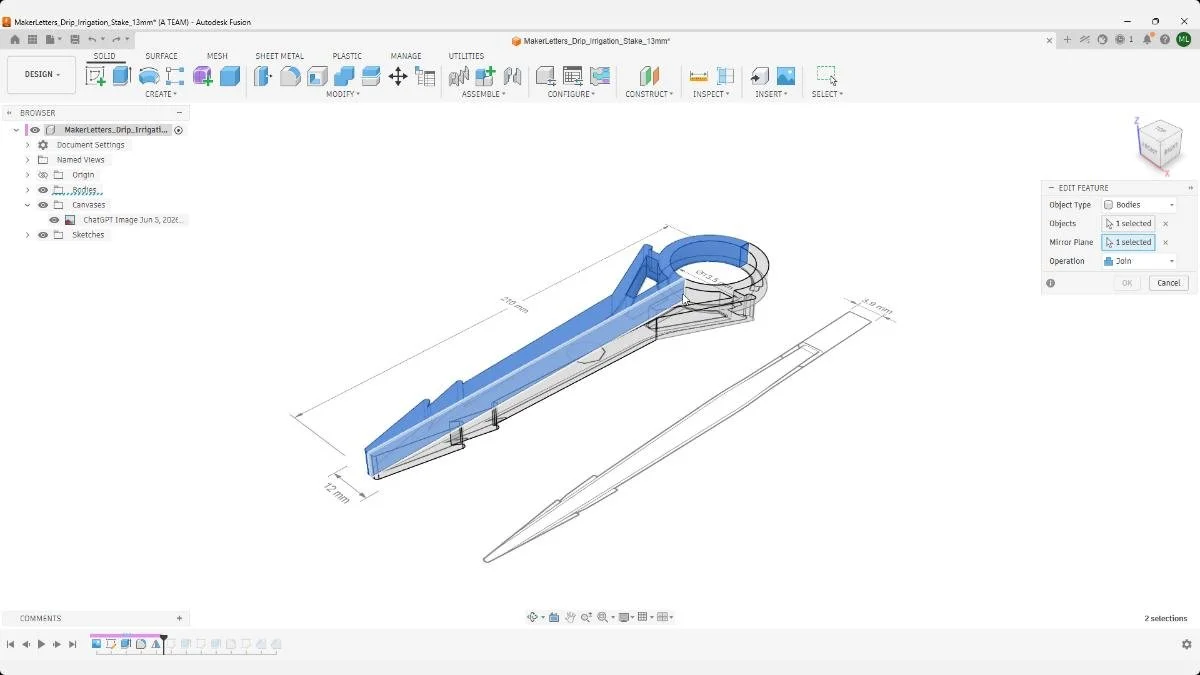

The first half of the model is mirrored using an internal planar face as the mirror plane. Modeling half of a symmetrical part reduces sketching time and helps maintain dimensional consistency across both sides.
Step 6: Use Project and Offset to Create Lightweight Geometry
Project and Offset are powerful tools for creating cutouts.
Instead of redrawing geometry, existing edges can be projected into a sketch and offset to generate new profiles.

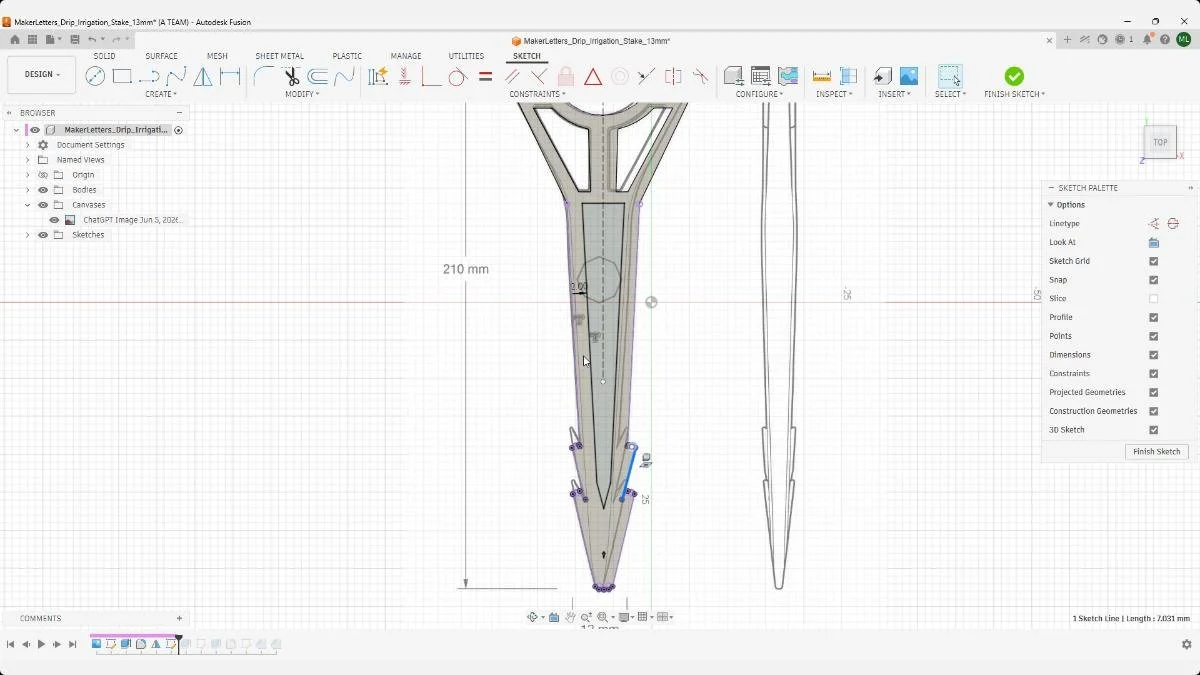

Existing edges are projected into a new sketch to create reference geometry. Projected edges remain associated with the original model and provide an efficient starting point for material-removal features.
For this irrigation stake, the technique was used to create internal cutouts that removed unnecessary material.
Advantages include:
- Reduced filament usage
- Lower print time
- Lighter parts
- Easier design updates
Because the geometry remains linked to the original model, future changes become significantly easier.

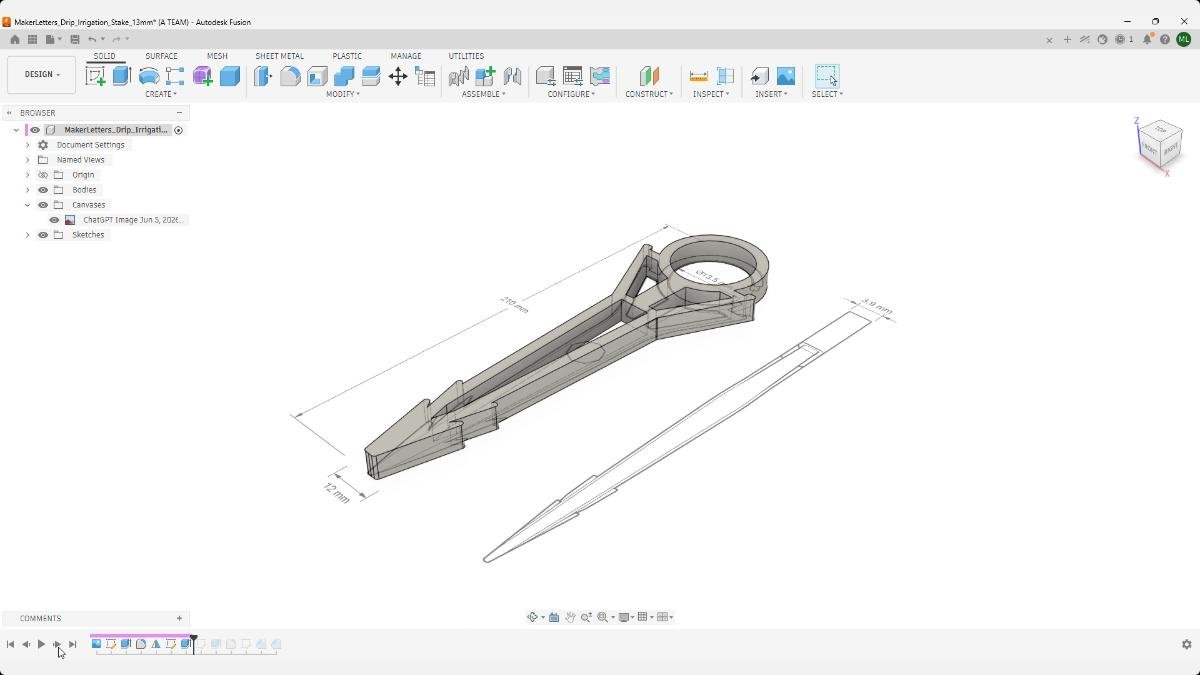

Offset geometry is used to generate internal openings within the stake body. Removing material lowers filament consumption and print time while retaining sufficient structural strength for the application.
Step 7: Design Snap Fits Around Material Flexibility
One of the biggest advantages of 3D printing is that the material itself can become part of the design.
For the hose clip, the opening was intentionally made slightly smaller than the hose diameter.
The opening in the circular clip is designed slightly smaller than the tubing diameter. PETG flexibility allows the tubing to snap into place while maintaining enough retention force to keep it secured during use.
This creates a snap-fit connection:
- The clip flexes during insertion
- The hose snaps into place
- The material returns to shape
- The hose remains securely attached
PETG works particularly well for this type of feature because it offers a good balance between strength and flexibility.
Rather than relying on screws or separate fasteners, the geometry itself performs the attachment function.

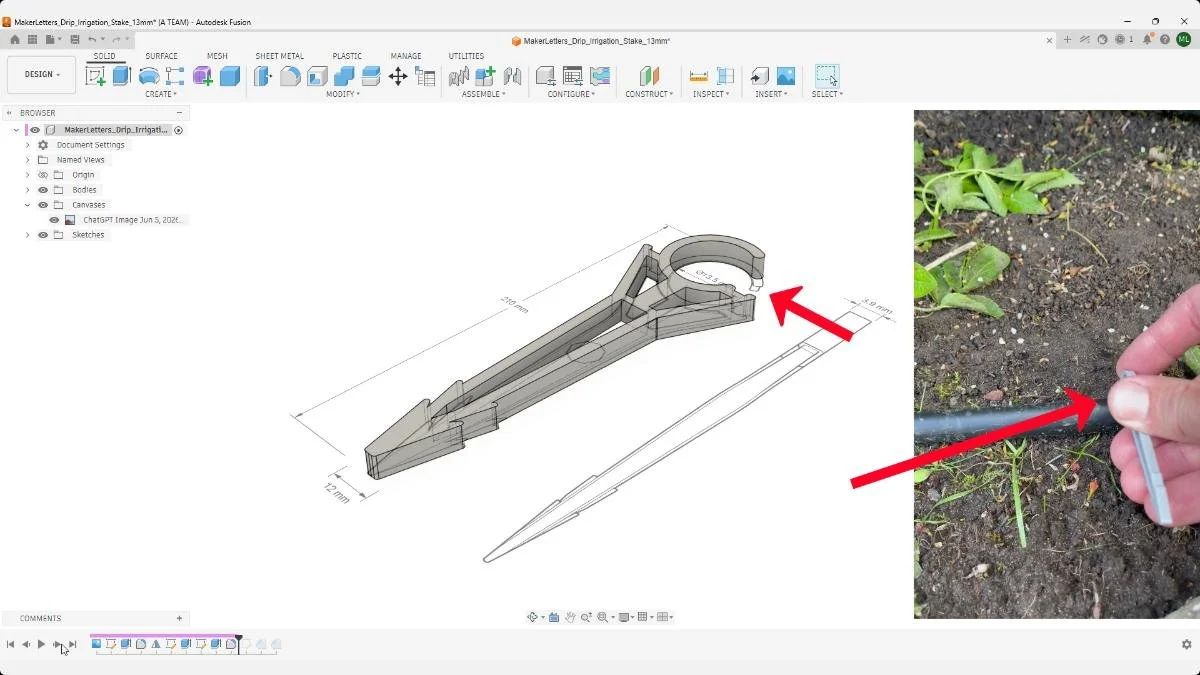

The tubing is pressed into the clip opening to verify retention and fit. Testing physical interaction early helps confirm that modeled clearances and material behavior produce the intended user experience.
Step 8: Add Chamfers for a Cleaner Print
Chamfers are often overlooked.
Adding small chamfers to exposed edges creates a more refined appearance and improves the overall feel of the finished product.
For 3D printed parts, chamfers can also:
- Reduce sharp edges
- Improve handling
- Create cleaner transitions
- Make prints look more professional
They require very little effort but can significantly improve the final result.

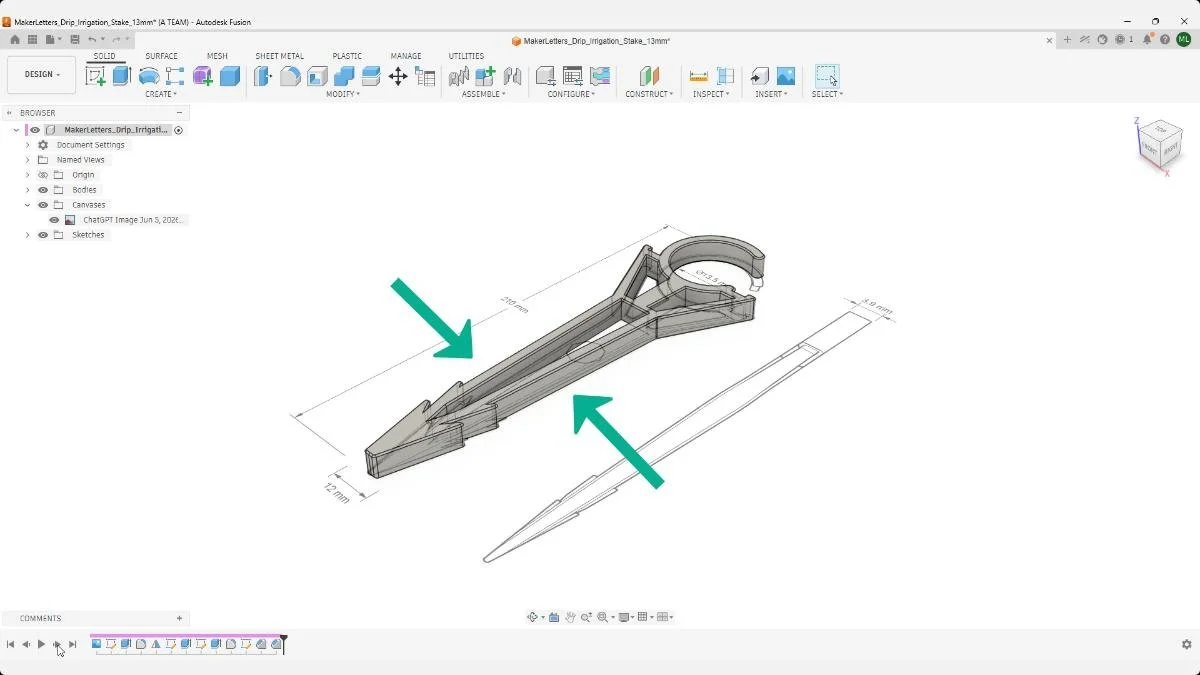

Adding chamfers to edges helps remove sharp corners, improves the overall appearance of the model, and can make parts easier to handle and assemble. Chamfers are a simple finishing feature that can enhance both functionality and manufacturability.
Step 9: Design With the Print Bed in Mind
This tip becomes increasingly important if you plan to produce multiple parts.
Before finalizing dimensions, consider how many copies fit on the print bed.
Even small dimensional changes can increase production efficiency by allowing additional parts to fit within a single print job.

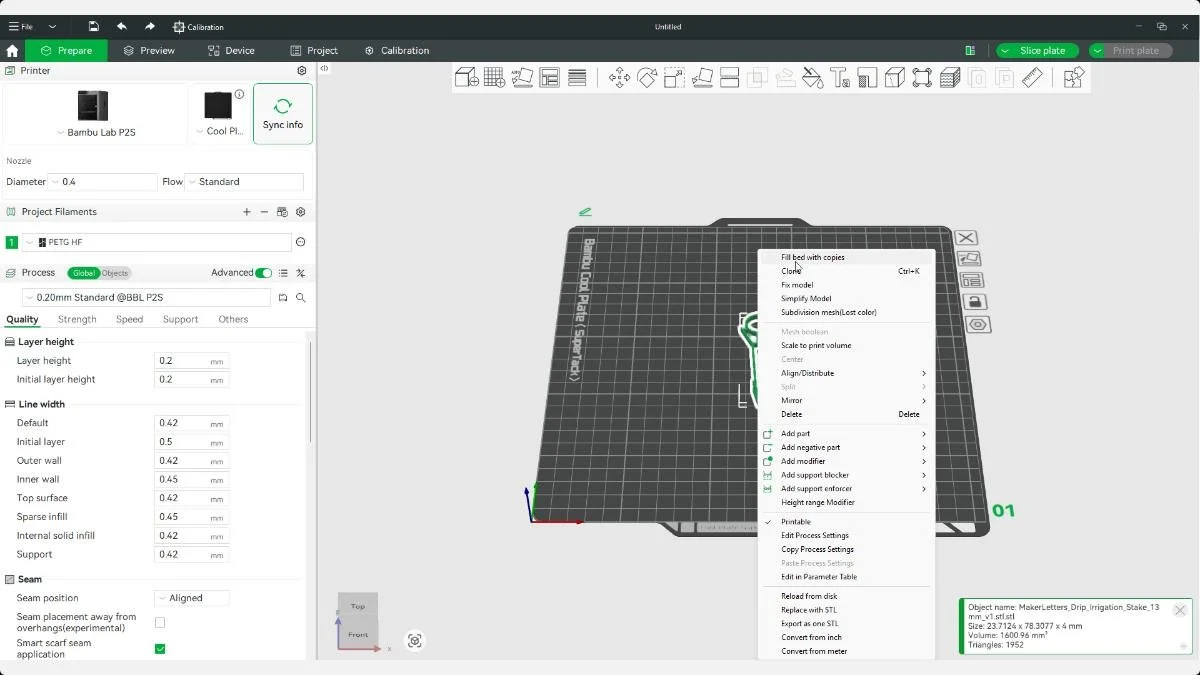

The Fill Bed With Copies feature automatically populates the print bed with multiple instances of the same model. This approach maximizes printer utilization and improves production efficiency for small parts.
Benefits include:
- Fewer print jobs
- Less supervision
- Higher throughput
- More efficient manufacturing
When designing products for printers such as the Bambu Lab A1, P1S, X1C, or similar machines, print bed utilization can have a significant impact on production time.
Good product design considers manufacturing from the very beginning.

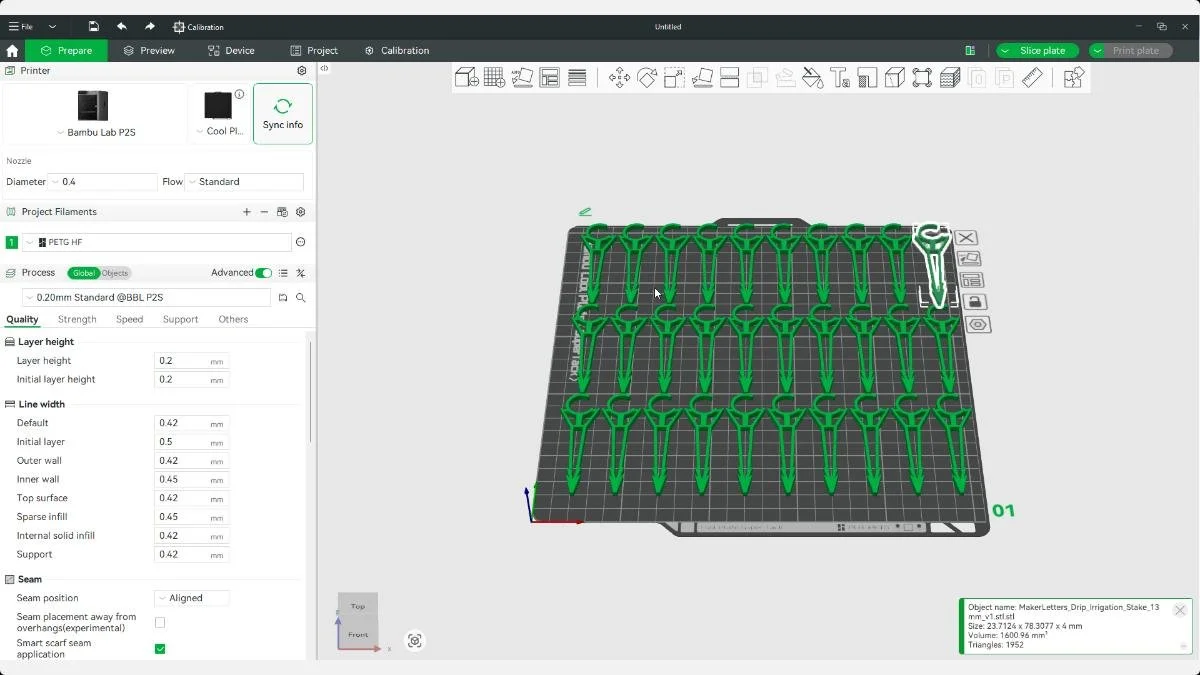

The model dimensions were selected to fit an efficient quantity of parts on the available build area in Bambu Studio. Designing with print-bed capacity in mind can improve throughput without changing the individual product design.
Step 10: Improve Bed Adhesion With a Brim
When printing multiple small parts, bed adhesion becomes critical.
A brim adds a thin ring of material around the base of each part.

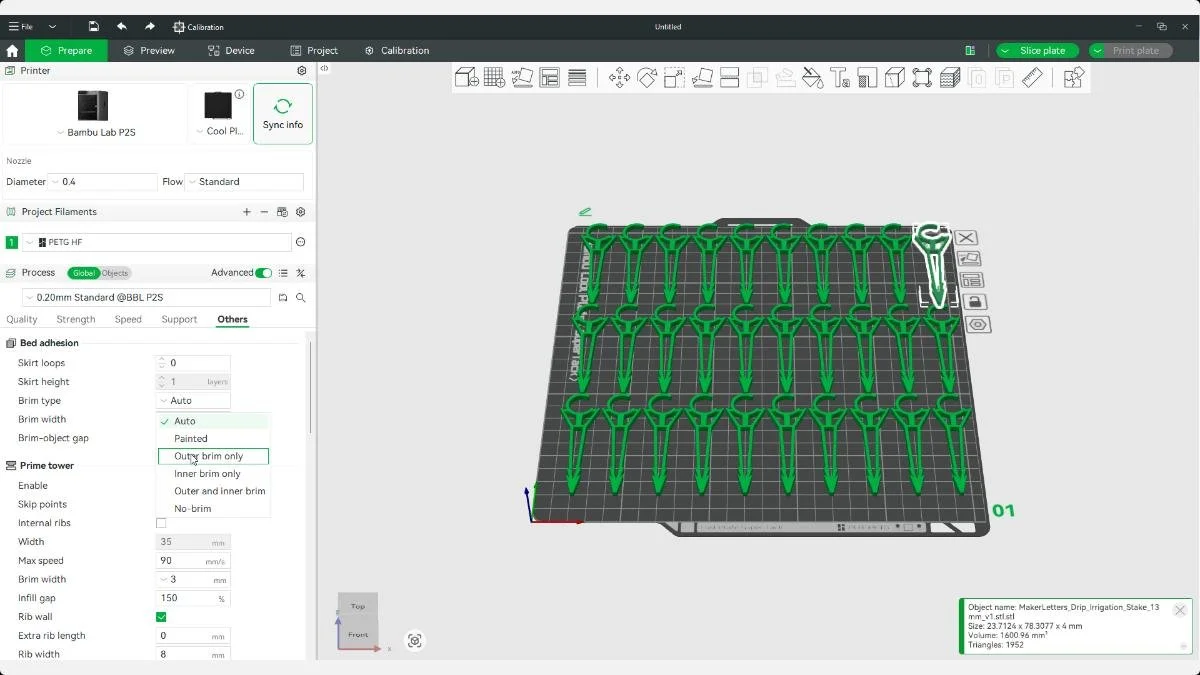

In Bambu Studio, an outer brim is enabled to increase the contact area between the model and the build plate. Small, narrow parts benefit from additional adhesion because they have limited surface area touching the bed.
Benefits include:
- Increased contact area
- Better first-layer adhesion
- Reduced warping
- Lower risk of print failures
For small parts with narrow contact points, a brim can dramatically improve reliability.
It is one of the simplest slicer settings available and often prevents wasted time and material.

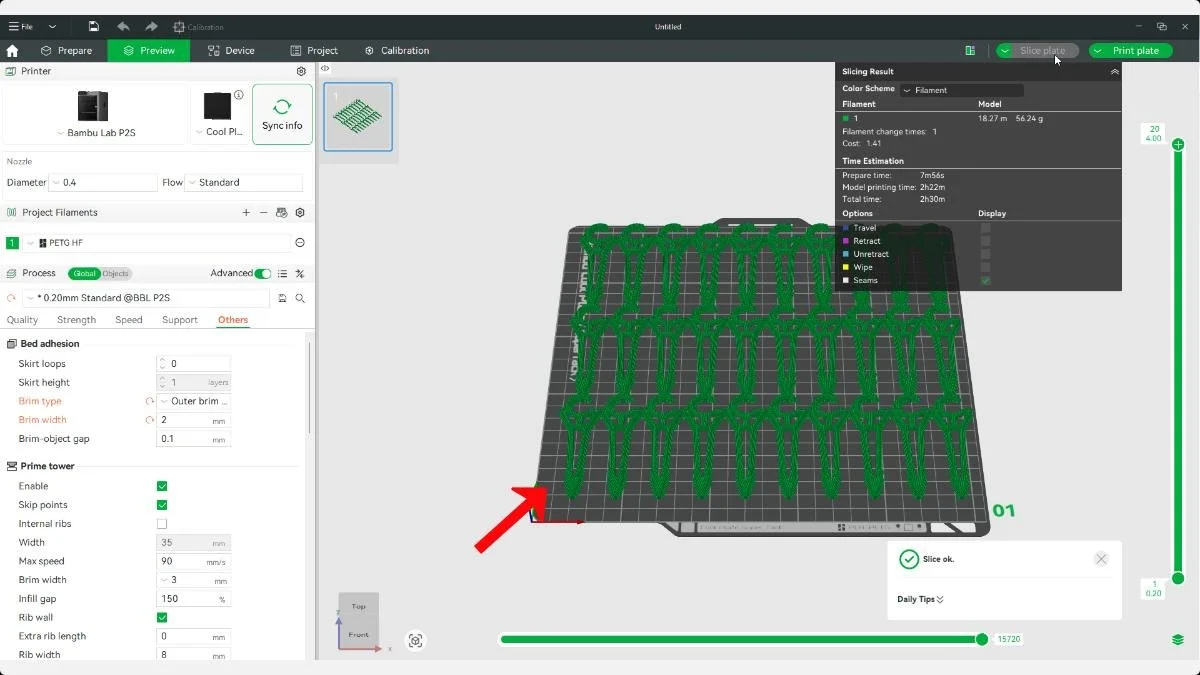

The sliced preview confirms brim placement and provides an estimate of material usage and print time. Reviewing the toolpath before printing helps identify potential adhesion issues before committing to a long production run.
Key Takeaways
Designing useful products doesn't have to be complicated.
By combining AI-assisted concept generation, efficient Fusion workflows, and manufacturing-aware design decisions, it is possible to move from idea to finished product remarkably quickly.
The biggest lessons from this project are:
- Start with simple sketches
- Let solid modeling tools create complexity
- Design around the strengths of 3D printing
- Use Project and Offset to accelerate iterations
- Consider production requirements early
- Optimize parts for reliable printing
Small workflow improvements compound quickly, allowing you to create better products in less time.
If you're searching for Fusion 360 tutorials, many of these techniques also apply directly to Autodesk Fusion (formerly Fusion 360), making them valuable skills regardless of your experience level.
