How to Design a Fully Parametric 3D-Printed Clock in Fusion (From CAD to Manufacturing Costs)
Change one value and the entire design updates. That is the power of parametric modeling done right. In this walkthrough, we build a fully parametric wall clock in Fusion, fix broken sketches when parameters change, and then step outside CAD to look at real 3D-printing times and manufacturing costs.
Before we start modeling, it is worth noting that this is not just a styling exercise. The goal is to create a design that scales, prints predictably, and makes sense both technically and economically.
What You’ll Learn
- How to build a fully parametric clock in Fusion using user parameters that control the entire design from a single value
- How to choose and apply sketch tools, constraints, and formulas so the model scales predictably without breaking
- How to troubleshoot and fix under-constrained sketches when parameter changes cause geometry to drift
- How different 3D-printing settings affect print time, reliability, and surface quality for large functional parts
- How manufacturing costs compare to in-house 3D printing, and why unit price behaves differently at scale
Watch the Workflow — or Read It Step by Step
You can follow this guide in two ways:
- Read the steps below if you want quick written instructions, reference images, and modeling notes.
- Watch the full video at the end of this post to see the workflow in real time — including extra tips, camera angles, and shortcuts that don’t fit neatly into text.
Both formats build on each other.
Reading helps you understand why each step matters, while watching shows how to move faster in Fusion.
Step 1: Start With a Clean Component Structure
Begin by creating a new component before modeling anything. This is a small step with a large payoff.
A clean component structure makes the timeline easier to understand, helps avoid accidental joins between bodies, and becomes essential later when working with multi-color 3D printing or complex assemblies. In parametric projects, structure is not optional — it is foundational.

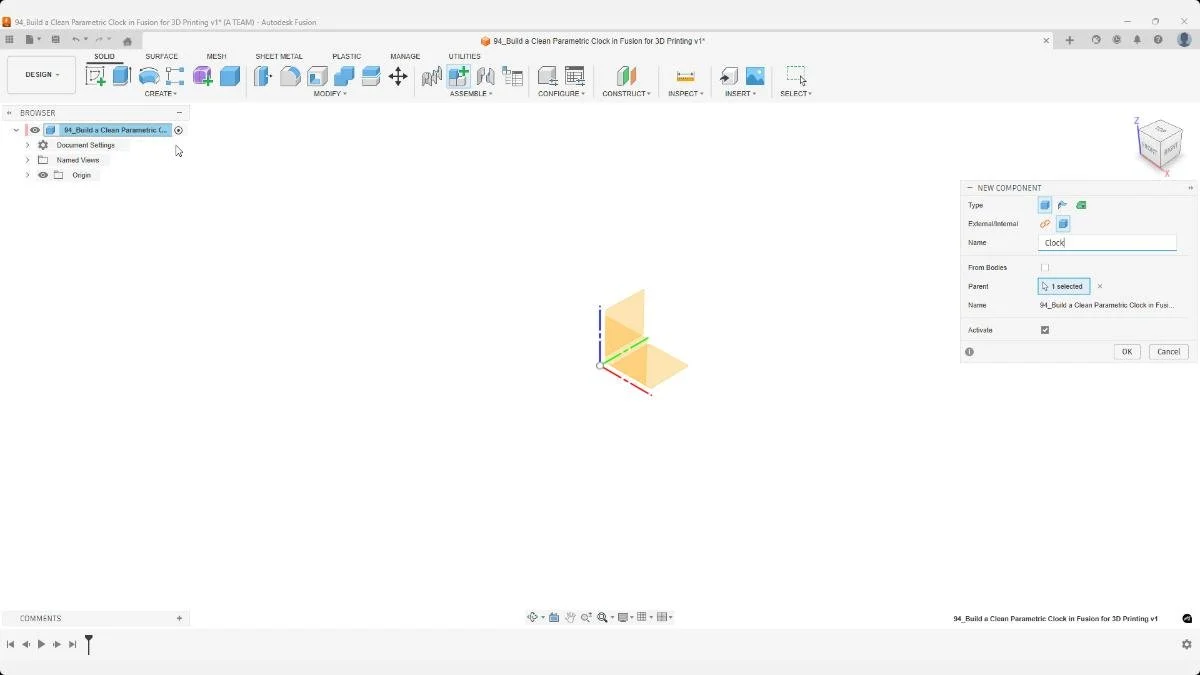

Setting up a clean component structure in Fusion before modeling a parametric clock. Starting with a dedicated component keeps sketches, bodies, and features organized, which is critical for scalable CAD workflows and future design changes.
Step 2: Define User Parameters Early
Open Design Shortcuts using the S key and search for Parameters. Shortcuts are faster than menus and help you discover tools that may already feel familiar if you have used other CAD systems.
Create a small, focused set of user parameters:
- Clock diameter
- Clock depth
- Movement mechanism size
- Shaft diameter
The movement mechanism and shaft are not 3D printed, but the model must account for them. This is why defining parameters early matters — the design needs to respect real-world components.
Do not worry about getting every parameter perfect at this stage. Parametric design is iterative. You can always add or refine parameters later.
For faster input, keep your mouse near the plus icon, use Tab to move between fields, and press Enter to confirm.

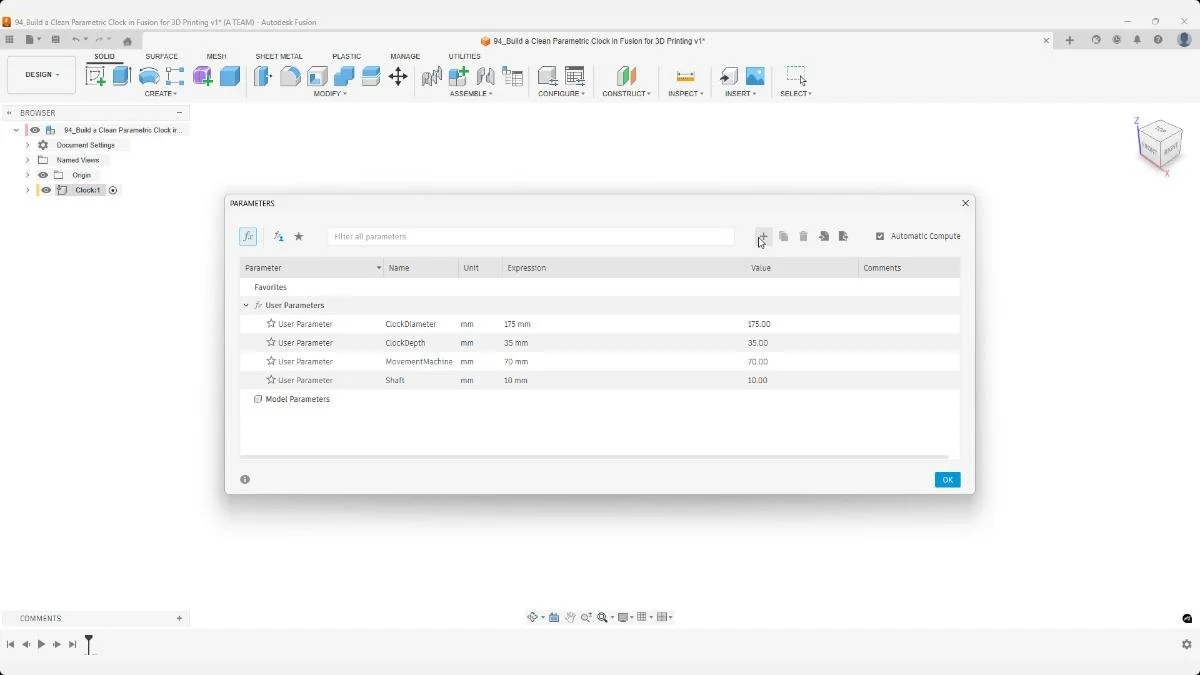

User parameters in Fusion controlling key dimensions such as clock diameter, depth, movement size, and shaft thickness. This parametric setup allows the entire 3D-printed clock to update by changing a single value.
Step 3: Create the Base Sketch With Parametric Geometry
Using Design Shortcuts, create a new sketch on the construction plane facing you.
Press C to create a circle from the origin and set its diameter using your Clock Diameter parameter. This ensures the entire design scales from a single value.
Next, press O to offset the circle. Instead of using a fixed value, use a formula. In this example, the offset is 0.08 * ClockDiameter. With a diameter of 175 mm, that results in a 14 mm offset.
This approach keeps the relationship between features intact when dimensions change, which is the core benefit of parametric modeling.
Create an additional circle for the shaft. Leave extra clearance for tolerances. In practice, achieving a perfect fit almost always requires iteration through test prints.

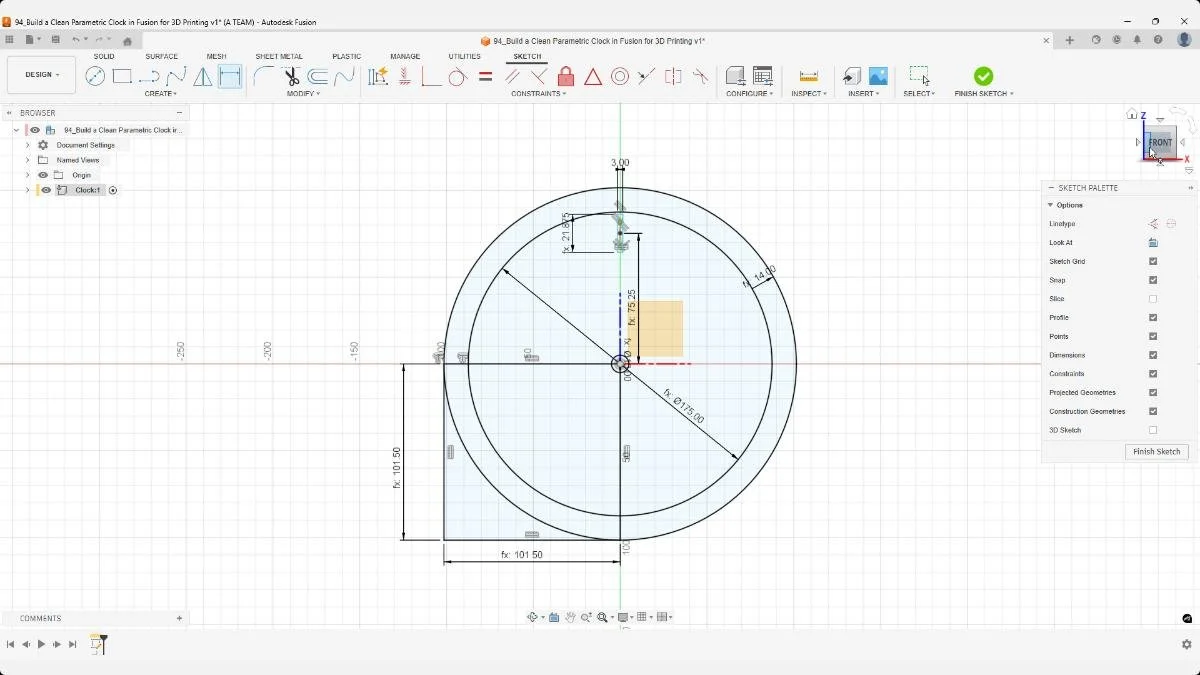

The main sketch defining the clock’s outer shape and proportions. Fully constraining sketches and linking dimensions to user parameters ensures predictable behavior when resizing the clock for different print sizes.
Step 4: Build the Foot Geometry With Formulas
Press R and sketch a two-point rectangle starting at the origin (see the image above). Creating the rectangle first simplifies later formulas.
Activate dimensions with D. For the first dimension, reference both the offset circle diameter and the clock diameter, then divide by two. Only the radius is needed for a two-point rectangle.
For the second dimension, reference the first dimension instead of repeating the formula. This reduces complexity and minimizes the risk of future errors.
At this point, the foot geometry is complete.
Step 5: Add the Index Marker Sketch
Open Design Shortcuts and select Center Rectangle. This rectangle type is ideal here because it stays aligned to the center automatically.
Set the height to slightly more than ten percent of the clock diameter. Use a fixed width of three millimeters (see the image above). This combination allows the marker to scale proportionally while keeping a printable, nozzle-friendly thickness.
Add a dimension controlling the distance from the center. This should also reference the clock diameter. In this example, it is set to slightly more than forty percent of the full diameter.
If selecting geometry becomes difficult in crowded sketches, press and hold the left mouse button to bring up the selection menu.
Step 6: Extrude the Clock Body Correctly
Press E to start the Extrude command without closing the sketch. This saves time and keeps the workflow efficient.
Select all clock geometry except the symbolic shaft hole and extrude using the Clock Depth parameter.
After the extrude, Fusion hides the sketch automatically. Turn it back on in the browser so you can continue working.
Set the next extrude operation to New Body. Fusion often defaults to Join when geometry is adjacent, and joining bodies unintentionally is a common source of errors. Always verify the operation type before confirming.
If you want the front depth to scale with the clock diameter, use a formula and add a minus sign to reverse the extrude direction. Again, confirm the operation remains New Body.

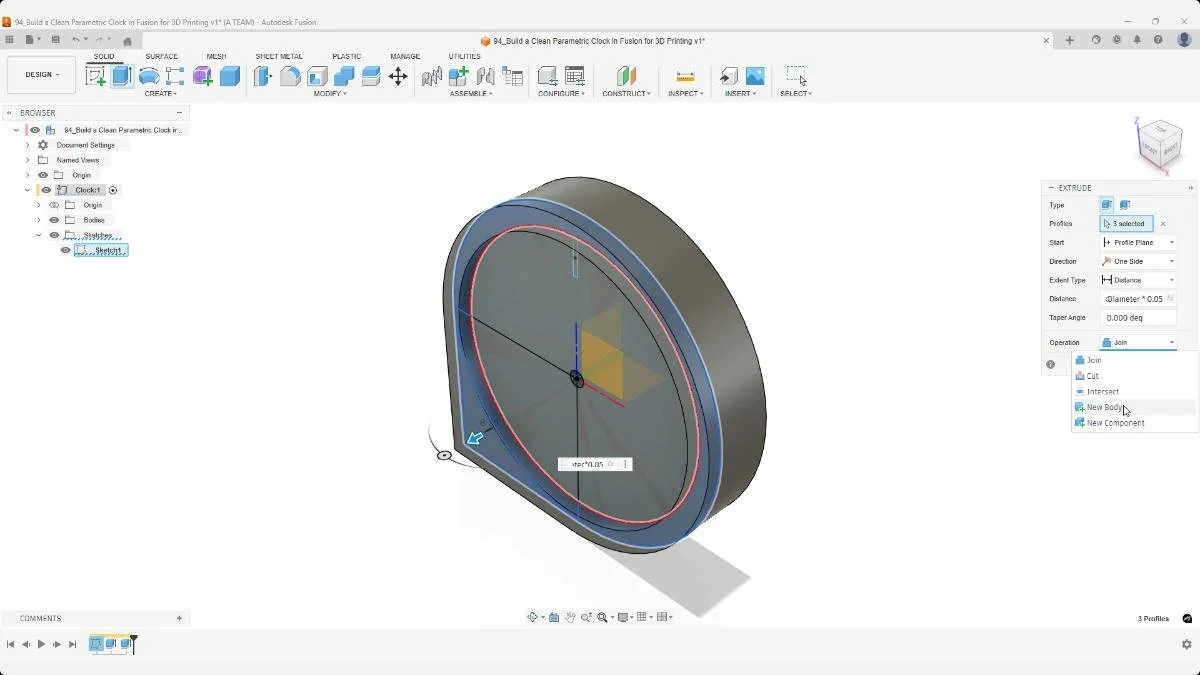

Extruding the primary clock body from the base sketch. The extrusion depth is driven by user parameters, making the model adaptable to different materials, print settings, and manufacturing constraints.
Step 7: Create Space for the Movement Mechanism
The back sketch defines space for the movement mechanism. These dimensions should remain fixed, even when the clock size changes, so use fixed values instead of formulas.
From a manufacturing standpoint, this opening is too wide to bridge reliably when 3D printed face-down. One practical solution is to print a small insert that fits inside the opening. This avoids supports and saves time when printing multiple copies.

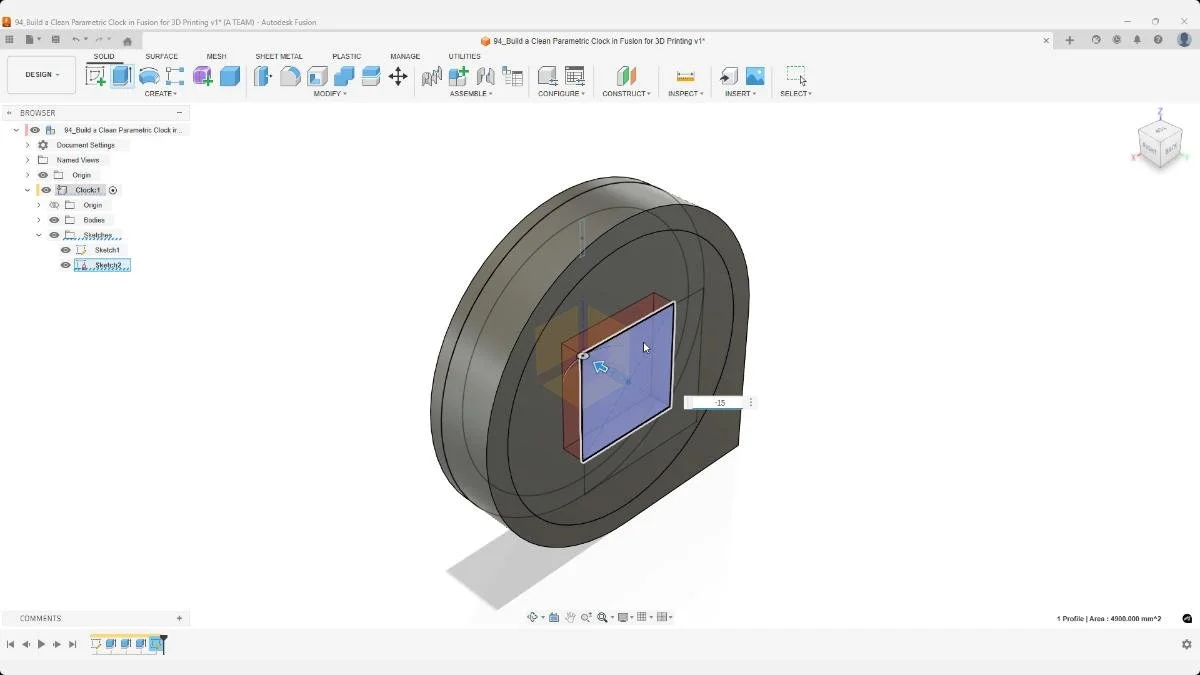

Creating a cut on the back side of the clock to house the movement mechanism. Fixed dimensions are used here because the movement size does not scale with the overall clock diameter.
Step 8: Model the Shaft Reference
Project the shaft hole into a new sketch and offset it slightly to allow for tolerances. Expect to test and iterate.
Extrude this feature to the clock body and add a small offset so the symbolic shaft sits slightly proud of the surface. This makes assembly and visual alignment clearer.
If you plan to print the hour and minute hands, reverse-engineer the shaft geometry so the hands fit securely.
Save the project at this point.
Using projected geometry to accurately position features on the back face of the clock. This technique keeps sketches linked to existing geometry, reducing errors when parameters are updated.

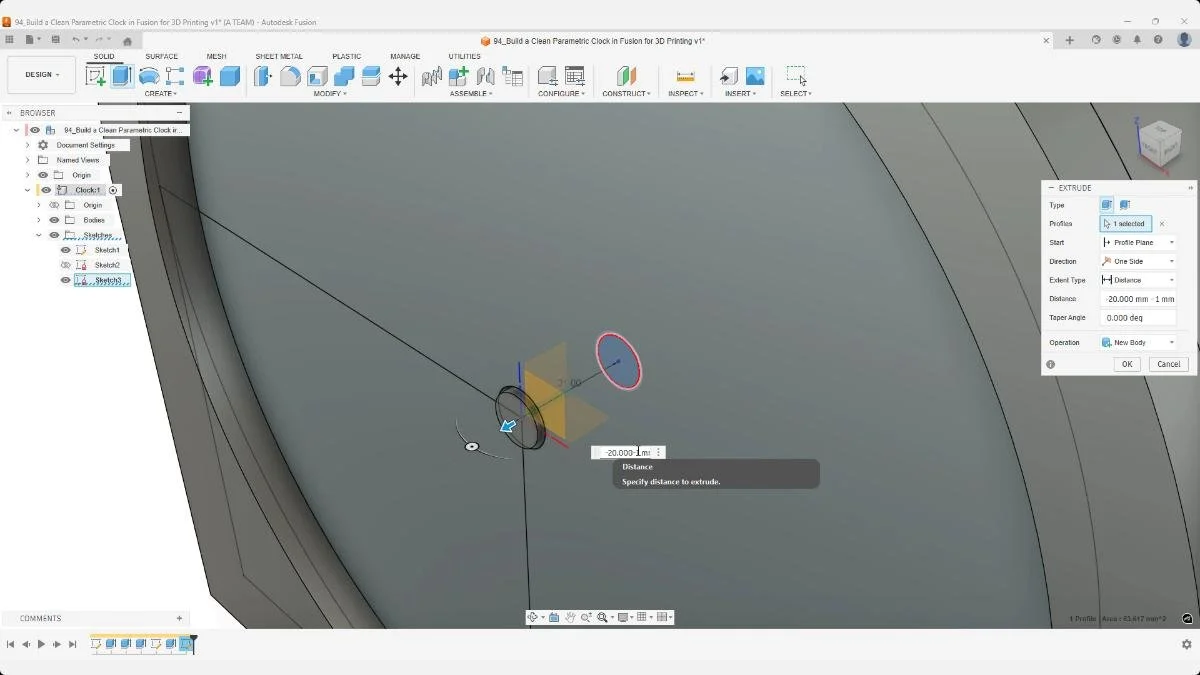

Extruding the clock shaft as a separate body to maintain control over tolerances and fit. Separating functional features like shafts improves print testing and makes adjustments easier during prototyping.
Step 9: Extrude and Pattern the Index Markers
Extrude the index marker as a New Body. Double-check that Fusion has not switched the operation to Join.
Apply the appearance now, before patterning. This ensures every patterned body inherits the same appearance automatically.
If you are using custom appearances, rename them. Clear naming becomes increasingly valuable as designs grow.
Open Design Shortcuts and select Circular Pattern. Use the green axis as the pattern axis and set the quantity to twelve.

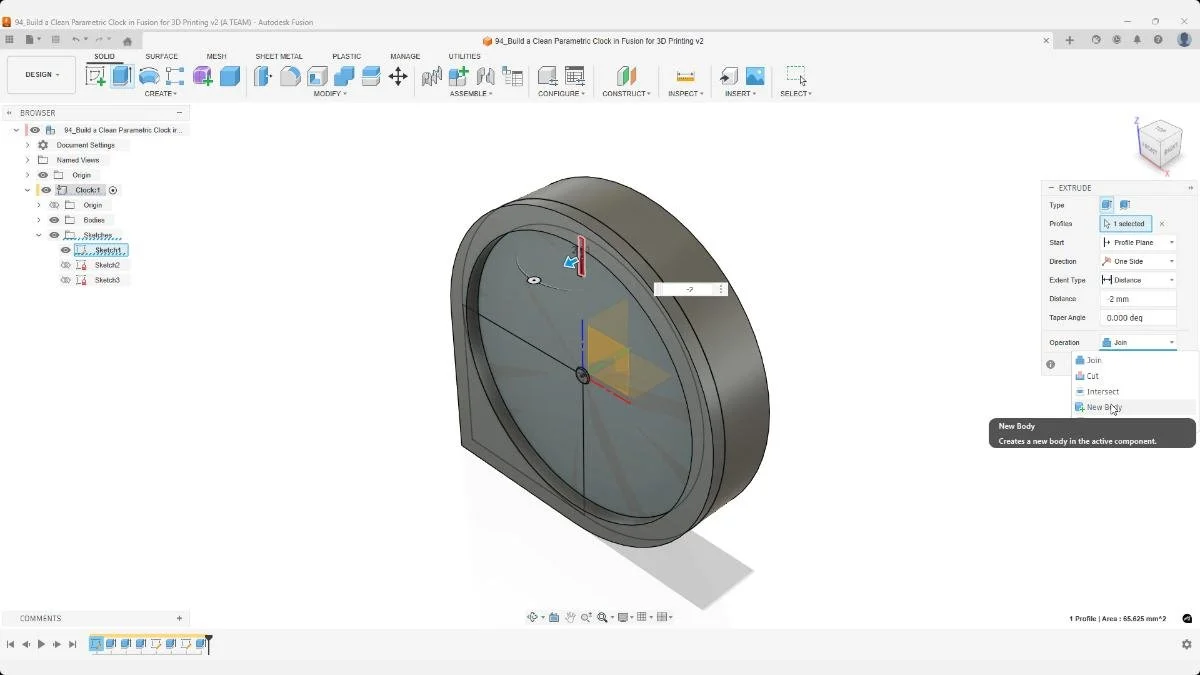

Creating front-side details that define the clock’s visual depth and design language. Parametric extrudes ensure these details remain proportional when the clock size changes.

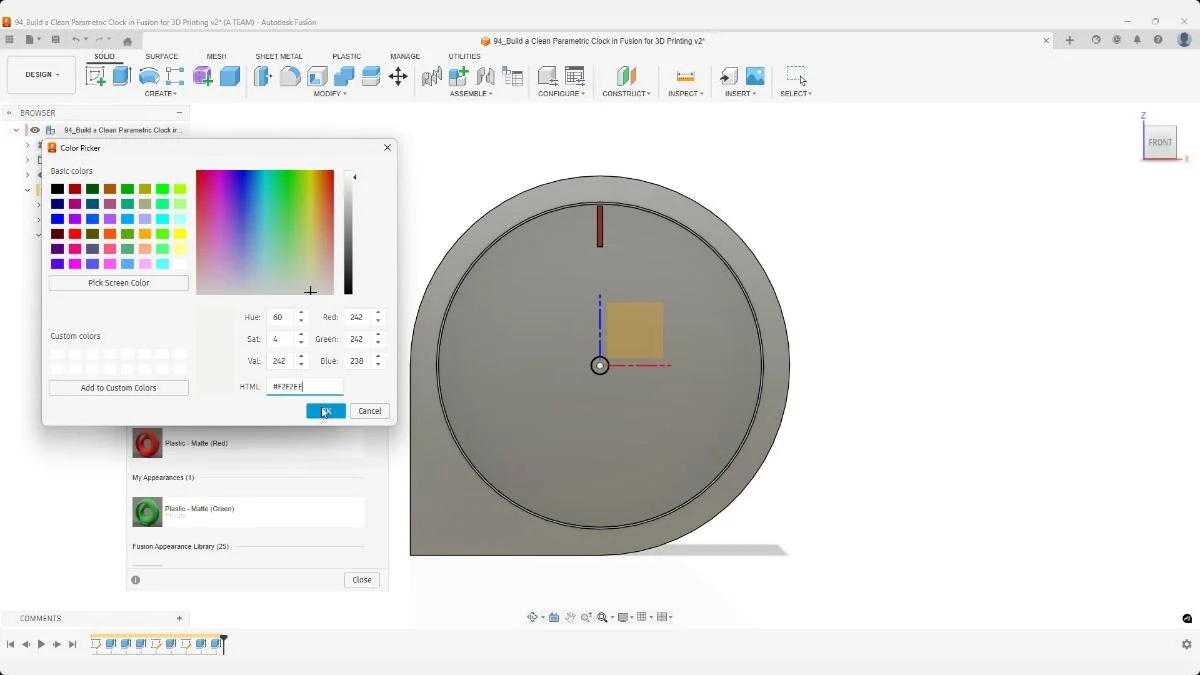

Assigning custom appearances in Fusion using precise hex color values. Custom materials improve visual clarity, make components easier to identify in the timeline, and help preview final product aesthetics before 3D printing.

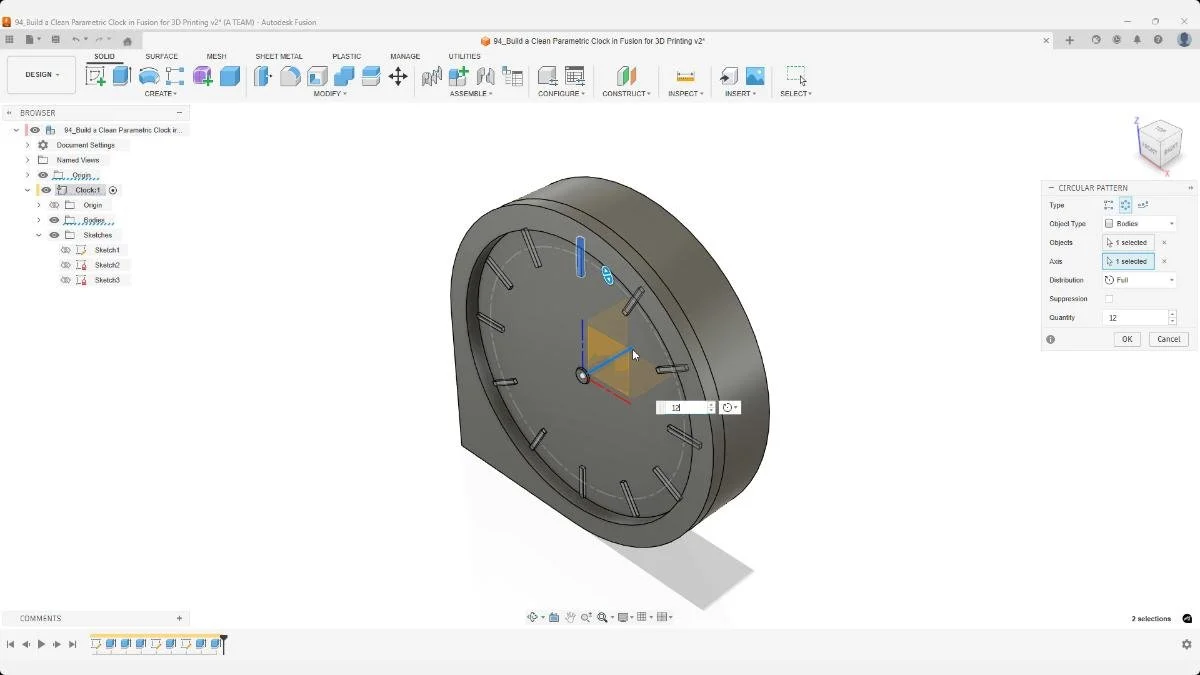

Modeling a single index marker and distributing it using a circular pattern. This approach minimizes sketch complexity and allows quick adjustments to marker size, count, and spacing.
Step 10: Design the Hour and Minute Hands
Activate the top-level component and create a new component named Hour Hand. Sketch directly on the correct face, approaching it from a slight angle to avoid selection errors.

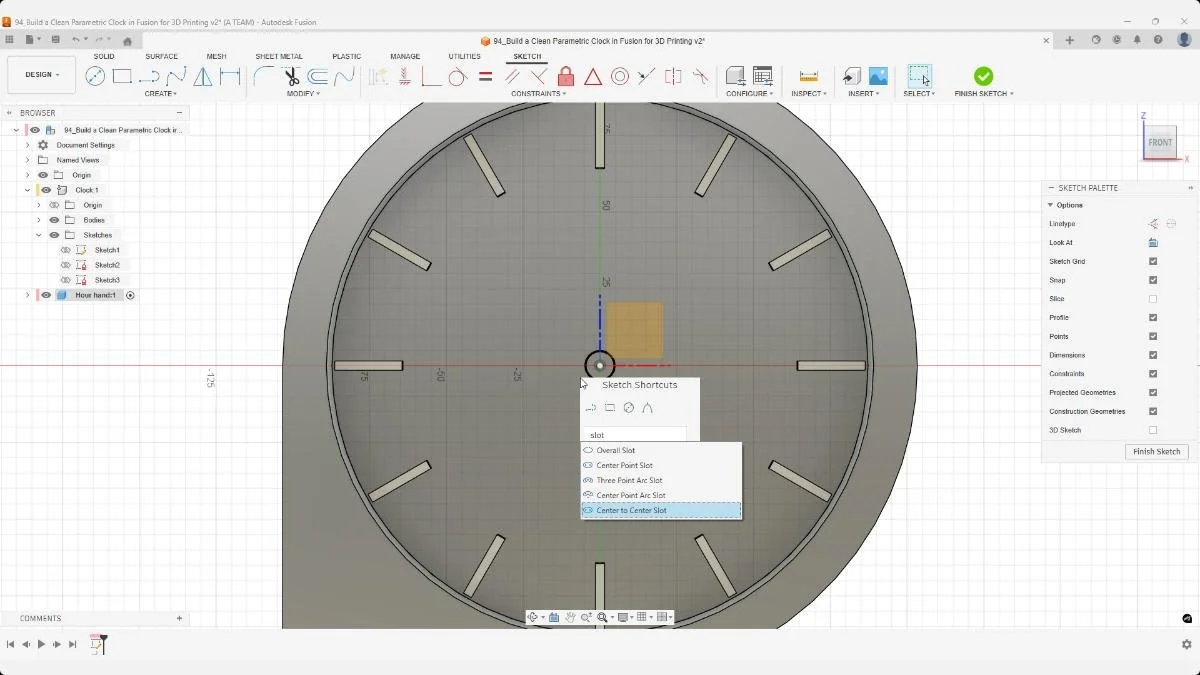

Use the Center to Center Slot command. This tool is ideal because it defines the slot by its endpoints, making parametric control straightforward.
Include the clock diameter in the formula so the hand scales automatically. At this stage, the sketch may not be fully constrained. This is intentional and mirrors real-world workflows.
Use a fixed width and fixed depth to maintain strength and compatibility with common nozzle sizes.
Repeat the process for the Minute Hand, adjusting the formulas and widths as needed. Extrude directly from the sketch and set a fixed depth of 1.5 mm for predictable printing results.
A new sketch is created on a flat plane above the compartments. This sketch is used to capture associative references by projecting the 3D geometry. Linked projection preserves relationships so changes in the solid automatically update the sketch.

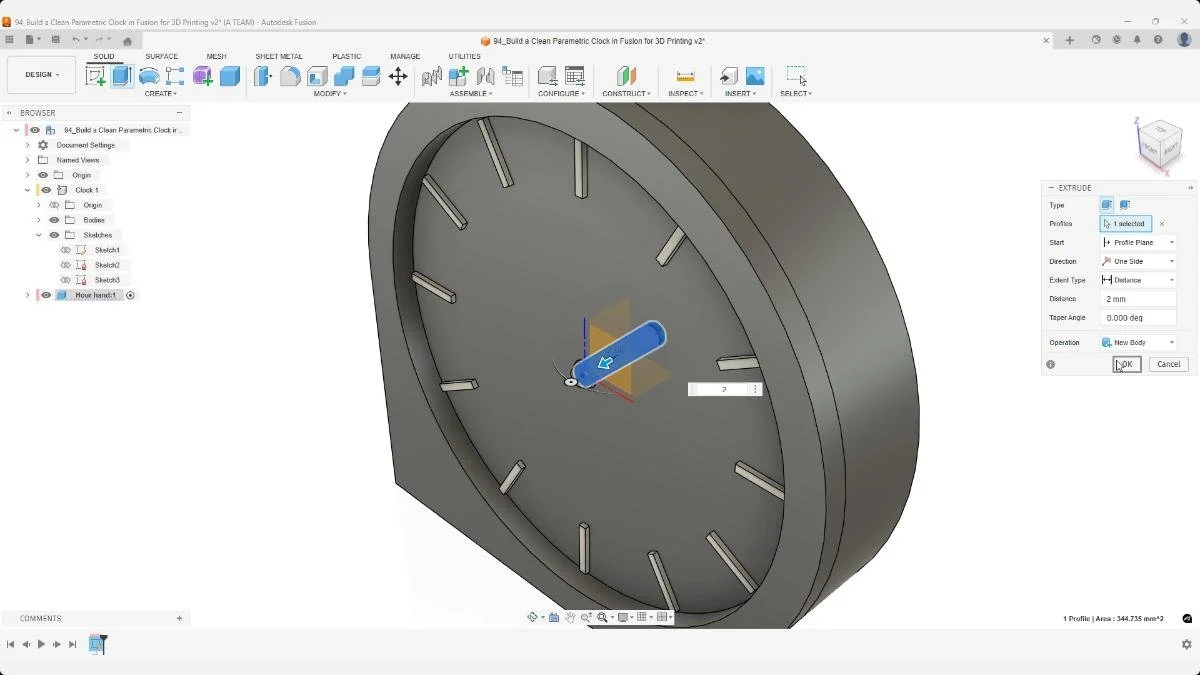

Extruding the hour hand as a separate body improves control over thickness, tolerances, and print behavior. Keeping hands as individual bodies also simplifies future edits and testing.

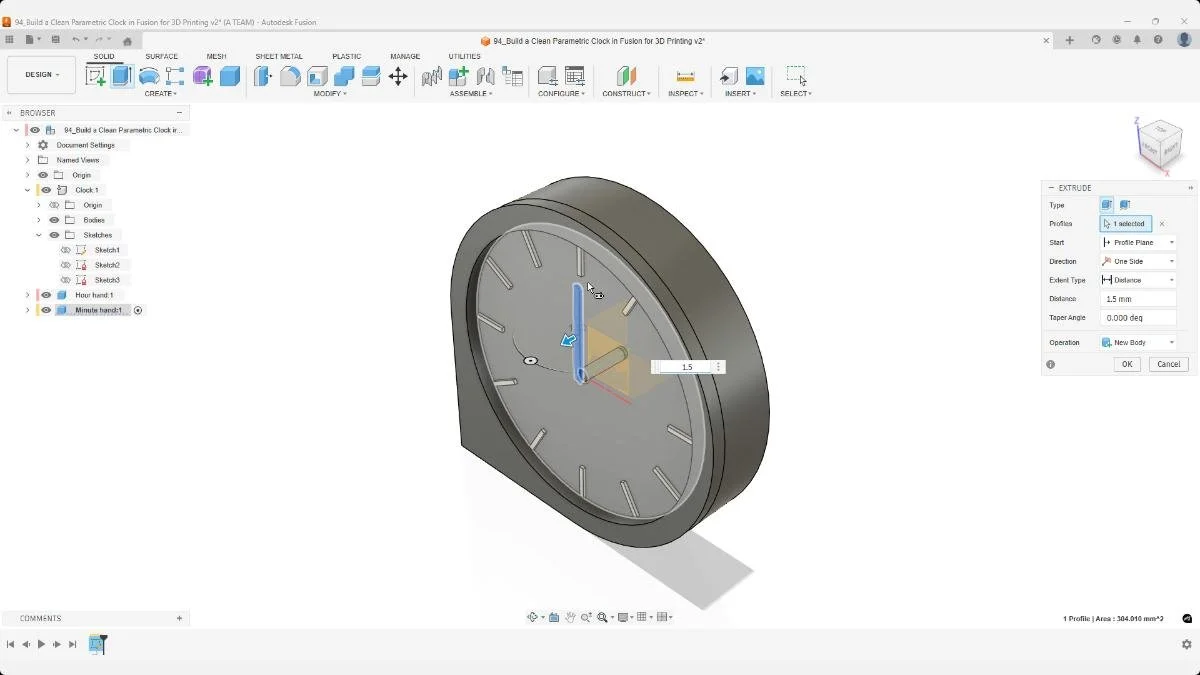

The minute hand is extruded as its own body to maintain independence from the hour hand. This approach allows different thicknesses and lengths while keeping both hands driven by shared parameters.
Step 11: Apply Fillets for Function and Finish
Activate the clock component before adding fillets so the feature is recorded in the correct location.
Add a small fillet to the inner circle. Set tangency to G1. G1 tangency creates a smooth transition without enforcing curvature continuity. This makes the fillet stable, predictable, and well suited for mechanical parts and 3D printing.
Higher tangency levels are more aesthetic but often unnecessary and less robust.

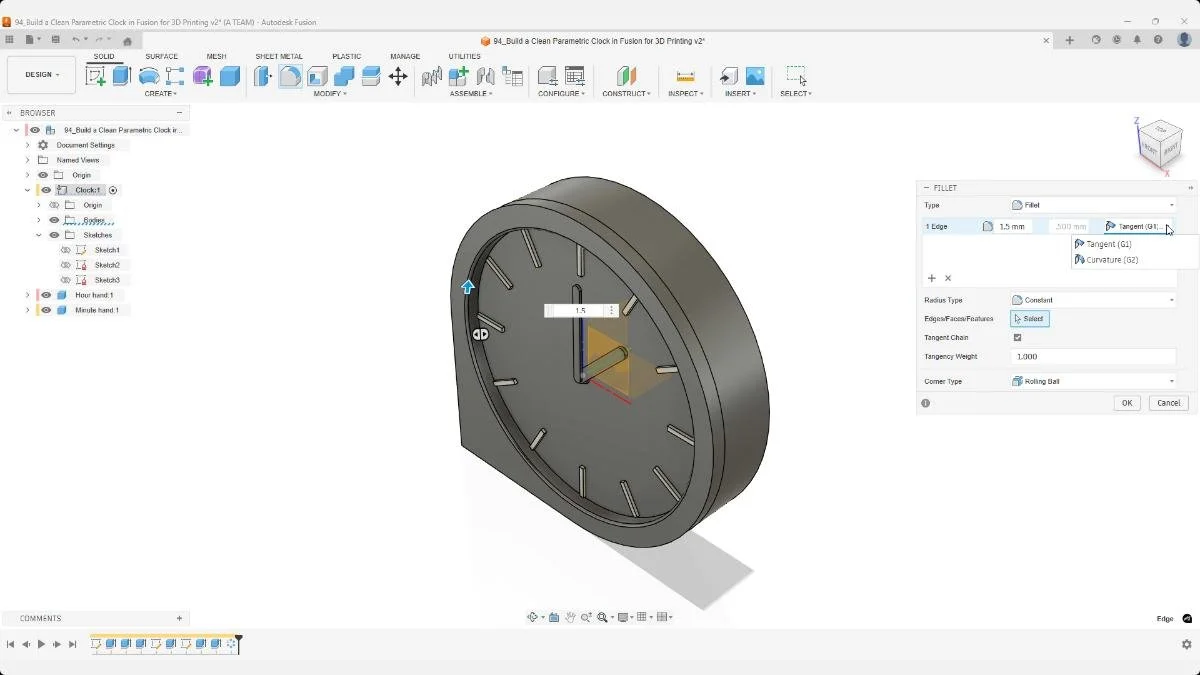

Adding fillets to the clock hands using curvature continuity improves both aesthetics and print quality. Smooth transitions reduce stress points and produce cleaner results on FDM 3D printers.
Step 12: Test and Fix the Parametric Setup
Duplicate and rename appearances to speed up styling. Adjust visual settings to reduce clutter and improve readability.
Before updating parameters, save a new version with a clear description. This provides a safe rollback point.
Update the user parameters and observe the behavior. When reducing the clock diameter, the hands update correctly, but the index marker drifts. This is caused by an under-constrained sketch.
Locate the sketch, draw a construction line through the center, and apply a colinear constraint. When the sketch turns black, it is fully constrained.
Re-test the parameters. The design now scales correctly from a single value.
From a business perspective, this means one design can serve multiple product sizes without additional modeling work.

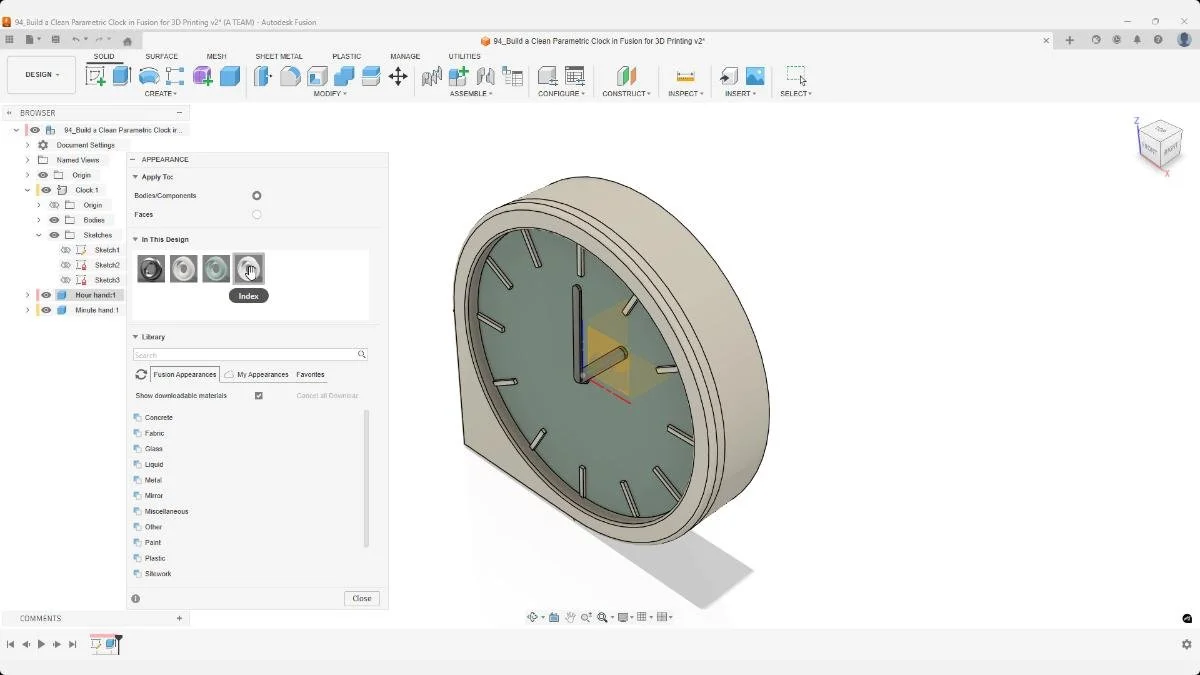

Assigning appearances to different clock components improves visual clarity and makes it easier to identify parts in complex timelines. Materials also help preview contrast and final product aesthetics.

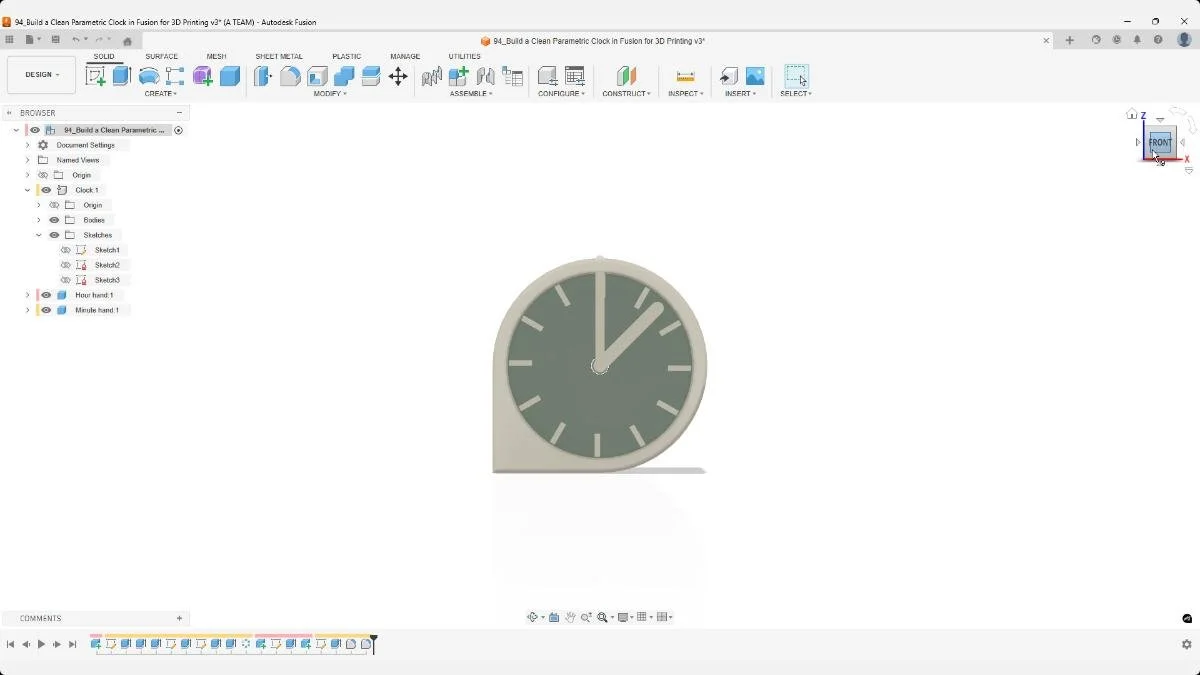

Front view of the clock model after updating parameters, where the hour and minute hands scale beyond their intended proportions. This highlights a common parametric modeling issue in Fusion and sets up the need to revisit sketches, constraints, and user parameter formulas.

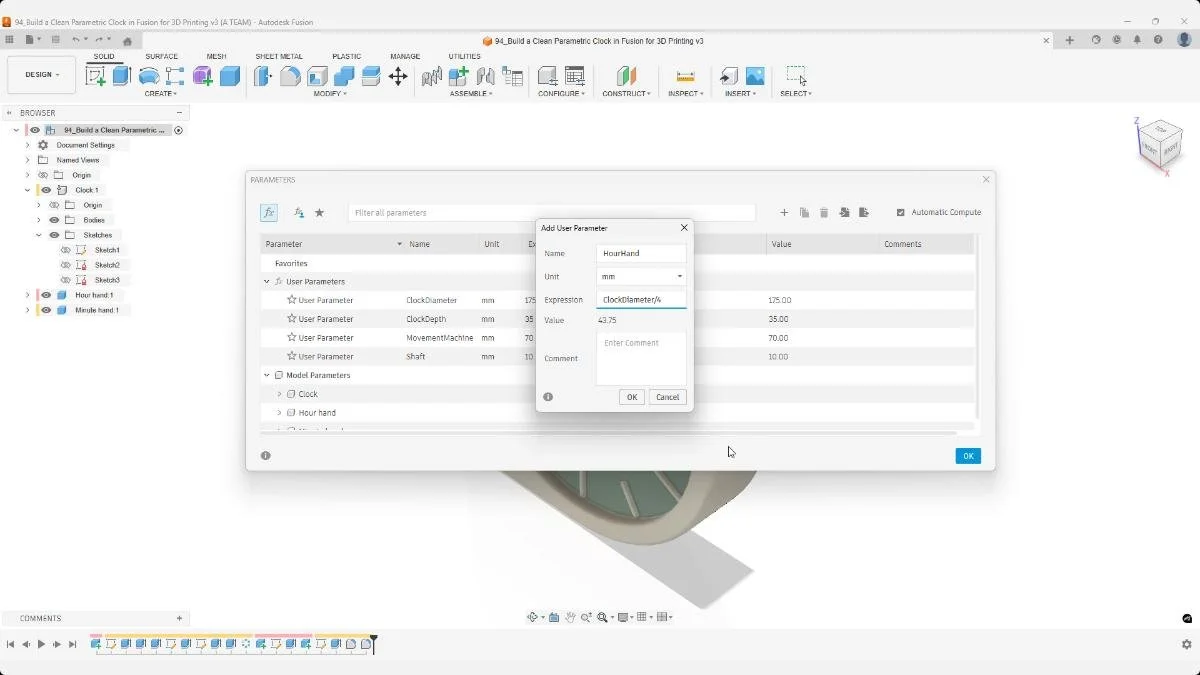

Defining a custom user parameter for the hour hand length based on the clock diameter. This ensures the hand scales correctly when the overall clock size changes.
Adding a dedicated user parameter for the minute hand allows fine control over proportions. Separating hour and minute hand formulas prevents sketch failures when resizing the model.

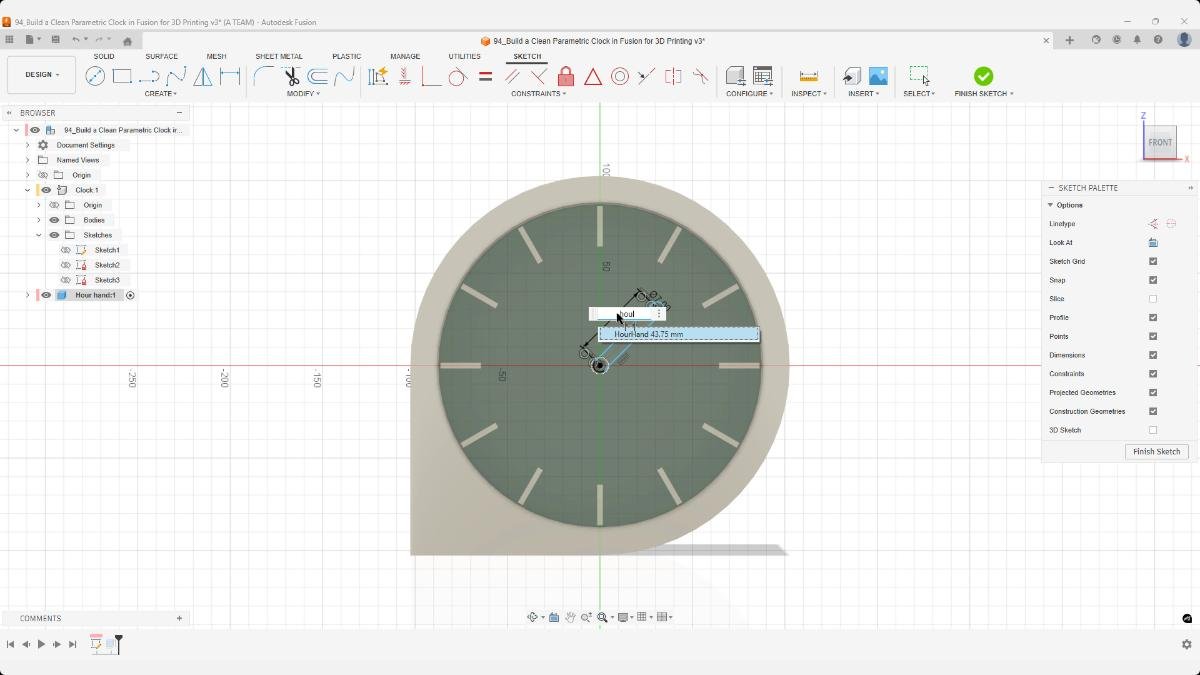

Applying dimensions and constraints to the hour hand sketch ensures predictable behavior during parameter updates. Fully constrained sketches are essential for stable parametric CAD models.

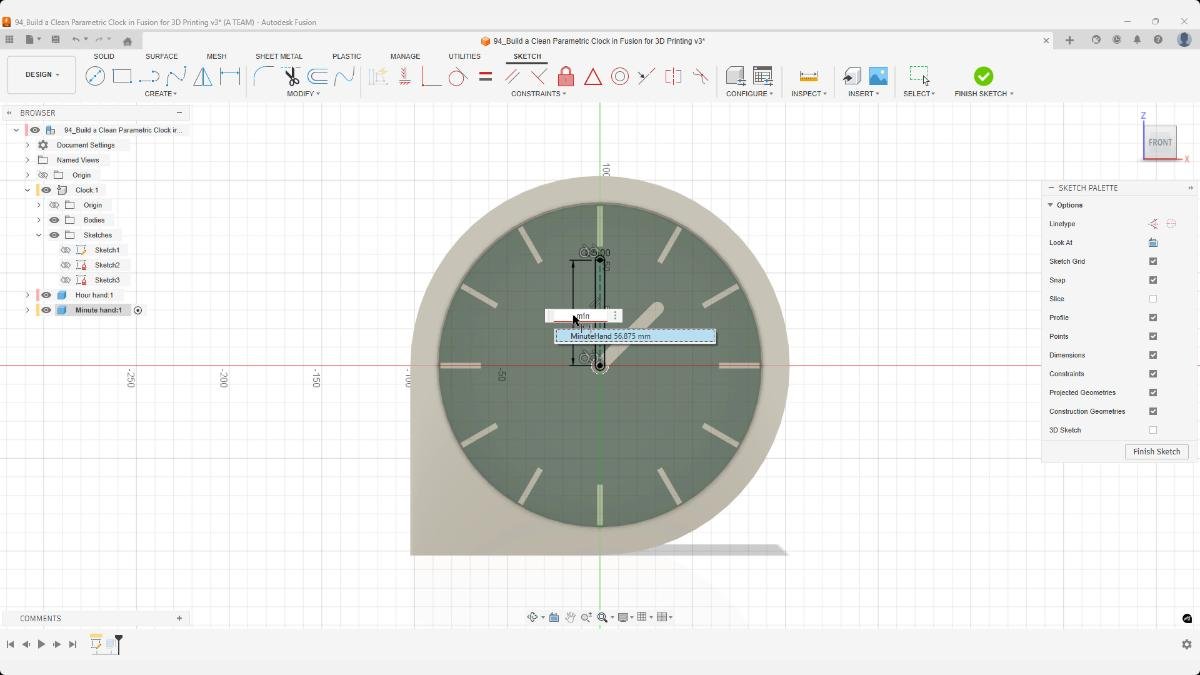

The minute hand sketch is dimensioned using expressions tied to user parameters. This approach keeps the design flexible and avoids manual rework when adjusting clock size.

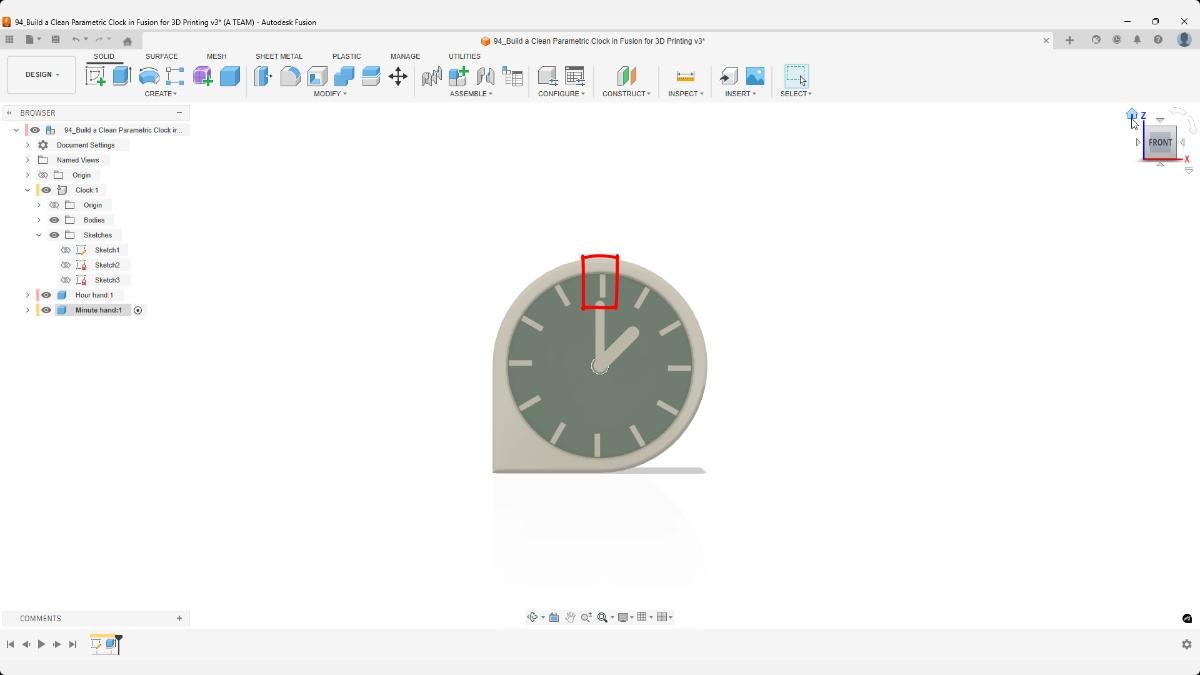

After updating the clock diameter, a sketch error becomes visible where geometry no longer behaves as intended. This is a common parametric issue in Fusion and usually indicates missing constraints or poorly defined sketch relationships.

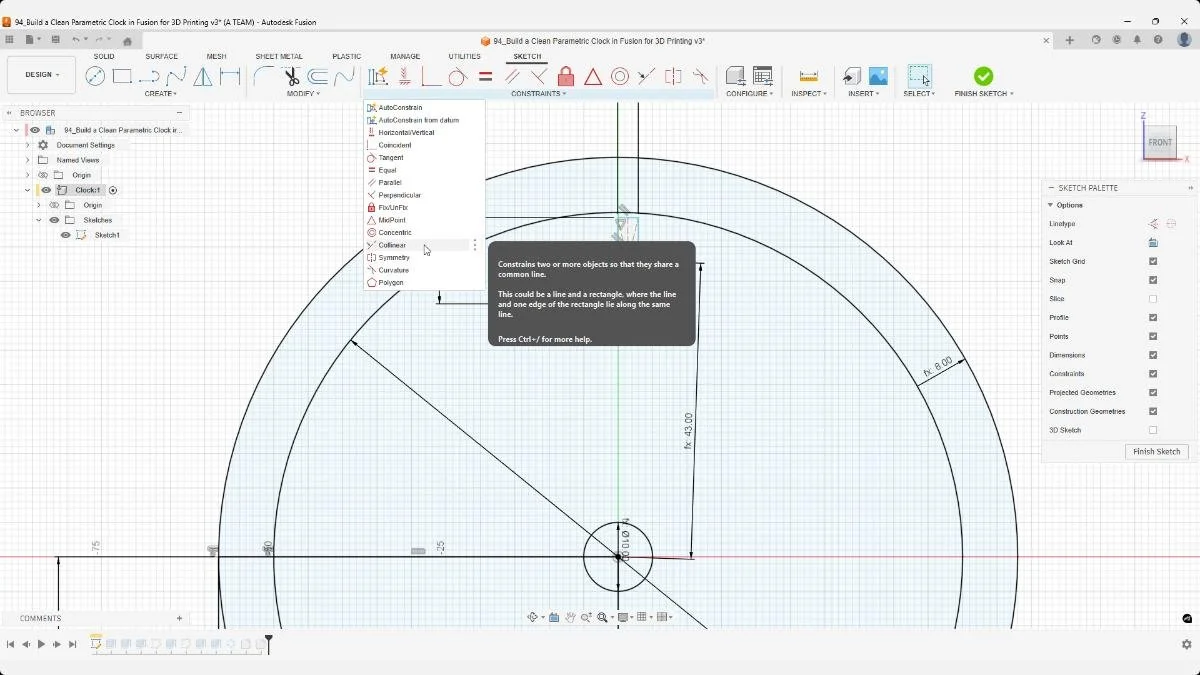

Applying sketch constraints such as coincident, vertical, and collinear to lock down geometry. Proper constraints prevent sketches from drifting or scaling incorrectly when user parameters are updated.

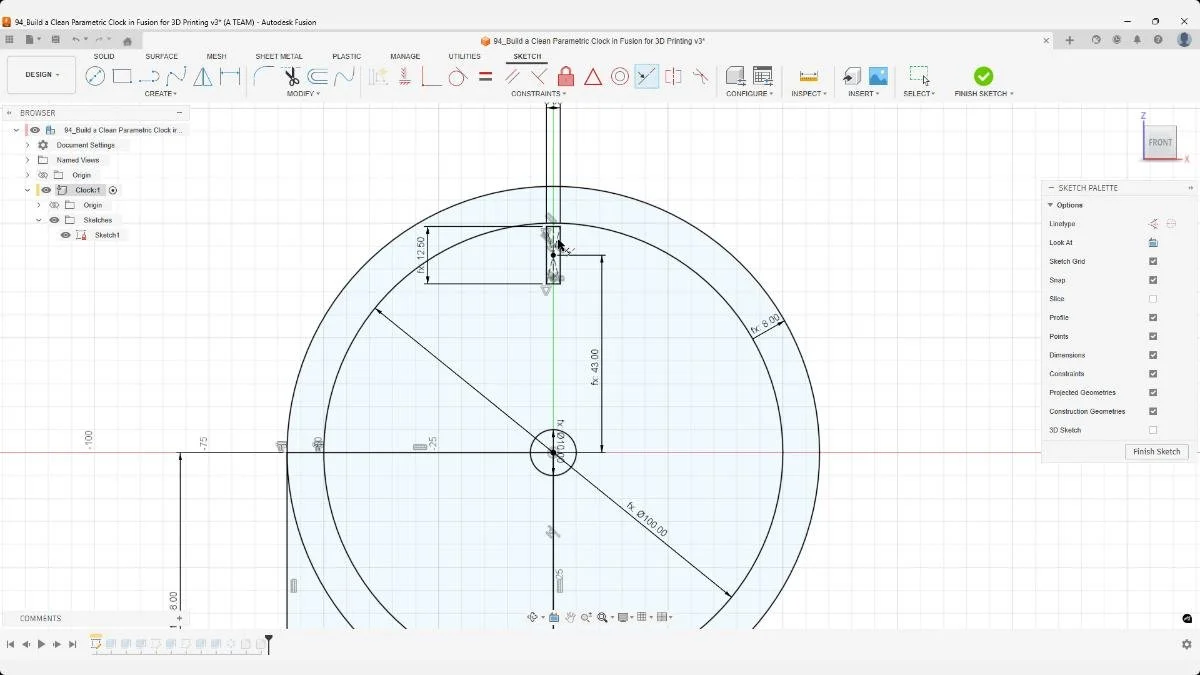

With all critical geometry constrained, the sketch behaves predictably during parameter changes. This step resolves the scaling issues seen earlier and restores stability to the parametric model.

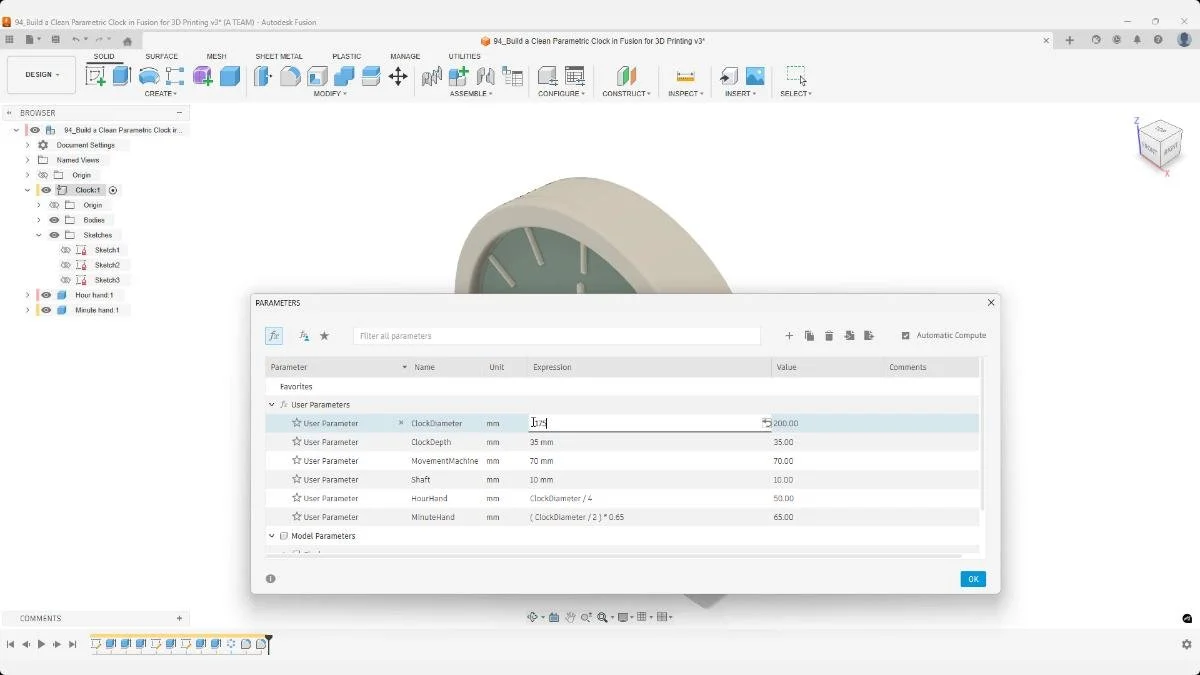

Re-testing the model by changing key user parameters such as clock diameter. The hour and minute hands now update correctly, confirming that the parametric setup is functioning as intended.
Step 13: Analyze 3D-Printing Time
Move to PrusaSlicer and set up the print on the Original Prusa i3 MK3S+. Focus on the main body, as the hands contribute negligible print time.
Orient the part with the back facing down. Because the opening is too wide to bridge, use an insert instead of supports.
Slice the model using multiple profiles:
- 0.10 mm detail
- 0.20 mm quality
- 0.30 mm draft
- 0.30 mm draft with ironing
Even with coarse settings, the print is long. At fine detail, it exceeds forty hours. Real-world averages are higher due to failed prints.

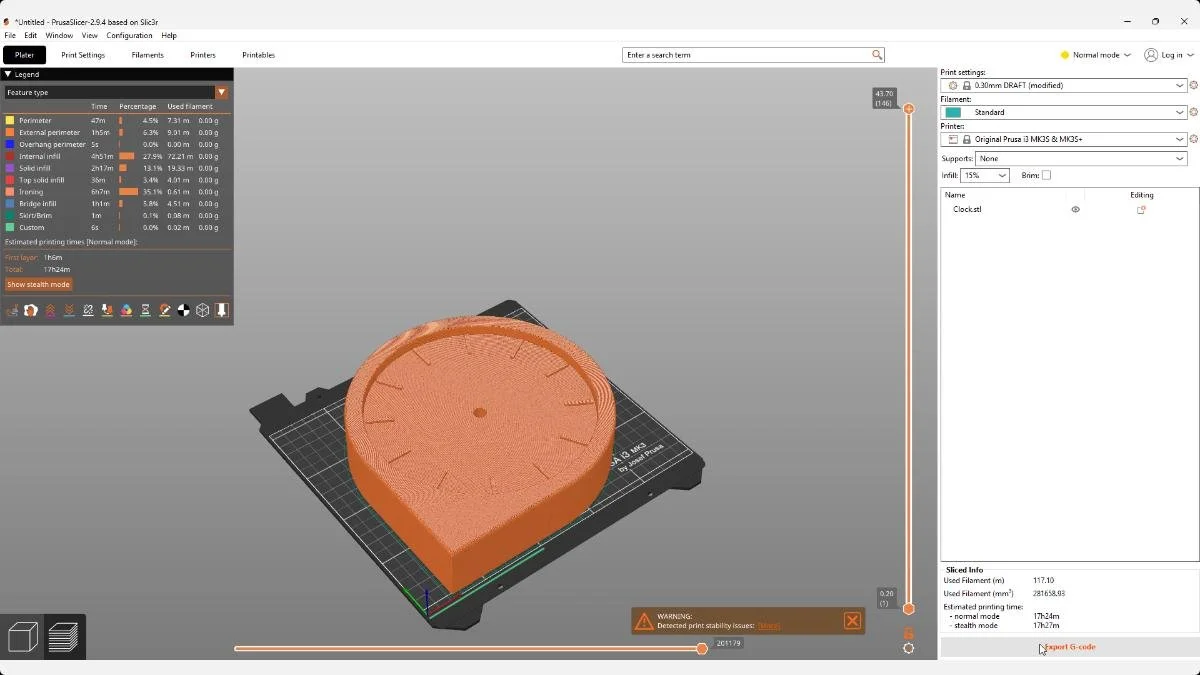

Previewing the clock body in PrusaSlicer to evaluate orientation, infill, and support requirements. Slicer previews are essential for identifying printability issues before committing to long print times.

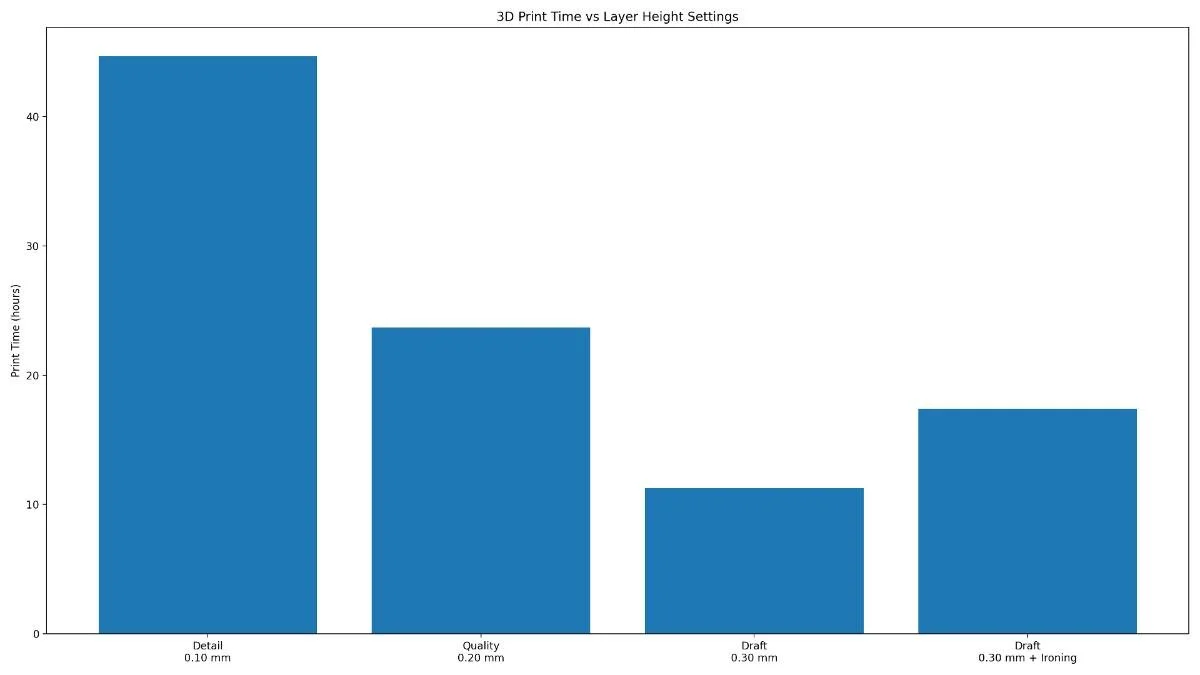

Comparison of estimated print times using different layer heights. This highlights how print quality and surface finish trade off directly against production time in FDM 3D printing.
Step 14: Compare Manufacturing Costs

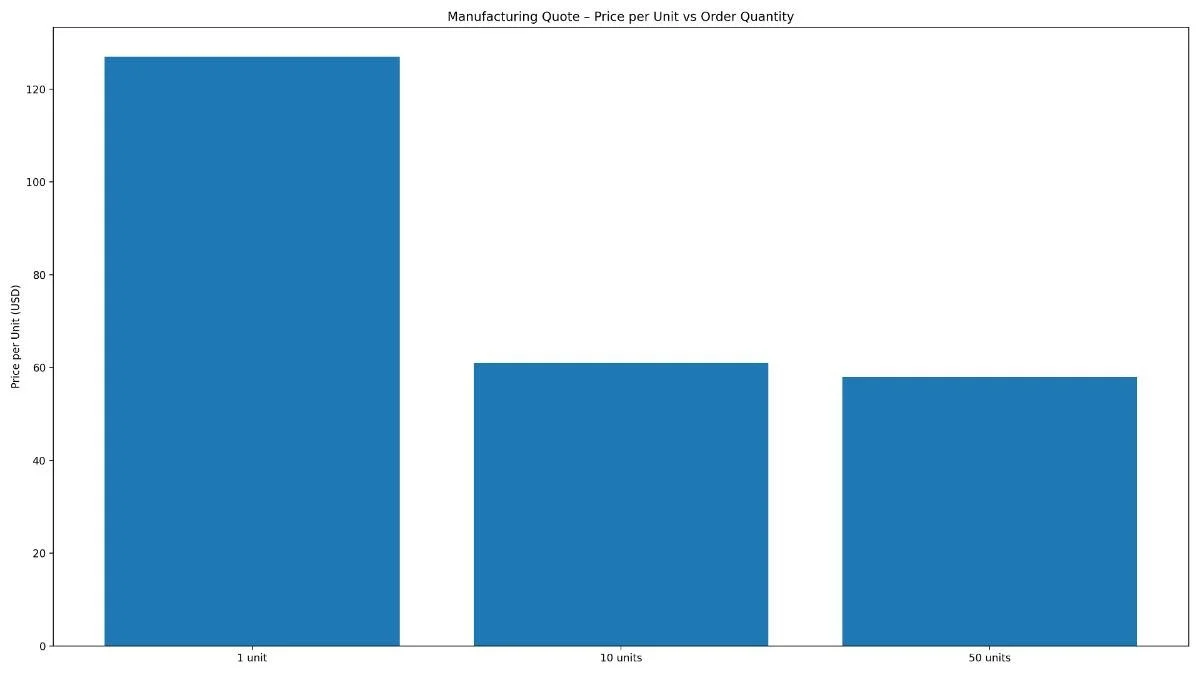

Online quotes for black PLA manufacturing show pricing around:
- 120 USD for one unit
- 60 USD for ten units
- 58 USD for fifty units
Unlike laser cutting or injection molding, 3D printing remains time-driven rather than setup-driven. Unit costs do not drop significantly with volume, which directly affects scalability and margin planning.
This distinction is critical when deciding whether to print in-house or outsource production.
Mesh export lets individual bodies be saved as STL or 3MF for slicing. Exporting bodies separately supports modular printing and makes it easier to test or replace compartments without reprinting the full organizer.
Key Takeaways
- A fully parametric setup allows a single Fusion model to scale across multiple product sizes without rework
- Clean component structure and correct operation types (New Body vs Join) prevent downstream design errors
- Fully constraining sketches is essential for reliable parametric behavior when dimensions change
- Design decisions in CAD directly affect 3D-printing time, failure risk, and material efficiency
- 3D printing remains time-driven rather than volume-driven, which limits cost reduction at higher quantities
