Build a Parametric 3D-Printed Organizer in Fusion: A Complete Step-by-Step Guide
Designing custom organizers is one of the most practical ways to sharpen your Fusion skills and get more out of your 3D printer. This project walks you through building a fully parametric organizer—fast to model, easy to update, and reliable to print. If you enjoy technical workflows, clean modeling logic, and designs that adapt automatically, this guide is made for you.
Before we dive in, here’s what you can expect to learn.
What You’ll Learn
- How to set up user parameters for a flexible, future-proof design
- How to build a clean, stable sketch using constraints, dimensions, and projected geometry
- How surface extrudes and body splits create fully parametric compartments
- How to add text, fillets, tolerances, and offsets using a structured modeling workflow
- How to export, update, and iterate your organizer without rebuilding anything
Watch the Workflow — or Read It Step by Step
You can follow this guide in two ways:
- Read the steps below if you want quick written instructions, reference images, and modeling notes.
- Watch the full video at the end of this post to see the workflow in real time — including extra tips, camera angles, and shortcuts that don’t fit neatly into text.
Both formats build on each other.
Reading helps you understand why each step matters, while watching shows how to move faster in Fusion.
Step 1 — Measure Your Items and Set Up Parameters
Start by measuring the items you want to organize with a digital caliper. Accurate input here makes the entire design more predictable in downstream edits.

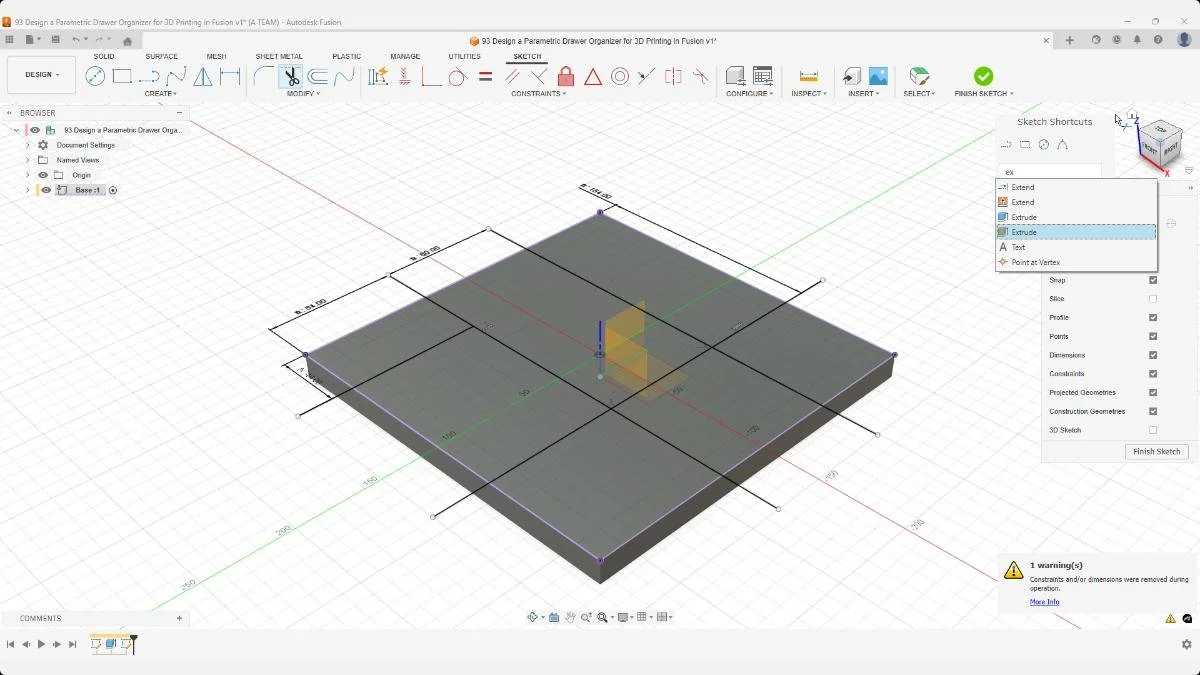

Press S to open the Design Shortcuts menu. This command saves time by giving you instant access to commonly used tools without navigating multiple toolbars.
Create your user parameters:
- Base width and depth
- Height
- Wall thickness
- Item-specific values (phone width, key width, etc.)
Parameters are central to a stable parametric workflow. Every dimension you assign later will reference these values so the model can adapt instantly when something changes.

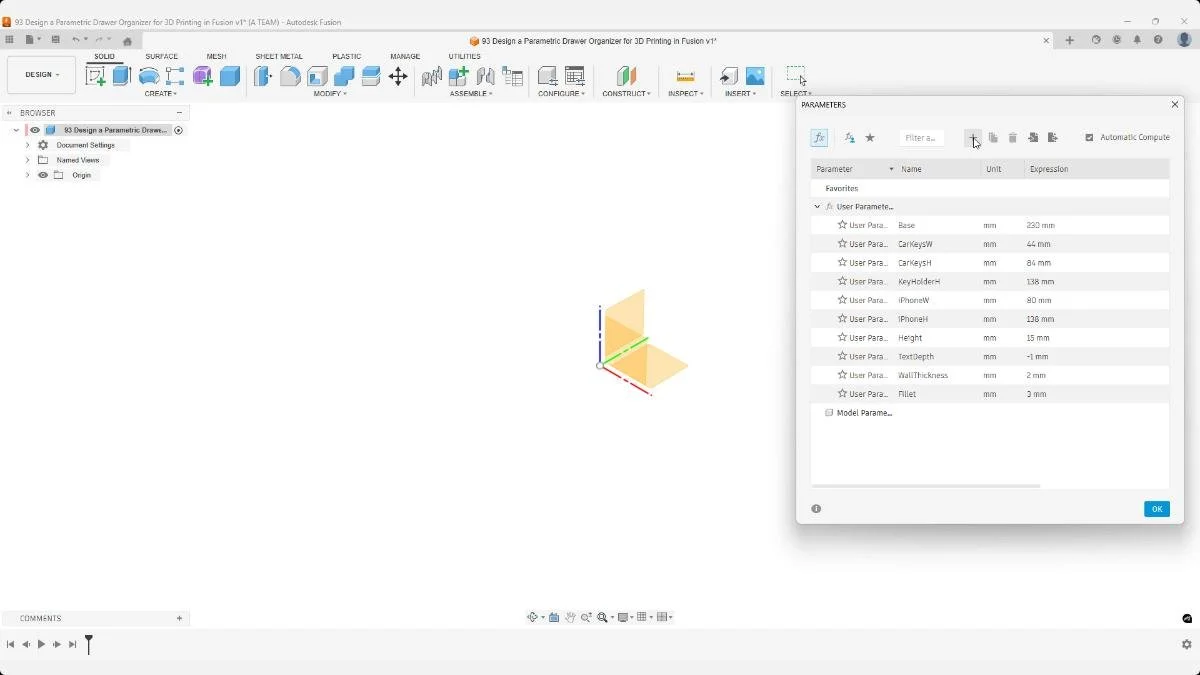

The parameters panel centralizes all key dimensions, including wall thickness, item widths, text depth, and overall organizer height. Parameter-driven modeling keeps the design adaptable and prevents breakage when editing dimensions later. Each parameter acts as a single source of truth for downstream features such as cuts, shells, and text extrusions.
Step 2 — Start With a New Component

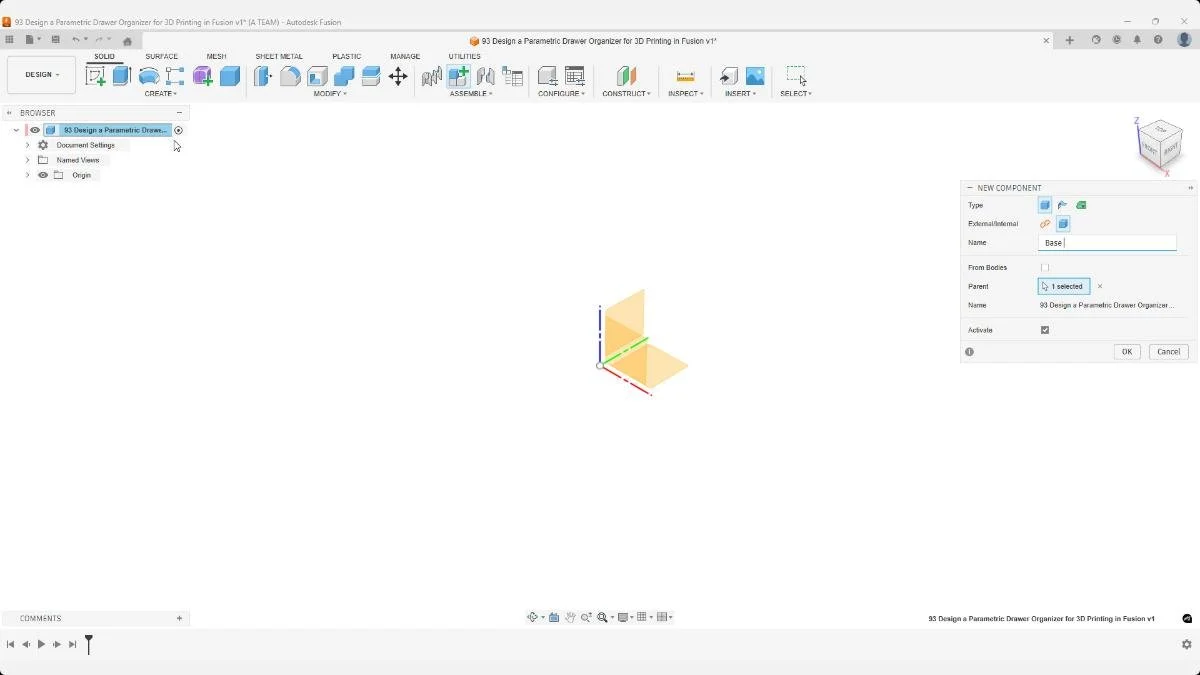

Create a new component and use Tab to jump directly into the naming field. This keeps your model organized and ensures all features land in the correct context. A clean component structure is especially useful when exporting STLs or editing bodies later.
A dedicated component isolates sketches, bodies, and features, ensuring clean structure in the timeline. Activating the component before sketching prevents geometry from attaching to the root environment. This approach supports reuse, clearer edits, and avoids cross-component dependencies that complicate parametric models.
Step 3 — Build the Base Extrude
Start a sketch on a construction plane, press S, and create a center rectangle anchored at the origin. Center-based sketches keep the geometry balanced and reduce the chance of drifting constraints.
Use your BaseWidth and BaseDepth parameters for dimensions.
Press E to extrude directly from the sketch and enter your Height parameter. Extruding parametrically ensures the base updates automatically when you modify depth or printer-fit requirements.
The initial base extrusion establishes the primary solid from which all compartments will be formed. Using a height parameter ensures the tray depth can be adjusted without remodeling. Downstream features like shells, splits, and text placement depend on this foundation maintaining predictable behavior.
Step 4 — Rough Layout of the Compartments
Create a second sketch on top of the extruded body. Press L to draw quick, loose layout lines. These rough lines help you explore spacing and proportions before locking anything down.
Use the ViewCube to keep orientation clear.

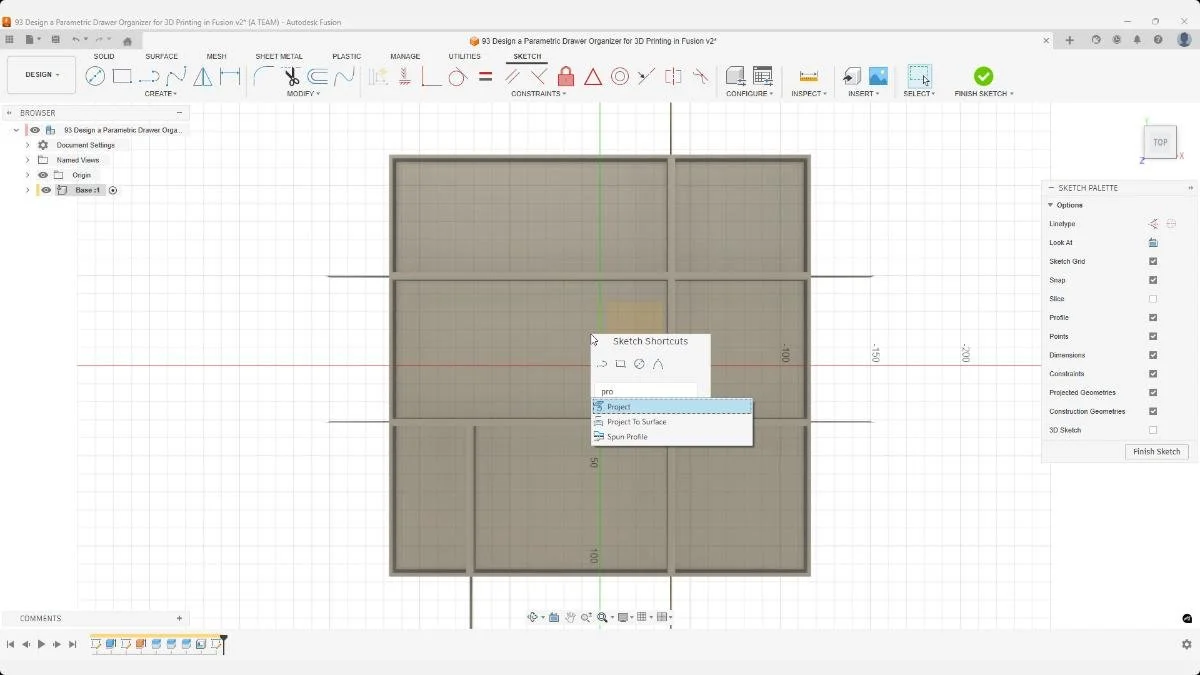

Project the outer edges of the base. Projected geometry (shown in purple) stays linked to the model, meaning future parameter changes automatically flow into the sketch. This is one of the most powerful habits in Fusion—use the model to drive the sketch, not the other way around.
Step 5 — Add Dimensions and Fully Constrain the Sketch
Press D to begin dimensioning. Assign everything using parameters rather than numeric values. As you work, blue lines will turn black—this indicates the geometry is fully defined.
Apply constraints intentionally. They control how the sketch behaves and prevent distortions when parameters shift.
Trim away the unnecessary lines to reveal the actual compartment layout. Each remaining line becomes a wall reference for your organizer.

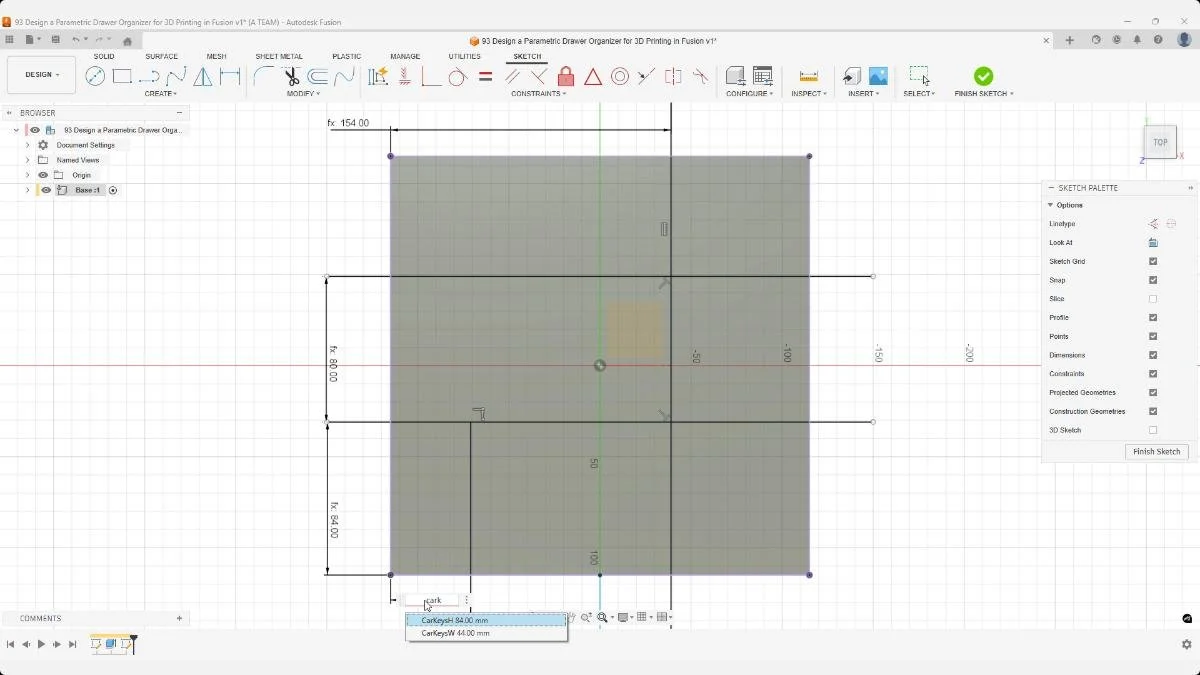

The sketch defines the footprint of each compartment using measured dimensions tied to parameters. Constraining the grid prevents accidental distortion when adjusting sizes later. This stage builds the logical structure of the organizer before introducing any 3D operations.
Step 6 — Update Parameters and Finalize the Layout
If a value—such as the phone width—is incorrect, update the parameter (step 14, image 3 and 4). The sketch adjusts instantly. This is exactly why parametric modeling is so powerful: downstream operations (splits, extrudes, offsets) all rebuild without requiring manual fixes.
Finish defining key item-width parameters and trim any leftover sketch lines. Some lines intentionally extend beyond the geometry to create cleaner references for the next operations.
Step 7 — Use Surface Extrude to Create Parametric Cutter Walls
Activate Surface Extrude (orange icon). This command is ideal for open profiles and thin partitions.

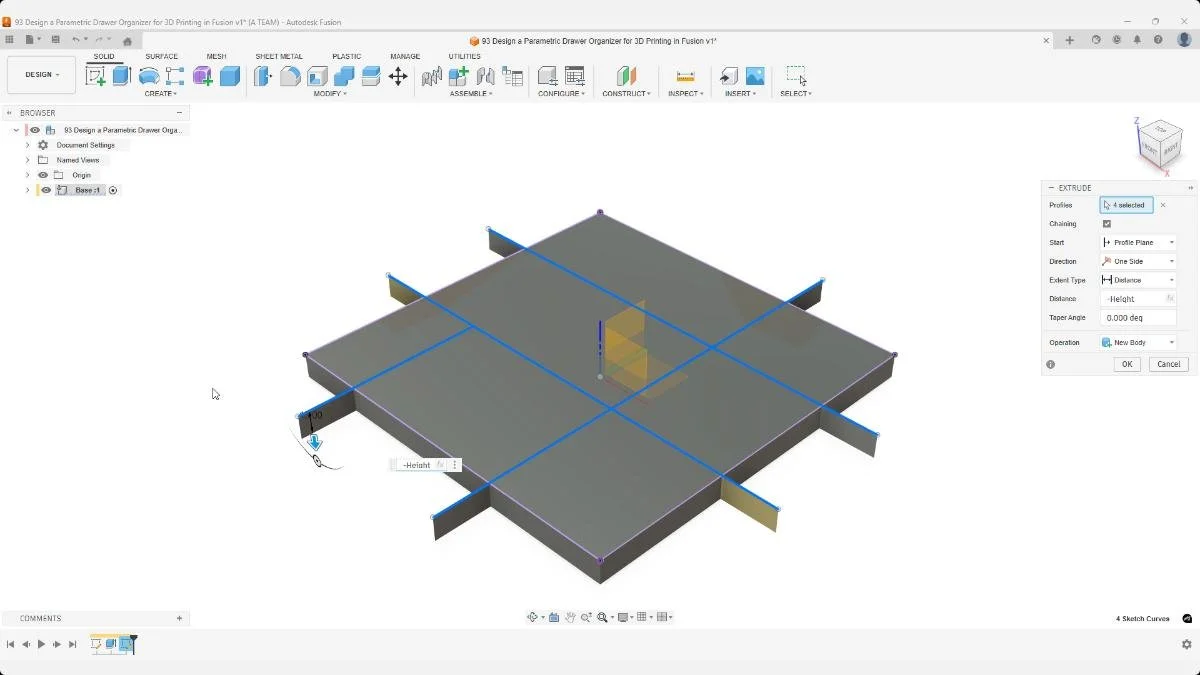

Extrude each sketch line as a surface. These surfaces act as cutting tools in the next stage. Because they are driven by parameters, every compartment will resize automatically when you adjust values later. This creates a highly maintainable, scalable model.
Save the file. Adding short version notes makes it easy to return to earlier stages.
Using the S-key design shortcuts keeps workflow efficient by reducing toolbar navigation. Commands like Extrude, Project, and Offset become faster to access, which encourages iterative sketch refinement and maintains focus on geometry rather than interface searching.
Divider lines are extruded as surfaces, not solids, because surfaces function as clean splitting tools with no added thickness. This method allows precise compartment separation while maintaining parametric links back to the original sketch geometry.

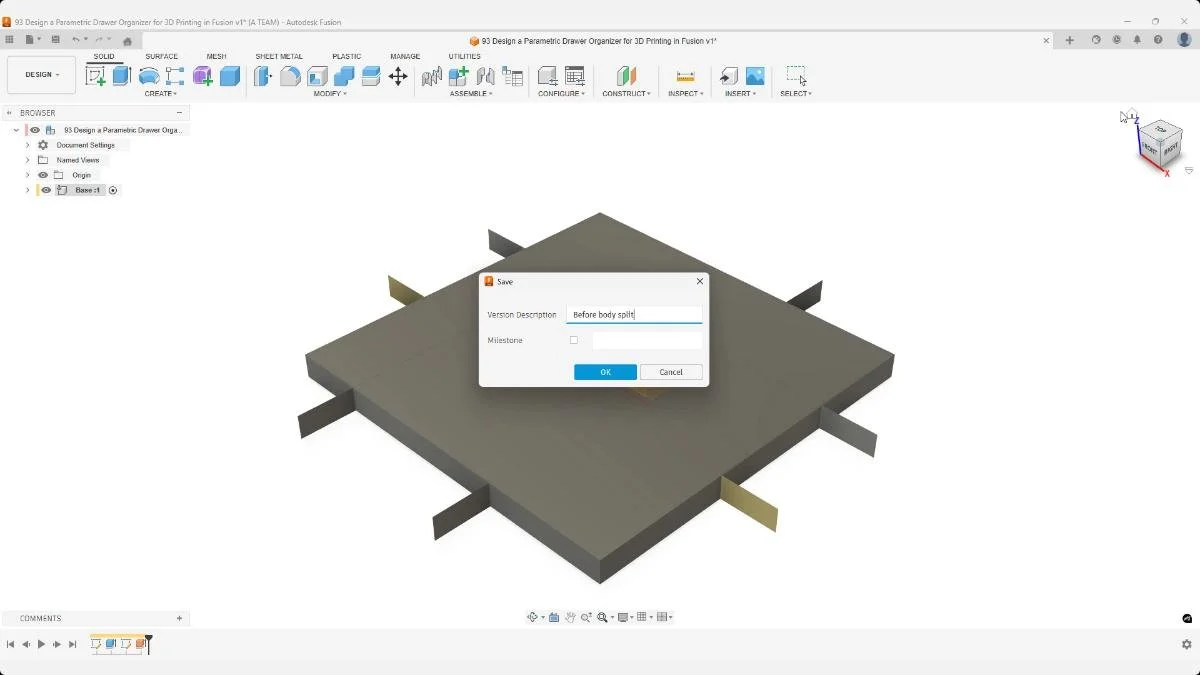

Saving a version before a complex operation creates a reliable rollback point. It is especially valuable in parametric workflows, where splitting or reorganizing bodies can cause cascading changes. Version naming helps track major modeling milestones.
Step 8 — Split the Body Into Compartments
Use the extruded surfaces to split the main body. Splitting in a few smaller steps usually produces more reliable results than trying to separate everything at once. It also keeps the timeline clear and easier to debug.
Toggle bodies in the Browser to preview the result and rename them early for smoother exports later.

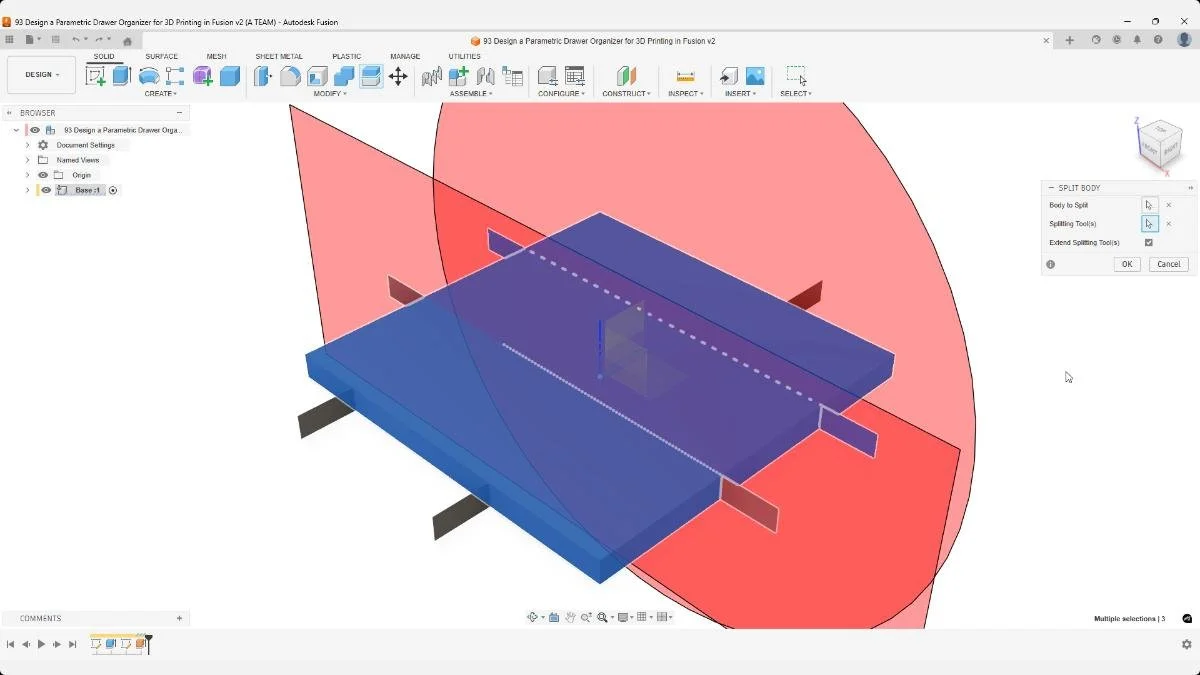

The Split Body command uses the previously created surfaces to divide the base into individual compartments. This preserves clean, aligned faces and avoids manual cutting. Splitting early ensures all compartments remain parametric and update cleanly when dimensions change.
Step 9 — Add Wall Thickness Parametrically
Use your WallThickness parameter to thicken the compartments. Driving wall thickness with a parameter avoids cumulative modeling errors and makes future adjustments trivial.
Change the parameter once and the entire organizer updates—no manual re-extruding or re-offsetting required.

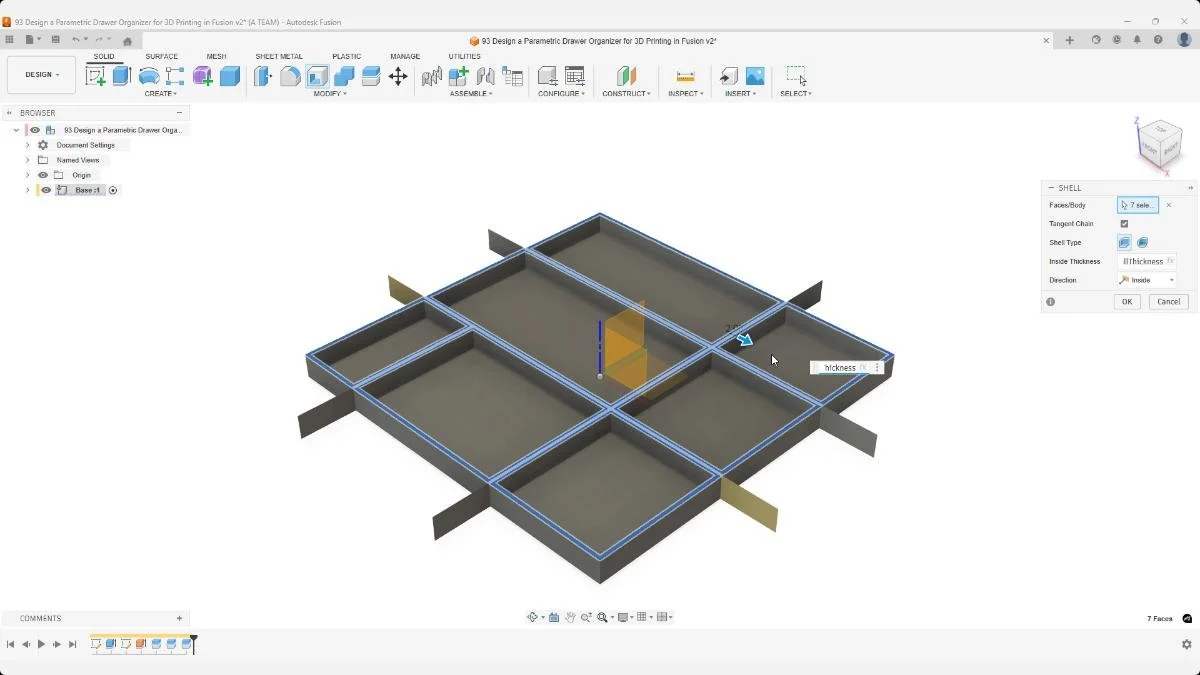

Shelling hollows out the compartments and applies a parametric wall thickness. This operation significantly reduces material usage while keeping compartments structurally consistent. Uniform thickness simplifies print settings and ensures predictable slicer behavior.
Step 10 — Add Labels Using Projected Geometry
Project edges from each compartment and place text snapped to the corners. This creates perfectly aligned labels that remain stable when compartments shift.
Each text object will update if the geometry moves because the projected references are linked to the underlying model.
Apply a uniform text depth by selecting all text and using a TextDepth parameter. Edit text cuts later by adjusting the parameter instead of editing individual features.
A new sketch is created on a flat plane above the compartments. This sketch is used to capture associative references by projecting the 3D geometry. Linked projection preserves relationships so changes in the solid automatically update the sketch.

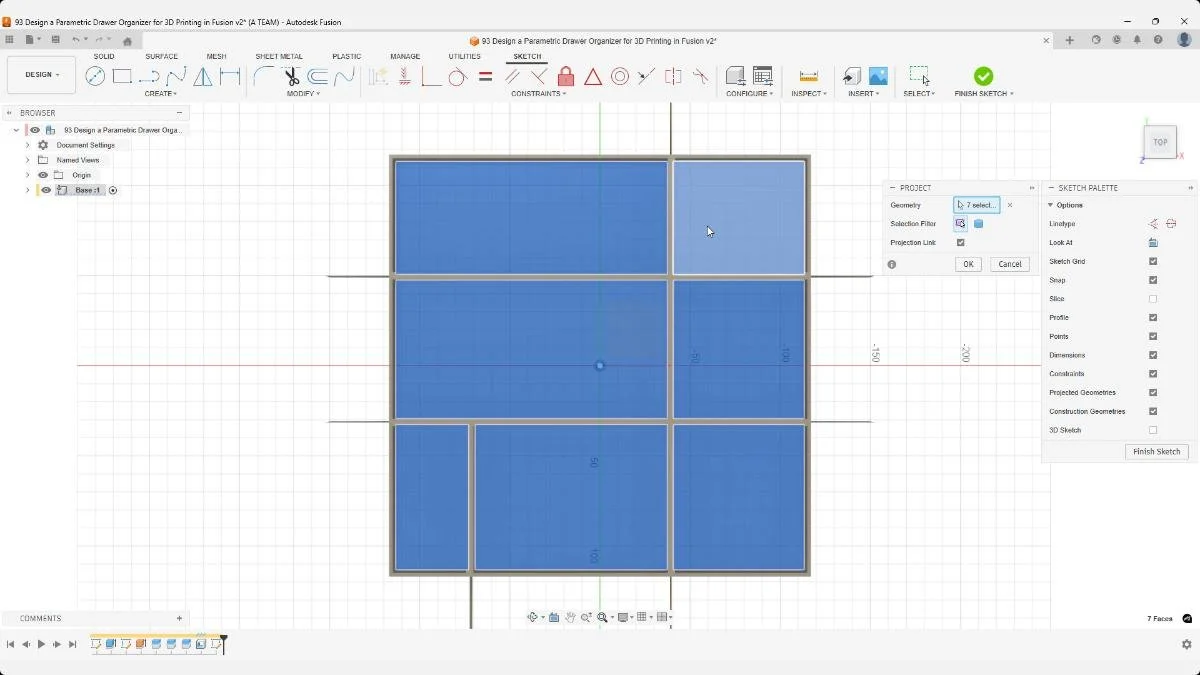

Projected edges appear as purple, indicating associative references to the underlying faces. These links allow precise alignment of future text, cuts, or detail features without manually redrawing geometry. It ensures dimensional consistency across the design.

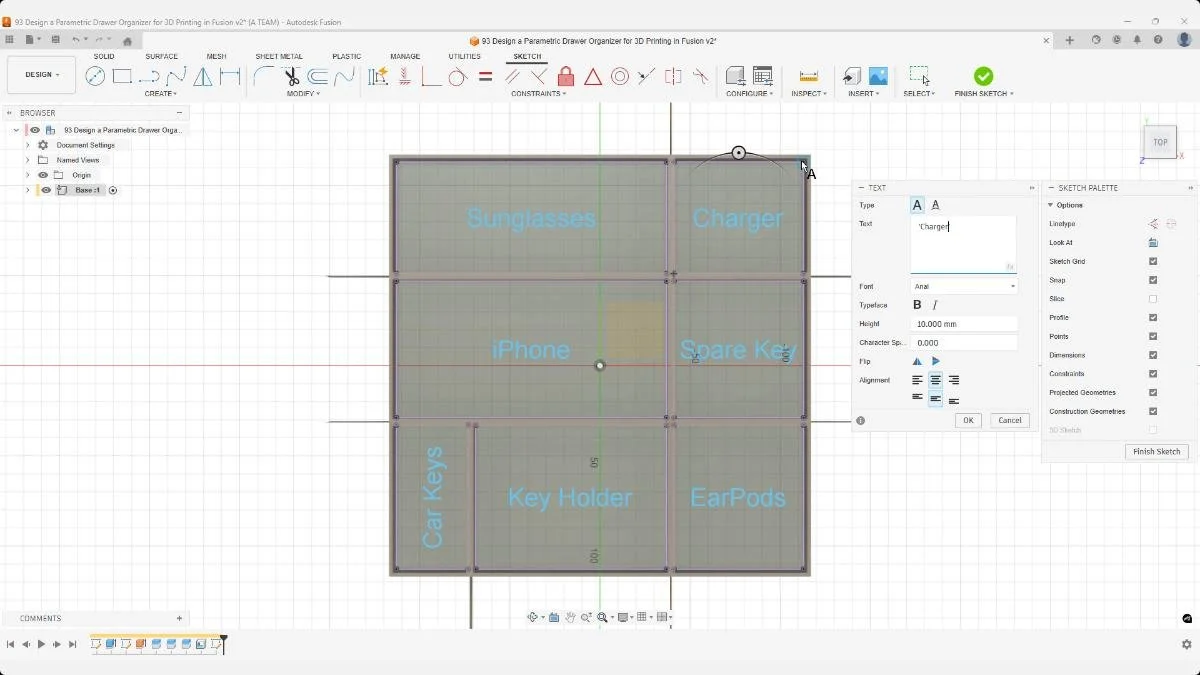

Text is placed inside each compartment to indicate intended contents. Creating labels in the sketch phase lets the model drive text placement and ensures text depth and width remain controlled through parameters. Proper alignment avoids interference with thin walls.

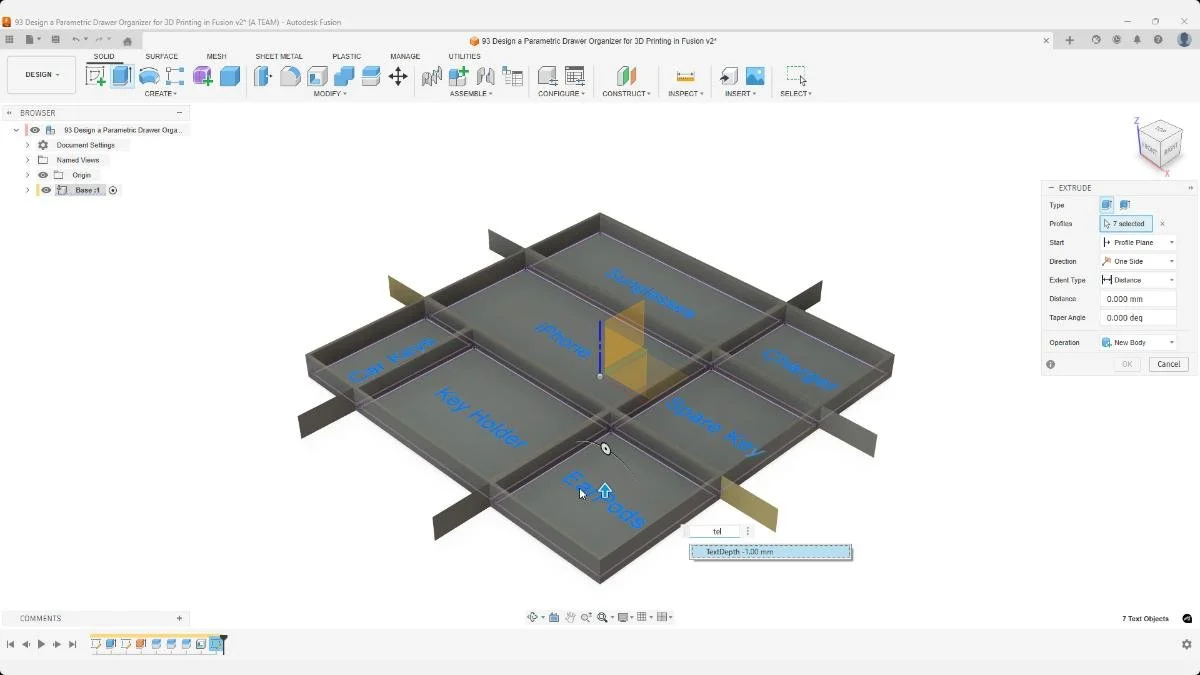

All text objects are selected for extrusion and assigned the TextDepth parameter. Centralizing text depth allows quick global adjustments and prevents inconsistent engravings. This reduces timeline clutter and keeps the model cleaner.
Step 11 — Apply Fillets for Comfort and Printability
Fillets do more than look good—they remove sharp edges that can cause stress concentrations and improve handling of 3D-printed parts.
Apply a parametric fillet size using your dedicated parameter. Selecting edges in smaller groups reduces the risk of selecting the wrong ones, though it creates multiple timeline features. Both approaches are valid; choose based on your preference for speed or tidiness.

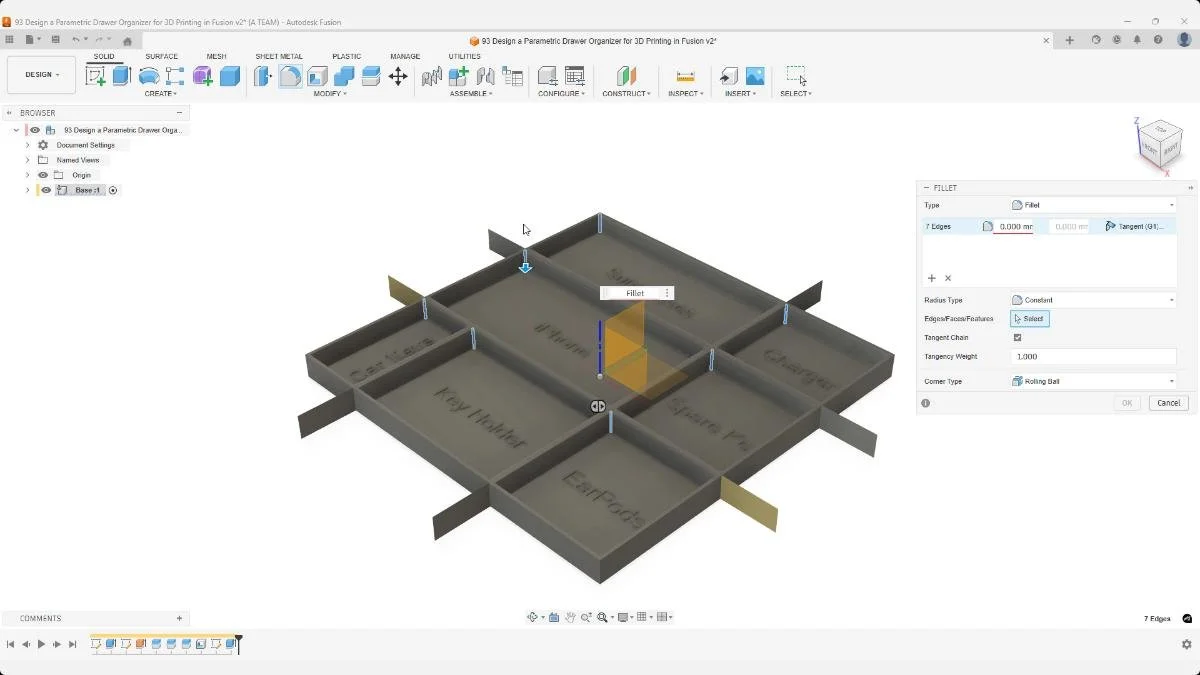

Filleting improves ergonomics and print quality. Rounded edges reduce stress concentrations and minimize sharp transitions that can cause slicing artifacts. Fillets also help prevent chipping on thin 3D-printed walls.
Step 12 — Create the Phone Grab Cutout
Project a center point from the compartment edge and build a small relief cut for finger access. Use your WallThickness and Fillet parameters to maintain consistent geometry across the design.
If the cut extrudes in the wrong direction, simply apply a negative sign to the parameter—another small time-saving technique that keeps geometry predictable.

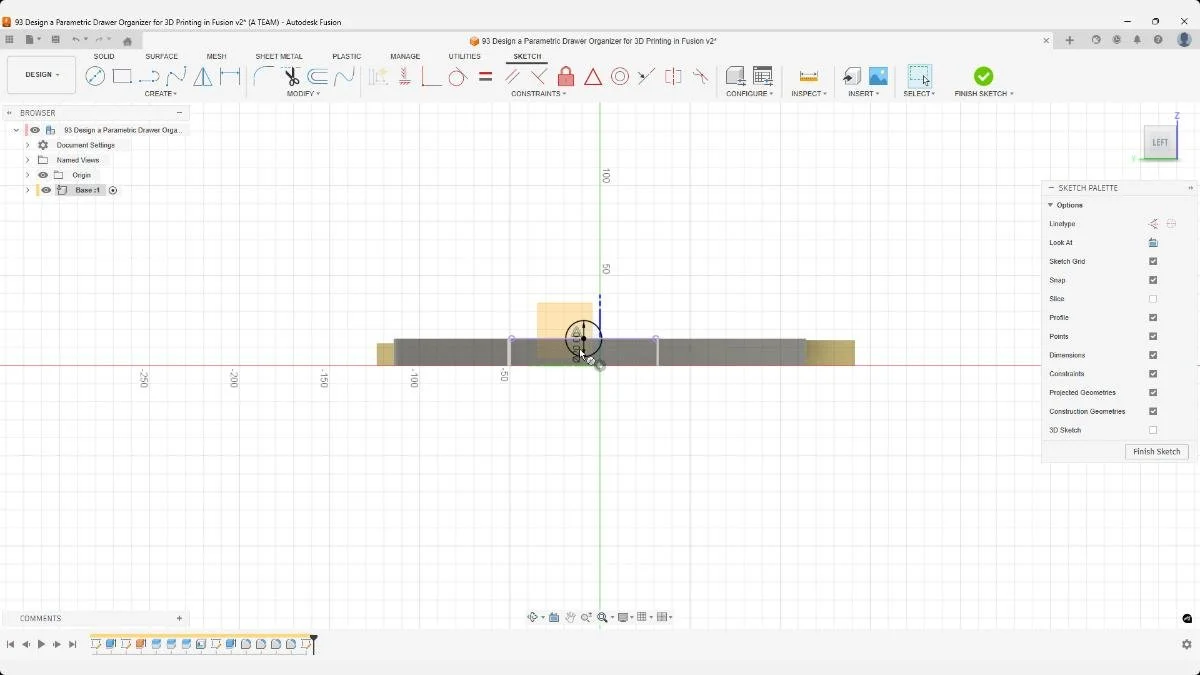

Side-view sketches are used to introduce ergonomic or structural refinements not visible from the top view. Constraining the side sketch ensures stable behavior when height parameters change. This profile often drives finger notches or clearance adjustments.

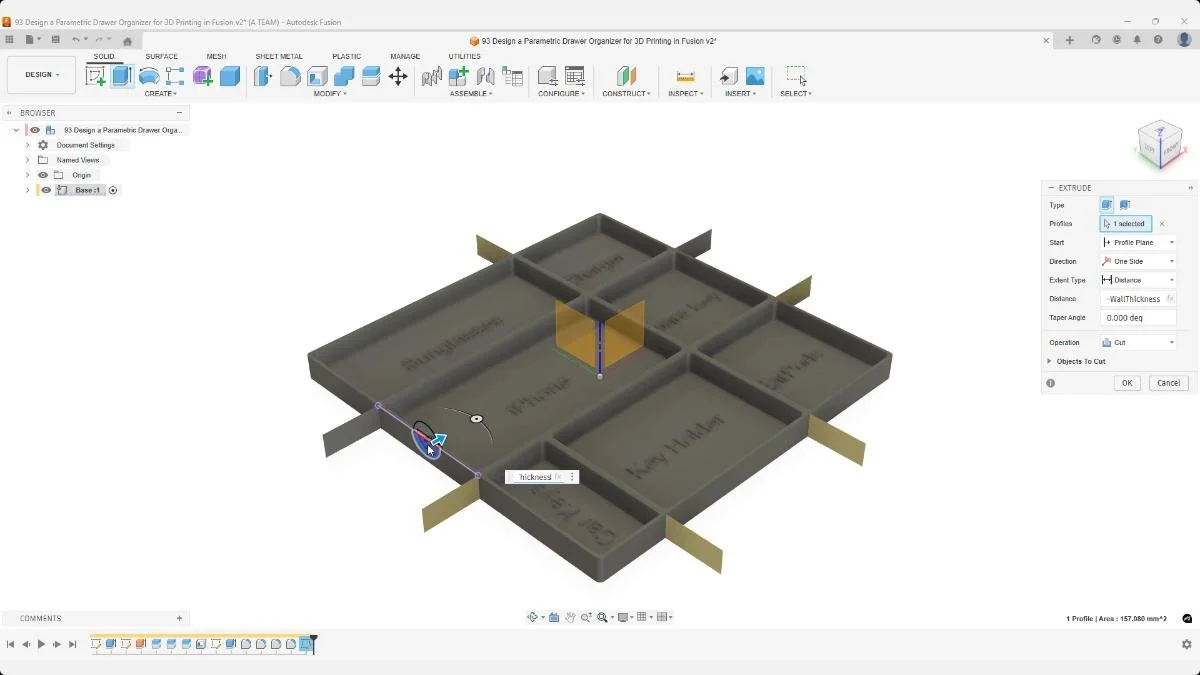

The cut eliminates excess geometry and shapes functional access areas such as finger notches. Using parameter-driven distances ensures the profile remains proportional if compartment height or wall thickness changes later.

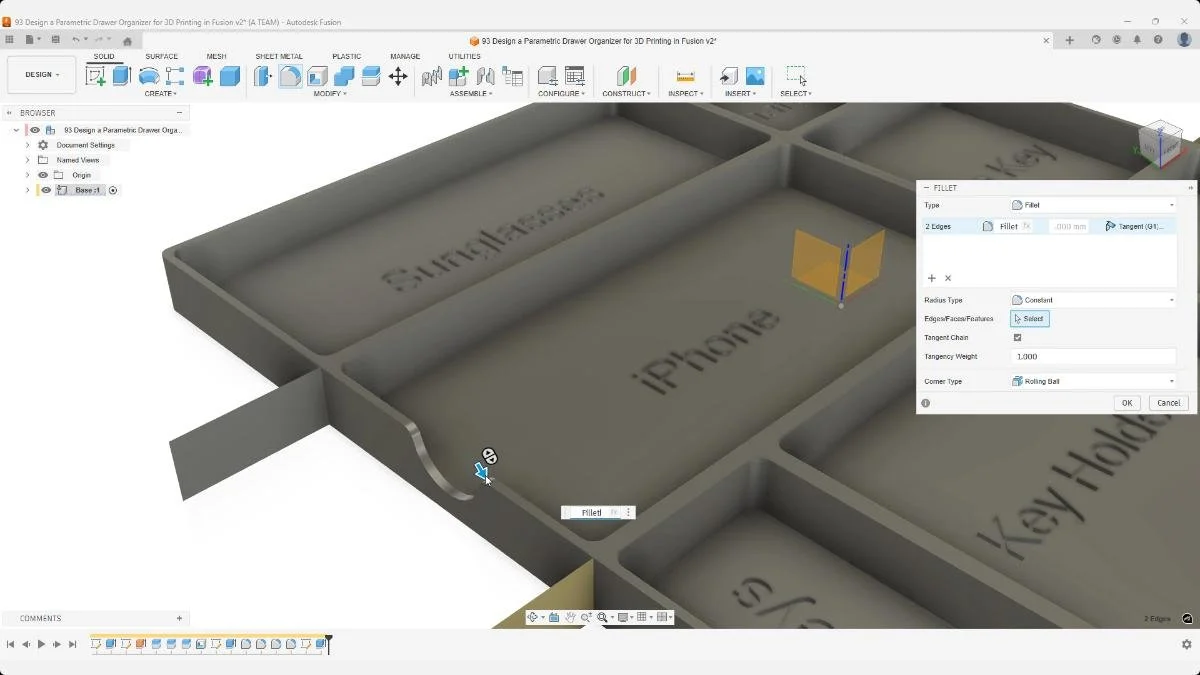

A smooth fillet on the notch reduces sharp transitions, making the compartment easier to grip. Rounded geometry also improves first-layer performance and minimizes stress at thin-wall intersections.
Step 13 — Offset Surfaces to Build the Outer Holder
Use the Surface Offset tool and push the outer edges outward by around 0.2 mm. This introduces a controlled tolerance so the boxes slide in smoothly but do not wobble. Ideal tolerances vary by printer and filament, so test if needed.
The offset produces an infinitely thin surface. Convert it into a printable shell by thickening it using the WallThickness parameter. Reduce the frame height slightly to save material and print time while keeping structural strength.
Remove excess geometry using an Extrude Cut, then Patch the bottom and thicken it using the same parameter. You can customize this later for faster printing or lightweight builds.

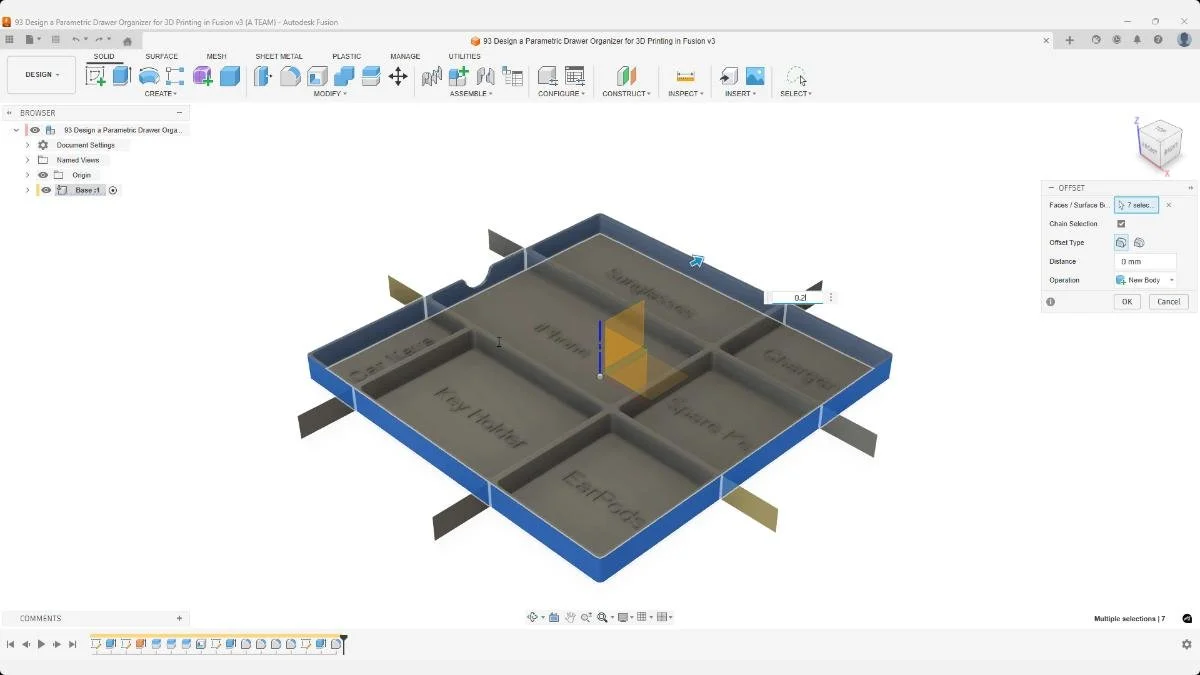

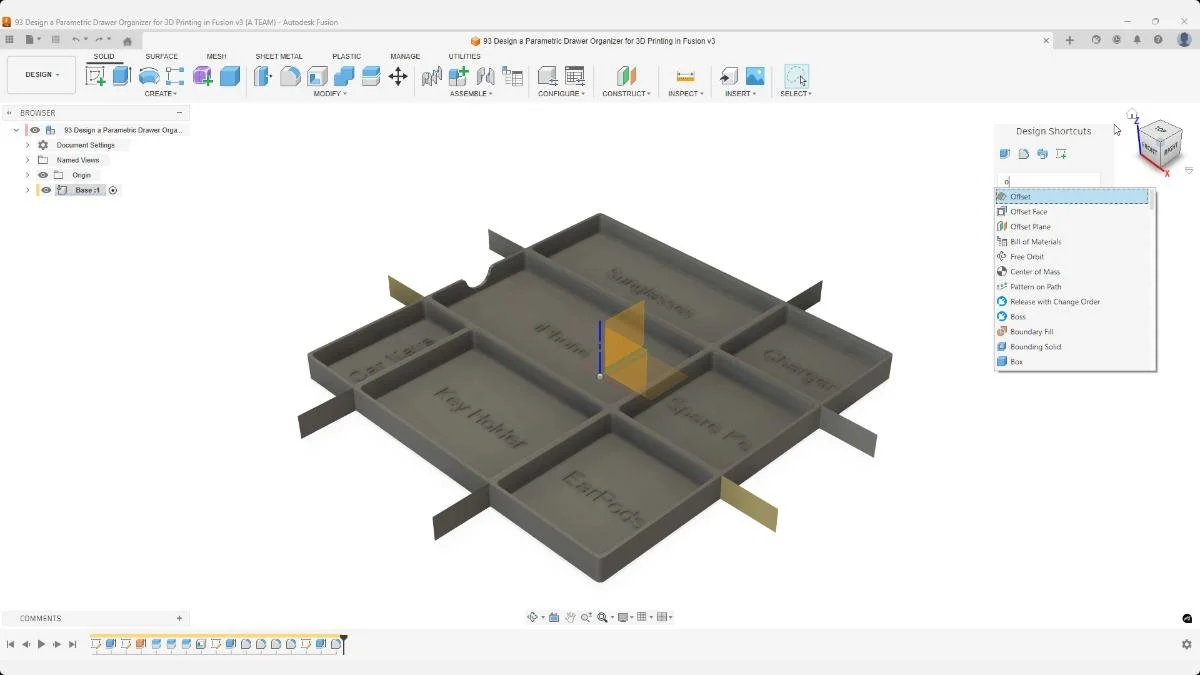

Offsetting selected faces generates an expanded perimeter reference for an external frame or lid. Keeping this offset as a separate body or surface ensures later boolean operations remain clean and reversible.
Offsetting the outer contour as a surface gives precise control over boundary thickness without modifying the original solid. This method is useful when generating derived geometry such as trays, lids, or molds.

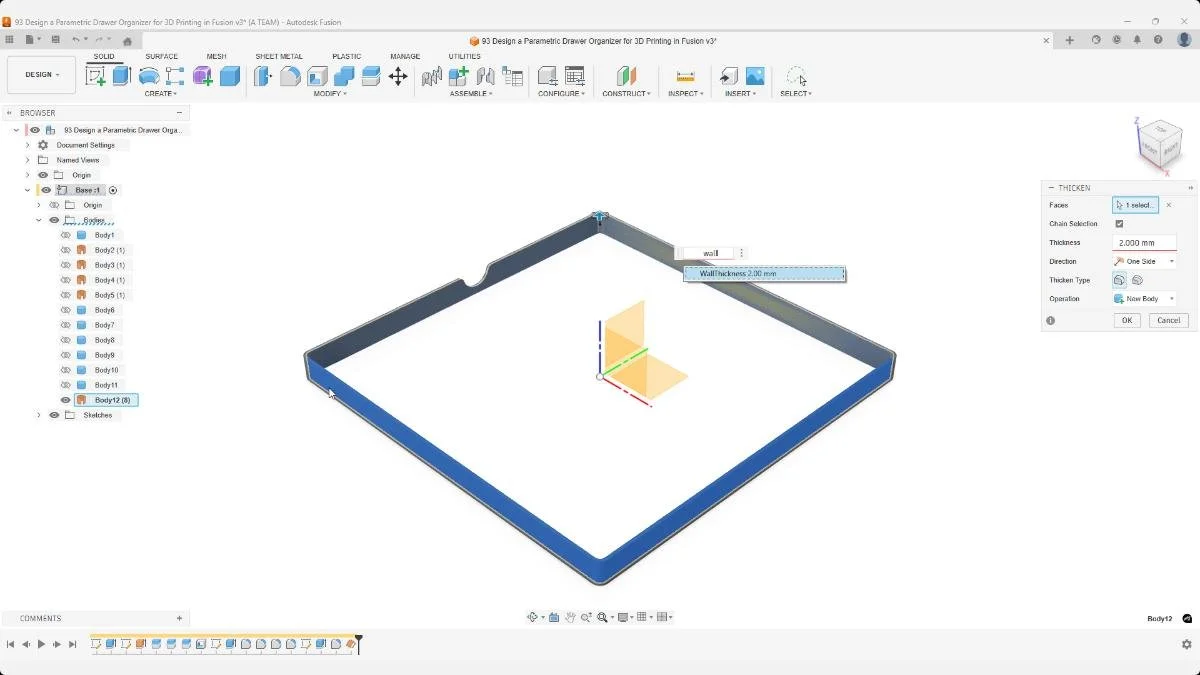

Thickening the offset surface produces a rigid exterior frame using parametric wall thickness. This controlled conversion from surface to solid ensures the structure stays printable and consistent with internal compartments.

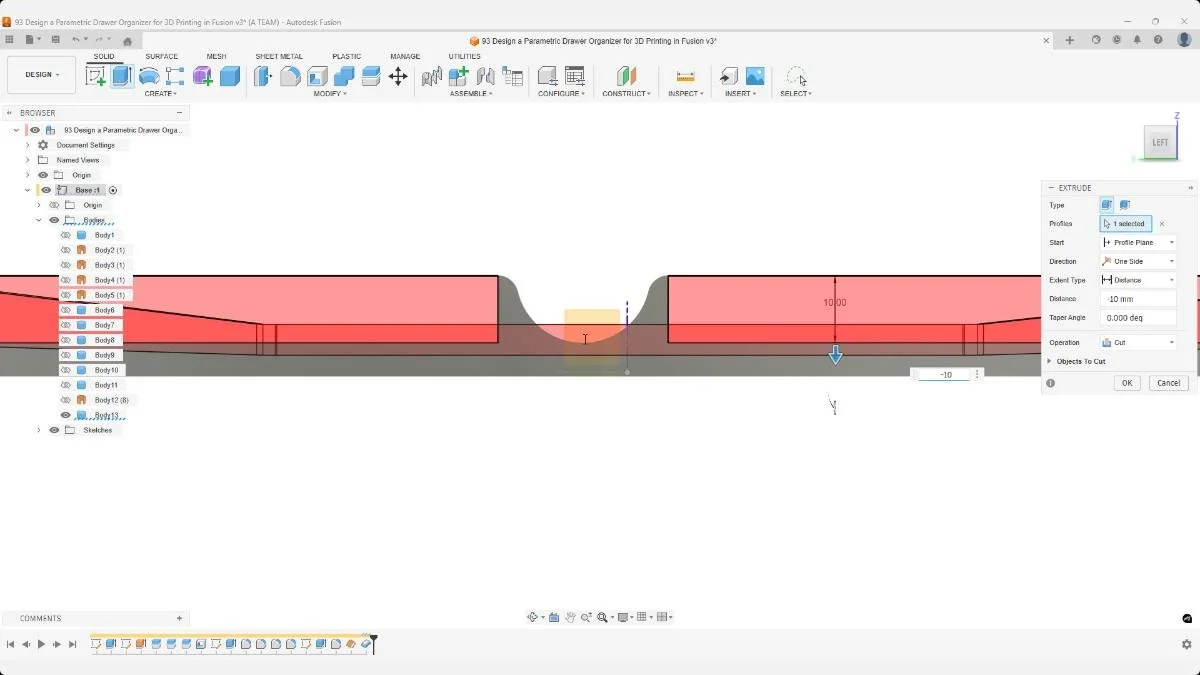

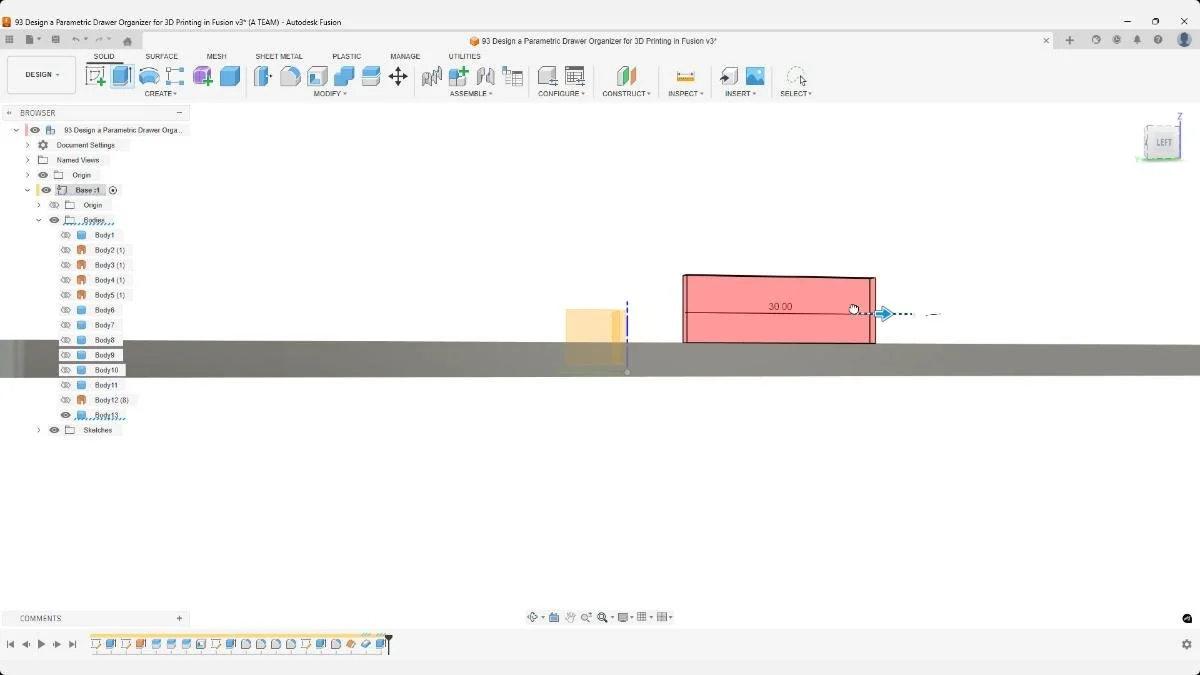

Bottom-height adjustments let you fine-tune print time and structural strength. Linking this cut or extrusion to the Height parameter keeps vertical proportions consistent across compartments.
A parametric cut removes leftover geometry resulting from offsets or surface operations.

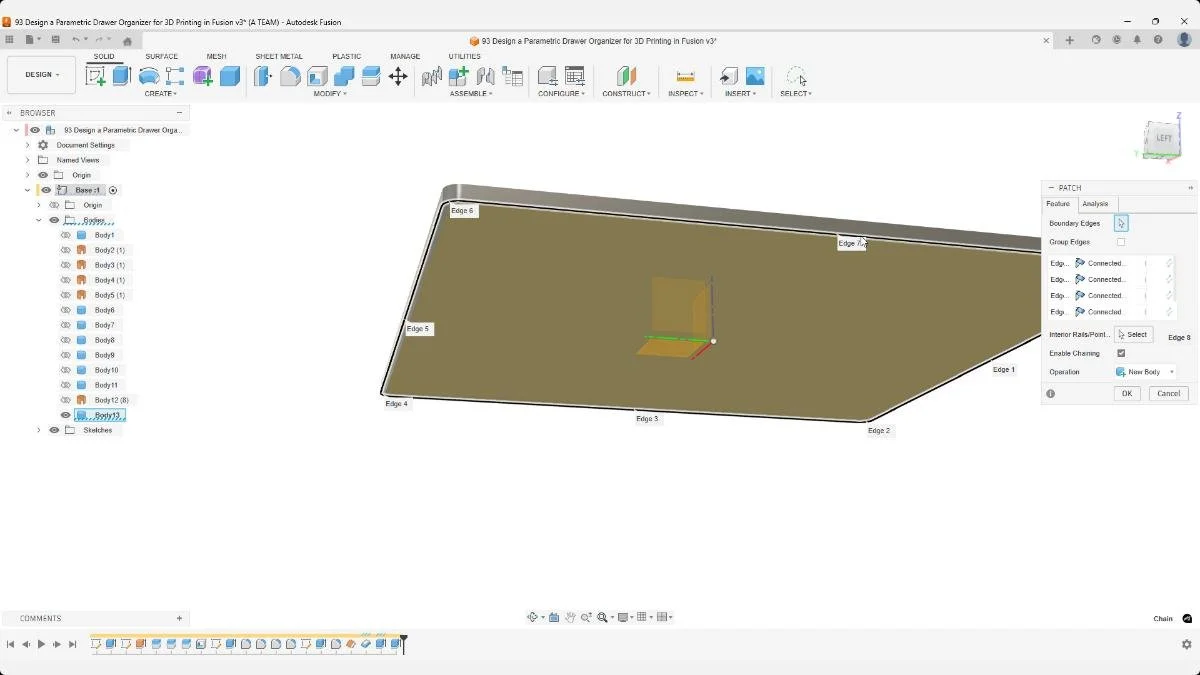

Patch generates a zero-thickness surface bounded by selected edges. This technique is used to rebuild planar areas after removing geometry. The surface becomes the foundation for creating a solid bottom through thickening or extrusion.

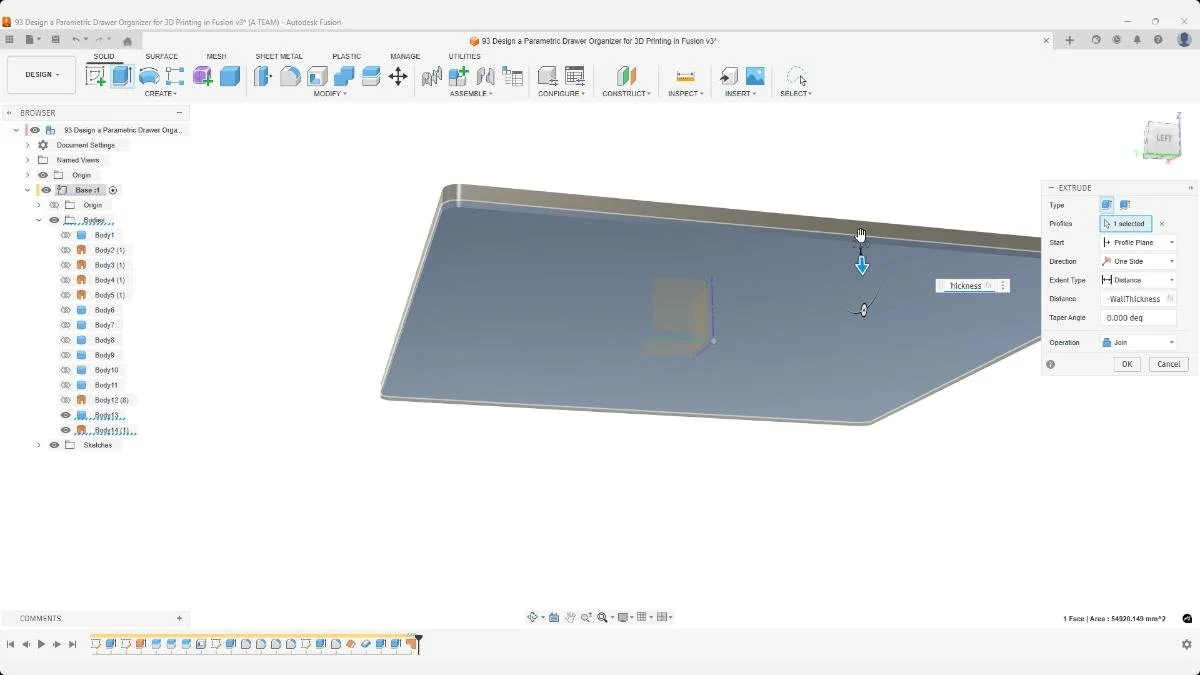

Giving the patched bottom a parametric thickness forms the final floor of the organizer. This bottom layer balances stiffness with print efficiency. Adjusting thickness allows users to optimize for strength or material savings.
Step 14 — Review and Export the Files
Take a final look at the complete layout: compartments, frame, tolerances, labels, and fillets.
Right-click any body to export as STL or 3MF. Naming bodies before exporting avoids confusion in your slicer and keeps your library organized.
Make two quick parametric edits to test the system—dimensions update instantly and the design rebuilds without errors. This is the payoff of parametric modeling: build once, iterate endlessly.

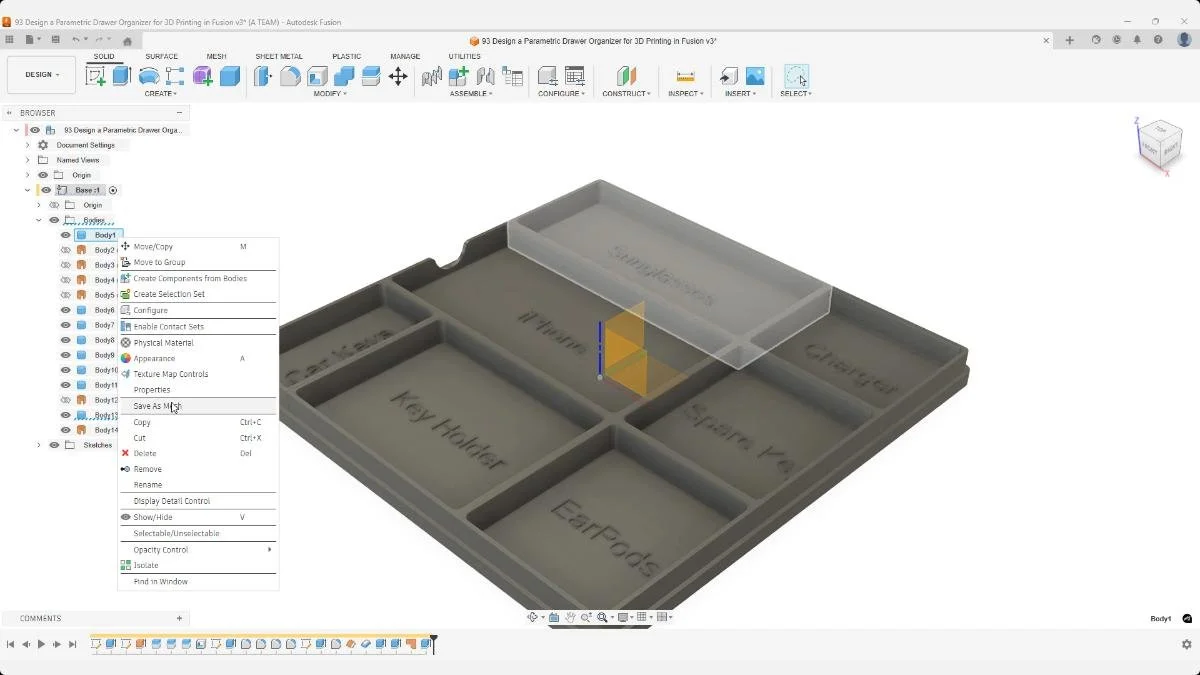

Mesh export lets individual bodies be saved as STL or 3MF for slicing. Exporting bodies separately supports modular printing and makes it easier to test or replace compartments without reprinting the full organizer.

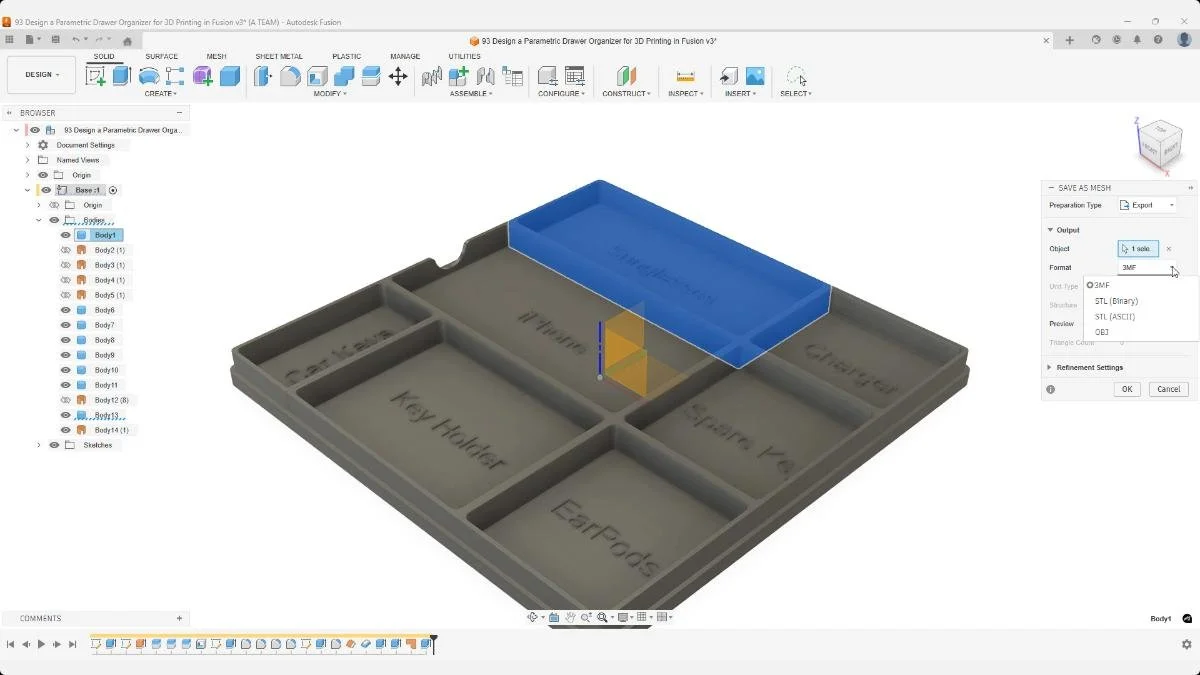

The mesh dialog defines unit settings, format type, and refinement quality. Using 3MF preserves colors and metadata, while STL ensures compatibility with all slicers. Proper export settings reduce slicing errors and maintain accurate dimensions.

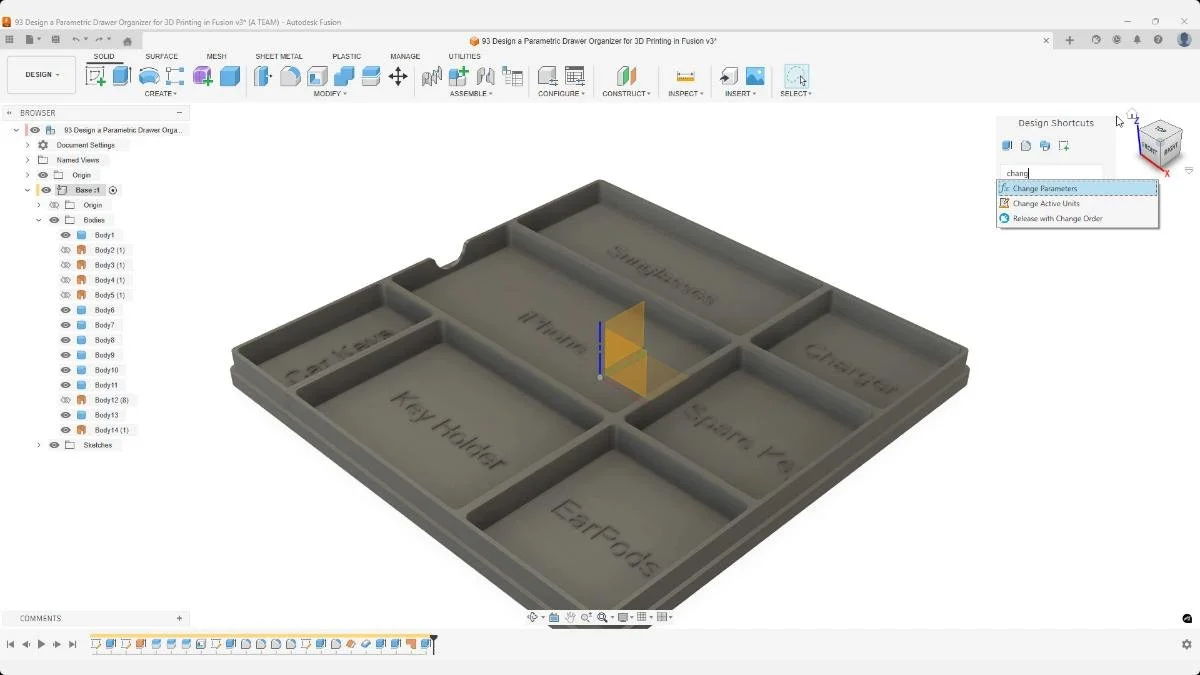

Calling Change Parameters from shortcuts encourages continuous parametric refinement. Frequent parameter checks ensure all dependent features remain consistent as the model evolves and complexity increases.

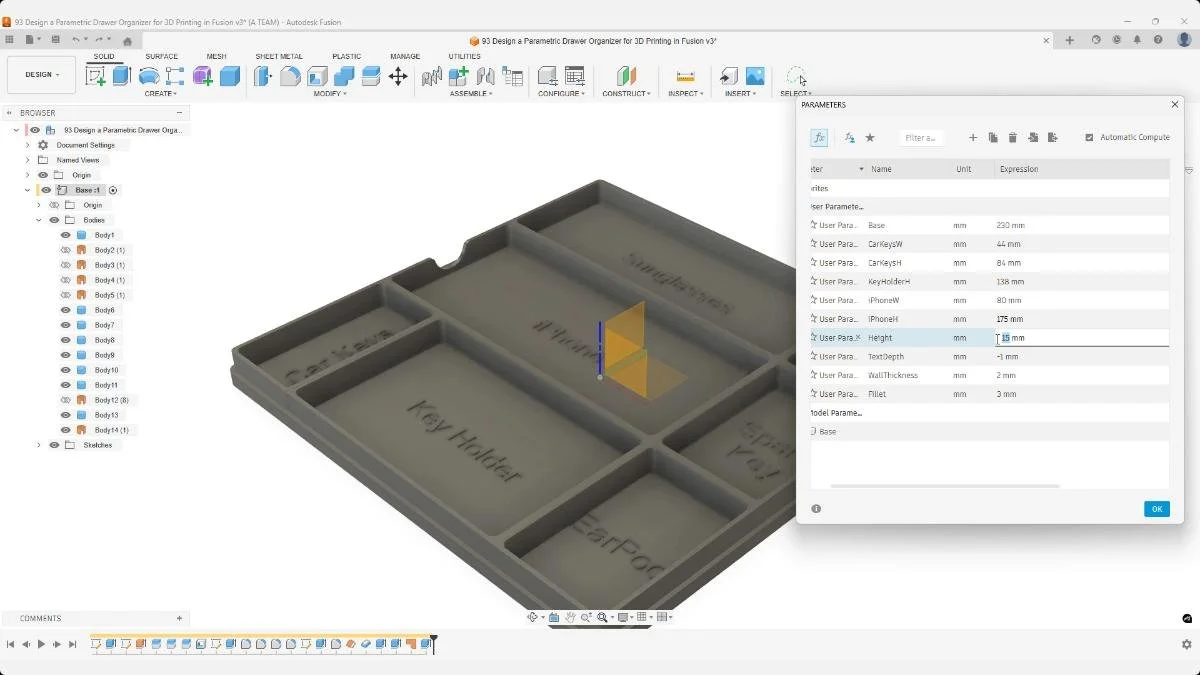

Final adjustments to parameters revise global dimensions and ensure all compartments fit their intended items. Changing a single parameter updates all linked sketches, surfaces, and solids, demonstrating the efficiency of a fully parametric workflow.
Key Takeaways
- User parameters are the backbone of a stable, adaptable Fusion workflow.
- Projected geometry and constraints create sketches that never break when dimensions change.
- Surface extrudes are ideal for generating parametric cutter walls for compartment designs.
- Fillets improve handling, reduce stress points, and create a more polished final print.
- Offsets and tolerances are essential for functional multi-part assemblies in 3D printing.
- Naming bodies, exporting cleanly, and saving versions lead to a smoother, repeatable process.
- A fully parametric organizer adapts instantly to new items, sizes, and layout ideas—no redesign required.
