How to Prototype a Propeller in Fusion: Step-by-Step Guide
Updated March 14, 2026
In this tutorial, we'll walk through the entire process of designing a small propeller for a toy boat using Fusion (formerly known as Fusion 360). From sketching the cylinder to creating the final rendering, you'll learn essential tips and workflows to take your design to the next level.
What You’ll Learn
- How to sketch and extrude a centered cylinder to create the propeller hub
- How to design smooth propeller blade geometry using splines and surface lofts
- How to refine surfaces with extend, trim, and split face tools
- How to convert surface geometry into a solid blade using the thicken command
- How to add finishing details like fillets, threads, and appearances
- How to duplicate blades efficiently with a circular pattern
- How to create a clean render of your final propeller using Fusion’s rendering tools
Watch the Workflow — or Read It Step by Step
You can follow this guide in two ways:
- Read the steps below if you want quick written instructions, reference images, and modeling notes.
- Watch the full video at the end of this post to see the workflow in real time — including extra tips, camera angles, and shortcuts that don’t fit neatly into text.
Both formats build on each other.
Reading helps you understand why each step matters, while watching shows how to move faster in Fusion.
Step 1: Sketch the Cylinder
Start by sketching the center diameter circle on the vertical construction plane facing the direction where the propeller will sit. This setup ensures your design is centered and aligned, setting a strong foundation for the rest of the project.

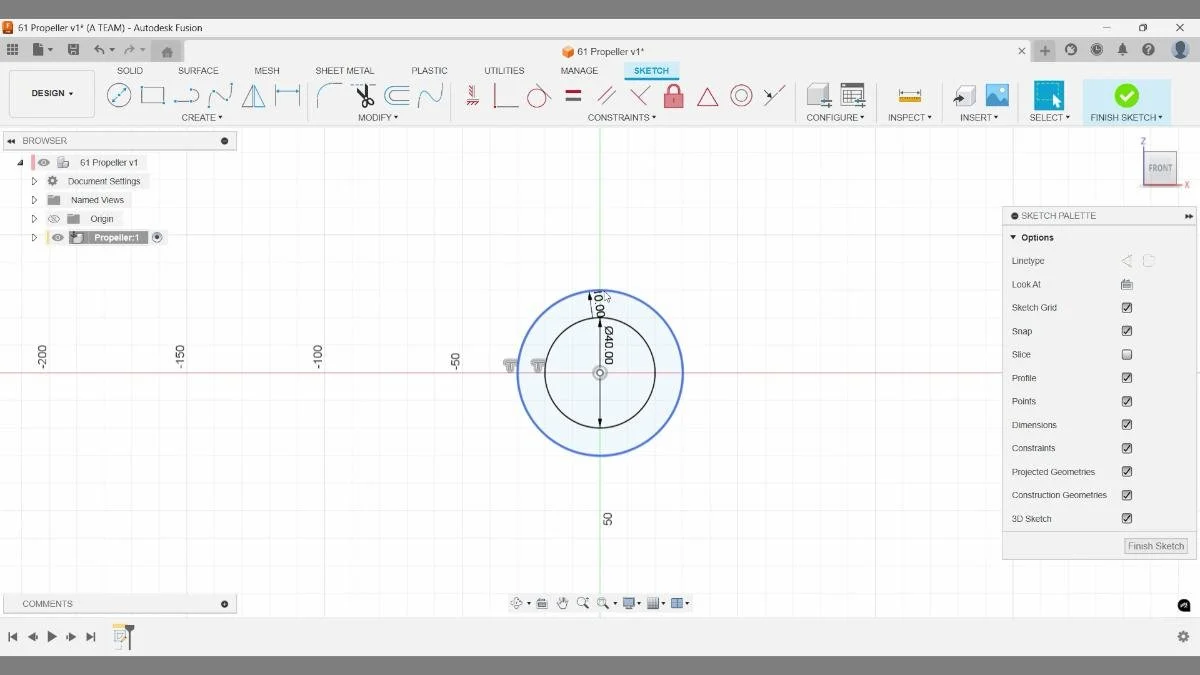

A sketch is created on the vertical construction plane facing the propeller direction. Two concentric circles define the outer hub diameter and the inner hole. Centering the sketch on the origin ensures the propeller remains aligned when blades are patterned later around the axis. Using concentric circles keeps the hub geometry fully constrained and easy to modify if the shaft size changes.
Step 2: Extrude the Cylinder
Once you have the circle, extrude the profile to form the solid cylinder. Adjust the extrusion direction and set the distance to 50 mm. Ensure the New Body operation is selected to keep the cylinder separate from other components in the model.

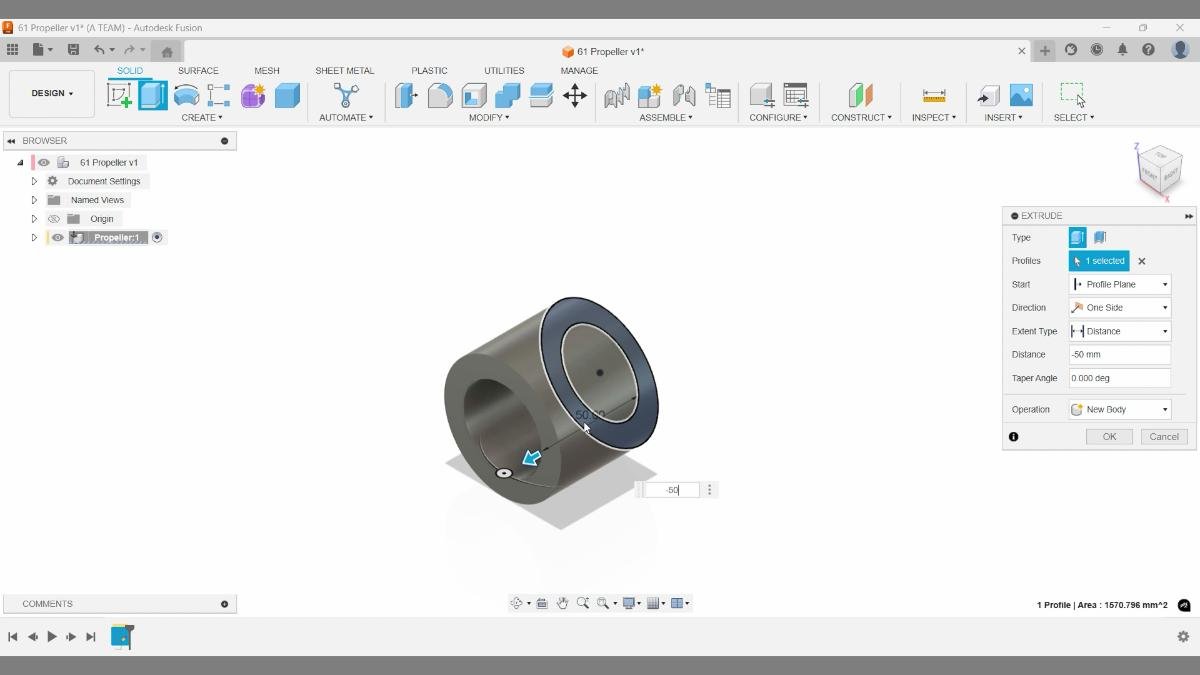

The circle profile is extruded to form the hub cylinder. The Extrude tool is set to a distance of 50 mm with the New Body operation so the hub remains independent from later blade geometry. Keeping the hub as its own body simplifies later operations such as fillets, threading, and circular pattern alignment.
Step 3: Sketch the Propeller Blade
Create a new sketch for the propeller blade on a vertical plane behind the cylinder. Use lines, dimensions, and splines to shape the leading and trailing edges of the blade, focusing on smooth, flowing curves. The initial sketch does not need to be perfect since it will be refined later.
A new sketch is created on a vertical plane behind the hub to define the blade outline. Lines and splines establish the leading and trailing edges of the propeller blade. The spline allows smooth curvature, which is important for aerodynamic surfaces and also produces cleaner loft results compared to sharp polyline geometry.

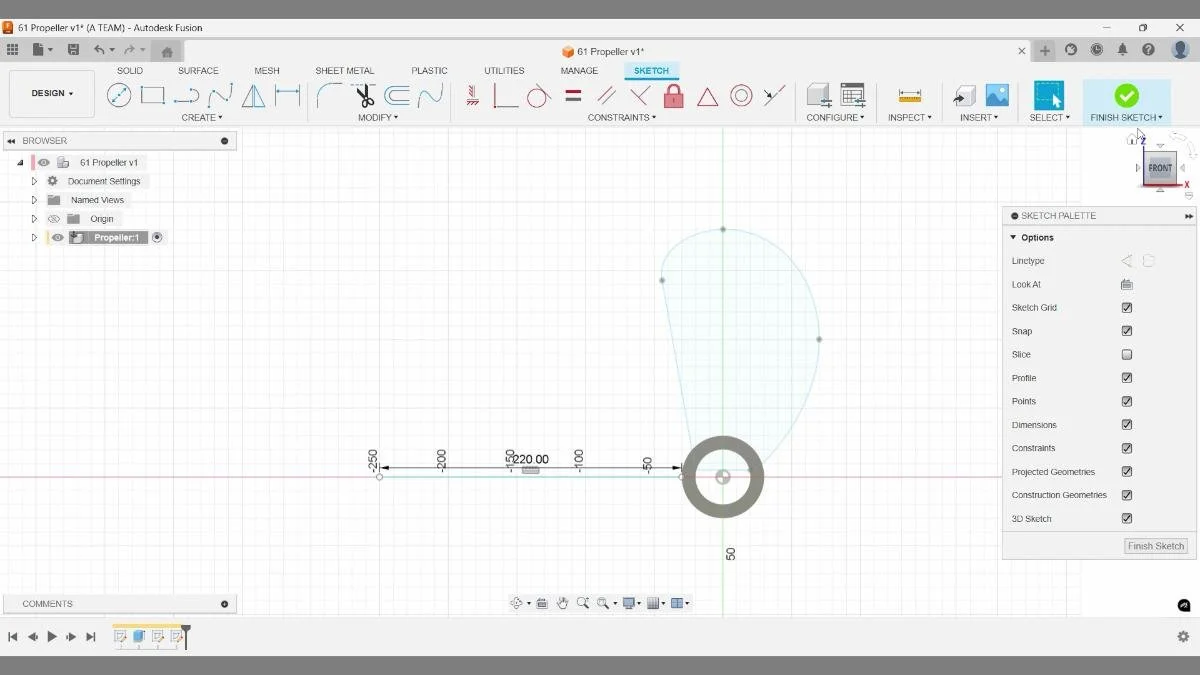

A line is added from the hub center to control the overall blade length. Dimensioning this line sets a consistent reference for the blade profile. Establishing a clear dimensional reference early helps maintain predictable proportions when refining the blade shape.

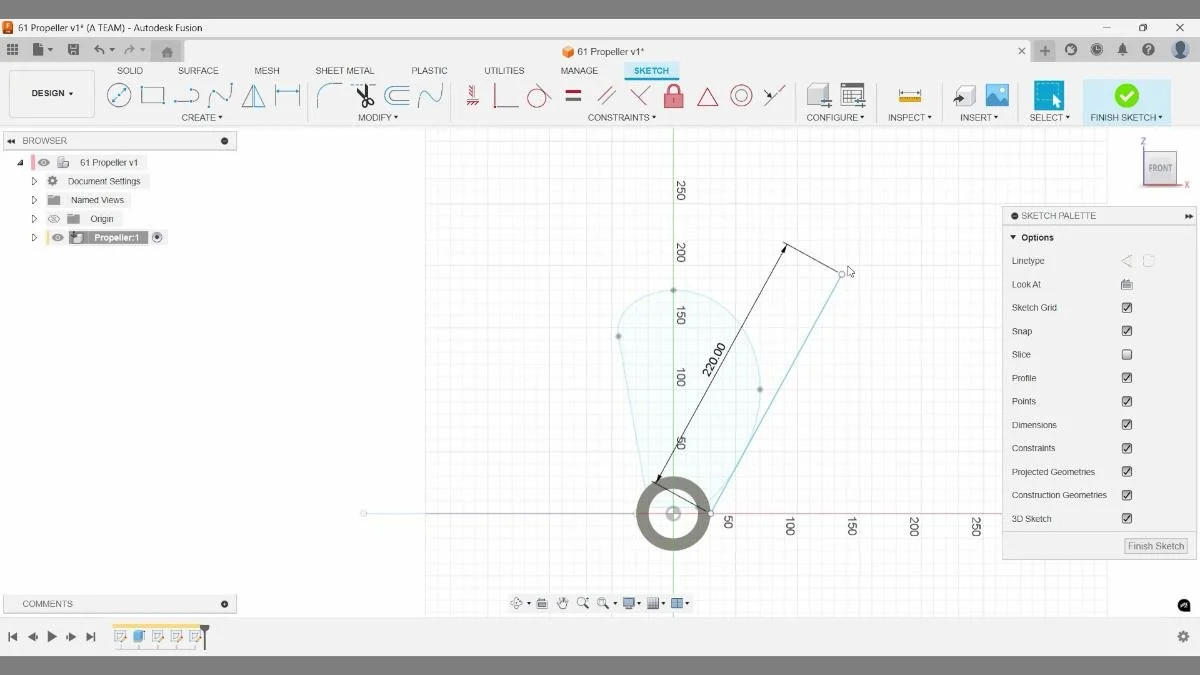

An angled guide line is added to help orient the blade relative to the hub. This reference controls how the blade will sweep outward and provides a stable anchor for later loft geometry. Using guide lines in sketches helps maintain geometric relationships without locking the spline into unnecessary constraints.
Step 4: Loft the Propeller Blade
Using the surface modeling tools, loft the blade shape by connecting two lines that define the propeller’s geometry. The lofted surface may appear small at first, but it will be adjusted to fit the overall design.

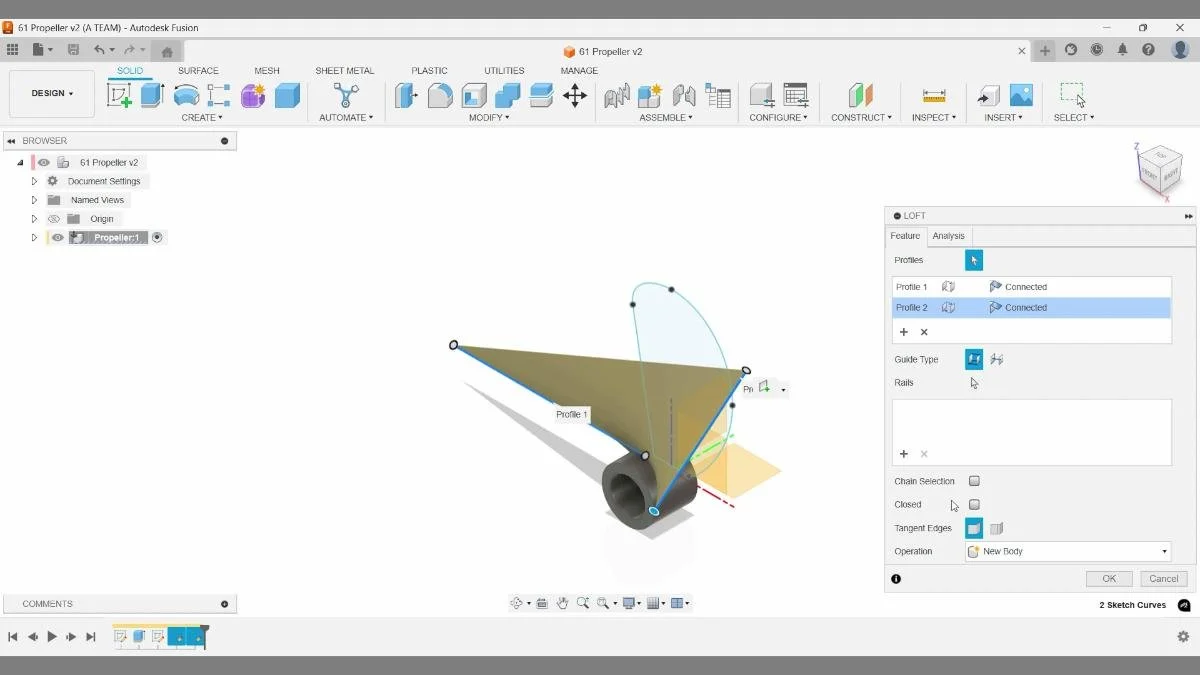

The Loft tool connects two sketch profiles to generate the initial blade surface. This surface defines the basic propeller shape before thickness is added. Lofting between profiles produces a smooth transition that would be difficult to achieve with simple extrusions or sweeps.
Step 5: Extrude the Propeller Blade Profile
Use the Extrude tool on the profile you just created to give the propeller blade shape and volume. Set the extrusion to match the length of the cylinder so the blade fits onto the end of the cylinder.

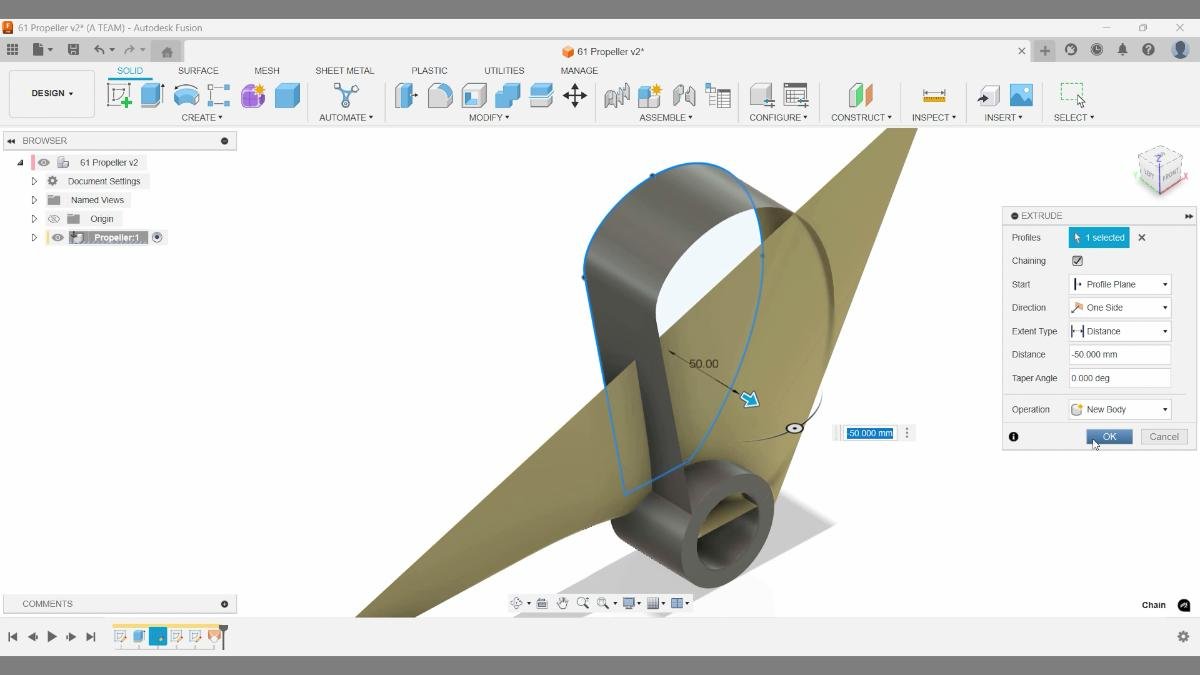

The blade profile is extruded so it intersects the hub region. The extrusion extends the surface geometry to ensure enough material exists for later trimming operations. Extending geometry beyond the final boundary often speeds up modeling because trimming precise edges is easier than rebuilding surfaces.
Step 6: Extend and Trim the Lofted Surface
If the lofted surface is not large enough, use the Extend command to make it bigger. Once the surface is extended, use the Trim tool to remove excess material so the blade has the right size and shape.

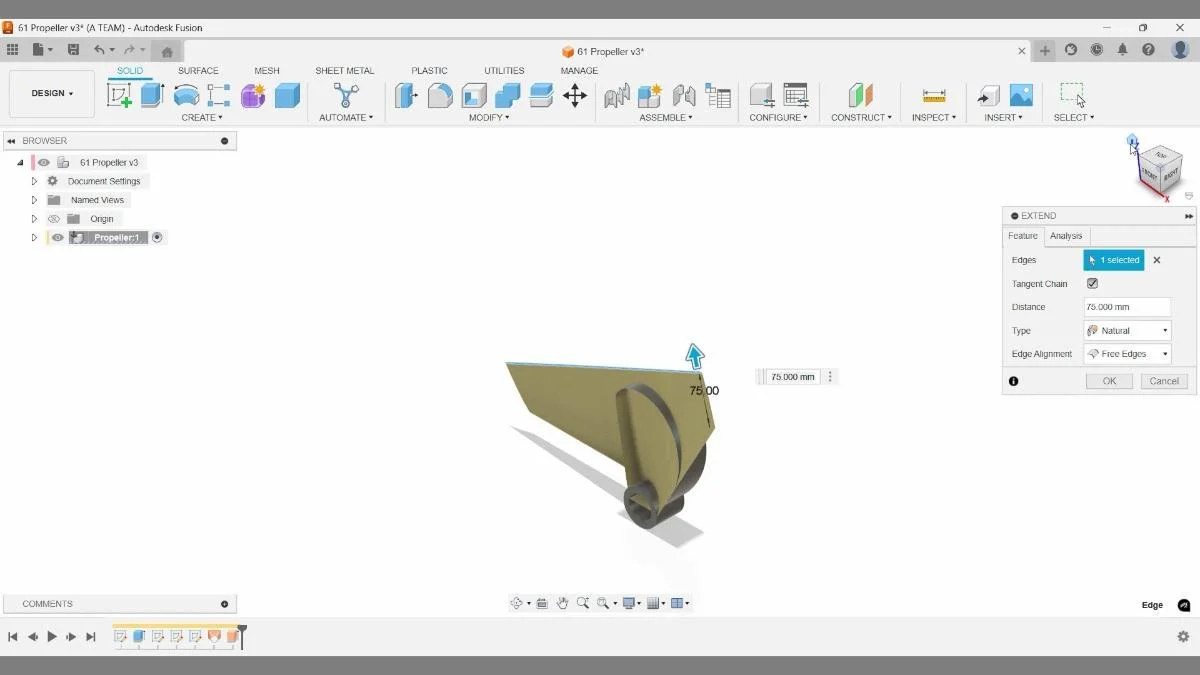

The Extend command increases the size of the lofted surface. Extending surfaces ensures the blade geometry fully intersects other bodies, which is necessary for accurate trimming and splitting operations later in the workflow.

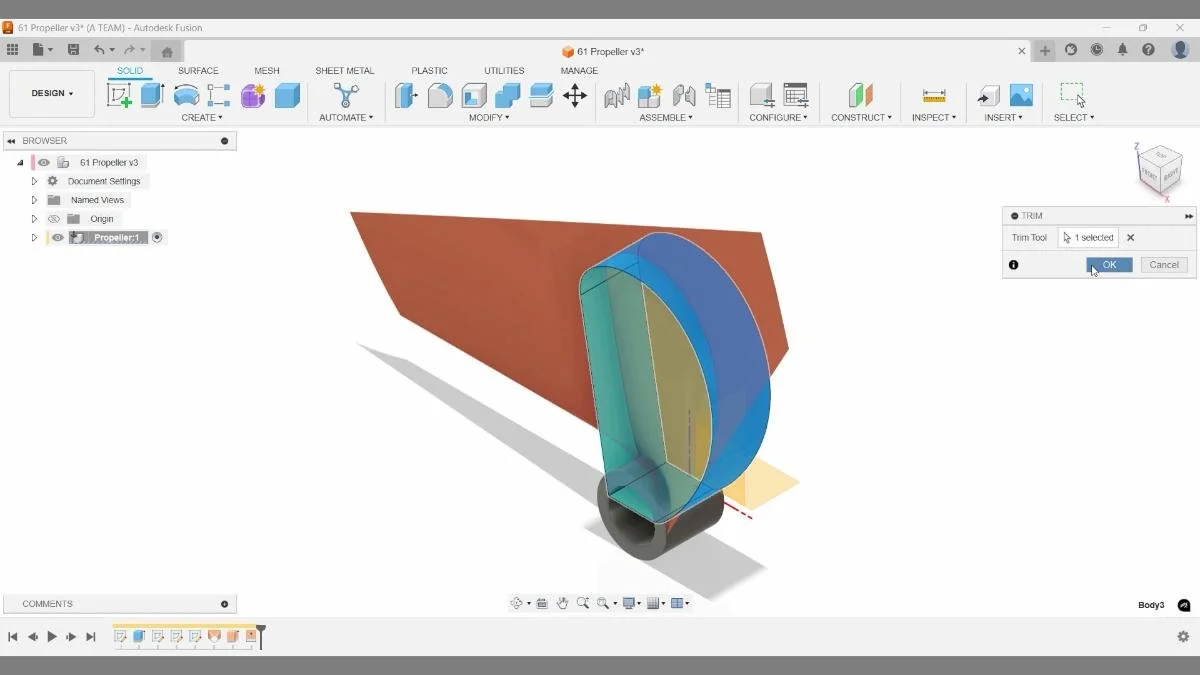

The Trim tool removes portions of the extended surface that extend beyond the desired blade shape. Trimming surfaces after extending them creates clean boundaries and avoids gaps that could cause problems when converting surfaces into solids.
Step 7: Split the Propeller Surface
Use the Split Face tool to clean up the geometry. This lets you remove excess surface material inside the cylinder and gives the propeller blade a cleaner result.

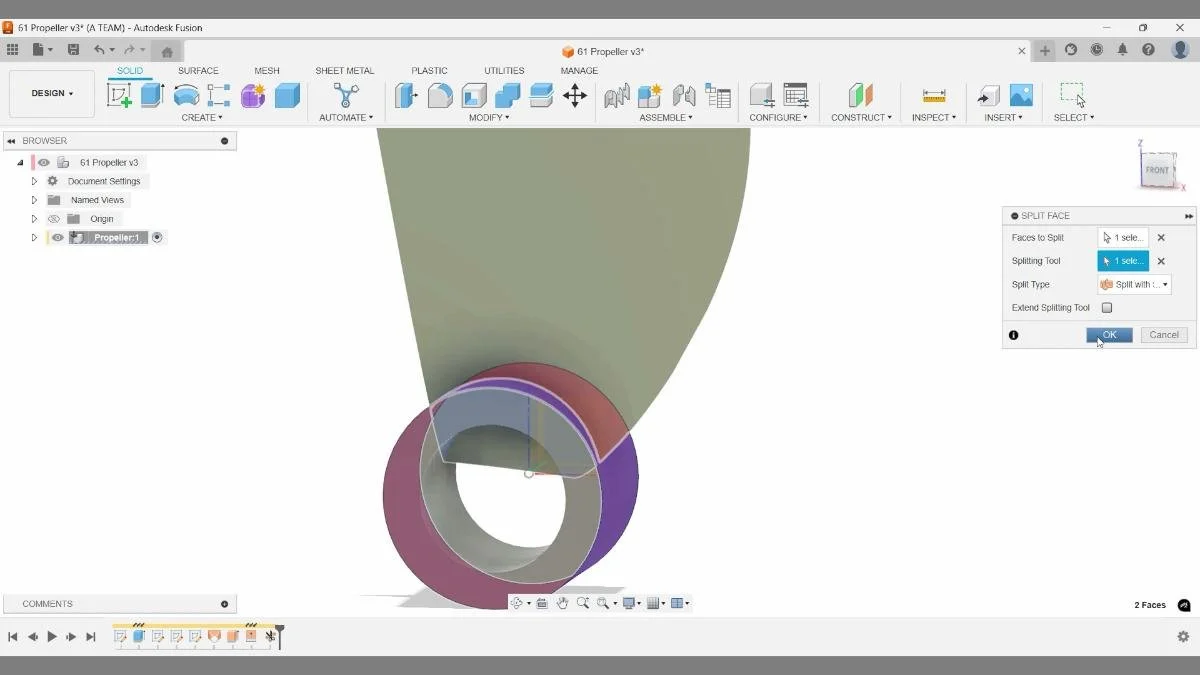

The Split Face tool divides the cylindrical hub surface using the blade surface as the splitting tool. Splitting faces allows unwanted regions of the surface to be removed while preserving the underlying body geometry. This step prepares the hub interface so the blade integrates cleanly with the cylinder.
Step 8: Fillet the Top of the Cylinder
Add a smooth fillet to the top of the cylinder with a 5 mm radius. This creates a cleaner, more polished look and improves the transition between the propeller and the cylinder.

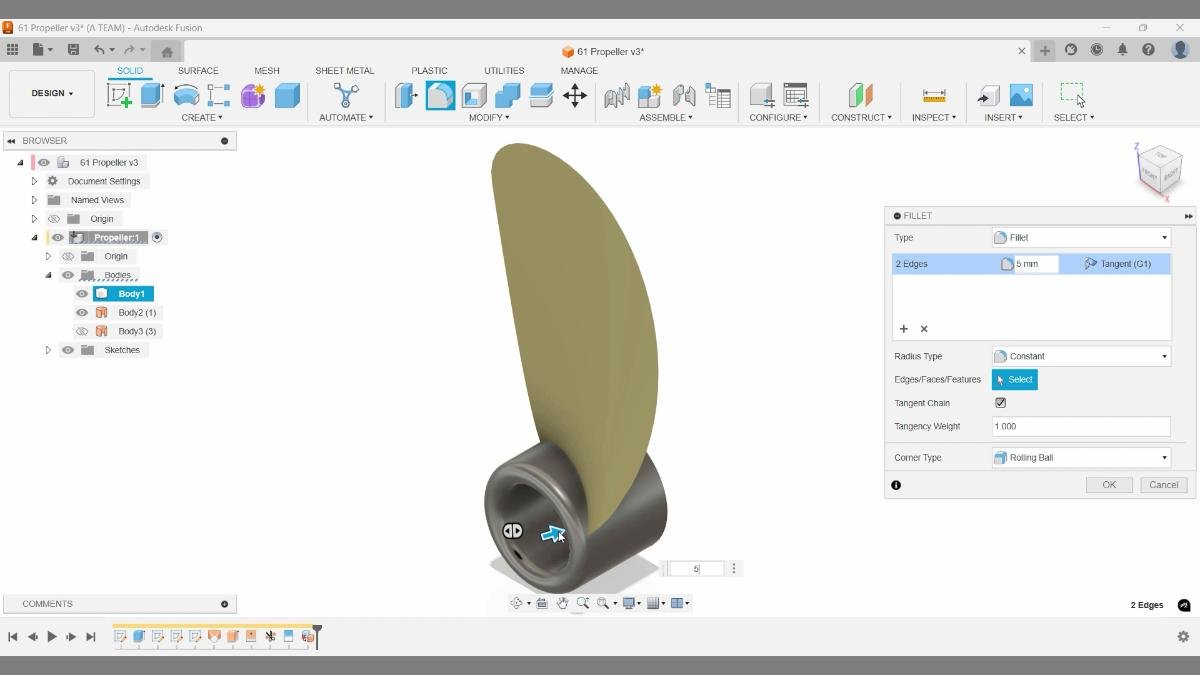

A 5 mm fillet is applied to the top edge of the cylinder. Filleting removes the sharp edge and creates a smoother transition between the hub and the blade area. Rounded edges also improve visual quality when rendering the model.
Step 9: Add Thread Detail
Create a visual thread inside the cylinder for a more realistic touch. This step is optional, but if you are 3D printing the model, make sure to check the Modeled option in the thread settings. Visual threads are more efficient for small models.
The Thread tool adds an internal ISO metric thread inside the hub opening. Threads can be set as visual or modeled geometry depending on whether the part will be manufactured or simply rendered. For most small models, visual threads keep the design lightweight while still conveying mechanical intent.
Step 10: Thicken the Propeller Blade

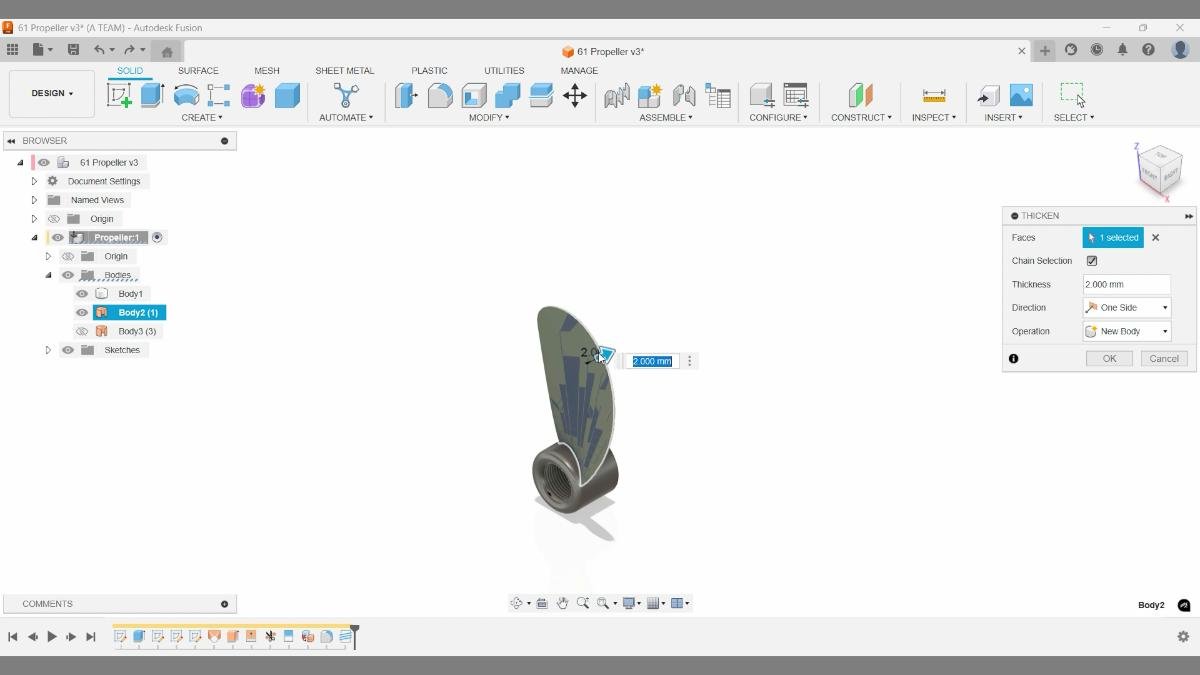

Use the Thicken command to thicken the propeller blade to 2 mm with a New Body operation. This gives the blade real thickness while keeping it separate from the cylinder for easier adjustments.
The Thicken command converts the blade surface into a solid body with a thickness of 2 mm. Surface modeling often starts with thin geometry because surfaces are easier to shape and refine. Thickening afterward produces a solid body suitable for rendering or 3D printing.
Step 11: Apply Appearances
Apply the appearance to a single propeller blade first. When the blade is duplicated later using the Circular Pattern tool, the patterned bodies automatically inherit the same appearance. This keeps the workflow faster and avoids applying the same material to multiple blades individually.

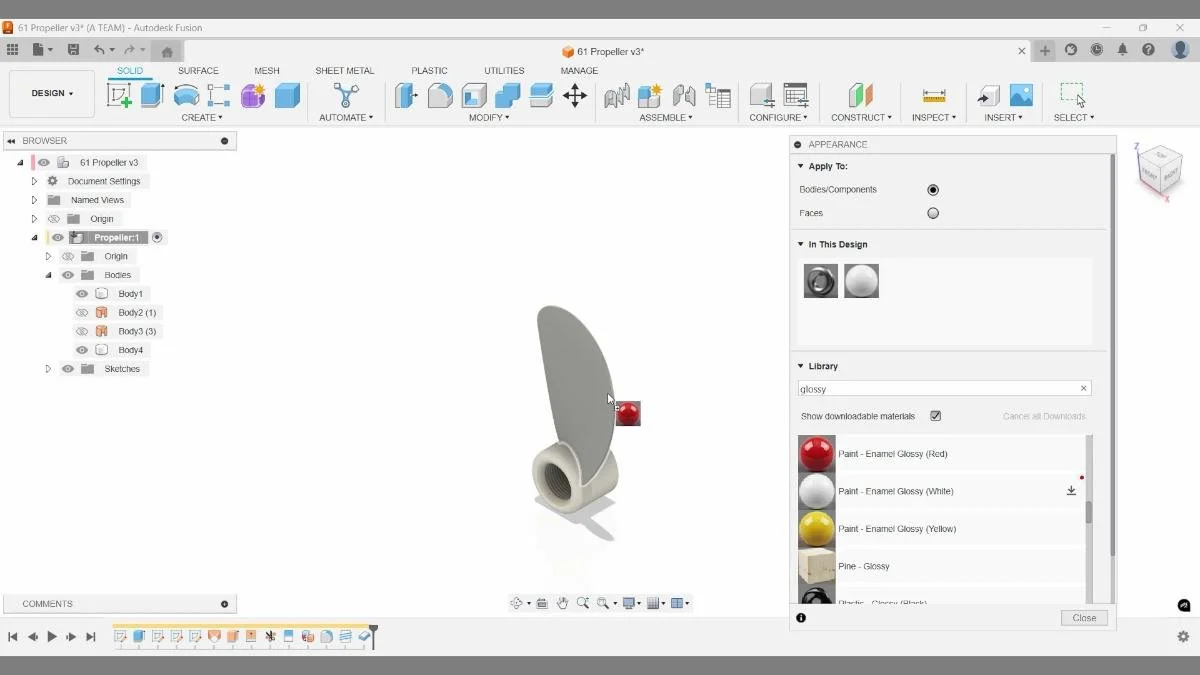

The Appearance panel is used to assign a glossy material to the blade. Applying appearances early allows the designer to evaluate reflections and curvature, which helps reveal imperfections in the surface geometry before rendering.
Step 12: Create the Circular Pattern
Once the first propeller blade is finished, use the Circular Pattern tool to duplicate it around the cylinder. This creates perfect symmetry and saves time.

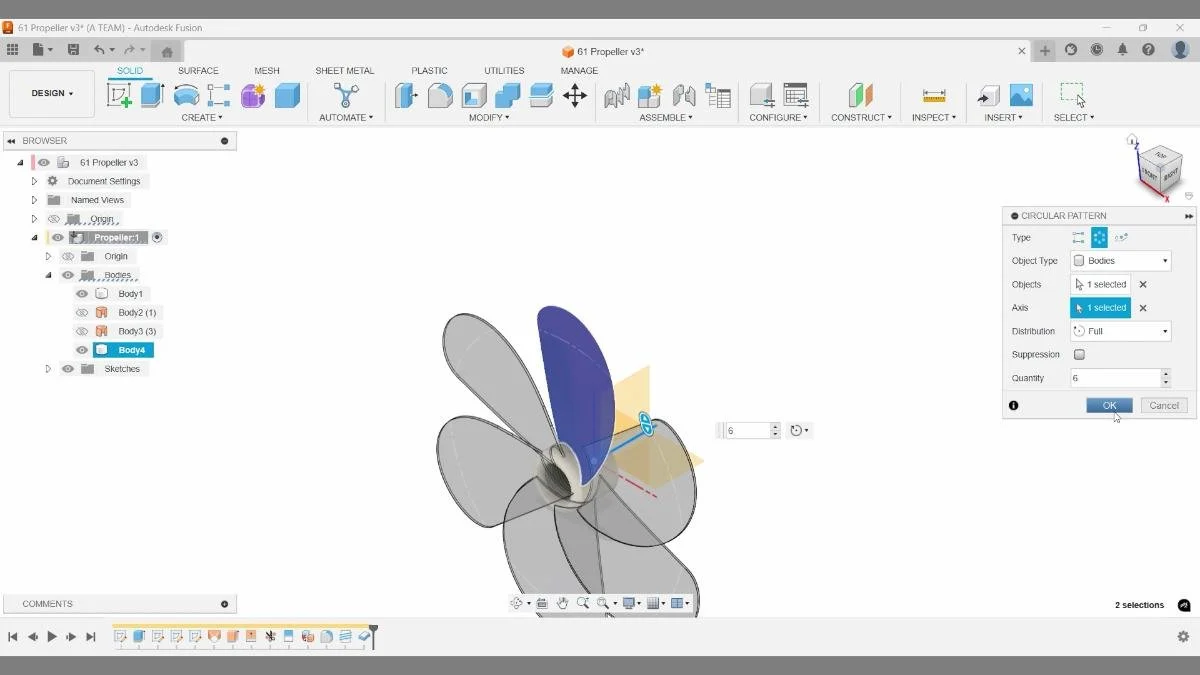

The Circular Pattern tool duplicates the blade body around the hub’s central axis. Patterning the body ensures each blade is identical and evenly spaced. Using the hub axis as the rotation reference guarantees perfect symmetry across the propeller.
Step 13: Set Up the Rendering
Right-click the canvas and open Scene Settings. Change the background from Solid Color to Environment, then drag and drop the Photo Booth setting onto the scene. Adjust the camera angle with the ViewCube and pan options until you get a good result.

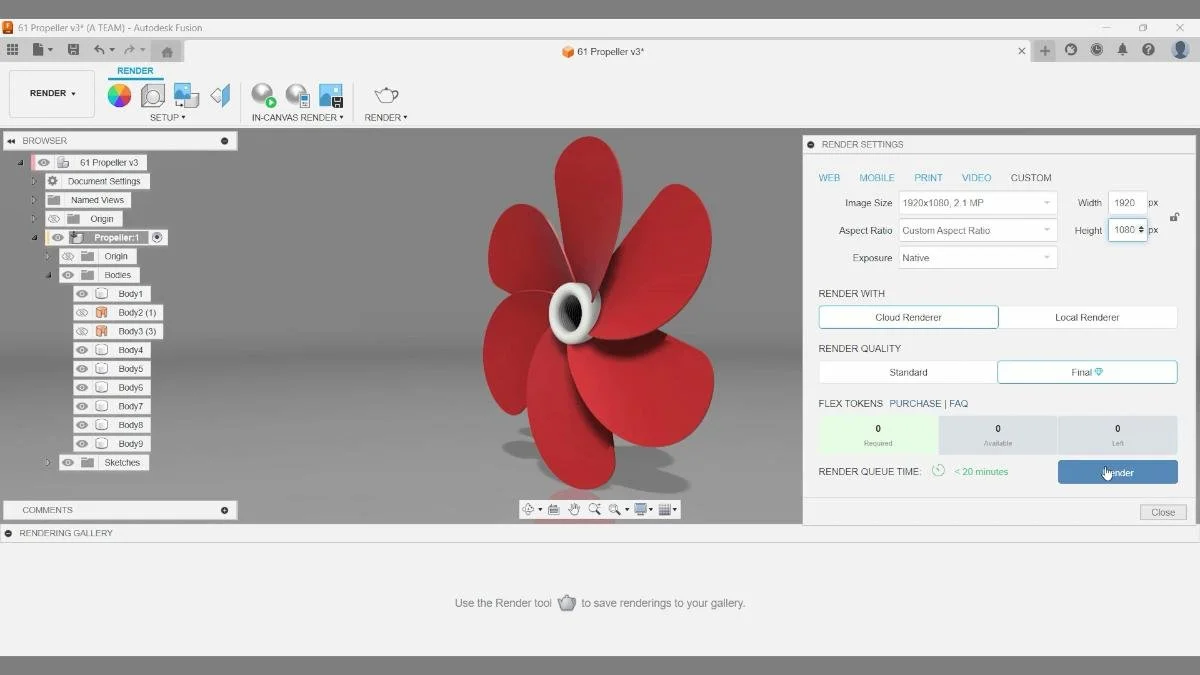

The model is prepared for rendering in the Render workspace. Cloud rendering is selected to generate a higher-quality image without using local computing resources. Camera framing and environment lighting are adjusted before submitting the render job.
Step 14: Start Cloud Rendering
When you are happy with the setup, open Render Settings, adjust the width and height if needed, and start Cloud Rendering. The rendered image will appear in the Rendering Gallery, and Fusion will show an estimated completion time.

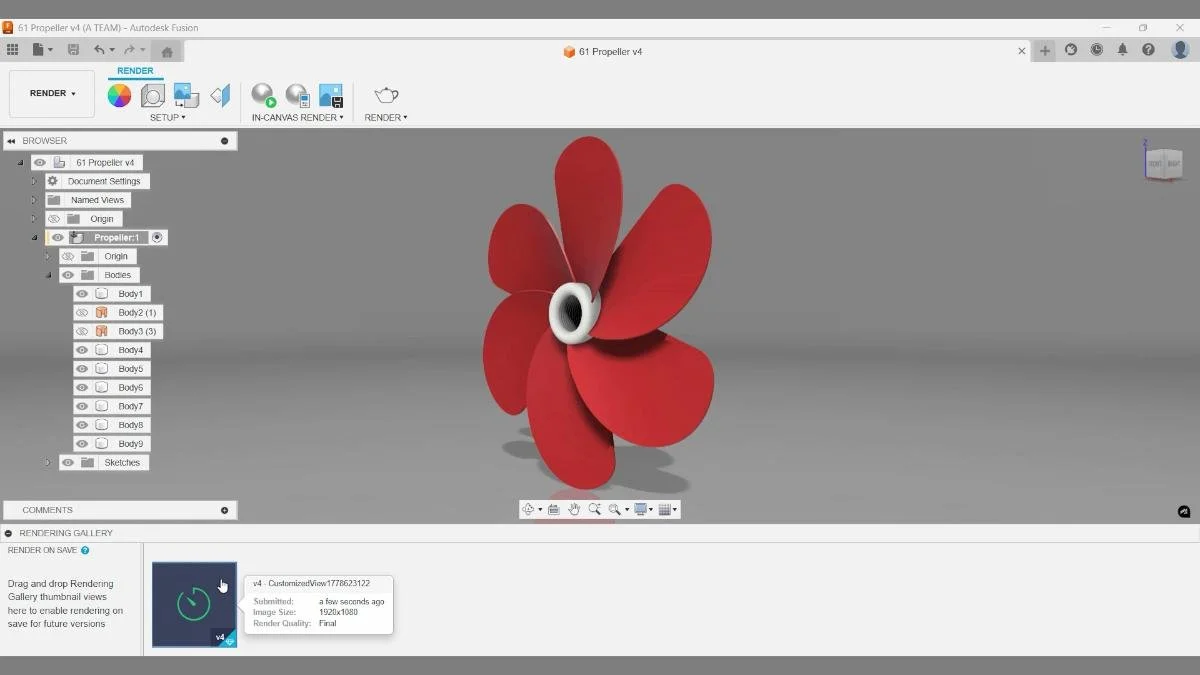

The final render displays the completed propeller with glossy red blades and a metallic hub. Rendering allows the designer to evaluate form, symmetry, and lighting before exporting images for documentation or presentation.
Key Takeaways
- Start with a centered reference sketch to keep the propeller aligned and easier to modify later.
- Surface tools like Loft, Extend, and Trim are useful for shaping smooth organic geometry such as propeller blades.
- The Thicken command converts surface geometry into solid bodies that can be patterned and edited more easily.
- Keeping the blade and hub as separate bodies gives you more flexibility during modeling.
- Circular Pattern is an efficient way to create evenly spaced blades around the cylinder.
- Adding small details like fillets, threads, and appearances improves both realism and presentation.
- Fusion’s rendering tools make it easy to turn a simple model into a polished visual for presentations or tutorials.
