How to Design a 3D-Printable Sillcock Key in Autodesk Fusion
Updated October 9, 2026
A spare sillcock key makes a practical modeling project: a small square socket, a comfortable handle, and a twist that connects them. In this tutorial, you’ll combine solid, surface, and form modeling in Autodesk Fusion (formerly Fusion 360), then prepare a PLA prototype in PrusaSlicer to test the design.
What You’ll Learn
- Create and activate a component to keep your design organized.
- Build a square socket using Surface Extrude and Thicken.
- Connect the socket and handle using Loft with four guide rails.
- Shape a thumb recess using a form body and Combine Cut.
- Export an STL and add a brim before printing.
- Understand how fit, wall thickness, and print orientation affect the prototype.
Watch the Workflow — or Read It Step by Step
You can follow this guide in two ways:
- Read the steps below if you want quick written instructions, reference images, and modeling notes.
- Watch the full video at the end of this post to see the workflow in real time — including extra tips, camera angles, and shortcuts that don’t fit neatly into text.
Both formats build on each other. Reading helps you understand why each step matters, while watching shows how to move faster in Fusion.
Step 1: Create and Activate a New Component
Start with a new component named Sillcock Key. Leave Activate checked so the sketches and bodies you create belong to that component.
Creating the component first keeps the project organized and makes it easier to export the complete key later. The component contains both the finished part and the construction geometry used to build it.
Open the design shortcuts and search for Create Sketch. In the video, keyboard shortcuts appear in the bottom-left corner as the workflow progresses.

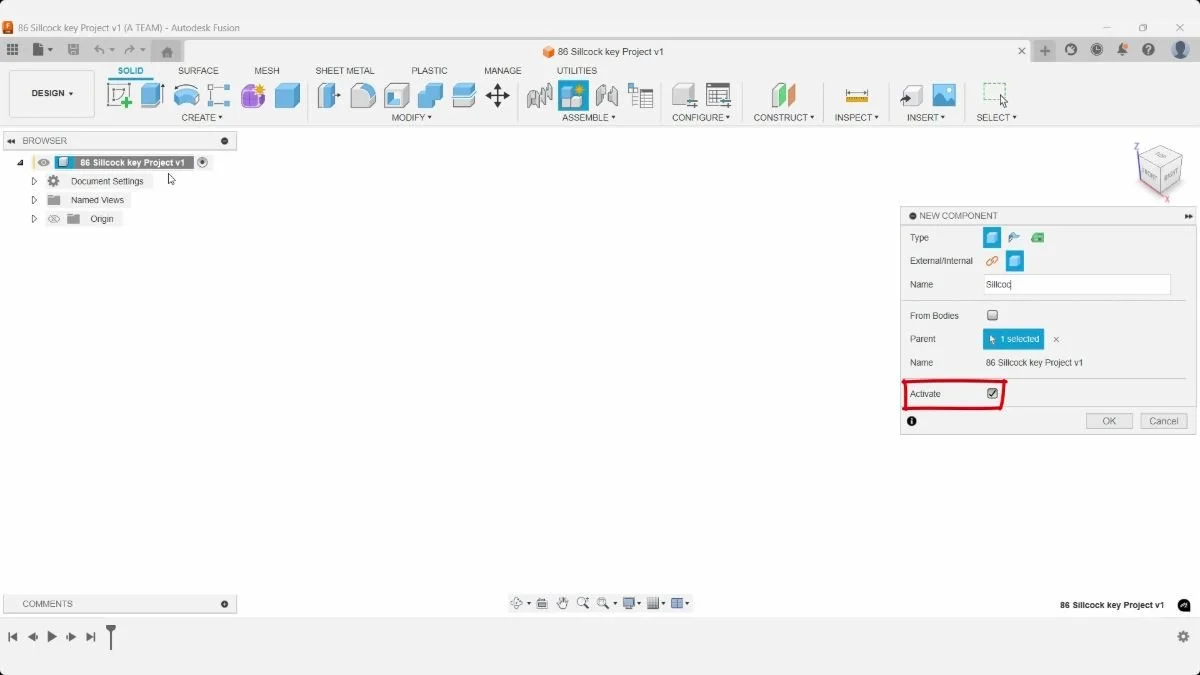

Create a new component for the sillcock key and leave Activate checked. Fusion places subsequent sketches and bodies inside the active component.
The highlighted checkbox keeps the modeling work organized under the new component rather than the design root.
Step 2: Sketch the Square Socket Profile
Create a sketch on the horizontal origin plane and draw a Center Rectangle from the origin.
Set its dimensions to:
- Width: 10.5 mm
- Height: 10.5 mm
These dimensions come from measuring an existing sillcock key with a digital caliper. Treat them as a starting point for this particular project rather than a universal socket size.
Centering the rectangle on the origin establishes a useful reference for the handle and connecting geometry.
3D-printing note: Check the square valve stem or existing key you want to match. Printed fit depends on your printer, material, and slicing settings, so test the socket before committing to a finished tool.

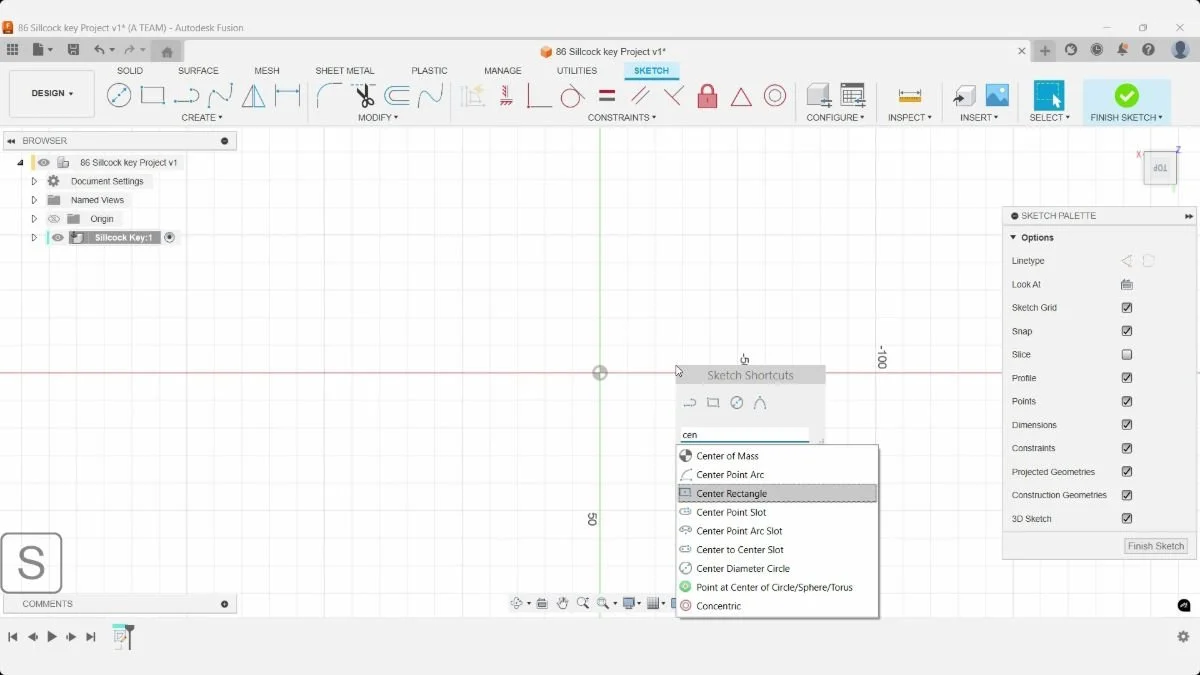

Press S in the sketch environment and search for Center Rectangle. Select the command from Sketch Shortcuts to begin the socket profile.

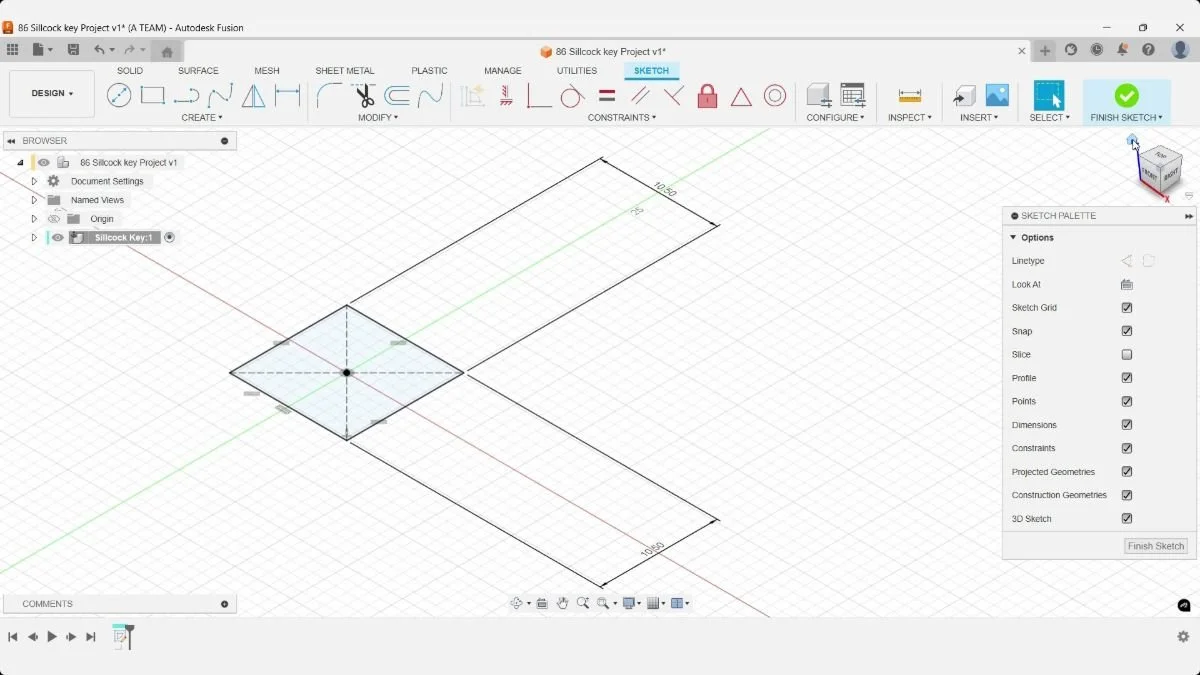

Place the rectangle’s center at the origin on the horizontal sketch plane. This reference will also help align the handle later.
Dimension the centered square to 10.5 × 10.5 mm. The tutorial uses measurements taken from an existing sillcock key with a digital caliper.
The diagonal construction lines identify the rectangle’s center at the origin. The dimensions control the initial profile; the later Thicken operation determines which side receives wall material.
Step 3: Extrude a Surface and Add Wall Thickness
Use Surface Extrude on the rectangle’s boundary to create the socket walls.
A surface body has zero thickness. Here, it defines the shape of the square sleeve before you turn it into a printable solid.
The script does not specify the surface extrusion height. Set that height to suit the engagement depth you need, and check that it works with the handle position introduced later.

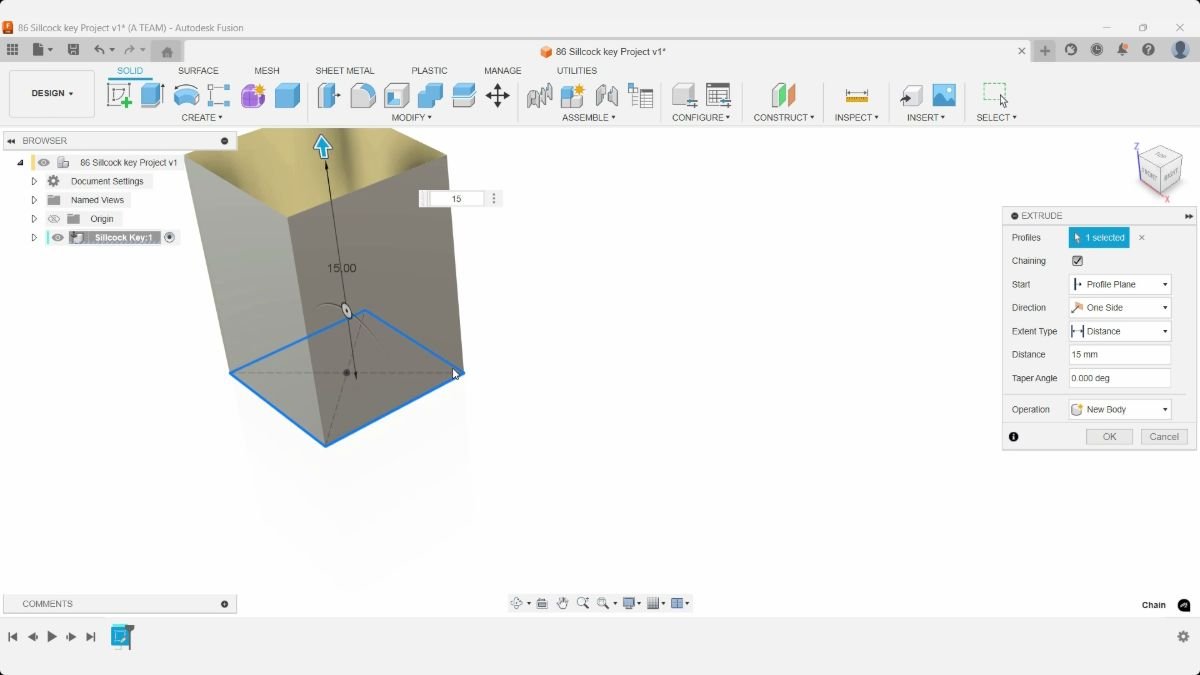

Use Surface Extrude to extend the square boundary 15 mm in One Side direction. The dialog shows a 0° taper angle and New Body operation.
The result is an open sleeve made of surfaces. It defines the socket geometry but needs thickness before it can become a printable solid.
Next, use Thicken and enter –1 mm.
The magnitude gives the wall a 1 mm thickness. The negative sign controls which side of the surface receives the material, depending on the surface orientation. Inspect the preview carefully: the direction affects the socket’s internal opening.
3D-printing note: A 1 mm wall is the tutorial’s prototype setting. Check the sliced perimeter paths and test the part before using it under load; this dimension alone does not establish a reliable torque capacity.

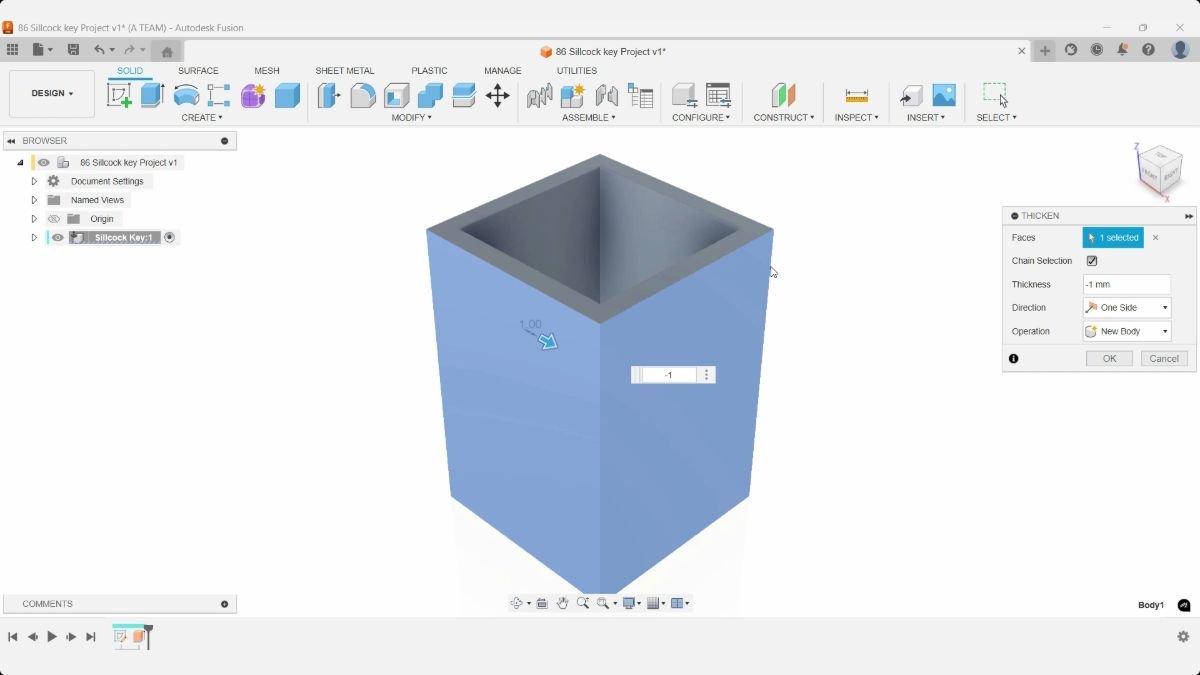

Apply Thicken to the socket surfaces with Chain Selection enabled, One Side direction, and New Body operation. The thickness is set to –1 mm.
The negative value selects the offset direction; the wall thickness is 1 mm. Inspect the opening in the preview because adding material inward or outward changes the resulting fit.
Step 4: Fillet the Socket Edges
Apply Fillet to the relevant socket edges. Orbit the model as you select them so you can inspect the entire part and group the intended edges into one fillet feature.
Fillets can soften sharp edges and help the socket enter the mating square more easily. At structural transitions, a suitable fillet can also reduce abrupt changes in geometry.
The script does not specify a fillet radius. Choose a value that preserves the socket opening and the contact faces needed to engage the valve stem.
Fit check: Avoid rounding away too much of the square profile. Recheck the opening after adding thickness and fillets.

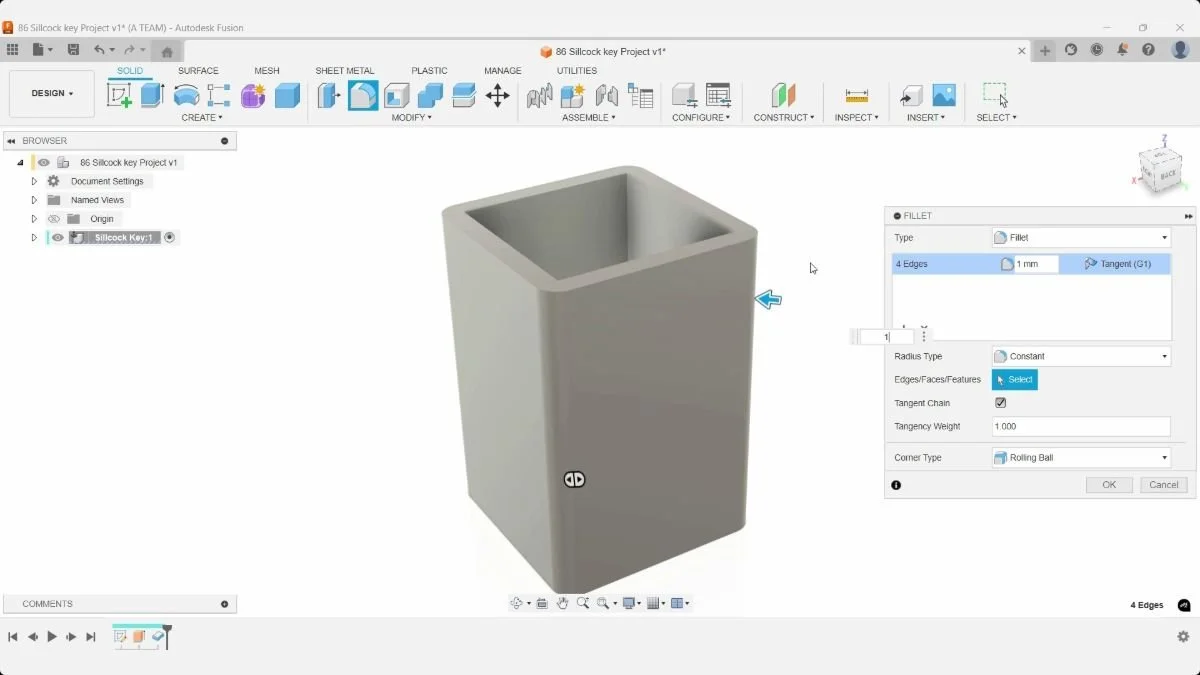

Round the socket’s four selected longitudinal edges with a 1 mm Fillet. The dialog uses Constant radius and Tangent (G1) continuity.
Selecting all four edges in one operation keeps these corner rounds together in the timeline. The top opening remains square overall, with rounded corners.
Step 5: Create the Handle Plane and Sketch
Use Offset Plane to create a plane 20 mm above the original horizontal sketch plane.
This plane locates the top of the handle. It does not define the height of the socket walls.

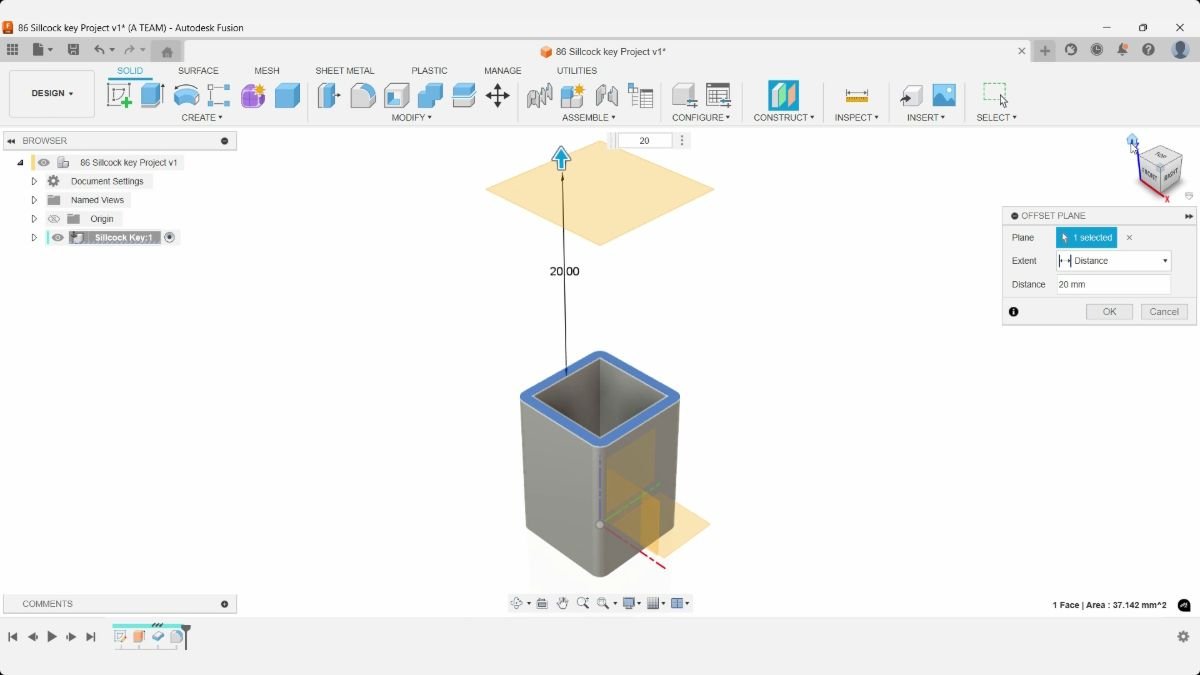

Create an Offset Plane from the socket’s selected upper face and enter 20 mm. The new plane sits above the socket and provides the sketch location for the handle.
The offset is measured from the selected face, not automatically from the origin plane. Check the reference selection before confirming the feature.
Create another sketch on the offset plane. Draw a Center Rectangle from the origin and set it to:
- 17.5 mm × 35 mm
These are estimated handle dimensions in the original project. They provide a starting point for testing how the key feels in your hand.
Using the origin again keeps the handle centered over the socket and makes later edits easier to manage.

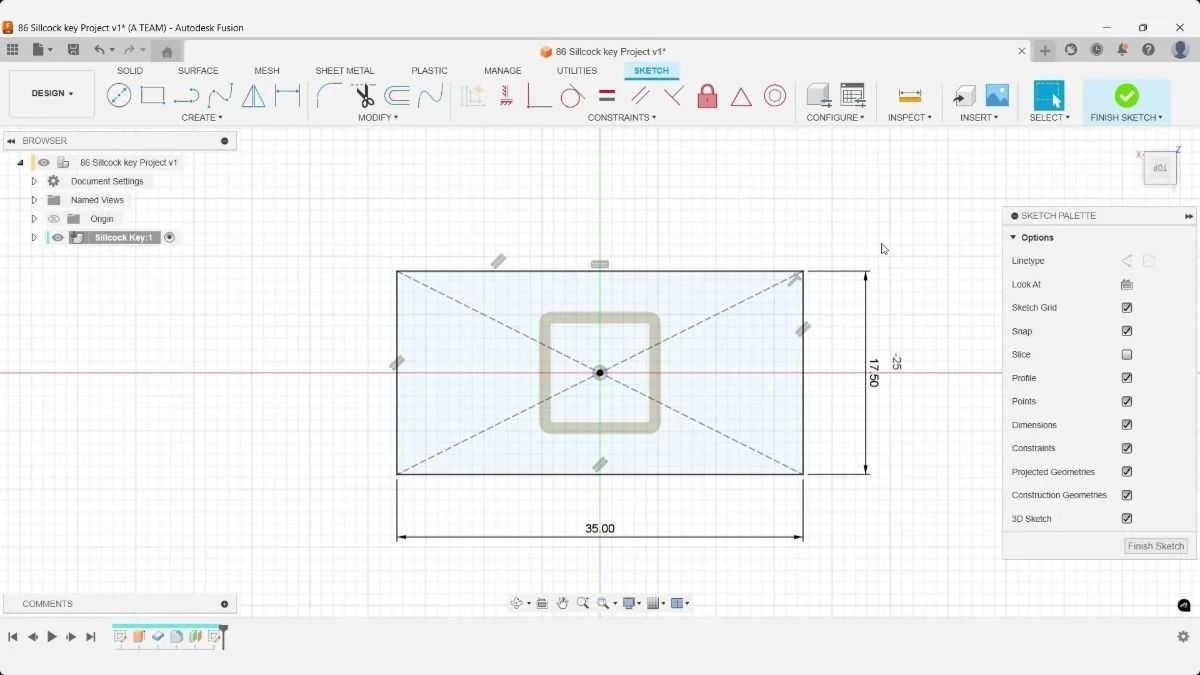

Draw a Center Rectangle on the offset plane and dimension it to 35 × 17.5 mm. Its center aligns with the origin reference and the socket below.
These dimensions establish the handle footprint. Keep them editable so a printed prototype can guide later changes to grip size.
Step 6: Extrude the Handle Downward
With the handle sketch ready, press E to open Extrude.
Extrude the rectangle 3 mm downward, toward the socket. Use the direction control or a negative distance, depending on how the sketch plane is oriented.
Keep this handle as a separate solid body at this stage so you can connect it to the socket using Loft.
The result is a 3 mm-thick handle blank whose top lies on the 20 mm offset plane.
3D-printing note: Handle thickness affects both comfort and stiffness. Start with the tutorial dimension, then test the printed prototype before deciding whether to increase it.

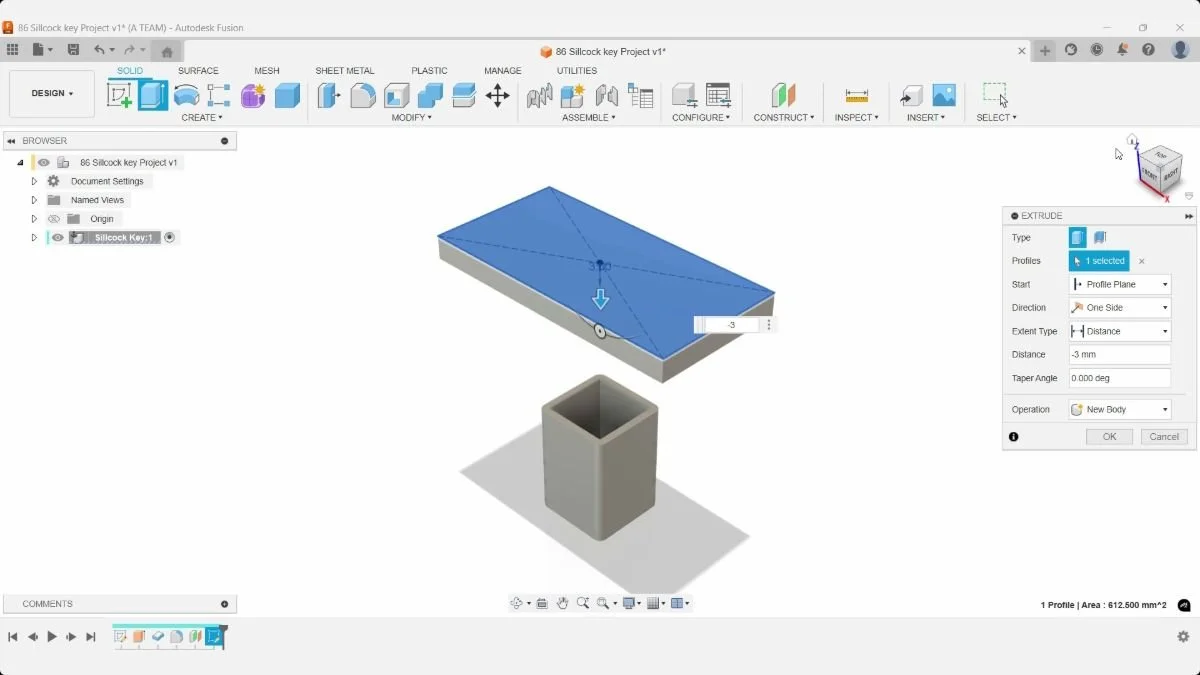

Extrude the handle sketch –3 mm, toward the socket, with One Side direction, 0° taper, and New Body operation.
The handle remains separate from the socket at this stage. Its underside will provide one of the profiles for the connecting loft.
Step 7: Close the Upper End of the Socket

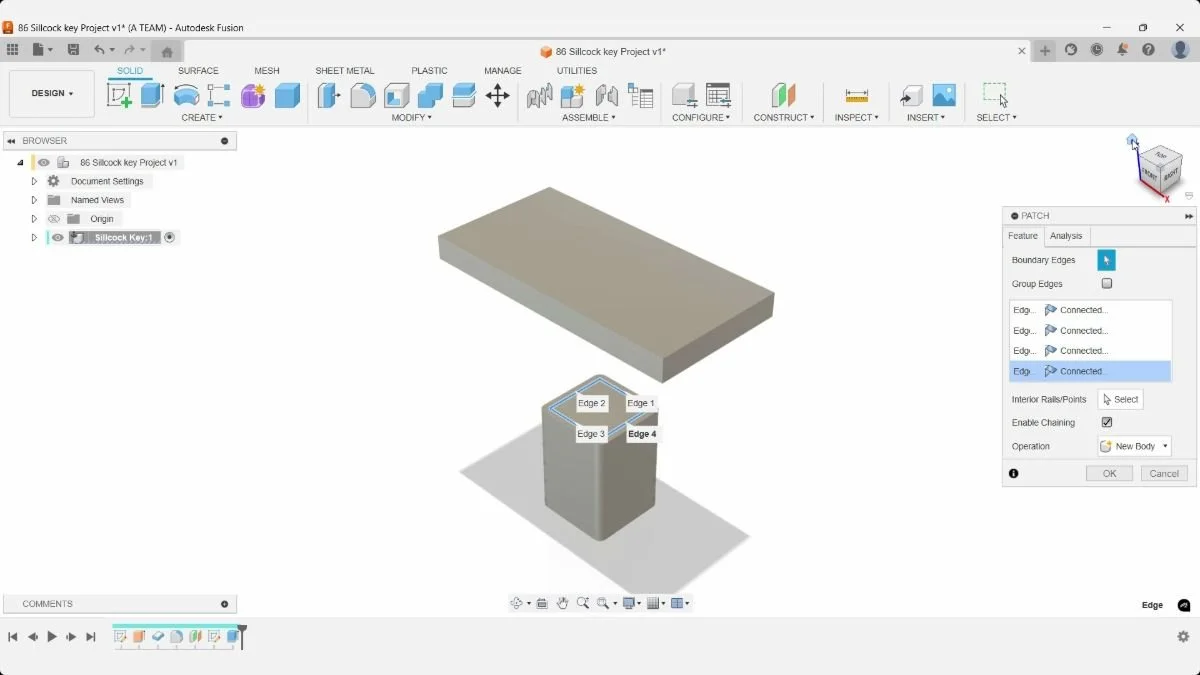

Switch to the surface tools and use Patch to close the upper opening of the socket sleeve—the end facing the handle.
Leave the lower opening available to engage the valve stem.
Extrude the planar cap –2 mm into the socket with the operation set to Join. The preview adds material beneath the patched opening.
This turns the upper closure into a solid cap connected to the socket walls, ready to support the lofted connection.
The patch is a surface, so it still has zero thickness. Use Extrude on the planar patch with the operation set to Join to add a solid cap that connects to the socket walls.
The script does not give a cap thickness or extrusion distance. Choose a distance and direction that intersect the socket walls, and check the preview before confirming.
A successful Join should leave a capped socket body with an open underside. This creates a solid face for the next connection.

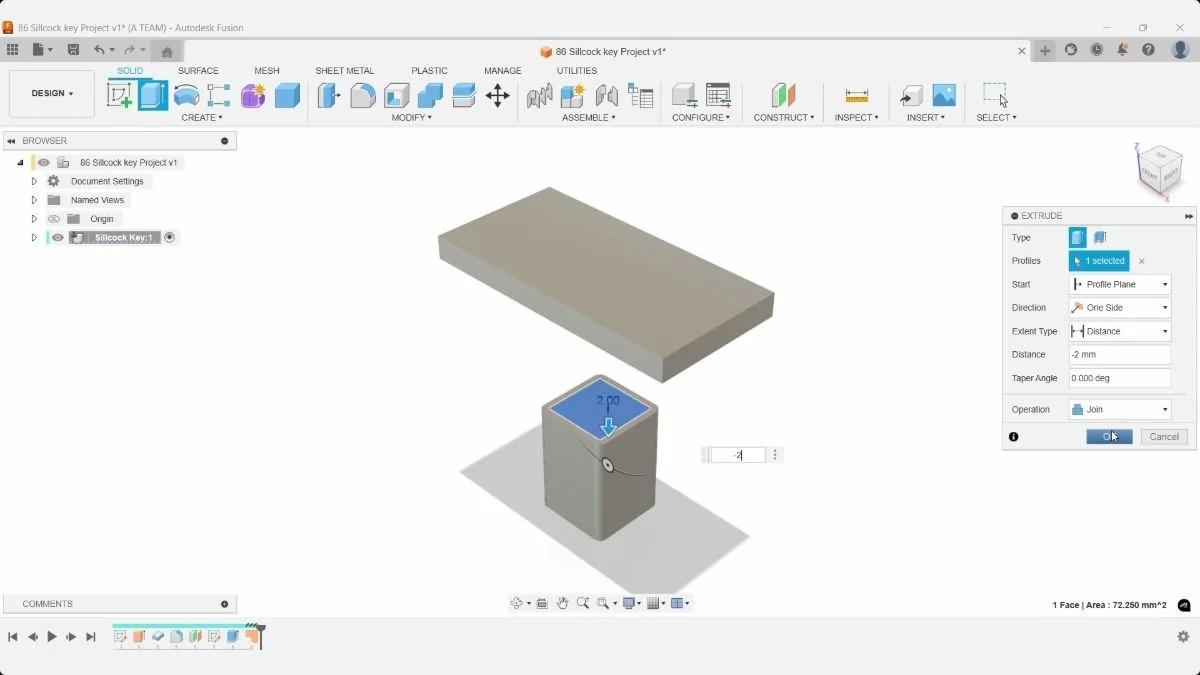

Extrude the planar cap –2 mm into the socket with the operation set to Join. The preview adds material beneath the patched opening.
This turns the upper closure into a solid cap connected to the socket walls, ready to support the lofted connection.
Step 8: Sketch Four Guide Rails for the Twist
Create a sketch on a vertical origin plane and enable 3D Sketch.

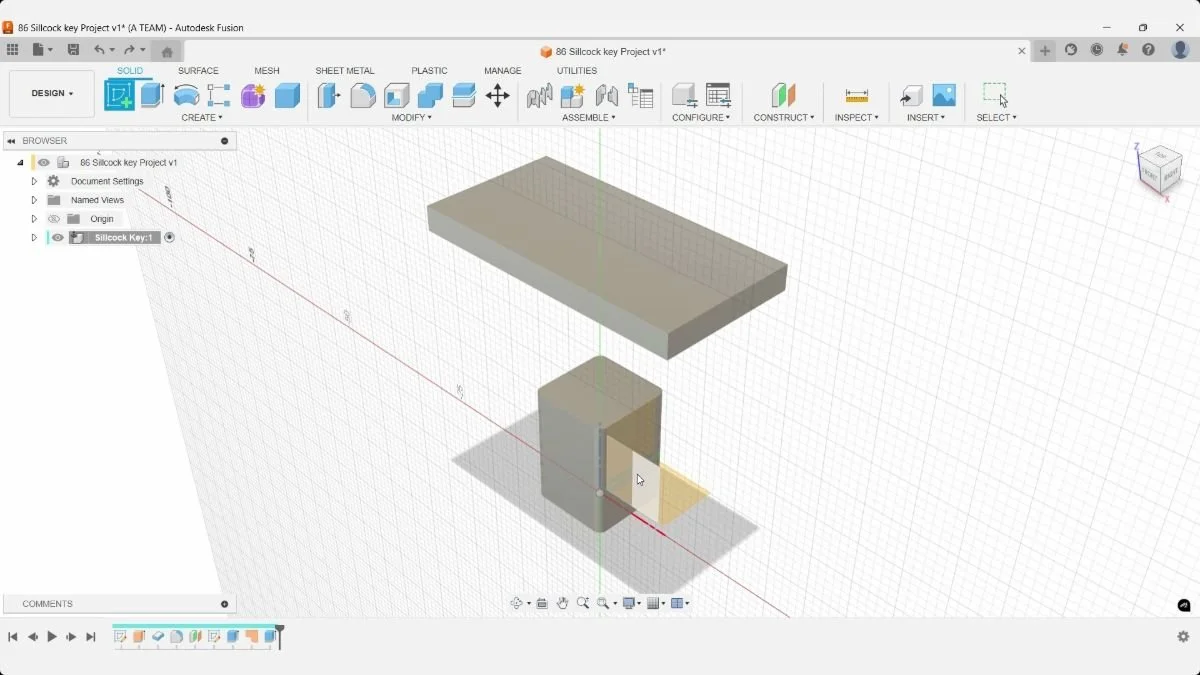

Select a vertical origin plane to begin the guide-rail sketch. The socket and handle are still separate bodies, with the sketch plane passing through the design.
Enable 3D Sketch when drawing the rails. This lets their endpoints connect geometry outside the initial sketch plane.
Draw straight guide lines between the upper socket profile and the underside of the handle. Follow the corner connections shown in the video to establish the intended twist.
Repeat the process for all four corners.
The rails control how the profiles connect. Straight rails keep this example relatively simple; arcs or splines can produce different transitions if you want to experiment later.
Orbit the model while you work. Check that:
- Every rail meets both selected loft profiles.
- The endpoints snap to the intended edges or points.
- The corner mapping produces the intended twist without unwanted crossings.
A rail that only appears to touch a profile can still prevent the loft from calculating. Confirm the connections in 3D before closing the sketch.

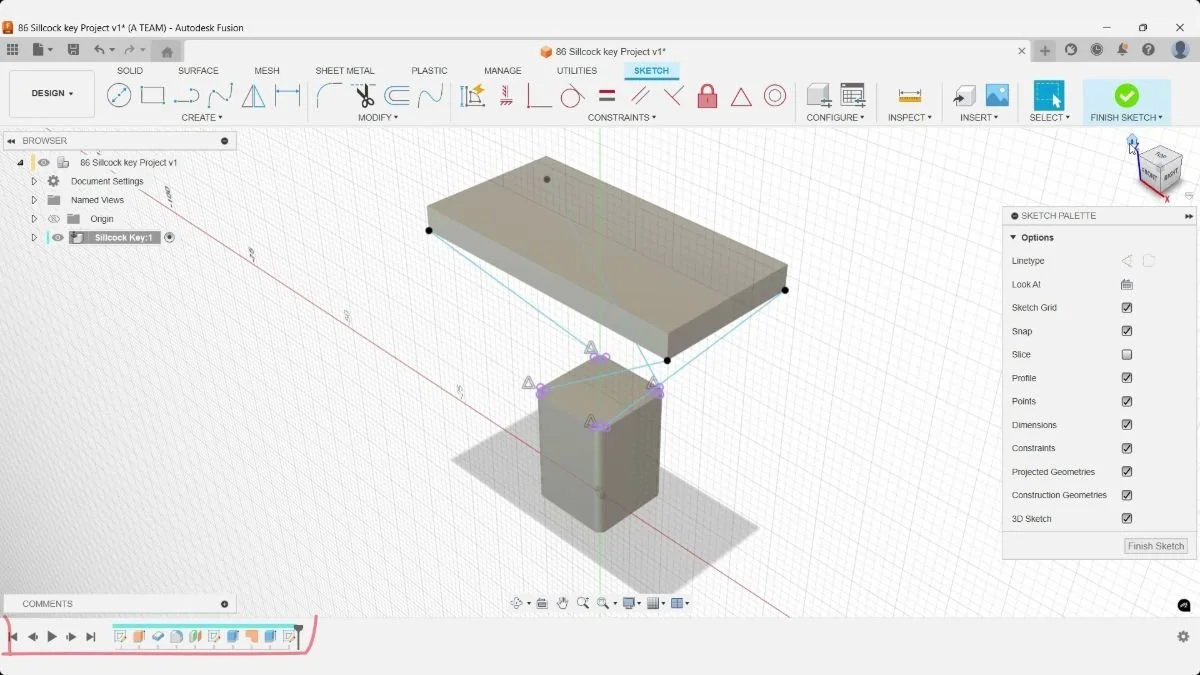

Draw four straight guide rails between the socket’s upper boundary and the handle’s lower corners. The 3D Sketch checkbox is enabled in the Sketch Palette.
The corner mapping establishes the twist. Orbit the model to check that each endpoint meets its intended profile before clicking Finish Sketch.
Step 9: Loft the Socket and Handle Together
Save the design before creating the loft. Add a version description if you want a clear checkpoint before this more complex feature.

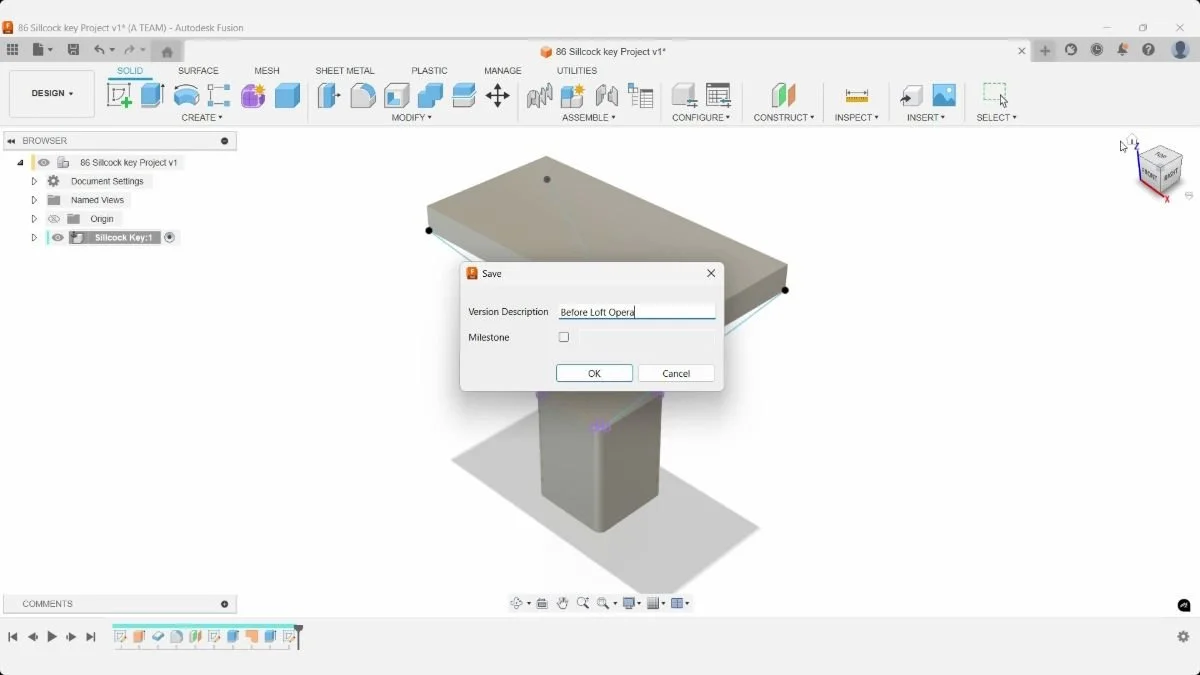

Save the design and enter a Version Description before creating the loft. The description records the stage just before the connecting operation.
This creates a recognizable checkpoint for comparing versions or returning to the rail setup later.
Open Loft in the solid tools and select the two faces or closed profiles that define the connection:
- The upper face of the capped socket.
- The underside of the handle.

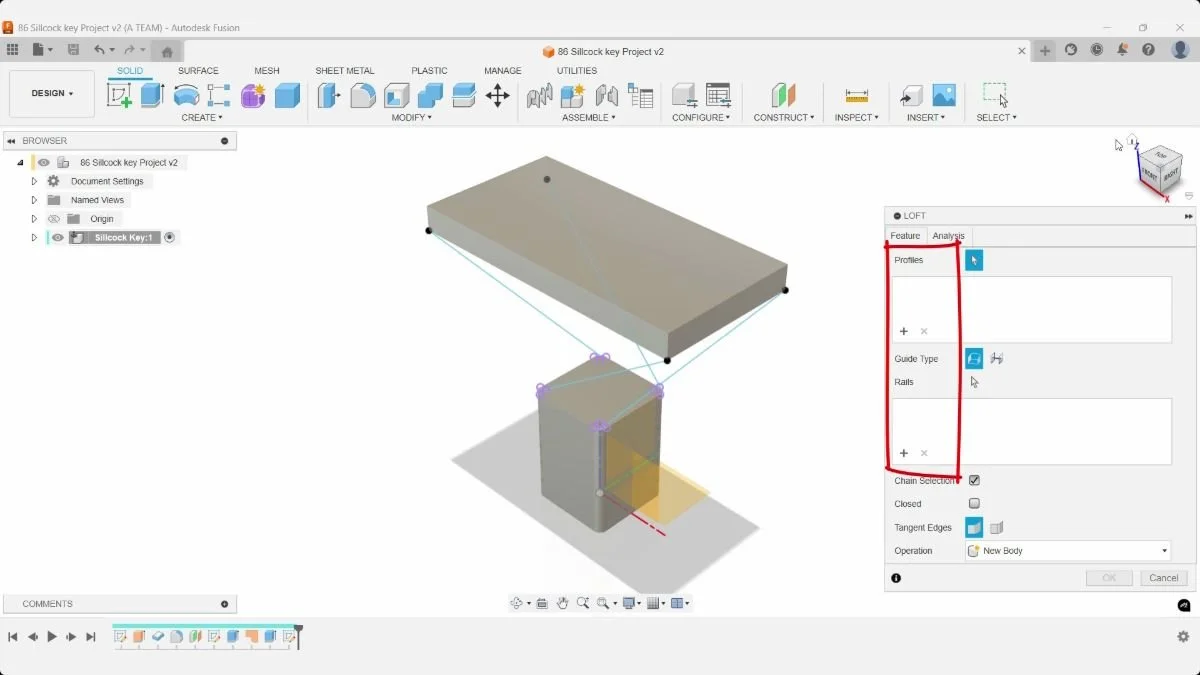

Open Loft and use the Profiles selection area for the socket and handle sections. The highlighted panel separates profile selection from the Rails list below it.
Add the four sketch lines as rails after selecting the profiles. They guide the transition between the two sections.
Then add the four guide rails from the previous step. Set the operation to Join so the new geometry connects the socket and handle into one solid.
The profiles define the beginning and end of the transition. The rails guide its shape between them, producing the twist established by your corner connections.
Inspect the preview from several angles before confirming. If the loft fails, first check the rail endpoints and the way each rail maps between profiles.
3D-printing note: The transition widens toward the handle. Its local slopes affect how much each new layer extends beyond the layer below, so inspect the sliced preview before deciding whether support is needed. A successful CAD loft does not automatically mean a support-free print.

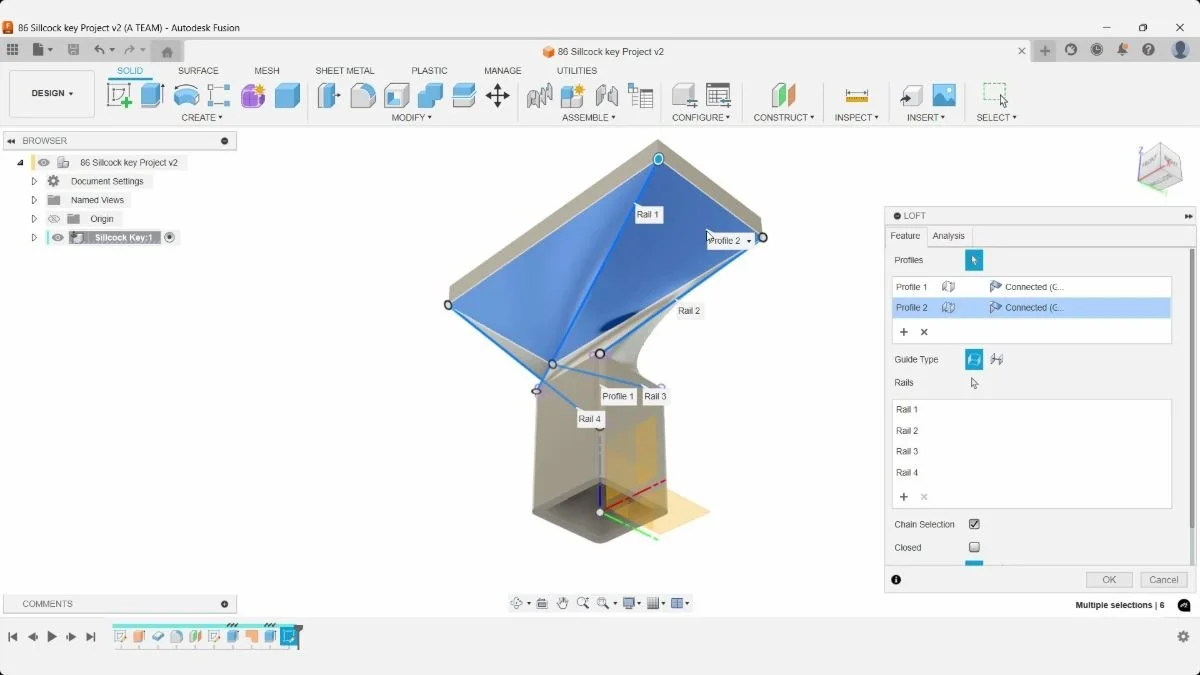

The Loft preview contains two profiles and four rails. Rotate the view to inspect how the transition twists between the socket cap and the underside of the handle.
Confirm that the geometry avoids unwanted folds or crossings. Use Join for the finished connection so the handle and socket become one solid part.
Step 10: Add Fillets to the Connection
Add a Fillet to the relevant transition edges to refine the appearance and feel of the key.
The script leaves the radius unspecified. Choose a value that smooths the connection without removing too much material around the narrow section.
Keep the first version simple. You can explore tangency settings later if you want finer control over how the fillet meets adjacent faces.
3D-printing note: Smoothing a sharp transition can improve the geometry around a stress concentration, but material, wall construction, and layer orientation still affect strength.

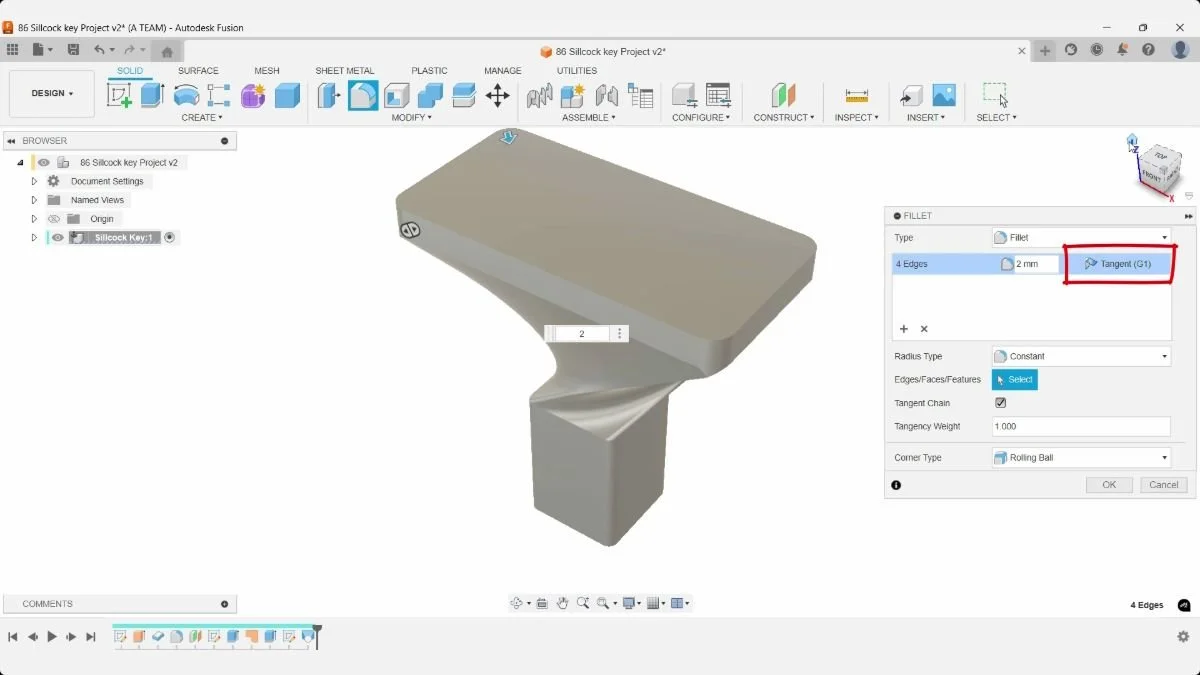

Apply a 2 mm Fillet to the handle’s four selected corner edges. The highlighted continuity setting is Tangent (G1), with Constant radius selected.
These rounds soften the rectangular grip while preserving its broad top surface. The thumb recess will be added separately using Form modeling.
Step 11: Shape a Thumb Recess with Form Modeling
Enter Create Form and create a Box over the top of the handle.

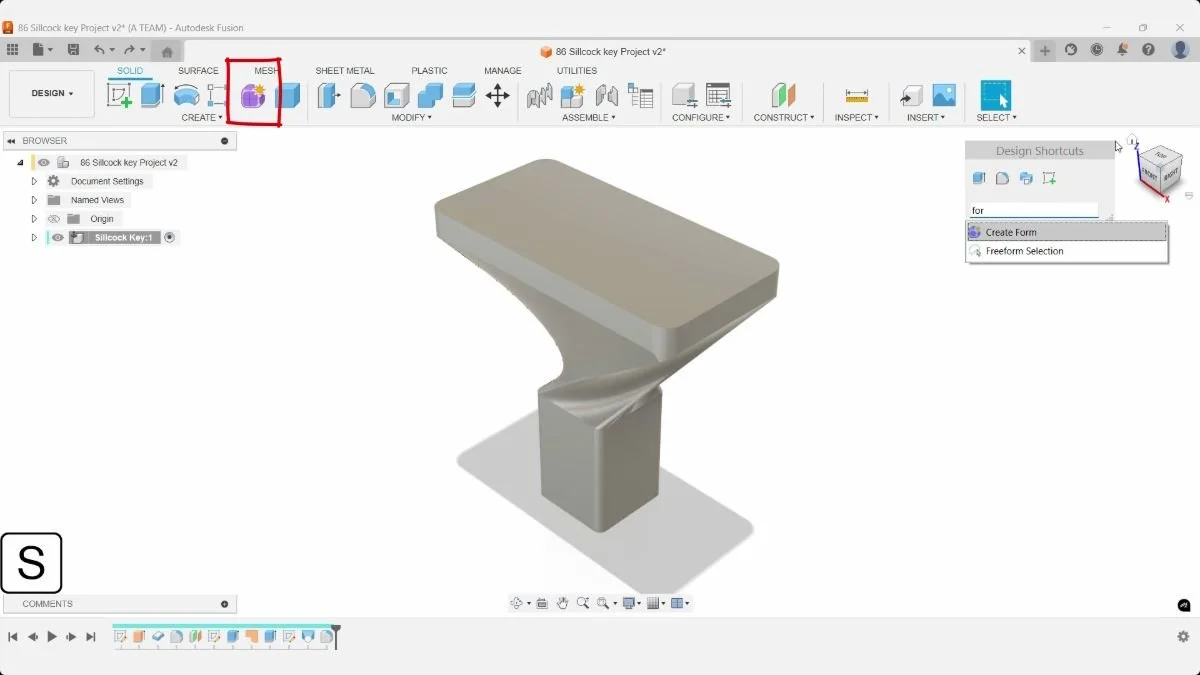

Press S and search for Create Form to enter the Form environment. The purple toolbar icon provides another route to the same command.
The next feature uses a rounded form as a cutting body, allowing the thumb recess to be shaped independently of the handle’s rectangular sketch.
Use the Direction and Symmetry options to arrange the form so you can shape it in both directions while maintaining the intended symmetry.
The script does not specify the box dimensions, face divisions, or exact symmetry selections. Start with a simple form and adjust it to create the thumb recess you want.
Position part of the form inside the handle. This overlapping volume will become the material removed in the next step.
Keep the recess shallow enough to leave useful handle thickness beneath it. You can return to the Form feature in the timeline after testing the prototype.

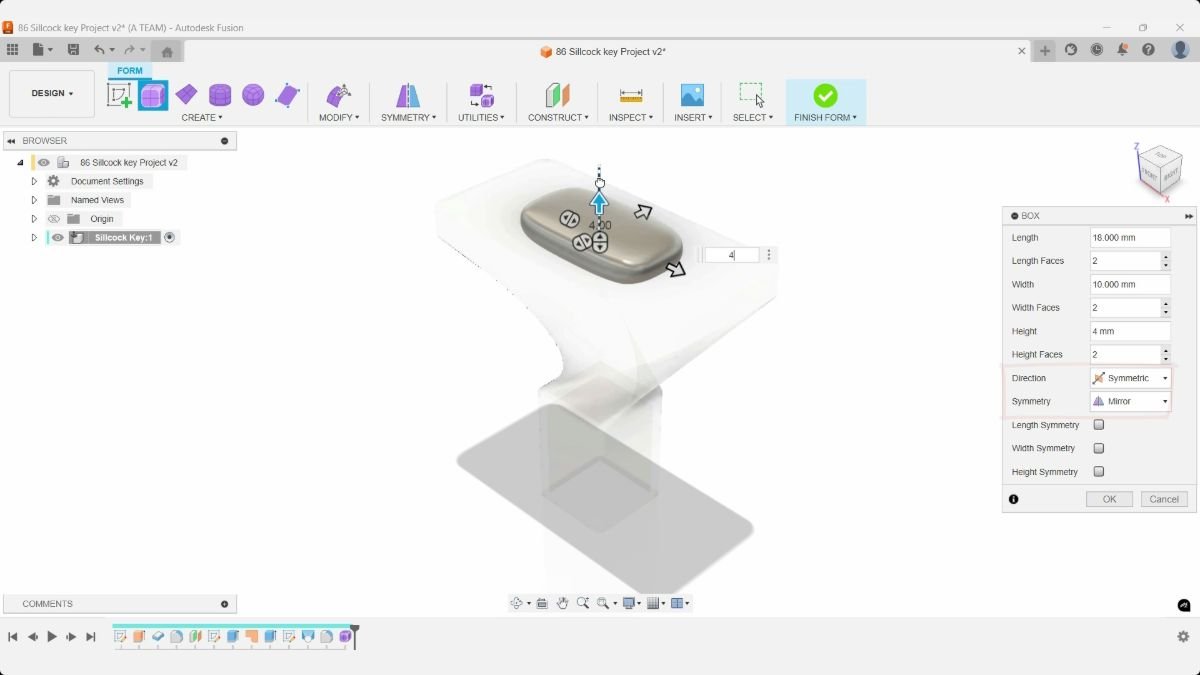

Create a Form Box measuring 18 mm long, 10 mm wide, and 4 mm high. Set Length Faces, Width Faces, and Height Faces to 2 each.
The dialog shows Symmetric direction and Mirror symmetry mode. Position the rounded box so it overlaps the top of the handle, then finish the form before using it as a solid cutting tool.
Step 12: Cut the Thumb Recess into the Handle
Click Finish Form. A valid closed form converts into a solid body that can serve as the cutting tool.
Open Combine and select:
- Target Body: the sillcock key.
- Tool Bodies: the converted form body.
- Operation: Cut.
Confirm the preview to remove the overlapping volume from the handle.
The form body acts as a sculpted cutter, giving you a quick way to create a softer thumb recess within an otherwise dimension-driven design.
Before exporting, inspect the result for a continuous solid, an open socket, and sufficient remaining thickness under the recess.

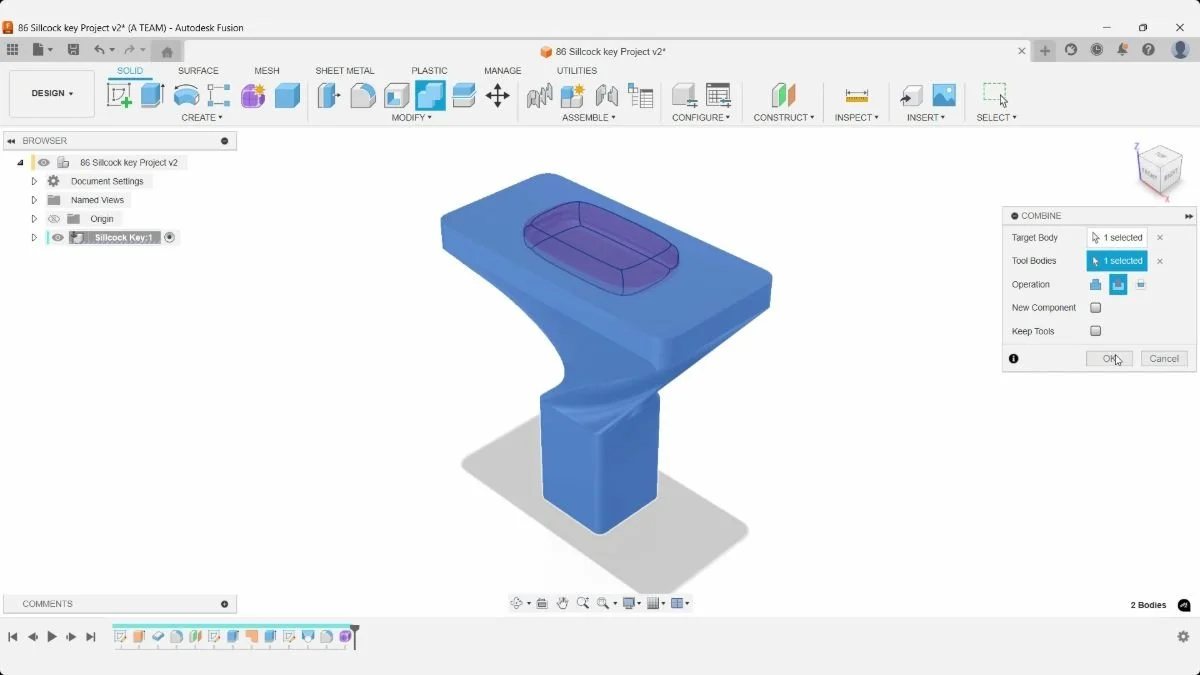

Use Combine with the sillcock key as the Target Body and the converted form as the Tool Body. Select Cut to remove their overlapping volume.
Keep Tools is unchecked in the dialog, so the cutting body is consumed by the operation. The remaining handle contains the rounded thumb recess.
Step 13: Export the Sillcock Key as an STL
In the browser, right-click the Sillcock Key component and choose Save as Mesh.
Select STL and use millimeters for the export. Include the finished key and exclude any construction or cutting bodies that remain in the component.
Choose mesh refinement that preserves the fillets and thumb recess without unnecessarily increasing the file size.
Save the Fusion design too. The editable model lets you revise the socket dimensions, handle size, rails, and form feature after testing the print.

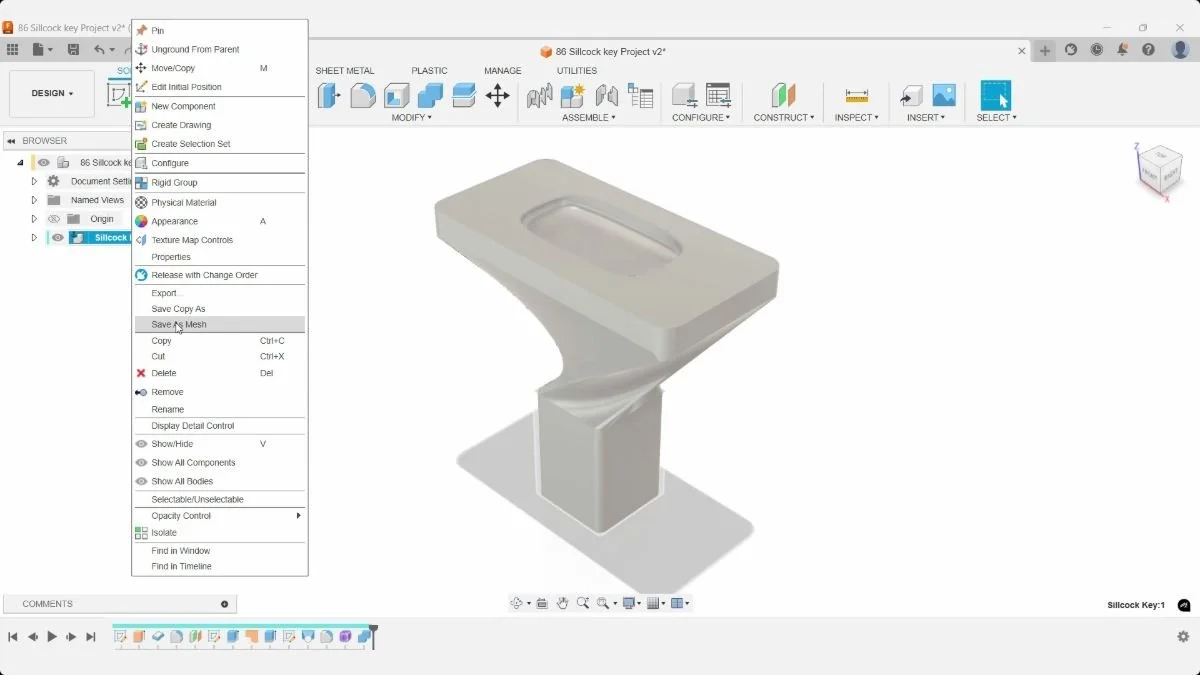

Right-click the sillcock key component in the browser and choose Save as Mesh. The finished model now includes the twisted connection and thumb recess.
Export the printable geometry as STL for the slicer. Check the export selection so leftover surface or construction bodies are excluded.
Step 14: Import into PrusaSlicer and Add a Brim
Import the STL into PrusaSlicer and confirm that its scale matches the millimeter dimensions used in Fusion.

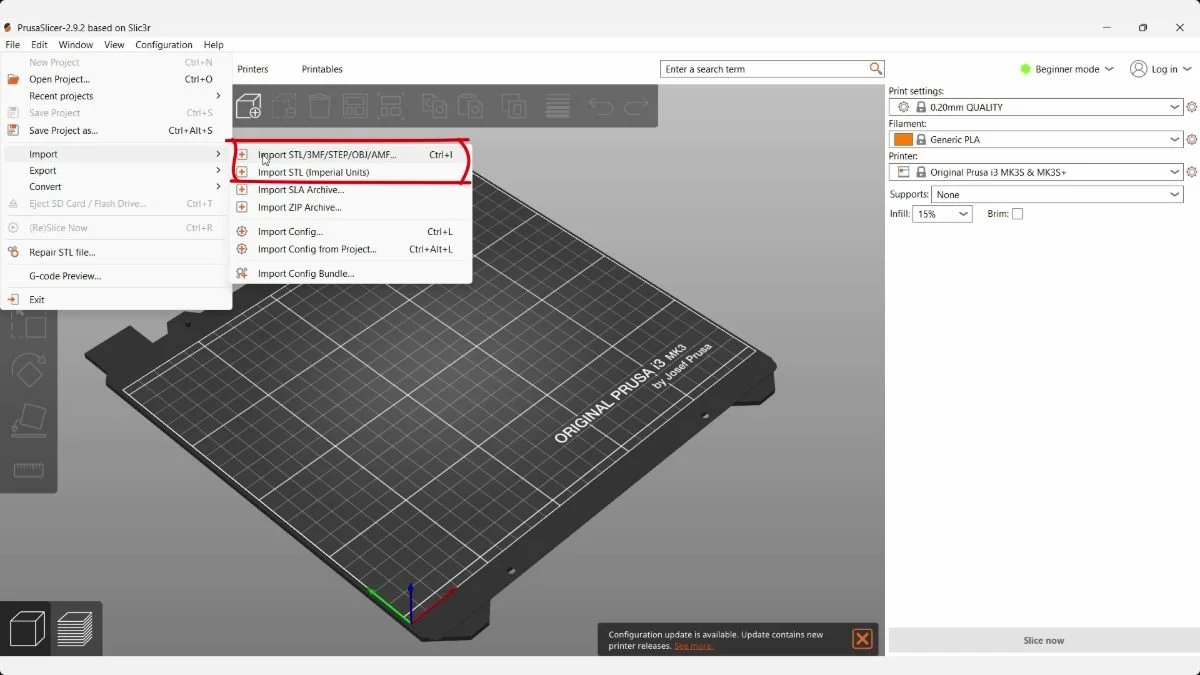

In PrusaSlicer, use File > Import > Import STL/3MF/STEP/OBJ/AMF to load the exported model. The standard import command has the shortcut Ctrl+I.
A separate Import STL (Imperial Units) command is listed underneath. Choose the option that matches your export units; this Fusion project uses millimeters.
For the orientation shown in the tutorial, the key stands on its socket end. Because this gives it a relatively small contact area on the print bed, add a brim around the base.

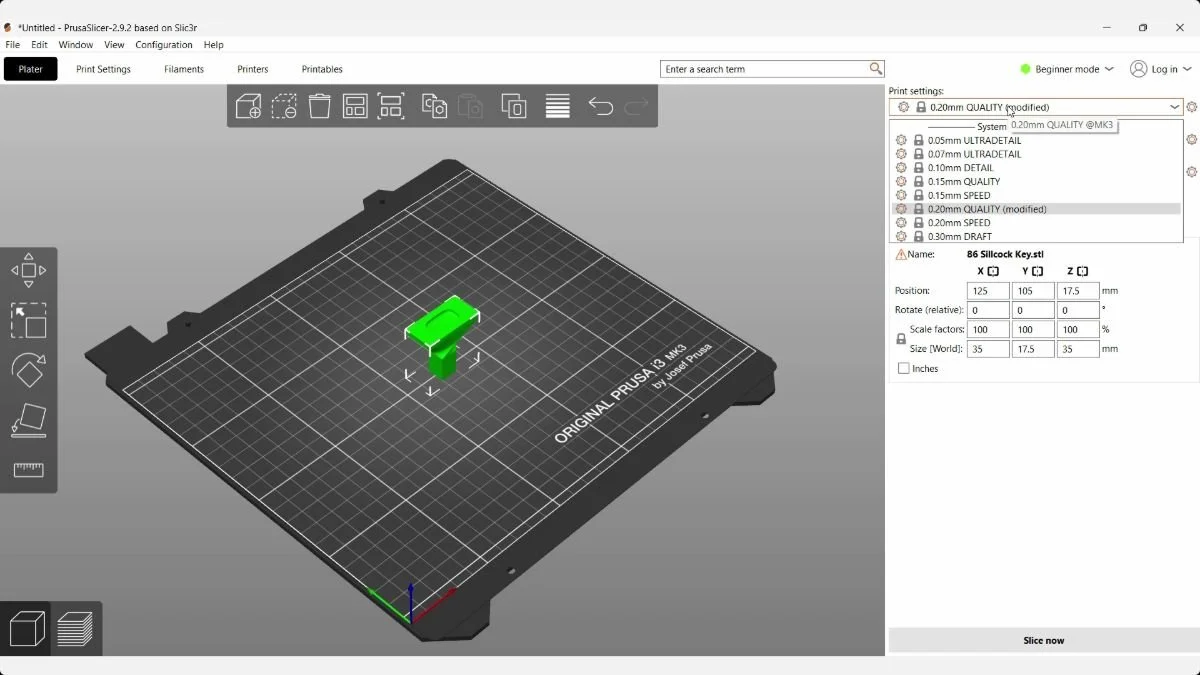

Select the 0.20 mm QUALITY print preset. The model is upright on the bed, and its displayed dimensions are 35 × 17.5 × 35 mm.
Check those dimensions after import to confirm the STL scale. The small socket footprint is the reason the tutorial adds a brim before printing.
The brim increases the first-layer footprint and helps the tall part stay attached during printing. The script does not specify a brim width; choose one appropriate for your printer and inspect the preview.

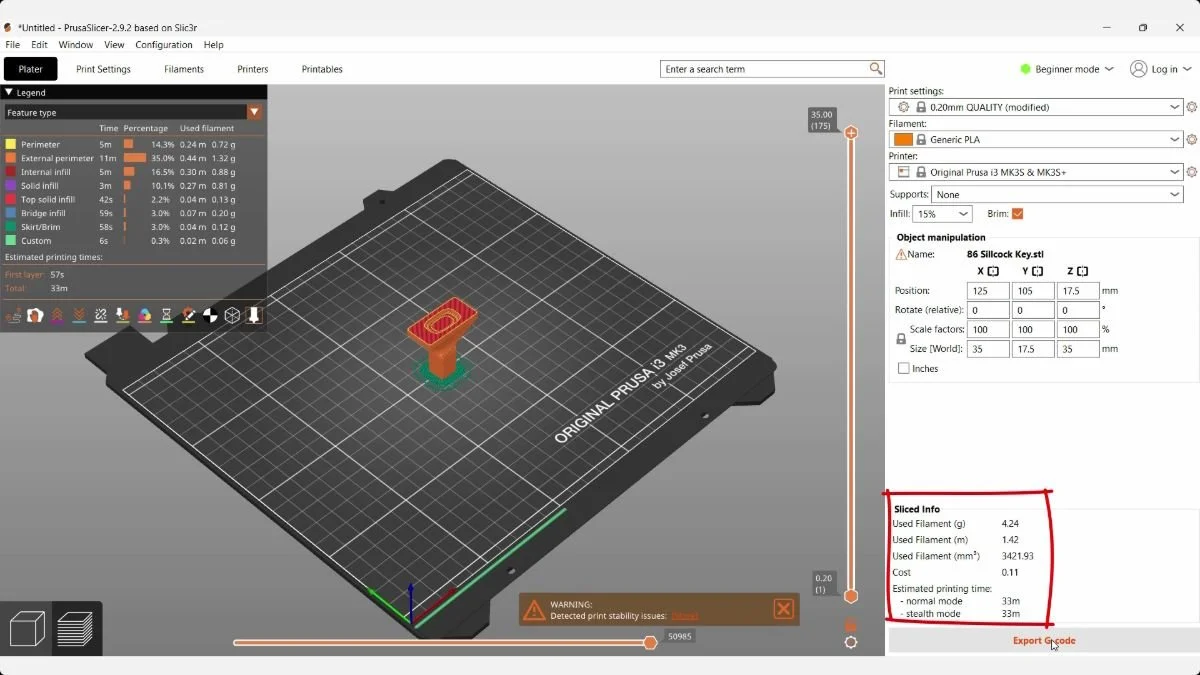

Slice the model with Generic PLA, 15% infill, Supports: None, and Brim enabled. The preview shows the added footprint around the socket base.
For the displayed printer profile, the estimate is 33 minutes and 4.24 g of filament. A print-stability warning remains visible, so inspect the flagged areas before exporting; enabling a brim does not automatically resolve every stability concern.
Check the socket opening, transition, and underside of the handle in the sliced view. Add support where your geometry and print settings require it, then consider how you will remove it without damaging the part.
Step 15: Print and Test the PLA Prototype
The tutorial uses:
- Material: PLA
- Print preset: default quality preset
- Infill: unchanged from the selected preset

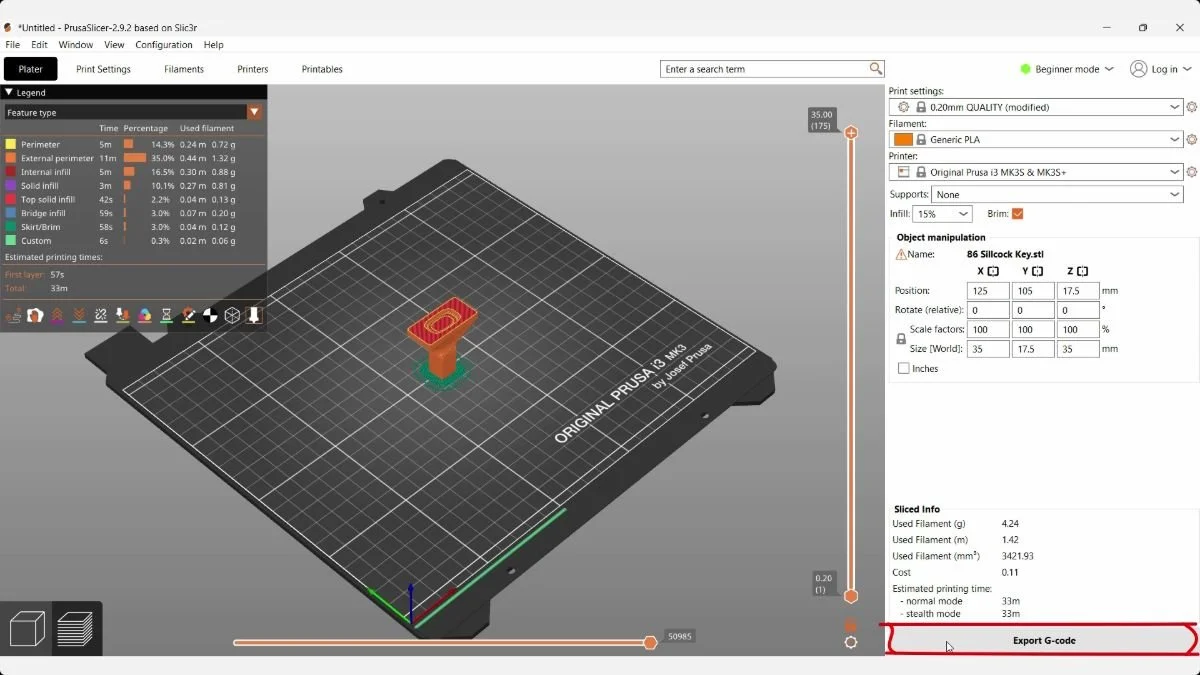

Click Export G-code after checking the sliced toolpaths and print settings. This saves the machine instructions generated for the selected printer profile.
The export is specific to that printer and configuration. If you change printers, select the correct profile and slice again before using the file.
No exact layer height, infill percentage, temperatures, or speeds are provided. Use a suitable printer and filament profile rather than treating these as fixed settings shared by every machine.
Print the prototype and check:
- Does the socket engage the intended square stem?
- Is the handle comfortable to grip?
- Does the thumb recess improve the feel?
- Are there visible defects around the socket walls or lofted connection?
PLA is useful for testing the dimensions and handling, but this prototype does not establish the strength needed for a working key. Material choice and print orientation both matter, especially when torque is involved. Avoid forcing a stiff valve with the prototype.
Use what you learn to revise the Fusion model and print another version.

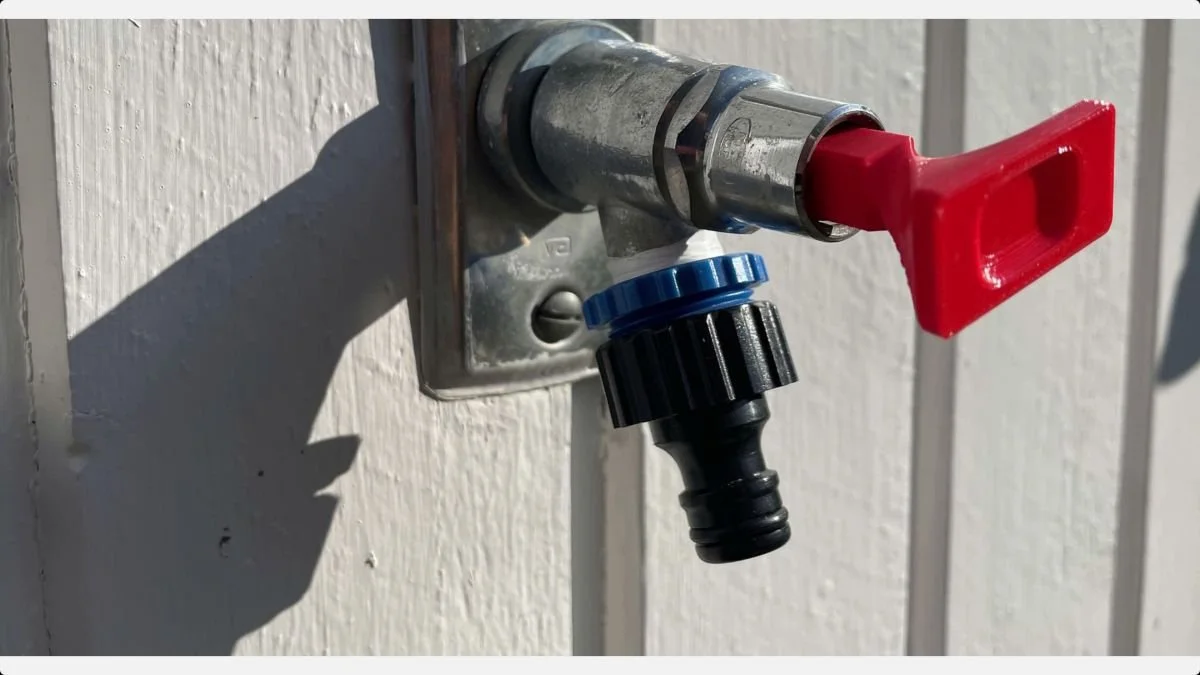

The red printed key is fitted into the outdoor tap, demonstrating the socket’s engagement with the intended fitting.
Use the prototype to assess insertion, grip, and the thumb recess. The photograph documents fit in use; it does not establish a tested torque rating or long-term durability.
Key Takeaways
- The 10.5 × 10.5 mm socket profile comes from a measured reference key; check the fit for your application.
- Surface Extrude defines the sleeve, while Thicken at –1 mm creates the prototype walls.
- A 20 mm offset plane, 17.5 × 35 mm handle sketch, and 3 mm downward extrusion establish the handle.
- Four 3D guide rails control the lofted twist and must meet both loft profiles.
- A closed Form body provides a flexible cutter for the thumb recess.
- A brim helps stabilize the upright print, while the sliced preview reveals potential support needs.
- The PLA print is a useful prototype for evaluating fit and comfort before refining a functional version.
🧰 Tools & Deals
I’ve gathered some of the tools, software, and gear I personally use and recommend for CAD work, 3D printing, and making things in one place. Some links may include discounts or special offers that can help you level up your workflows.
Please note: some of the links are affiliate links, which means I may earn a small commission at no extra cost to you. This helps support the site and the creation of free Fusion tutorials.
Explore everything here:
The Maker Letters – Tools & Deals
.
Watch the Full Video
<! data-preserve-html-node="true"-- Insert the sillcock key tutorial video embed here before publishing. -->
You Might Also Like
Want to explore more Fusion workflows for lighting design, surface modeling, and organic 3D printable geometry? These three tutorials build on the same techniques used in this lampshade project, including splines, patterns, revolves, and printable surface structures.
Each project focuses on practical Fusion workflows for organic modeling, surface control, and efficient 3D printable design techniques that translate well into real-world products and renders.
Chapters in this Fusion tutorial:
00:09 Fusion – Create New Component in Browser
00:24 Fusion Sketch – Center Rectangle on Construction Plane
00:55 Fusion Surface Extrude – Create Base Shape
01:16 Fusion – Thicken Surface into Solid
01:27 Fusion – Add Fillet to Solid Model
01:49 Fusion – Create Offset Plane for Second Sketch
02:09 Fusion Sketch – Center Rectangle on Offset Plane
02:45 Fusion Solid Extrude – Build Second Shape
03:02 Fusion Patch Tool – Close Top Surface
03:20 Fusion Extrude Join – Convert Patch to Solid
03:43 Fusion 3D Sketch – Setup for Loft Command
04:46 Save Project – Add Version Description in Fusion
04:56 Fusion Loft – Use Guide Rails for Smooth Connection
05:35 Fusion – Add Fillets for Design & Ergonomics
05:55 Fusion Form Environment – Create Box Shape
06:33 Fusion Combine Cut – Remove Material
06:58 Export Fusion Model as STL Mesh File
07:17 PrusaSlicer – Import STL & Add Brim before G-Code
07:57 Conclusion – Fusion Modeling & 3D Printing Tips
Follow the sillcock key workflow in Autodesk Fusion, combining Surface Extrude and Thicken, a loft guided by four rails, and Form modeling for the thumb recess. See how to export the STL and prepare a brim in PrusaSlicer for 3D printing.
