Design a Stylish 3D-Printed Pen Holder in Fusion (Surface + Solid Workflow)
Updated February 19, 2026
Clean curves, parametric control, and print-ready geometry. In this tutorial, you’ll design a modern pen holder in Fusion using a hybrid surface + solid modeling workflow that scales well to vases, lampshades, and other decorative prints. The same principles you’ll learn here translate directly to a wide range of functional and aesthetic 3D-printed objects.
What You’ll Learn
- How to structure a parametric model using components and offset planes
- Why surface lofting is ideal for smooth, organic curvature
- How to convert surfaces into manufacturable solids
- How to use Project, Revolve (Intersect), Shell, and Circular Pattern for print-ready geometry
- How to refine organic shapes using splines and timeline edits
Watch the Workflow — or Read It Step by Step
You can follow this guide in two ways:
- Read the steps below if you want quick written instructions, reference images, and modeling notes.
- Watch the full video at the end of this post to see the workflow in real time — including extra tips, camera angles, and shortcuts that don’t fit neatly into text.
Both formats build on each other.
Reading helps you understand why each step matters, while watching shows how to move faster in Fusion.
Step 1 – Create a New Internal Component and Base Geometry
Start by creating a new internal component and activate it using the S shortcut to access design shortcuts. Working inside a dedicated component keeps your timeline clean and makes it easier to reuse or modify this pen holder later as part of a larger assembly.
Sketch the first line that will define the foundation of the curved pattern. Set its length to 60 mm. The exact length isn’t critical, but this ensures a 100 mm diameter circle fits comfortably within the boundaries of the future form. Using reference-friendly dimensions early prevents downstream constraints from breaking when you adjust the design.
Creating and activating a new internal component in Fusion keeps the pen holder workflow modular, making downstream parametric edits and feature management cleaner as the design evolves for 3D printing.

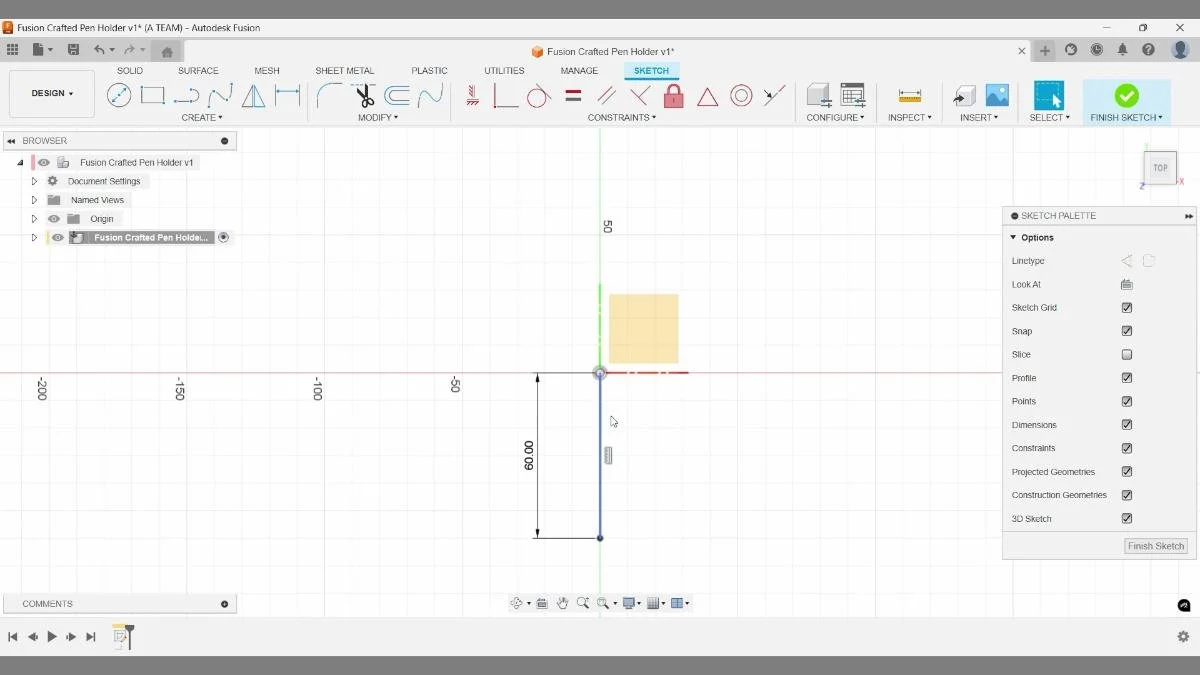

Sketching a single vertical reference line from the origin establishes a stable baseline for the pen holder geometry, making later parametric changes to height and curvature predictable in Fusion and easier to adapt for 3D printing.
Step 2 – Set Up Offset Construction Planes
Create two offset planes above the original construction plane. These planes act as height references for the curvature of the pattern. Reference the top offset plane to the middle plane so any future change to the middle plane automatically updates the top plane as well.
This parametric relationship is important: instead of manually resizing geometry later, you can reshape the entire object by editing a single offset value.

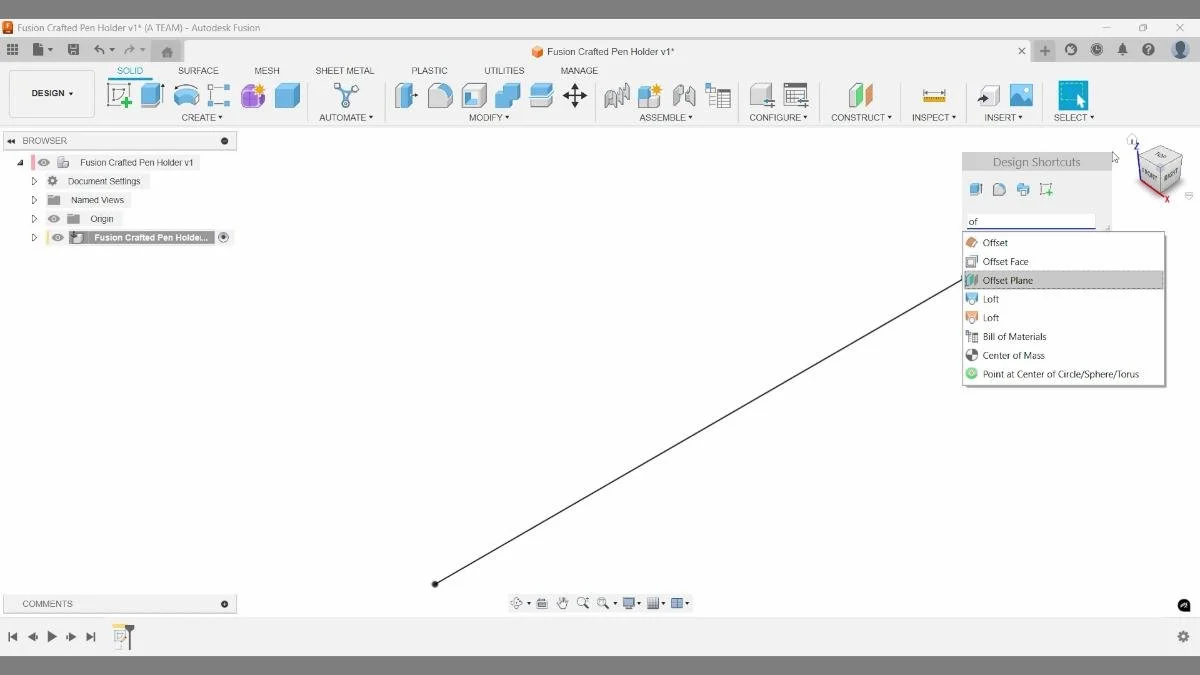

Using the S-key design shortcuts to create offset construction planes speeds up the workflow and keeps the pen holder model parametric, allowing you to control curvature and height later without rebuilding core geometry—ideal for iterative 3D-printing designs.

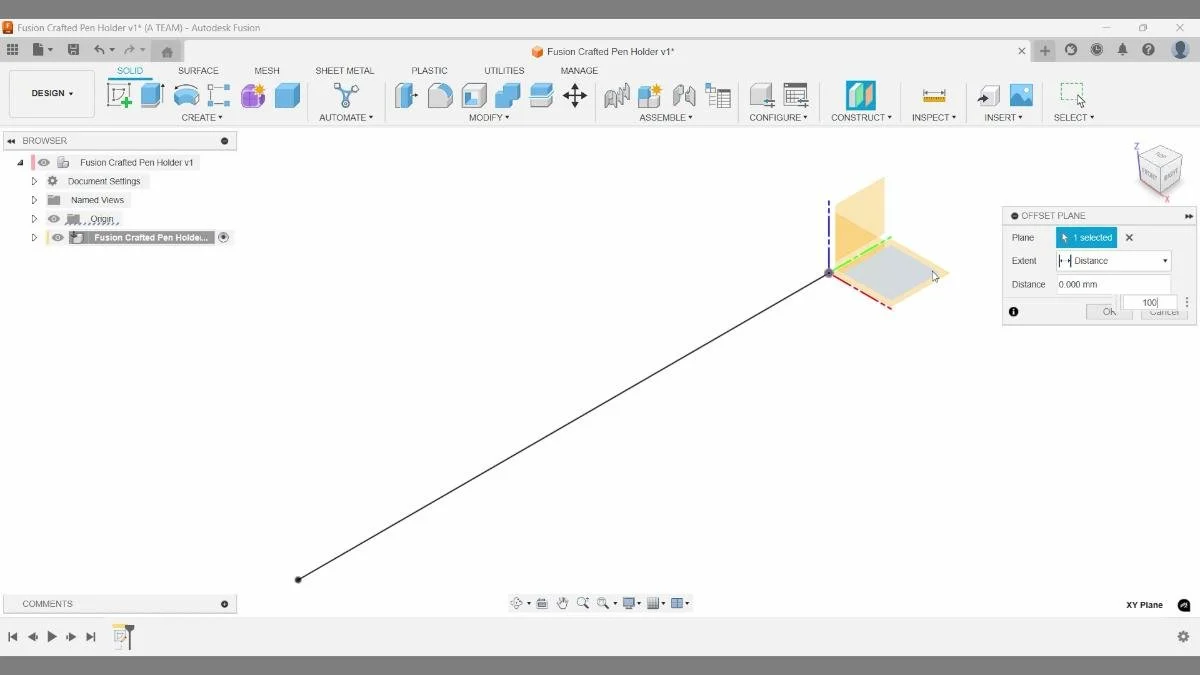

Creating the first offset construction plane from the origin establishes a controllable reference level for shaping the pen holder, which is critical for building smooth lofted surfaces and keeping the design fully parametric for later 3D-printing adjustments.

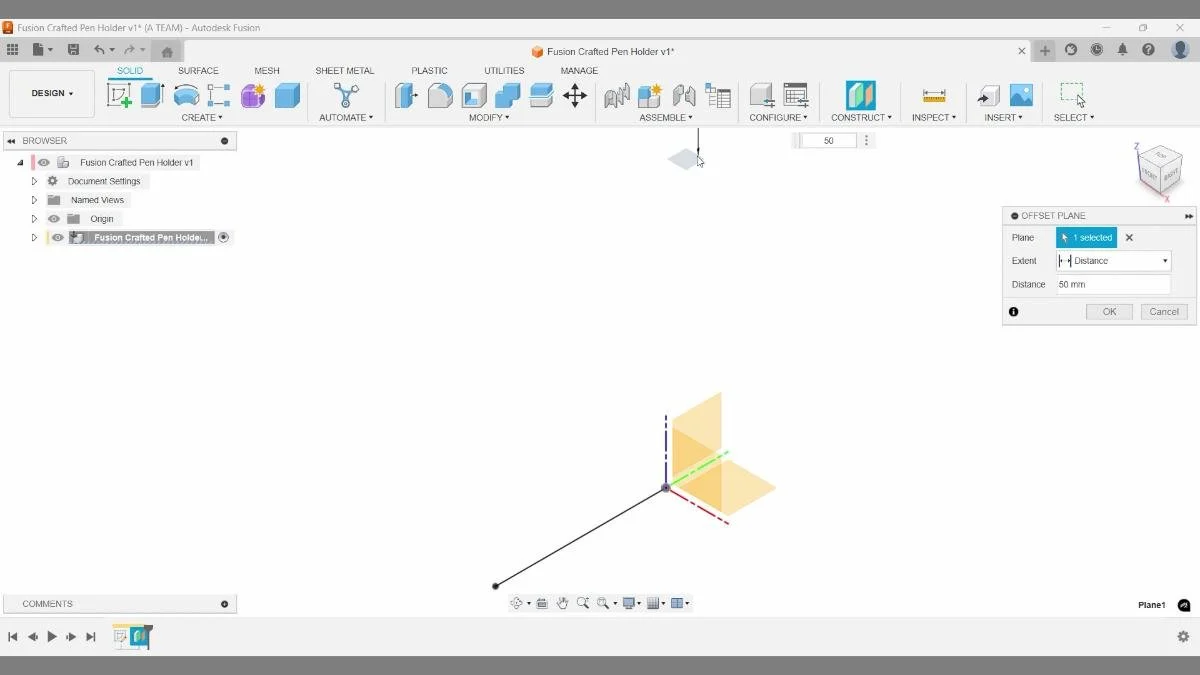

Creating an offset plane from an existing offset plane builds a linked height reference, so changing the middle plane later will automatically propagate through the model—an efficient parametric strategy for controlling loft curvature and overall pen holder height for 3D printing.

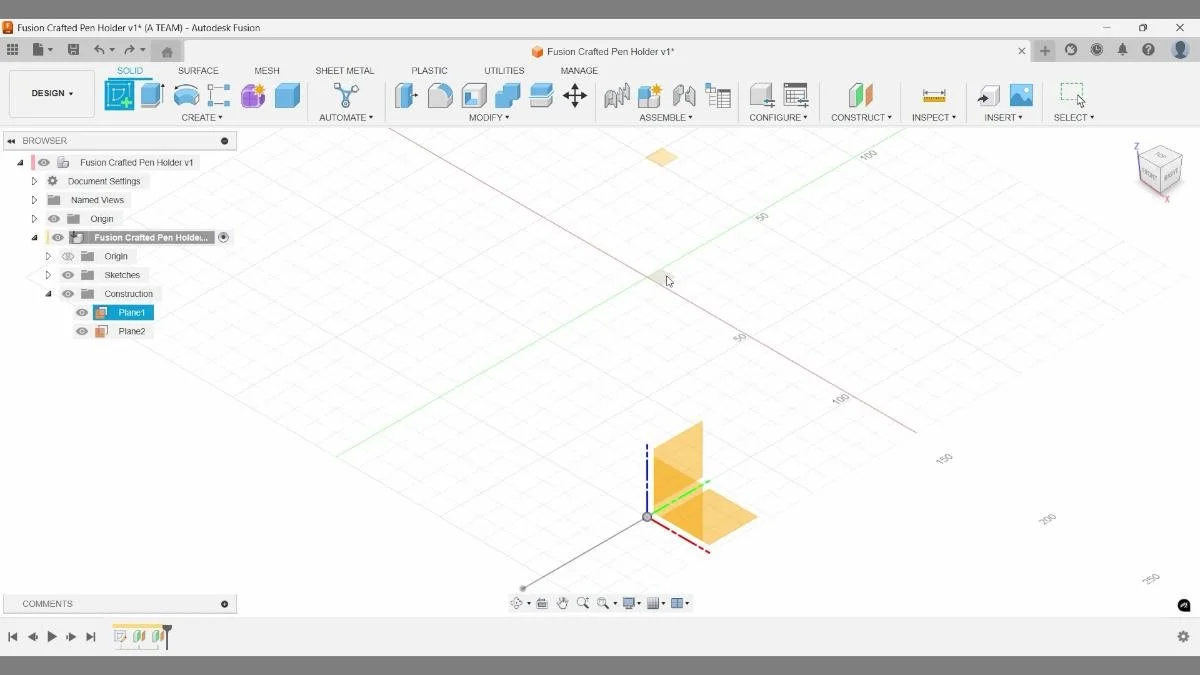

Viewing both offset construction planes together clarifies the vertical control points used for the lofted surface, making it easier to reason about curvature distribution and overall height when building a parametric pen holder for 3D printing.
Step 3 – Define Curved Guide Lines on Each Plane
Sketch a new line on the middle offset plane with the same length as the first line, but add a slight angle. This angular difference controls how the pattern twists as it rises.
Repeat this process on the top offset plane. Make the angle symmetrical to the middle line but in the opposite direction if you want a balanced flow. Now you have three guide lines on three planes, all starting from the origin. This setup makes the model easy to iterate because the curvature is driven by simple sketch edits rather than complex surface manipulation.
Use the View Cube to inspect the flow of the lines in perspective. This quick visual check helps you catch awkward transitions before you commit to surface geometry.
Sketching an angled reference line on the middle offset construction plane defines how the surface will transition through the body of the pen holder, giving you precise control over curvature flow while keeping the model fully parametric for later 3D-printing adjustments.
Comparing the sketch on the original construction plane with the sketch on the middle offset plane defines how the loft will interpolate between profiles, giving controlled curvature progression through the pen holder body and preserving clean parametric relationships for later 3D-printing adjustments.

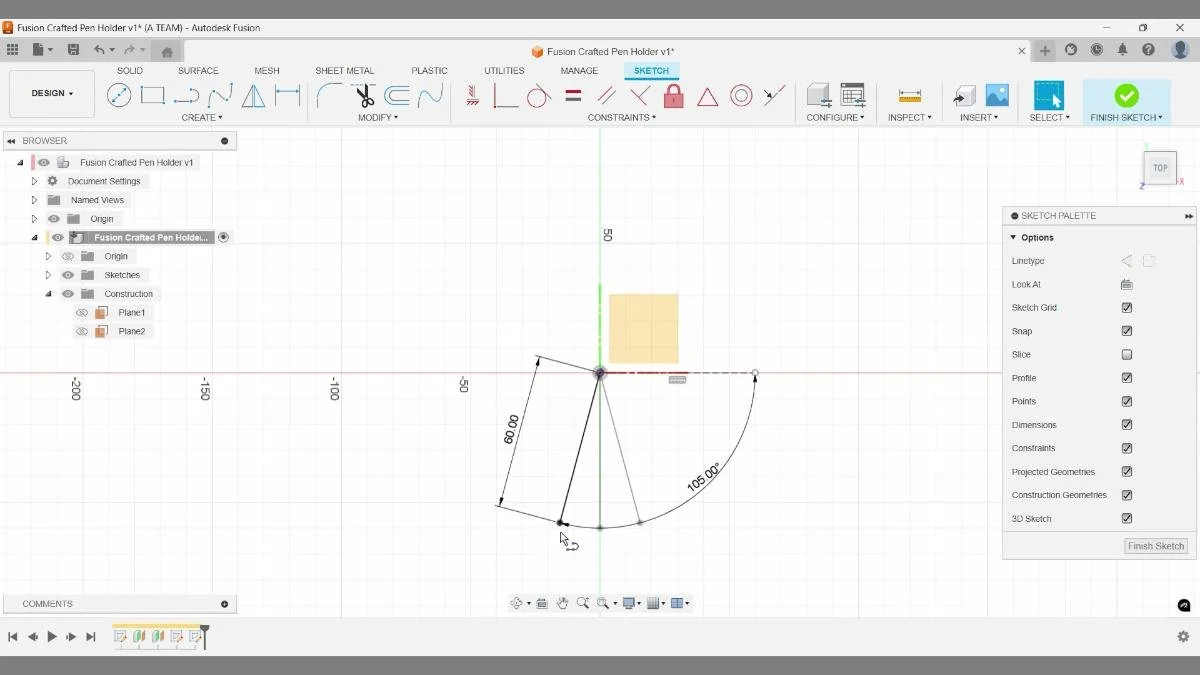

Sketching the final angled reference line on the top offset construction plane completes the set of loft guide profiles, giving you precise control over how the surface tightens and twists toward the rim of the pen holder while keeping the workflow fully parametric for 3D printing.
Step 4 – Loft a Smooth Surface Between the Lines
Switch to the Surface Loft tool. Lofting each line separately would create sharp transitions, which can be useful for faceted designs. Here, loft all lines in a single operation to generate a continuous, smooth surface.
Surface lofting is ideal for organic shapes because it avoids the hard edges you get from solid lofts between disjoint profiles. This gives you a cleaner aesthetic and fewer artifacts when you later convert the surface into a solid.
Save your project at this stage. Surface operations are computationally heavier, and frequent saves reduce the risk of losing work.

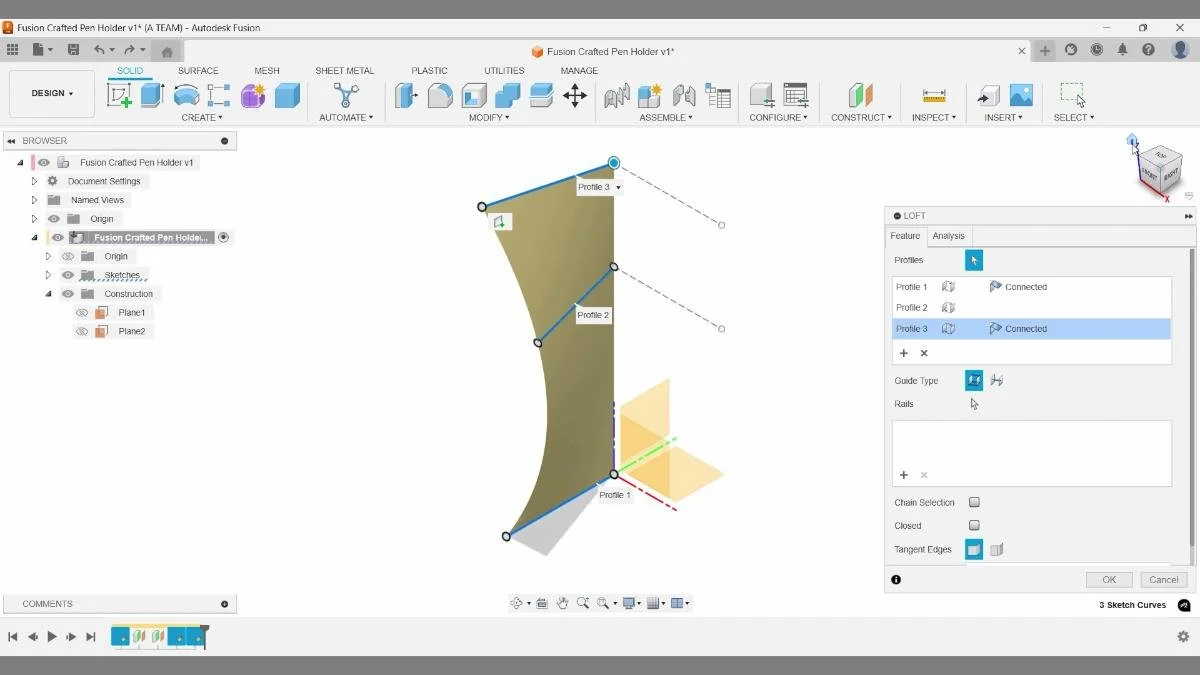

Lofting all three sketch profiles in a single surface loft creates a continuous, smooth curvature between the base, middle, and top planes, which is ideal for organic designs that will later be thickened and patterned for a clean 3D-printable pen holder surface.
Step 5 – Thicken the Surface for Manufacturability
Use Thicken to give the lofted surface a physical wall thickness. Choose a symmetric thickness of about 2 mm so the surface expands evenly on both sides. This approach keeps the design centered and balanced, which is useful when aligning it to other geometry later.
Thickening converts an abstract surface into something that can be manufactured. For 3D printing, consistent wall thickness also improves print reliability and mechanical strength.

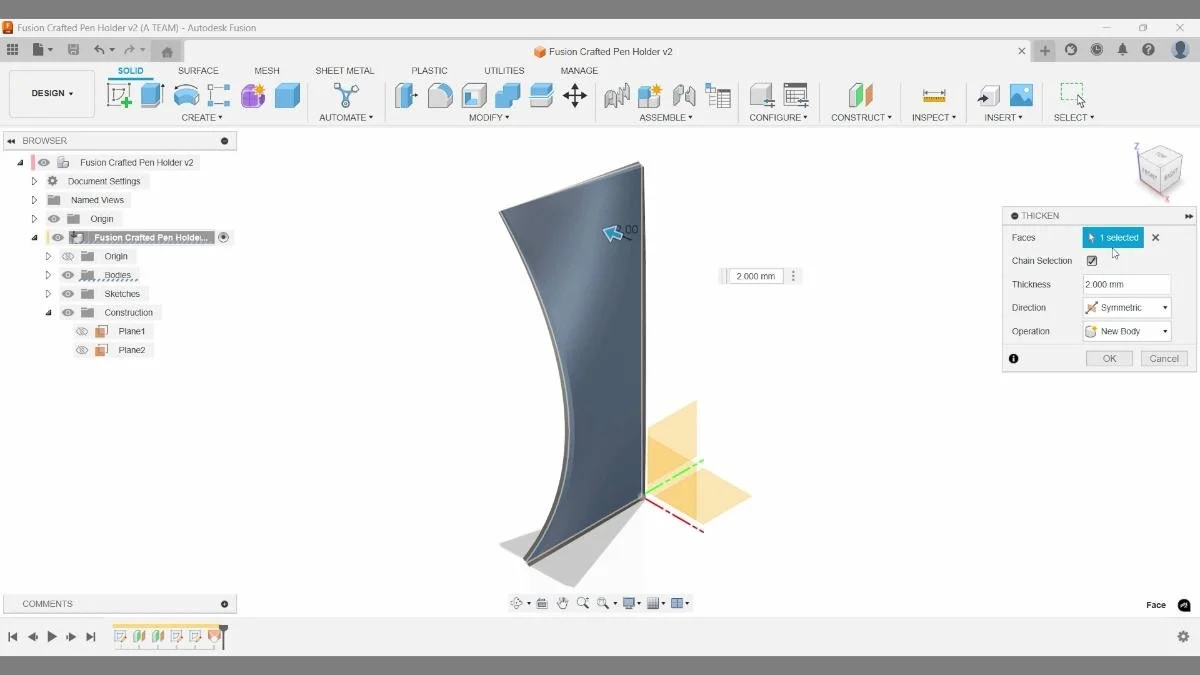

Thickening the lofted surface symmetrically turns the zero-thickness surface into a manufacturable solid wall, which is essential for 3D printing since it guarantees consistent wall thickness and predictable strength around the curved pen holder body.
Step 6 – Create the Cylindrical Core Body
Sketch a center-diameter circle on the original construction plane at the origin. Extrude it to the same height as the surface body by referencing the top offset plane. Set the operation to New Body so the cylinder remains separate.
Keeping bodies separate during early stages gives you more flexibility. You can later combine, intersect, or subtract bodies depending on how you want the pattern to interact with the core.
Extruding the base circle up to the same height as the lofted surface creates a matching cylindrical core, which provides a clean structural reference for later operations like projection and trimming, ensuring the pen holder remains dimensionally consistent for 3D printing.

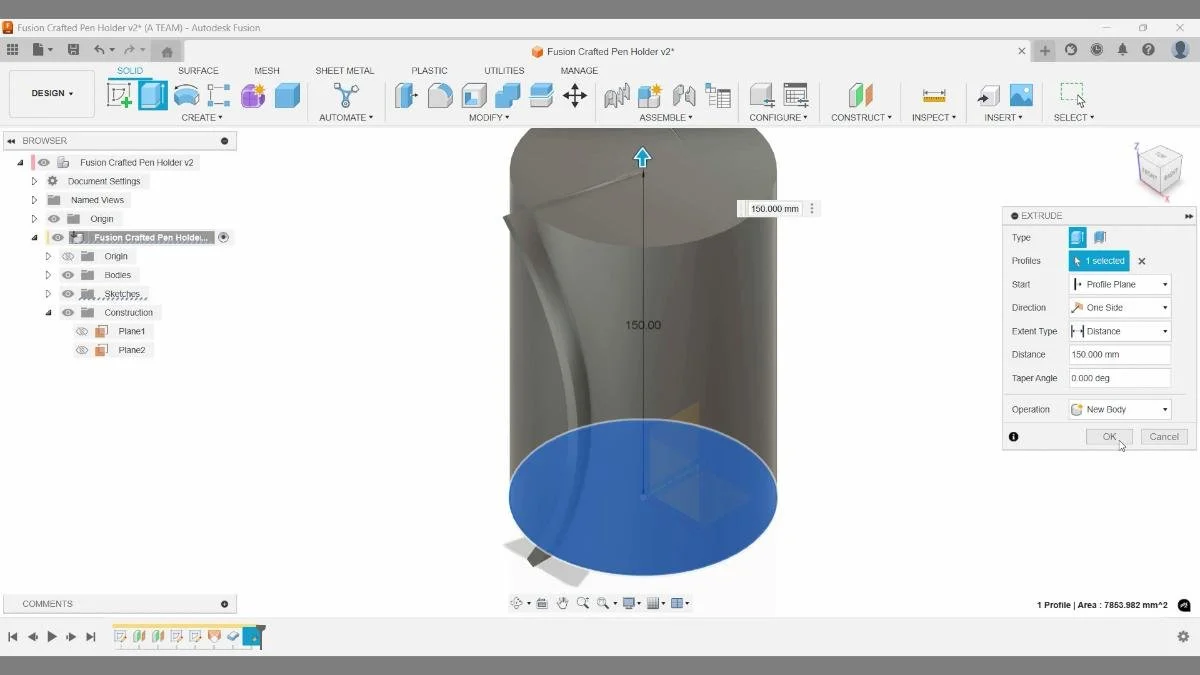

Extruding the circular profile to the full target height creates the main cylindrical body of the pen holder, which serves as a stable reference volume for projecting curves and trimming the patterned surface so the final shape stays clean and printable.
Step 7 – Project Geometry to Conform the Pattern to the Cylinder
Use Project to capture the outer diameter of the cylinder onto a sketch. Projected geometry is associative, meaning any future change to the cylinder’s diameter automatically updates the projected profile.
Offset the projected curve by 3 mm to define the thickness of the decorative pattern. Close the profile with regular lines at the top and bottom so Fusion recognizes it as a closed profile. Closed profiles are required for solid operations like Revolve and Extrude.

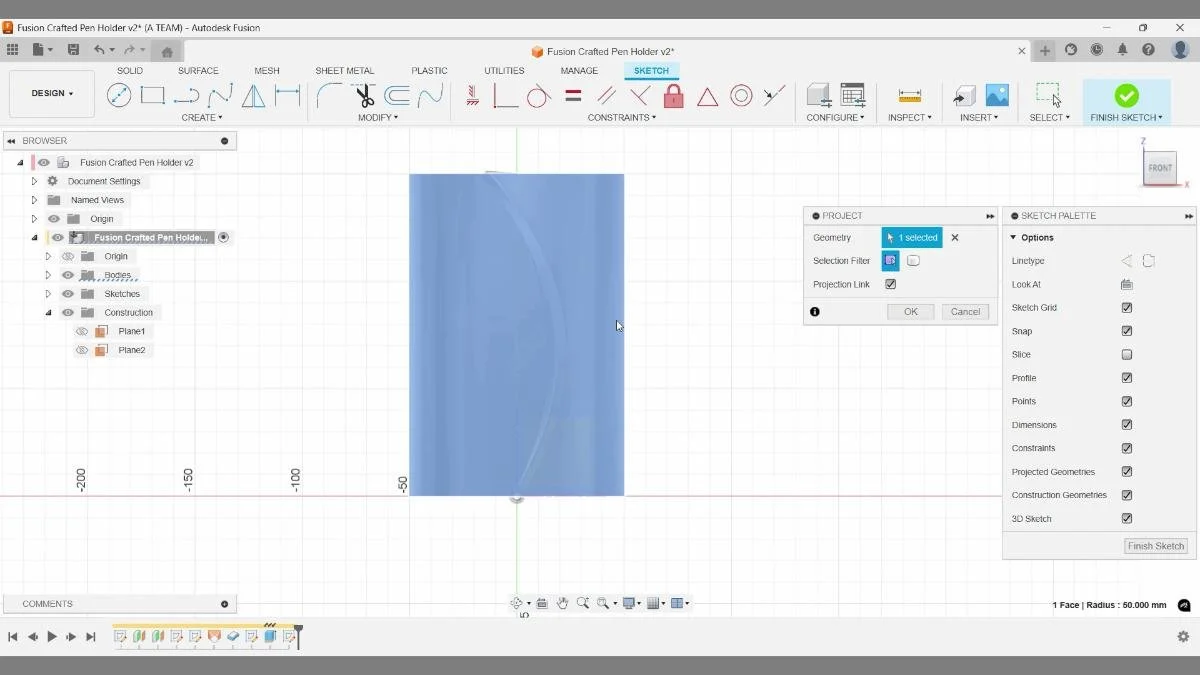

Projecting the outer edge of the cylindrical body into the sketch creates geometry that stays linked to the solid, so any later diameter changes automatically update the trimming profile used to shape the patterned surface for a clean, parametric 3D-printable pen holder.

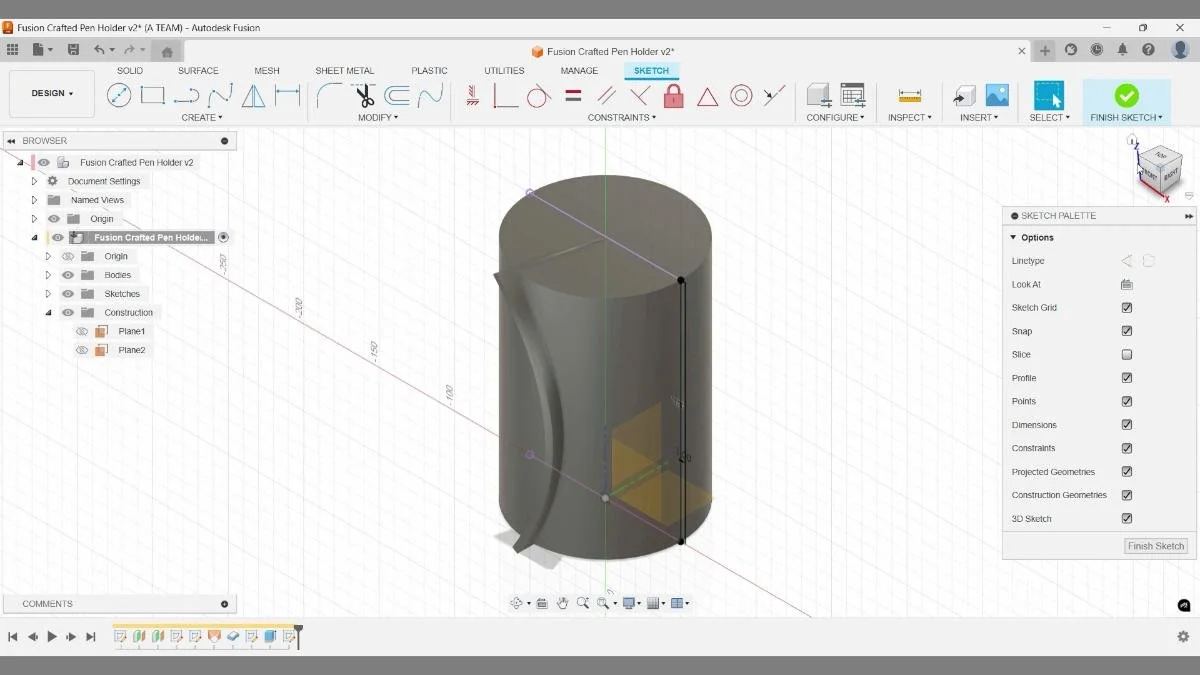

The trimming profile is sketched slightly outside the cylindrical body so it can be used with the Revolve command set to Intersect, a clean way to cut the patterned surface to the exact cylinder diameter while keeping the workflow fully parametric for later 3D-printing adjustments.
Step 8 – Use Revolve (Intersect) to Define the Kept Geometry
Activate the Revolve command from solid modeling and change the operation to Intersect. This tells Fusion to keep only the overlapping volume between the revolved profile and the existing body.
Intersect is powerful for design because it lets you sculpt complex forms without manually trimming geometry. It’s especially useful for decorative patterns that need to conform precisely to a base shape.

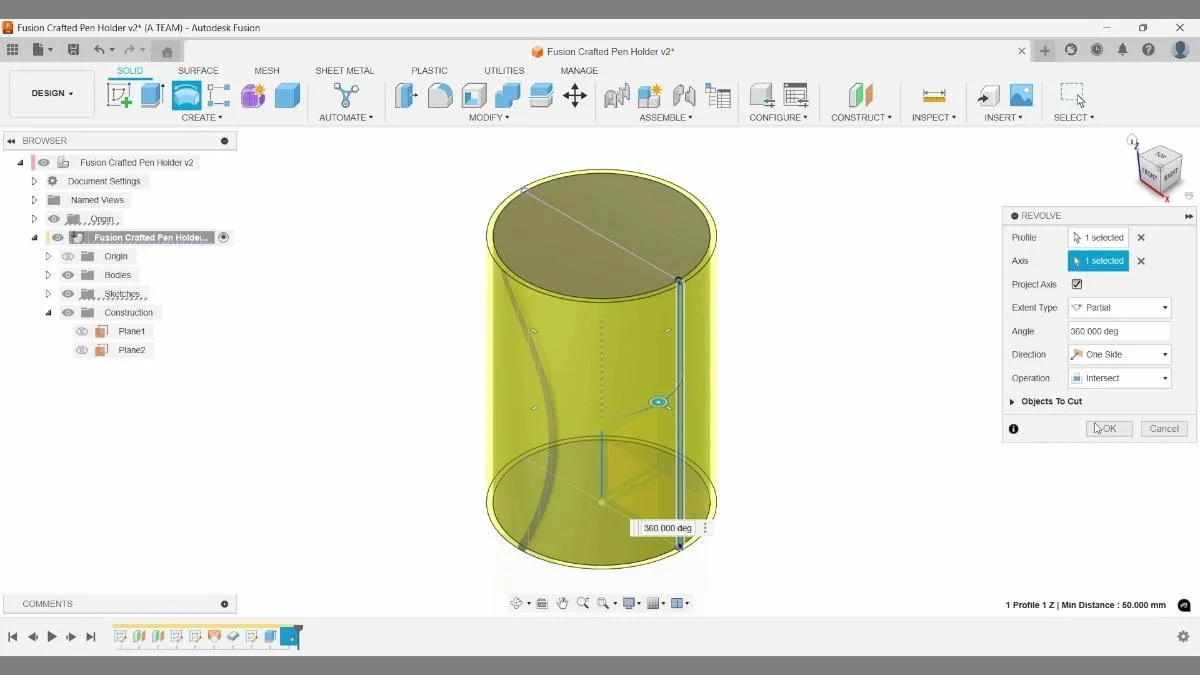

Using the Revolve command with the Intersect operation trims the patterned surface precisely to the cylindrical envelope, which is a robust way to enforce a clean outer diameter while keeping the curved pattern fully parametric and suitable for reliable 3D printing.
Step 9 – Hollow the Cylinder with Shell
Apply Shell to hollow out the cylinder from the top. Shelling is the most robust way to create consistent internal wall thickness, which is crucial for predictable 3D printing results and material efficiency.
Use the View Cube to inspect the interior. This helps confirm that the wall thickness is uniform and that there are no unintended thin spots.

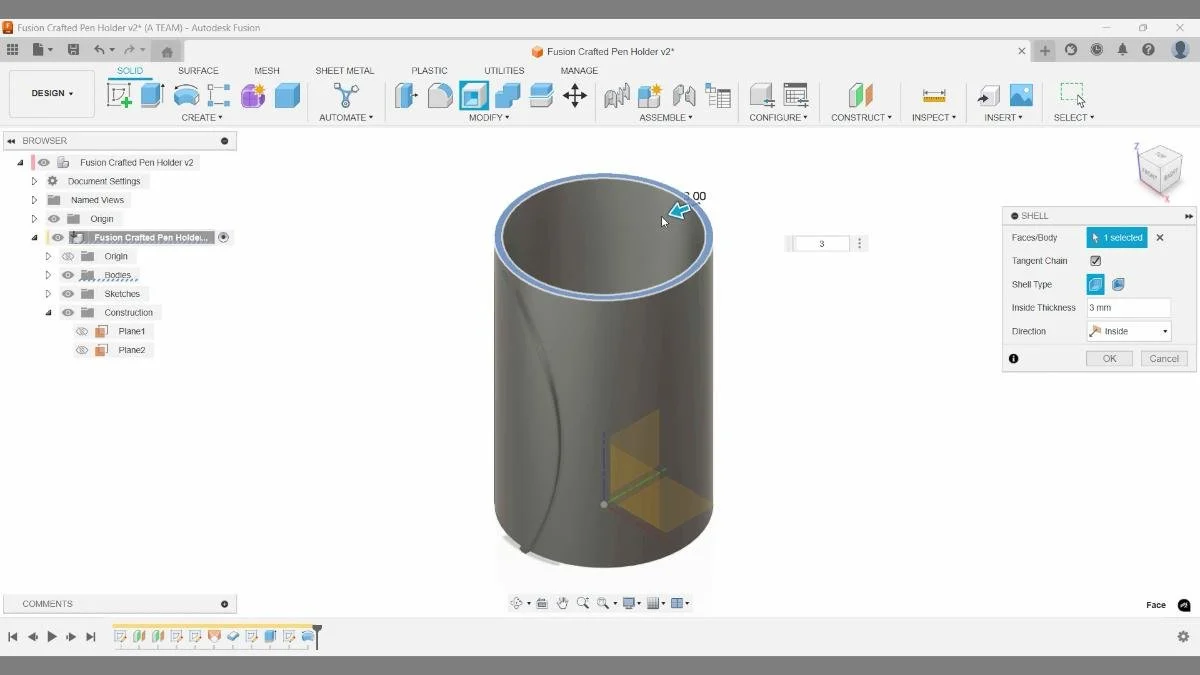

Shelling the solid body from the top creates a uniform internal wall thickness, which reduces material usage and print time while ensuring the pen holder has predictable strength and consistent wall geometry for reliable 3D printing.
Step 10 – Pattern the Geometry Around the Axis
Use Circular Pattern with the object type set to Bodies. Select the patterned body and set the instance count to 36. Patterning bodies instead of features simplifies selection and reduces timeline complexity when dealing with multiple intersected shapes.
Holding the left mouse button allows you to select geometry at depth without hiding other bodies, which keeps your workflow fast and non-destructive.

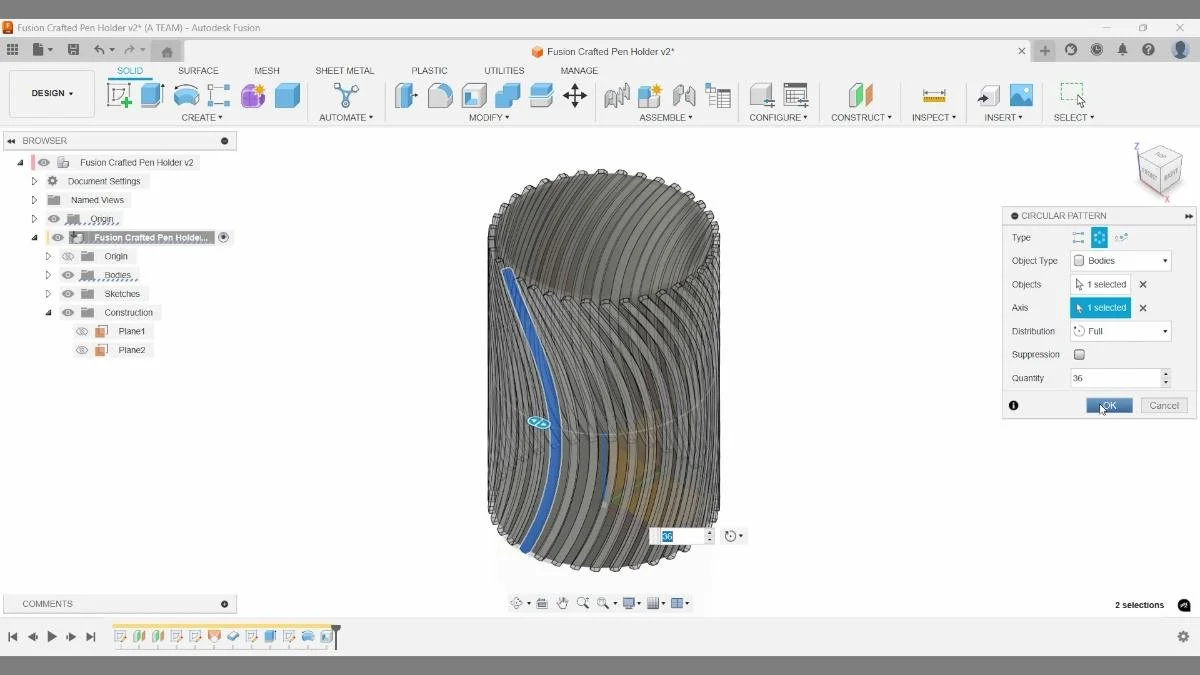

Applying a circular pattern to the patterned body distributes the curved feature evenly around the cylinder, a fast and robust way to create complex, repeating geometry that stays lightweight and printable while remaining fully parametric in Fusion.
Step 11 – Create and Extrude a Spline for a Unique Top Profile
Create a sketch on the central construction plane. Place a fit point spline near the top of the pen holder, keeping it within the boundaries of the body. Adjust the green handle bars to apply equal curvature on both sides.
Use Surface Extrude (not solid extrude) since splines typically create open profiles. Extrude symmetrically beyond the body. The exact distance isn’t critical; what matters is that the surface fully intersects the pen holder so it can be used as a splitting tool later.
If you plan to split using solid tools, thicken this surface. This gives Fusion a solid body to work with during Boolean operations.

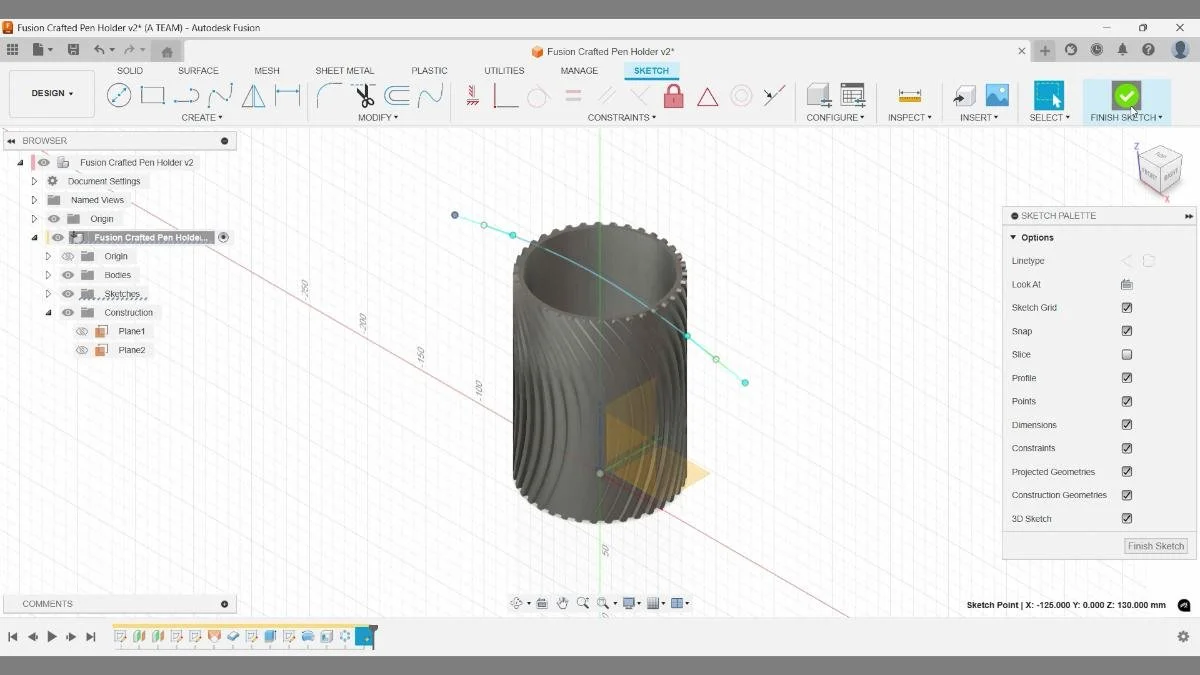

Sketching a fit point spline across the top of the pen holder defines the cut line for the final rim shape, allowing you to introduce controlled asymmetry and organic variation that would be difficult to achieve with simple arcs while staying fully editable in the timeline for later refinements.

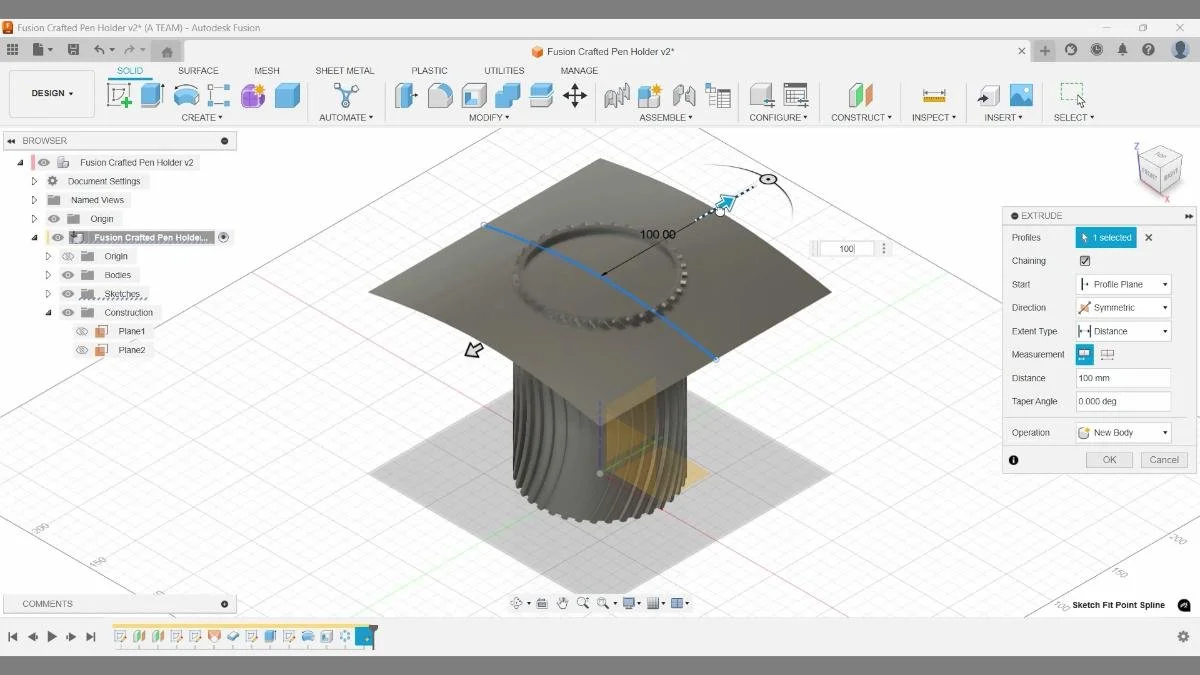

Extruding the spline as a surface creates a thin cutting surface that can later be used to split the solid body, which is a flexible way to shape the top rim without committing to solid cuts too early and keeps the design easy to refine in the Fusion timeline for 3D printing.

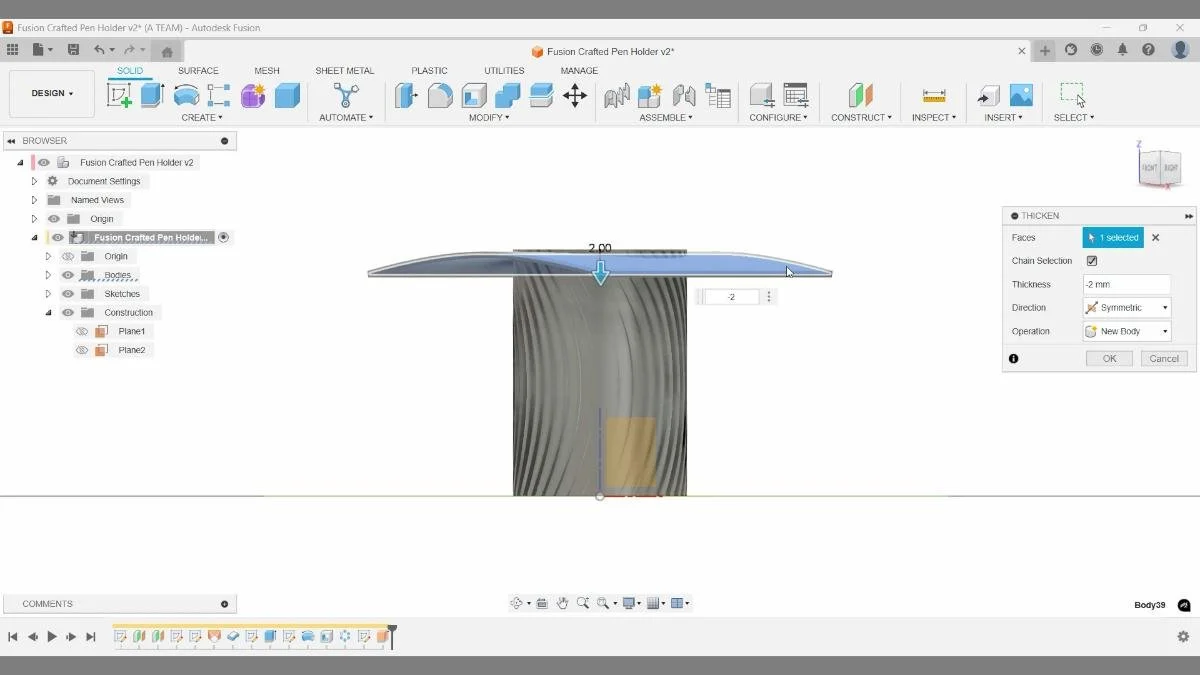

Thickening the surface used for the rim cut creates a solid splitting tool with a controlled thickness, which improves robustness when splitting the body and avoids fragile zero-thickness surfaces that can cause downstream feature failures in Fusion before exporting the STL for 3D printing.
Step 12 – Combine Bodies and Split the Form
Hide the thickened spline body temporarily. Use Combine with the Join operation to merge all visible bodies into a single pen holder body. This step consolidates the geometry so downstream operations apply cleanly.
Turn the spline body back on and use Split Body. Select the pen holder as the body to split and the thickened spline as the splitting tool. Toggle visibility of the resulting bodies to review the new top profile.
This approach allows you to prototype complex cuts without permanently destroying the base geometry.

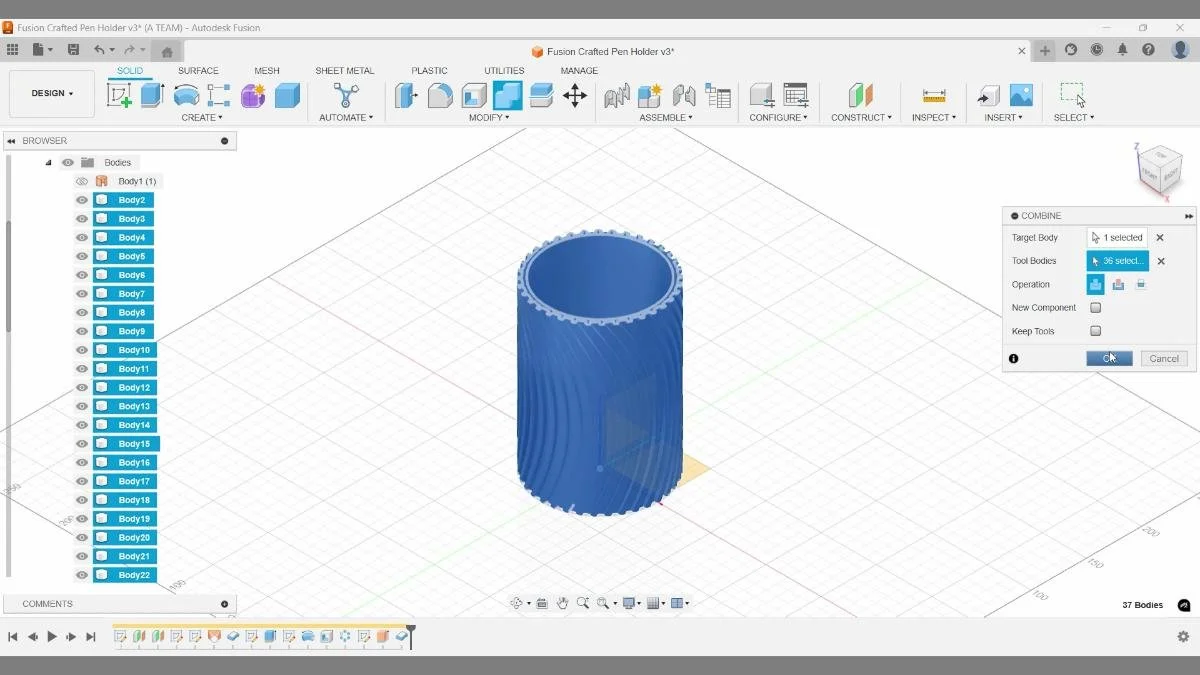

Combining all patterned bodies into a single solid simplifies the model tree and reduces downstream feature complexity, which makes later operations like splitting, shelling, and exporting a watertight STL for 3D printing more reliable and faster to compute in Fusion.

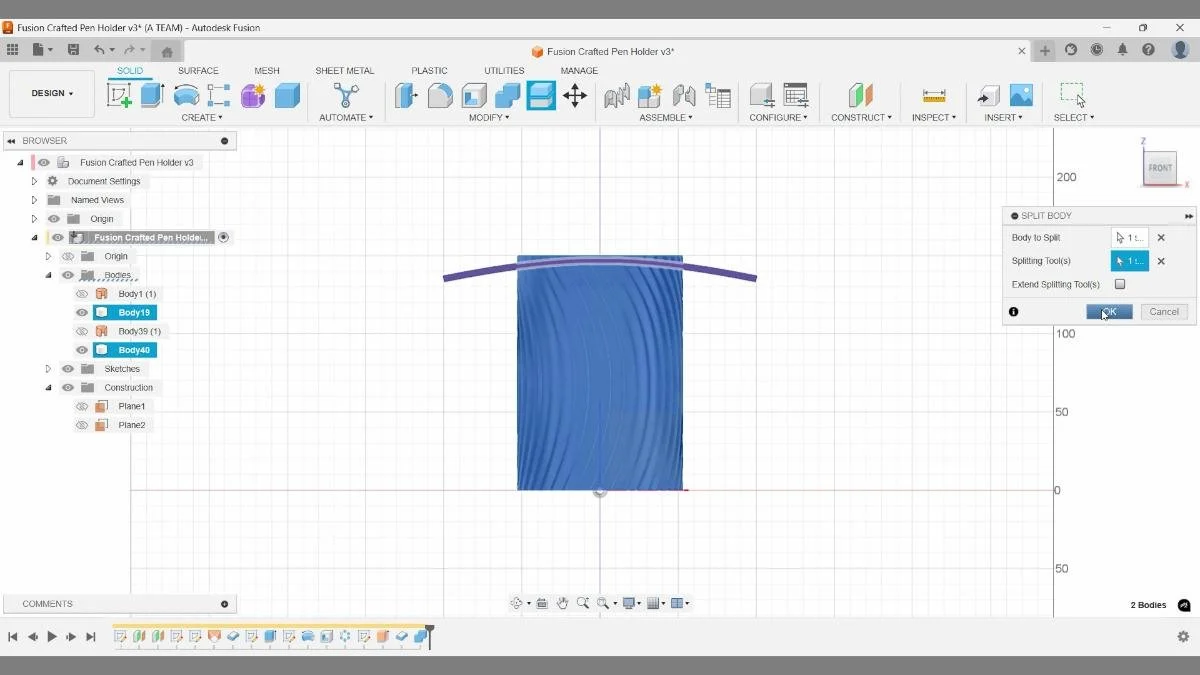

Using Split Body with the thickened surface as a splitting tool cleanly trims the top edge of the pen holder, which is more controllable than boolean cuts for organic shapes and keeps the rim fully parametric so you can refine the curvature later without rebuilding the solid.
Step 13 – Apply Appearance and Refine via Timeline
Turn off construction planes and grids to reduce visual clutter. Apply an appearance, such as a glossy red, to better evaluate the form. Color and material choices help you judge proportions and surface flow more accurately than raw grey geometry.
Revisit the timeline to refine the spline. Start with small, symmetrical changes, then experiment with more organic, irregular adjustments. Parametric modeling allows Fusion to recalculate all dependent features, so you can explore variations without rebuilding the model from scratch.
Save frequently during these edits. Timeline recalculations can be computationally intensive, especially as your model grows more complex.

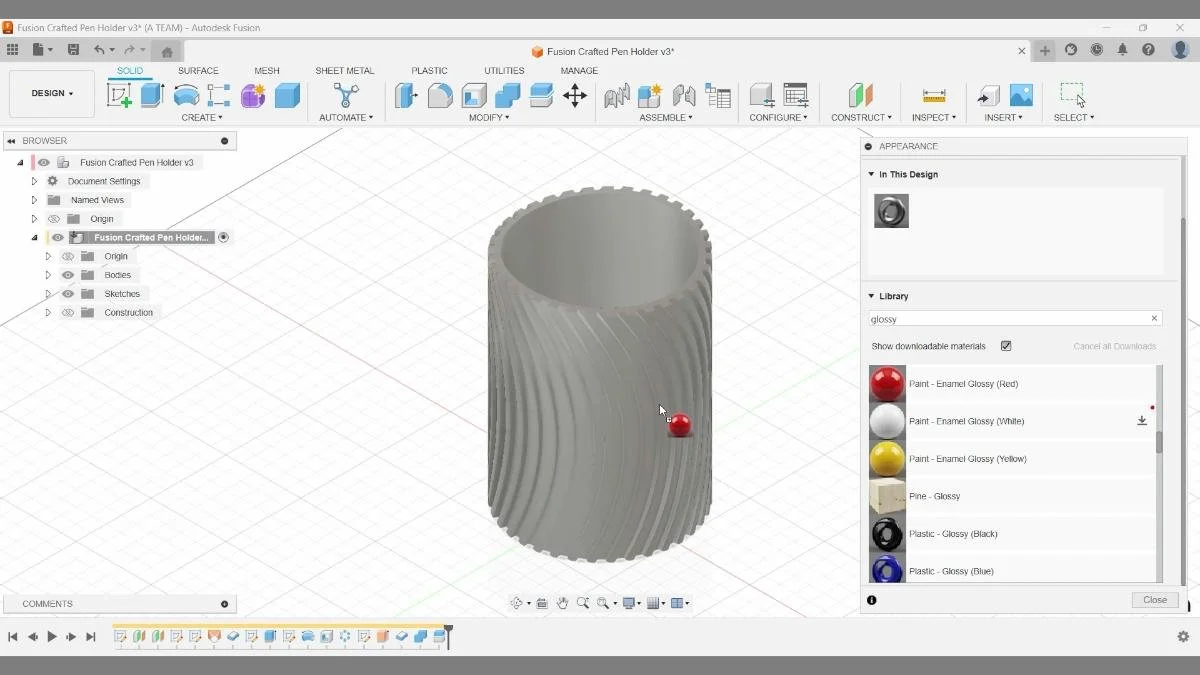

Applying a glossy appearance in Fusion helps evaluate how the curved pattern reads under light, which makes it easier to spot surface flow issues and small artifacts before exporting the model for rendering or 3D printing.

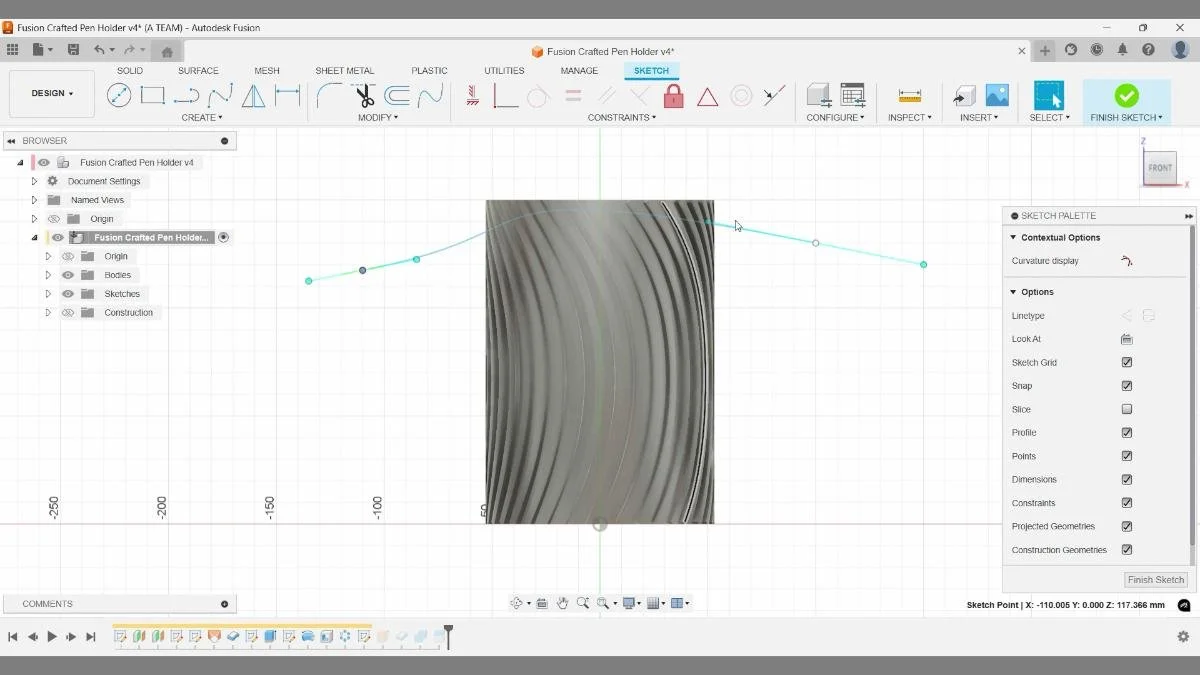

Editing the spline control points and curvature handles lets you fine-tune how the rim flows around the pen holder, which is especially effective for organic designs where small curve changes propagate cleanly through the timeline and update all downstream features without rebuilding geometry.

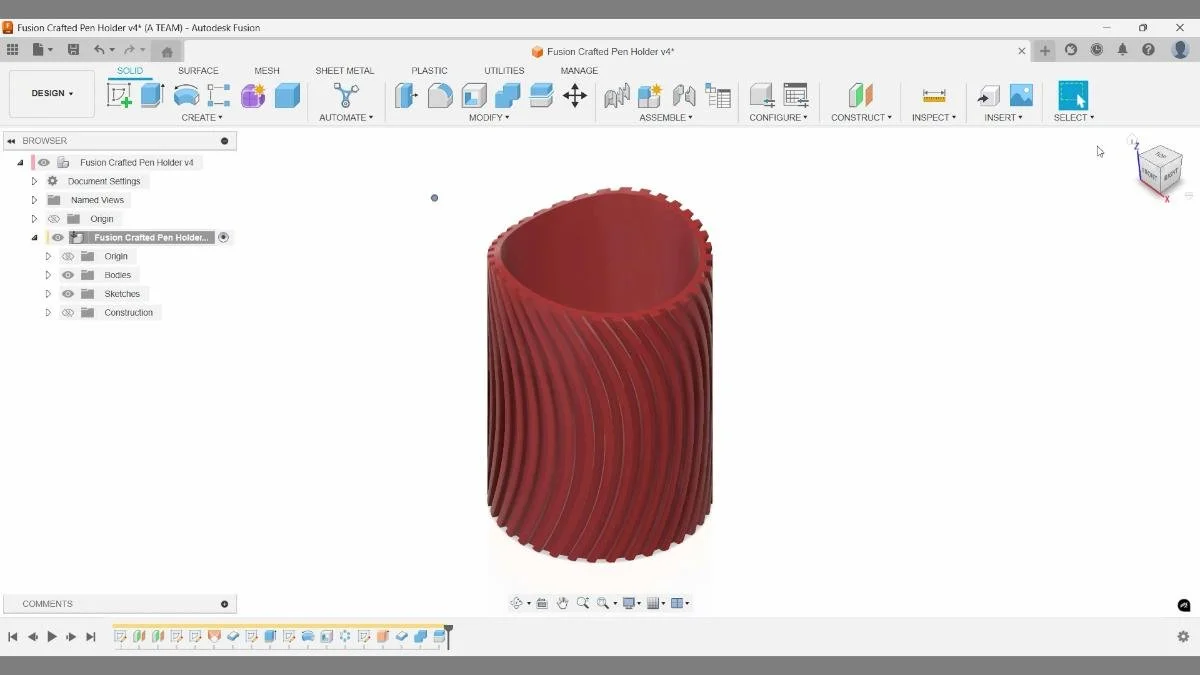

Final pen holder design in Fusion with a twisted surface pattern and trimmed rim, ready to export as an STL for 3D printing, demonstrating how surface-driven workflows can produce complex decorative geometry that remains clean, watertight, and printable.
Key Takeaways
- Surface lofting combined with thickening is a powerful way to create smooth, organic forms that are still manufacturable.
- Offset planes and projected geometry give you parametric control, making future design changes fast and predictable.
- Boolean operations like Intersect, Combine, and Split Body let you sculpt complex decorative geometry while keeping the model robust.
- This workflow scales beyond pen holders to vases, lampshades, and other patterned 3D-printed objects where curvature and repetition matter.
