Make Complex Shapes in Fusion – Twisted Bracket with 3D Sketches
Updated February 17, 2026
Designing complex geometry in Autodesk Fusion doesn’t require exotic tools or advanced plugins. With a solid understanding of components, sketches, and sweeps, you can build elegant, functional parts that are also 3D-print friendly. In this walkthrough, you’ll design a twisted bracket using core solid and sketch workflows that translate well to real-world fabrication.
What You’ll Learn
- How to structure your design using components for cleaner workflows
- Why starting with a simple parametric sketch improves model stability
- How fillets and holes affect both strength and printability
- How to use 3D Sketches and splines to control complex curvature
- Why Sweep with Path + Guide Rail is ideal for controlled twisted geometry
Watch the Workflow — or Read It Step by Step
You can follow this guide in two ways:
- Read the steps below if you want quick written instructions, reference images, and modeling notes.
- Watch the full video at the end of this post to see the workflow in real time — including extra tips, camera angles, and shortcuts that don’t fit neatly into text.
Both formats build on each other.
Reading helps you understand why each step matters, while watching shows how to move faster in Fusion.
Step 1: Create a New Component
Start by creating a new component before you model anything. This isolates your part in the design tree, which is critical when projects scale or when you later assemble multiple parts. Components preserve parametric relationships, make it easier to reuse designs, and prevent accidental dependencies between unrelated bodies.
For this project, selecting a sheet metal component is fine even if you don’t use sheet metal tools. The main benefit is structural clarity in the browser and cleaner organization as the model grows.

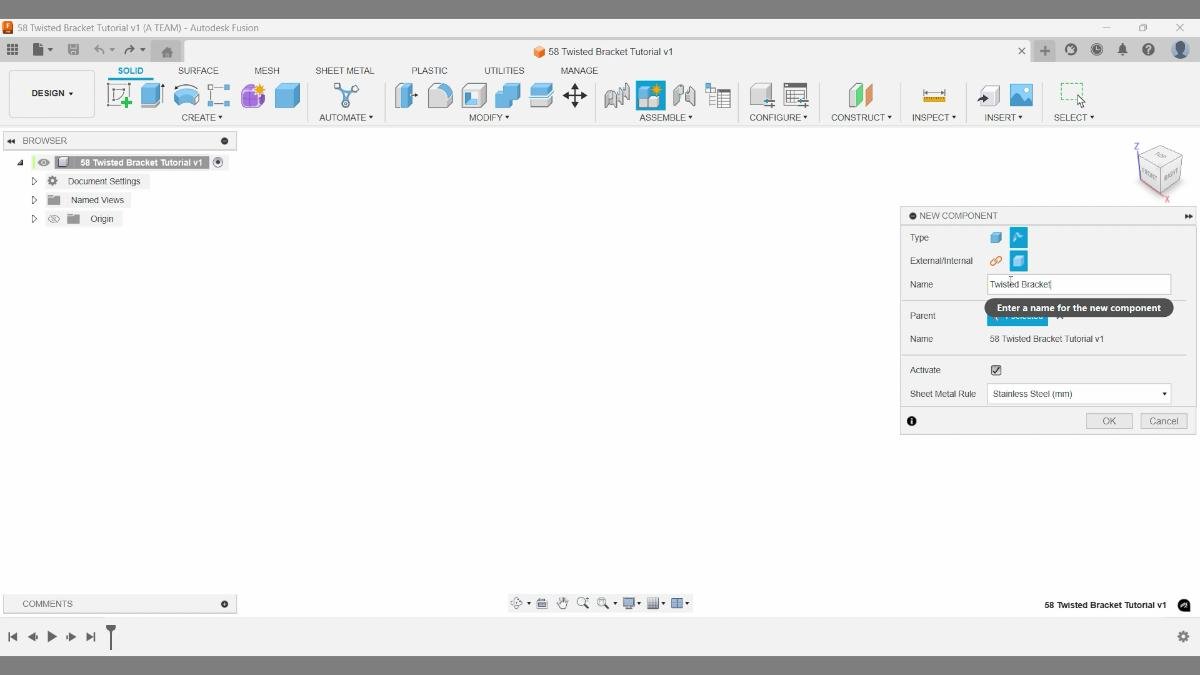

New component setup in Fusion showing the twisted bracket project, where a dedicated component is created to keep the model parametric and organized before starting sketch and solid modeling.
Step 2: Build the Base with a 2D Sketch
Create a 2D sketch and draw a center rectangle anchored at the origin. Centered geometry is easier to modify later because dimensional changes remain symmetric by default.
Set the dimensions to 25 mm by 20 mm. These values are arbitrary for the tutorial, but in practical design workflows, driving sketches with dimensions is what gives Fusion its parametric power. When you later change a dimension, the entire model updates consistently.

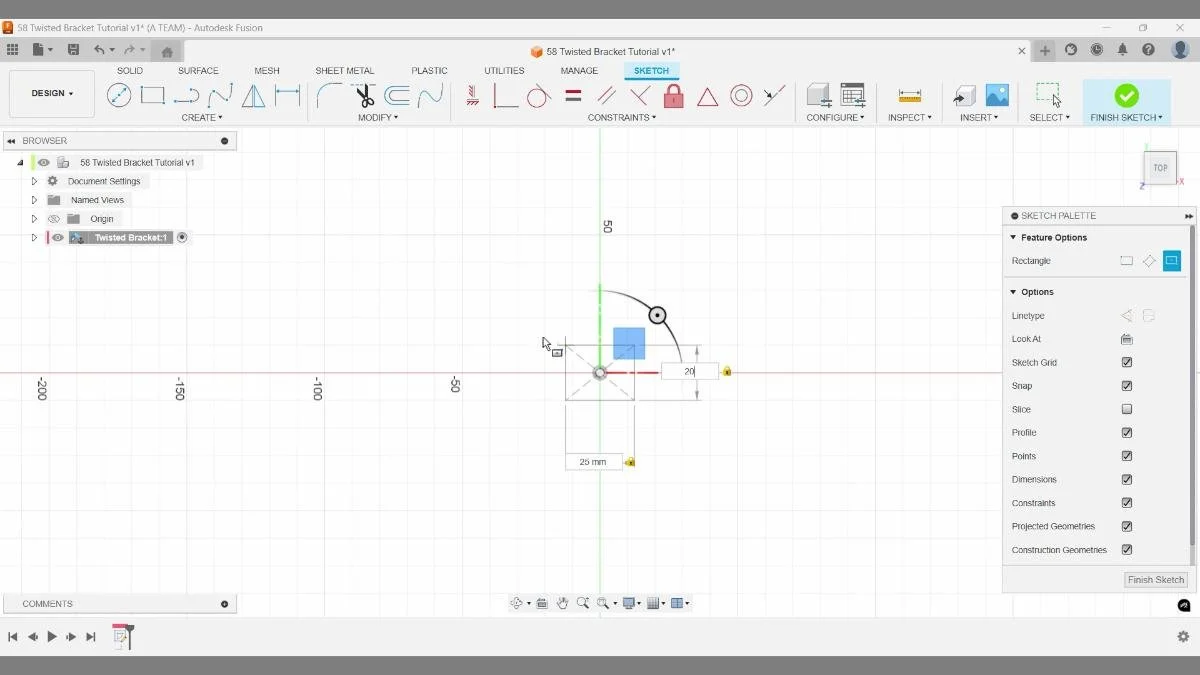

Sketching the base profile for the twisted bracket in Fusion, using dimensions and constraints on the grid to define the mounting shape before extruding the solid body.
Step 3: Extrude the Sketch into a Solid
Use the Extrude command to give the base shape a height of 5 mm. Extrude is the fastest way to move from 2D intent to 3D form and is typically the backbone of most solid modeling workflows in Fusion.
This early solid establishes the physical “anchor” of the bracket, which is useful when creating reference geometry later for more complex features.

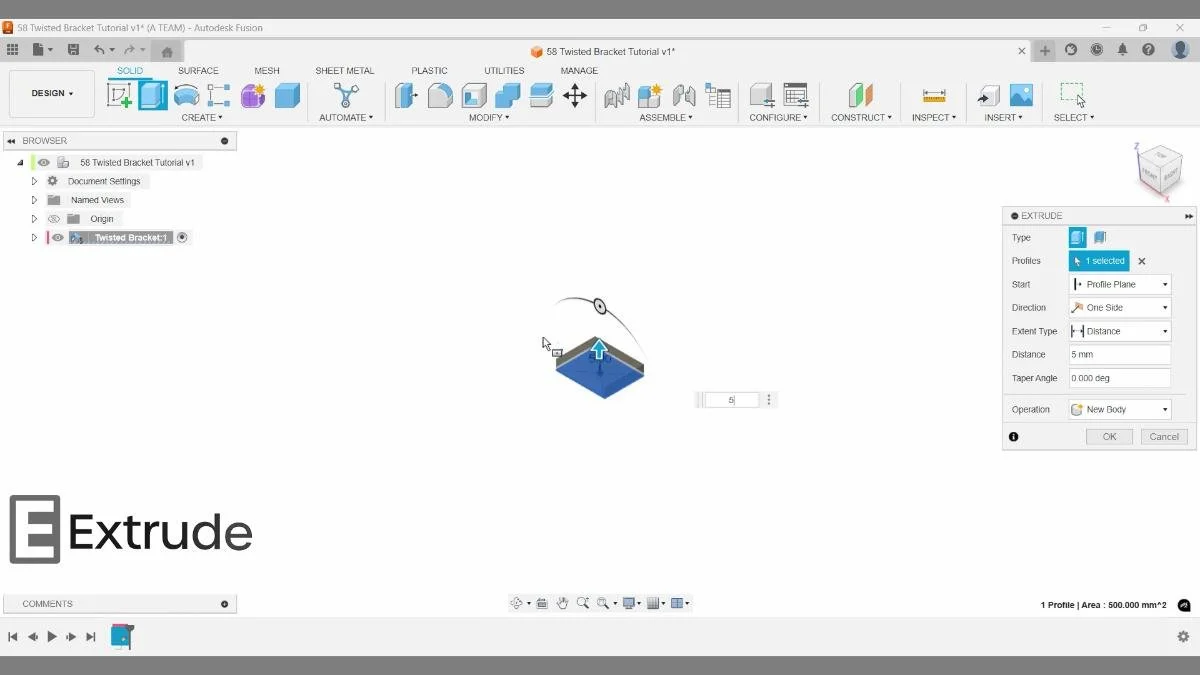

Extruding the sketched profile into a new solid body in Fusion, setting the base thickness of the twisted bracket before applying fillets and secondary features.
Step 4: Add Fillets for Strength and Printability
Apply fillets to the long edges of the bracket. With a 20 mm long side, a 10 mm fillet on each end produces a smooth, rounded profile.
Fillets do more than improve aesthetics. From a mechanical perspective, they reduce stress concentrations. From a 3D printing perspective, rounded edges often print more reliably than sharp corners, especially with FDM printers where layer adhesion benefits from smoother transitions.

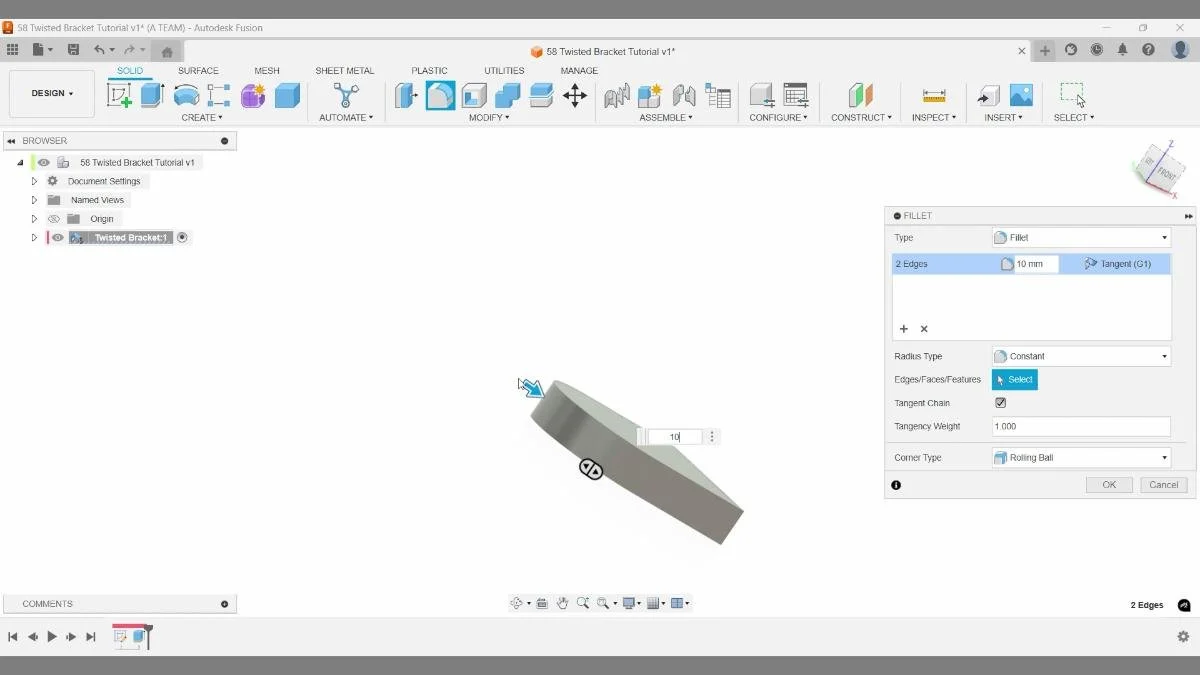

Applying fillets to the solid body in Fusion to smooth sharp edges on the twisted bracket, improving both surface quality and print-friendly geometry before adding the twist feature.
Step 5: Create the Mounting Hole
Sketch a circle and cut a hole through the bracket with a 7.5 mm diameter. While Fusion’s Hole command provides advanced options such as counterbores and taps, a simple sketch-and-extrude cut is perfectly adequate for conceptual design and prototyping.
Set the extrude cut extent to All instead of a fixed distance. This ensures the hole always cuts through the entire body, even if you later change the thickness of the bracket. This kind of design intent is essential for maintaining robust parametric models over time.

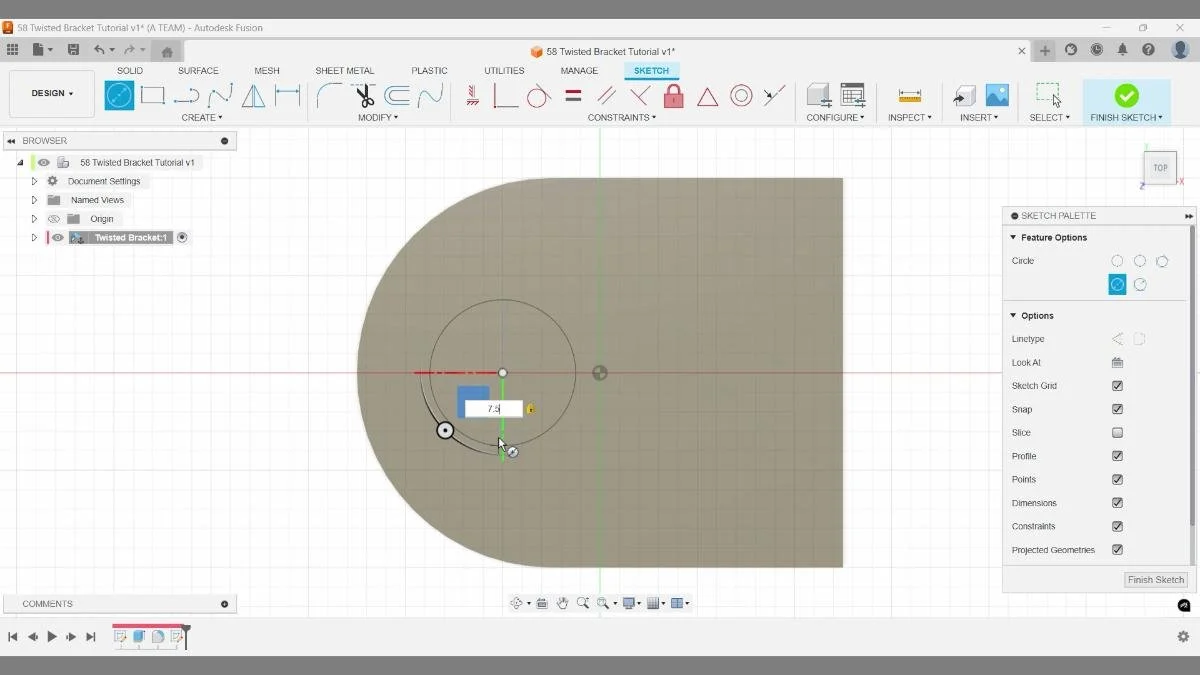

Sketching concentric circles in Fusion to define the mounting hole on the twisted bracket, constraining the profile to the center axis for precise hole placement before cutting the solid.

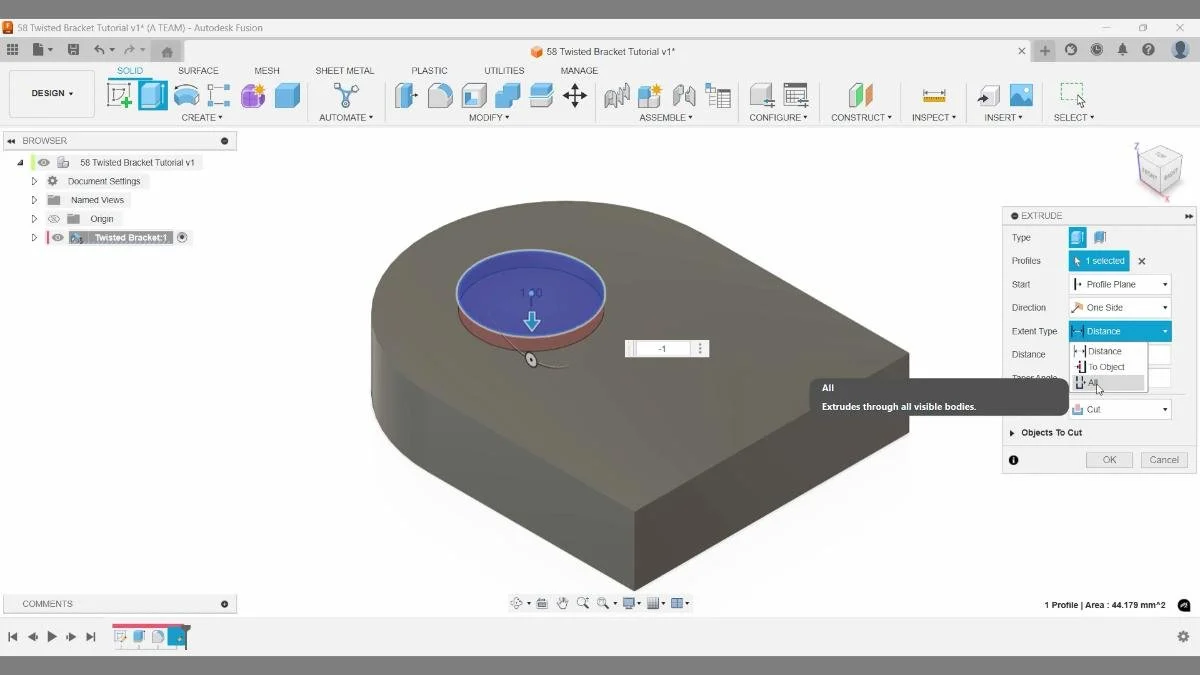

Cutting the mounting hole in the twisted bracket using the extrude cut operation in Fusion, removing material through the solid body to create a clean, printable hole geometry.
Step 6: Rotate the Body to Create the Twist
Use the Rotate tool on the body and enable Create Copy before performing the rotation. This duplicates the geometry in place and rotates the copy around its own axis.
This workflow is efficient because it preserves alignment between the two ends of the bracket while giving you two reference solids to connect later. In more advanced projects, you could drive this rotation with user parameters to experiment with different twist angles for functional or aesthetic tuning.

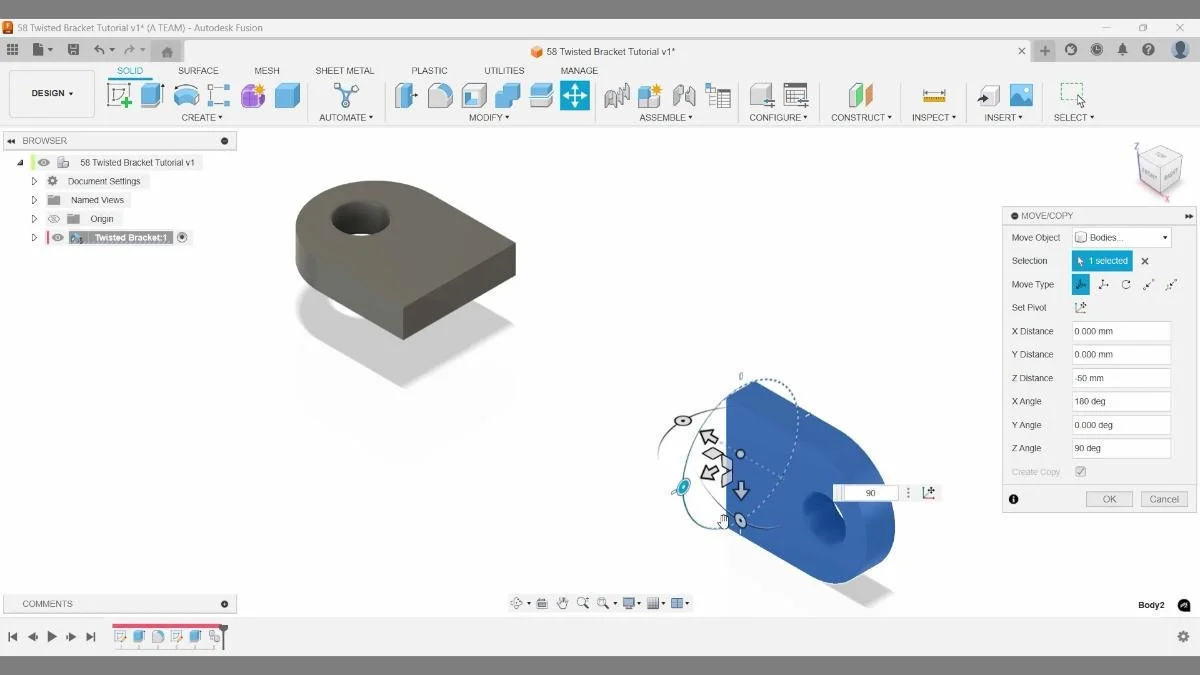

Using the Move/Copy tool in Fusion to rotate the second body of the twisted bracket, setting up the relative orientation needed before connecting the parts with a sweep feature.
Step 7: Connect the Ends with a 3D Sketch
Activate 3D Sketch and draw a line between the central regions of the two rotated ends. Then switch to a spline to define the curved path between them.
These sketches are not final geometry; they are construction guides. Converting them to construction geometry keeps your timeline clean and makes it clear that they exist to control downstream features. 3D sketches are especially useful here because the connecting path exists in multiple planes, which would be cumbersome to define with separate planar sketches.

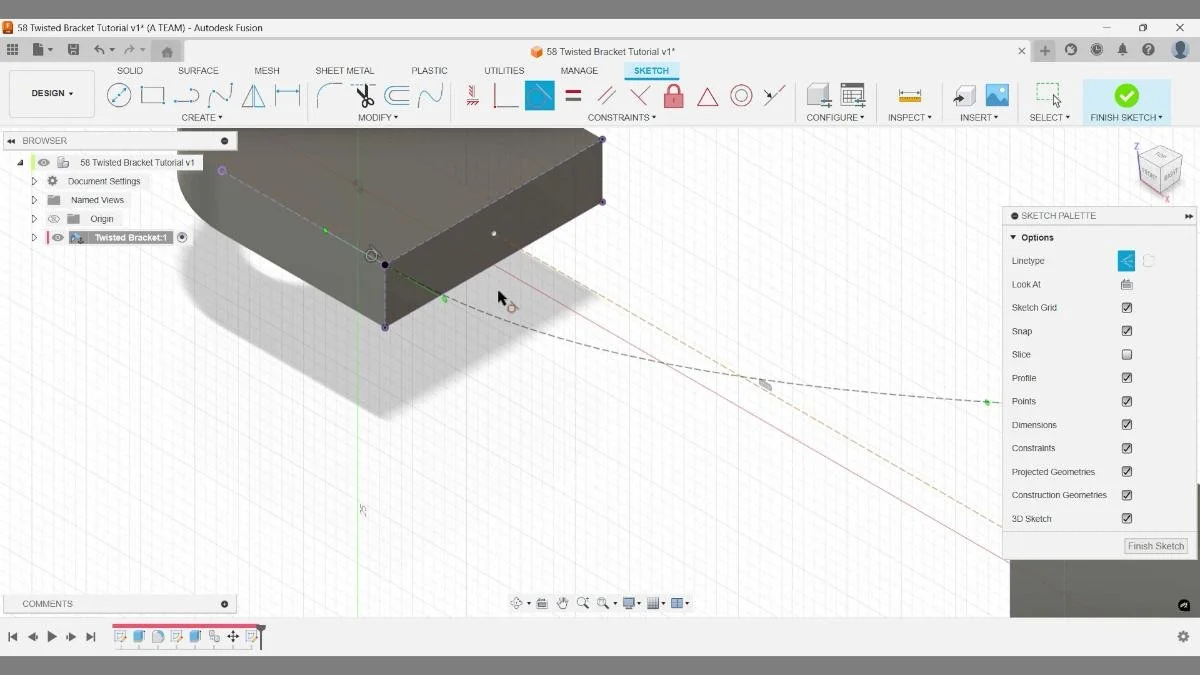

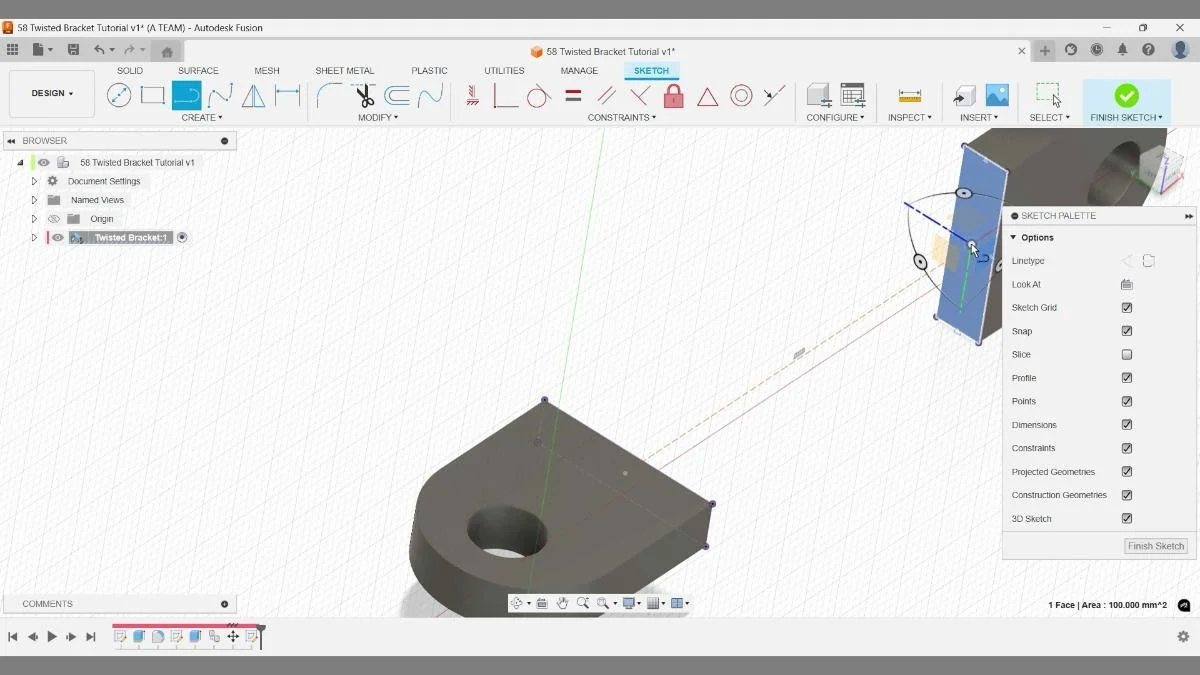

Creating a 3D sketch path in Fusion between the two bracket bodies, defining the guide curve that controls the twist and transition shape before running the sweep operation.
Step 8: Shape the Curve with a Fit Point Spline
Use a Fit Point Spline instead of a straight line to control the curvature between the two ends. By snapping spline points to existing edges and applying tangent constraints, you ensure that the transition flows smoothly into the rotated solids.
Splines give you continuous curvature control, which is crucial for organic or twisted shapes. This approach produces cleaner geometry and avoids abrupt changes that can cause weak points in printed parts or visible artifacts in renders.

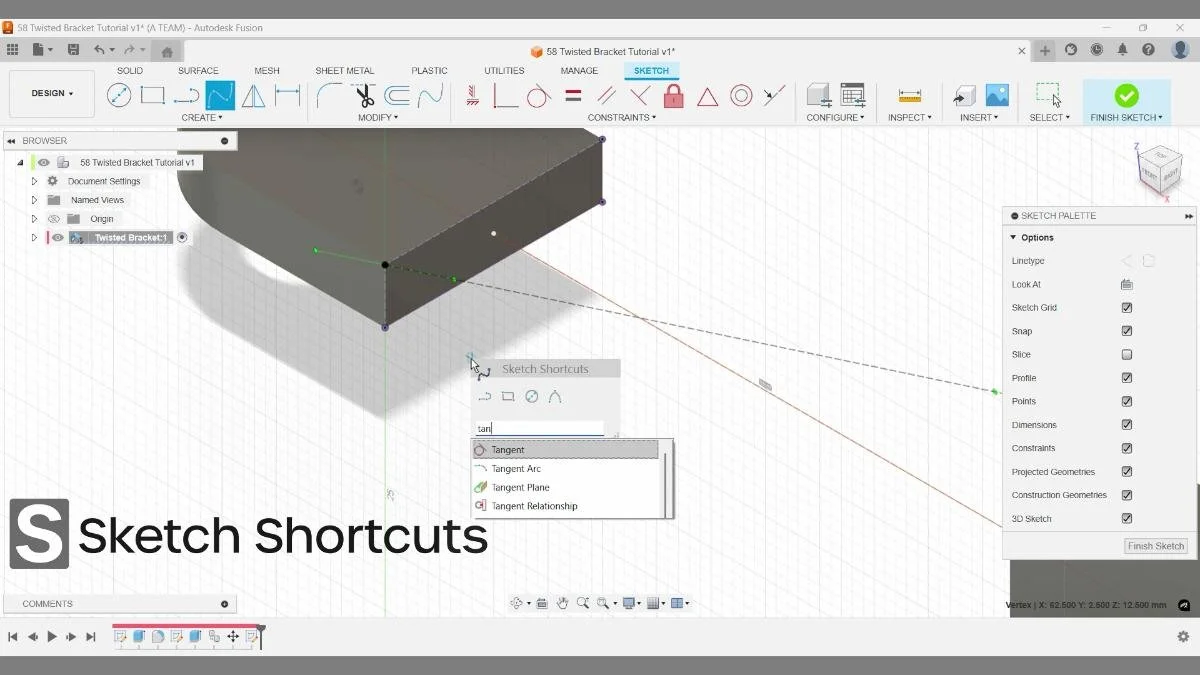

Using Fusion sketch shortcuts to quickly apply a tangent constraint while editing a 3D sketch path, ensuring smooth transitions between guide curves for the twisted bracket sweep.
Refining the 3D sketch guide curve in Fusion by adding tangent constraints between segments, improving curvature continuity and surface flow for the upcoming sweep that forms the twisted bracket connection.

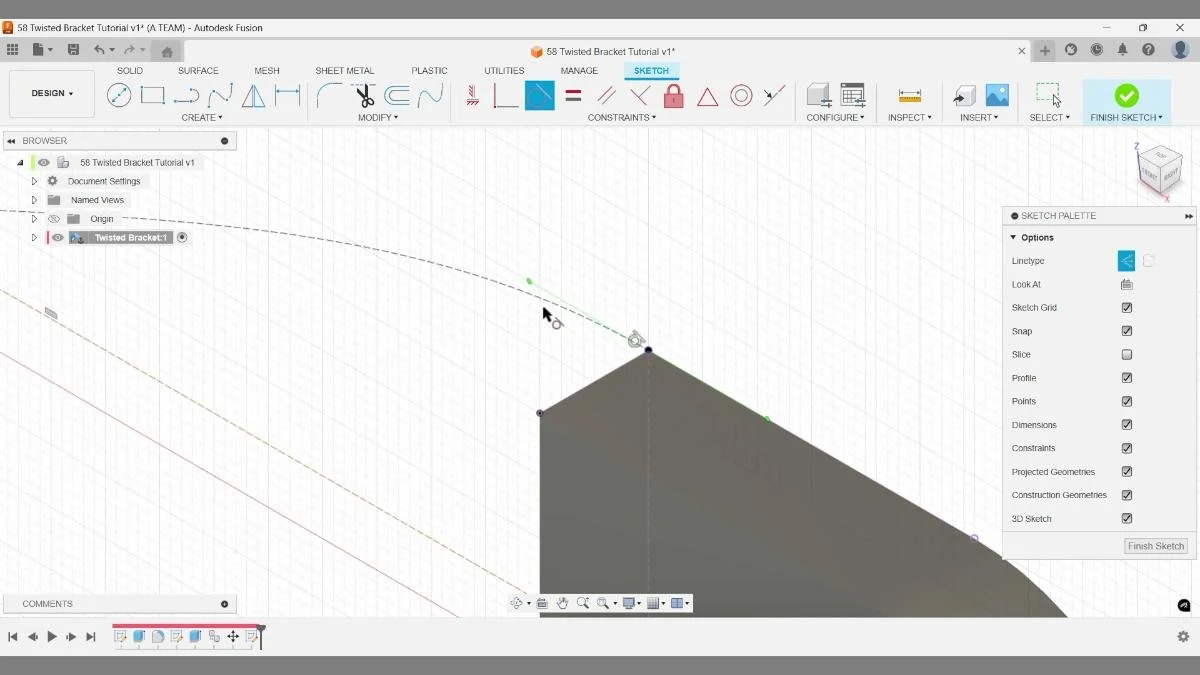

Adjusting the spline curvature in a Fusion 3D sketch by using tangent constraints on the green spline handles, controlling the smoothness and flow of the guide curve before running the sweep operation.
Step 9: Sweep the Profile Using Path + Guide Rail
With the sketch complete, activate the Sweep tool. Set the sweep type to Path + Guide Rail, then select the profile, the main path, and finally the guide rail.
This sweep mode is ideal for twisted or controlled organic forms because the guide rail actively governs how the profile deforms along the path. Compared to a simple path sweep, this method gives you predictable, repeatable geometry that aligns cleanly with your design intent. The result is a smooth solid connecting the two rotated ends of the bracket.

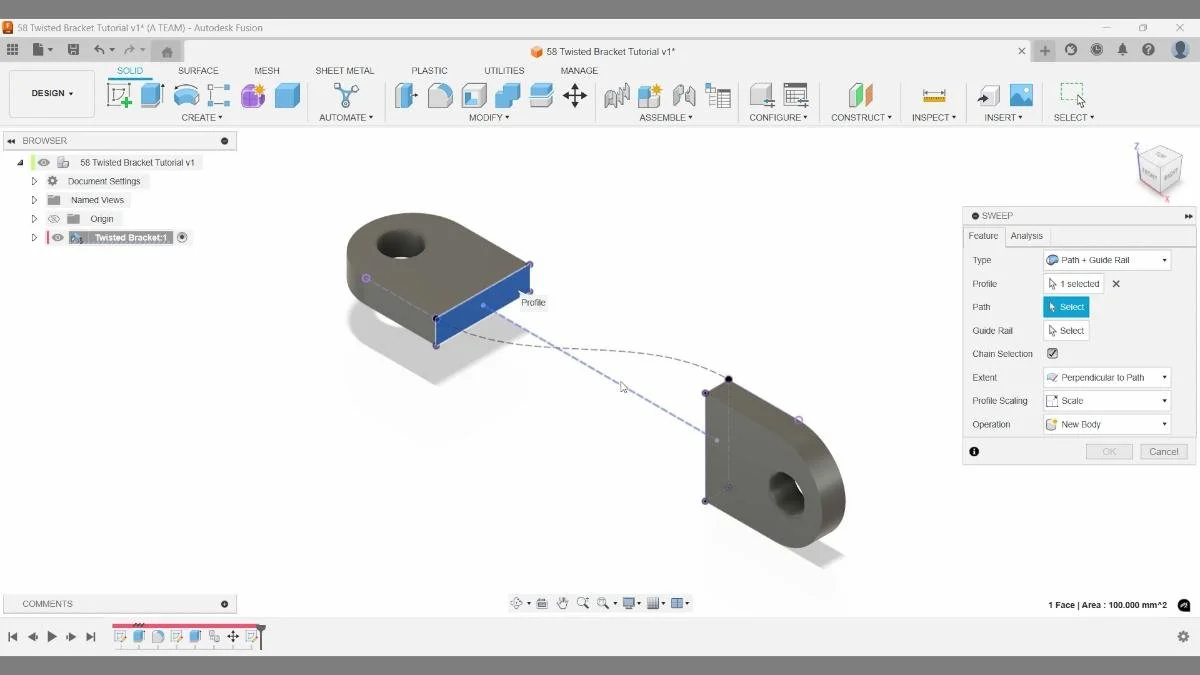

Running the sweep feature in Fusion using a profile, path, and guide rail to generate the twisted connection between the two bracket ends, forming the main transition geometry of the part.

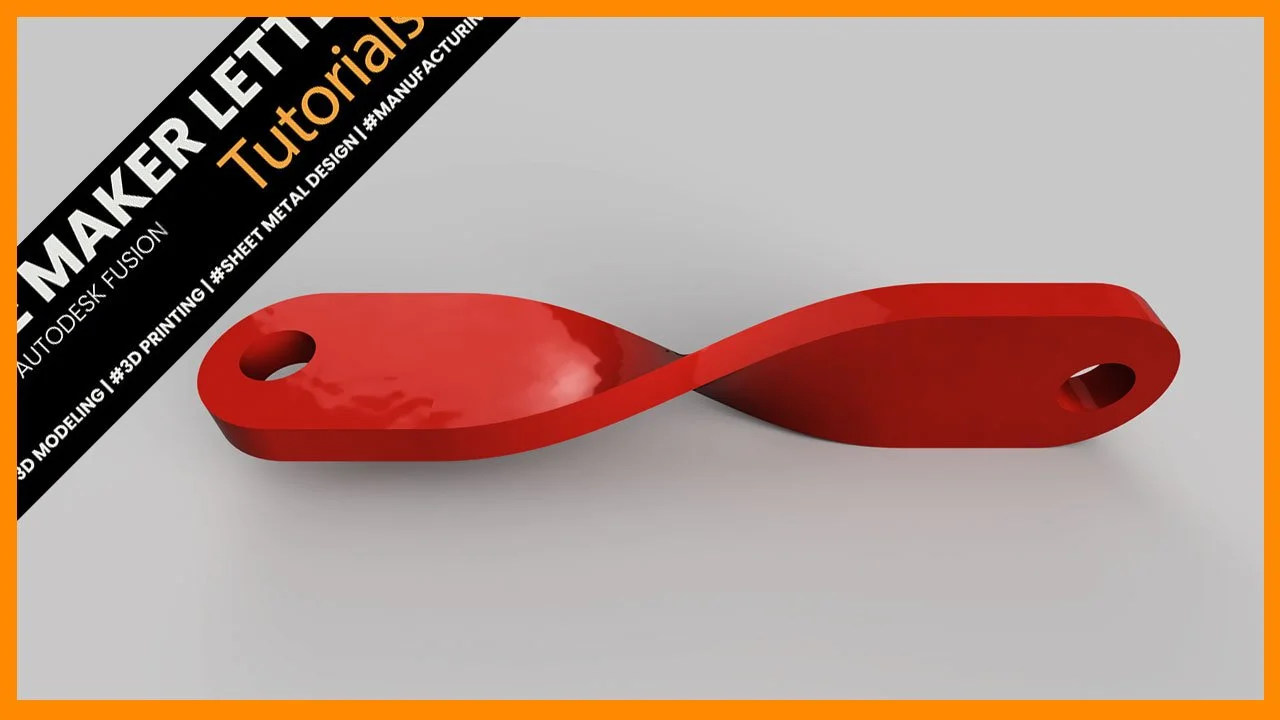

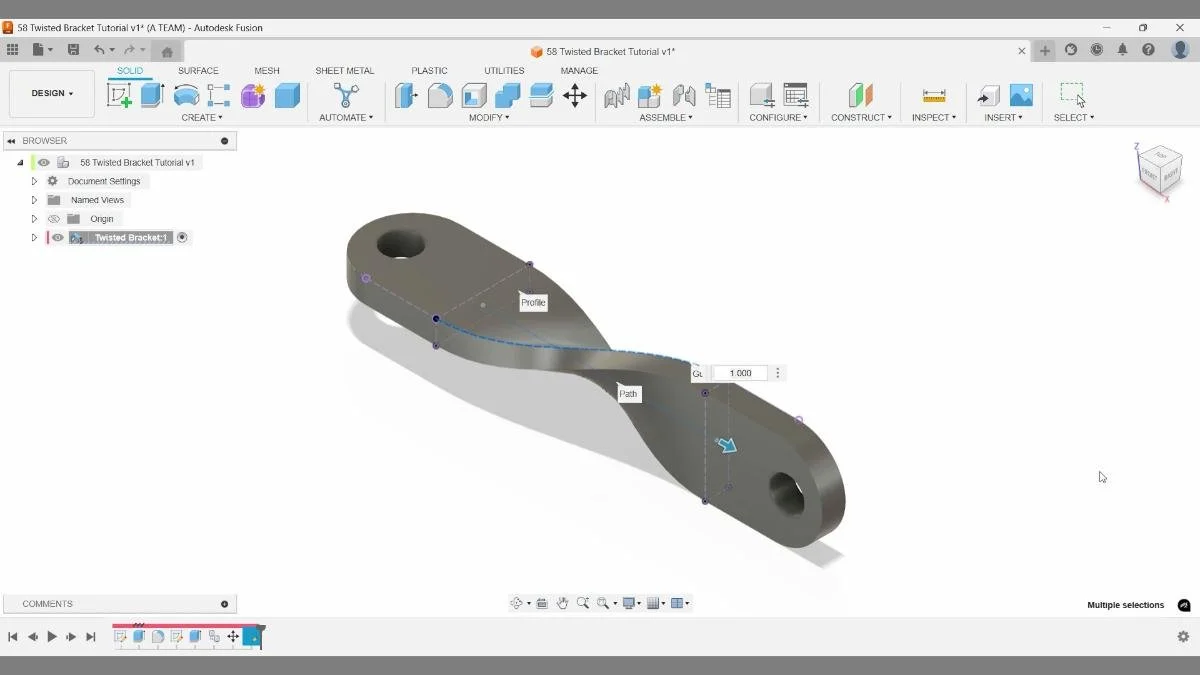

Resulting twisted bracket geometry in Fusion after completing the sweep along the 3D guide curve, showing the smooth transition between the two mounting ends before applying materials or final finishing steps.
Step 10: Final Touches and Visual Refinement
At this point, the core geometry is complete. Apply appearances or materials to evaluate the shape visually and to prepare renders for presentation or documentation. Visual feedback is not just cosmetic—it often helps reveal proportion issues or surface continuity problems before you commit to printing or manufacturing.

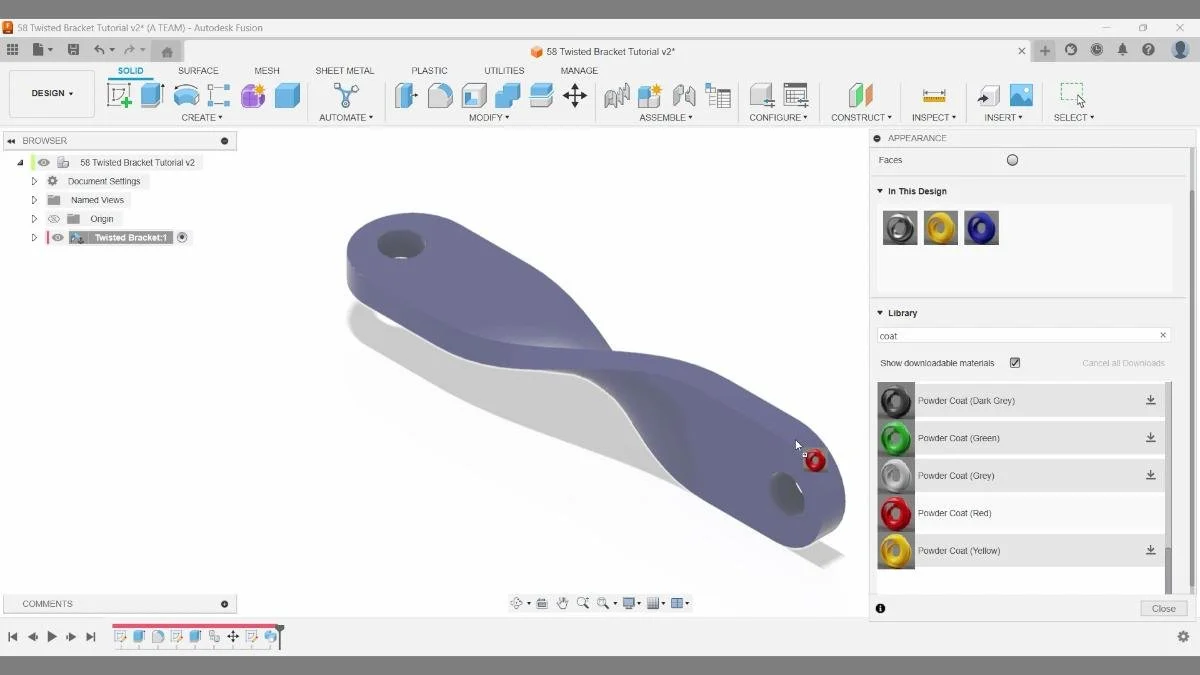

Final twisted bracket model in Fusion with applied appearance, showing the completed geometry and surface flow after sweep and fillet operations, ready for export as an STL for 3D printing or further design refinement.
Key Takeaways
- Structuring your design with components early prevents workflow bottlenecks later.
- Parametric sketches allow fast iteration without rebuilding geometry from scratch.
- Fillets improve both structural integrity and 3D print reliability.
- 3D Sketches and splines provide precise control over complex spatial paths.
- Sweep with Path + Guide Rail is a powerful method for building controlled twisted forms suitable for prototyping and fabrication.
