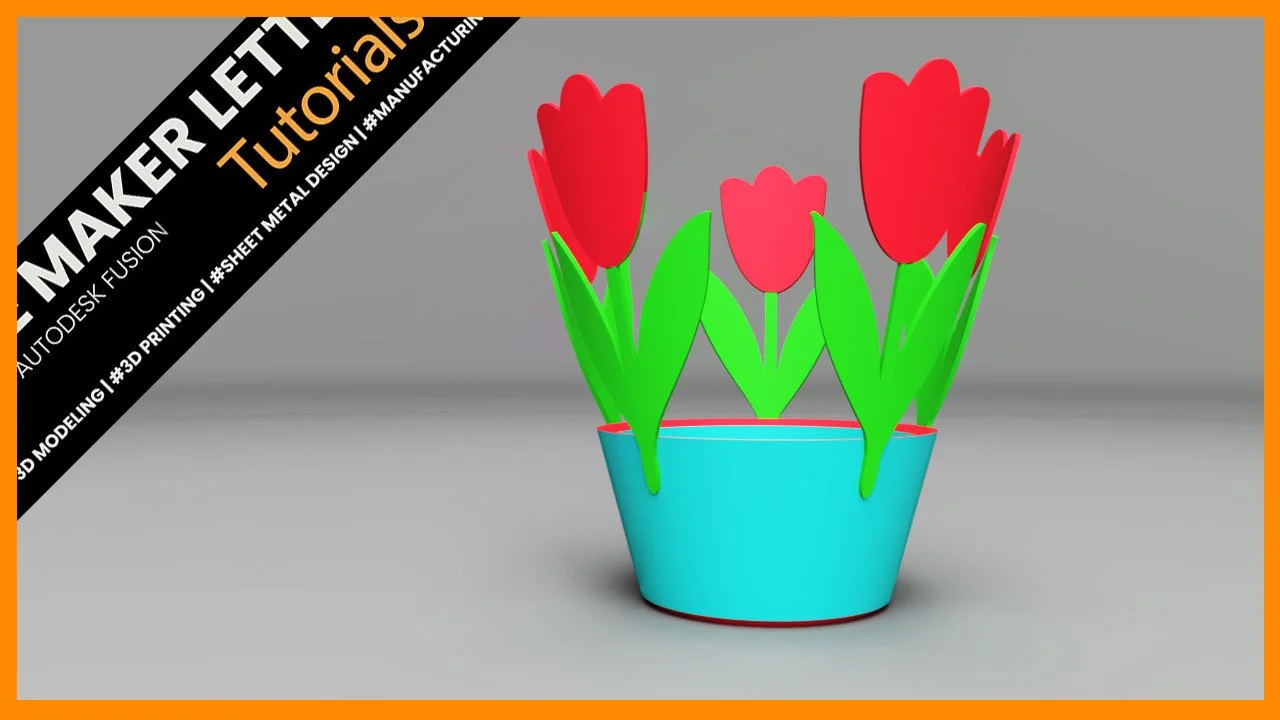

3d printed tulip bowl designed in fusion with decorative floral pattern

Updated February 8, 2026

Designing your own 3D-printable products is one of the fastest ways to move from “learning CAD” to building real, sellable objects. In this walkthrough, you’ll model a decorative tulip bowl in Fusion using a workflow that scales well for both hobby projects and small-batch production. Along the way, you’ll see why certain tools are better suited for this type of organic, patterned geometry.

What You’ll Learn

How to block out a printable bowl using tapered extrusions and Shell
When and why to use construction planes for clean, non-destructive workflows
How to bring in SVG artwork and adapt it for curved surfaces
How Emboss and Circular Pattern work together for repeatable surface detail
How to prep edges and appearances for both printing and rendering
How to set up simple renders for thumbnails and product listings

Watch the Workflow — or Read It Step by Step

You can follow this guide in two ways:

Read the steps below if you want quick written instructions, reference images, and modeling notes.
Watch the full video at the end of this post to see the workflow in real time — including extra tips, camera angles, and shortcuts that don’t fit neatly into text.

Both formats build on each other.
Reading helps you understand why each step matters, while watching shows how to move faster in Fusion.

Step 1: Create the Bowl Base

Start with a new component and sketch a center-diameter circle at the origin. Using the origin as your reference gives you a stable axis for later operations like Circular Pattern and Revolve.
Extrude the circle with a taper angle instead of a straight extrusion. A tapered wall better matches how decorative bowls are typically shaped and avoids awkward transitions later when you add surface detail.

Next, apply Shell to hollow the body. Shell is ideal here because it guarantees uniform wall thickness across a complex shape. This is critical for 3D printing: consistent thickness improves print reliability, strength, and cooling behavior. Consider storing this thickness as a user parameter so you can easily tune the model for different materials or nozzle sizes later.

fusion sketch of tulip bowl base with centered diameter circle — Tulip bowl base sketch in Fusion using a center diameter circle as the foundation for a 3D printable bowl.

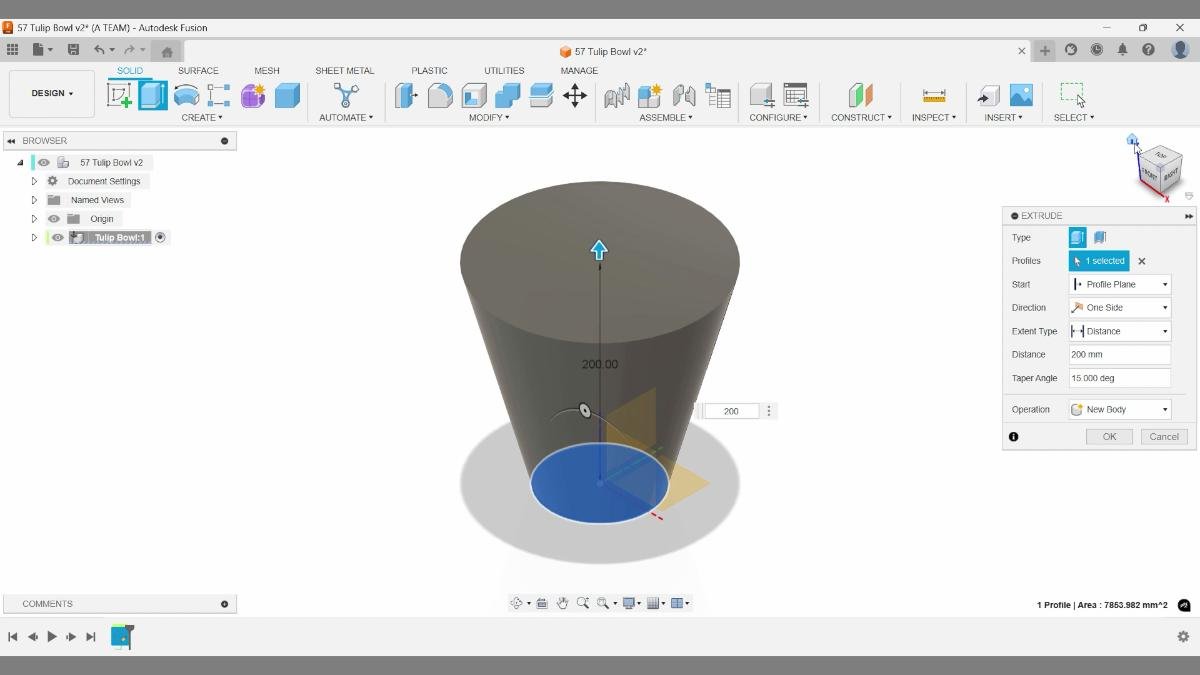

fusion extrude of tulip bowl base with tapered solid body — Tapered solid extrusion of the tulip bowl base in Fusion, setting the primary form for a 3D printable container.

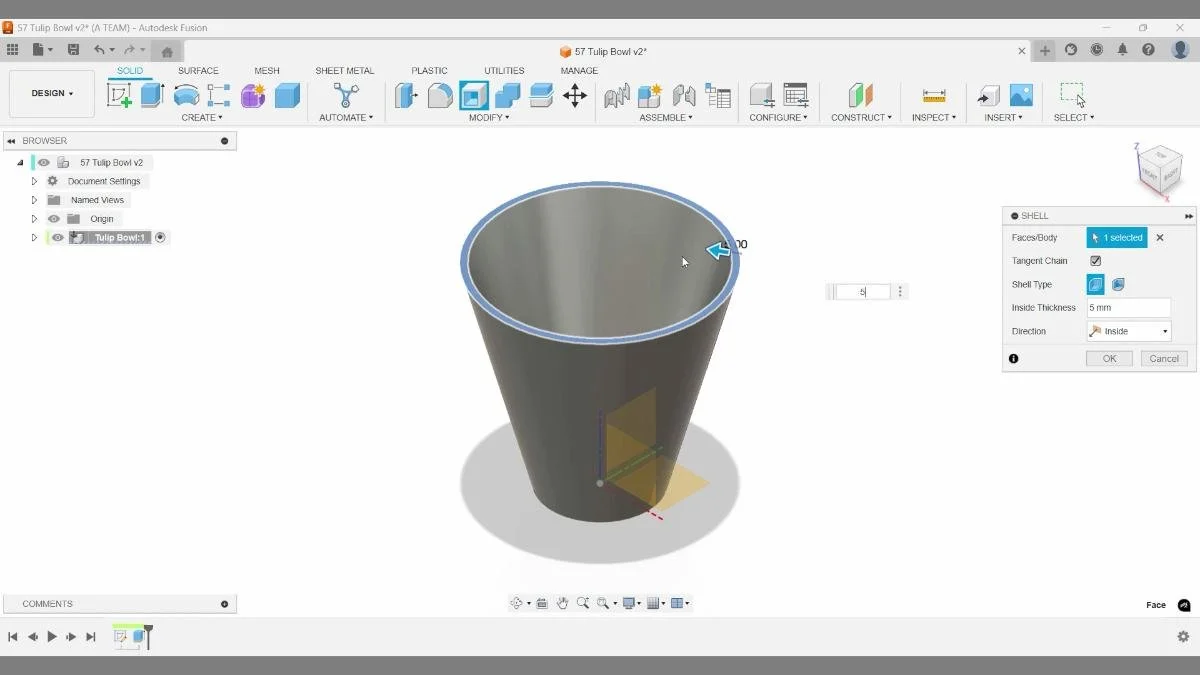

fusion shell command hollowing tulip bowl with uniform wall thickness — Shell operation hollowing the tulip bowl in Fusion to create consistent wall thickness for reliable 3D printing.

Step 2: Set Up a Construction Plane for the Pattern

Create an offset construction plane in front of the bowl. The exact distance is not critical; the plane is a tool, not a dimension you’ll manufacture against.
Using construction geometry keeps your timeline clean and makes the design more maintainable. If you later change the bowl height or taper, your sketch plane remains logically separated from the solid body, reducing the risk of broken references.

fusion offset plane setup for tulip bowl pattern placement — Offset construction plane created in Fusion to position the tulip pattern cleanly in front of the bowl surface.

Step 3: Import and Prepare the Tulip Sketch

Insert a licensed SVG of the tulip motif onto the construction plane. SVGs are efficient for ornamental work because they preserve curves cleanly and are easy to scale.
If the SVG imports flipped or misaligned, correct it immediately. Fusion’s parametric timeline lets you revisit this step later, but getting the orientation right now prevents downstream sketch constraints from becoming messy.

Use Extend and Trim to clean up the curves so the tulip becomes a closed, watertight sketch. Closed profiles are mandatory for downstream features like Emboss and Revolve cuts. This cleanup phase is where precision matters most: small sketch errors propagate into visible surface artifacts later.

fusion insert svg sketch for tulip pattern on bowl surface — SVG tulip sketch positioned on an offset plane in Fusion to prepare decorative embossing on the bowl.

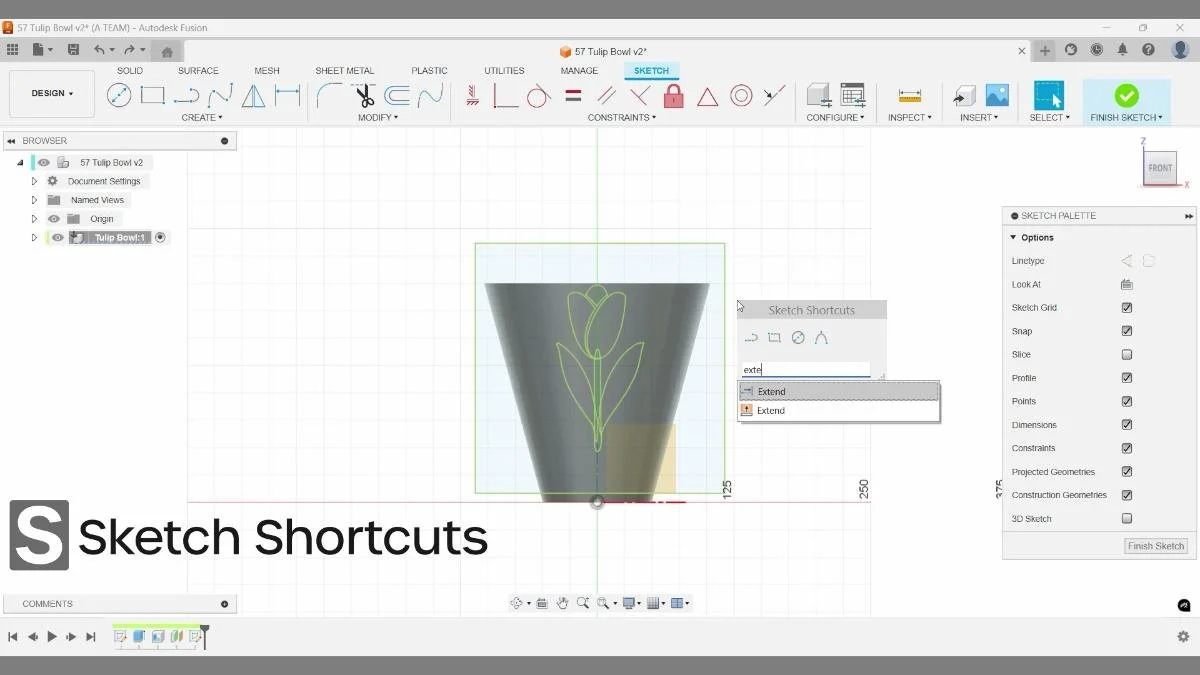

fusion sketch extend tool refining tulip pattern curves — Extend tool used in a Fusion sketch to connect and refine tulip curve geometry before embossing onto the bowl surface.

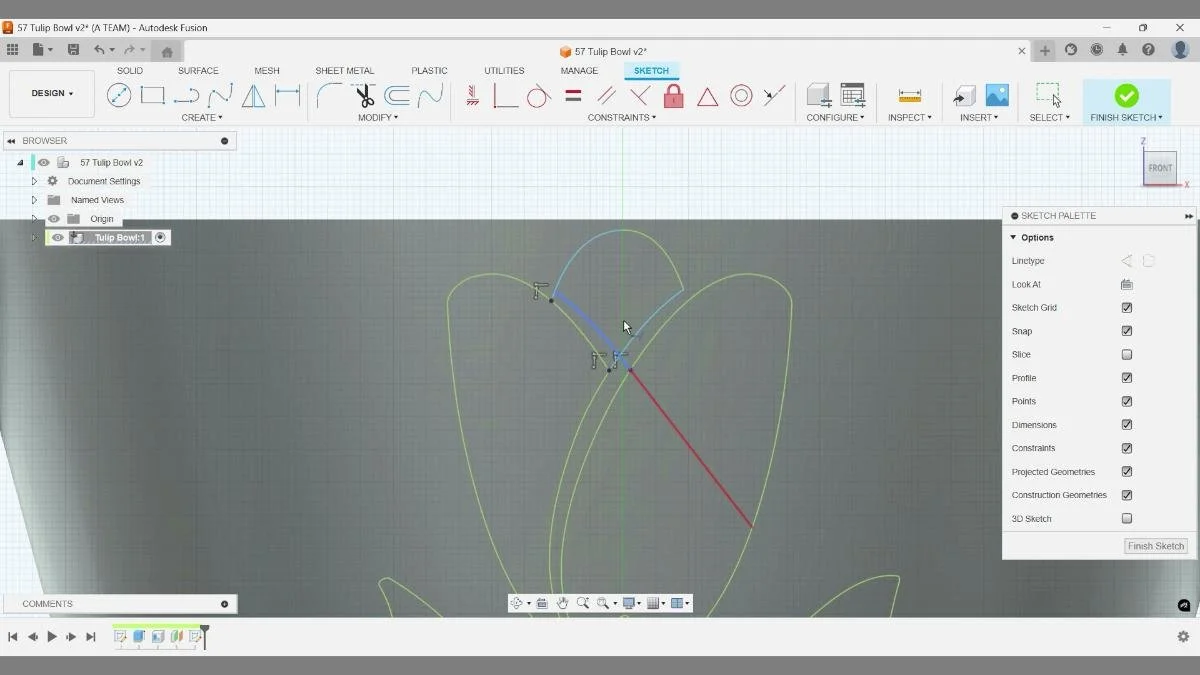

fusion sketch editing tulip curves with extend tool — Tulip petal curves adjusted in a Fusion sketch using the Extend tool to create clean, connected profiles for embossing.

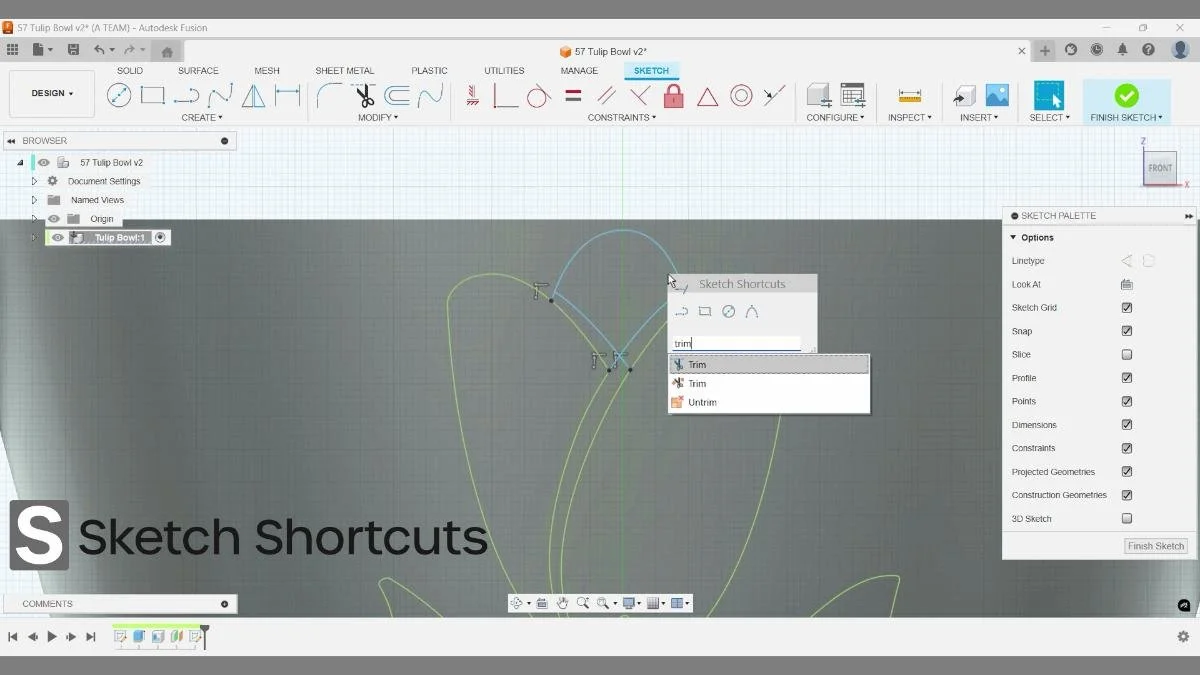

fusion sketch trim tool refining tulip petal curves — Trim tool used in a Fusion sketch to remove overlapping segments and clean up tulip petal curve geometry before embossing.

fusion sketch editing tulip flower pattern curves — Tulip flower curve geometry adjusted in a Fusion sketch, resolving overlaps and constraints before applying the emboss feature.

Step 4: Emboss the Tulip onto the Bowl

Select the cleaned sketch profiles and apply Emboss with a shallow depth. Emboss is purpose-built for wrapping 2D profiles onto curved faces while maintaining surface continuity.
Compared to projecting and extruding, Emboss respects the curvature of the bowl, which avoids uneven wall thickness and reduces the risk of print artifacts on sloped surfaces. Use Deboss instead if you want a recessed look.

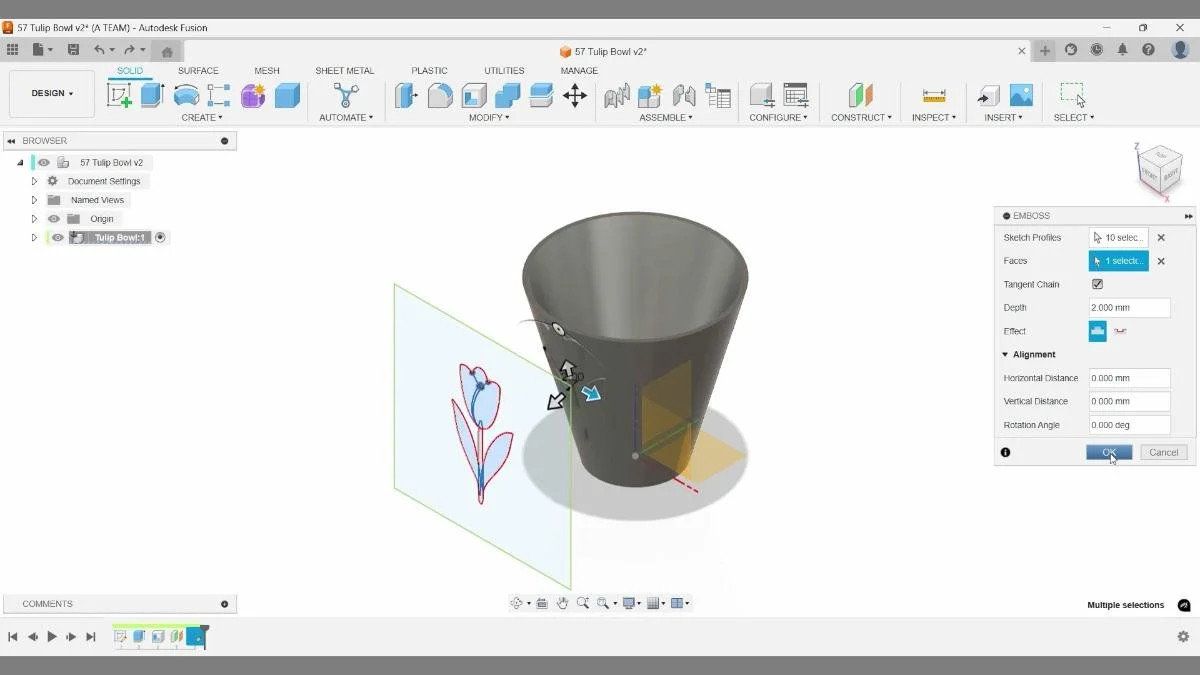

fusion emboss tool applying tulip pattern to bowl surface — Emboss feature wrapping the tulip sketch onto the curved bowl surface in Fusion to create raised decorative geometry.

Step 5: Create the Repeating Pattern

Use Circular Pattern set to Feature and select the Emboss feature. Feature patterns are more robust than body patterns here because they keep the design parametric and editable.
The origin axis becomes the natural rotation axis, which is exactly why starting at the origin in Step 1 pays off. This patterning approach scales cleanly: you can change the number of tulips later without reworking the base geometry.

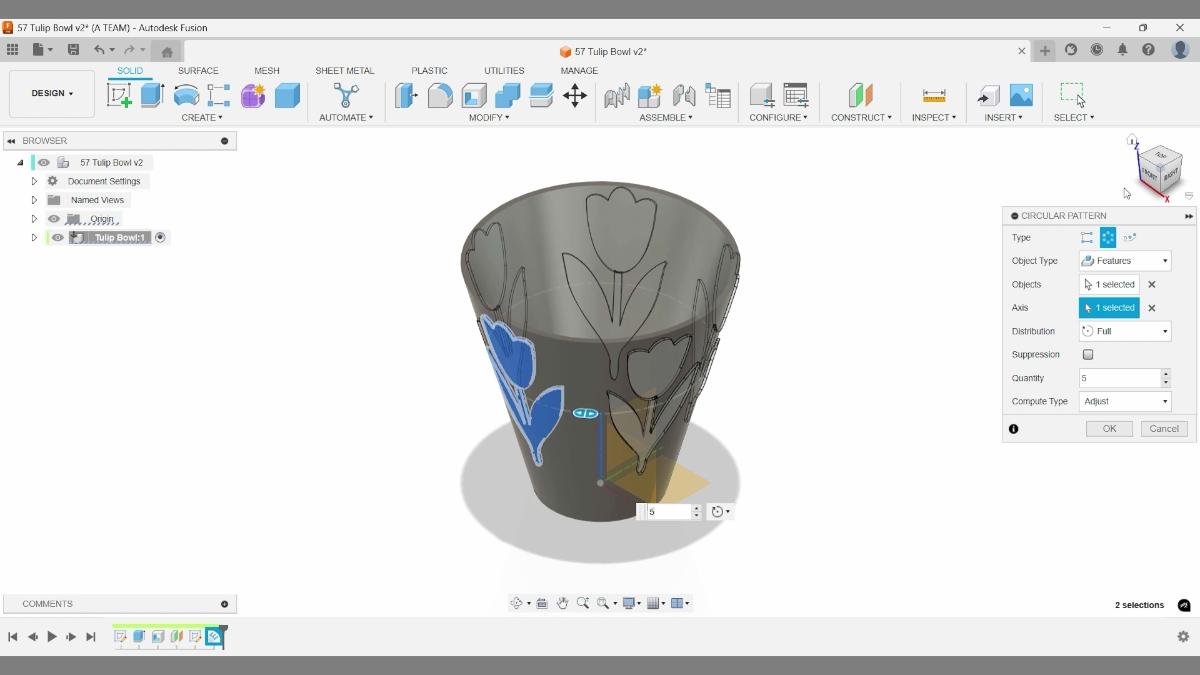

fusion circular pattern repeating tulip emboss features around bowl — Circular pattern feature in Fusion duplicating the embossed tulip motif evenly around the bowl for a consistent decorative layout.

Step 6: Remove the Upper Section with a Revolve Cut

Create a sketch on a construction plane and Project the relevant edges of the bowl and pattern. Projection links the sketch to the model, so when the bowl diameter changes, your cut profile updates automatically.
Offset the projected outline by the same wall thickness you used with Shell. This maintains consistent material thickness after the cut.
Use Revolve (Cut) around the central axis to remove the top section. Revolve is well-suited here because the cut is rotationally symmetric, which keeps the geometry clean and predictable.

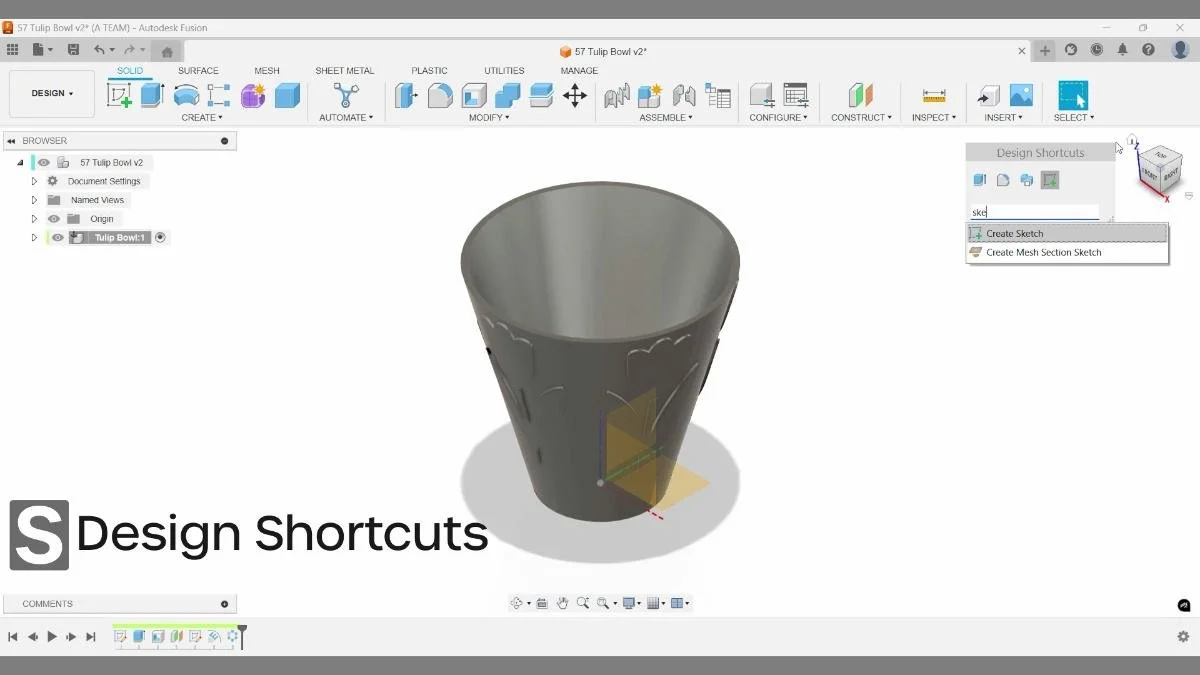

fusion sketch setup for project geometry on tulip bowl — Sketch setup in Fusion prepared for projecting bowl geometry, establishing clean references for trimming and cut features.

fusion project geometry sketch on tulip bowl surface — Projected bowl edges and embossed pattern outlines in Fusion used as sketch references for precise trimming and subsequent cut operations.

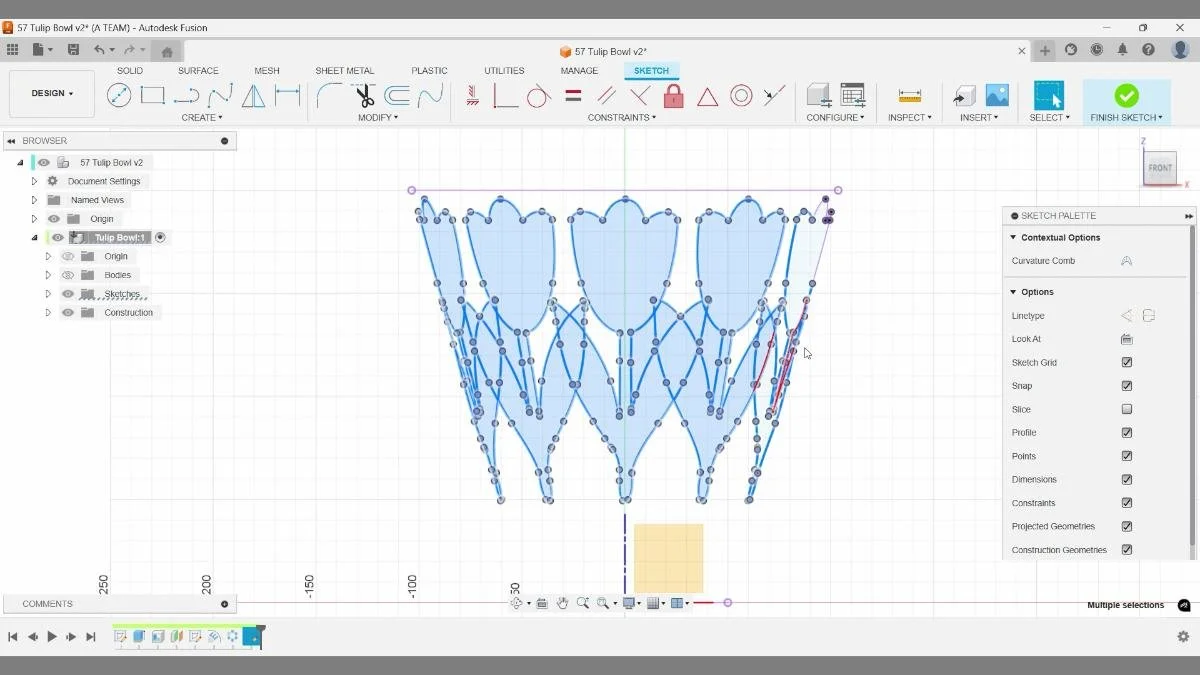

fusion sketch cleanup removing excess geometry before revolve setup — Sketch geometry reduced in Fusion to isolate the curves needed for the revolve operation, simplifying the profile used for the subsequent cut feature.

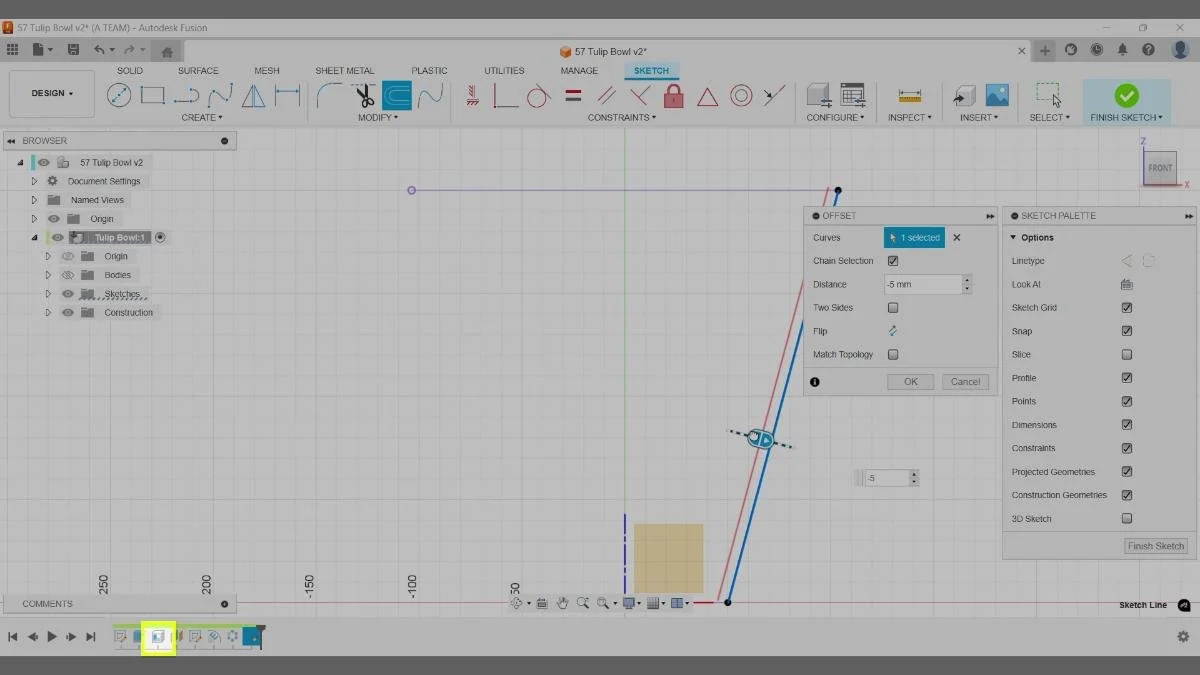

fusion sketch setup for revolve cut on tulip bowl — Sketch profile created and offset in Fusion to define the revolve cut used to remove material and shape the tulip bowl pattern.

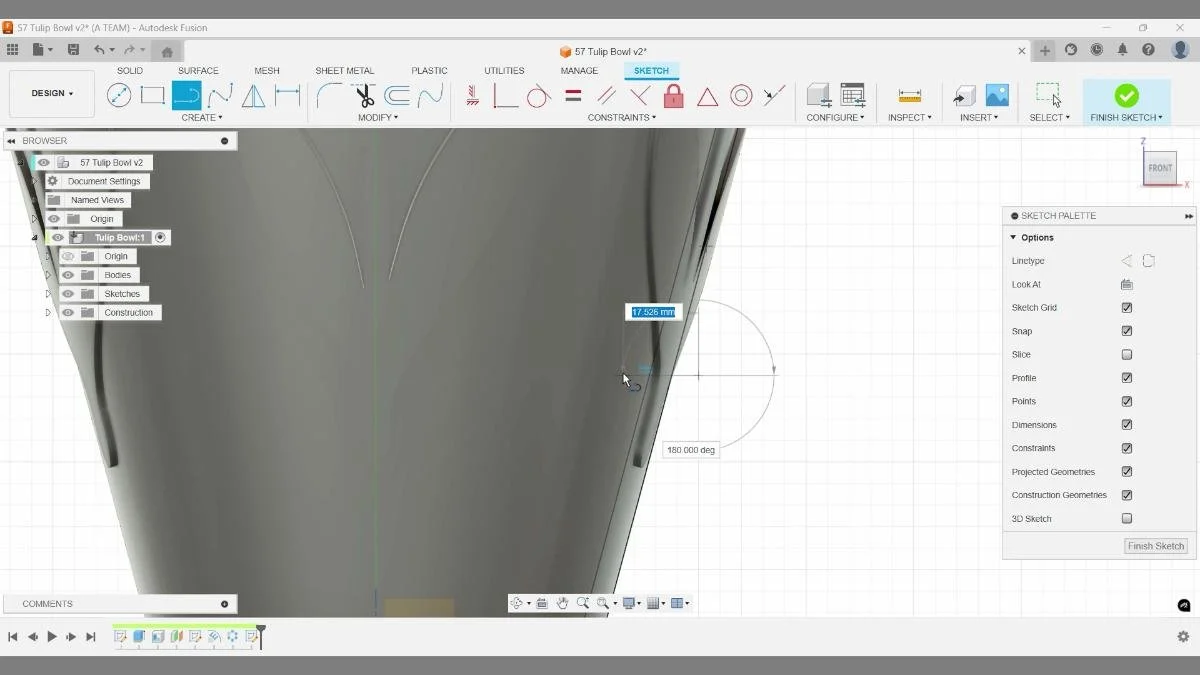

Sketch profile closed in Fusion to form a valid, watertight region required for the subsequent revolve cut operation on the tulip bowl.

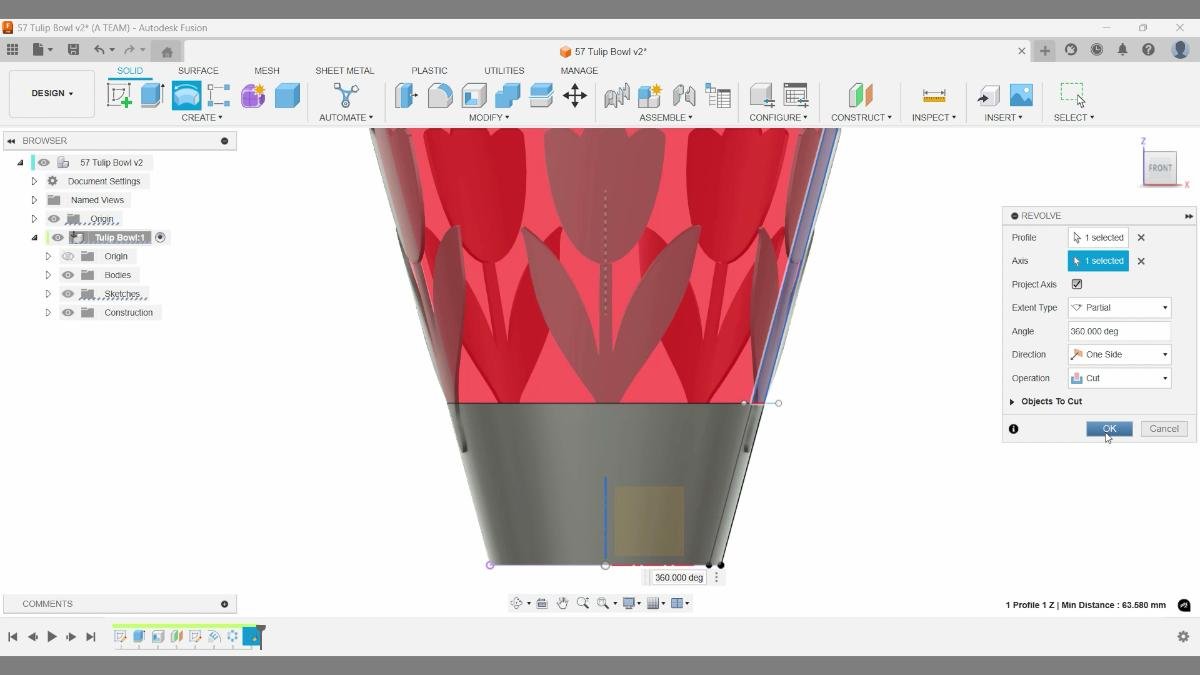

fusion revolve cut removing upper section of tulip bowl — Revolve cut operation in Fusion removing the upper portion of the bowl to define the final rim height and decorative pattern boundary.

Step 7: Add Chamfers for Printability and Finish

Apply Chamfer to the bottom edge and any sharp transitions. Chamfers are not just cosmetic:
they reduce sharp corners that can cause weak first layers, improve bed adhesion, and make the printed object feel better in hand.
Adding chamfers before appearances also creates clean, separate faces, which simplifies later coloring and rendering.

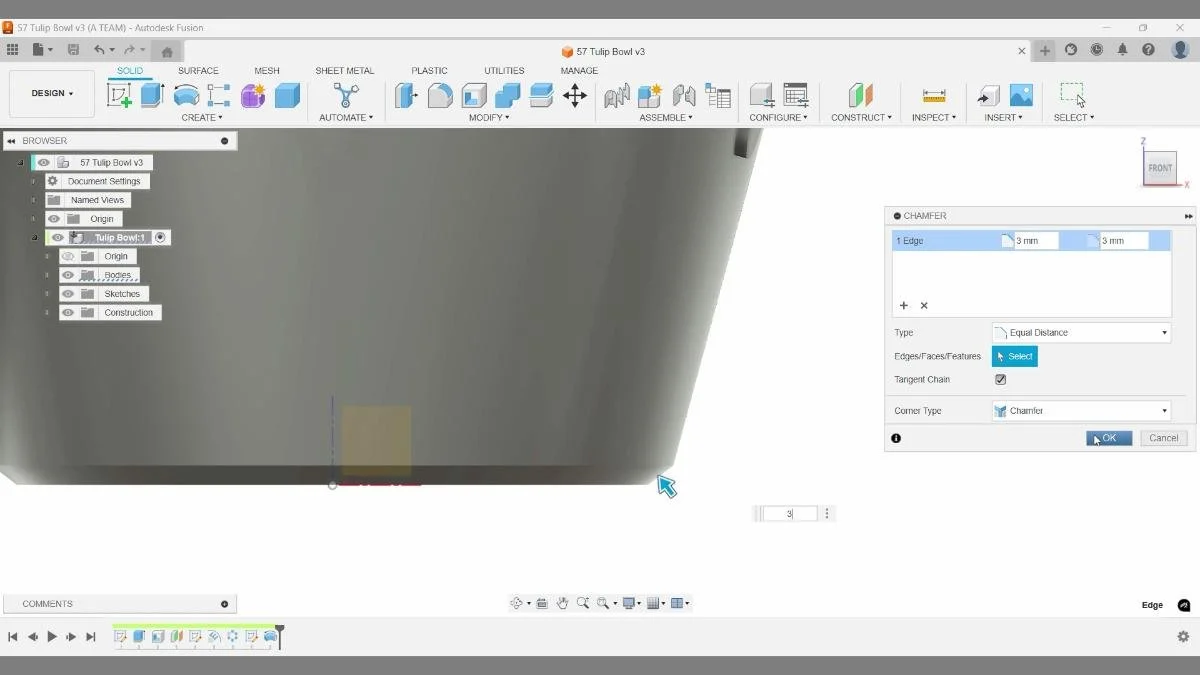

fusion chamfer tool applied to tulip bowl bottom edge — Chamfer applied to the bottom edge of the tulip bowl in Fusion to improve printability and reduce sharp edges on the finished 3D print.

fusion chamfer tool applied to tulip bowl top rim — Chamfer applied to the inner rim edge of the tulip bowl in Fusion to soften the opening and improve the tactile finish of the 3D printed part.

Step 8: Apply Appearances Strategically

Assign base appearances to bodies before creating additional patterns or duplicates. This reduces repetitive manual work and keeps your visual hierarchy consistent.
Switch to face-level appearances only when you need fine-grained color control (for example, highlighting tulip petals differently from the bowl body). Using a cohesive color palette improves visual quality for thumbnails and product images, which directly impacts click-through on YouTube and conversion on product pages.

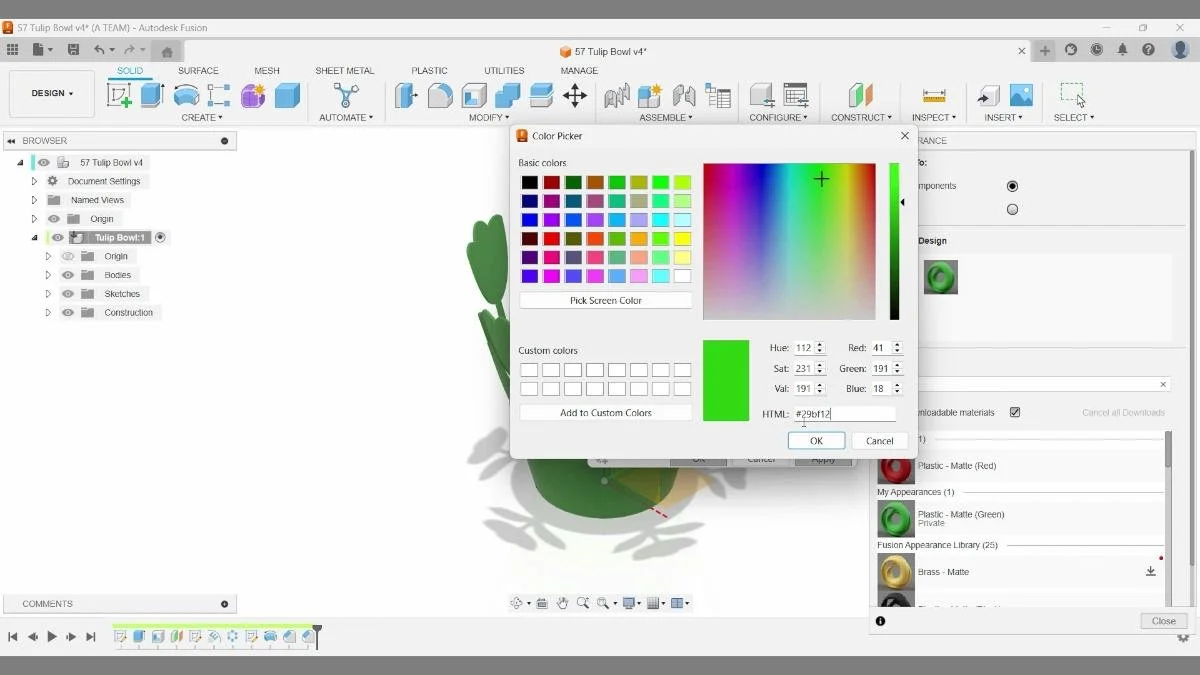

fusion color picker setting custom appearance for tulip bowl — Custom appearance created in Fusion using the color picker to assign distinct colors to the tulip bowl components for clearer visualization and presentation.

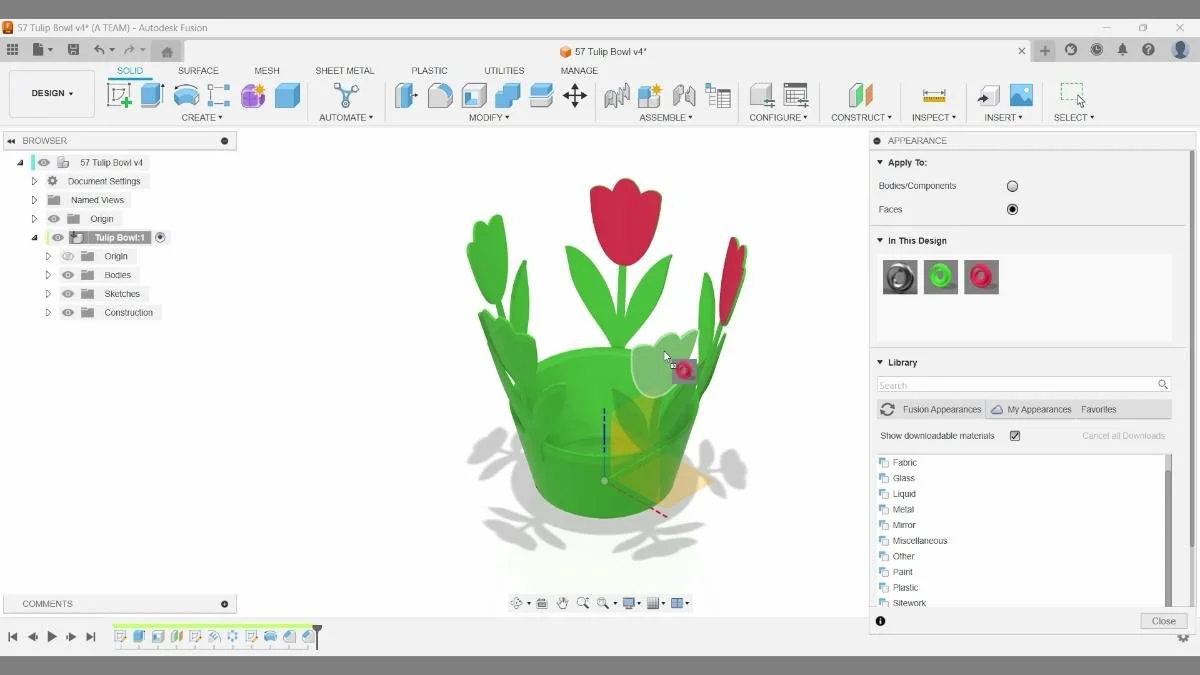

fusion apply appearances to tulip bowl bodies and petals — Appearances applied to the tulip bowl bodies and petal features in Fusion to preview color separation for presentation and rendering.

Step 9: Render for Thumbnails and Listings

Switch to the Render workspace and use an environment like Photobooth for neutral, high-contrast lighting. This setup is well-suited for YouTube thumbnails and e-commerce listings because it produces clean reflections and readable silhouettes.
Adjust aspect ratio depending on use case: widescreen for video thumbnails, square for marketplaces. Running multiple renders in parallel increases your chances of getting a strong hero image without reworking the scene.

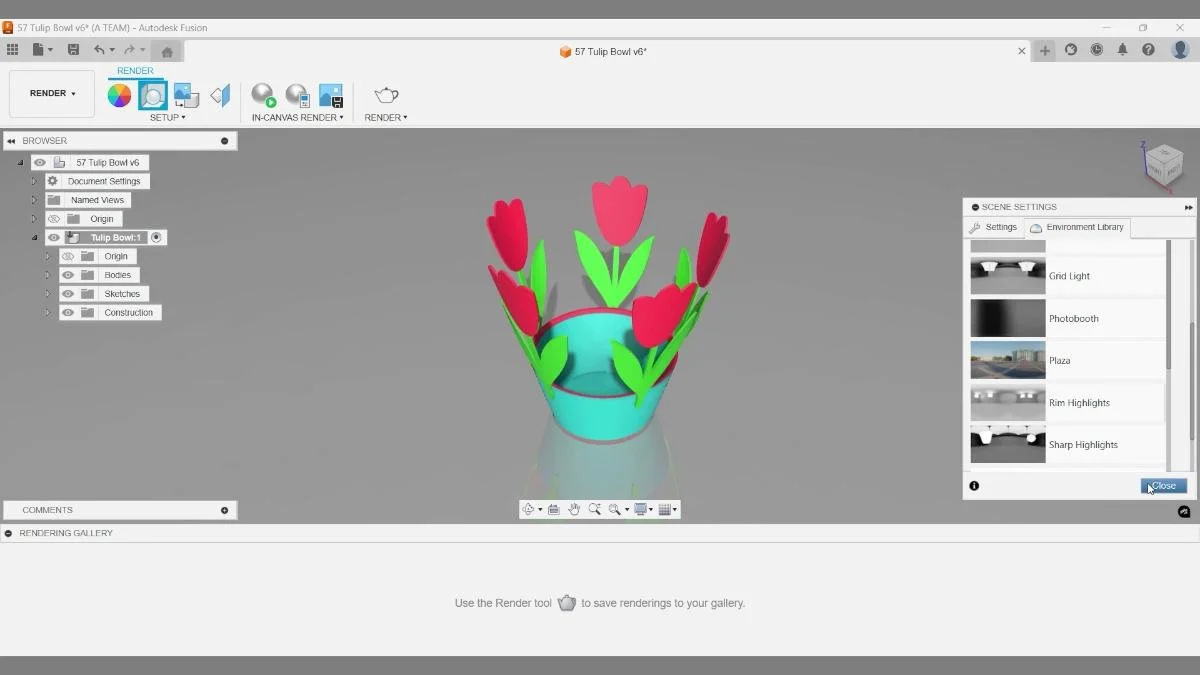

fusion render workspace scene settings for tulip bowl — Scene settings selected in the Fusion render workspace to control lighting and environment for clean tulip bowl preview renders.

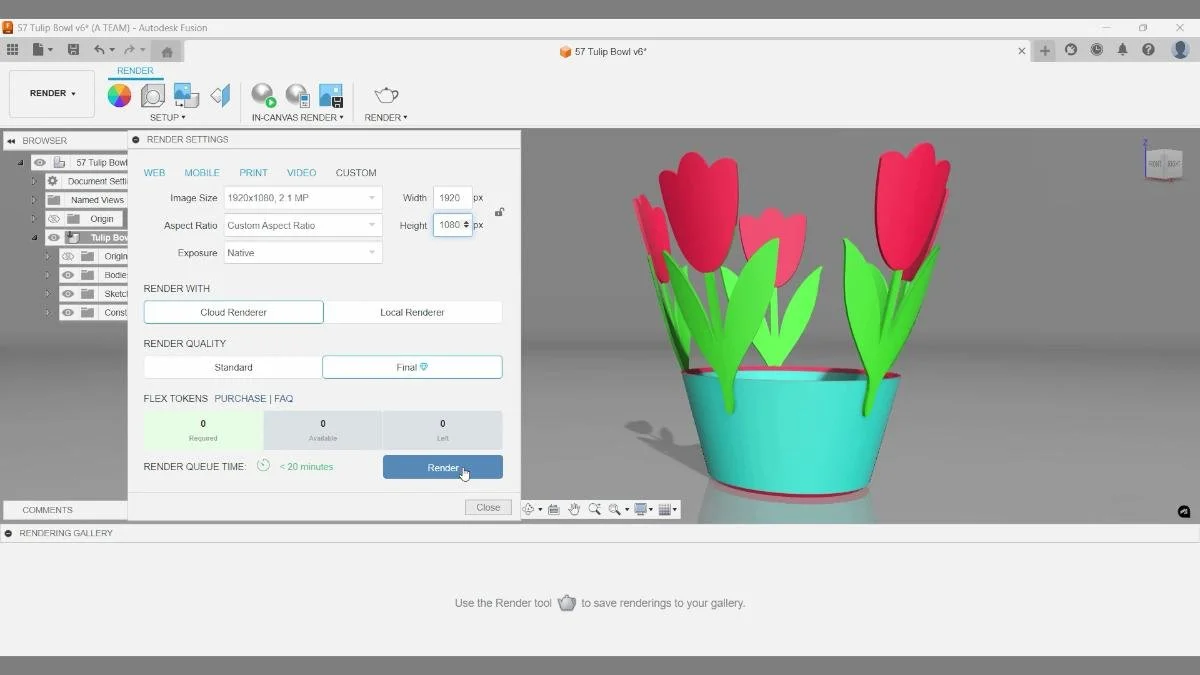

fusion render settings dialog with image size 1920×1080 for tulip bowl — Render settings panel in the Fusion render workspace showing image size set to 1920×1080 for web-ready tulip bowl renders.

Key Takeaways

Start at the origin to future-proof circular and rotational features.
Use Shell for predictable wall thickness and better 3D print reliability.
Construction planes keep ornamental workflows clean and editable.
Emboss is the right tool for wrapping sketches onto curved surfaces.
Feature-based Circular Patterns preserve parametric control.
Chamfers improve both printability and perceived product quality.
Thoughtful appearances and renders directly improve presentation and monetization potential.

If you’re building a portfolio of printable designs, this workflow scales well to other decorative containers and patterned objects. Once you’ve mastered this approach, you can iterate quickly and turn Fusion skills into tangible, sellable products.

🧰 Tools & Deals

I’ve gathered some of the tools, software, and gear I personally use and recommend for CAD work, 3D printing, and making things in one place. Some links may include discounts or special offers that can help you level up your workflows.

Please note: some of the links are affiliate links, which means I may earn a small commission at no extra cost to you. This helps support the site and the creation of free Fusion tutorials.

Explore everything here: The Maker Letters – Tools & Deals .

Watch the full Fusion workflow for designing a 3D-printable tulip bowl, from the first sketch and base geometry to embossed patterns, circular features, chamfers, appearances, and final renders. The video demonstrates practical solid and sketch techniques used in real-world product design, including shelling for wall thickness, offset planes for controlled pattern placement, and revolve cuts for clean decorative details. Ideal for makers and engineers who want to improve Fusion fundamentals while building a visually appealing, printable object you can customize and iterate on for your own projects.
