Designing a 3D-Printed Phone Stand with ChatGPT, Claude, and Autodesk Fusion
Updated September 23, 2026
What happens when you turn a rough Microsoft Paint sketch into a printable phone stand using two AI assistants and Autodesk Fusion (formerly Fusion 360)? This experiment produced a finished model—but it also exposed several expensive and time-consuming mistakes that matter far beyond this one project.
What You’ll Learn
- How to turn a simple concept sketch into a structured design brief
- How ChatGPT and Claude can take different roles in an AI-assisted CAD workflow
- Why conflicting requirements can lead to remodeling, delays, and higher token usage
- How to review AI-generated design information before starting the CAD model
- When to use Claude Opus and when to switch to Sonnet
- How to make a phone stand easier and more reliable to 3D print
Watch the Workflow — or Read It Step by Step
You can follow this guide in two ways:
- Read the steps below if you want quick written instructions, reference images, and modeling notes.
- Watch the full video at the end of this post to see the workflow in real time — including extra tips, camera angles, and shortcuts that don’t fit neatly into text.
Both formats build on each other.
Reading helps you understand why each step matters, while watching shows how to move faster in Fusion.
Step 1: Start with a Simple Concept Sketch
The project began with a rough sketch in Microsoft Paint. The black shape represented the proposed phone stand, while the red shape represented an iPhone 12 Pro in landscape orientation.
The sketch did not need to look polished. Its purpose was to communicate the basic relationship between the phone and the stand: the device orientation, the intended support points, and the overall direction of the design.
A rough image is useful because it gives the AI something spatial to interpret. However, a sketch should not be treated as a complete technical drawing. Before modeling begins, it still needs supporting dimensions, clearly defined priorities, and a statement of which details are conceptual rather than fixed.

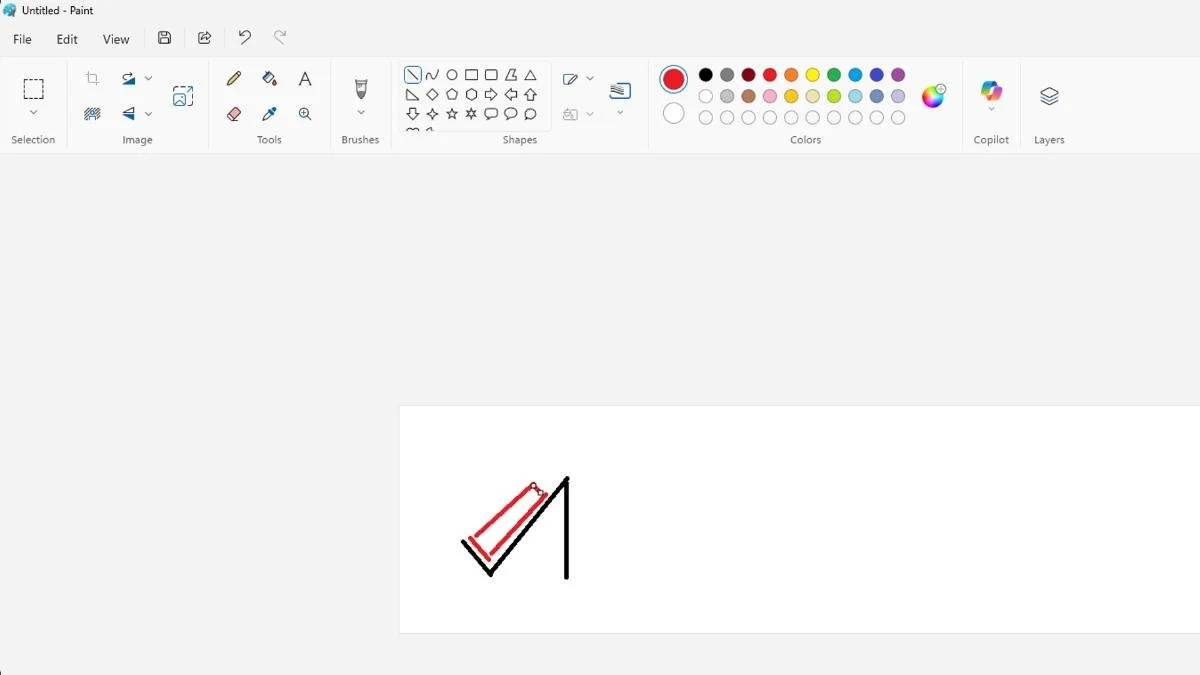

The workflow begins with a simple side-profile sketch in Microsoft Paint. Black lines define the stand while the red outline represents the phone.
Although the sketch communicates the basic relationship between the objects, it contains no dimensions or manufacturing constraints. It therefore serves as concept input rather than a technical drawing.
Step 2: Ask ChatGPT to Develop the Design Brief
I gave the Paint sketch to ChatGPT and explained that the red shape was an iPhone 12 Pro positioned in landscape orientation. I then asked for three outputs:
- Design drawings
- Renderings of the proposed result
- A clear set of requirements for a Scandinavian-style phone stand
This made ChatGPT the design-development stage of the workflow. Its role was to translate an informal idea into information that a CAD agent could act on.

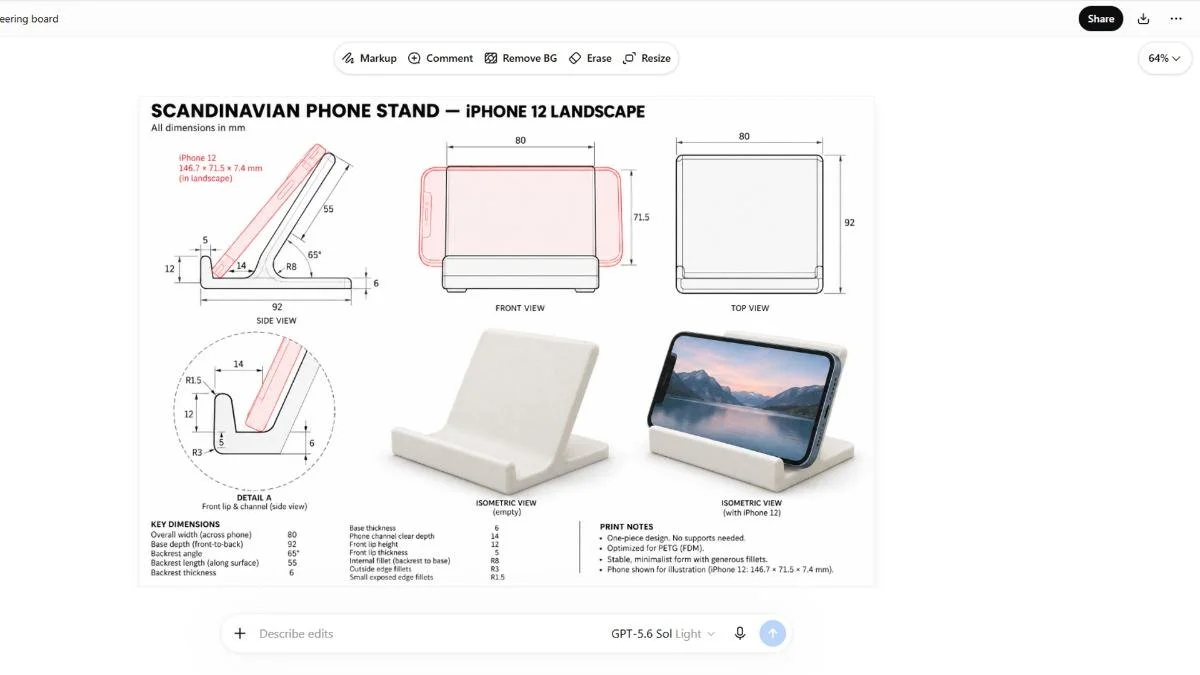

ChatGPT translated the concept into a multi-view design brief for an iPhone 12 in landscape orientation. The proposed stand measures 80 mm wide and 92 mm deep, with a 65-degree backrest angle, 55 mm backrest length and 6 mm structural thickness.
The front lip is 12 mm high and 5 mm thick. Its channel has a stated clear depth of 14 mm, while the transition into the base uses an R8 internal fillet. The document also specifies R3 outside-edge fillets and R1.5 on smaller exposed edges.
The orthographic views, dimension table and renderings should agree before modeling begins. In this case, their proportions contained a contradiction that only became apparent when Claude reconstructed the geometry.
For this type of product, the design brief should define more than appearance. It should also state how the part will be manufactured. A useful brief for fused-filament 3D printing should address:
- The intended print orientation
- Whether supports are acceptable
- Maximum overhang severity
- Minimum practical wall thickness for the chosen nozzle and material
- Contact areas that need enough surface area for bed adhesion
- Fillets or transitions needed to reduce stress concentrations
- Clearance around buttons, ports, and any phone case
These factors affect whether an attractive CAD model becomes a practical printed product. Gentle overhangs can reduce or eliminate support material, a stable print orientation lowers the risk of failed prints, and suitable wall thickness prevents thin features from becoming fragile or slicing unpredictably.
No exact wall thickness, overhang angle, nozzle size, or slicer setting was specified in the original experiment, so those values should be selected and documented before repeating the build.
Step 3: Review the Brief Before Handing It Over
I handed ChatGPT’s output directly to Claude without reviewing it first. That was the central mistake in the experiment.

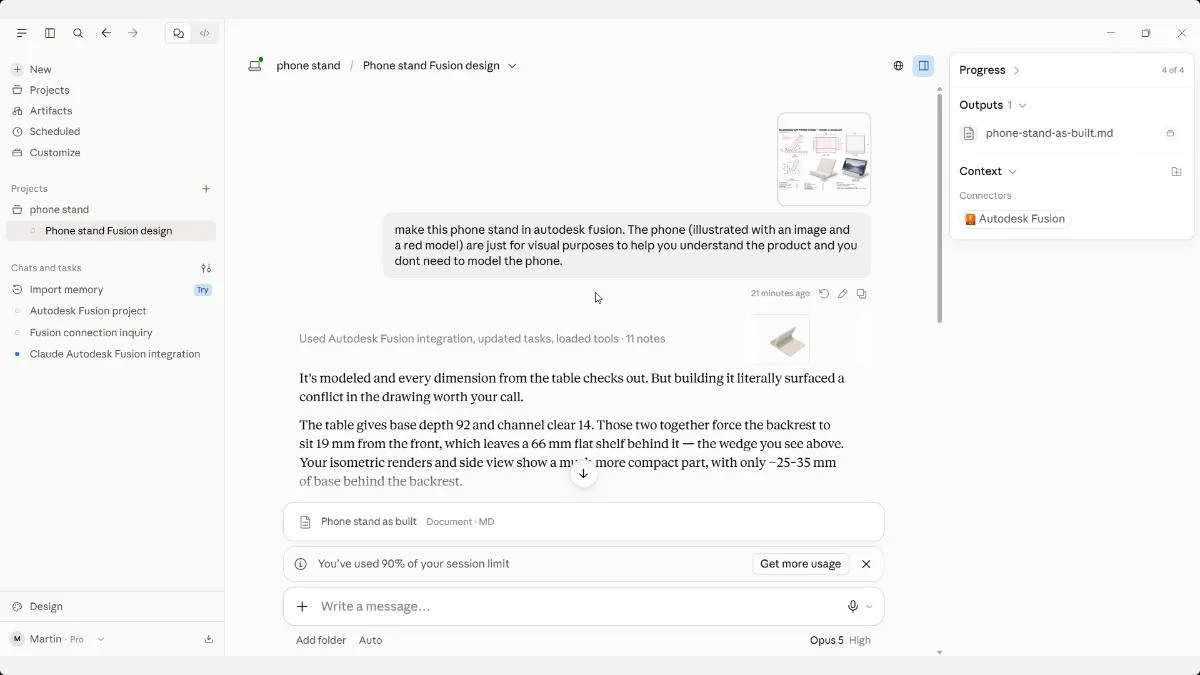

The design brief contained conflicting instructions. Claude followed the information it had been given, encountered problems, and had to remodel several parts. When it could no longer resolve the contradictions reliably, it stopped and asked me which instruction should take priority.
Claude modeled the supplied dimensions through its Autodesk Fusion connection and then reported a conflict between the numerical table and the rendered design.
Combining the stated 92 mm base depth with the 14 mm channel depth positioned the backrest about 19 mm from the front. That produced approximately 66 mm of flat base behind the backrest—far more than the roughly 25–35 mm suggested by the rendered proportions.
Stopping for clarification was preferable to silently selecting one interpretation. The conflict demonstrates why AI-generated drawings still require a design review before being handed to a CAD agent.
This is a useful reminder that AI-generated documentation is still an intermediate deliverable. Before passing it to another model, perform a short design review:
- Check that all views describe the same geometry
- Verify that repeated dimensions agree
- Remove decorative images or views that do not help the modeler
- Separate fixed requirements from optional design preferences
- Identify the intended print orientation
- Confirm that the geometry can be printed without unacceptable overhangs or weak features
- State which source takes priority if the sketch, drawing, and written brief disagree
That review is the human quality-control gate. It can take only a few minutes, but it may prevent a much longer remodeling loop.

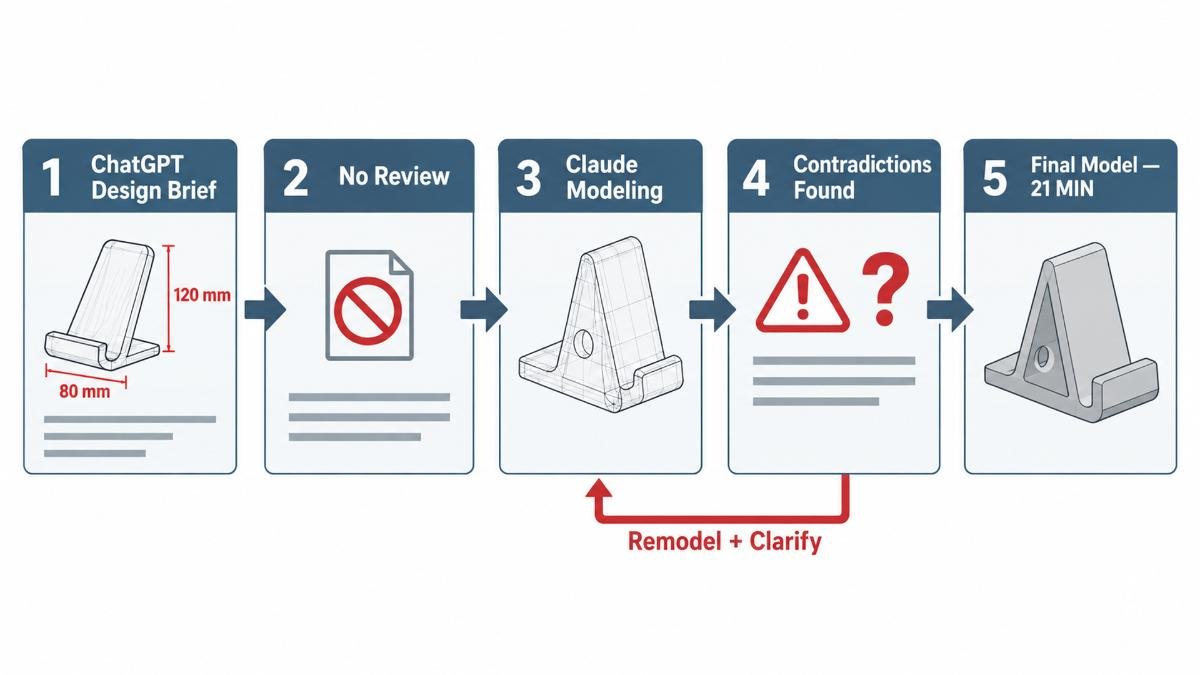

The workflow diagram traces the costly route from an unreviewed ChatGPT design brief to Claude modeling, contradiction detection and corrective remodeling. The final model required 21 minutes to complete.
A CAD agent can execute incorrect requirements accurately. When the brief contradicts itself, the agent must either make an assumption or interrupt the build for clarification. Both outcomes reduce the efficiency expected from an automated Fusion workflow.
The return arrow between contradiction detection and modeling represents work that could have been avoided through a short human review of the drawings, dimensions and rendered proportions.

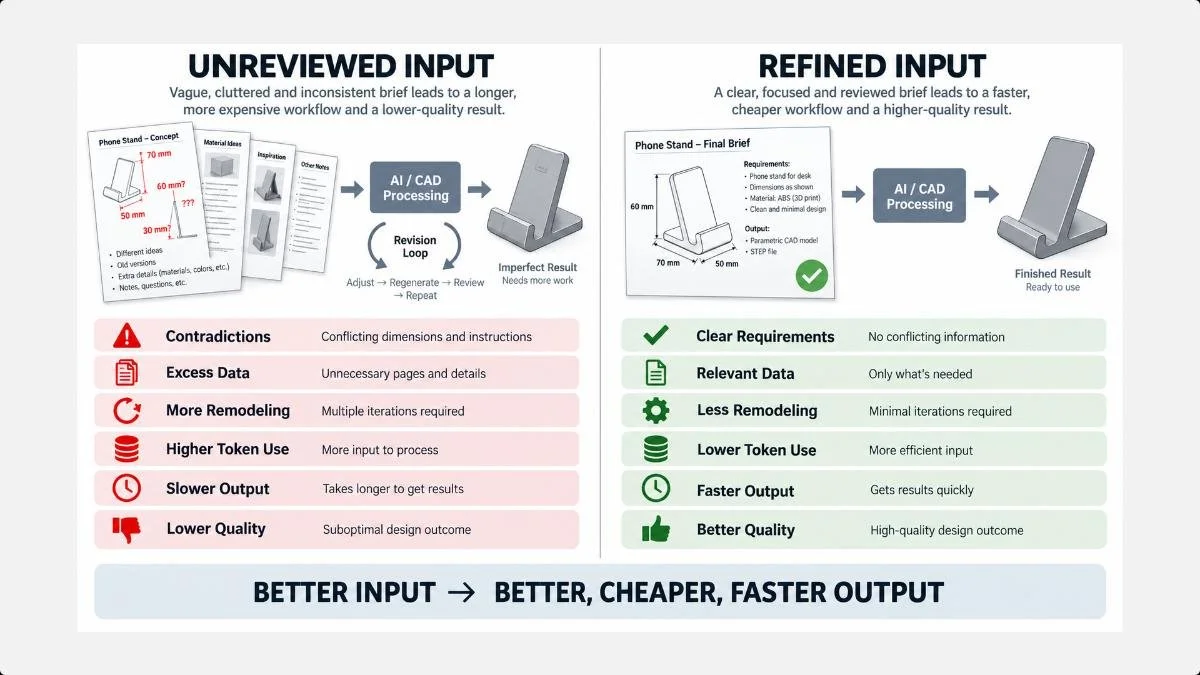

The comparison separates a cluttered, inconsistent design package from a reviewed final brief. Unresolved dimensions, outdated concepts and unnecessary reference material force the AI/CAD workflow through repeated adjustment and regeneration.
A refined package contains one approved design, consistent dimensions, relevant manufacturing information and a defined output such as a parametric CAD model or STEP file. Reducing the input does not mean removing useful evidence; it means removing information that cannot change or verify the model.
Clearer requirements reduce remodeling and token use while making the finished geometry easier to validate.
Step 4: Give Claude a Focused Modeling Package
Claude was responsible for building the phone stand in Autodesk Fusion. The complete modeling process took 21 minutes.
The long runtime was not simply a reflection of model complexity. Claude spent time interpreting contradictory instructions, attempting geometry that later had to be changed, and waiting for clarification.
A better handoff would contain only the information required to build and verify the part:
- One approved concept
- A consistent set of orthographic drawings
- The iPhone 12 Pro shown in landscape orientation
- Confirmed dimensions and clearances
- The required print orientation
- Manufacturing constraints for the selected material and printer
- A short acceptance checklist
Every additional image or paragraph should earn its place. Information that does not change the geometry, manufacturing method, or acceptance criteria can distract the agent and consume tokens without improving the result.

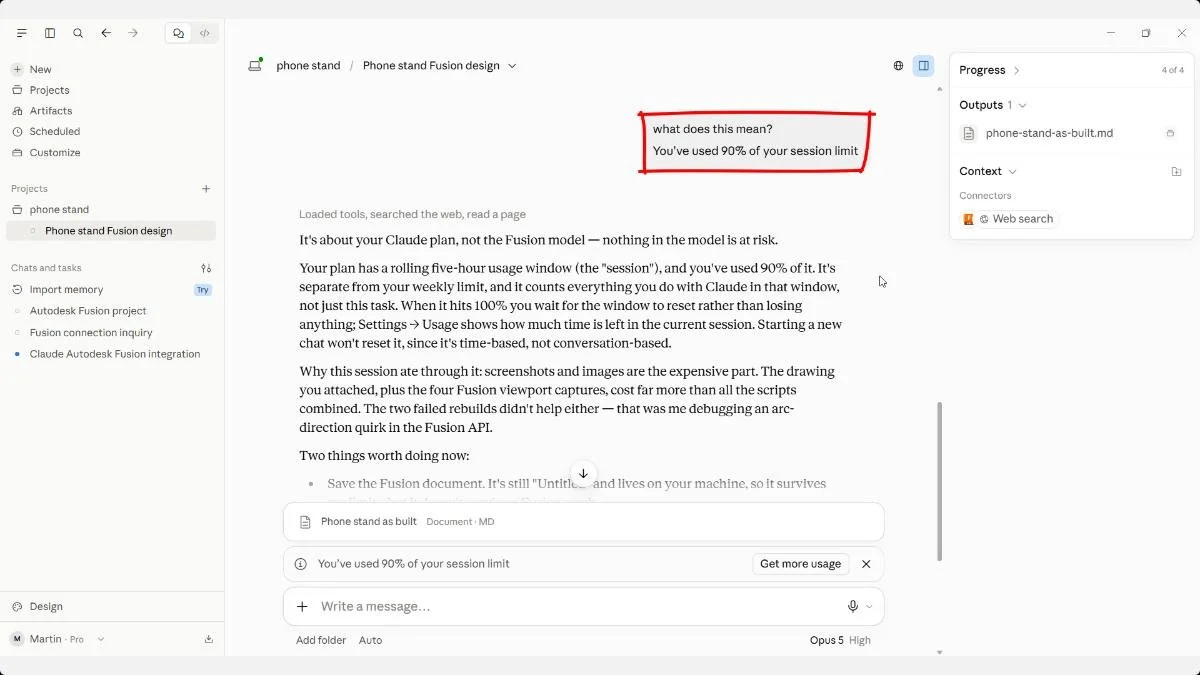

Claude reported that the project had consumed 90% of the available session allowance. The drawing and multiple Fusion viewport captures required substantially more processing than the generated scripts alone.
Two failed rebuilds also increased usage while Claude debugged the model and corrected the profile geometry. Input volume is therefore only part of the cost: contradictory information can multiply usage by creating additional interpretation, rebuilding and verification loops.
The Fusion document itself was not at risk. The warning concerned Claude’s rolling usage allowance rather than the locally created CAD model.

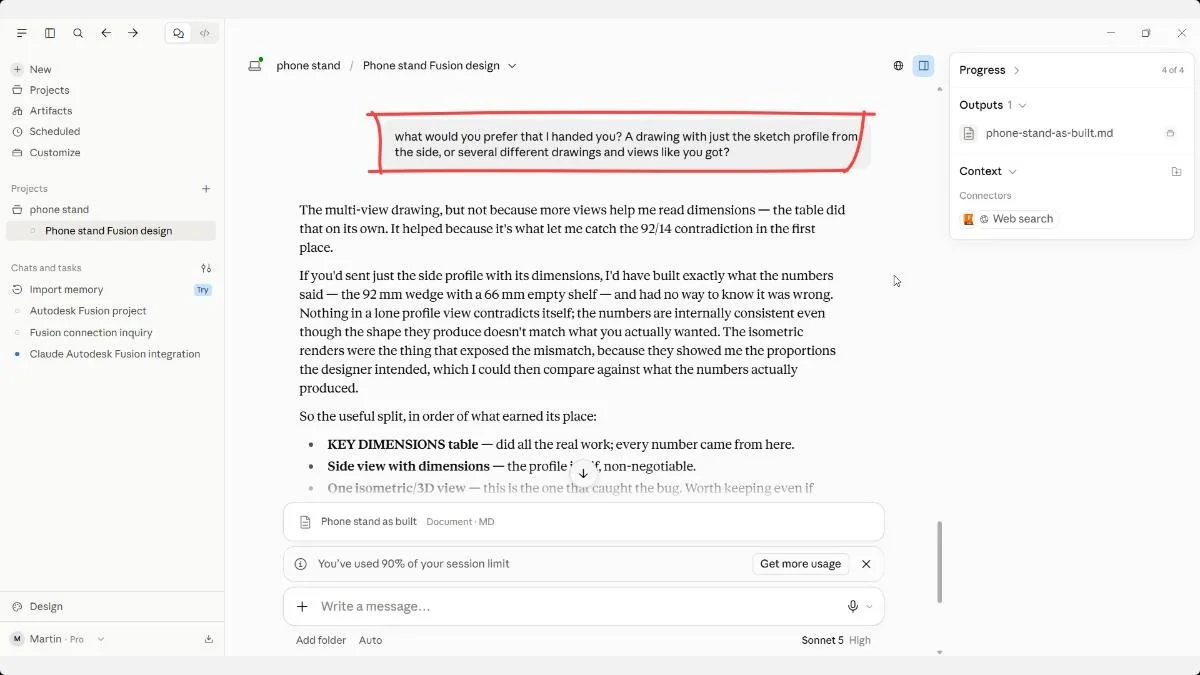

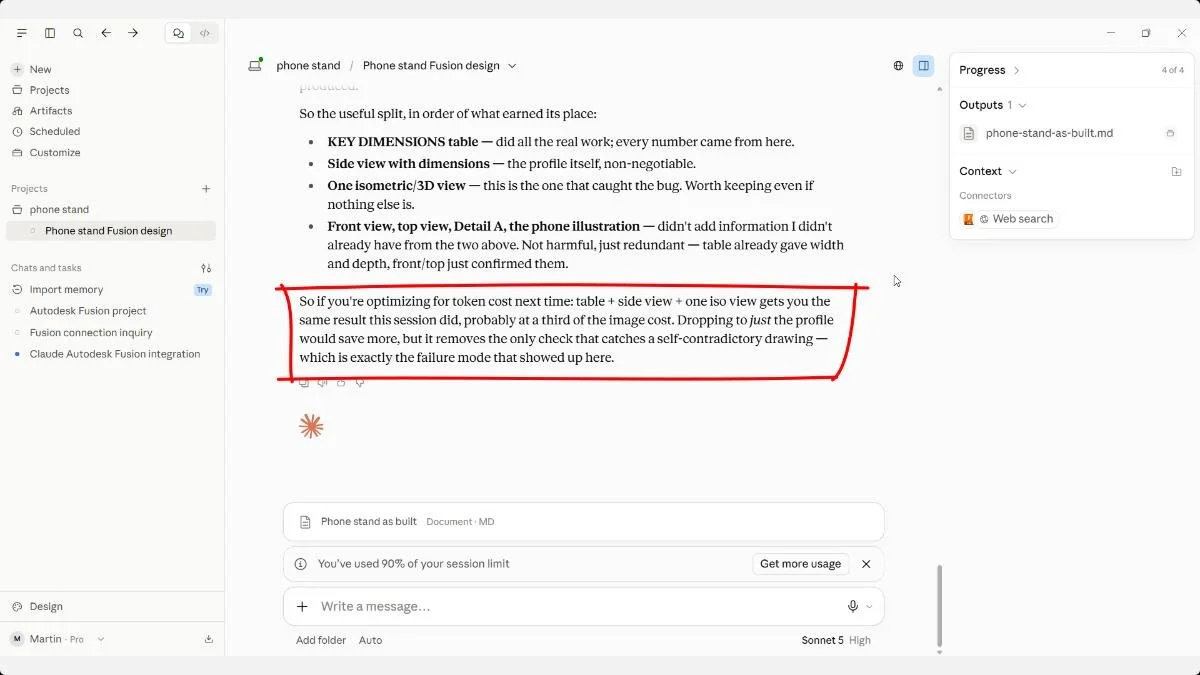

Claude explains why the multi-view package was still valuable despite containing redundant information. The dimensions table supplied the numerical values, while the side view defined the essential profile.
One isometric view provided an independent check against the calculated geometry. Without it, Claude could have built the numerically consistent 92 mm base and 66 mm rear shelf without realizing that the result differed from the intended compact design.
The strongest handoff therefore combines exact dimensions with at least one visual representation capable of revealing proportional errors.
Step 5: Design the Geometry for 3D Printing
Even when AI performs the CAD work, the human still needs to define what makes the model printable. For a phone stand, pay particular attention to the load path from the phone into the base.
The back support and front retaining lip should transition smoothly into the body rather than meeting it through thin, sharp corners. Fillets can reduce local stress concentrations and make the stand feel more intentional, which fits the Scandinavian goal of simple, functional geometry.
Print orientation should be decided before the final details are modeled. Orienting the stand so that its major faces have good bed contact can improve adhesion, while keeping critical surfaces away from steep unsupported angles reduces sagging and support scars. The chosen orientation also determines how layer lines run through the backrest and lip, so it directly affects strength.
Wall thickness should be selected in relation to the nozzle width and slicer perimeter settings. Thin walls that do not resolve into a predictable number of extrusion lines may print inconsistently. Because the source script contains no numerical wall thickness or printer settings, these should be confirmed with a test slice rather than guessed in the CAD model.
Finally, inspect the sliced preview—not only the solid model. Look for isolated first layers, abrupt bridges, very short extrusion paths, unsupported edges, and weak layer orientation around the phone supports.
Step 6: Use Opus for Interpretation and Sonnet for Execution
There is another opportunity to reduce both cost and token usage: assign the right model to each phase.
Claude’s recommended division of work is:
- Opus: interpret drawings, reconcile design intent, and solve ambiguous geometry
- Sonnet: perform the repetitive build-and-verify loop once the design has been resolved
This is similar to using a senior designer for early decisions and a production-focused modeler for execution. The most capable—and expensive—model does not need to handle every sketch operation, feature edit, and verification check.
The switch should happen only after the design intent is stable. If Sonnet receives unresolved contradictions, the project may return to the same clarification and remodeling cycle that made the first attempt inefficient.

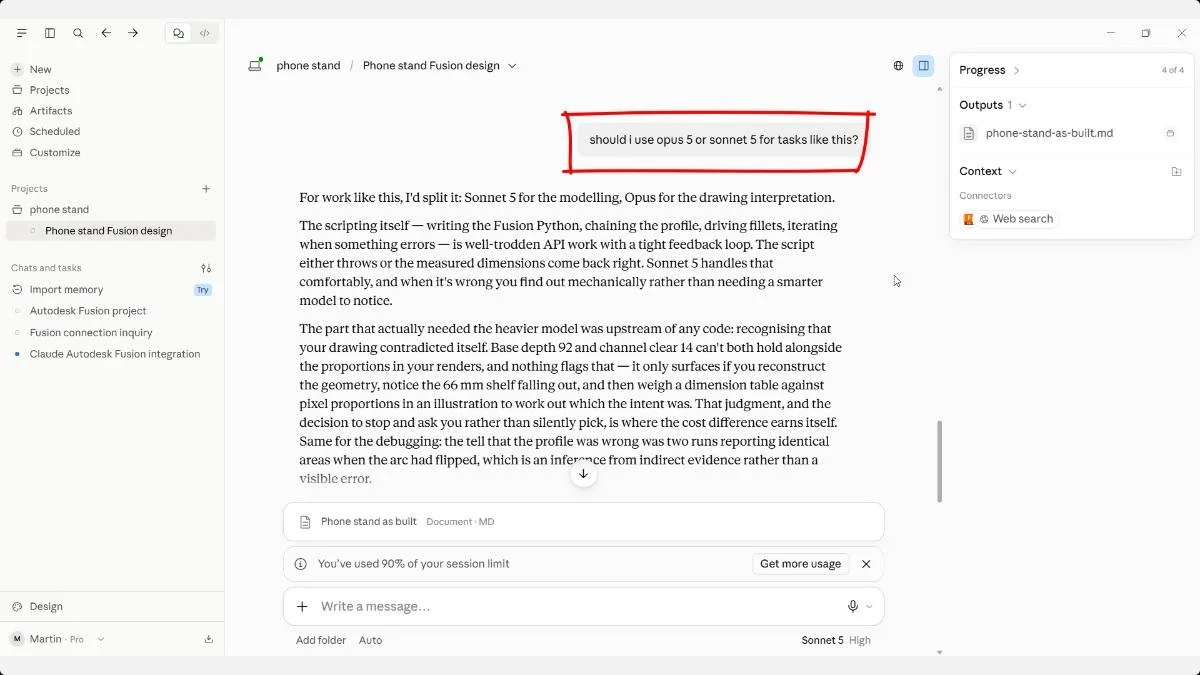

Claude recommends splitting the work between models. Opus handles drawing interpretation and ambiguous design intent, while Sonnet performs the more repetitive Fusion scripting, feature construction and verification loop.
The difficult part of this project was not generating ordinary Fusion geometry. It was recognizing that the 92 mm base depth and 14 mm channel depth produced proportions inconsistent with the supplied renders.
Once those decisions are resolved, the build can move to Sonnet. This reserves the more capable model for judgment-heavy tasks instead of using it for every CAD operation.
Claude identifies three useful inputs: the key-dimensions table, a dimensioned side profile and one isometric view. The front view, top view, detail view and phone illustration largely repeated information already available elsewhere.
Removing redundant views could reduce image-processing cost significantly while retaining the evidence needed to detect contradictory geometry. Supplying only the side profile would be cheaper still, but it would remove the visual cross-check that exposed the error.
A compact handoff should therefore optimize information value rather than simply minimize the number of files.
Step 7: Verify the Model Against Clear Acceptance Criteria
Before exporting the phone stand for printing, compare the finished Fusion model with the approved brief. At minimum, verify that:
- The stand is designed for an iPhone 12 Pro in landscape orientation
- The phone has stable support and cannot easily slide over the retaining feature
- Buttons, ports, and screen areas are not unintentionally blocked
- The selected print orientation provides adequate bed contact
- Overhangs are printable with the intended support strategy
- Wall thicknesses appear correctly in the slicer
- Fillets and transitions do not create unexpected thin regions
- The exported body is watertight and ready for slicing
If a phone case will be used, its extra thickness must be included in the fit check. The original script does not specify a case or dimensional clearance, so this remains a requirement to resolve before calling the model production-ready.
Step 8: Improve the Workflow for the Next Project
The most important improvement is not a different CAD command. It is a clearer chain of responsibility.
For the next AI-assisted Autodesk Fusion project, the workflow should be:
- The human defines the need, constraints, and success criteria.
- ChatGPT develops the concept, drawings, renderings, and draft requirements.
- The human reviews the package, removes contradictions, and approves one design direction.
- Claude Opus interprets any complex drawings and resolves remaining design intent.
- Claude Sonnet builds and verifies the model in Fusion.
- The human reviews the CAD result and sliced preview before printing.
This turns the human into more than a prompt writer. The human becomes the project and design manager: controlling scope, checking information quality, assigning the right tool to each task, and approving the finished result.

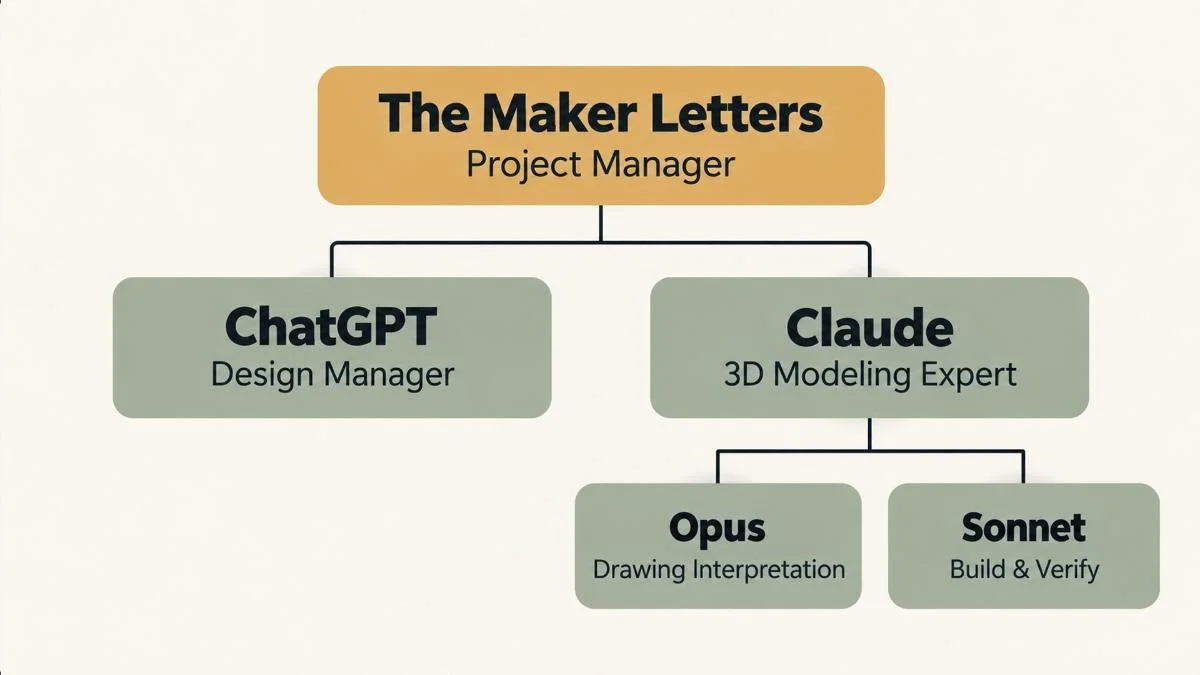

The revised responsibility chart places The Maker Letters in the project-management role. ChatGPT acts as design manager, converting the initial idea into drawings, renderings and structured requirements.
Claude becomes the 3D-modeling specialist. Within that role, Opus interprets drawings and resolves design intent, while Sonnet handles the Fusion build-and-verify cycle.
The human remains responsible for reviewing the design package, resolving contradictions and approving the result before printing. Dividing responsibilities this way creates a controlled workflow instead of passing unchecked AI output directly between systems.
Key Takeaways
- A rough Paint sketch can be enough to begin an AI-assisted 3D-modeling project.
- ChatGPT can translate a concept into drawings, renderings, and structured requirements.
- AI-generated design information should be reviewed before another agent starts modeling.
- Conflicting requirements caused remodeling and contributed to the 21-minute Fusion build time.
- Unnecessary views and instructions increase token usage as well as interpretation risk.
- Print orientation, overhangs, wall thickness, layer direction, and bed contact should be explicit design inputs.
- Opus is best reserved for interpreting drawings and resolving intent, while Sonnet can handle the repetitive build-and-verify loop.
- Better inputs produce better CAD results faster and at a lower cost—whether the modeler is human or AI.
