Design a Parametric Snap Fit in Fusion (formerly Fusion 360) for 3D Printing
Need a snap fit that just works? Designing reliable snap fits for 3D printing doesn't have to involve complicated calculations or advanced CAD techniques. In this tutorial, you'll learn a practical workflow in Fusion (formerly Fusion 360) that produces strong, printable snap fits while keeping your models fully parametric and easy to modify later.
Whether you're designing enclosures, containers, electronics projects, or functional prototypes, this workflow emphasizes fast modeling, support-free printing, and designs that are easy to adapt to future projects.
What You'll Learn
- Design a fully parametric snap fit in Fusion
- Build a support-free snap fit optimized for FDM 3D printing
- Combine solid and surface modeling for greater design flexibility
- Create circular patterns using both Bodies and Features
- Use Offset Extrude for cleaner parametric workflows
- Organize components for efficient STL export
- Prepare the model in Bambu Studio for printing
Watch the Workflow — or Read It Step by Step
You can follow this guide in two ways:
- Read the steps below if you want quick written instructions, reference images, and modeling notes.
- Watch the full video at the end of this post to see the workflow in real time — including extra tips, camera angles, and shortcuts that don’t fit neatly into text.
Both formats build on each other.
Reading helps you understand why each step matters, while watching shows how to move faster in Fusion.
Step 1 — Create the Polygon Base
Start a polygon sketch on the predefined vertical construction plane using the S shortcut to access Design Shortcuts.

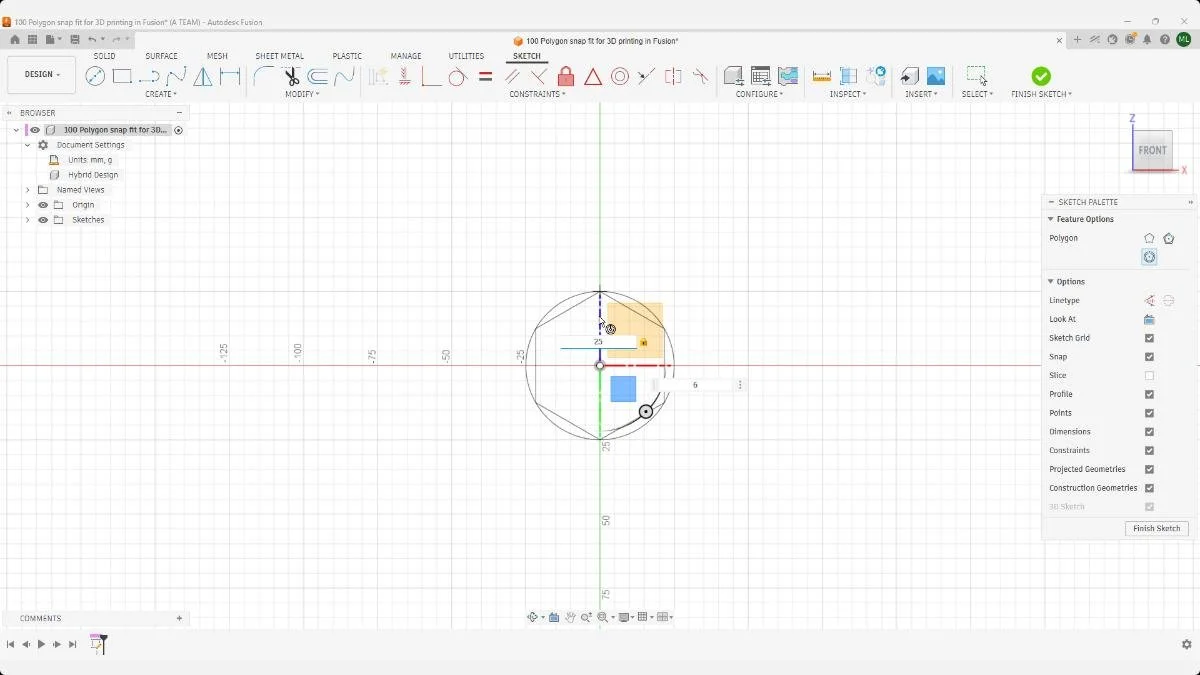

The workflow begins by creating a polygon sketch (25 mm) on Fusion's predefined vertical construction plane. Positioning the sketch on an origin-based reference plane helps keep the entire model symmetrical, making later operations such as mirroring and circular patterning more predictable.
After completing the sketch, the profile is ready to be extruded into the base body. Establishing accurate reference geometry at this stage simplifies every downstream feature in the timeline, especially for parametric models that may require future dimensional changes.
After completing the sketch:
- Press E for Extrude
- Extrude 5 mm

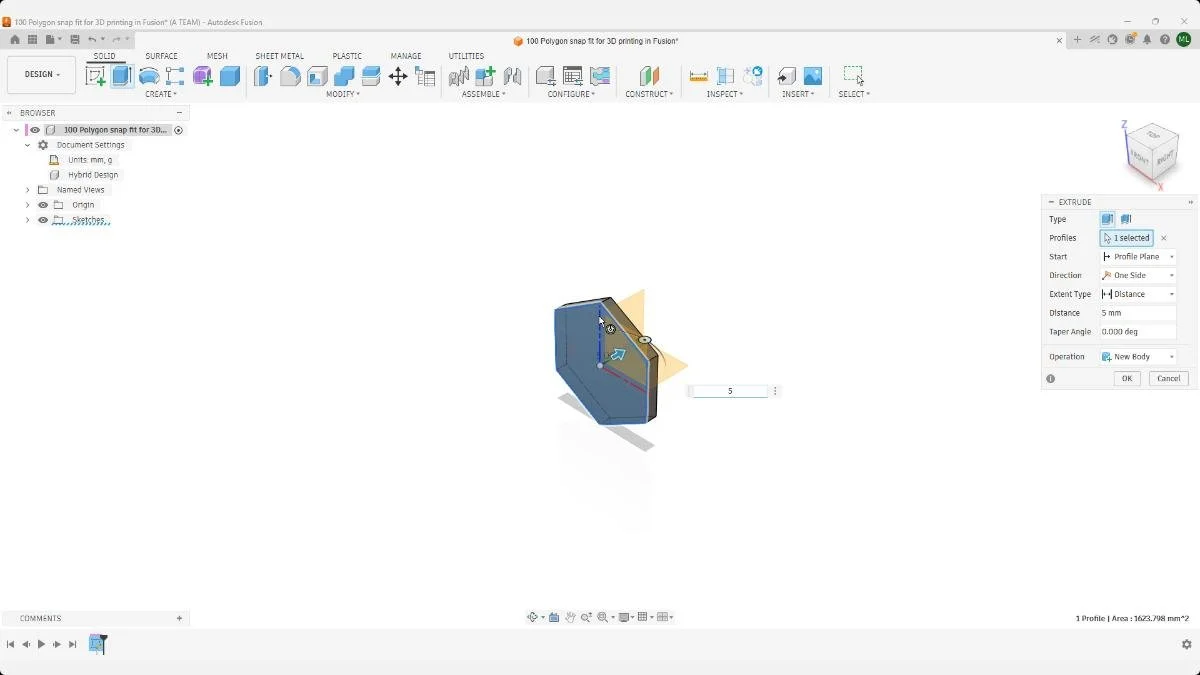

The Extrude command converts the polygon profile into a 5 mm thick solid body. This creates the structural foundation for the snap-fit assembly before any internal features are added.
A 5 mm thickness provides a practical balance between rigidity and print efficiency for most FDM applications. Adding only the material needed for structural performance helps reduce filament consumption and overall print time without sacrificing strength.
Why 5 mm?
A 5 mm thick base creates a part that is rigid enough for most snap-fit applications without wasting material or unnecessarily increasing print time. For functional FDM parts, reducing excess material often produces faster prints while maintaining excellent strength.
Step 2 — Shell the Model
Launch the Shell command using S.
Settings:
- Shell thickness: 3 mm
The Shell command hollows the body while leaving 3 mm thick walls. Instead of modeling thin walls manually, Shell produces a consistent internal cavity that remains fully parametric.
This wall thickness also prepares the model for the upcoming snap-fit opening. Maintaining uniform wall thickness generally improves print consistency and creates more predictable flexibility in functional printed components.
Then remove the bottom using:
- Extrude Cut
- Extent Type: All
Why use "Extent Type: All"?
Using All instead of a fixed distance keeps the model fully parametric. If you later change the wall thickness, the cut automatically updates without requiring additional edits.

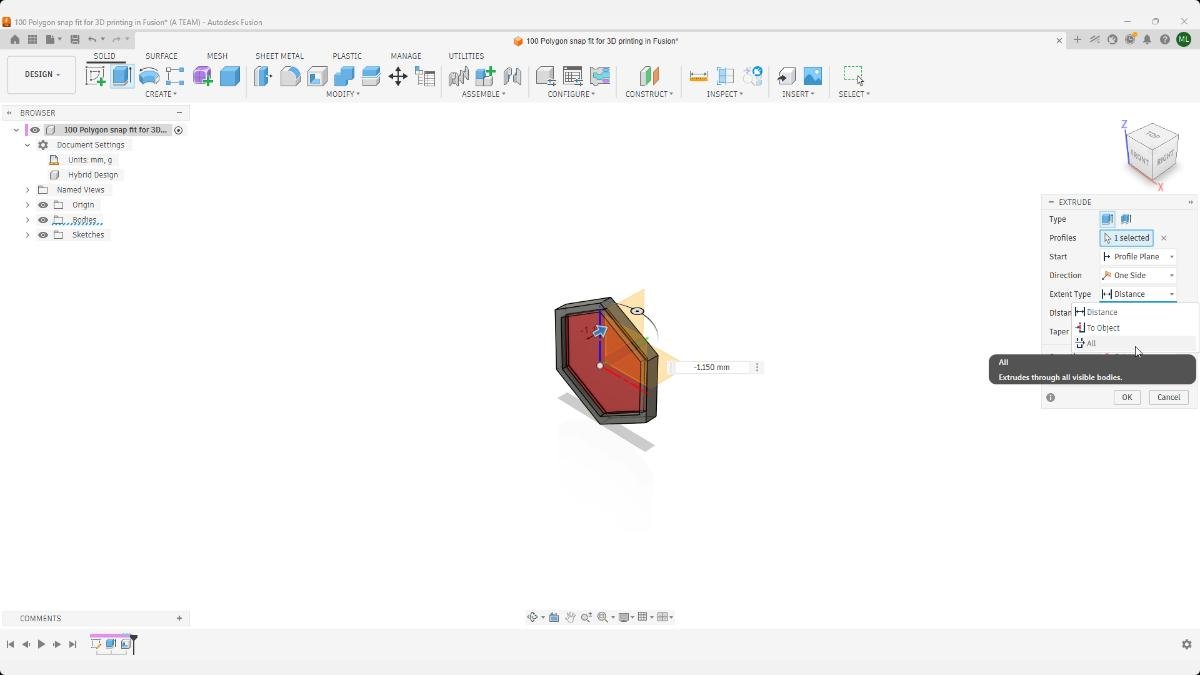

The bottom face is removed with an Extrude Cut using Extent Type: All. Rather than specifying a fixed distance, the cut automatically extends through the entire body regardless of future dimensional changes.
Using Extent Type: All is a robust parametric modeling practice because later adjustments to wall thickness or overall part dimensions do not require the cut feature to be edited separately.
Why 3 mm walls?
The 3 mm shell leaves enough material around the future snap-fit opening to provide:
- good flexibility
- structural strength
- reliable layer bonding
For most PLA, PETG and ABS prints, this thickness provides an excellent balance between stiffness and deflection.
Step 3 — Sketch the Snap-Fit Opening
Create a new sketch on the top face.
Draw a center rectangle measuring:
- 8 mm
- 2.5 mm
Use the Tab key to quickly move between dimensions while sketching.
These dimensions were chosen because the previously created 3 mm shell leaves enough surrounding material for the snap-fit arm to flex without becoming fragile.

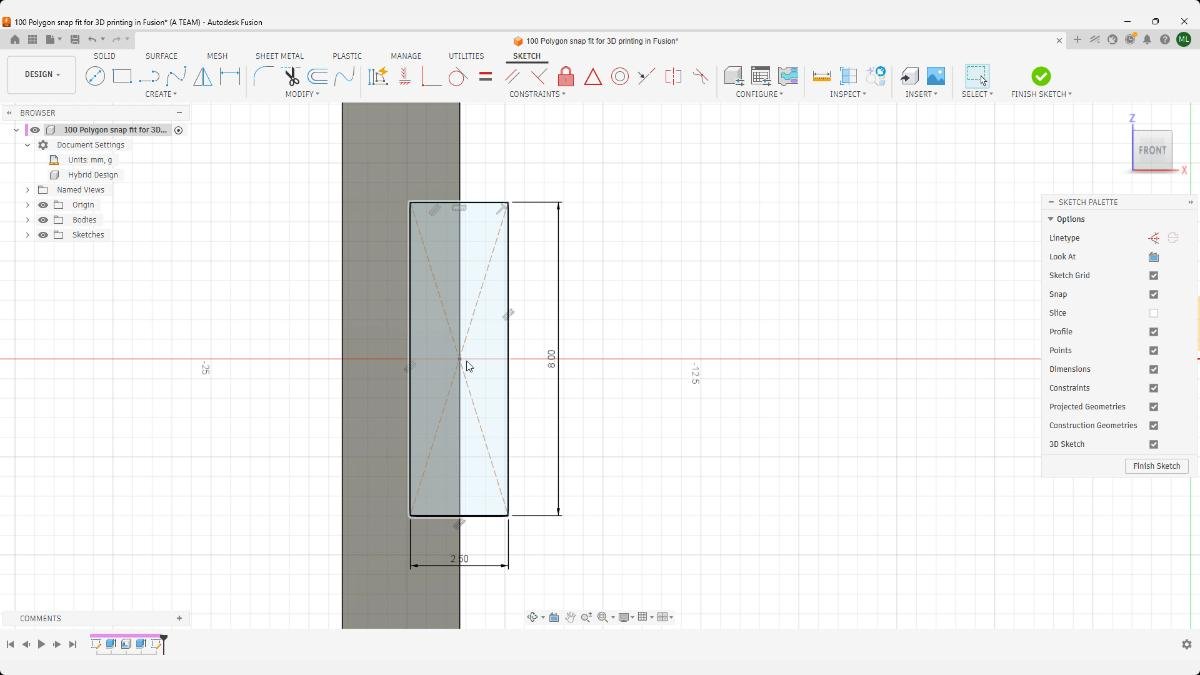

A new sketch is created on the top face containing a center rectangle measuring 8 mm × 2.5 mm. This profile defines the opening that will later become the flexible snap-fit arm.
Using a center rectangle keeps the geometry aligned with the model origin, preserving symmetry throughout the design. Keyboard navigation with the Tab key allows dimensions to be entered quickly without interrupting the sketching workflow.
Step 4 — Cut the Snap-Fit Slot
Extrude the rectangle.
Settings:
- Extent Type: All
- Taper Angle: -10°
The -10° taper creates a lead-in surface that helps guide the mating component into place before the locking feature engages.
Because the cut uses Extent Type: All, future wall-thickness changes won't break the model.

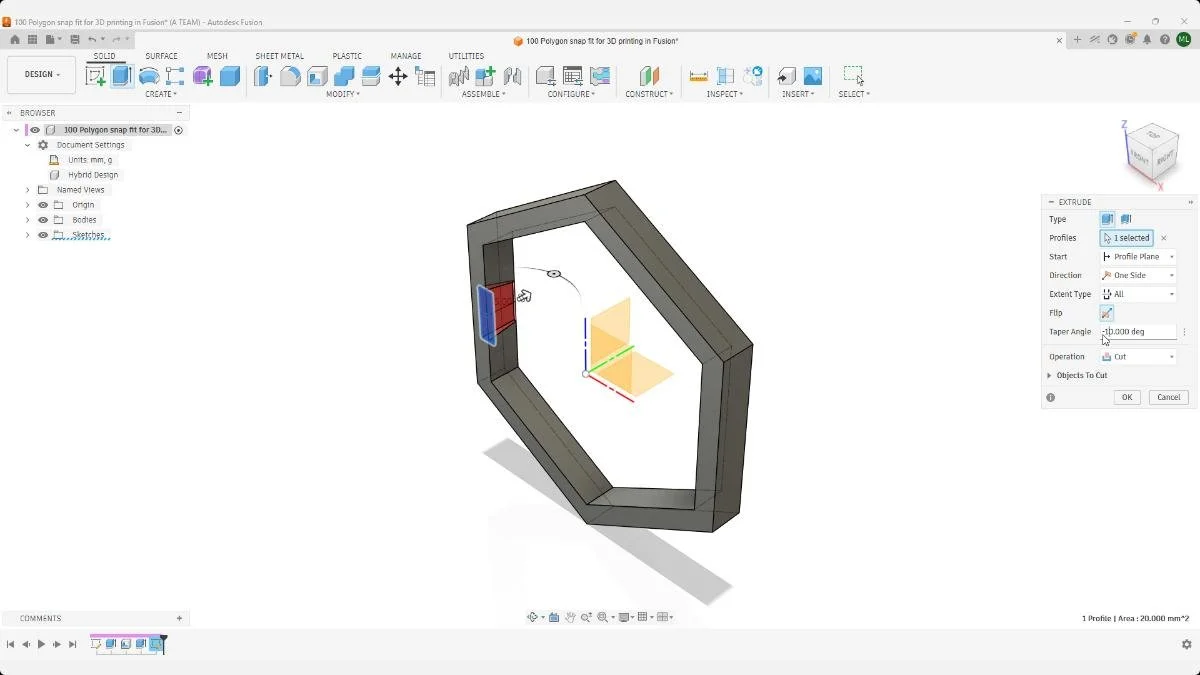

The rectangle is extruded through the body using Extent Type: All while applying a −10° taper angle. The taper transforms a simple rectangular cut into a functional lead-in surface for the future snap-fit mechanism.
This angled surface allows the mating component to slide smoothly into position before the locking feature engages. Without an appropriate lead-in angle, insertion forces typically increase and assembly becomes less forgiving.
Step 5 — Create Clearance Using Surface Modeling
Instead of relying only on solid modeling, use Offset Surface.
Settings:
- Offset distance: 0.2 mm
Why use Offset Surface?
Surface modeling gives much finer control over clearances than many solid modeling workflows.
The 0.2 mm clearance is a strong starting point for most FDM printers using standard nozzles. Actual clearance depends on:
- printer calibration
- material
- nozzle size
- slicer settings
Always print a small test before committing to production parts.

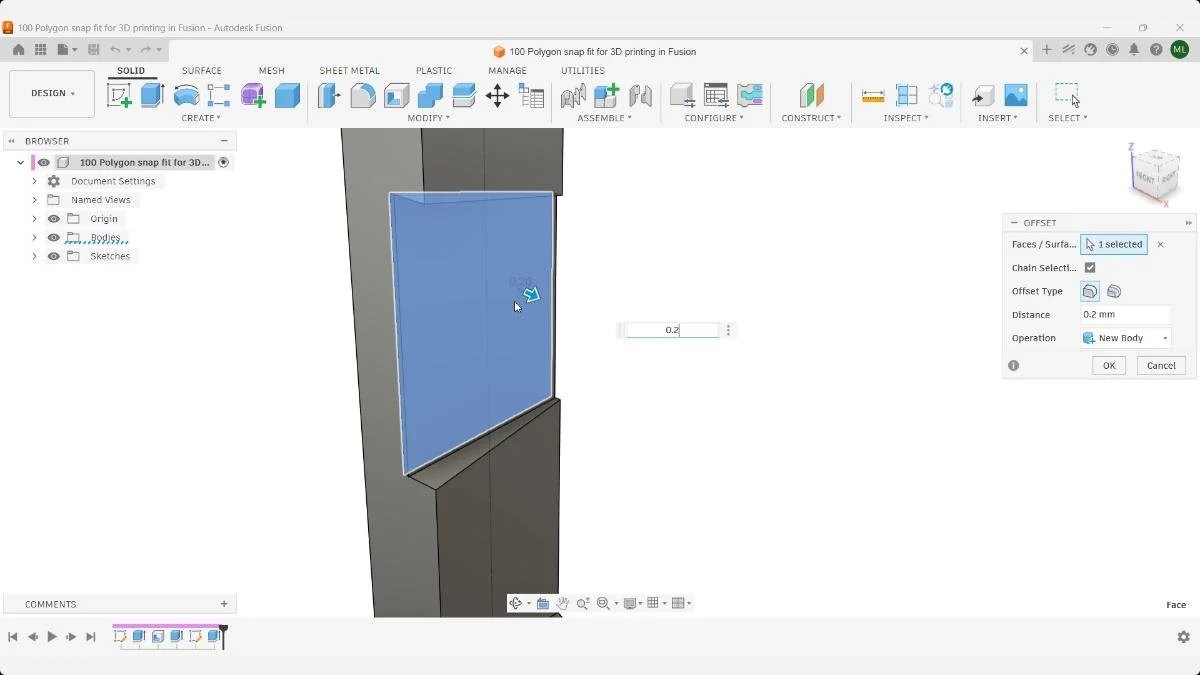

The workflow transitions into surface modeling by applying Offset Surface with a 0.2 mm offset. Rather than modeling clearance manually, the offset produces a consistent gap around the mating geometry.
A 0.2 mm clearance is a reliable starting point for many FDM printers using standard nozzle sizes. Actual clearance requirements vary depending on printer calibration, material selection, and slicer settings, so small test prints are often worthwhile before manufacturing multiple parts.
Step 6 — Build the Snap-Fit Arm
Apply Thicken to the surface.
Thickness:
- 3 mm

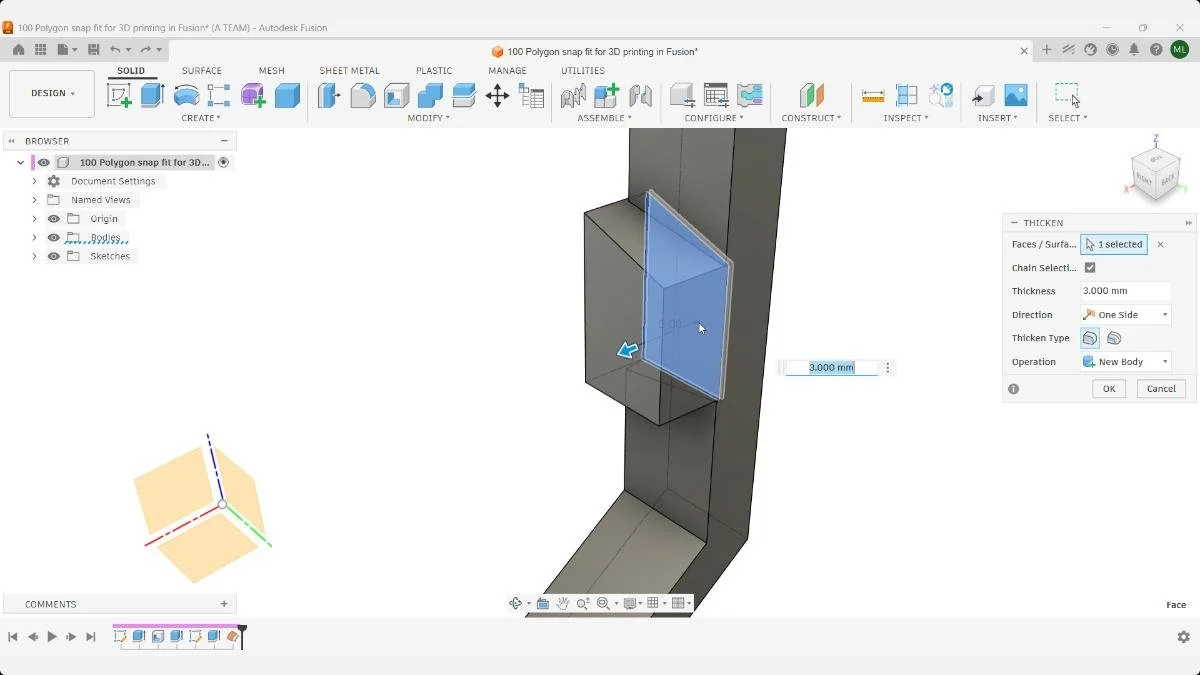

The offset surface is converted into solid geometry using the Thicken command with a thickness of 3 mm. Surface modeling provides flexibility during shape creation, while thickening transforms the result into a printable solid.
This thickness creates a snap-fit arm that combines adequate stiffness with controlled flexibility. Building the feature from surfaces also makes it easier to adjust clearances independently from the surrounding body.
Mirror the body across the center plane.
Operation:
- New Body
Keeping the snap-fit arm as a separate body allows you to refine it independently before combining the entire model.

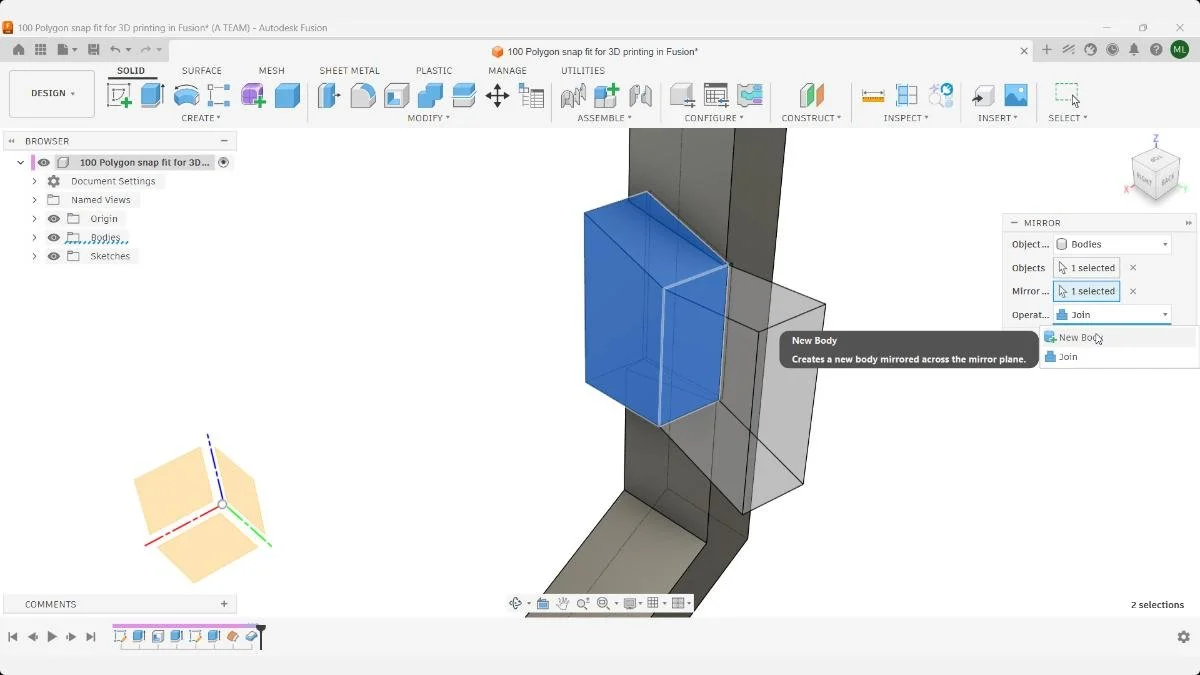

The completed snap-fit arm is mirrored across the center plane using the Mirror command with the operation set to New Body. Creating an independent body keeps both halves editable before they are merged into the final design.
Separating bodies during development makes it easier to experiment with dimensions, tapers, or locking features without affecting the rest of the model. Once the design has been verified, the bodies can be combined into a single solid.
Step 7 — Create the Locking Feature
Switch back to the Solid workspace.
Extrude the isolated body.
Settings:
- Distance: 2 mm
- Taper Angle: -45°
- Operation: New Body

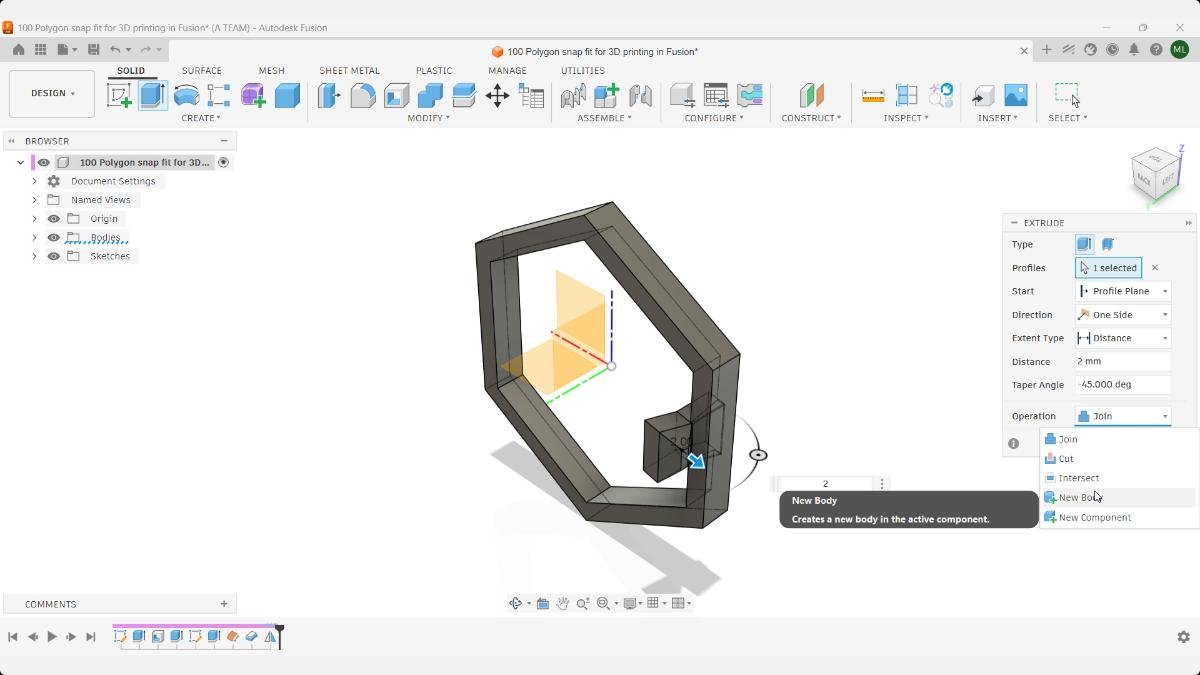

Back in the Solid workspace, the isolated snap-fit body is extruded 2 mm to create the locking feature that catches behind the polygon frame. The operation remains set to New Body, allowing the geometry to be refined independently before joining it to the rest of the snap fit.
A −45° taper angle creates an angled surface that is much friendlier to FDM printing than a horizontal overhang. When the part is oriented correctly on the build plate, the 45-degree geometry can be printed without support material while still forming a functional locking feature.
Why use a -45° taper?
For FDM printing, 45° overhangs are widely considered self-supporting.
Designing the locking feature with a -45° taper means:
- no support material
- cleaner surface finish
- faster printing
- easier post-processing
This is an excellent example of designing specifically for additive manufacturing rather than traditional machining.
Step 8 — Apply Fillets
Press F.
Apply:
- 1 mm fillet
Fillets do more than improve appearance.
They also:
- reduce stress concentrations
- improve user comfort
- strengthen printed corners
- improve overall durability
At this stage, the goal is functionality. Once the snap fit works reliably, you can further optimize the fillets for aesthetics or strength.

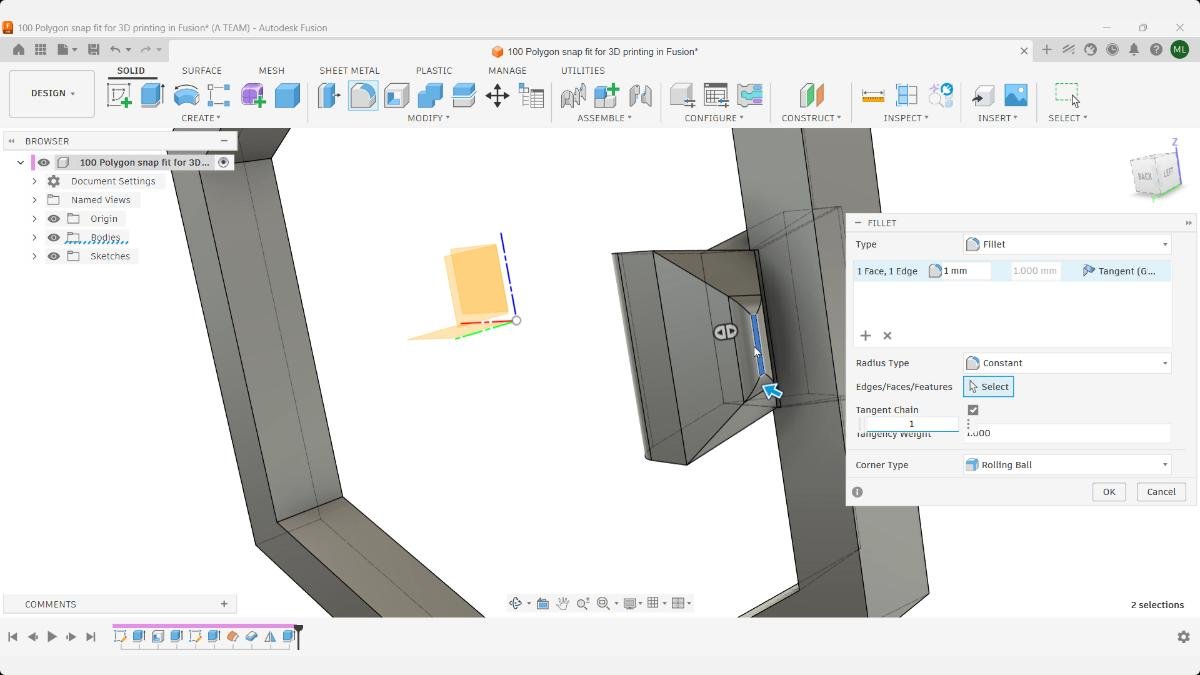

A 1 mm fillet is applied to the snap-fit geometry using the Fillet command, available quickly with the F shortcut. The rounded transition removes the sharp edge where stresses would otherwise become concentrated.
Fillets are particularly relevant to functional 3D printed parts because abrupt changes in geometry can become weak points under repeated flexing. At this stage, the 1 mm value is a practical starting point rather than something that needs extensive optimization before the mechanism has been test printed.
Step 9 — Finish the Geometry
Extrude the opposite end.
Operation:
- Join
Unlike the previous feature, this geometry no longer needs to remain independent.
Gradually combining bodies keeps the model easier to manage while still allowing flexibility during development.

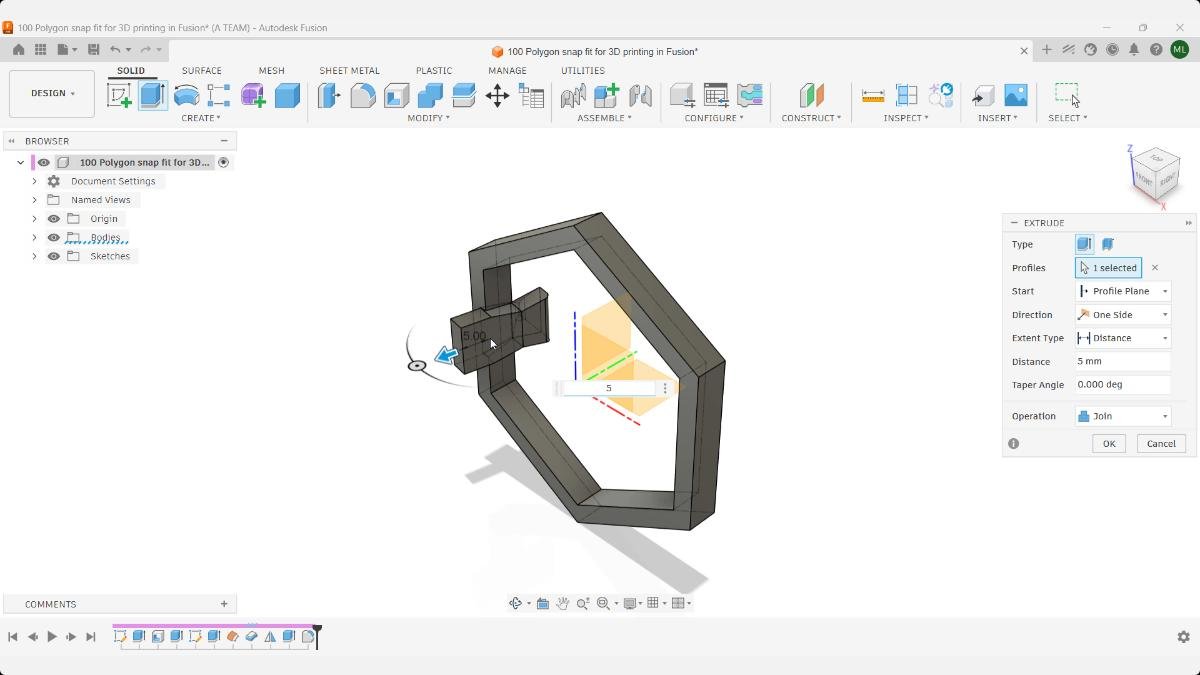

The opposite end of the snap-fit body is extended using Extrude, this time with the operation set to Join. The added geometry therefore becomes part of the existing solid instead of creating another independent body.
This marks a useful transition in the modeling workflow: separate bodies are retained while they provide editing flexibility, then joined once there is no longer a practical reason to manage them independently.
Step 10 — Combine Bodies and Create a Circular Pattern
Hide the polygon body.
Select the remaining bodies using Shift.
Combine them into a single body.

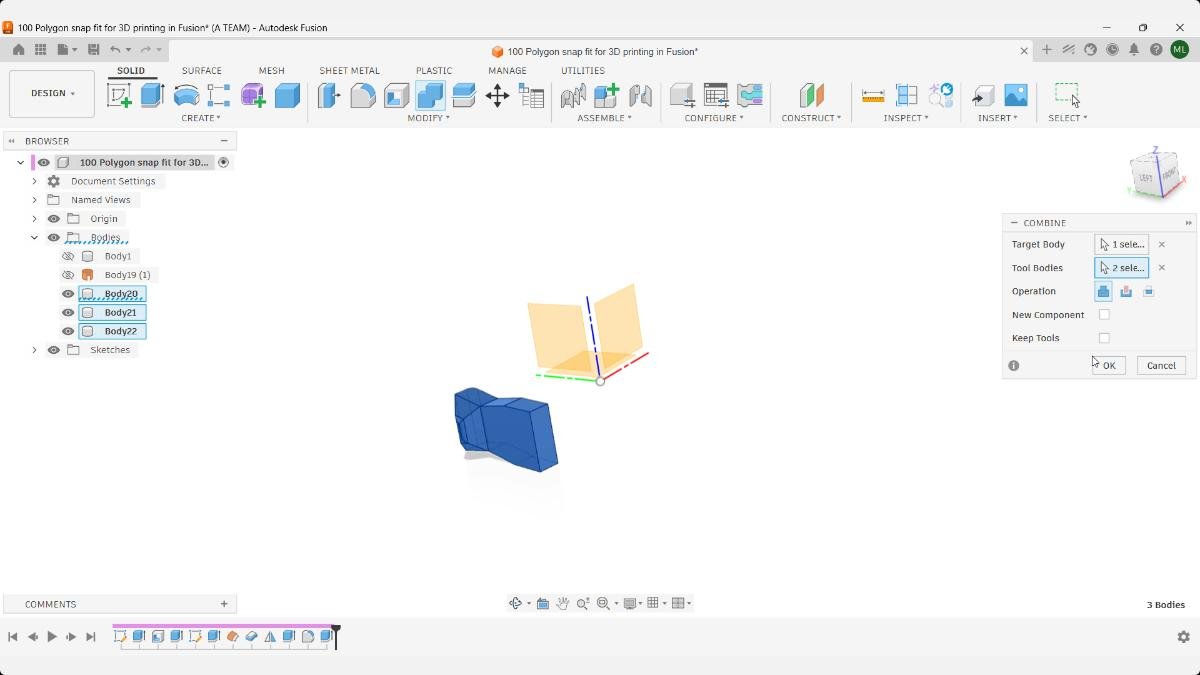

The polygon body is temporarily hidden so the remaining snap-fit bodies can be selected without accidentally including surrounding geometry. Multiple bodies are selected with Shift and merged using the Combine command.
Consolidating the completed snap-fit geometry into one body makes the next pattern operation simpler. Temporarily hiding unrelated bodies is also an effective way to reduce selection errors as Fusion models become more complex.
Next, create a Circular Pattern.
Settings:
- Object Type: Bodies
- Instances: 6
Because the model is centered on the origin, the circular pattern aligns perfectly with the construction axis.

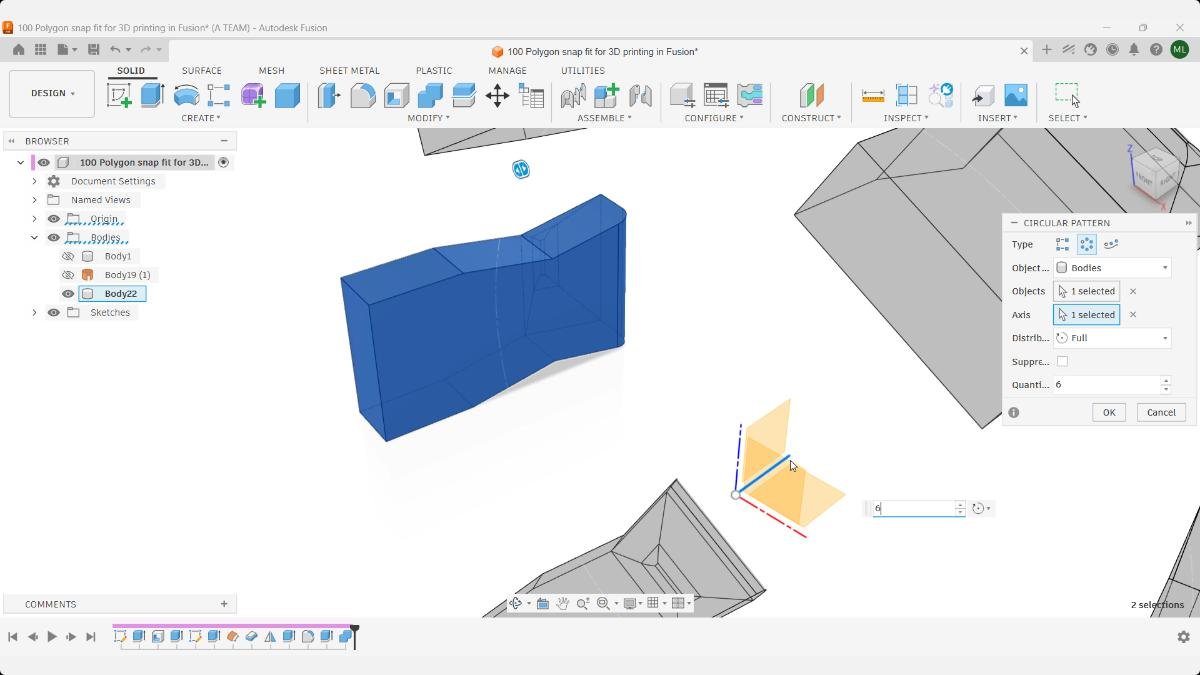

The completed snap-fit body is repeated around the model using Circular Pattern with Object Type: Bodies and six instances. The pattern uses the model's central construction axis, which is available because the original geometry was built around the origin.
Patterning the finished body is considerably faster than modeling each snap fit independently and guarantees identical geometry at every position. The quantity of six is used for this project, but the instance count can be changed to suit different polygon geometries or retention requirements.
Step 11 — Pattern the Cut Features
Now repeat the process for the polygon cutouts.
This time change:
- Object Type: Features instead of Bodies.

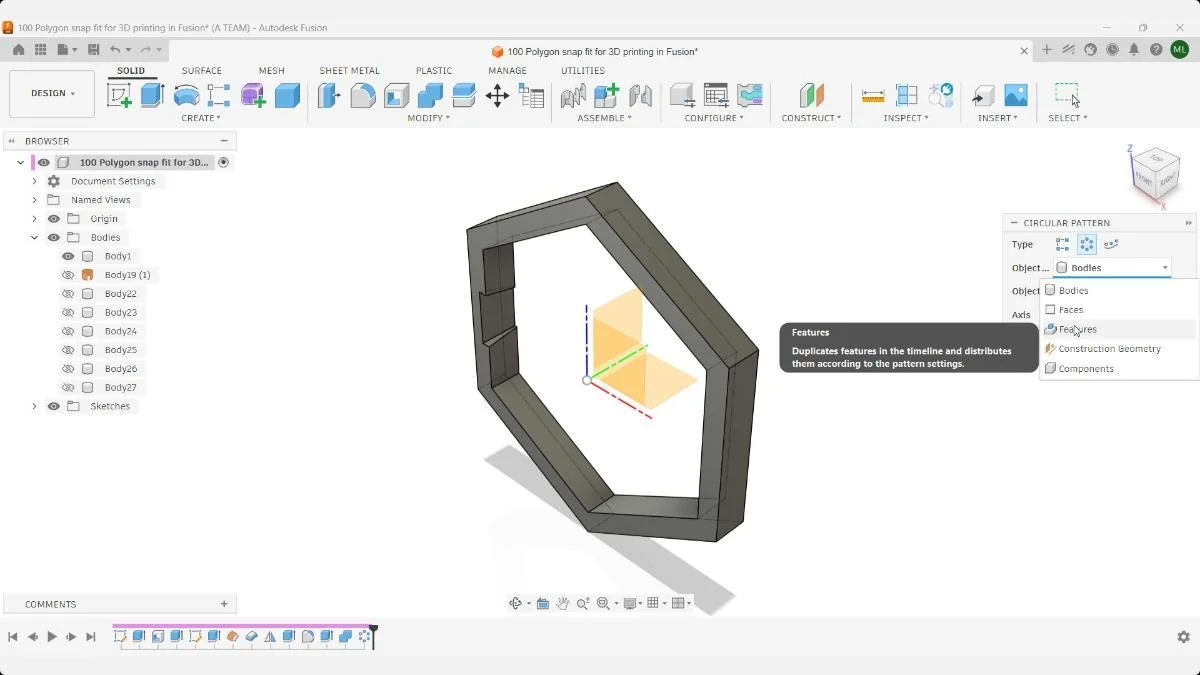

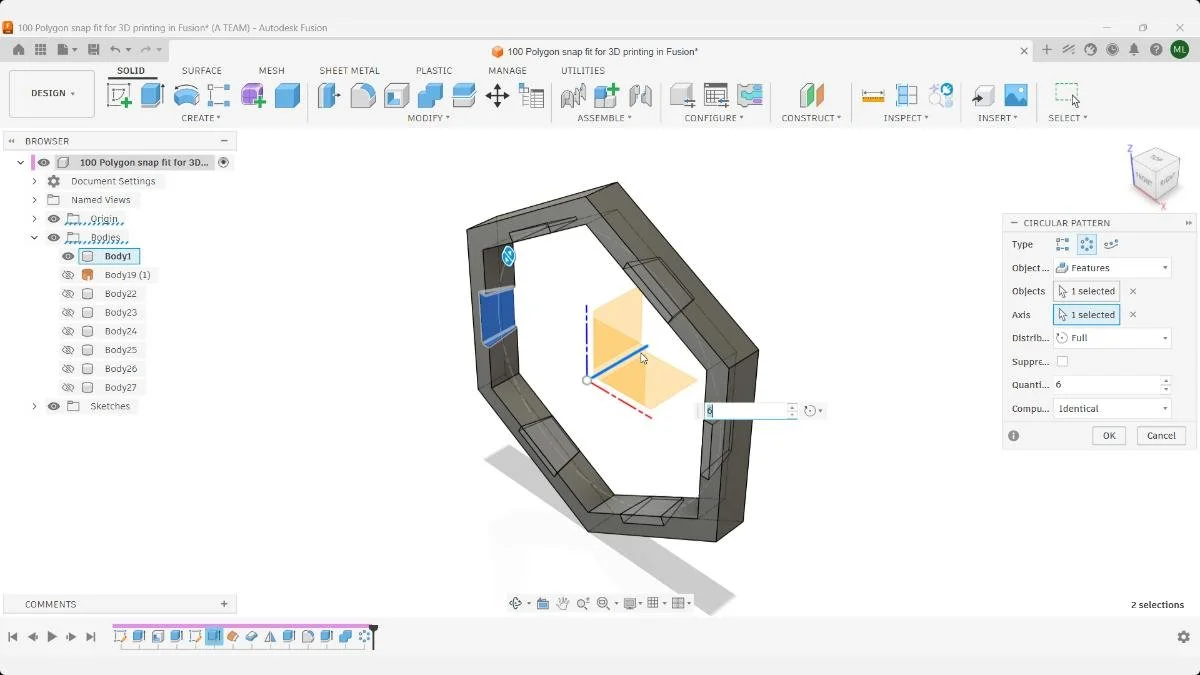

The second Circular Pattern targets the openings in the polygon rather than the snap-fit bodies themselves. In the Circular Pattern dialog, Object Type is therefore changed from Bodies to Features.
This distinction matters because the opening was created as an Extrude Cut in the Fusion timeline. Selecting the feature rather than surrounding geometry allows Fusion to reproduce the original modeling operation around the same axis.
Since an Extrude Cut exists in Fusion's timeline as a feature, this approach keeps the entire model fully parametric.
The selected Extrude Cut is patterned around the same central axis used for the snap-fit bodies. This aligns each opening with its corresponding locking geometry while maintaining the relationship between the two sets of features.
Reusing the same axis reduces the number of independent references in the model. If the base geometry changes later, both patterns remain tied to the model's central construction geometry rather than manually positioned references.
Step 12 — Use Offset Extrude
Create a sketch on the rear face.
Draw a center-diameter circle that reaches the outside edge of the polygon frame.
Important:
Reference the polygon frame—not the angled snap-fit legs.

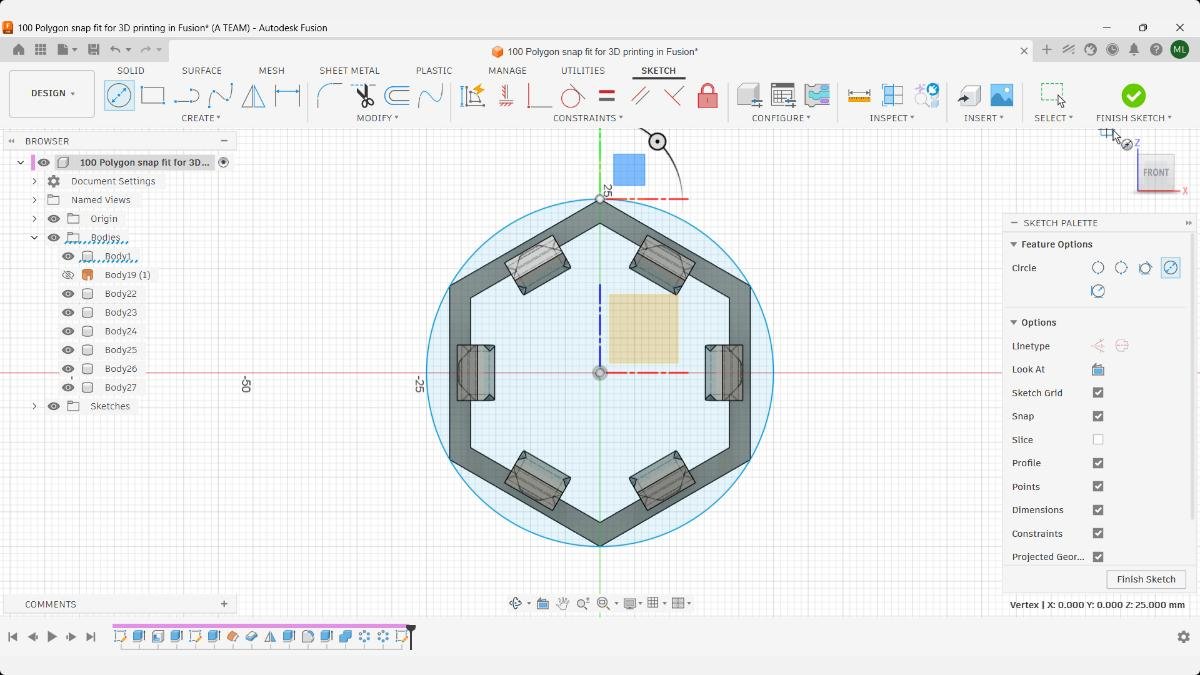

A new sketch is created on the back face of the polygon, and a center-diameter circle is drawn until it reaches the outside edge of the polygon frame. The polygon itself is used as the dimensional reference rather than the angled snap-fit legs.
Referencing the frame is important because the snap-fit legs are tapered. Using those angled surfaces to size the circle could create an unwanted gap between the circular plate and the legs when the next extrusion is added.
Next, launch Extrude.
Settings:
- Start: Offset
- Offset distance: 4 mm
- Operation: Join

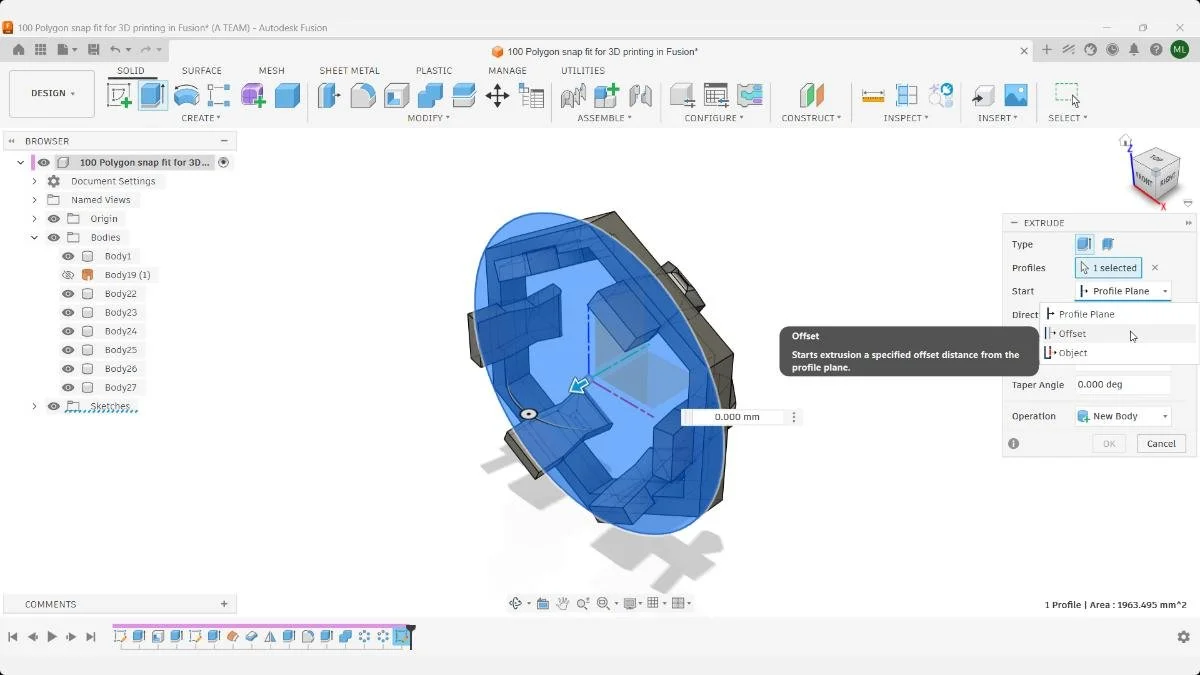

The Extrude command is launched from the circular profile, but its Start setting is changed from Profile Plane to Offset. This allows the extrusion to begin away from the sketch plane without creating another construction plane or additional sketch.
Using an offset start can keep the Fusion timeline cleaner when the desired geometry is parallel to an existing sketch but needs to originate at a different depth. The next step defines the exact offset and joins the new geometry to the snap-fit assembly.
Why Offset Extrude?
Many users overlook the Start Offset option.
Instead of creating unnecessary construction geometry, Offset Extrude allows you to build clean parametric features directly from existing sketches while preserving design intent.

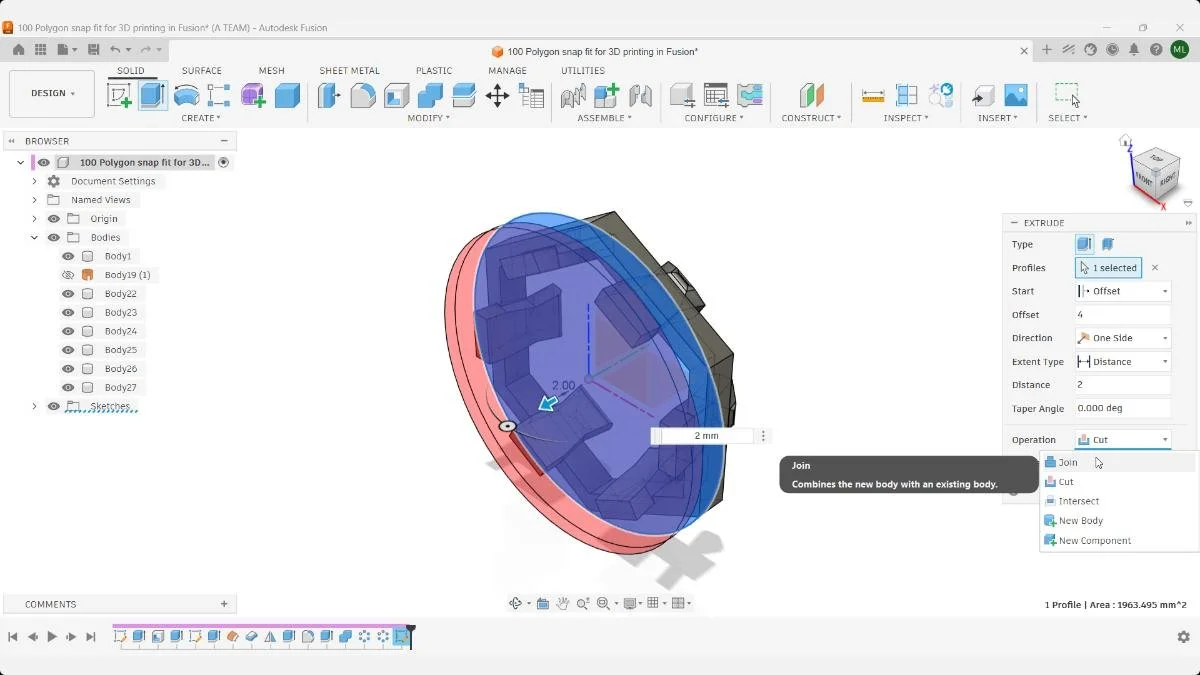

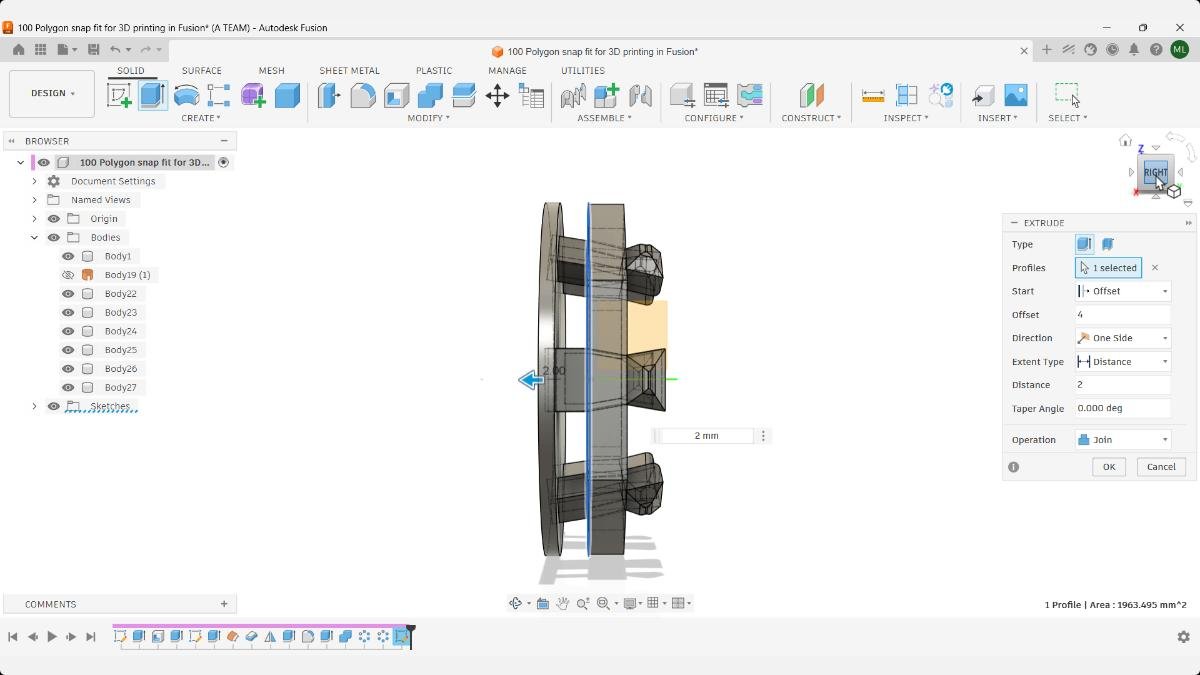

The circular profile uses Extrude with the start position set to Offset and an offset distance of 4 mm. The operation is changed to Join, connecting the new circular geometry directly to the snap-fit legs.
Starting the extrusion 4 mm away from the sketch plane places the plate at the required depth without adding another construction plane. This is a compact parametric workflow when an extrusion needs to start parallel to—but not directly on—its sketch.
Rotating the model while the Extrude command remains active provides a clearer view of the 4 mm offset and the resulting connection between the circular plate and snap-fit legs.
Fusion's ViewCube can be used during an active command without cancelling the operation. Inspecting geometry from multiple angles is particularly helpful with offset and tapered features, where an apparently correct front view can conceal gaps or unintended intersections.
Step 13 — Create Components

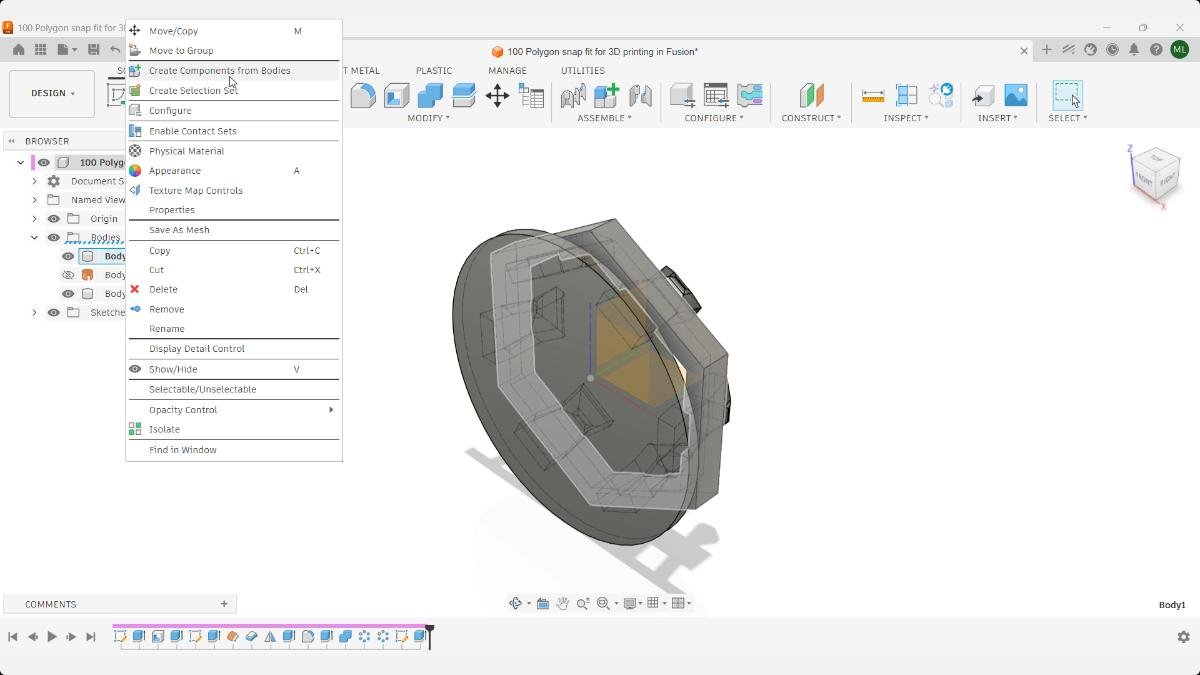

Your Browser should now contain two bodies.
Right-click each body.
Choose:
Create Components from Bodies
Keeping printable parts as separate components makes them easier to:
- export
- modify
- assign different print settings
- arrange inside the slicer
The finished model now consists of two separate printable bodies. Each is converted using Create Components from Bodies from the Fusion Browser.
Components provide a cleaner structure for parts that will ultimately exist as separate physical objects. They can be managed independently in Fusion and exported separately without breaking the relationship between the parts in the original design.
Step 14 — Export STL Files
Right-click each component.
Choose:
Save as Mesh
For this project:
- Default Refinement Settings
produce excellent STL quality.
Only increase refinement when your geometry contains highly curved surfaces that visibly require additional tessellation.

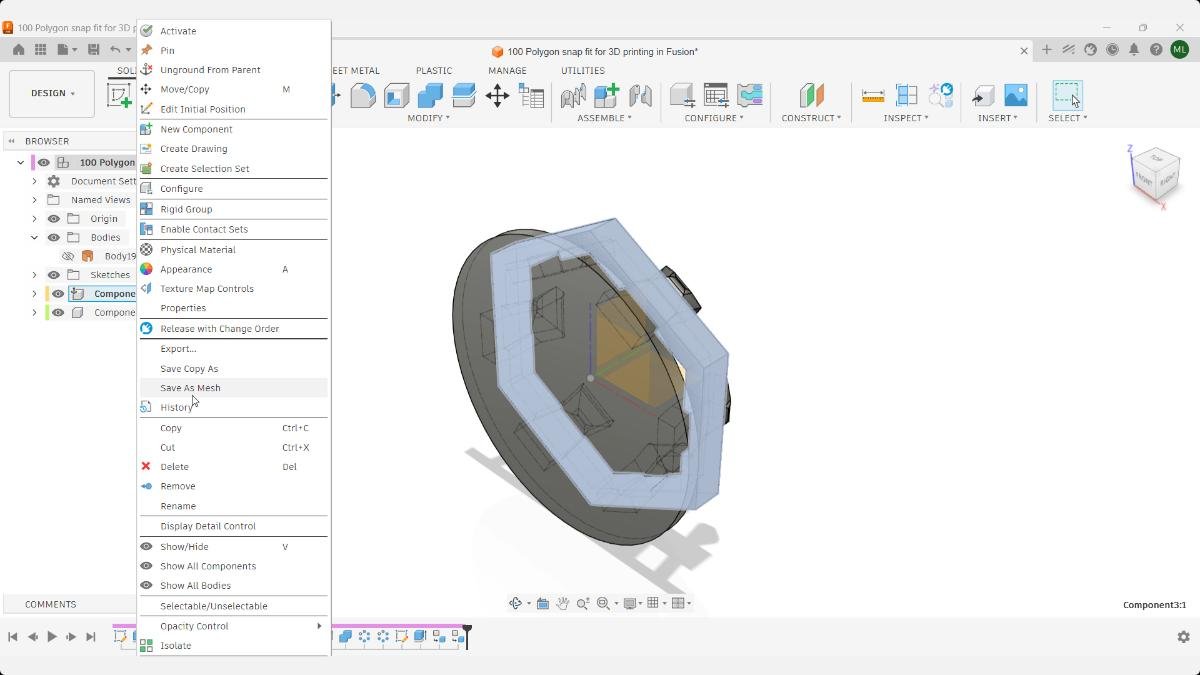

Each component is exported through Save as Mesh for use in the slicer. For this model, the default Refinement Settings provide sufficient mesh quality, so no additional tessellation settings are required.
Higher mesh refinement is not automatically better for 3D printing. Excessive refinement can produce unnecessarily large STL files without improving the printed result, particularly on predominantly planar geometry such as this snap-fit design.
Step 15 — Prepare the Print in Bambu Studio
Import both STL files.

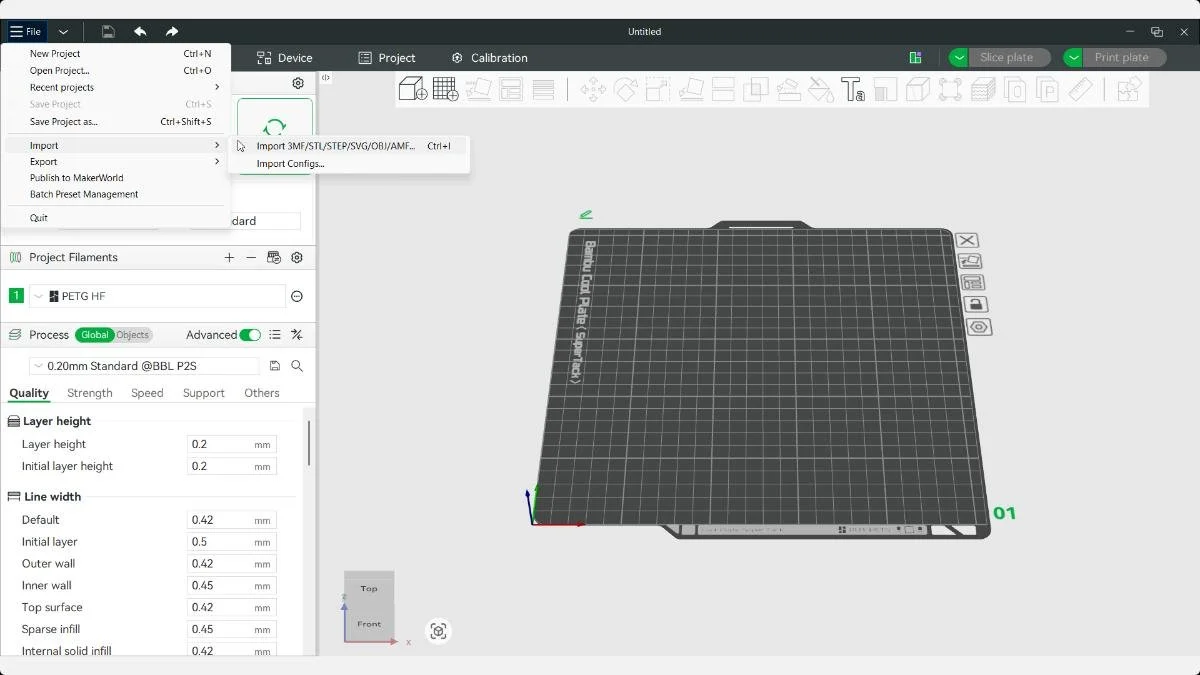

Both STL files are imported into Bambu Studio after being exported separately from Fusion. The same basic workflow can be used in other modern FDM slicers.
Keeping the mating parts as separate files preserves independent control over their orientation and placement. It also makes it possible to apply different per-object slicer settings later if testing reveals that one component needs different print parameters.
When prompted choose:
No
to load them as:
Multiple Objects

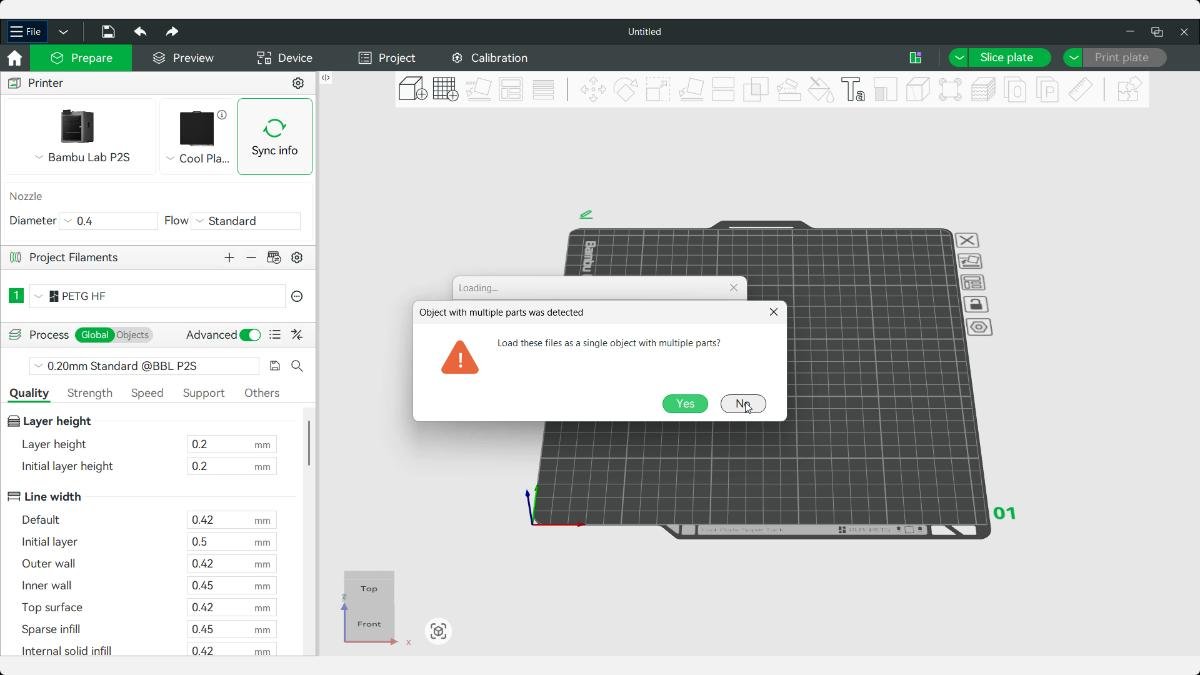

When Bambu Studio asks whether the selected files should be loaded as a single object with multiple parts, choose No. The two STL files are then imported as multiple independent objects.
Loading them independently is important for this workflow because each component needs its own build-plate orientation. Combining them into one object would make independent positioning less convenient and could interfere with the intended support-free arrangement.
Rotate each component so its flat face sits directly on the build plate.
The imported snap-fit components are rotated so their flat faces rest on the build plate. Each object can then be positioned independently before slicing.
Print orientation is part of the mechanical design rather than merely a slicer decision. Placing broad, flat surfaces against the build plate improves stability and allows the −45° locking geometry to print without support material.
Avoiding supports also preserves the mating surfaces. Support removal can leave dimensional irregularities precisely where a snap fit needs predictable clearance and smooth engagement.
Why print this orientation?
Printing on the flat faces:
- eliminates supports
- improves dimensional accuracy
- produces stronger layer orientation
- reduces print time
- creates cleaner locking surfaces
Leave enough spacing between both components for reliable printing.

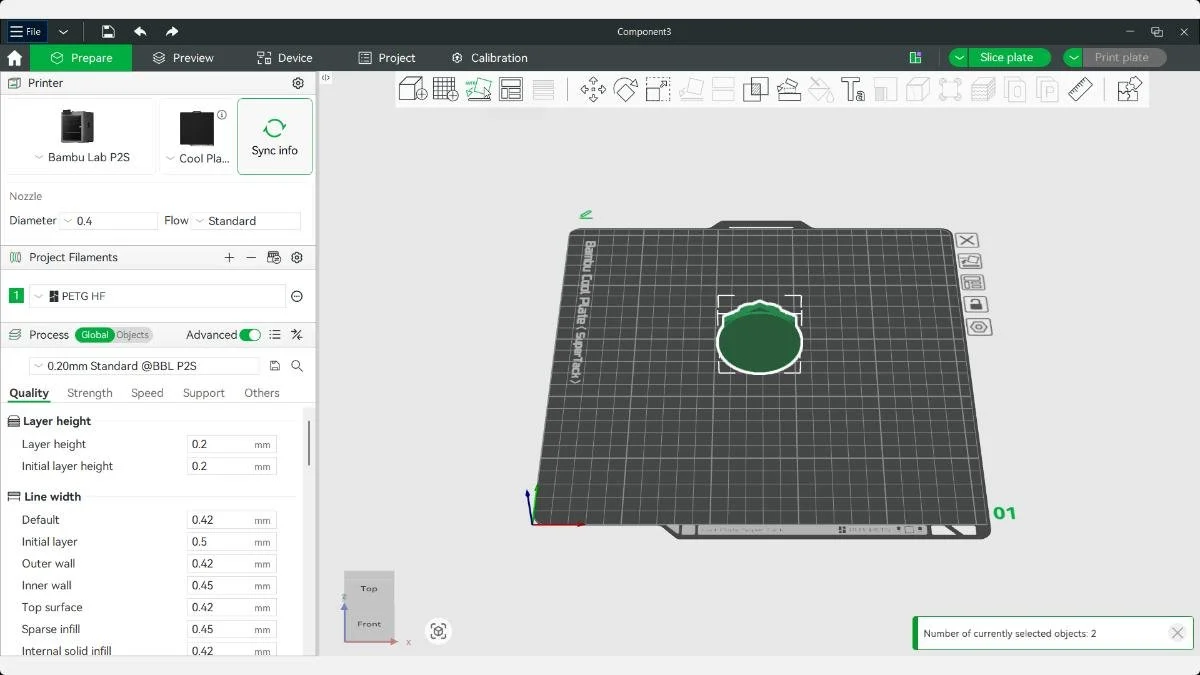

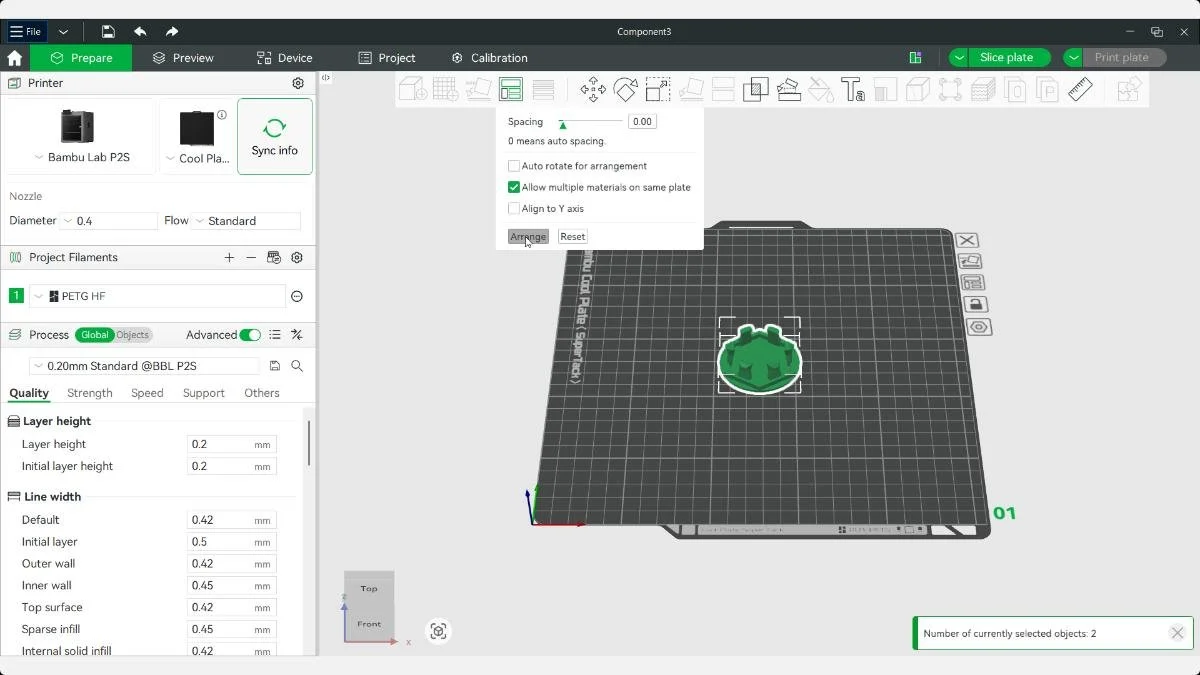

Bambu Studio's Arrange function positions the separate components on the build plate with appropriate spacing between them. The parts remain individually selectable after arrangement.
Automatic arrangement is particularly convenient when preparing several independent objects or larger production batches. For functional parts, it is still worth verifying orientation manually after arranging—the slicer's priority is efficient placement, not necessarily the strongest or cleanest print orientation for each component.
Step 16 — Slice and Print
Once arranged, slice the model.
Your slicer estimates:
- print time
- filament usage
These estimates are particularly useful if you:
- sell printed parts
- calculate production costs
- optimize batch printing
The design is intentionally support-free, allowing you to move directly from slicing to printing with minimal preparation.

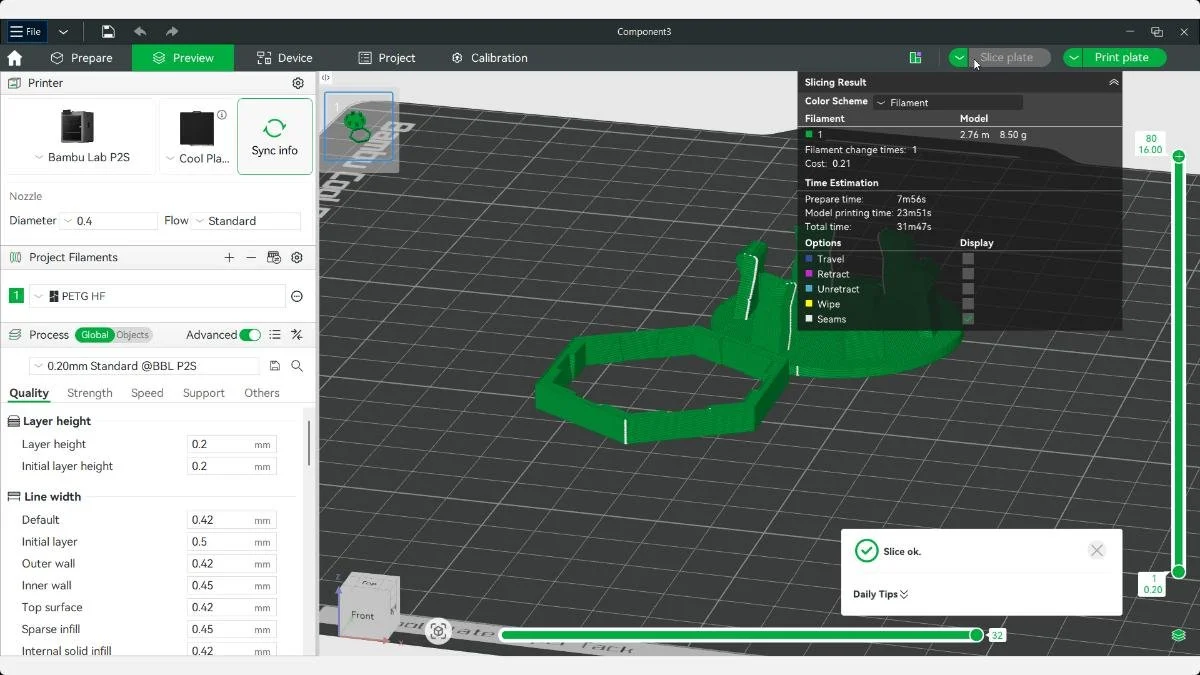

The final model is sliced in Bambu Studio, producing the toolpaths used by the 3D printer. The preview provides a final opportunity to inspect how the snap-fit geometry will actually be manufactured layer by layer.
Because the locking features were designed around printable angles and both components were oriented on suitable flat faces, the assembly can be produced without support material. This reduces material consumption, print time, and post-processing while protecting the dimensional accuracy of the mating surfaces.
The slicer also calculates estimated print time and filament consumption. Beyond planning an individual print, these values provide useful inputs for estimating material usage and production costs when manufacturing multiple copies of a functional design.
Key Takeaways
- A 5 mm base provides a strong yet efficient starting point.
- 3 mm shell walls balance flexibility and strength.
- Extent Type: All makes the design more robust and parametric.
- 0.2 mm surface offset is an excellent starting clearance for FDM snap fits.
- -45° tapers create support-free locking features.
- Keeping bodies separate until late in the workflow simplifies editing.
- Using Components improves STL management and slicer organization.
- Designing for print orientation from the beginning reduces supports, improves surface quality, and shortens print times.
🧰 Tools & Deals
I’ve gathered some of the tools, software, and gear I personally use and recommend for CAD work, 3D printing, and making things in one place. Some links may include discounts or special offers that can help you level up your workflows.
Please note: some of the links are affiliate links, which means I may earn a small commission at no extra cost to you. This helps support the site and the creation of free Fusion tutorials.
Explore everything here:
The Maker Letters – Tools & Deals
.
You Might Also Like
Want to explore more practical Fusion workflows for 3D printing? These three tutorials cover surface modeling, parametric pattern creation, and industrial design techniques that you can apply to your own functional and printable projects.
Each project focuses on practical Fusion techniques that translate to other 3D printing projects, from surface modeling and parametric patterns to functional product design and print-ready geometry.
Watch the Full Video
⏱ Chapters
- 00:10 Create the Base Sketch
- 00:36 Hollow the Part with Shell
- 00:56 Design a Flexible Snap-Fit
- 01:34 Cut the Snap-Fit Opening
- 02:03 Surface Modeling for Better Snap-Fits
- 02:28 Mixing Surface and Solid Modeling in Fusion
- 02:44 Mirror Once, Model Twice as Fast
- 03:04 Build the Snap-Fit Geometry
- 03:30 Why Every Snap-Fit Needs Fillets
- 03:51 Complete the Locking Features
- 04:07 Merge the Bodies
- 04:31 Circular Patterns with Bodies
- 05:01 Circular Patterns with Features
- 05:31 Set Up the Offset Extrude Sketch
- 05:55 Offset Extrude: A Powerful Fusion Feature
- 06:26 Organize Fusion Components for Export
- 06:39 Export STL Files from Fusion
- 07:04 Import into Bambu Studio
- 07:22 Arrange Parts for Faster Printing
- 07:42 Slice the Model in Bambu Studio
- 07:58 More Fusion & 3D Printing Tutorials from The Maker Letters
