How to Add a Deboss Effect to a Cylinder in Autodesk Fusion (Formerly Fusion 360)
Updated April 12, 2026
Adding a clean deboss effect to curved geometry can feel more complicated than it should be. In this workflow, you’ll skip unnecessary setup steps and use Fusion’s built-in tools to create a precise, adjustable engraving on a cylinder—fast.
This approach focuses on efficiency and parametric control, so you can iterate quickly without breaking your model.
What You’ll Learn
- How to create a thin-walled cylinder using Thin Extrude
- Why starting from a centered sketch improves parametric stability
- A faster way to position deboss features without offset planes
- How to use the Emboss command with a deboss effect on curved surfaces
- How to control rotation and depth for clean, adjustable engravings
- How to apply appearances and create quick in-canvas renders
Watch the Workflow — or Read It Step by Step
You can follow this guide in two ways:
- Read the steps below if you want quick written instructions, reference images, and modeling notes.
- Watch the full video at the end of this post to see the workflow in real time — including extra tips, camera angles, and shortcuts that don’t fit neatly into text.
Both formats build on each other.
Reading helps you understand why each step matters, while watching shows how to move faster in Fusion.
Step 1: Create a New Component
Start by creating a new component.
This keeps your design structured and modular, especially important if you plan to reuse or modify the geometry later. Working inside components also improves timeline clarity and avoids unintended dependencies between bodies.

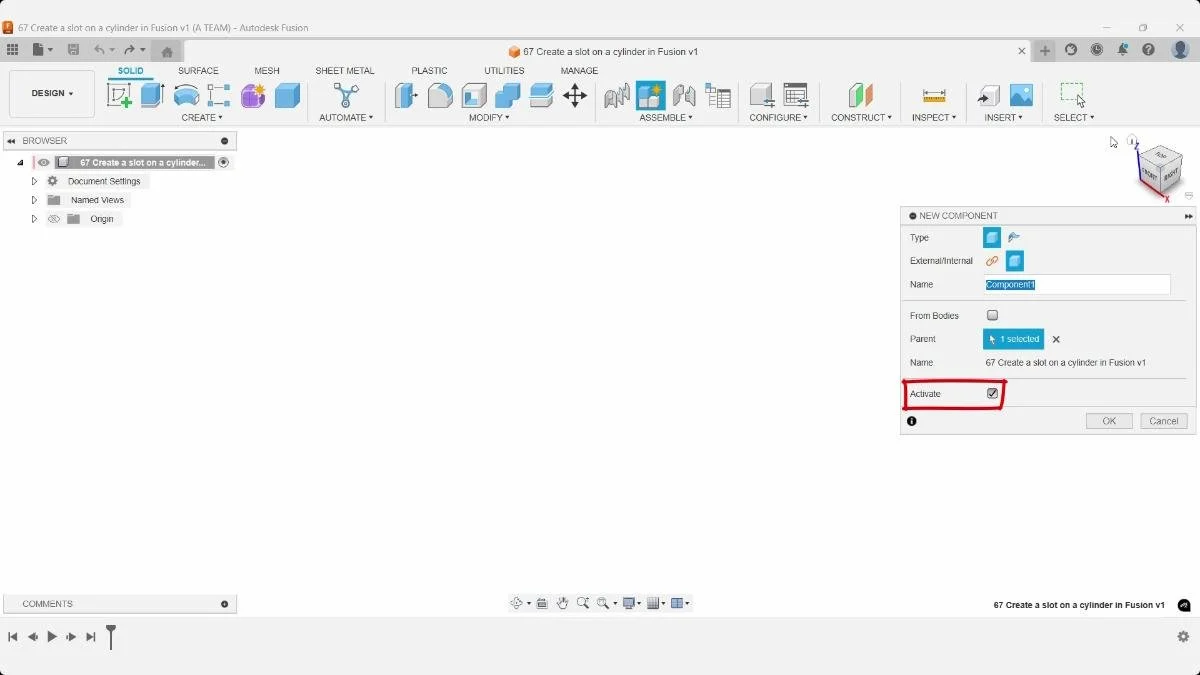

New component creation with Activate enabled in the dialog. Activating the component ensures all subsequent sketches and features are created inside the component rather than at the root level, keeping the timeline and body structure organized for later edits.
Step 2: Sketch the Base Circle
Create a sketch on the horizontal construction plane.
Use a center diameter circle and place it at the origin. This ensures your model stays fully constrained and centered, which is critical for predictable behavior if you later adjust dimensions.
A centered sketch reduces the risk of asymmetry and makes downstream features—like patterns or rotations—more reliable.

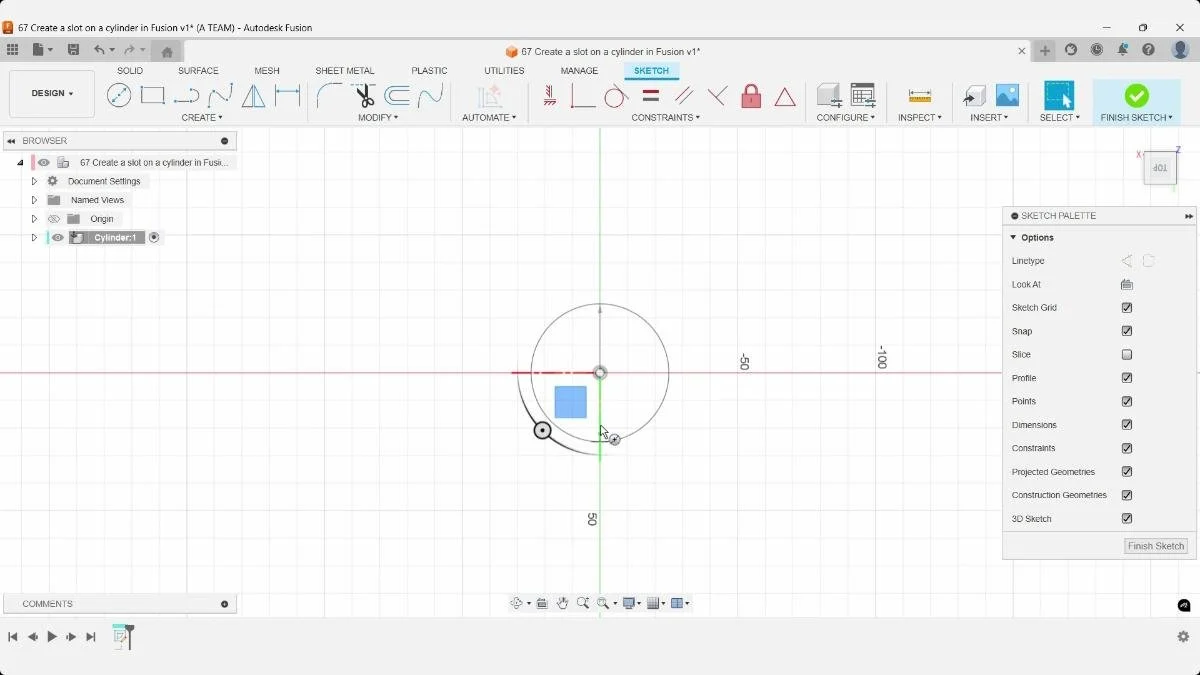

Center diameter circle placed at the sketch origin to fully constrain the base profile. Anchoring the first sketch to the origin keeps the model parametric and prevents downstream alignment issues when adding features like patterns or emboss operations.
Step 3: Use Thin Extrude for the Cylinder
Instead of creating a solid cylinder, go straight to Extrude and switch the type to Thin Extrude.
This removes the need to:
- Extrude a solid
- Apply a Shell afterward
By defining the wall thickness directly in the feature, you:
- Reduce timeline steps
- Keep the model easier to edit
- Maintain better control over wall thickness from a single parameter
Adjust the wall thickness and confirm.

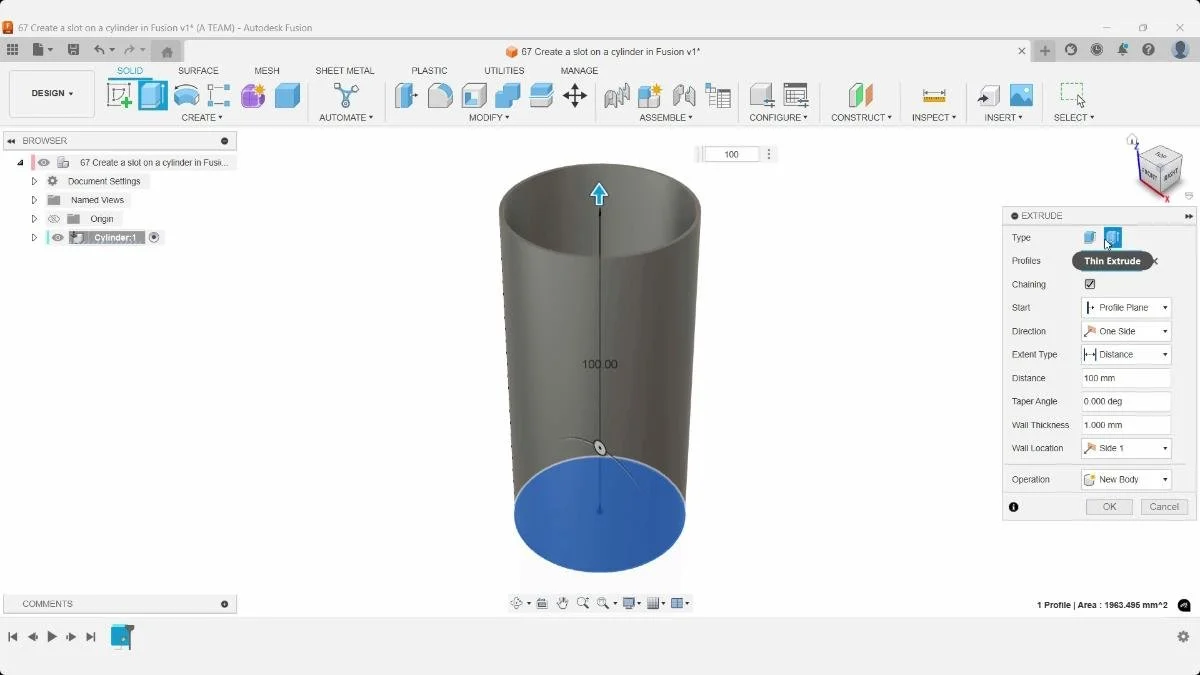

Thin Extrude applied to a circular profile to generate a hollow cylindrical body with controlled wall thickness. Using Thin Extrude avoids extra steps like Shell, reduces timeline complexity, and keeps wall thickness driven by a single parameter.
Step 4: Create the Slot Sketch Without Extra Planes
Most workflows would create an offset or tangent plane here.
Skip that.
Instead, create a center-point slot directly on the existing construction plane, positioned next to the cylinder.
Why this works well:
- The plane is already centered and aligned
- You avoid extra reference geometry
- The timeline stays simpler and easier to debug
Keeping the sketch straight (not angled) also simplifies constraints and reduces the chance of sketch errors.

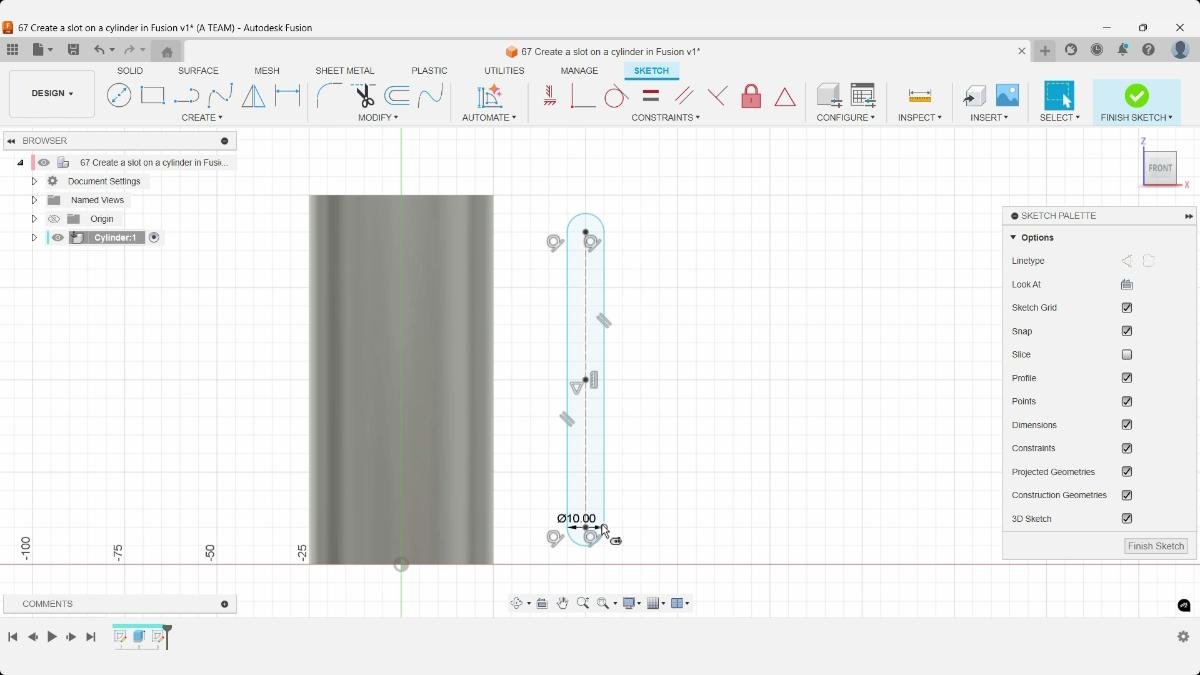

Center-point slot sketched on the main construction plane next to the cylinder profile. Keeping the slot aligned to the cylinder axis simplifies constraints and avoids additional construction geometry, making the sketch easier to maintain and edit.
Step 5: Apply the Deboss with Emboss
Use the Emboss command and select your slot profile.
Set the effect to Deboss:
- Either switch the toggle
- Or enter a negative depth value
This projects and cuts the geometry directly onto the curved surface, which is far more robust than trying to wrap or manually cut geometry.
Emboss is ideal here because it:
- Maintains consistent depth across curved faces
- Keeps the feature associative to the sketch
- Allows easy edits later without rebuilding geometry

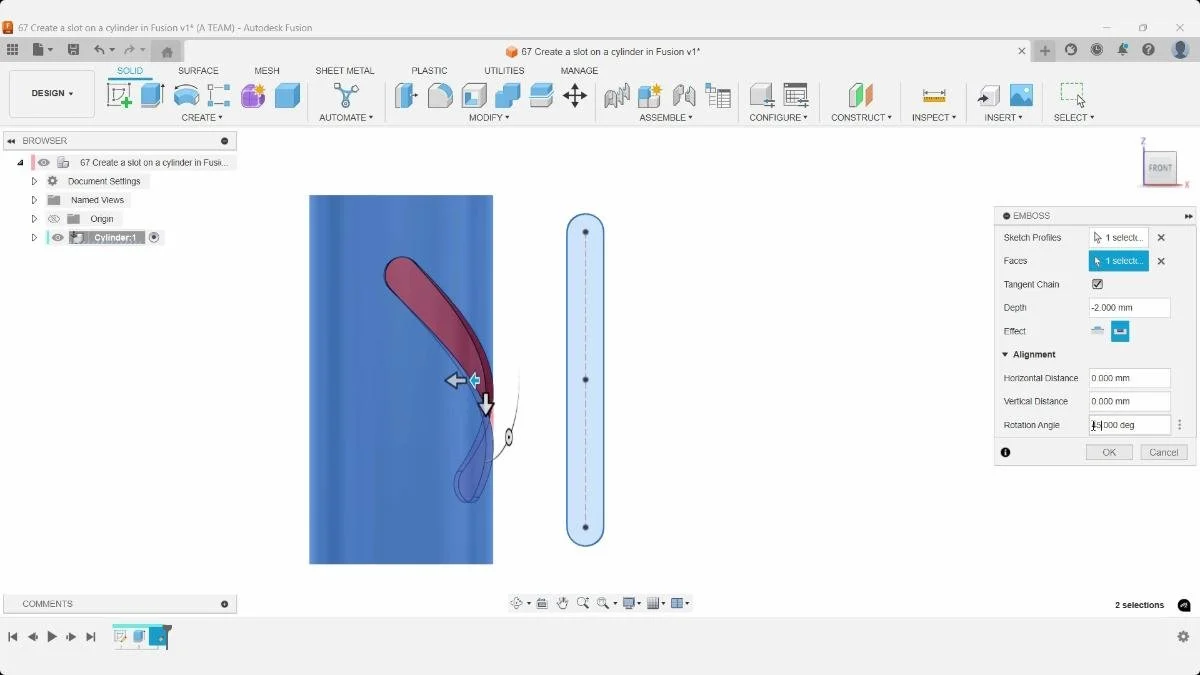

Emboss feature applied to the cylinder with a deboss effect and rotation angle adjustment. Emboss maintains consistent depth on curved faces and preserves associativity with the sketch, enabling quick edits to angle, depth, or position without rebuilding geometry.
Step 6: Adjust the Rotation Angle
Use the Rotation Angle setting inside the Emboss command.
This is where the workflow becomes powerful:
- You can rotate the deboss feature around the cylinder without changing the sketch
- Iterations are instant and visual
Compared to rotating sketches or creating angled planes, this method is significantly faster and more flexible.
Step 7: Apply Appearance
Open the Appearance panel and use the search bar to find a metal finish.
Set the selection filter to Bodies/Components if you want the material applied to the entire cylinder.
Applying appearances at the component or body level ensures consistency, especially if you later add more features or bodies.

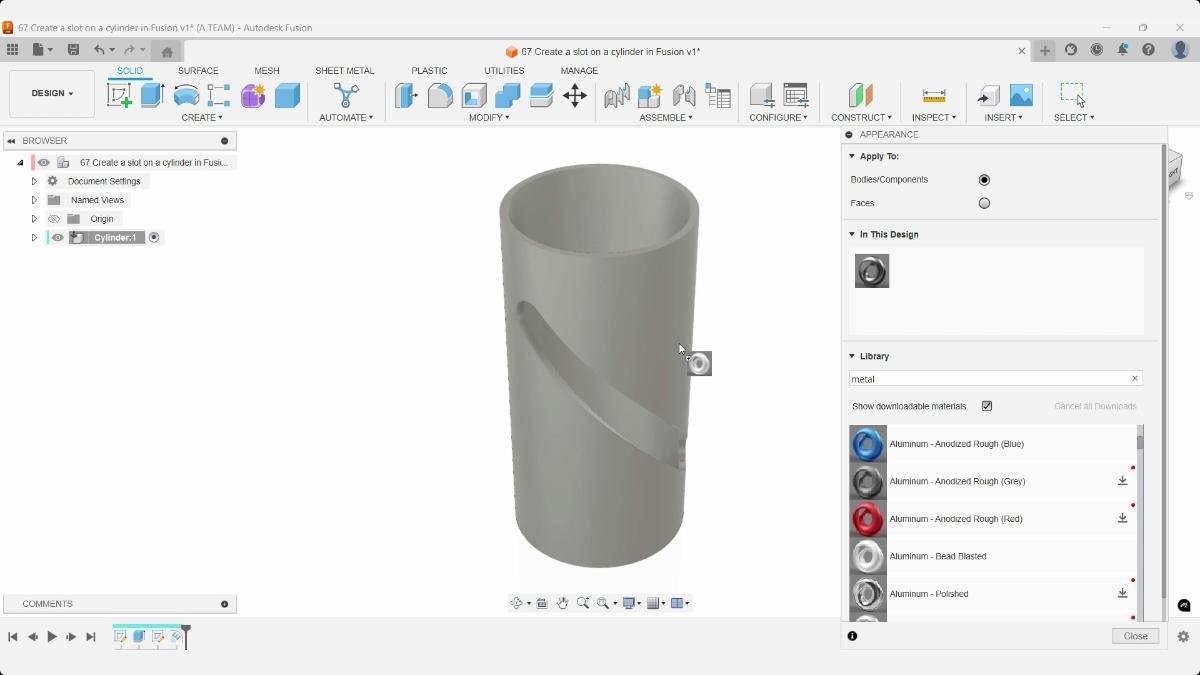

Appearance panel used to assign a metal material to the entire body. Applying appearance at the body/component level ensures consistent visual output across features and prevents accidental overrides when adding new geometry.
Step 8: Create an In-Canvas Render
Start an In-Canvas Render.
For better results:
- Switch quality from Excellent to Final
- Let the render refine over time
Use Scene Settings (right-click access) to quickly adjust lighting and environment.

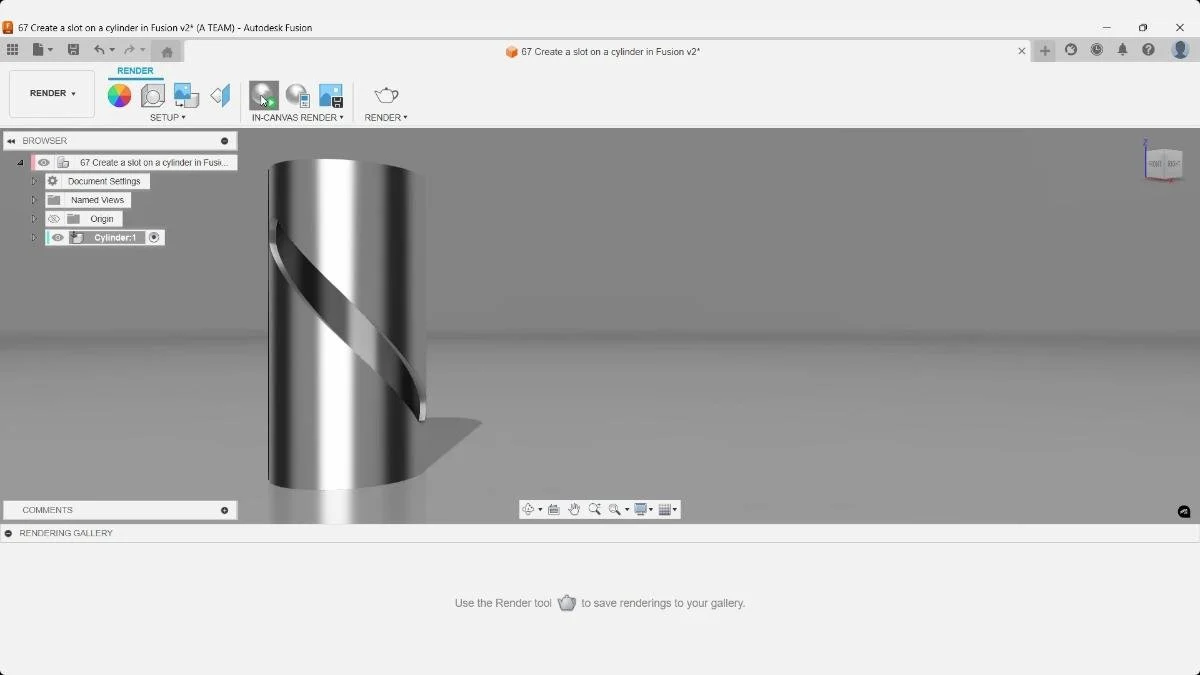

In-Canvas Render activated to preview lighting and material behavior directly in the modeling workspace. This allows rapid iteration on material choices and surface quality without switching to a separate rendering environment.
In-canvas rendering is ideal for fast iteration:
- No need to export or switch environments
- Immediate visual feedback
- Easy to test multiple looks for thumbnails or presentations

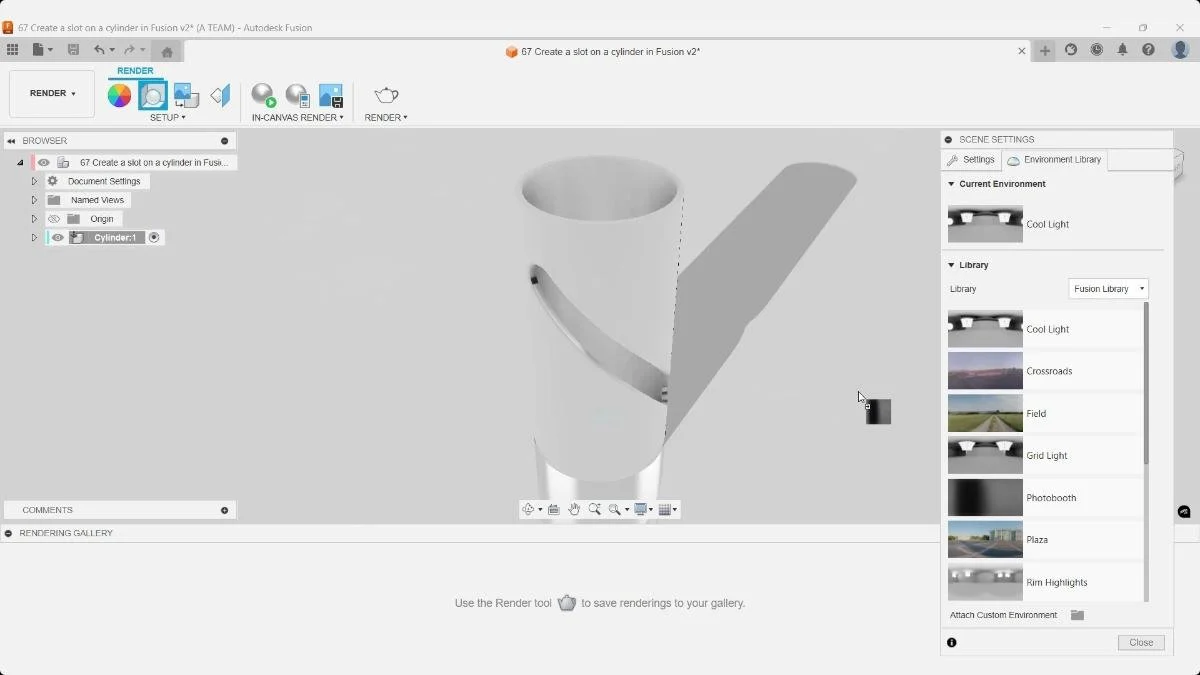

Scene Settings panel open with environment options for lighting and reflections. Adjusting the environment impacts highlights, contrast, and perceived material realism, which is critical when evaluating surface quality and presentation renders.
Key Takeaways
- Thin Extrude simplifies cylindrical designs by removing unnecessary steps
- Centered sketches improve stability and make parametric edits predictable
- Skipping offset planes reduces complexity without sacrificing control
- Emboss with Deboss is the most efficient way to engrave curved surfaces
- Rotation inside Emboss is faster than manipulating sketches or planes
- In-canvas rendering enables quick, iterative visual refinement
