Efficient Workflow for Creating a Flanged Pipe Elbow in Fusion (Formerly Fusion 360) – Step-by-Step Tutorial
Updated April 21, 2026
Flanged Pipe Elbow in Fusion: Efficient Modeling and Drawing Workflow
Clean geometry. Fast edits. A workflow you can reuse.
This flanged pipe elbow is a great example of how to combine sketching, solid modeling, and drawing tools in Fusion without overcomplicating the design. The goal isn’t perfect engineering standards—it’s building a flexible, efficient workflow you can apply to real projects.
What You’ll Learn
- How to structure a component-based workflow in Fusion
- Why simple sketches + solid modeling tools improve editability
- How to use Circular Pattern, Sweep, and Fillet effectively
- When to move bodies vs. components
- How to create clean technical drawings (manual + automated dimensions)
Watch the Workflow — or Read It Step by Step
You can follow this guide in two ways:
- Read the steps below if you want quick written instructions, reference images, and modeling notes.
- Watch the full video at the end of this post to see the workflow in real time — including extra tips, camera angles, and shortcuts that don’t fit neatly into text.
Both formats build on each other.
Reading helps you understand why each step matters, while watching shows how to move faster in Fusion.
Step 1: Create a New Component and Start Your Base Sketch
Start by creating and activating a new component. This keeps your design structured from the beginning and makes it easier to scale into assemblies later.

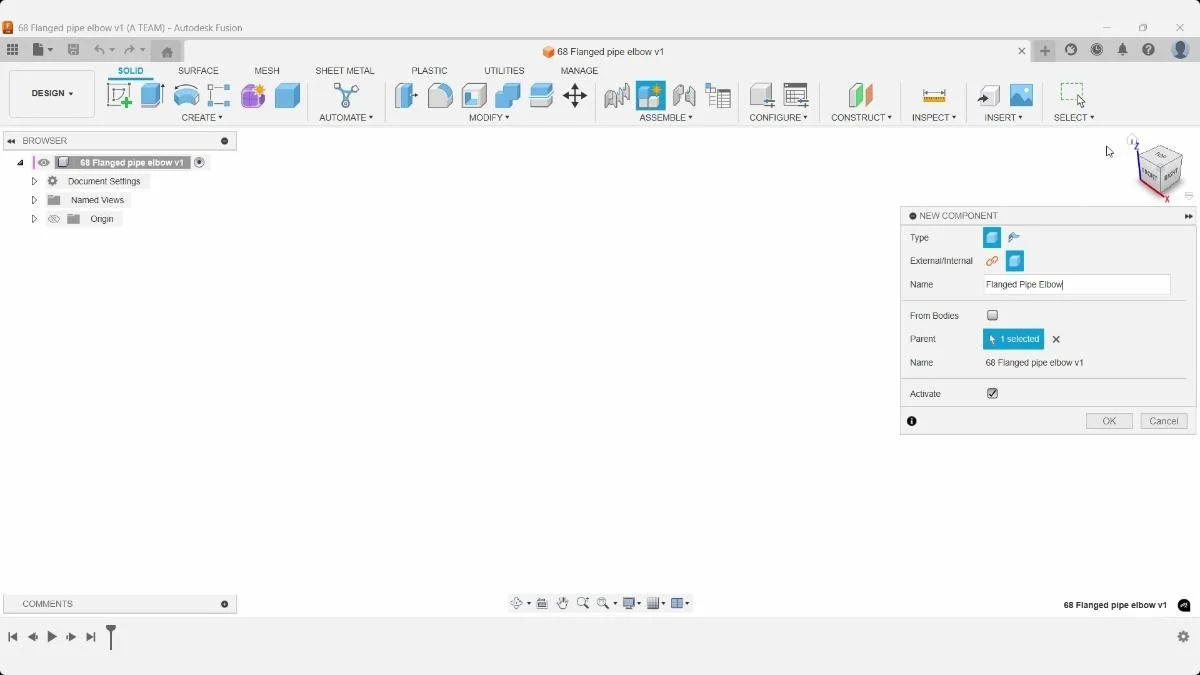

New Component dialog used to create a dedicated component for the pipe elbow model. The component is activated immediately, which ensures all subsequent sketches and features are captured in its own timeline. This approach keeps the design structured and avoids geometry being created at the root level, making later edits, assemblies, and drawings more manageable.
Sketch on the horizontal construction plane and create a center diameter circle. Place it directly at the origin.
Centering geometry at the origin is a small decision with a big payoff. It gives you symmetry, predictable behavior when modifying dimensions, and makes patterns and transformations easier later in the process.
The exact dimension isn’t critical here. The focus is workflow, not standards.
Step 2: Keep the Sketch Simple and Use Extrude
Add a second, smaller circle to represent a bolt hole—but only create one.

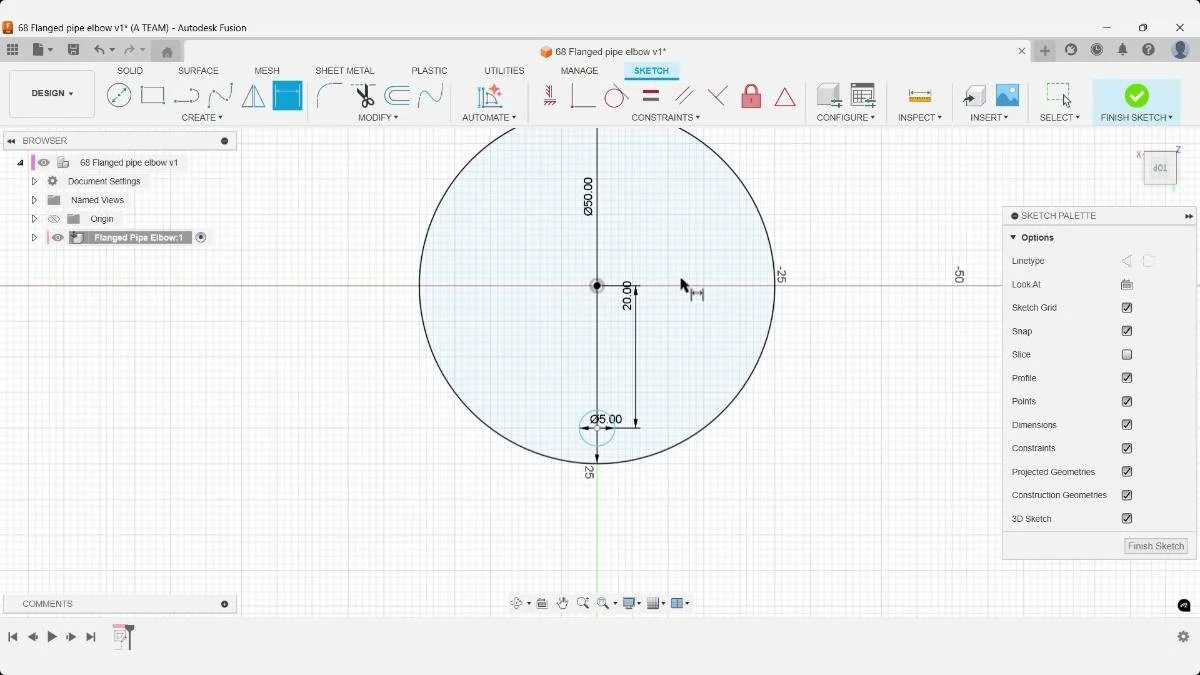

Sketch defining the flange profile using concentric circles with applied dimensions for outer diameter and center hole. The geometry is constrained from the origin, ensuring the profile remains stable when dimensions change. Fully defining these circles at this stage establishes a reliable reference for later features like bolt patterns and extrusions.
Instead of sketching all holes, you’ll pattern them later. This is a key principle in Fusion:
- Sketches define intent
- Features handle repetition
By keeping sketches minimal, you reduce constraints, avoid clutter, and make future edits faster.
Use the Extrude command directly from the sketch (via shortcut). There’s no need to exit the sketch first—this speeds up your workflow and keeps you in flow.

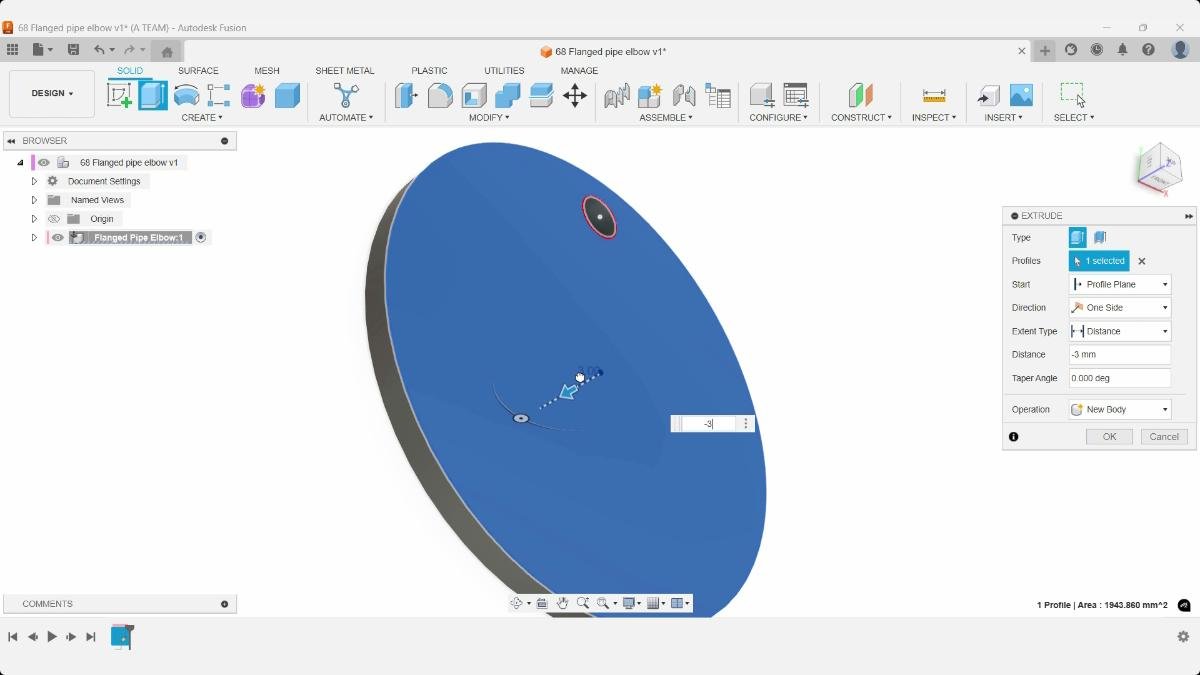

Extrude operation applied to the flange sketch profile to create a solid body with a defined thickness. The profile is selected as a single closed region, and the distance parameter controls the flange thickness. Creating this as a solid early establishes a base feature that downstream operations—such as hole patterns and cuts—can reference consistently.
Step 3: Use Circular Pattern for Bolt Holes
Apply a Circular Pattern with Object Type set to Faces.
This approach is efficient because:
- You’re reusing existing geometry instead of recreating it
- Edits propagate automatically across all instances
- You maintain consistency without adding sketch complexity
Use the central axis (the blue axis in Fusion) to define the rotation. Set the quantity to six and distribution to Full for even spacing.

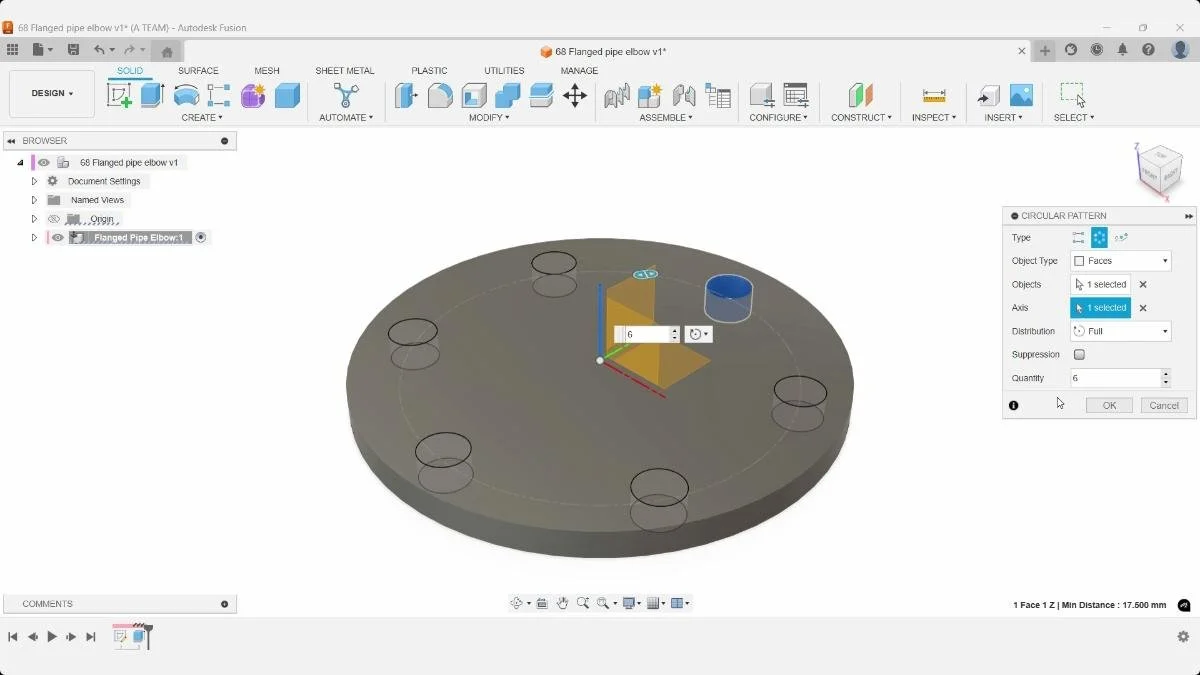

Circular Pattern tool used to replicate a hole feature around the flange using a central axis. The object type is set to faces, allowing the existing cut geometry to be reused without creating new sketches. Equal angular distribution ensures consistent bolt spacing, which is critical for alignment in real-world flange connections.
Step 4: Create a Functional Sketch on the Solid Body
Start a new sketch directly on the solid body.

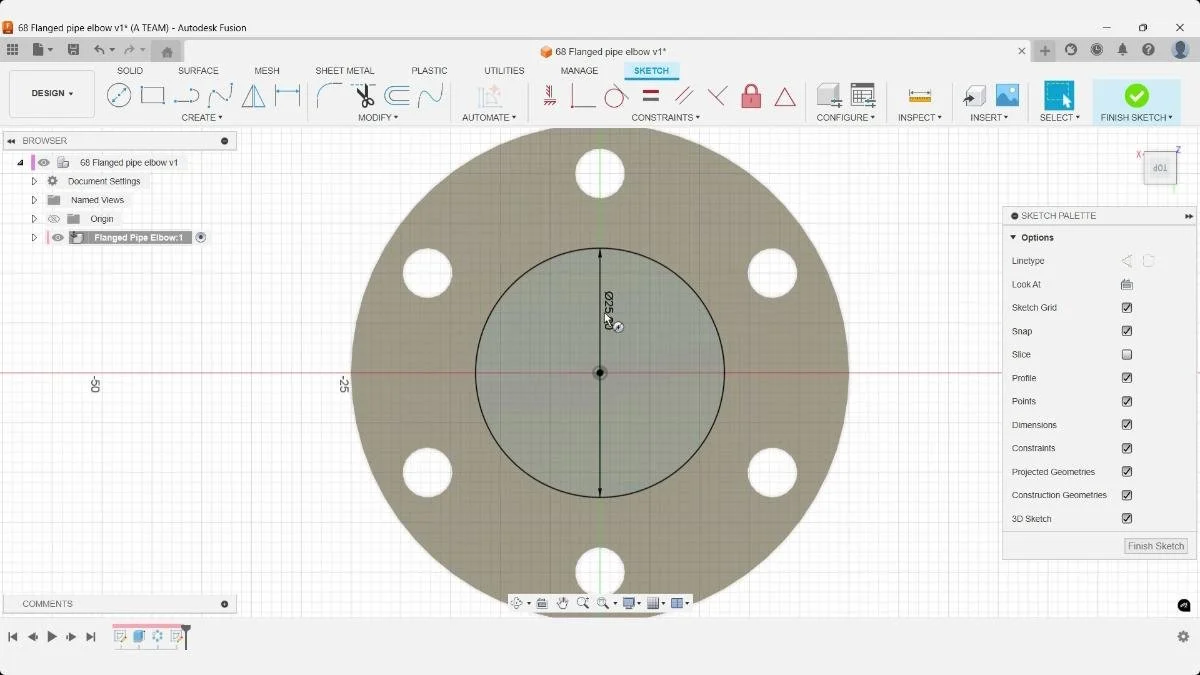

New sketch on the flange face used to define the inner pipe diameter with a centered circle dimension. The circle is constrained to the origin, ensuring concentric alignment with the flange. Establishing this reference in a separate sketch keeps the model parametric and allows independent control of the pipe opening without affecting the outer flange geometry.
This sketch does two things:
- Finalizes the geometry of the flange
- Defines a connection point for the pipe
Draw a circle and offset it by 2.5 mm.
Offset is powerful because it creates a parametric relationship. If you change the inner diameter later, the outer one updates automatically—this is exactly the kind of robustness you want in parametric design.

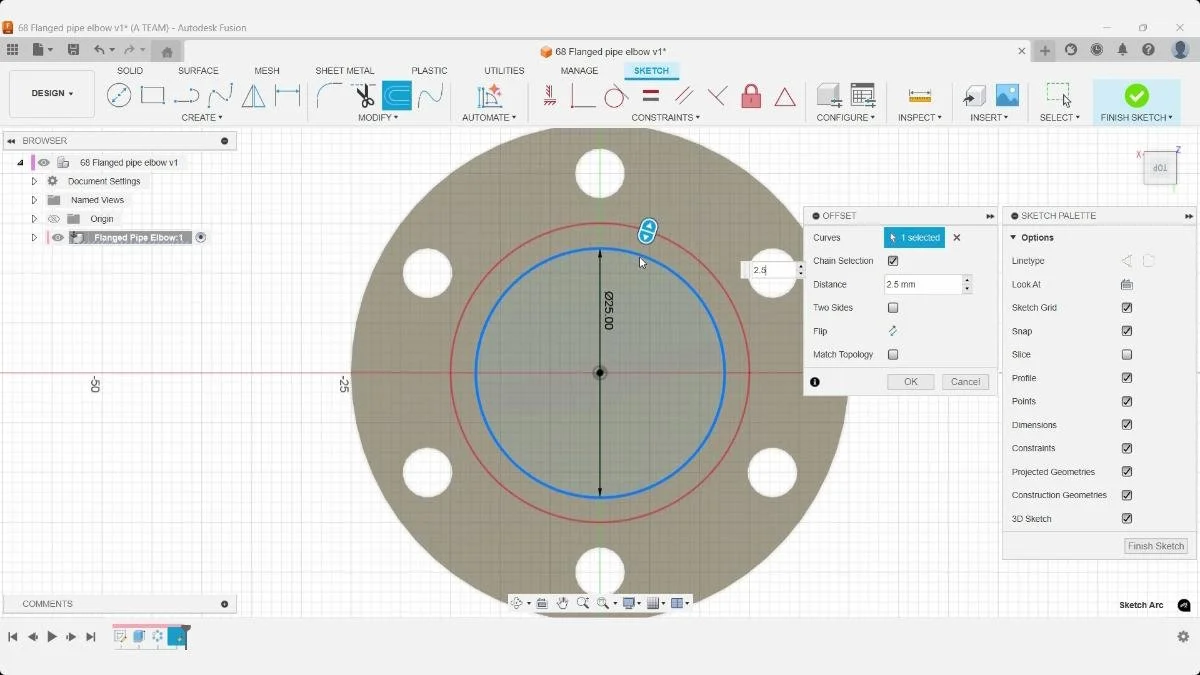

Offset command used to create a second concentric circle from the inner diameter, defining the pipe wall thickness. Chain selection keeps the offset continuous, and the distance parameter controls wall thickness precisely. Using an offset instead of a separate dimensioned circle maintains a parametric relationship, ensuring the wall updates automatically if the inner diameter changes.
Step 5: Use Extrude Cut Efficiently
Instead of selecting sketch profiles, select the bottom face directly for the cut.
This is faster and often more reliable in simple geometries. It reduces dependency on sketch visibility and keeps your timeline cleaner.
Get into the habit of rotating your model frequently. Visual inspection from multiple angles helps catch alignment issues early.

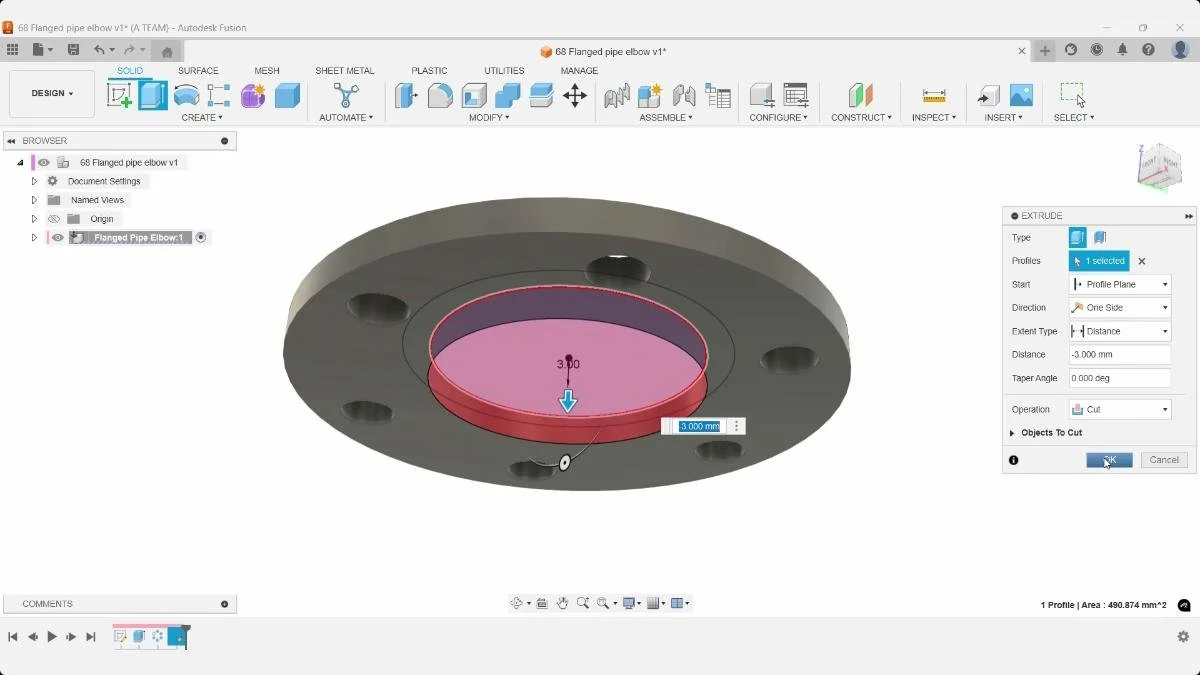

Extrude Cut operation removes material from the flange using the inner circular profile to create the pipe opening. The cut is applied normal to the sketch plane with a defined distance, ensuring a clean, perpendicular bore. Using a cut feature tied to the sketch keeps the opening fully parametric and aligned with the flange center.
Step 6: Move and Copy Bodies (Not Components)
Move and copy the body inside the component.
This distinction matters:
- Bodies are ideal for quick geometry manipulation
- Components are better for structured assemblies and reuse
For a prototype workflow like this, working with bodies is faster. For production-level design, separating into components and using joints is more scalable.

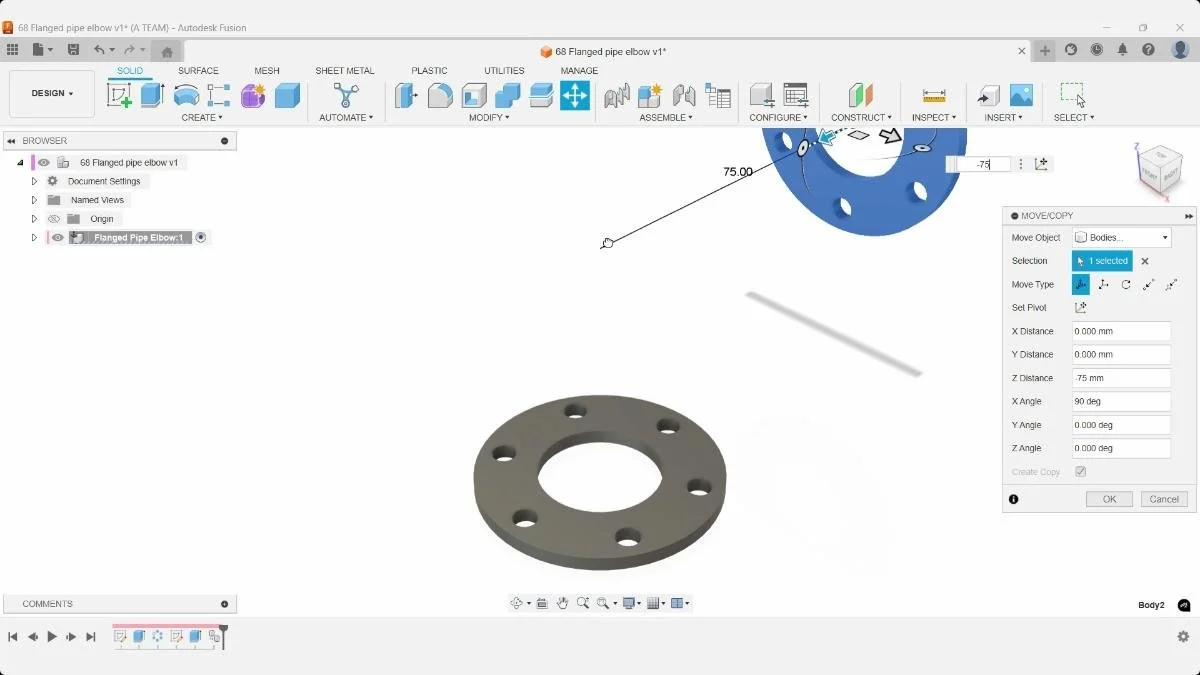

Move/Copy tool used to reposition the flange body along an axis using a precise distance input. The triad manipulator allows controlled translation and rotation relative to the model coordinate system. Positioning components at this stage helps define spatial relationships before creating connecting geometry like the pipe sweep.
Step 7: Connect the Geometry with a 3D Sketch
Create a 3D sketch and draw a line between the two parts.
The Line tool is reliable here because it snaps cleanly to existing geometry. It’s more predictable than splines, especially in 3D sketches.

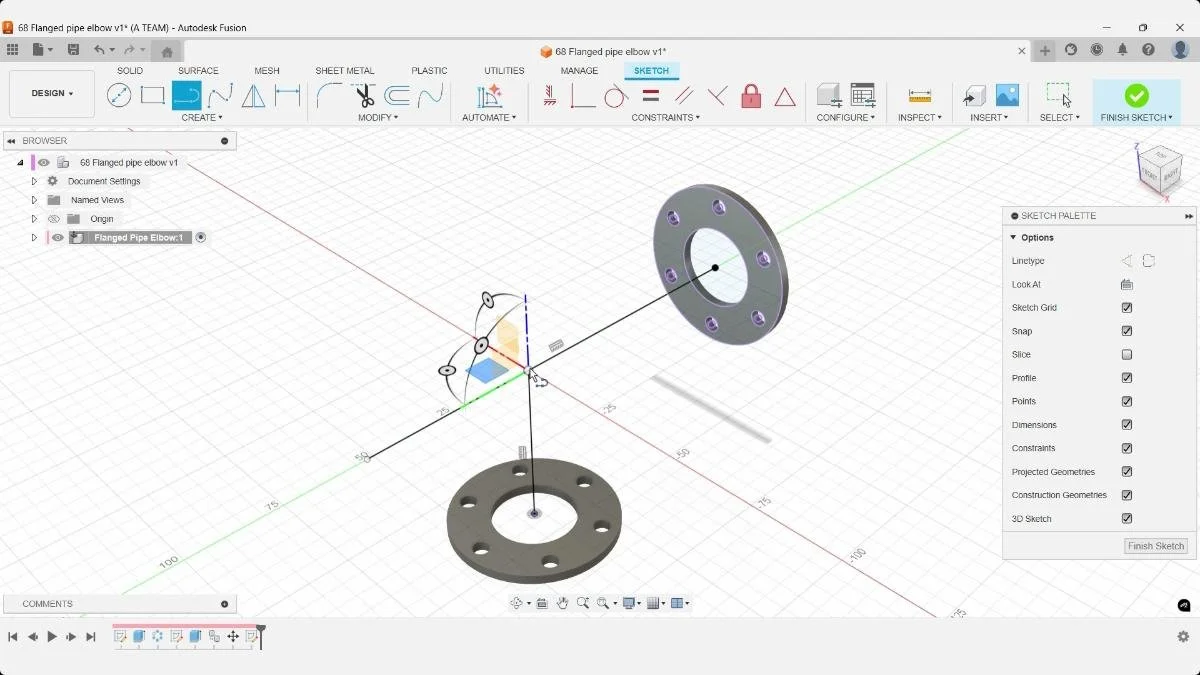

3D sketch defining the pipe centerline using lines and an arc constrained between two flange positions. The path is anchored to reference geometry, ensuring alignment with both flange centers. Creating the path in 3D space allows smooth directional changes without additional planes, which is essential for accurate sweep operations in elbow geometry.
Extend the line slightly past your targets and trim it back. This is often faster than trying to snap perfectly on the first attempt.

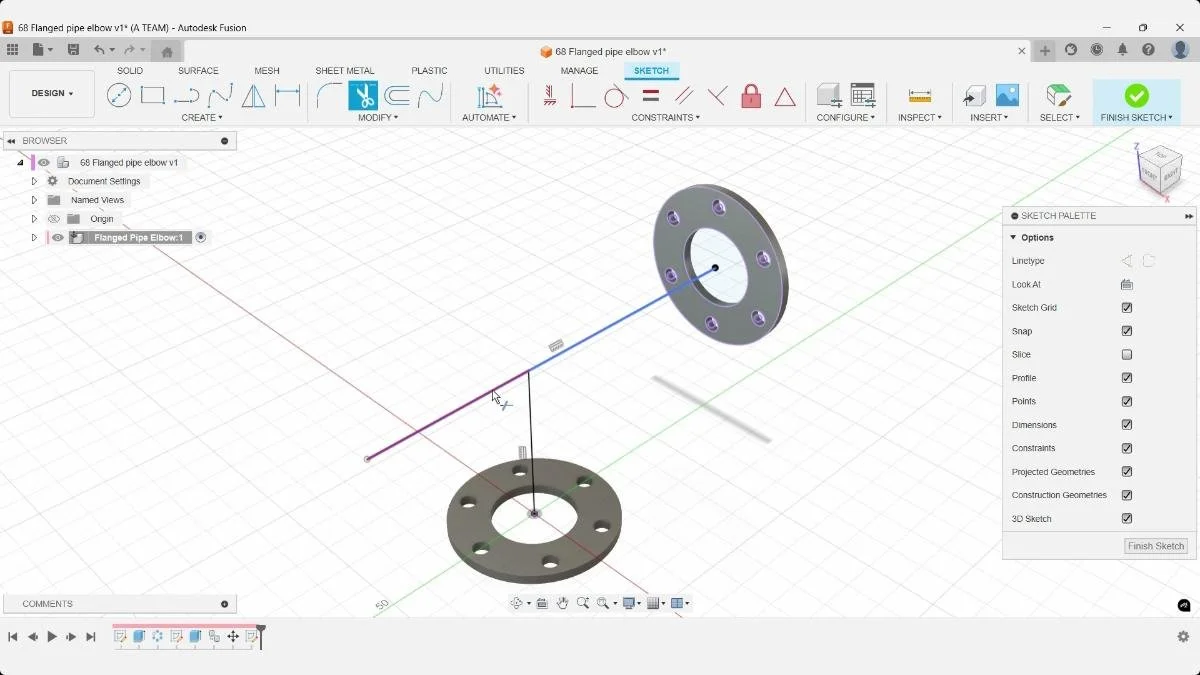

Trim tool used in a 3D sketch to remove excess line segments from the pipe path, leaving a clean continuous centerline. Maintaining a single uninterrupted path is critical for sweep operations, as overlapping or disconnected segments can cause profile twist or failure during feature creation.
Add a sketch fillet (not the solid fillet) with a radius of 25 mm.
Using a sketch fillet here gives you:
- A clean sweep path
- Easy adjustment later via the timeline

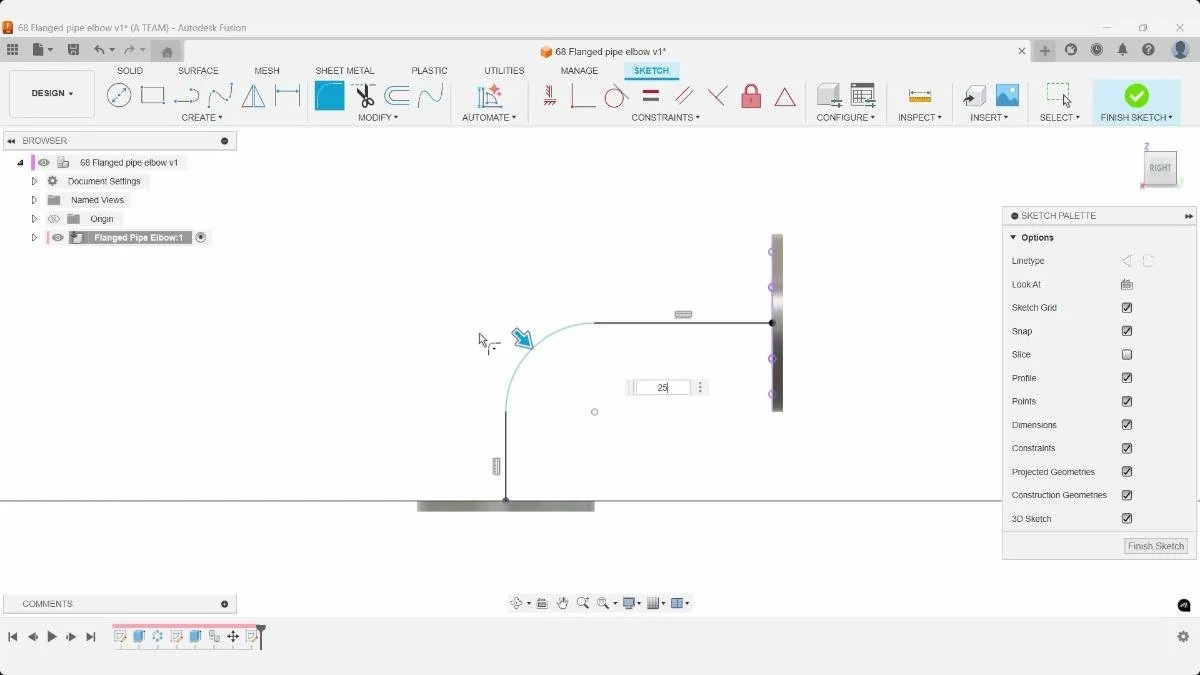

Arc added between two perpendicular line segments to define the elbow bend radius in the pipe path. The arc is constrained tangent to both lines, ensuring a smooth transition for the sweep profile. Controlling this radius directly in the sketch determines the curvature of the elbow and avoids sharp transitions that can cause geometry issues during sweeping.
Step 8: Sweep the Pipe Between the Flanges
Make sure your sketch profile is visible, then use Sweep.
Select:
- Profile: the offset circle
- Path: the 3D sketch
Because the profile is closed, Fusion creates a solid body directly.
Set the operation to Join to merge everything into one body. This simplifies appearance assignment and downstream edits.

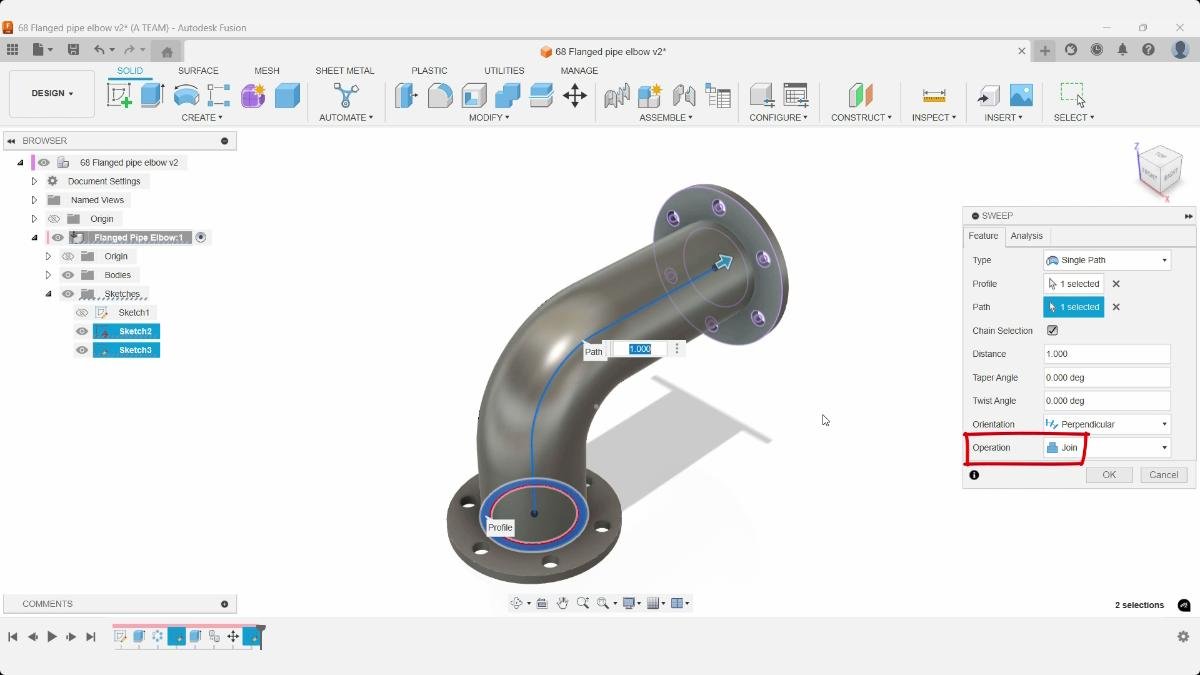

Sweep feature used to create the pipe body by extruding a circular profile along the 3D sketch path. The profile is aligned perpendicular to the path, maintaining a consistent cross-section through the bend. The operation is set to Join, merging the swept body with the flange to form a continuous solid. Ensuring the profile is correctly positioned at the path start is critical to avoid misalignment or twisting.
Step 9: Apply Appearance and Add Realistic Fillets
Apply a brass appearance to the body.
Since everything is joined, you only need to apply it once—this is another benefit of keeping geometry unified when appropriate.

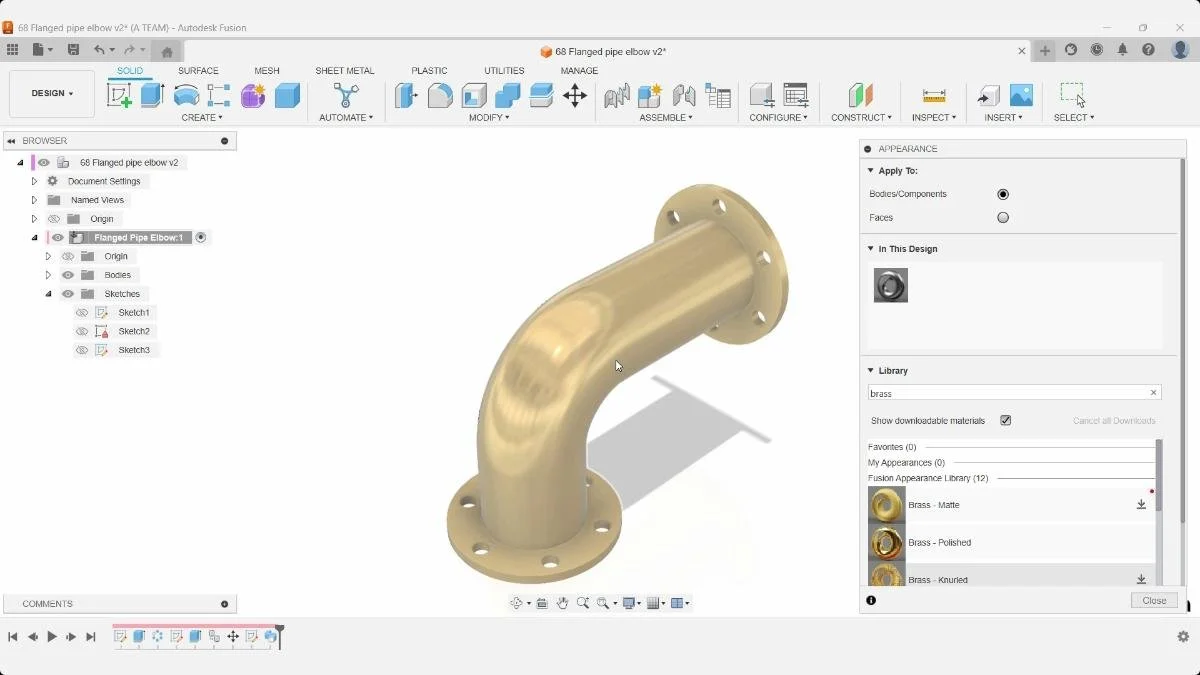

Brass material assigned using the Appearance workspace to visualize the flanged pipe elbow with realistic reflections and highlights. Applying appearance at the body level ensures all features inherit the material consistently, which is especially useful before creating patterns or additional components.
Add fillets to simulate welded transitions.
This isn’t just visual polish. Fillets:
- Reduce sharp transitions
- Improve realism
- Help communicate manufacturing intent
In a real design, you’d also check spacing between bolt holes and weld zones to ensure manufacturability.

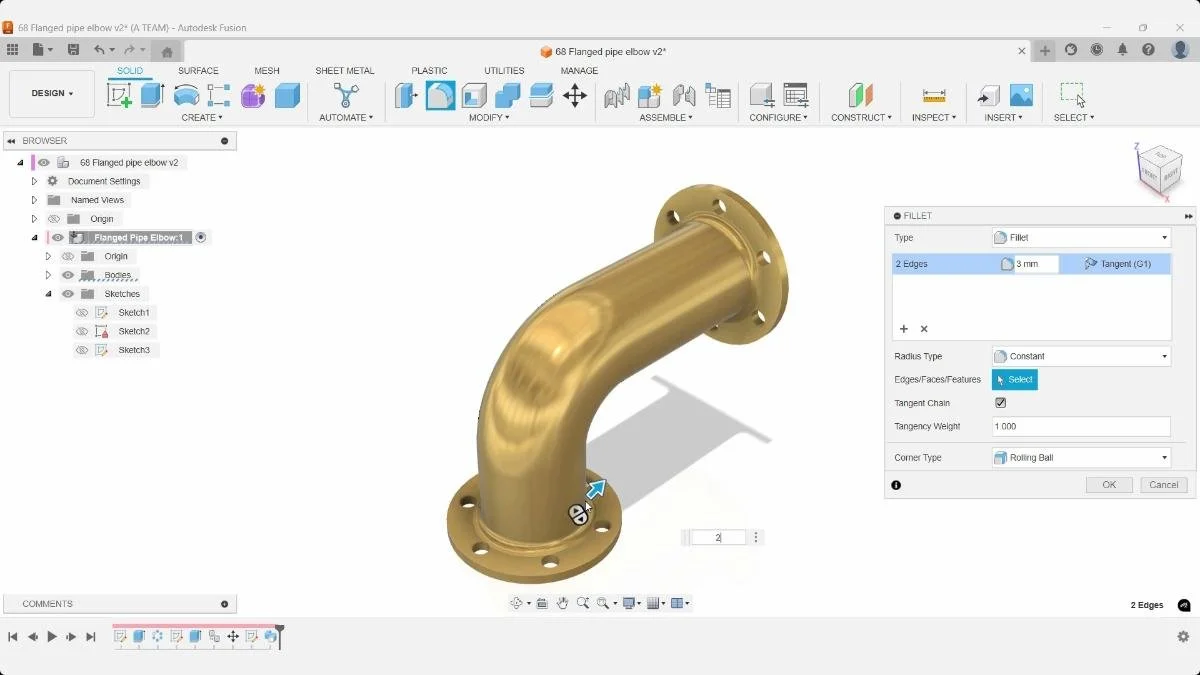

Fillet feature used to round the sharp transition between the pipe body and flange faces with a constant radius and tangent chain enabled. Applying fillets at this stage improves surface continuity and creates a smoother transition, which is important for both realistic rendering and reducing stress concentrations in functional parts.
Step 10: Create a Drawing (Manual + Automated)
Open the drawing workspace. Fusion creates a new file for drawings, which keeps documentation separate from modeling.
Place a base view and adjust:
- Orientation
- Scale
- Style
The Style setting updates after placement, which allows quick iteration.
Add additional base views as needed. Use different scales and styles (like Shaded or Shaded with Hidden Edges) to communicate geometry clearly.

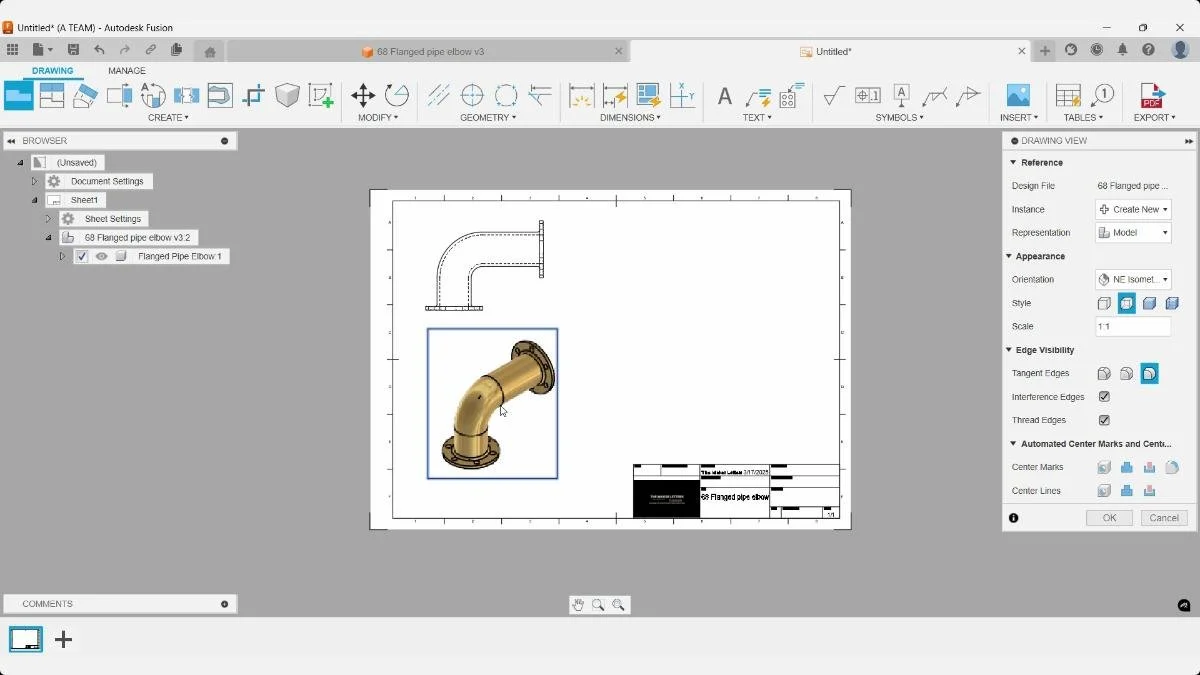

Drawing workspace used to place a base view and projected orthographic views of the flanged pipe elbow onto a sheet. The view settings panel controls orientation, scale, and display style, allowing a combination of shaded and hidden-line views for clarity. Establishing views early ensures consistent alignment and reduces rework when adding dimensions and annotations later.
Step 11: Add Dimensions and Export
Add manual dimensions by selecting edges and points—just like in modeling.

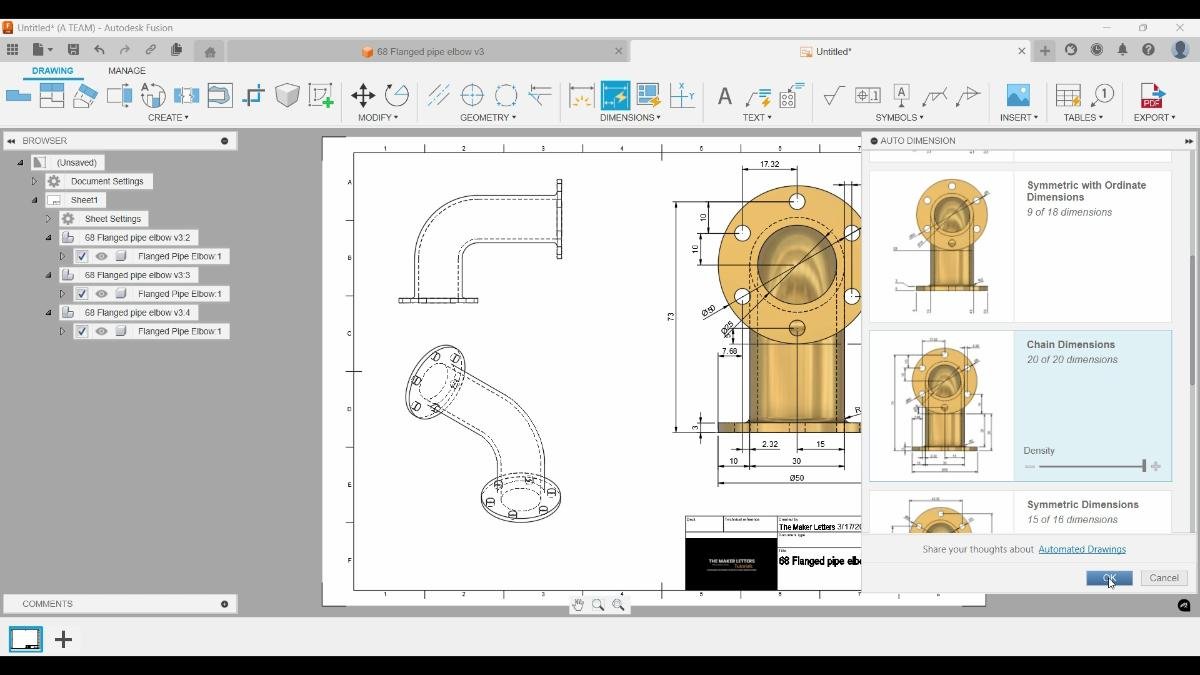

Auto Dimension tool used to generate a full set of dimensions on the drawing, including symmetric, ordinate, and chain dimension strategies. The preview panel allows selection of dimensioning methods based on geometry type, helping distribute dimensions logically across the view. This approach accelerates documentation but should be reviewed manually to remove redundant or cluttered dimensions and ensure manufacturing clarity.
Use Auto Dimension to speed up the process. You can control:
- Dimension density
- Layout style
This hybrid approach gives you both control and efficiency.
Before exporting, save your drawing. Enable auto-open after export if you want to review immediately.

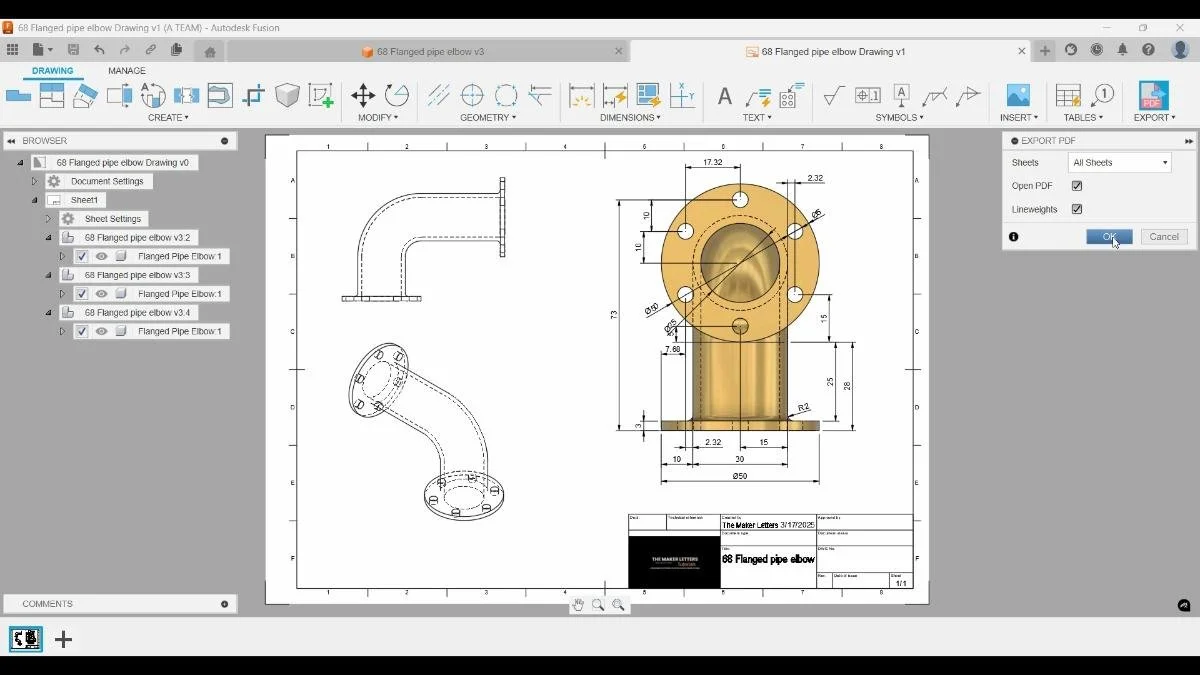

Export to PDF command used to generate a shareable technical drawing with defined lineweights and view settings. Exporting from the Drawing workspace preserves scale, annotations, and layout, making the file suitable for manufacturing review or documentation without requiring access to the original Fusion model.
Key Takeaways
- Centering sketches at the origin creates stable, predictable designs
- Simple sketches + feature-based modeling improves flexibility
- Circular Pattern is more efficient than sketch repetition
- Offset ensures parametric relationships between features
- Sweep is ideal for connecting geometry along defined paths
- Bodies are fast for prototyping; components scale better for assemblies
- Combining manual and automated drawings gives both speed and control
- Regular visual inspection prevents downstream errors
This workflow balances speed, clarity, and flexibility—exactly what you need when designing parts for 3D printing or early-stage prototyping in Fusion.
