How to Edit a Sketch and Update the Model in Autodesk Fusion
Updated January 24, 2026
Small sketch changes can completely transform a model — if your design is built correctly. In this walkthrough, you’ll see how Fusion’s parametric workflow lets you update a single sketch and automatically regenerate all dependent features, using a 3D-printable vase as a practical example. This is the kind of workflow that separates fragile models from robust, professional designs.
What You’ll Learn
In this tutorial, you’ll learn how Fusion’s timeline and parametric relationships work together, why sketches act as design drivers, and how a simple dimensional change can update complex geometry without rebuilding anything. You’ll also understand why this approach is critical for iteration, customization, and manufacturing-ready models
Watch the Workflow — or Read It Step by Step
You can follow this guide in two ways:
- Read the steps below if you want quick written instructions, reference images, and modeling notes.
- Watch the full video at the end of this post to see the workflow in real time — including extra tips, camera angles, and shortcuts that don’t fit neatly into text.
Both formats build on each other.
Reading helps you understand why each step matters, while watching shows how to move faster in Fusion.
Step 1: Understand the Role of the Timeline
Fusion’s timeline is not just a history of actions — it is a dependency graph. Early features act as prerequisites for everything that comes after them. When you edit something early in the timeline, Fusion recalculates downstream features automatically.
This is why disciplined modeling matters. A clean timeline ensures later features stay connected and predictable instead of breaking when changes are introduced.

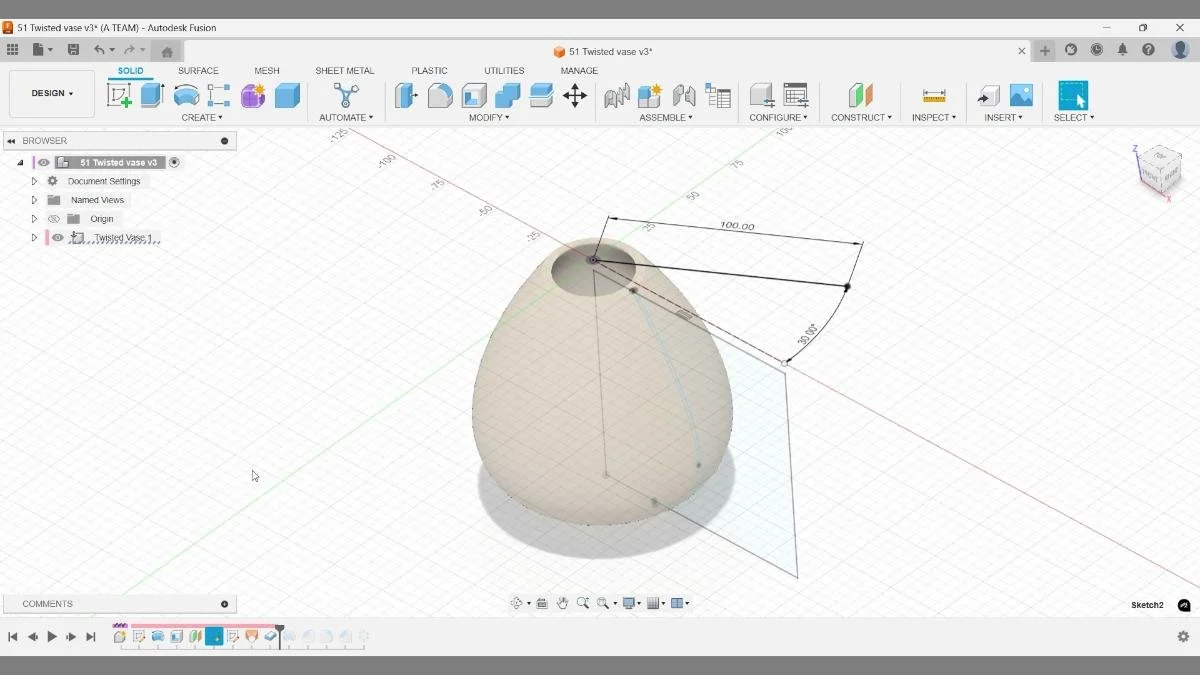

Autodesk Fusion workspace displaying a parametric vase where surface features are controlled by earlier timeline actions and regenerate automatically when sketches change.
Step 2: Identify the Driving Sketch
In this vase design, the orange details wrapping around the surface are driven by a single sketch. That sketch defines the angular relationship that controls the overall pattern.
This is a classic parametric strategy: one sketch controls many features. By concentrating design intent in one place, you gain maximum flexibility with minimal effort.

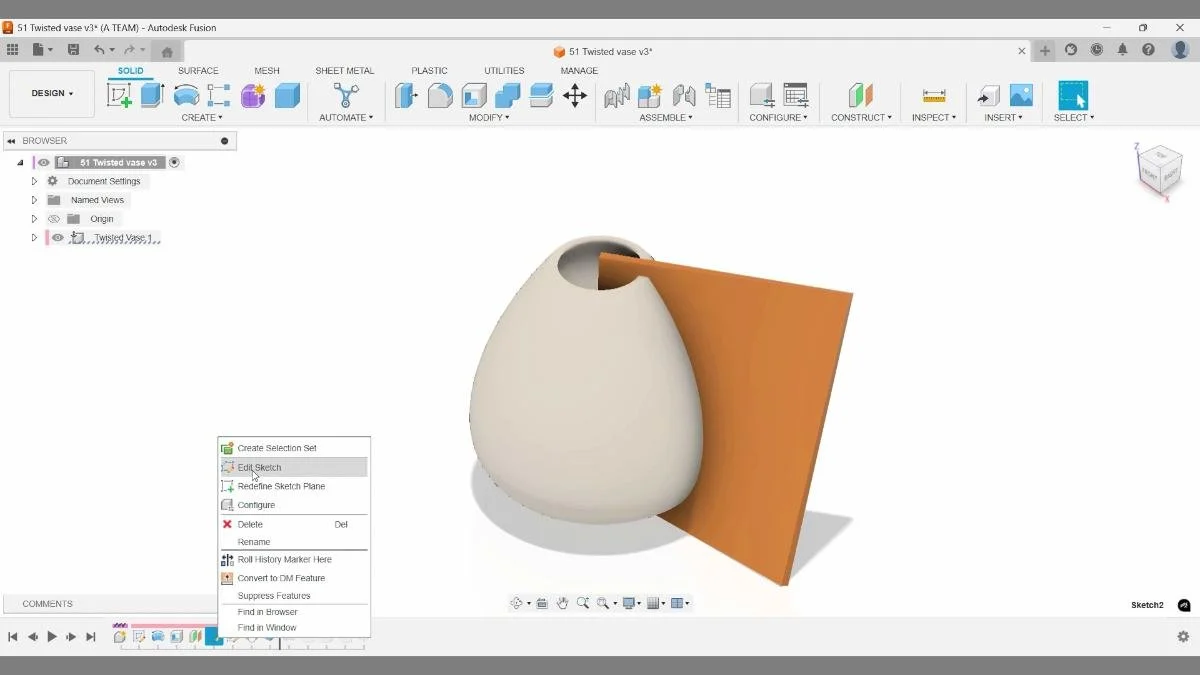

Fusion model demonstrating how modifying a sketch early in the timeline updates all dependent surface features on the vase without rebuilding geometry.
Step 3: Edit the Sketch Dimension
Open the sketch and locate the angular dimension controlling the shape. In this example, the angle is changed from 30 degrees to 90 degrees.
This dimension is ideal for parametric control because it directly influences form while remaining simple and stable. Editing dimensions instead of geometry reduces the risk of constraint failures.
Timeline-based modeling in Fusion where a single sketch controls the repeated pattern wrapped around the vase body.
Step 4: Finish the Sketch and Regenerate the Model
Once the sketch is updated, finish it. Fusion immediately recalculates all connected features further down the timeline.
The orange details update automatically, producing a noticeably different visual result without recreating any geometry. This is the practical power of parametric modeling in action.

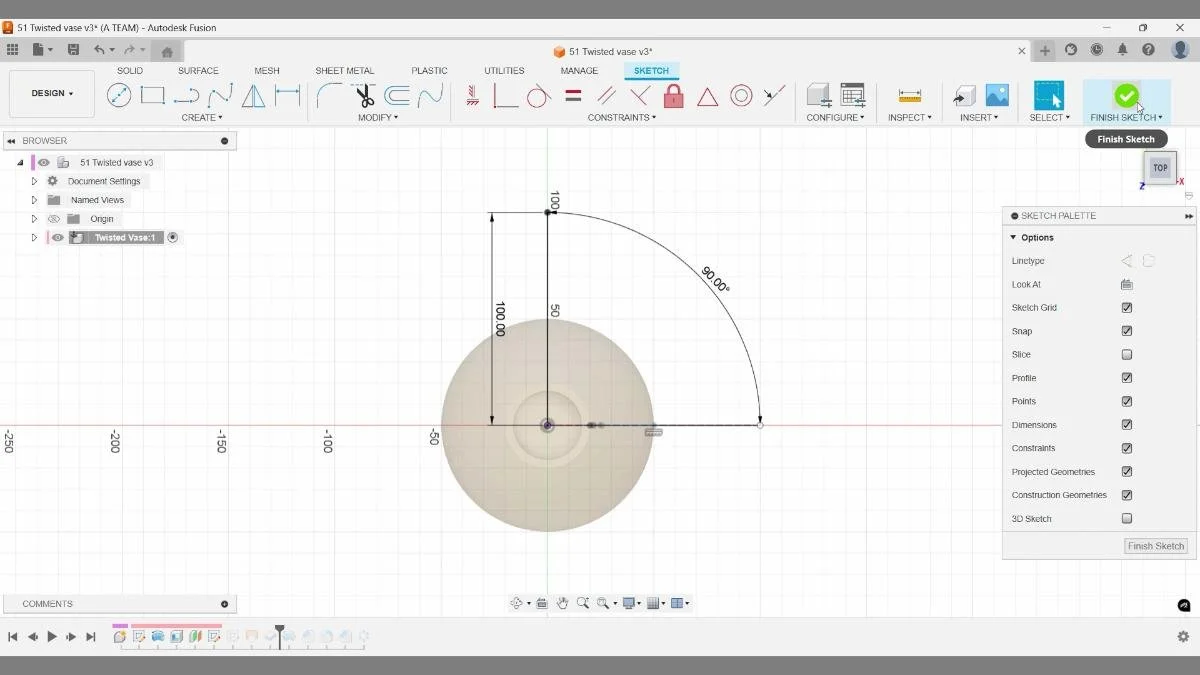

Fusion design environment showing the sketch plane that defines the angular relationship governing how the vase surface pattern is generated.
Step 5: Evaluate Design Variations
Because the model is driven by parameters and sketches, you can quickly explore alternatives. Different angles produce different visual expressions while maintaining manufacturability and structural integrity.
This workflow is especially useful for client work, product variants, and design exploration where rapid iteration is essential.
Autodesk Fusion model showing the vase automatically updated after modifying a sketch dimension earlier in the timeline, demonstrating parametric behavior in action.
Key Takeaways
- Sketches define behavior, not just shape
- Early timeline features control downstream geometry
- Small dimensional changes can update complex models instantly
- Parametric workflows reduce rework and increase flexibility
- This approach is ideal for 3D printing, customization, and iteration
