How to Model a Precise Mechanical Part in Fusion Using Sketch Constraints and Parametric Design
Updated June 3, 2026

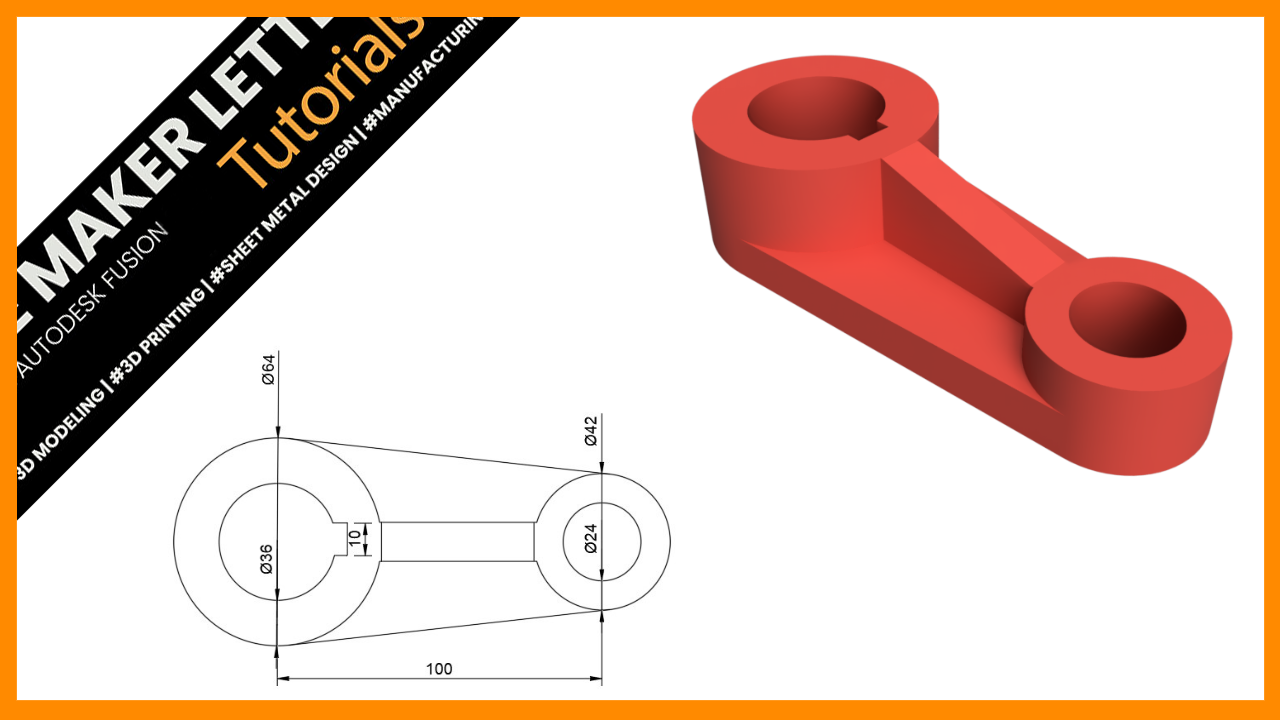

Designing mechanical parts in Fusion often comes down to creating clean sketches that are easy to modify later. In this tutorial, you'll learn how to build a fully parametric mechanical component using constraints, tangent geometry, mirrored sketch entities, and simple solid modeling tools before creating a professional engineering drawing.
Whether you're new to Fusion or coming from another CAD platform, this workflow demonstrates how a well-constrained sketch can drive an entire design and make future revisions significantly easier.
What You'll Learn
- How to create a fully constrained parametric sketch
- Why tangent constraints are useful for smooth mechanical geometry
- How to use construction geometry and mirror tools efficiently
- How to build solid bodies using Extrude and Join operations
- How projected geometry speeds up sketch creation
- How to create cut features that remain adaptable to future design changes
- How to generate engineering drawings using Fusion's Drawing workspace
Watch the Workflow — or Read It Step by Step
You can follow this guide in two ways:
- Read the steps below if you want quick written instructions, reference images, and modeling notes.
- Watch the full video at the end of this post to see the workflow in real time — including extra tips, camera angles, and shortcuts that don’t fit neatly into text.
Both formats build on each other.
Reading helps you understand why each step matters, while watching shows how to move faster in Fusion.
Step 1: Create the Base Sketch
Start a new sketch on the horizontal construction plane and place a Center Diameter Circle at the origin.
Set the first circle to 24 mm. Then create a second concentric circle and set it to 42 mm. This creates a closed profile between the two circles that will later become part of the solid model.
Using center-based geometry at the origin establishes a stable reference point for the entire design. Since the origin never moves, it provides a reliable foundation for future modifications.

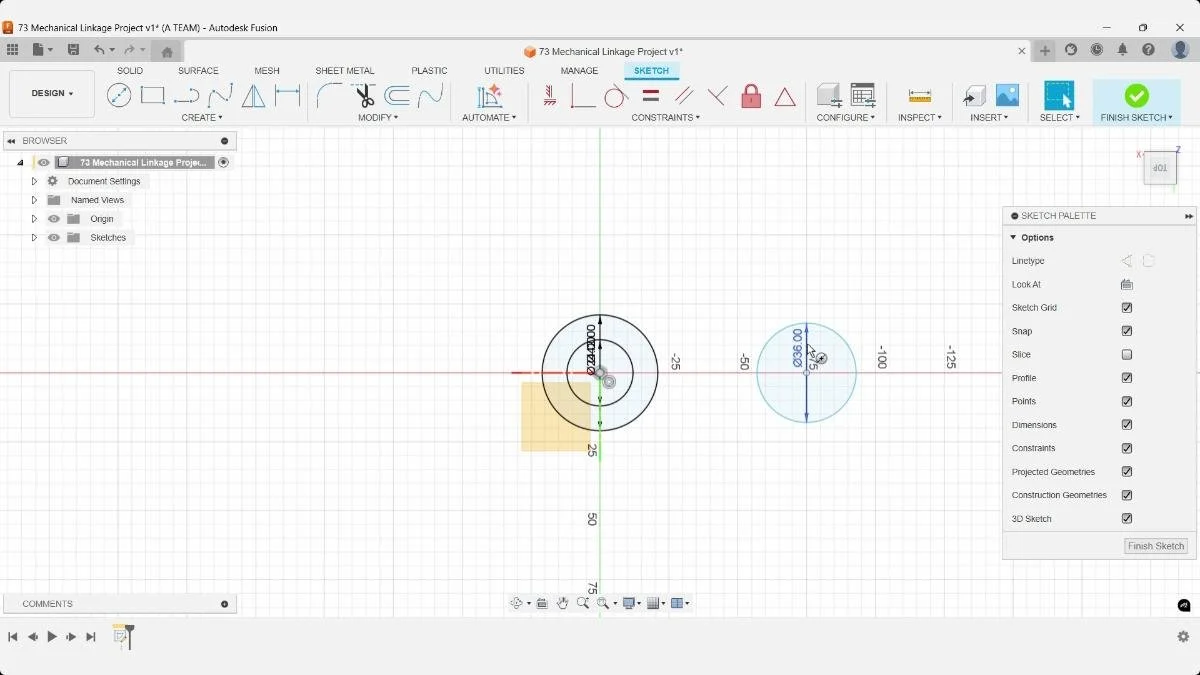

Two sets of concentric circles establish the main dimensions of the mechanical linkage. The sketch is anchored to the origin, creating a stable reference point for the entire parametric model. Center-diameter circles simplify editing because diameters can be modified directly without rebuilding geometry.
Step 2: Create the Larger End Geometry
Add another pair of circles to define the larger end of the component.
Set the inner circle to 36 mm and the outer circle to 64 mm. Then dimension the distance between the center points of the two circle groups to 100 mm.
At this stage, you'll notice some sketch entities are blue while others are black. In Fusion, black geometry indicates a fully constrained sketch entity, while blue geometry still has degrees of freedom.
Maintaining control over sketch constraints is one of the most important habits in parametric CAD modeling because it prevents unexpected changes later.

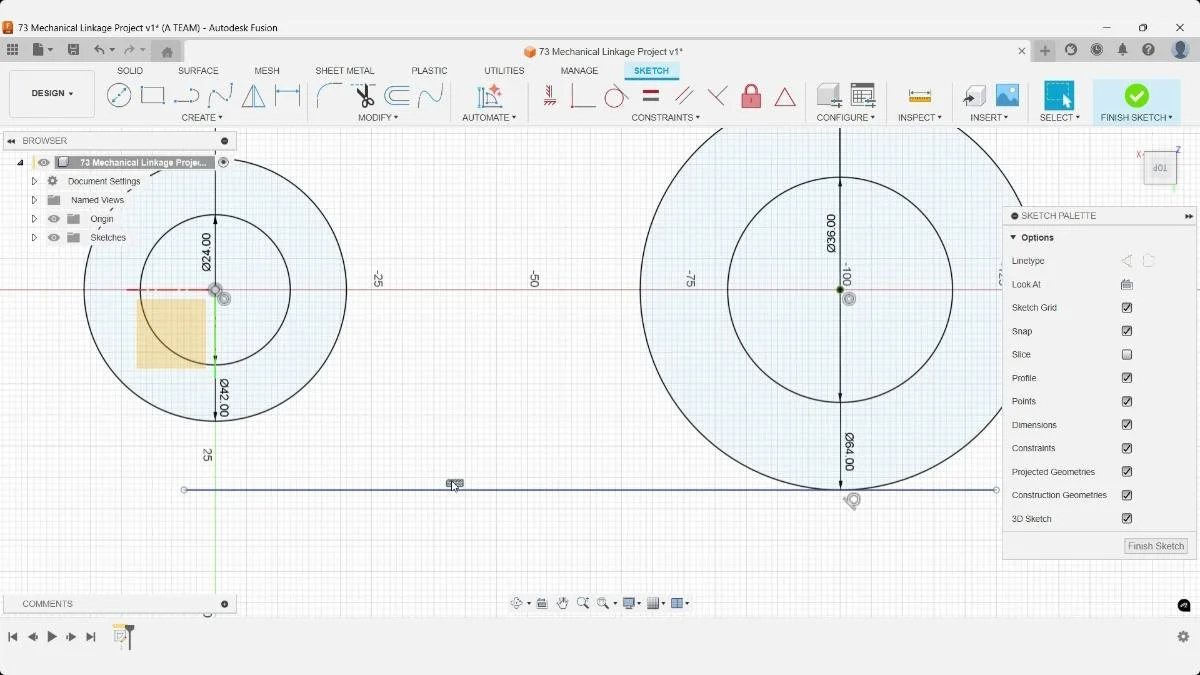

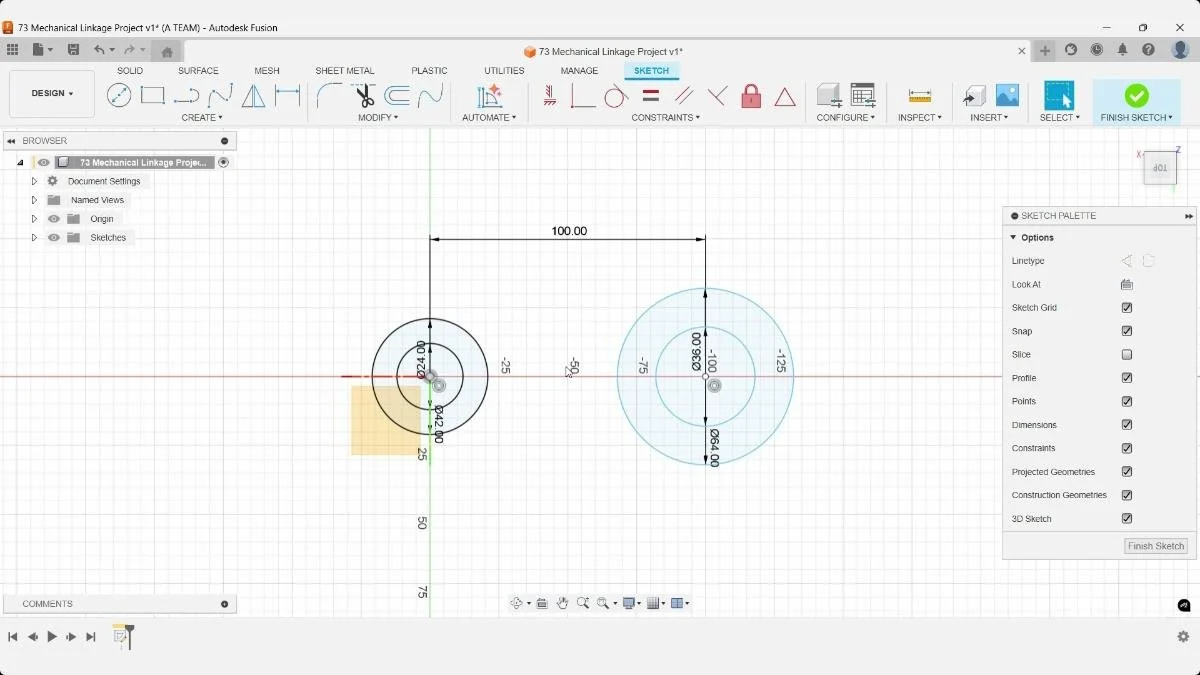

A sketch dimension controls the distance between the two circular features. Defining this relationship early establishes the overall length of the linkage and ensures future design changes remain predictable through parametric updates.
Step 3: Lock the Geometry Using Constraints
Select the two circles on the right and apply the Fix constraint.
This temporarily locks their position while you create the connecting geometry between the two ends of the part.
Although Fix constraints are useful during sketch construction, they're often best used sparingly. In many production designs, dimensions and geometric constraints are preferred because they maintain design intent more clearly.
Step 4: Create Tangent Connecting Lines
Draw a line roughly between the two sets of circles.
A sketch line is positioned between the two outer circles to create the tapered shape of the linkage. The line serves as the foundation for tangent constraints that will generate smooth transitions between circular features.
Instead of attempting to position it perfectly, apply Tangent constraints between the line and both circles.

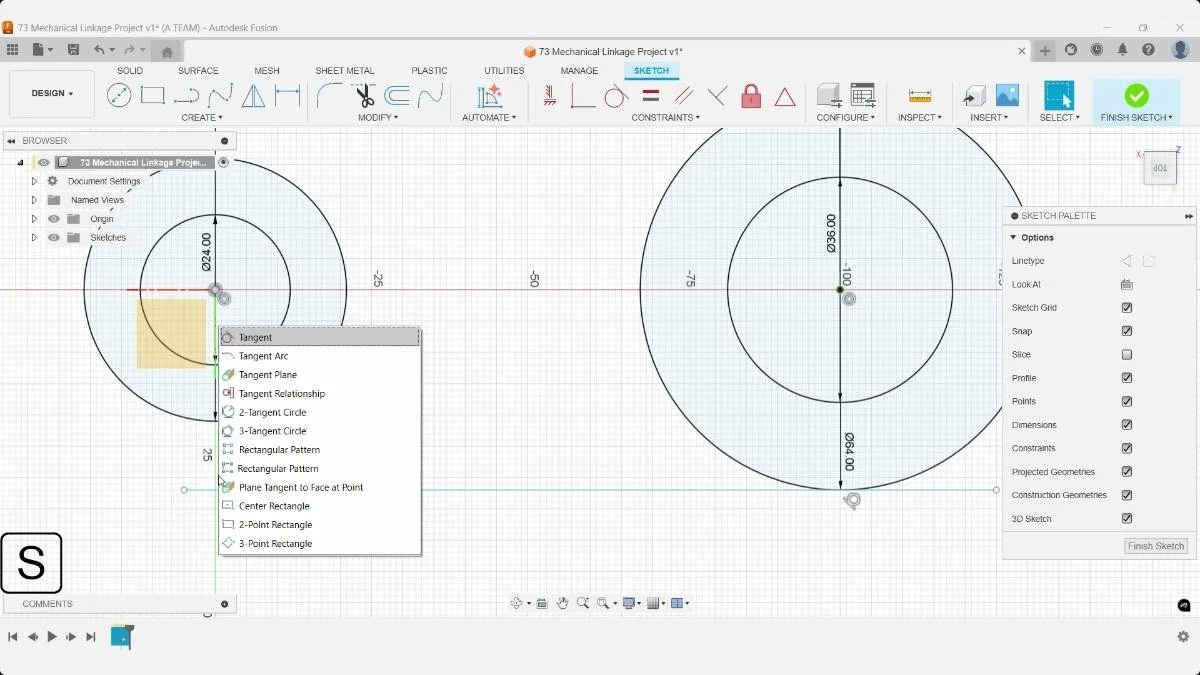

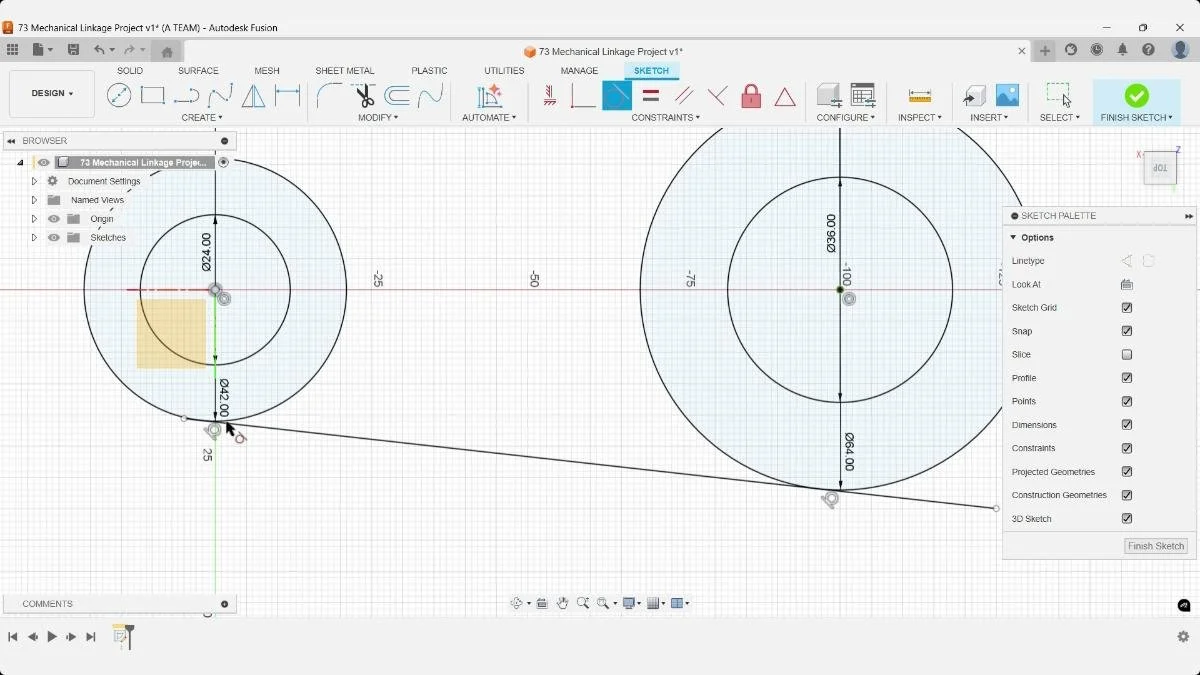

The Sketch Shortcuts menu provides rapid access to commonly used sketch commands. Accessing constraints and geometry tools through shortcuts can significantly speed up sketch creation without navigating multiple toolbar menus.
Fusion may automatically apply horizontal or vertical constraints while sketching. Remove any unnecessary automatic constraints before applying the second tangent relationship.
Tangent constraints are ideal here because they create smooth transitions between circular features. This results in cleaner geometry and reduces the likelihood of problematic edges later in the modeling process.
A sketch line is positioned between the two outer circles to create the tapered shape of the linkage. The line serves as the foundation for tangent constraints that will generate smooth transitions between circular features.
Step 5: Mirror the Sketch Geometry

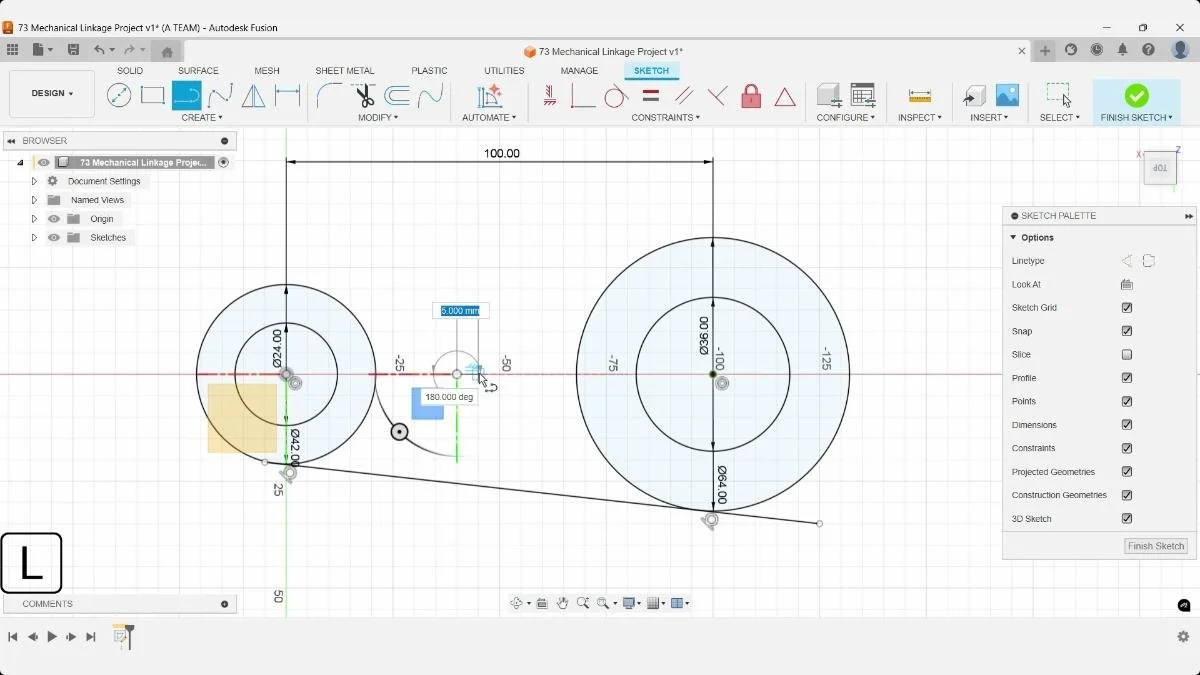

Create a short construction line that will serve as your mirror axis.
A short construction line is created to serve as the mirror axis. Construction geometry acts as a reference without contributing directly to the solid model and is commonly used for symmetrical designs.
Trim the original sketch line where necessary and use the Mirror command to duplicate it on the opposite side.

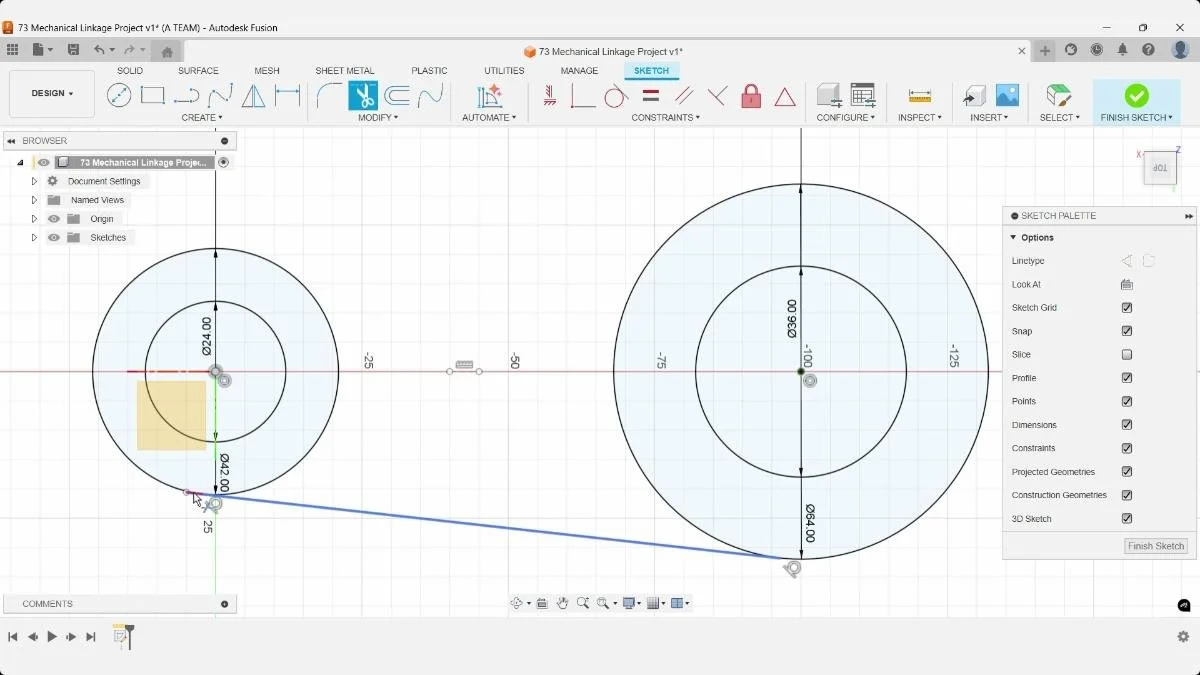

The Trim command removes unnecessary sketch segments after the tangent relationships have been established. Cleaning up excess geometry creates a simpler sketch that is easier to mirror, constrain, and maintain.
This approach offers two major advantages:
- Both sides remain perfectly symmetrical
- Future edits only need to be made to one side of the sketch
Since Fusion tracks mirrored geometry in the timeline, any future changes automatically propagate to the mirrored side.

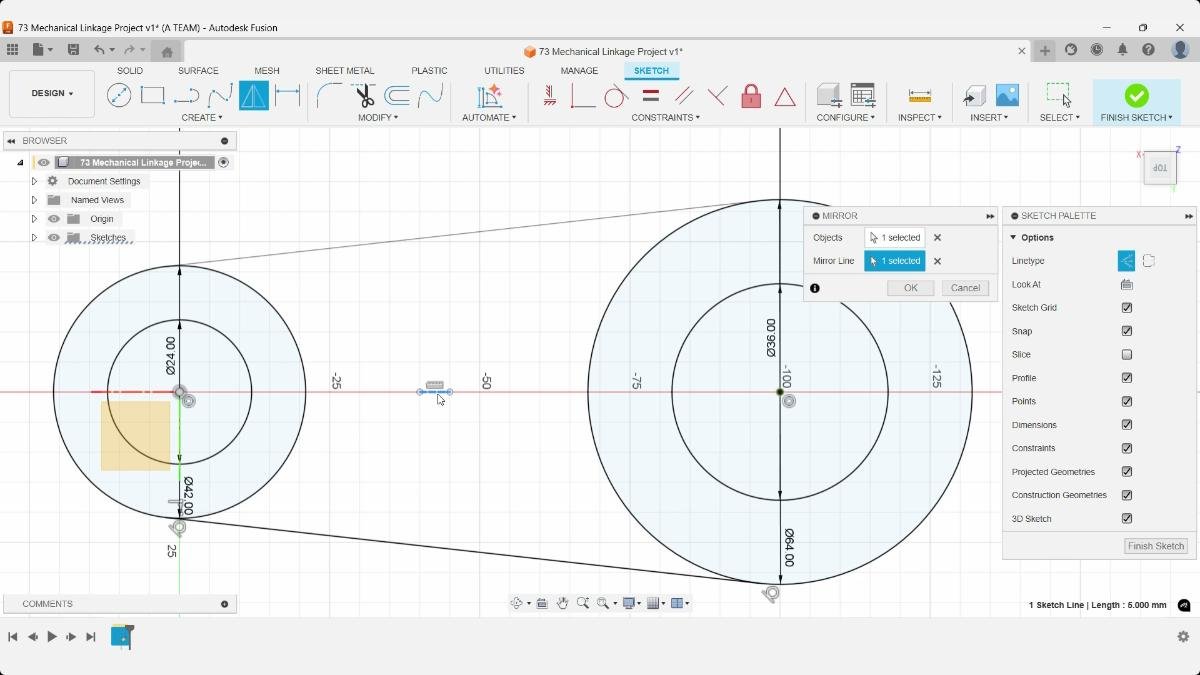

The Mirror command is configured using the construction line as the mirror axis. Mirroring sketch entities reduces repetitive work and ensures both sides remain identical throughout future design changes.
Step 6: Fully Constrain the Sketch
Before moving on to 3D modeling, apply the final tangent constraint needed to fully define the sketch.
Fully constrained sketches are a cornerstone of robust parametric design. They reduce the risk of accidental movement and make later modifications much more predictable.
A few extra seconds spent constraining sketches can save significant troubleshooting time later in the project.

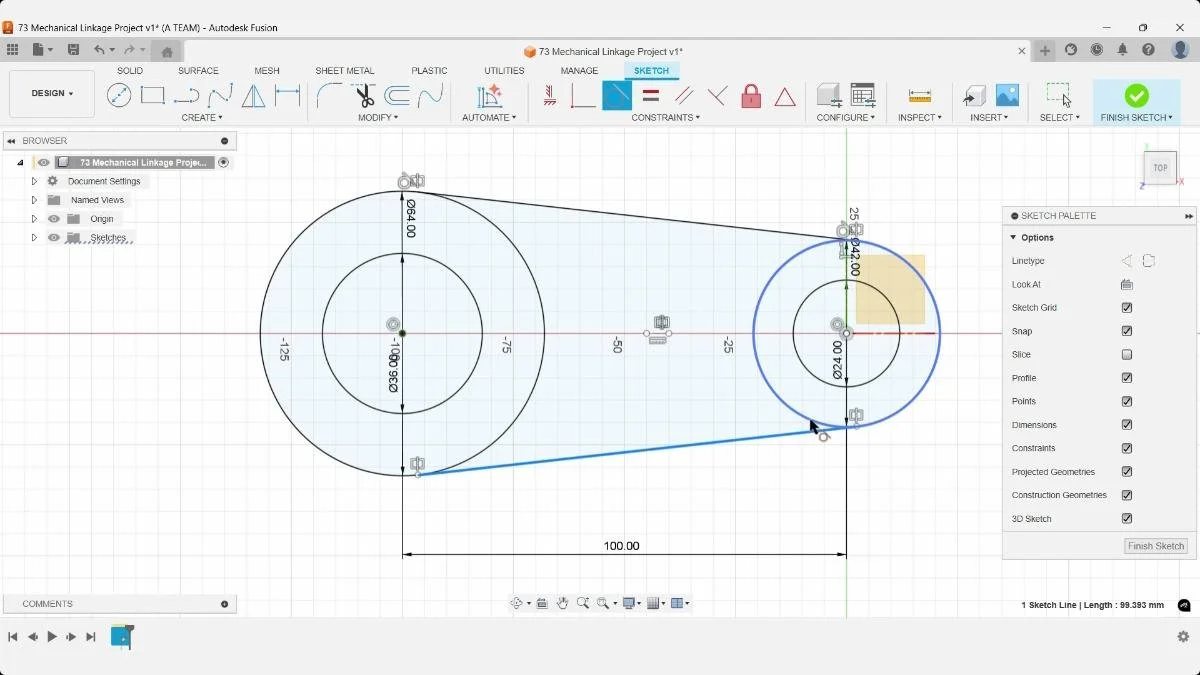

The sketch is fully constrained, with all geometry displayed in black to indicate that no degrees of freedom remain. Tangent constraints create smooth transitions between the circles and connecting lines, while dimensions and geometric relationships lock the profile in place. Fully constrained sketches provide a stable foundation for parametric modeling and help prevent unexpected changes when the design is modified later.
Step 7: Create the First Solid Bodies
Without closing the sketch, launch the Extrude command.
Extrude the smaller section to 24 mm.

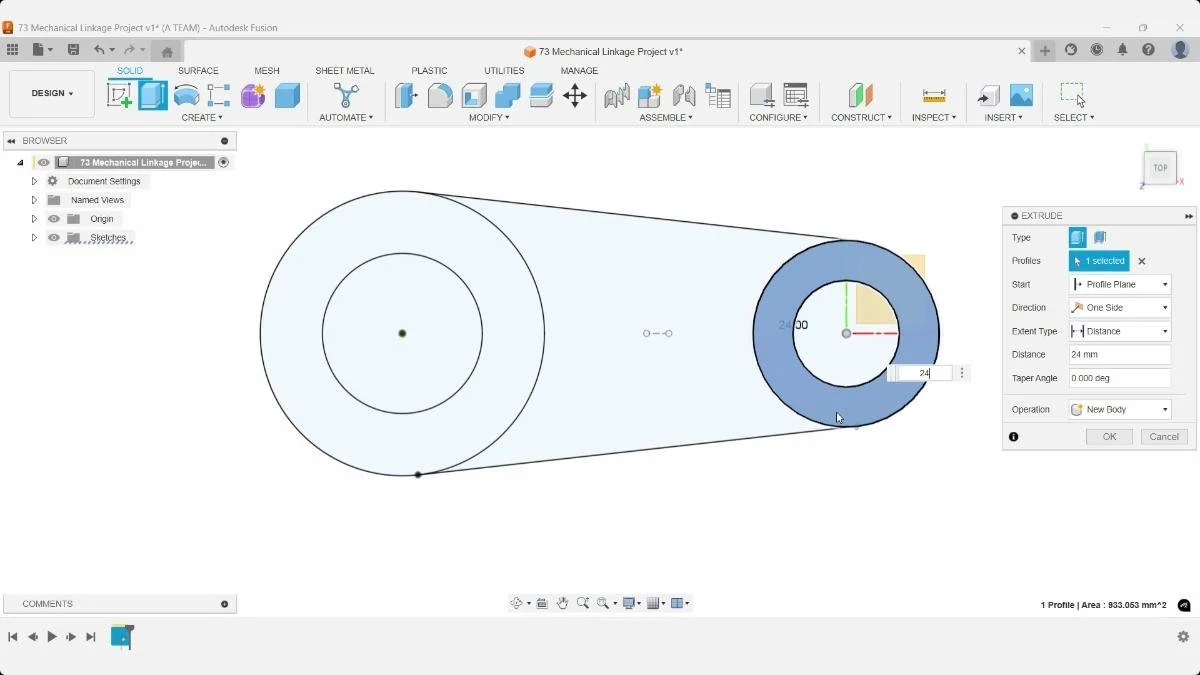

The smaller circular profile is extruded into a solid body. Converting sketches into solids incrementally allows each feature to remain clear in the timeline and makes later modifications easier to manage.
If the sketch automatically becomes hidden, simply turn its visibility back on and continue modeling.
Next, extrude the larger circular section to 36 mm.
One of Fusion's strengths is the ability to move directly from sketching into solid modeling without constantly switching environments.

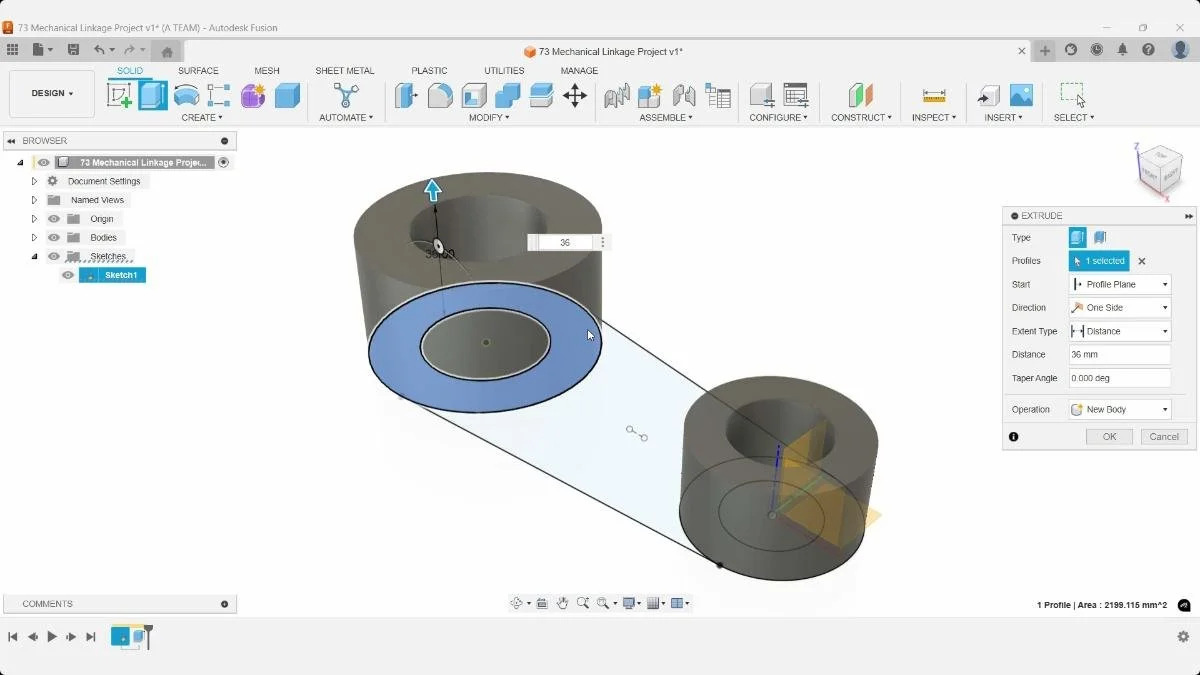

The second circular profile is extruded to create the larger end of the linkage. Separate extrusions provide flexibility when different regions require different thicknesses or manufacturing features.
Step 8: Join the Center Section
Select the center profile and use Extrude once again.
This time, set the operation to Join so the new geometry merges with the existing bodies.
Using Join creates a single continuous solid rather than separate components. For mechanical parts, this often simplifies downstream operations such as fillets, drawings, and manufacturing preparation.

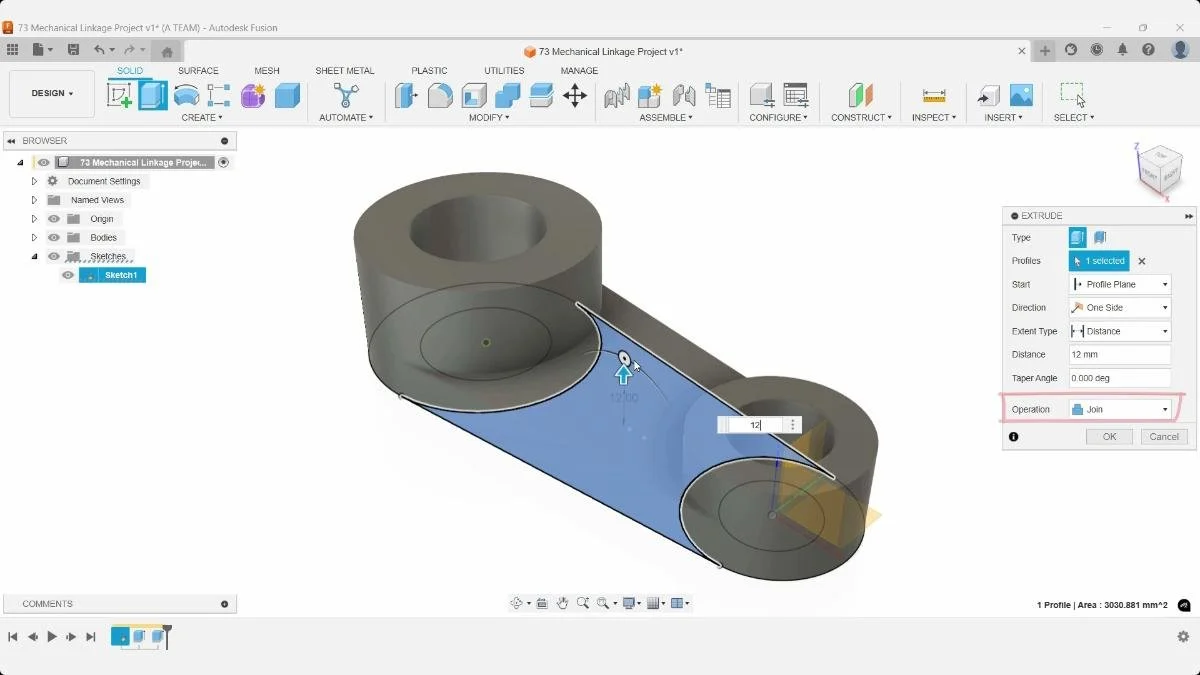

The center section is extruded using the Join operation, merging separate geometry into a single solid body. Joining bodies simplifies downstream modifications and drawing creation.
Step 9: Create the Reinforcement Feature
Start a new sketch on the vertical construction plane located at the center of the model.

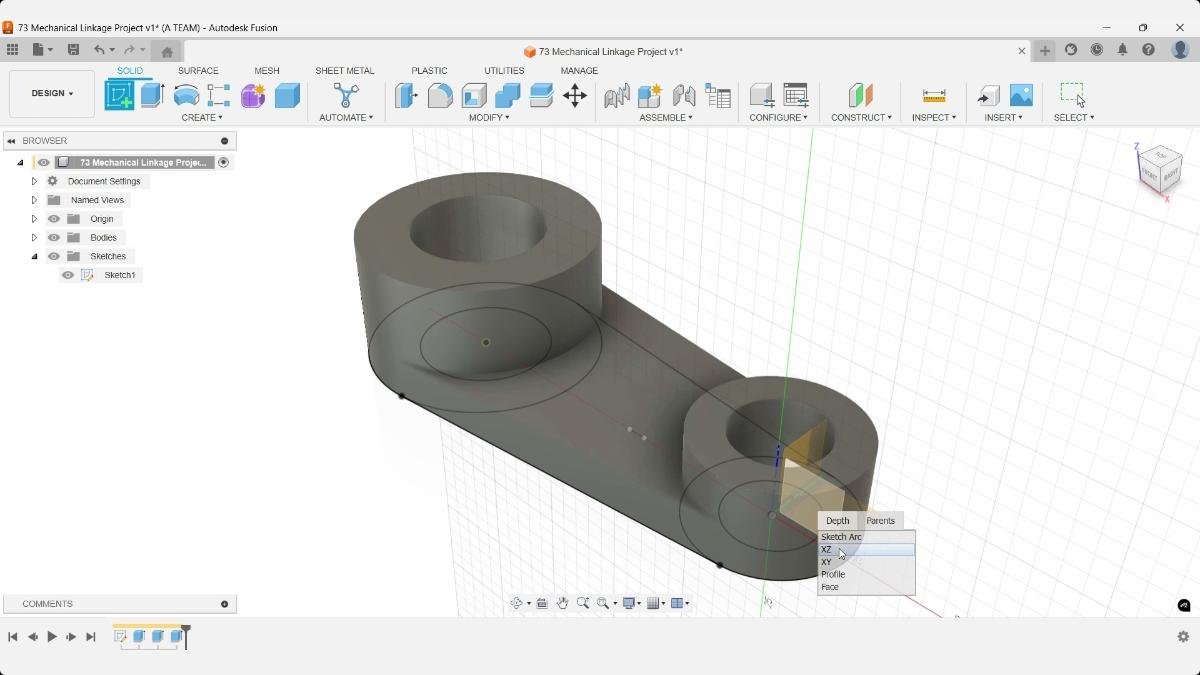

A sketch is created on the central construction plane of the model. Positioning the sketch on a centered plane allows reinforcement geometry to be built symmetrically around the linkage.
Rather than manually recreating existing geometry, use the Project command to bring relevant model edges into the sketch.
Projected geometry appears in purple and remains linked to the source geometry. If the model changes later, the projected sketch updates automatically.
This associative relationship is one of the most powerful features in Fusion's parametric workflow.

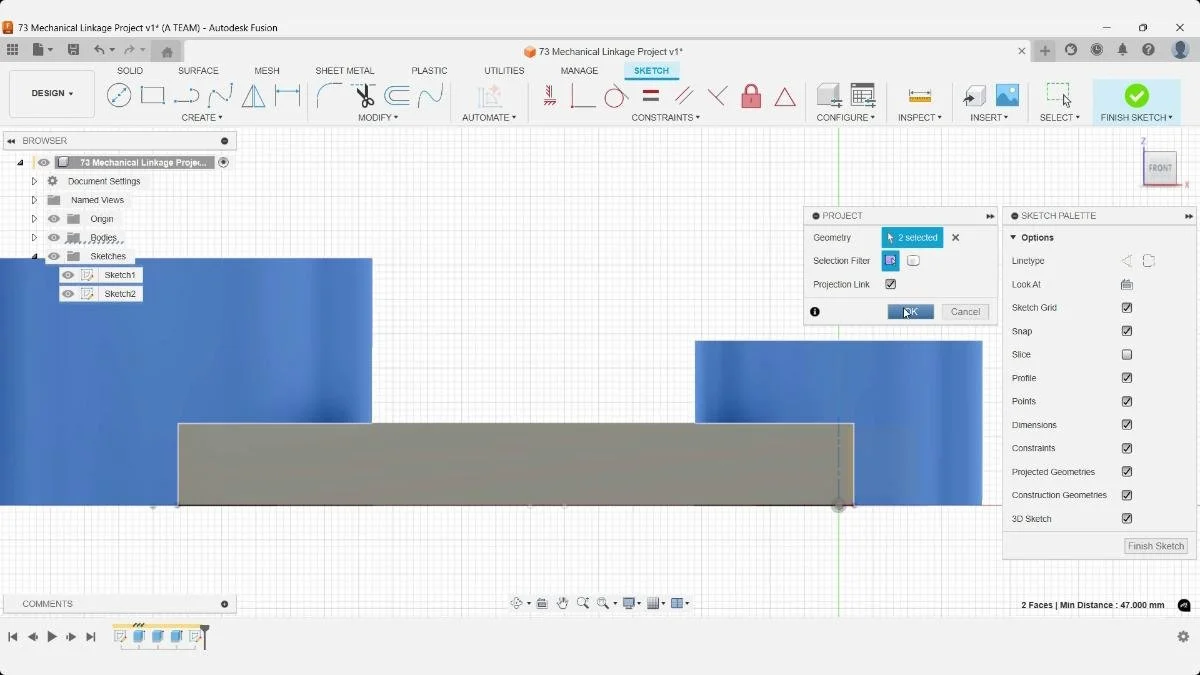

Existing model edges are projected into a new sketch to create associative references. Projected geometry updates automatically when the model changes, helping maintain design intent throughout the timeline.
Step 10: Extrude the Reinforcement Body

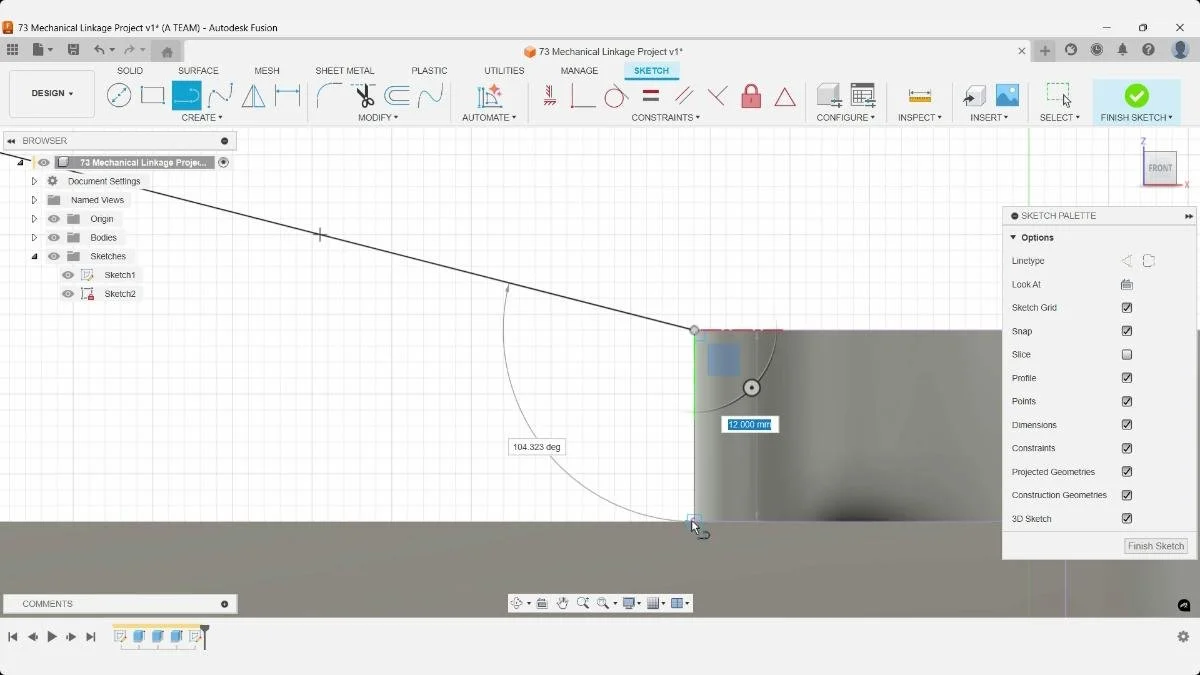

Create a closed profile using the projected geometry.
A closed profile is created between projected edges to define a strengthening rib. Referencing projected geometry improves alignment accuracy and minimizes manual dimensioning.
When extruding, set the Direction option to Symmetric and use a Half Length value of 6 mm.
This creates a total thickness of 12 mm centered on the model.
Symmetric extrusions are especially useful when working around center planes because they maintain balance and eliminate the need to calculate offsets manually.
Set the operation to New Body for now.

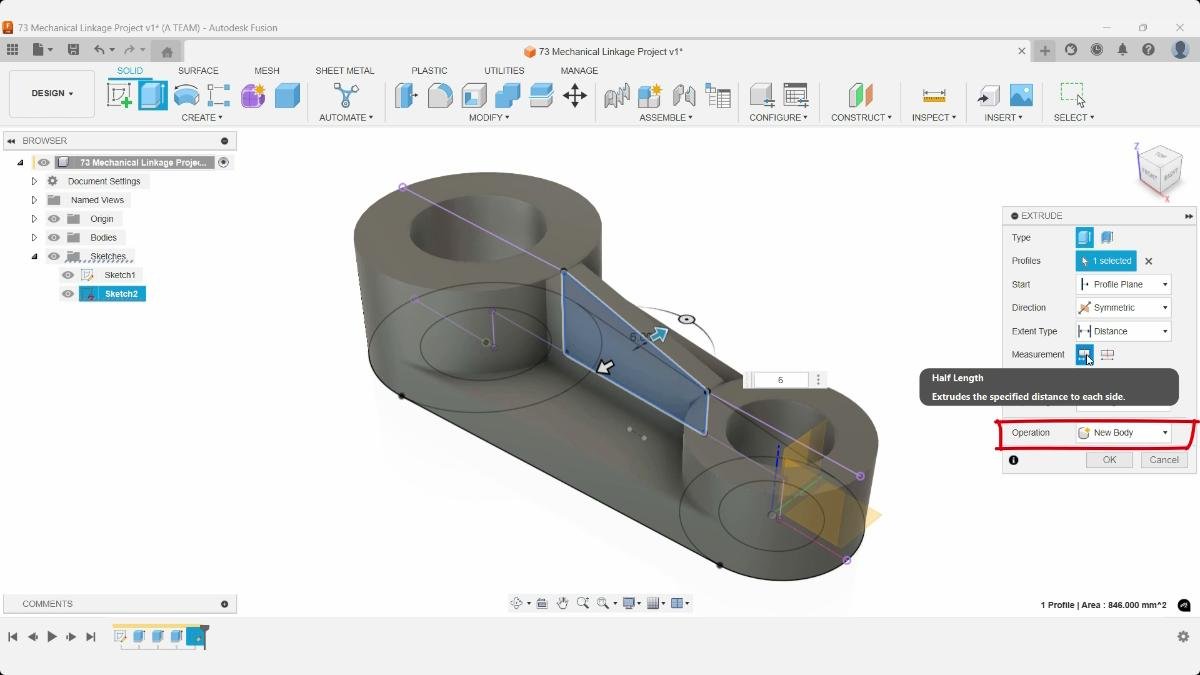

The rib profile is extruded symmetrically from the sketch plane as a new body. Symmetric extrusion keeps material evenly distributed on both sides of the center plane and simplifies dimension management.
Step 11: Join the Reinforcement to the Main Model
Use another Extrude operation to extend the reinforcement into the surrounding geometry.
Change the operation to Join and repeat the process on both sides.

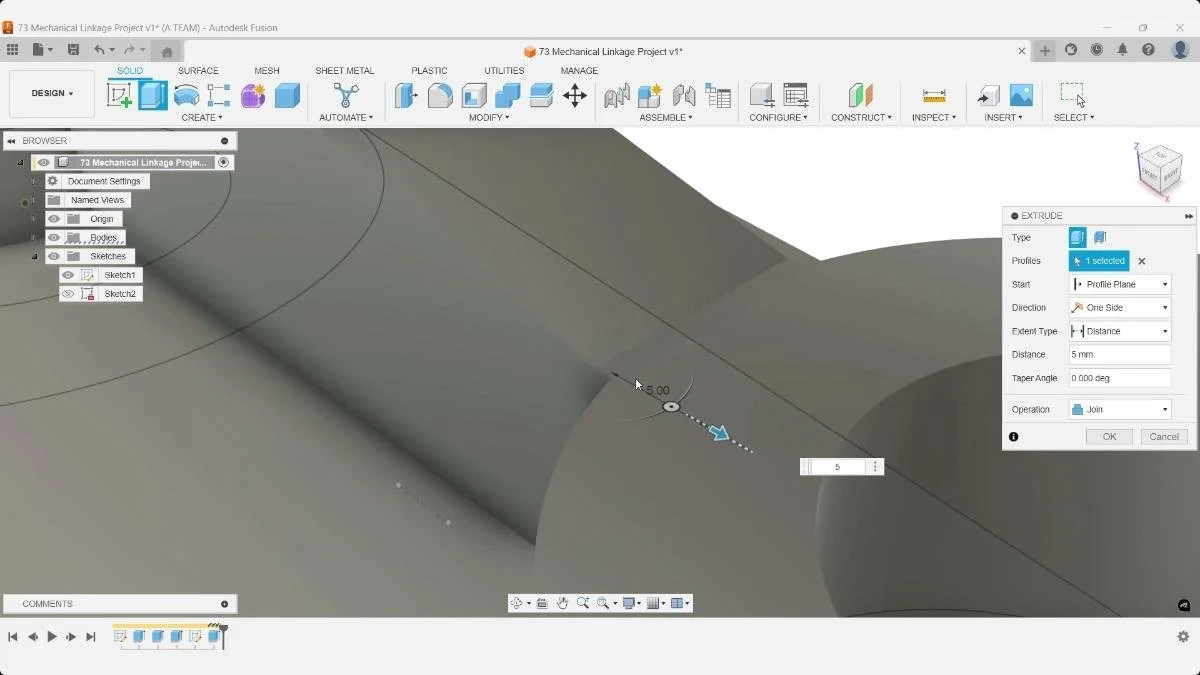

The reinforcement feature is extended into the surrounding geometry and merged using the Join operation. Integrating the rib strengthens the connection between the two circular ends while maintaining a single solid body.

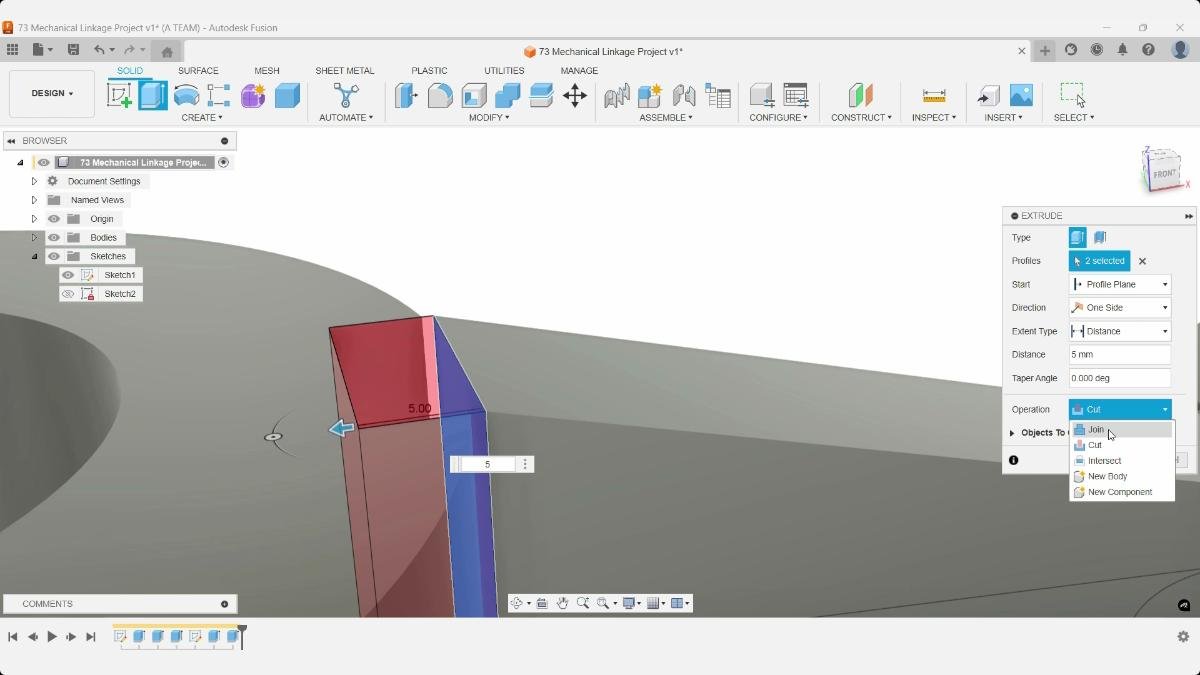

The extrusion dialog is adjusted from the suggested Cut operation to a Join operation, allowing the new geometry to be added to the existing body instead of removing material. Choosing the correct operation type ensures the feature behaves as intended and produces the desired modeling result.
Before confirming the operation, make sure all required bodies are selected.
Taking a moment to orbit the model and inspect it from multiple angles helps catch issues before they become harder to fix later.
Step 12: Create the Slot Feature
Start a new sketch on the top face of the model.

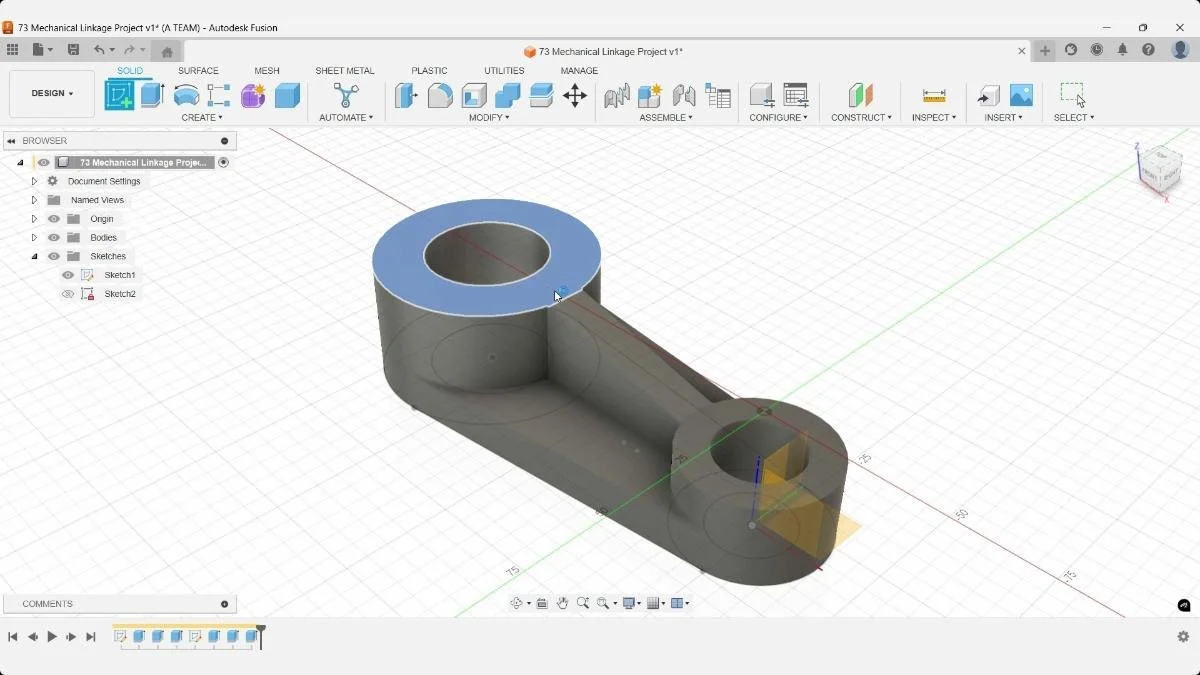

This sketch is created on top of the model and defines the geometry for the slot cutout.
Use the Center Rectangle tool and place the rectangle at the center of the body.
Dimension the rectangle to:
- Length: 10 mm
- Width: 6 mm
The Center Rectangle tool works particularly well here because the feature needs to remain centered relative to the part geometry.

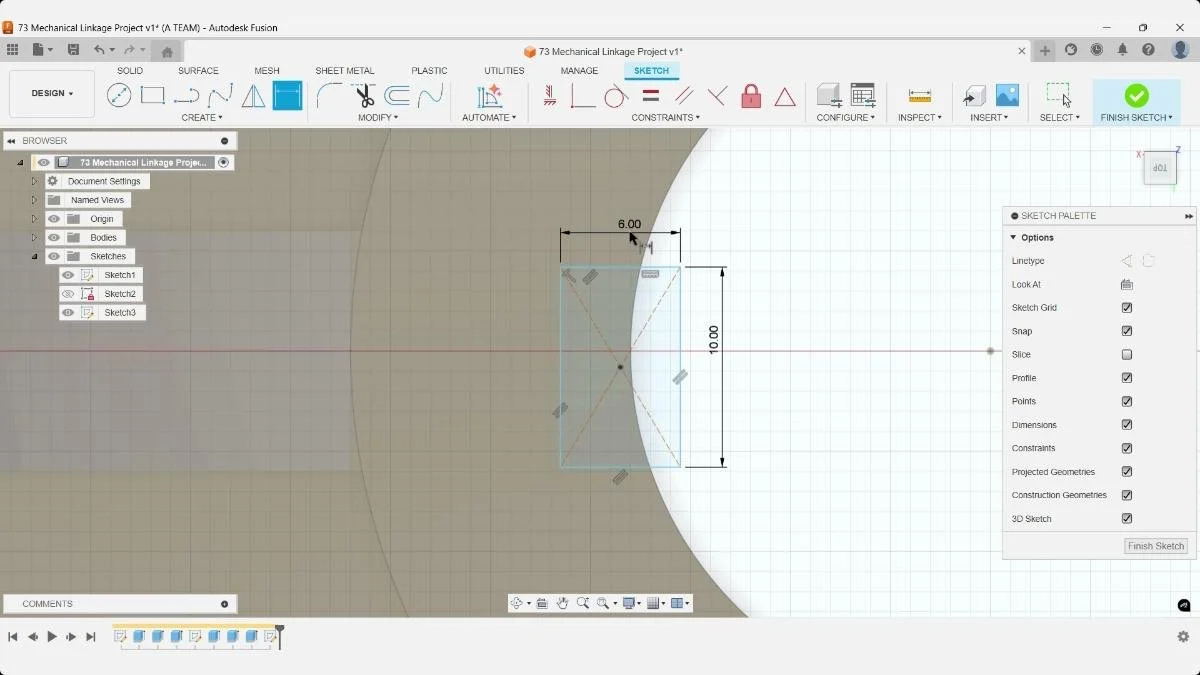

A center rectangle is positioned on the top face to define the slot geometry. Center-based sketch tools simplify alignment because the feature remains centered relative to existing model geometry.
Step 13: Cut Through the Part
Use the Extrude command and switch the operation to Cut.
Rather than specifying a fixed distance, cut all the way through the solid body.
This approach creates a more robust parametric feature because the cut automatically adapts if the thickness of the part changes in the future.
Design intent remains intact without requiring manual updates.

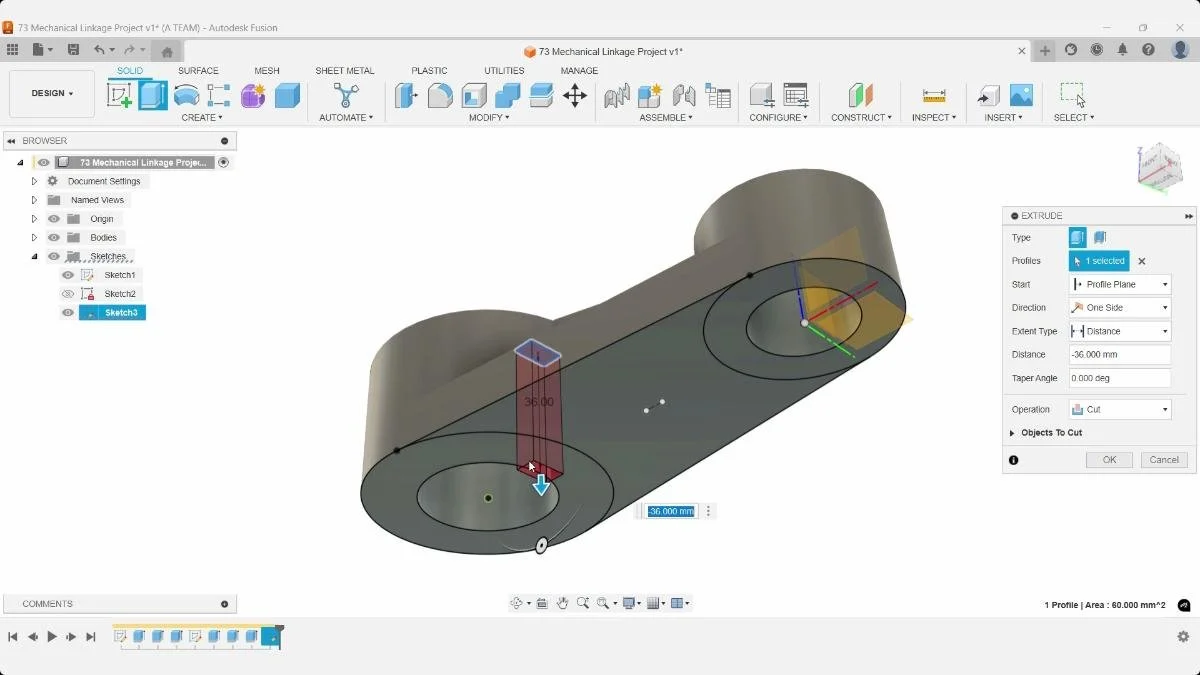

The slot profile is extruded downward using a cut operation to remove material from the solid body. Extending the cut through the entire thickness helps maintain the feature if the model thickness changes later.
Step 14: Create a Drawing
Save the project and switch to the Drawing workspace.
Fusion provides both automatic and manual drawing tools, making it easy to create professional engineering documentation.
If you're searching for Fusion tutorials, it's worth noting that Fusion (formerly Fusion 360) includes a dedicated drawing environment that is tightly integrated with your CAD models.
Start by placing a Base View on the drawing sheet.
One advantage of Fusion's drawing workflow is that view scales, styles, and settings can be adjusted quickly without rebuilding the drawing.

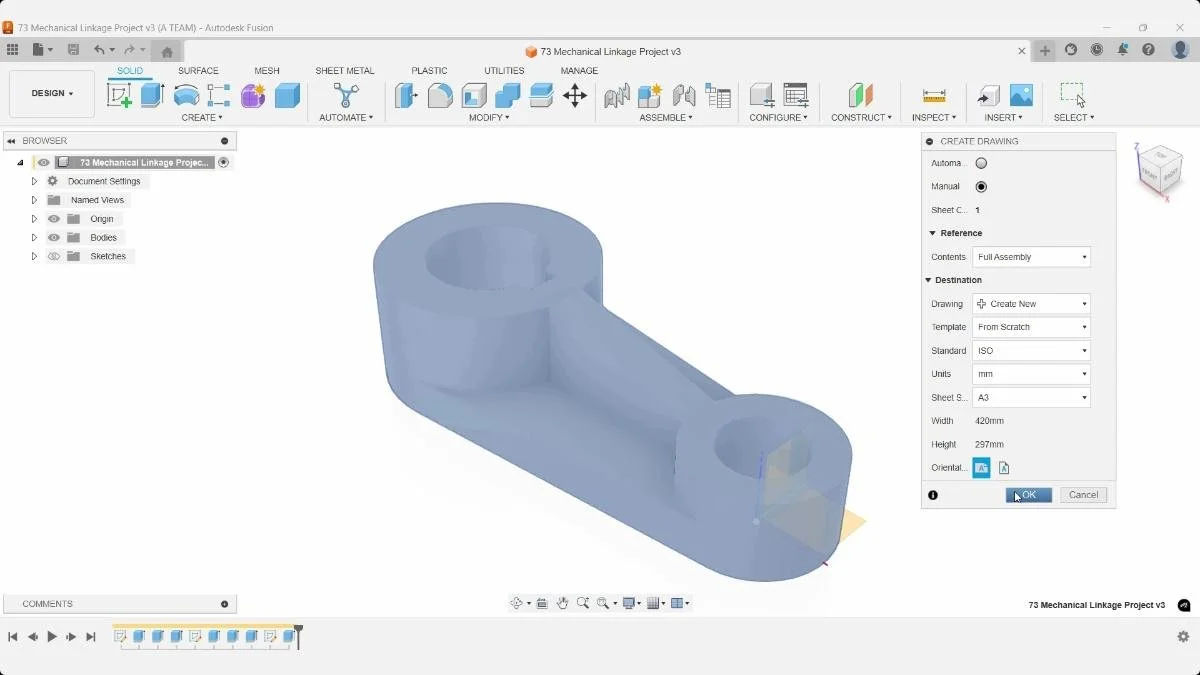

The Drawing workspace is configured using ISO standards and metric units. Separating drawings from the design file allows documentation to update independently while remaining linked to the source model.
Step 15: Add Projected Views and Dimensions
Create a Projected View from the base view and reposition the views for clarity.

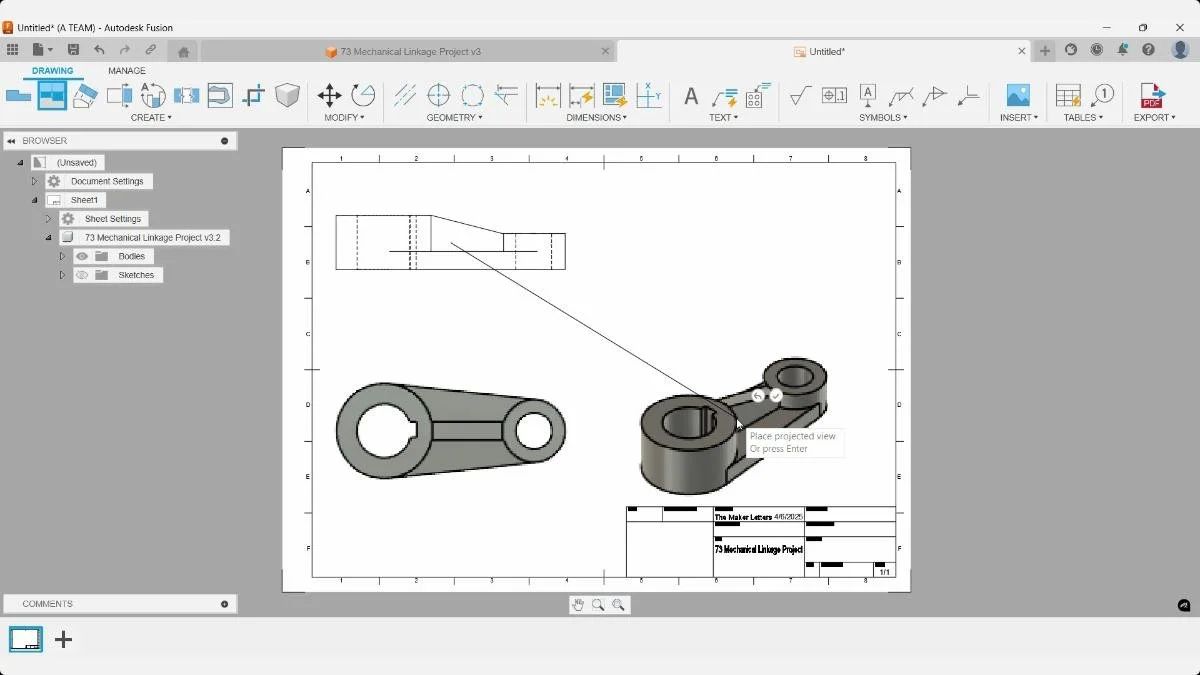

Base and projected views are arranged on the drawing sheet to communicate the geometry clearly. Multiple views provide the information required for manufacturing, inspection, and design review.
Add dimensions manually where needed.
Then experiment with the Auto Dimension tool.
Auto Dimension analyzes your model and proposes multiple dimensioning schemes. You can choose different density levels depending on how much information you want displayed.
This can significantly speed up drawing creation while still allowing manual refinement where necessary.

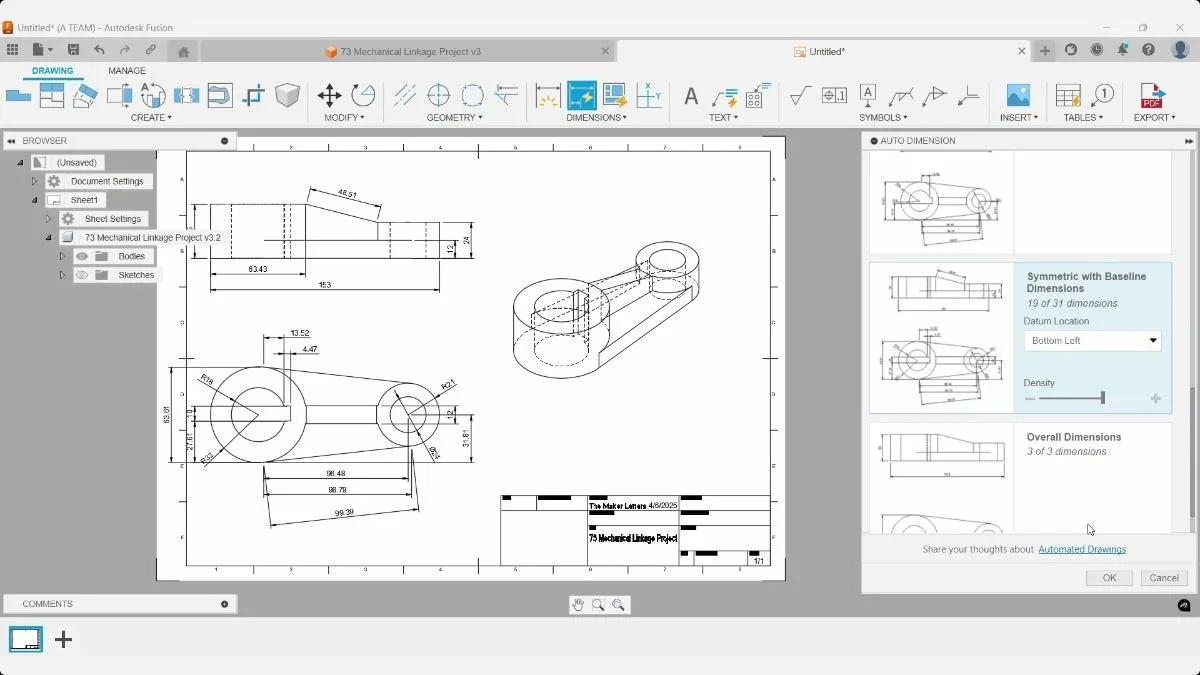

Fusion automatically generates dimension schemes based on the selected drawing views. Automated dimensions accelerate documentation while still allowing manual refinement where additional control is needed

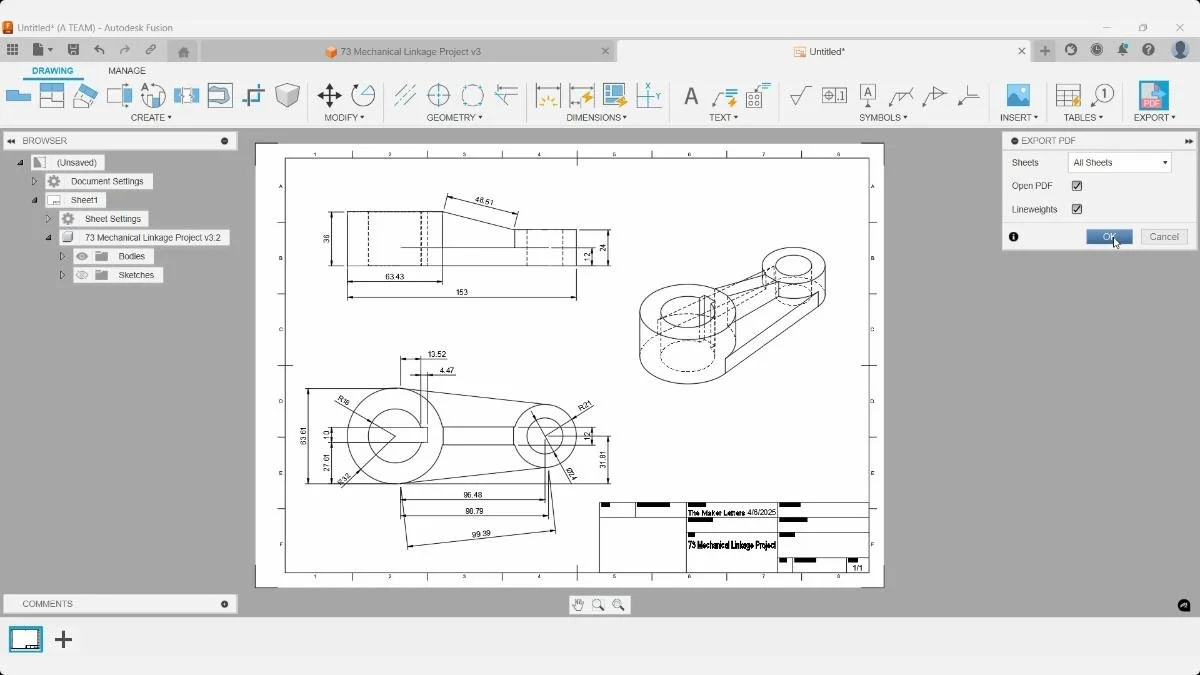

The completed engineering drawing is exported as a PDF document. PDF output provides a widely compatible format for sharing designs, reviewing dimensions, and distributing manufacturing documentation.
Key Takeaways
- Fully constrained sketches create more reliable parametric models
- Tangent constraints are excellent for smooth mechanical transitions
- Mirror operations reduce sketching time and simplify future edits
- Projected geometry maintains associativity between sketches and solids
- Symmetric extrusions help keep designs centered and balanced
- Through-all cuts are often more robust than fixed-distance cuts
- Fusion's Drawing workspace provides an efficient path from CAD model to manufacturing documentation
