Speed Up Your Fusion Workflow: Master 3D Sketching and Sweep Cut Design
Create a Parametric Twist Container in Fusion (Formerly Fusion 360)
Updated May 27, 2026
Want to improve your Fusion workflows with more advanced sweep cuts, 3D sketches, and body management techniques? In this project, you’ll build a twisted cylindrical container using a combination of solid modeling tools, section analysis, and a solid sweep cut workflow. The result is a clean, printable design that also teaches several powerful modeling concepts you can reuse in future projects.
This workflow is especially useful for makers interested in functional 3D printable parts, parametric modeling, and more advanced Fusion techniques beyond basic extrudes and fillets. If you still search for Fusion 360 tutorials, don’t worry — Fusion (formerly Fusion 360) still uses many of the same workflows and commands.
What You’ll Learn
- How to create linked sketches using Project geometry
- Why separate bodies are useful during complex modeling operations
- How to use 3D sketches to control sweep paths
- How Solid Sweep cuts differ from standard sweep operations
- Why Offset Planes help maintain alignment in parametric workflows
- How to use Section Analysis to verify internal geometry
- Tips for creating cleaner 3D printable clearances and transitions
- How to combine bodies strategically after modeling operations are complete
Watch the Workflow — or Read It Step by Step
You can follow this guide in two ways:
- Read the steps below if you want quick written instructions, reference images, and modeling notes.
- Watch the full video at the end of this post to see the workflow in real time — including extra tips, camera angles, and shortcuts that don’t fit neatly into text.
Both formats build on each other.
Reading helps you understand why each step matters, while watching shows how to move faster in Fusion.
Step 1: Create the Main Cylinder
Start by creating a new sketch on the horizontal construction plane. This gives the model a natural orientation and keeps the workflow easier to manage later when using construction planes and 3D sketches.
Create a center diameter circle at the origin and set the diameter to 50 mm. Using the origin helps maintain symmetry and keeps future parametric edits predictable.

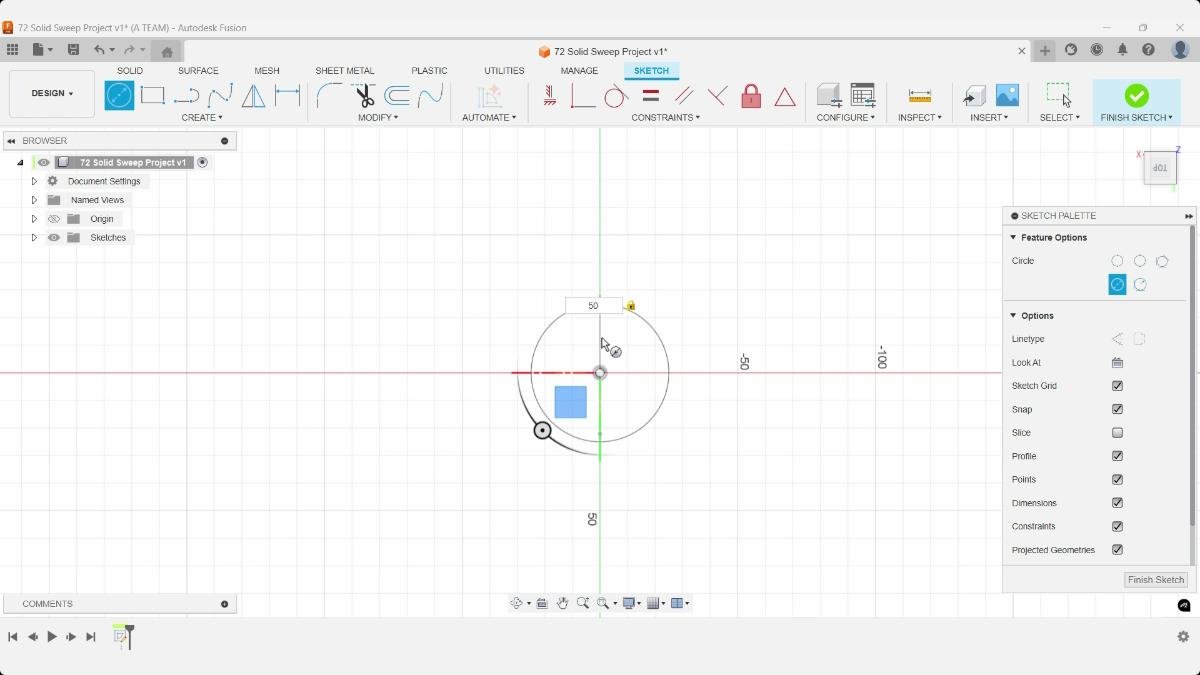

A center diameter circle is created on the horizontal construction plane to define the base profile of the main cylinder. Positioning the sketch at the origin simplifies symmetry, mirror operations, and future parametric edits later in the timeline.
Use the E shortcut to activate the Extrude command directly from the sketch. Extrude the cylinder to 75 mm.

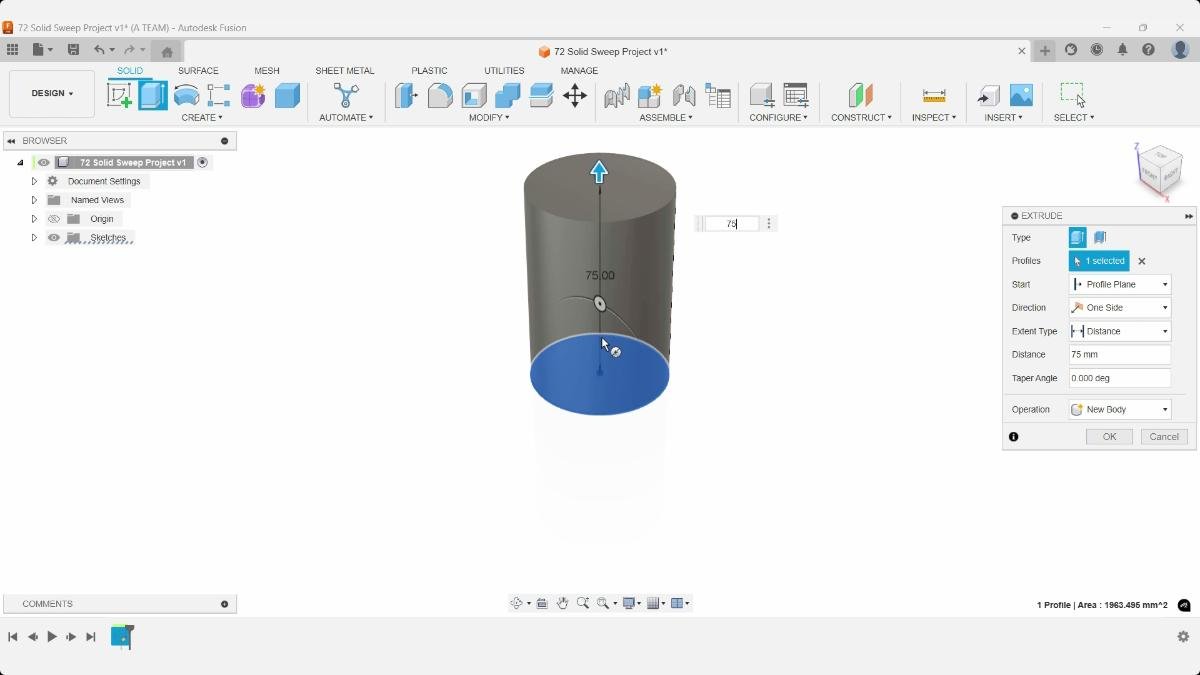

The circular sketch profile is extruded to 75 mm using the Extrude command. Creating the geometry as a solid body establishes the primary container shape before shelling and sweep operations are added.
Next, use the Shell command and remove the top face while keeping the bottom intact. Set the wall thickness to 2.5 mm.
Shell is a strong choice here because it creates uniform wall thickness automatically, which is especially important for 3D printing. A consistent wall thickness improves print reliability while keeping print times reasonable.

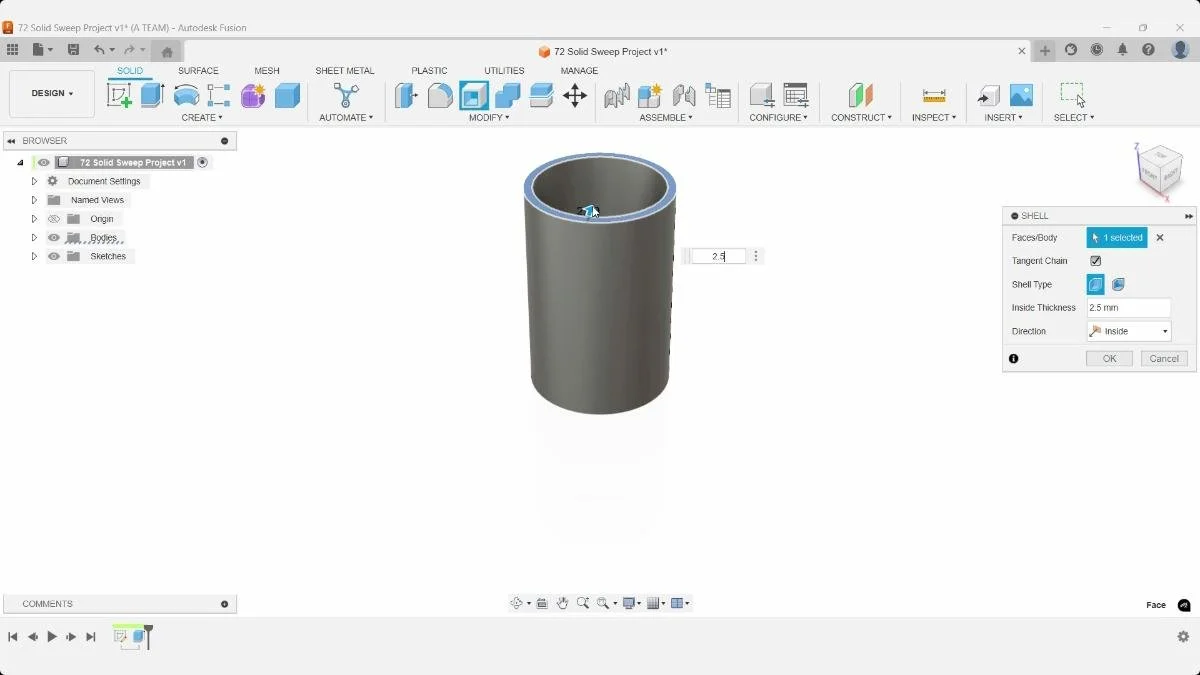

The Shell command removes the top face while maintaining a consistent 2.5 mm wall thickness. Uniform wall thickness improves 3D print consistency and reduces unnecessary material usage.
Step 2: Create the Inner Cylinder
Start a new sketch on top of the main cylinder.

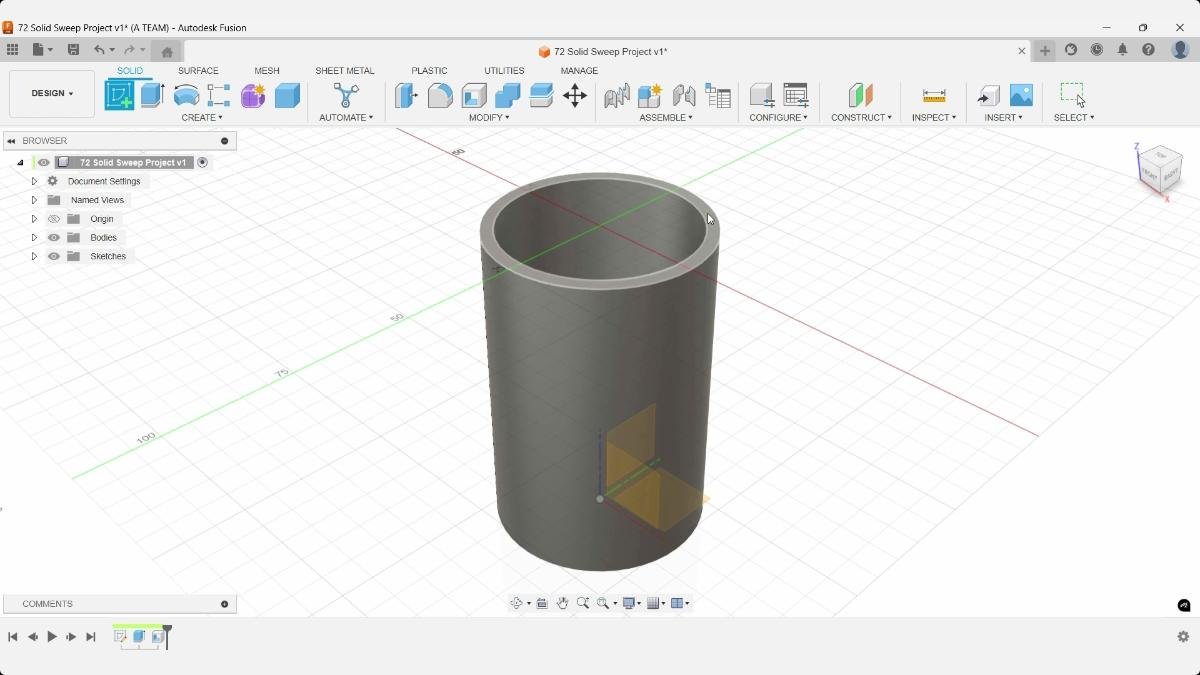

The top face of the shelled cylinder is selected as the sketch plane for the next operation. Sketching directly on the existing body face simplifies projected geometry workflows and keeps downstream features aligned to the model geometry.
Instead of redrawing geometry manually, use the Project command to capture the inner circular edge from the shell operation. The projected geometry becomes linked geometry, shown in purple, meaning updates to the original geometry propagate automatically.
This is one of the most powerful sketching workflows in Fusion because it reduces duplicate geometry and helps maintain parametric relationships throughout the timeline.

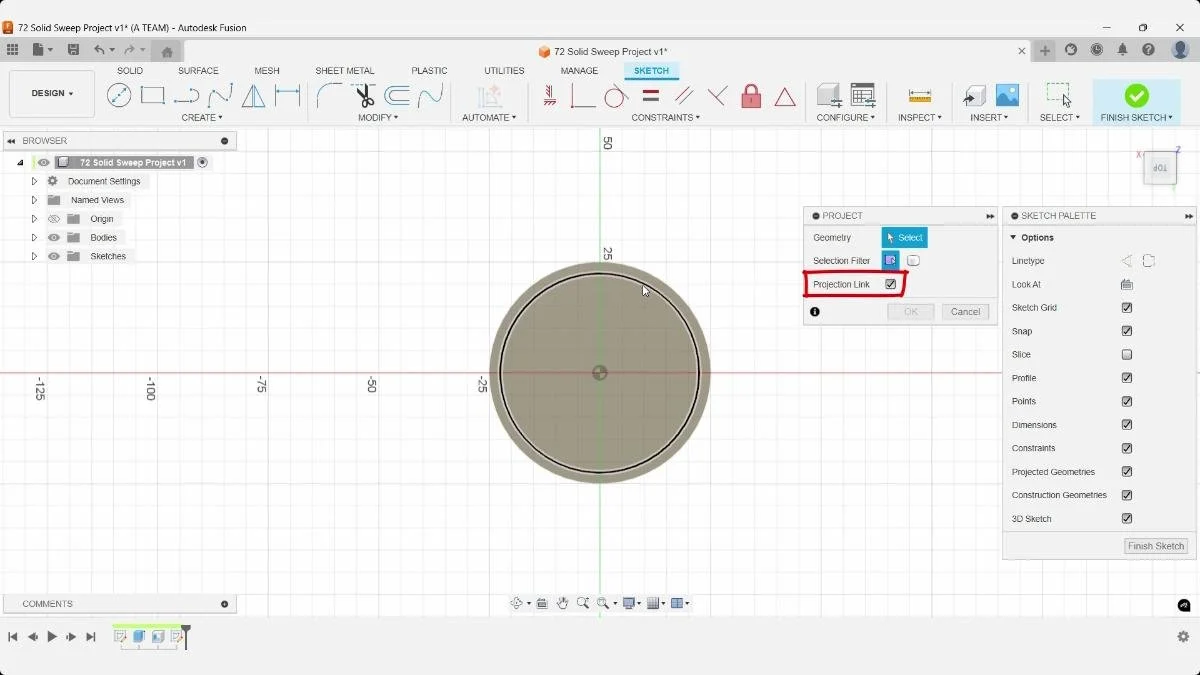

The Project command captures the inner circular edge of the shell geometry into a new sketch. Projection Link keeps the sketch associated with the original geometry so future dimensional changes update automatically.
Extrude the new circular profile downward until it reaches the bottom of the larger cylinder.
Before confirming the operation, change the operation type from Join to New Body.
Keeping the bodies separate is critical here because later sweep operations should only affect specific geometry. Managing bodies separately gives far more control during advanced workflows.

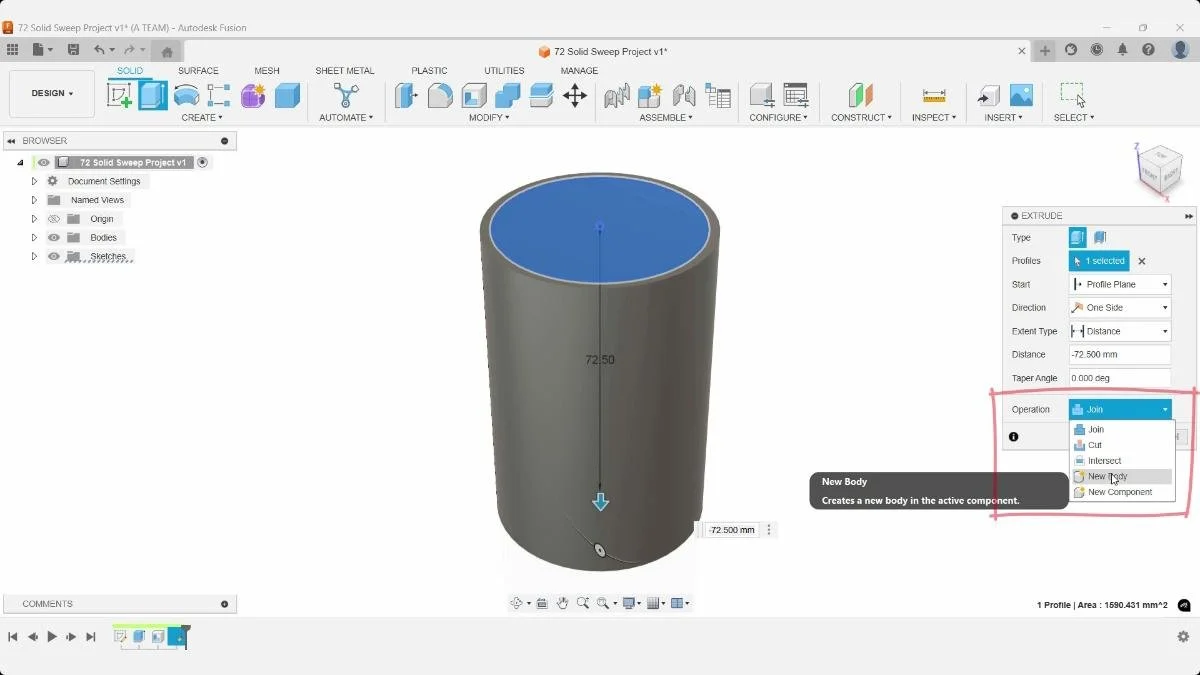

The projected circular profile is extruded downward as a separate body instead of joining the outer cylinder. Keeping bodies separate prevents later sweep operations from affecting unintended geometry.
Step 3: Verify the Geometry with Section Analysis
Activate Section Analysis and select one of the vertical construction planes as the cut plane.
Flip the orientation if necessary so you can clearly inspect the internal geometry.
This is a fast way to verify:
- The inner cylinder reaches the bottom
- The shell thickness looks correct
- The bodies remain separate
- The geometry aligns properly
Section Analysis is extremely useful in both engineering and 3D printing workflows because it allows you to validate internal geometry before continuing downstream operations.

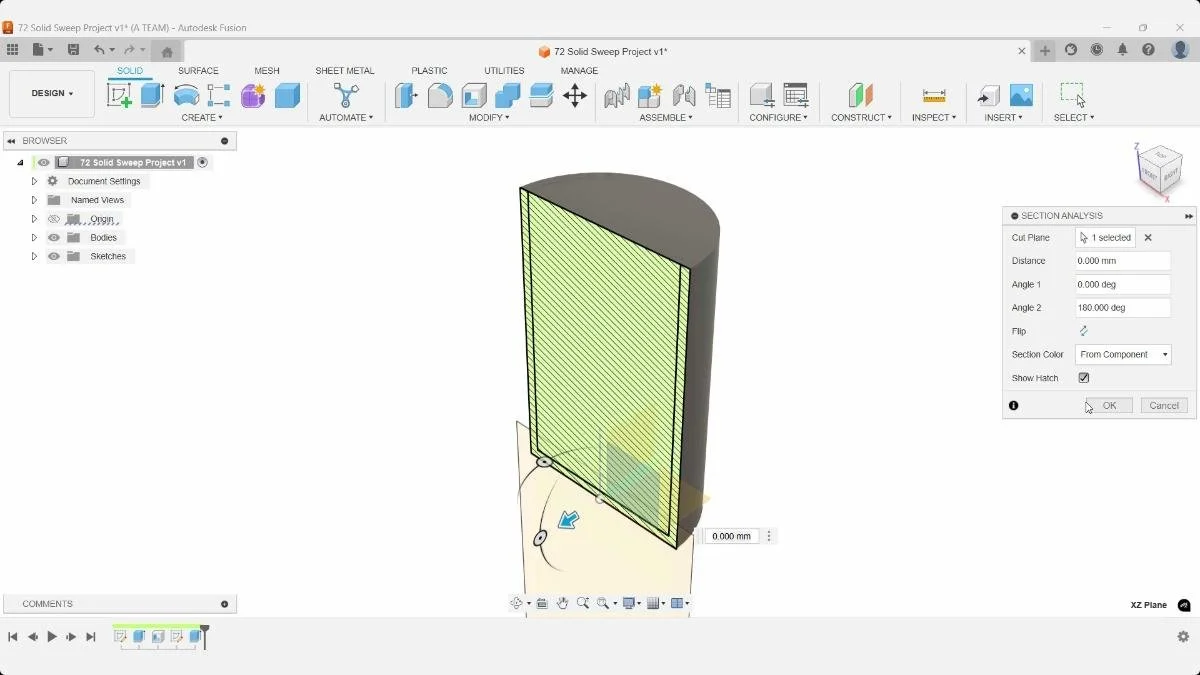

Section Analysis cuts through the model to verify wall thickness, body alignment, and internal geometry. This workflow helps identify modeling errors before additional operations are added.
Step 4: Create the Knob Geometry
Start a new sketch on a vertical center construction plane.

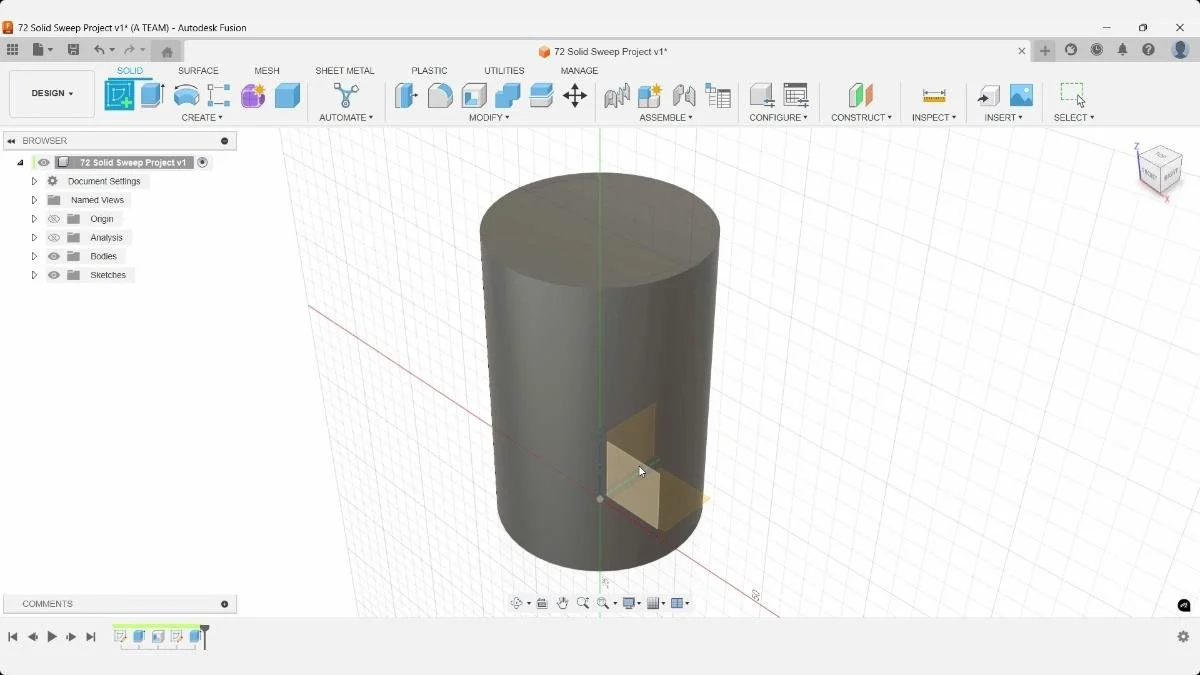

A vertical construction plane is selected as the sketch plane for the next modeling step. Using a centered construction plane helps keep sweep paths and reference geometry aligned symmetrically within the model.
Create a center diameter circle with a diameter of 10 mm. Position it 25 mm from the top of the larger cylinder.

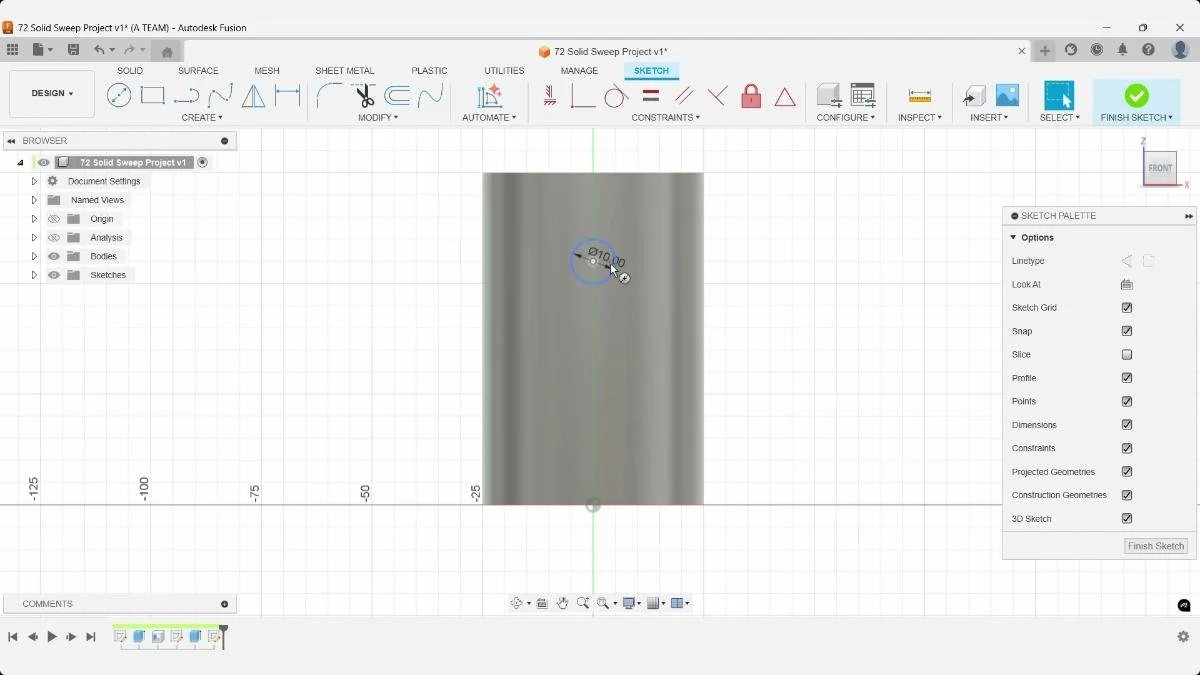

A small circular sketch profile is positioned on the side of the cylinder to define the knob geometry. The sketch dimension controls both placement and future sweep alignment.
This dimension becomes important later because it controls the alignment of the sweep path.

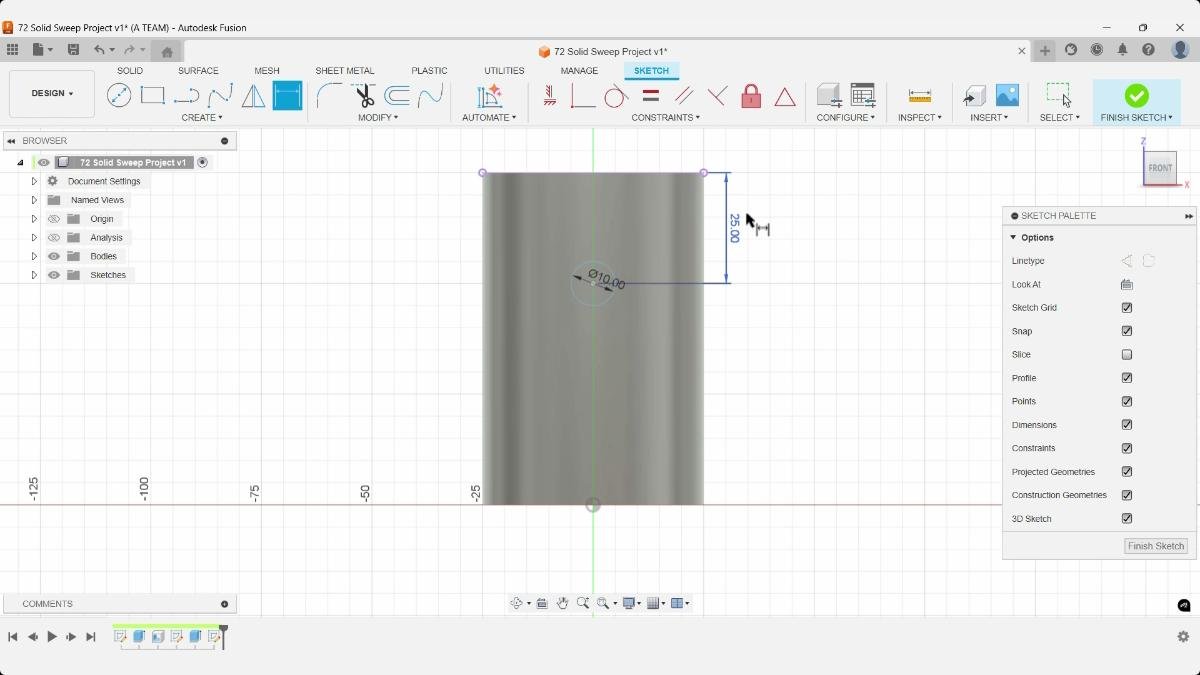

The knob center is dimensioned relative to the top edge of the cylinder. Reusing this dimension later for the offset plane keeps the sweep path aligned parametrically.
Extrude the circle outward by 35 mm using a negative extrusion direction.
Again, switch the operation type to New Body.
Using separate bodies now prevents the sweep cut from unintentionally modifying geometry later in the workflow.

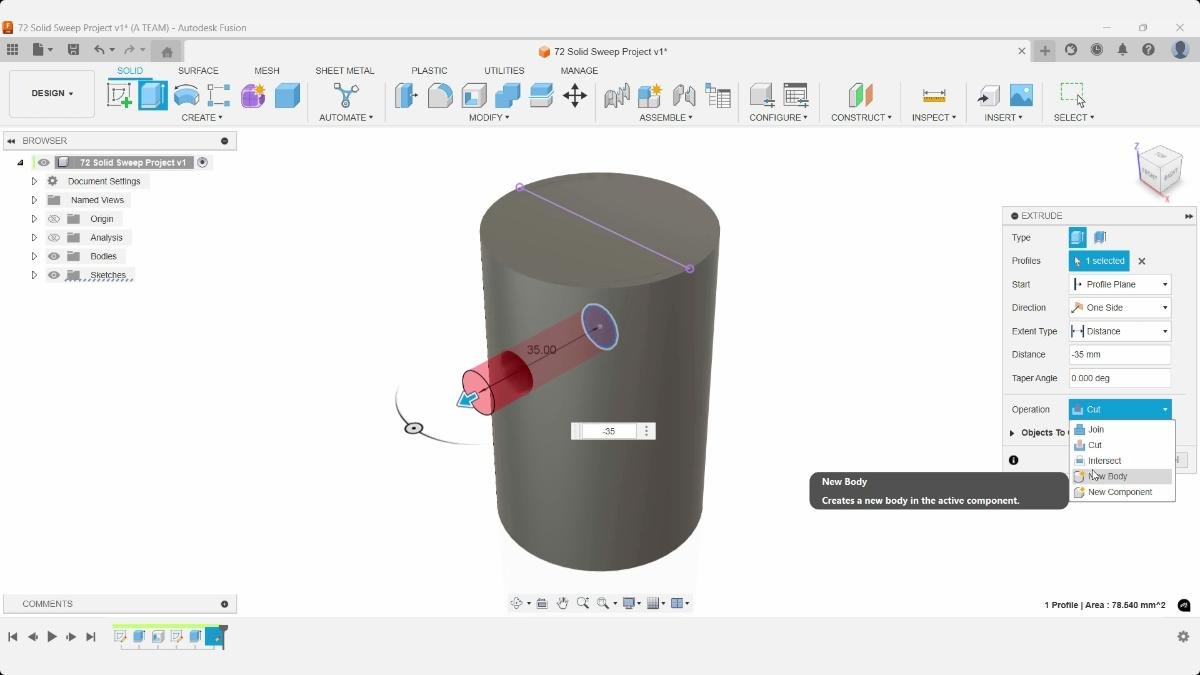

The knob geometry is extruded outward using the New Body operation. Separate bodies provide more control during solid sweep operations and later combine workflows.
Step 5: Move the Inner Cylinder and Knob
Use the Move command and select both the inner cylinder and the knob body.
Move them upward until the knob sits fully above the larger cylinder.
The exact distance is not critical. The important part is ensuring the sweep path only intersects the outer cylinder where the cut should occur.
The Free Move option works especially well here because it allows quick positional adjustments without needing highly constrained references.
Don’t forget to confirm the new pivot location if you reposition the manipulator.

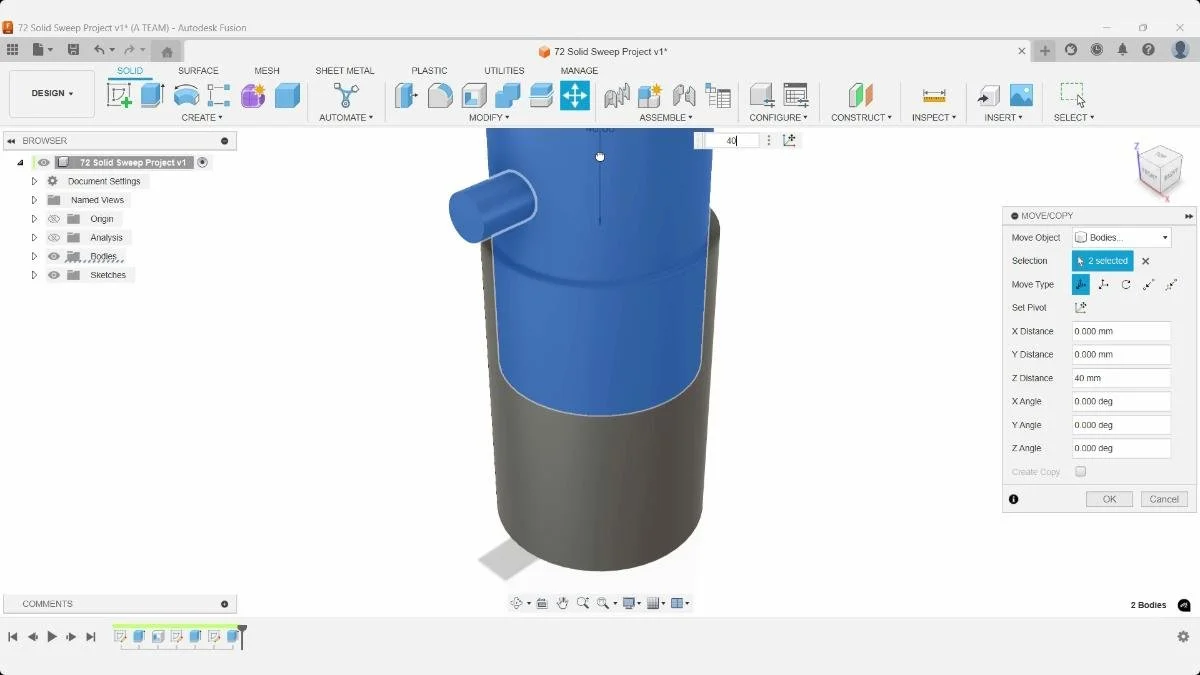

The Move command shifts both the inner cylinder and knob upward together. Positioning the geometry above the outer cylinder allows the solid sweep to intersect only the intended body regions.
Step 6: Create the Offset Plane
Create an Offset Plane from the top face of the larger cylinder.
Use the same distance value used earlier for the knob placement.
This keeps the sweep path aligned with the center of the knob.
Offset Planes are extremely useful in parametric workflows because they create stable sketching environments that remain linked to earlier dimensions in the timeline.

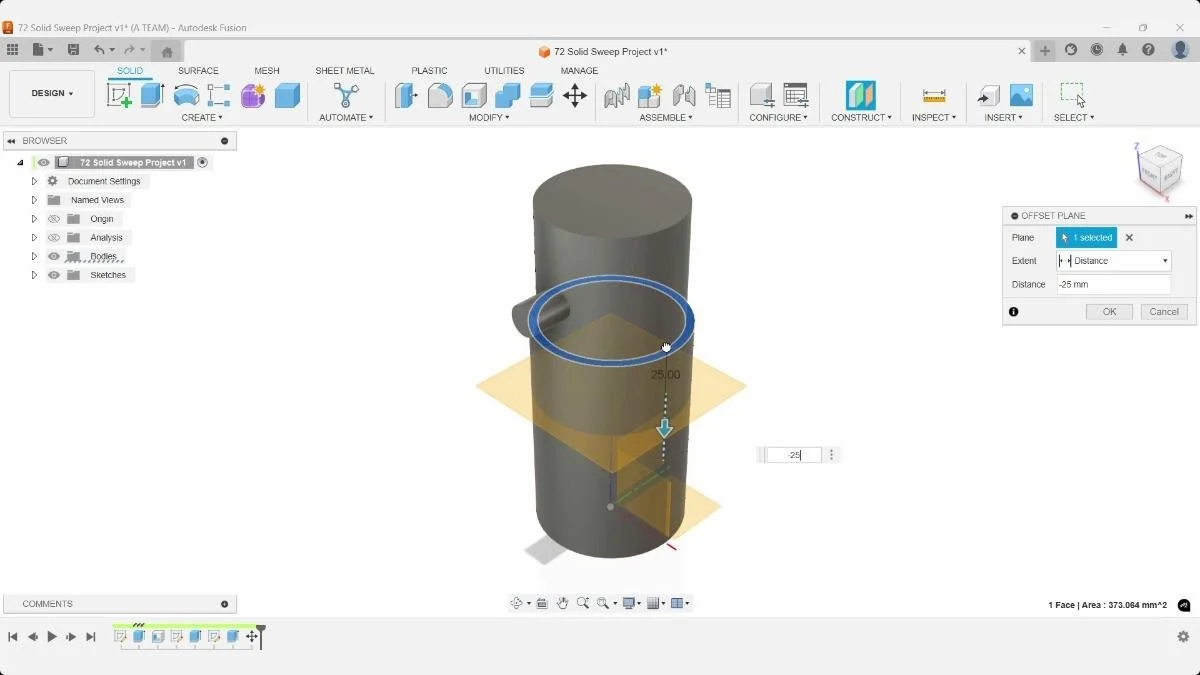

An Offset Plane is created using the same dimension used for the knob center. Matching these dimensions keeps the sweep path aligned with the moving geometry.
Step 7: Build the 3D Sweep Path
Start a 3D Sketch on the new offset plane.
Draw a straight line from the origin through the knob. Oversketch it for now.
A 3D sketch line is drawn from the origin toward the knob position. 3D sketches allow sweep paths that are not restricted to a single sketch plane.
Create another angled line and dimension the angle between the two lines.

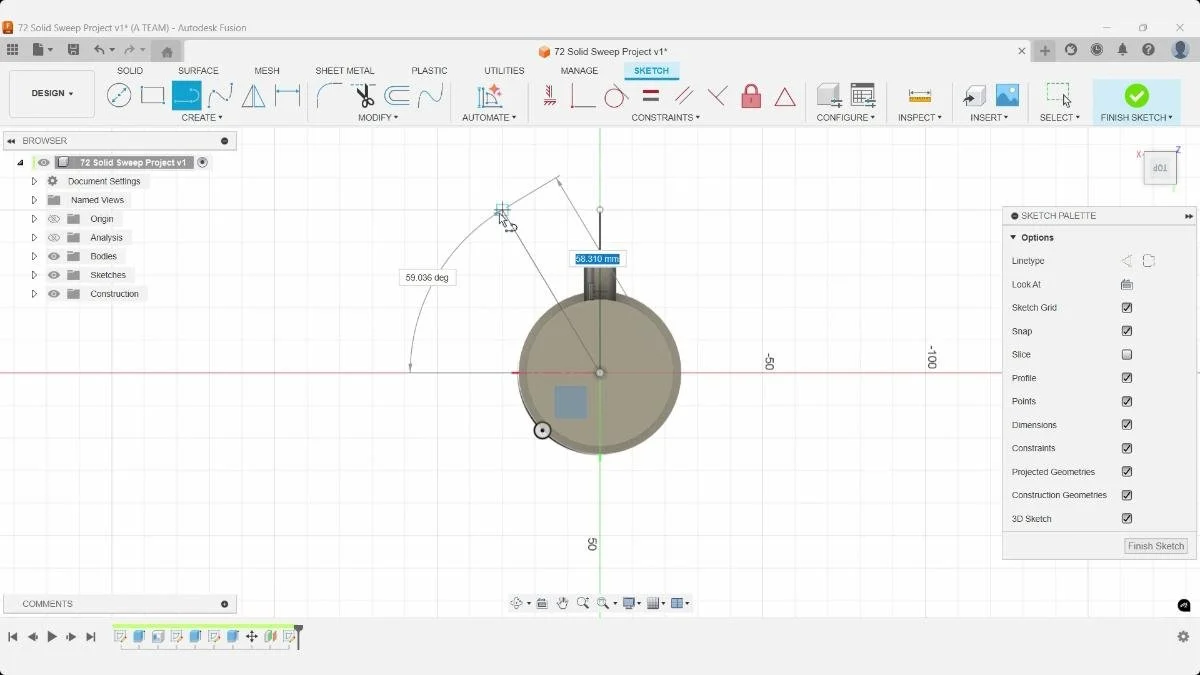

An angular dimension controls the spread of the sweep path geometry. Modifying this angle changes how aggressively the cut wraps around the cylinder.
This angle controls how large the final cutout becomes. Larger angles create wider sweep paths.

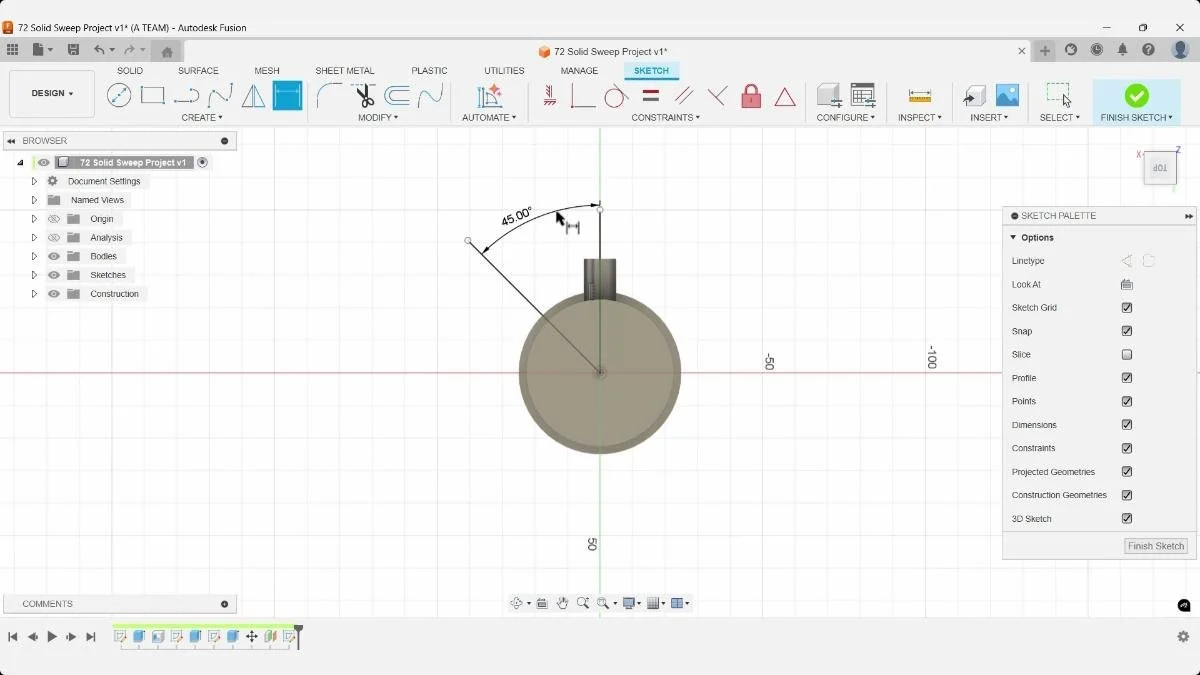

The sweep path angle is refined to establish the final cut trajectory. Small angle adjustments significantly affect the resulting cutout shape on cylindrical surfaces.
Next, draw a vertical line downward from the knob center.

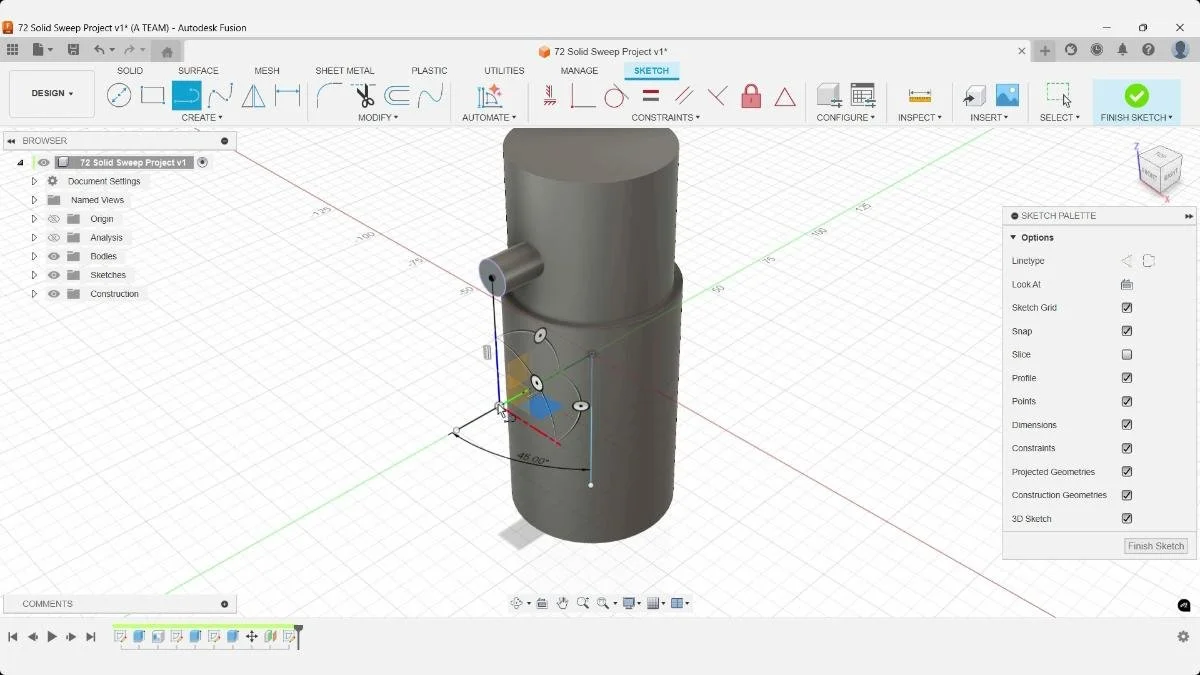

A vertical sketch line extends downward from the knob center to define the lower sweep path reference. Snapping correctly to existing geometry prevents broken sketch relationships.
Switch to Top View and create a center diameter circle from the bottom endpoint of the vertical line.
Set the circle diameter to double the knob length. In this example, the knob length is 35 mm, so the diameter becomes 70 mm.

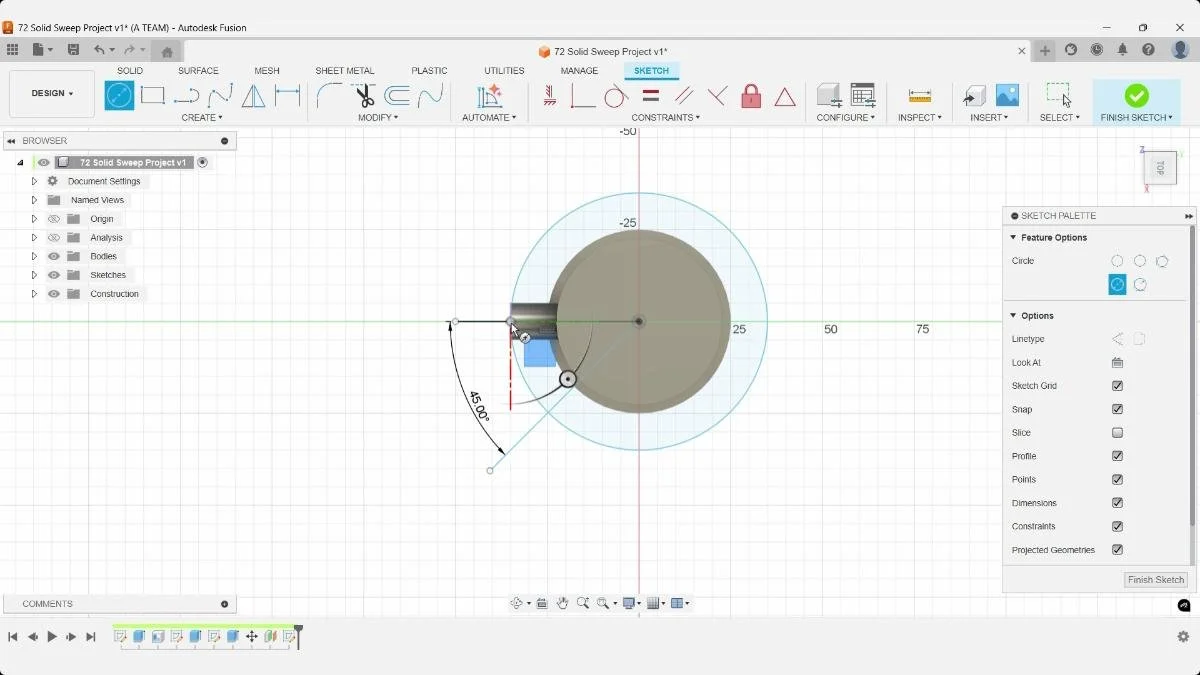

A center diameter circle is added to complete the lower sweep path geometry. The diameter controls how far the sweep wraps around the cylindrical body.
Use the Trim command to remove unnecessary sketch geometry.

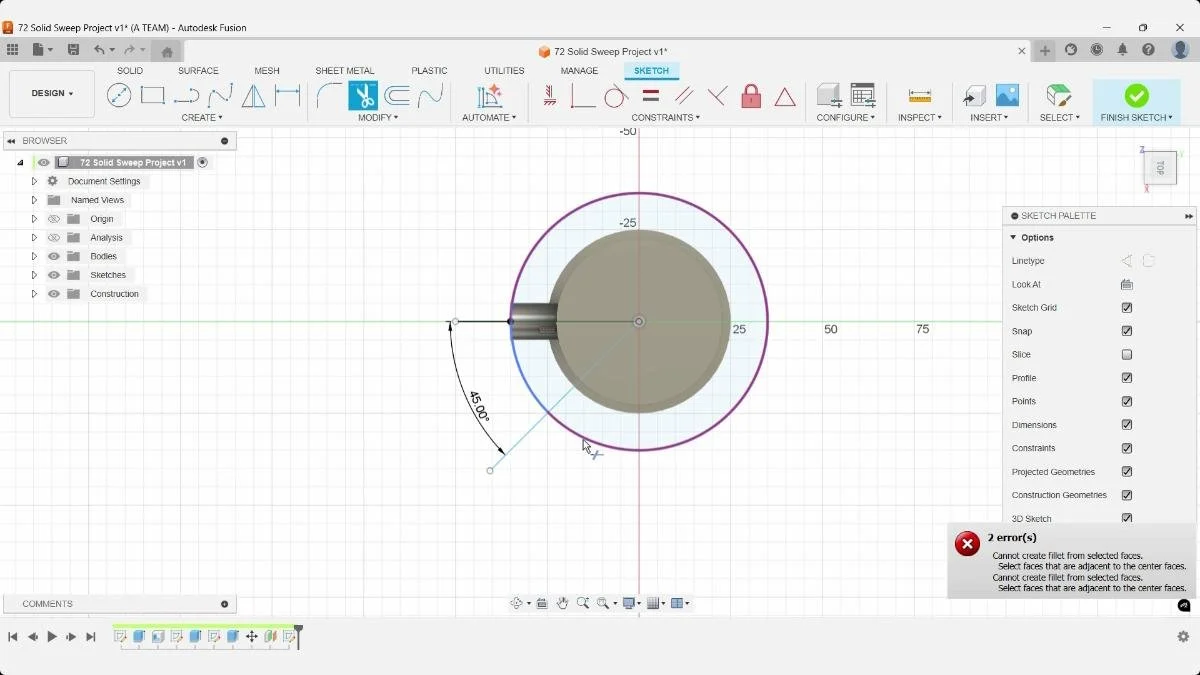

Unnecessary sketch segments are removed using the Trim command. Simplifying the sketch reduces the likelihood of selecting incorrect path geometry during the sweep operation.

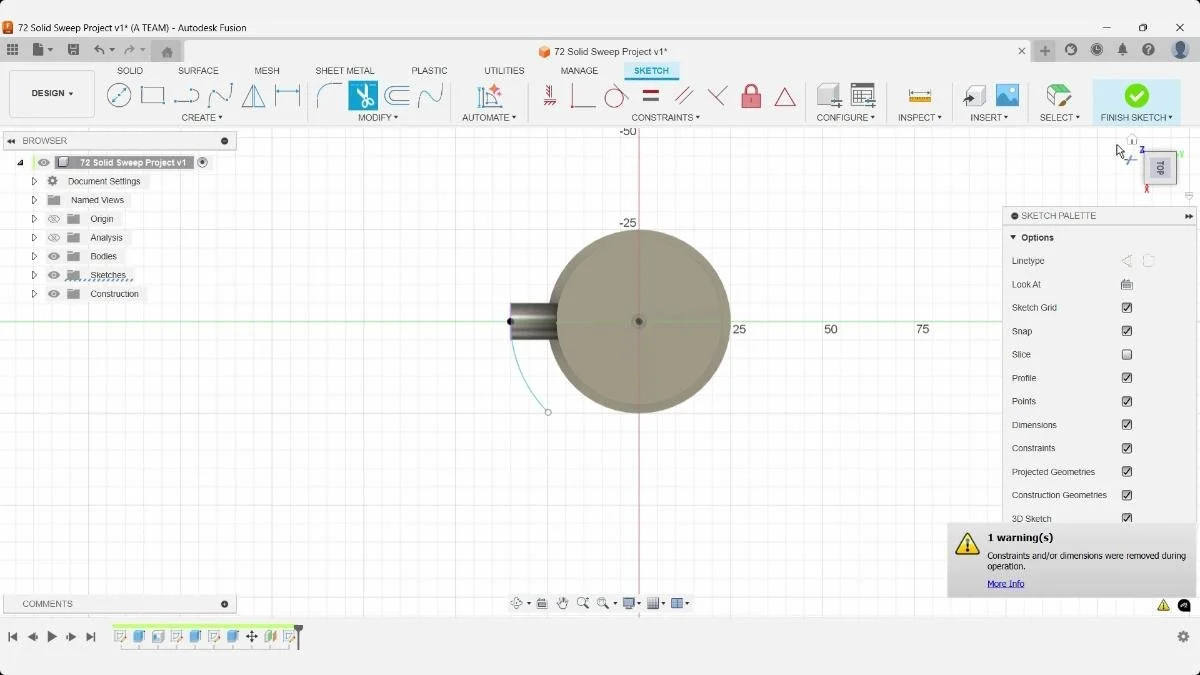

The cleaned 3D sketch contains only the required sweep path geometry. Keeping sketches organized improves selection accuracy during complex modeling operations.
3D sketches are powerful because they allow sweep paths that would be difficult or impossible to create using traditional planar sketches alone.
Step 8: Apply the Solid Sweep Cut
Turn off the visibility of the inner cylinder before starting the sweep.

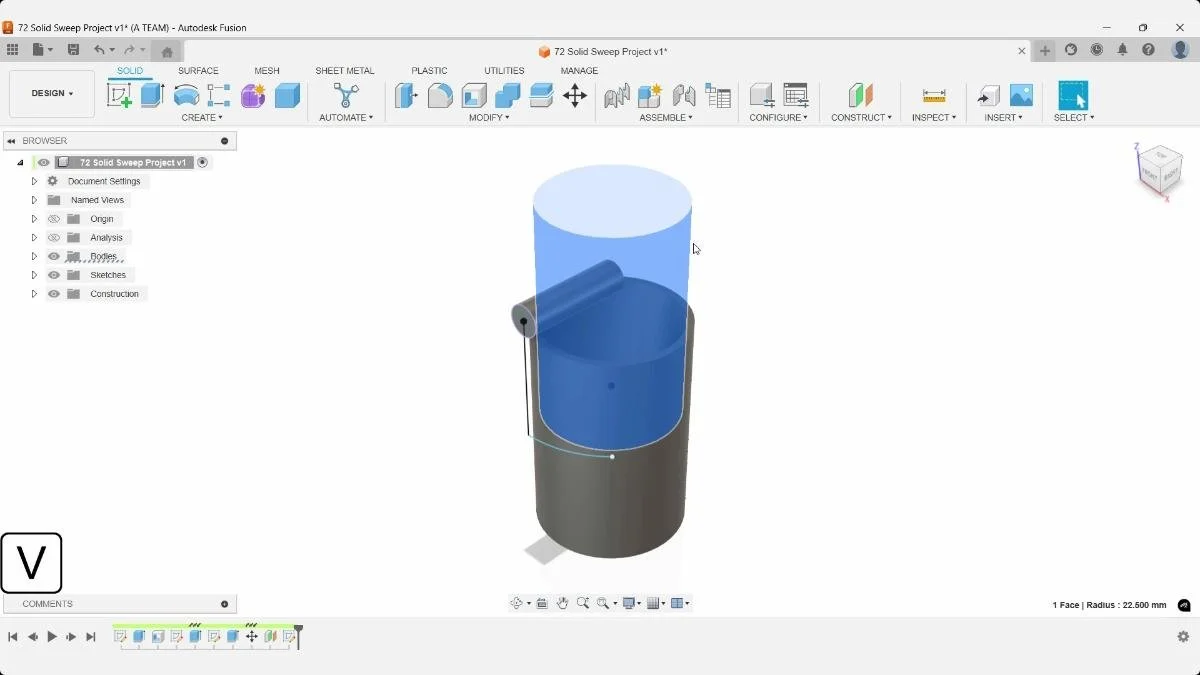

The inner cylinder body is temporarily hidden (keyboard shortcut V) before applying the solid sweep. This prevents accidental material removal from geometry that should remain unchanged.
Activate the Sweep command and change the sweep type to Solid Sweep.
Set the orientation to Perpendicular.
Select the knob body as the solid profile and the 3D sketch as the path.
Finally, set the operation to Cut.

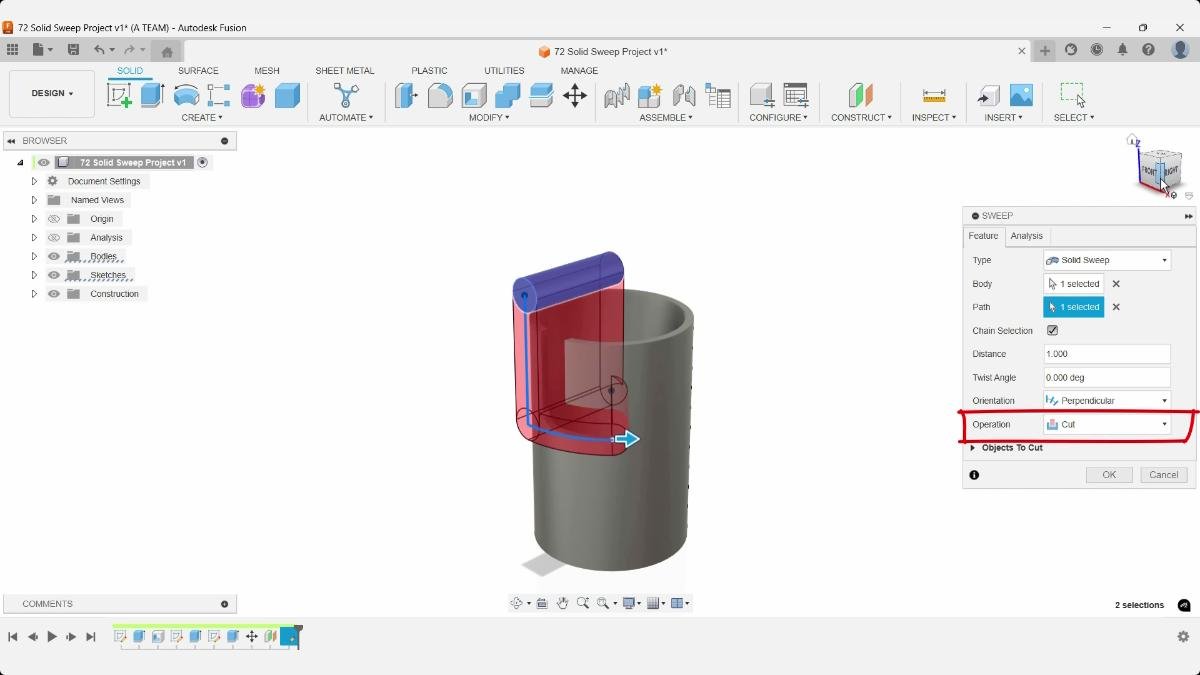

The Sweep command uses the knob body as a Solid Sweep profile with the operation set to Cut. Perpendicular orientation maintains consistent body alignment along the sweep path.
Solid Sweep is an excellent choice here because it uses actual body geometry instead of sketch profiles. This produces highly controlled cuts that closely follow the physical shape of the object.
This workflow is especially useful for advanced mechanical geometry and organic cutout designs.
Step 9: Combine and Shell the Internal Body
Once the sweep cut is complete, combine the knob body with the smaller inner cylinder.

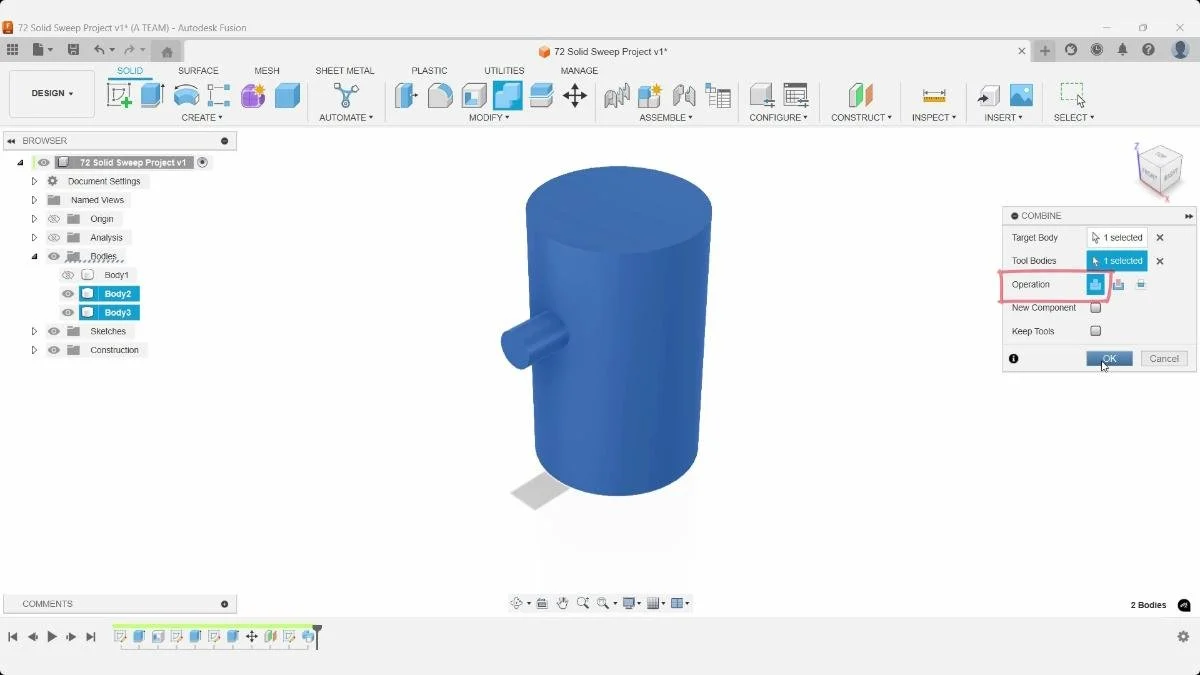

The Combine command merges the knob geometry with the inner cylinder after the sweep operation is complete. Delaying the combine step avoids interfering with the solid sweep cut.
Now apply the Shell command to this new combined body using a 2.5 mm wall thickness.

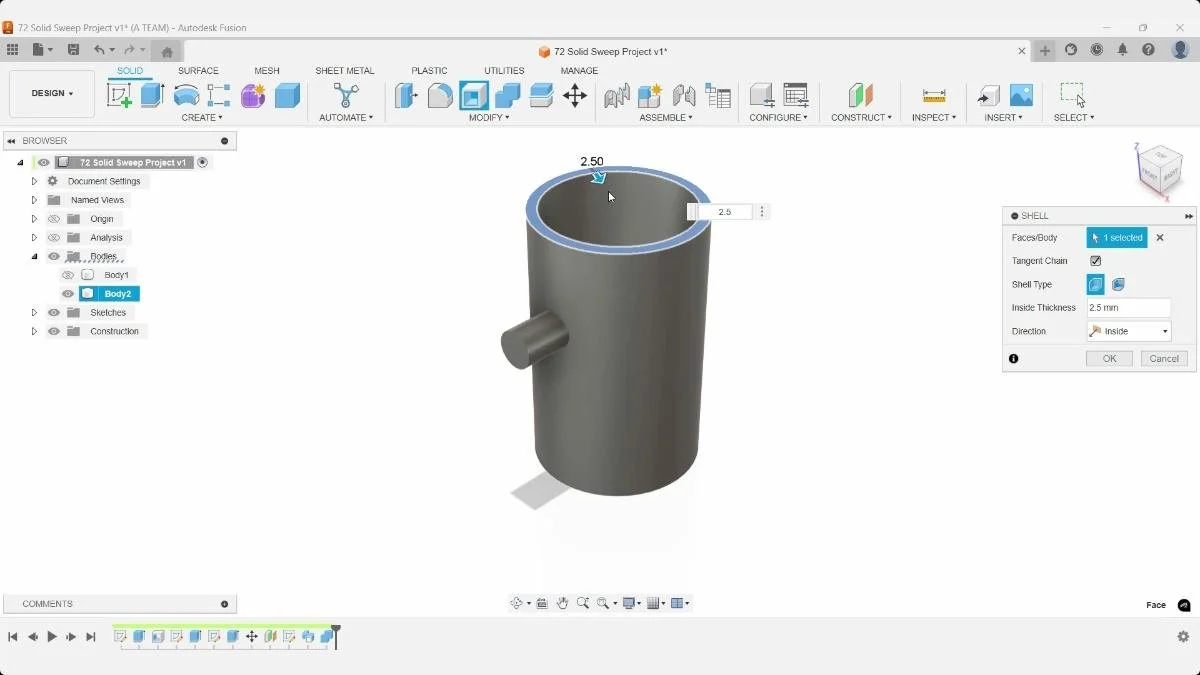

The combined inner body is hollowed using a 2.5 mm shell thickness. Matching wall thickness values across bodies creates more consistent print behavior.
At this stage, you should have two separate hollow bodies:
- The large outer cylinder
- The smaller twisted internal body
Keeping them separate allows future assembly workflows, animations, or motion studies if desired.
Step 10: Convert Bodies into Components
If you plan to animate the design or create assemblies later, convert the bodies into components.
One quick method is to right-click each body in the Browser and select:
Create Components from Bodies
Components are better than raw bodies for larger projects because they support joints, assemblies, motion studies, and cleaner organization.

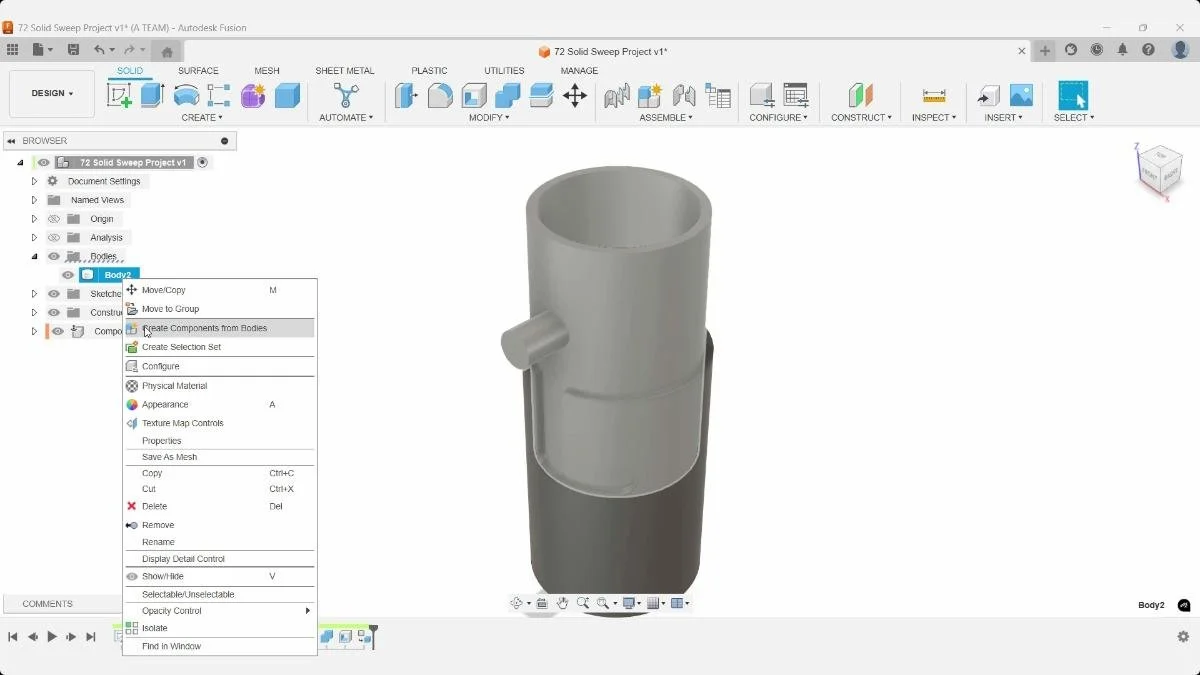

Bodies are converted into components directly from the browser. Components improve organization and support future assembly, animation, and joint workflows.
Step 11: Add Clearance and Fillets
Use Offset Face to create a small clearance gap between the knob and the sweep cut geometry.
In this example, the offset is 0.1 mm.
The correct clearance depends heavily on your manufacturing process and printer tolerances, but small offsets are extremely important for moving or mating parts in 3D printing.

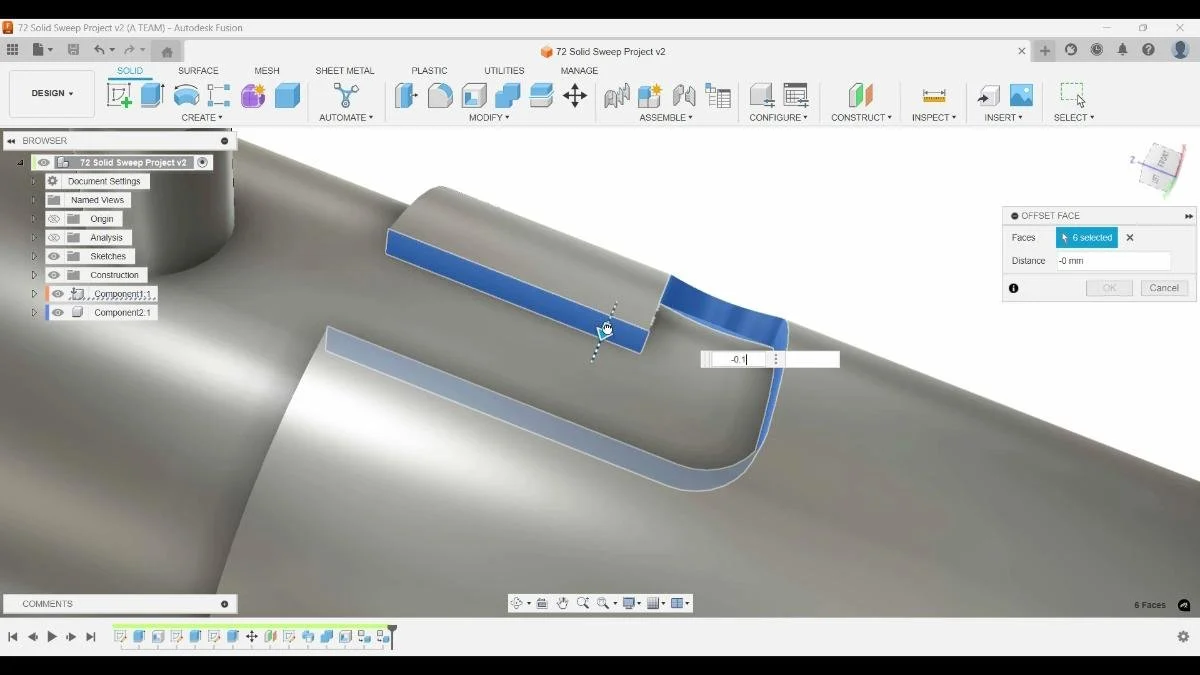

Offset Face creates a small clearance gap between mating geometry. Small offsets are important for moving parts and realistic manufacturing tolerances in 3D printing workflows.
Apply fillets to soften the edges of both the cutout and the knob.
Fillets improve both ergonomics and printability while also making the final model look more refined.

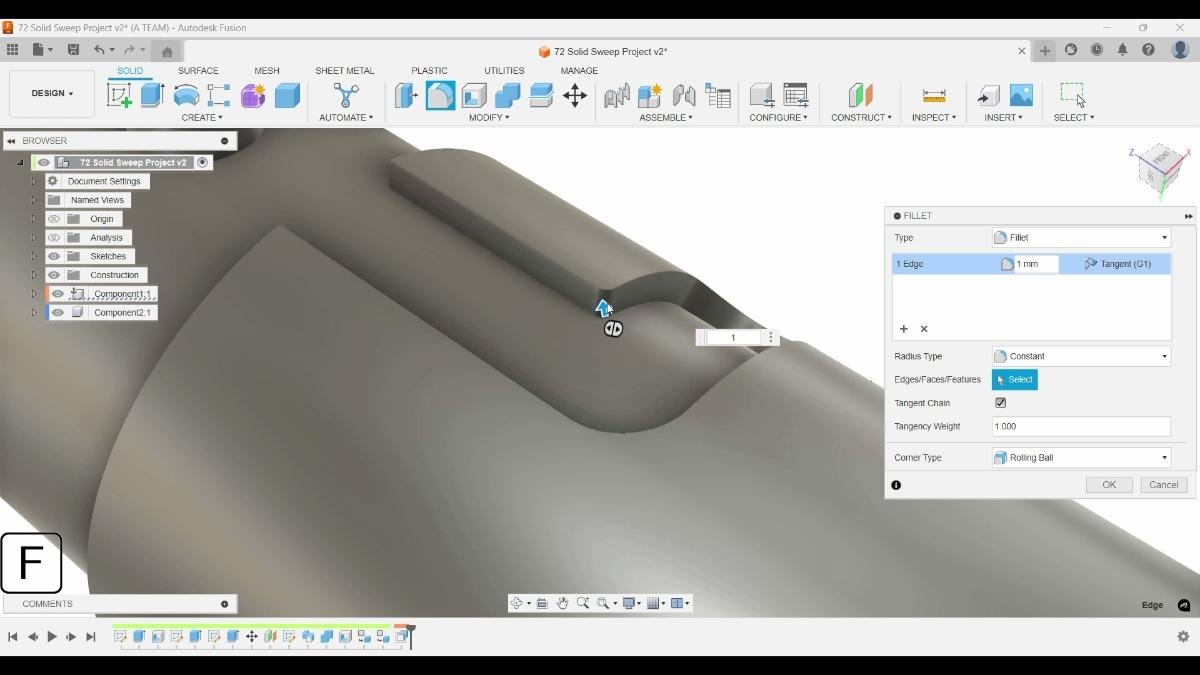

Fillets soften the sharp edges around the sweep cut geometry. Rounded transitions improve both appearance and printability while reducing sharp stress concentrations.

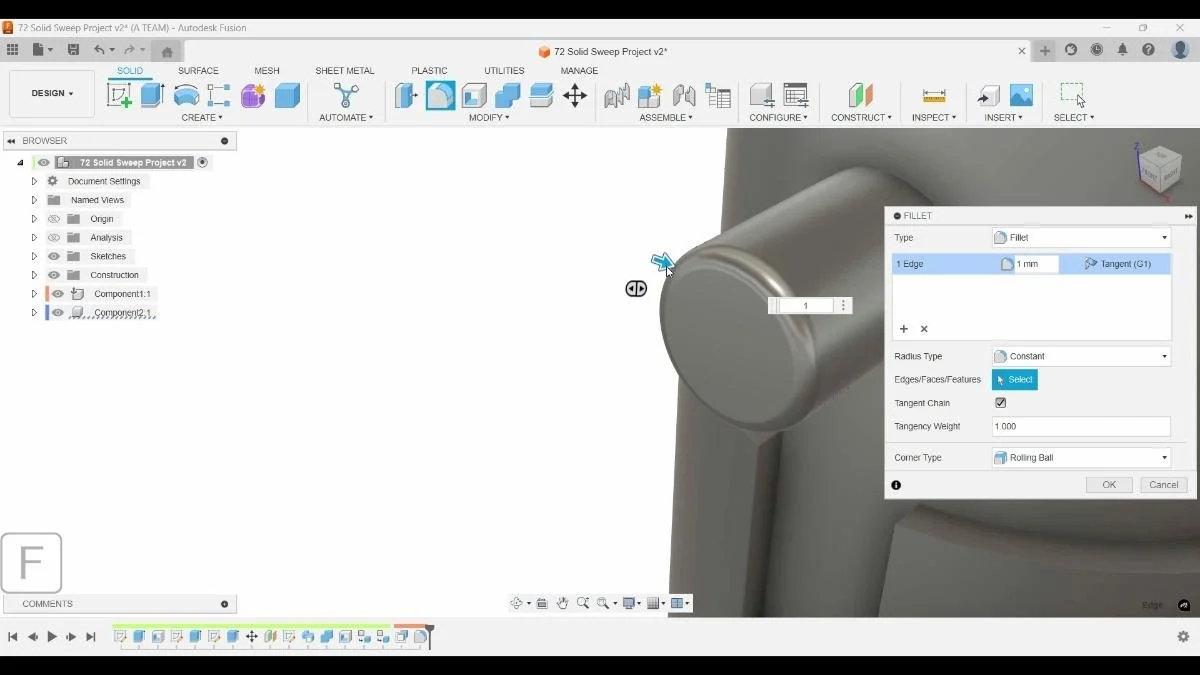

A fillet is applied to the outer knob edges to create smoother transitions and a more refined appearance. Consistent fillet sizing helps maintain visual balance across the model.
Step 12: Apply Appearances and Finish the Model
Apply matte plastic appearances to both components.
Matte finishes work especially well for renderings because they closely resemble many real-world 3D printing filaments.

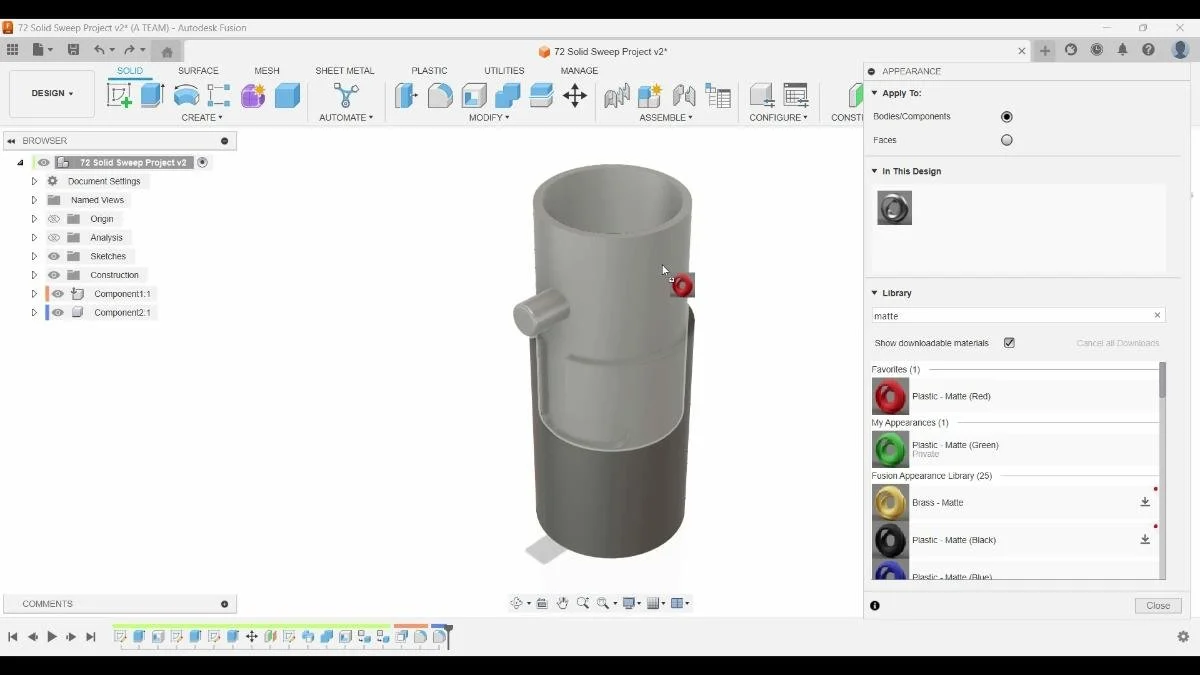

Matte plastic appearances are assigned to the components using the Appearance workspace. Matte materials resemble common 3D printing filament finishes and produce cleaner render reflections.
This final step also makes presentation renders cleaner for thumbnails, Etsy listings, portfolios, or product concepts.
At this point, the model is complete and ready for rendering, animation, or 3D printing.

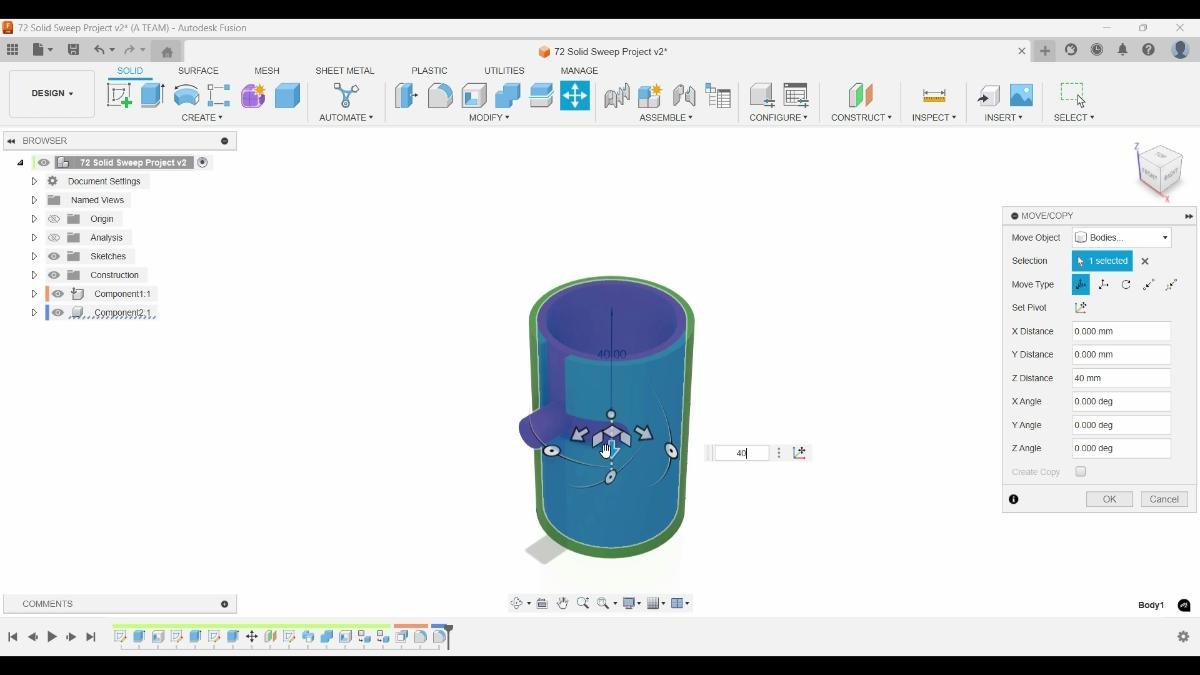

The internal component is repositioned within the outer cylinder to test assembly alignment and body interaction. Converting bodies into components enables more advanced motion and assembly workflows.
Key Takeaways
- Project geometry creates cleaner parametric workflows
- Separate bodies provide better control during complex operations
- Offset Planes help maintain alignment in advanced sketches
- 3D sketches unlock more organic sweep paths
- Solid Sweep cuts are excellent for controlled body-based geometry removal
- Section Analysis is a fast way to validate internal geometry
- Small clearances are essential for functional 3D printed parts
- Fillets improve both aesthetics and usability
