Create a Knurled Bolt in Fusion Using Emboss and Drawings
Updated May 23, 2026
Creating a realistic knurled bolt in Fusion is a great way to combine practical modeling techniques with efficient workflows. In this tutorial, you’ll learn a surprisingly fast method for building a diamond knurl pattern using text and feature patterns, then finish the project with fully documented technical drawings ready for manufacturing or 3D printing.
This workflow is especially useful if you want detailed mechanical parts without overcomplicating your sketches or slowing down your system too early in the design process.
What You’ll Learn
- How to create a clean knurled diamond pattern in Fusion
- Why centered modeling improves flexibility and symmetry
- How to use the Emboss tool for advanced surface details
- Efficient workflows for creating threads for 3D printing
- How to generate professional technical drawings directly from your design
- Tips for reducing timeline complexity and improving performance
Watch the Workflow — or Read It Step by Step
You can follow this guide in two ways:
- Read the steps below if you want quick written instructions, reference images, and modeling notes.
- Watch the full video at the end of this post to see the workflow in real time — including extra tips, camera angles, and shortcuts that don’t fit neatly into text.
Both formats build on each other.
Reading helps you understand why each step matters, while watching shows how to move faster in Fusion.
Step 1: Create a New Component and Base Sketch
Start by creating a new component. This is one of the best habits you can build in Fusion because components make assemblies easier to manage, improve organization, and give you access to additional workflows like motion studies and animations.

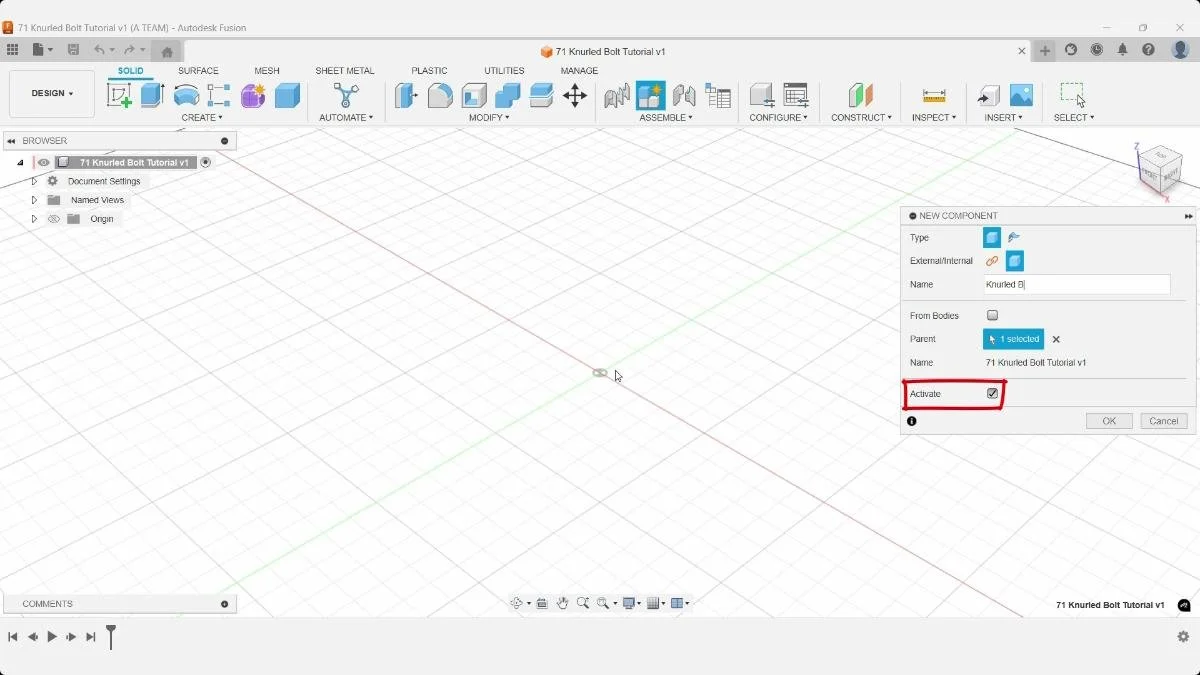

A new component is created before starting the model. Working inside components improves organization, simplifies future assembly workflows, and keeps sketches, bodies, and drawings isolated within a structured design hierarchy.
Create your sketch on a construction plane centered above the origin. Modeling around the origin gives you several advantages later, especially when mirroring geometry or creating symmetrical features.
Use a center-diameter circle to sketch the base shape of the bolt. In this example, the diameter is set to 50 mm, but you can easily adapt the dimensions to your own project.

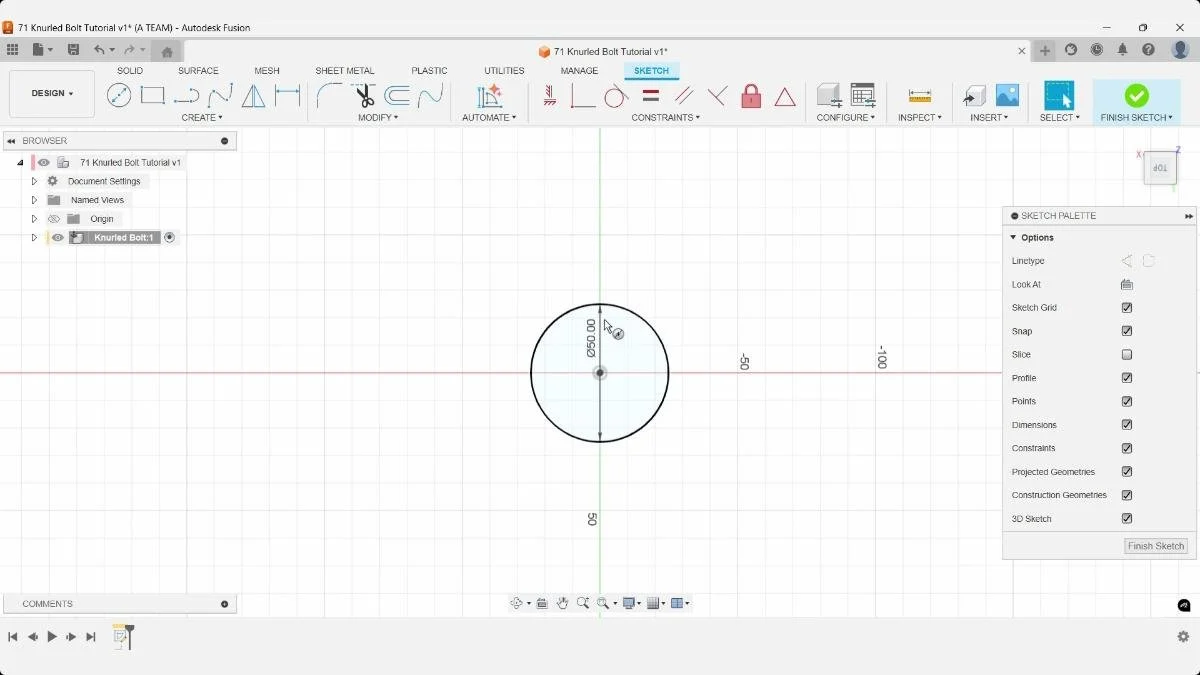

A center-diameter circle is sketched directly on the origin using construction axes for alignment. Positioning geometry around the origin simplifies mirroring, patterning, and symmetric modeling operations later in the workflow.
One useful Fusion workflow here is jumping directly from the sketch environment into another command without manually finishing the sketch first. This speeds up repetitive modeling tasks significantly once you become comfortable with the workflow.
Extrude the base body to 15 mm.

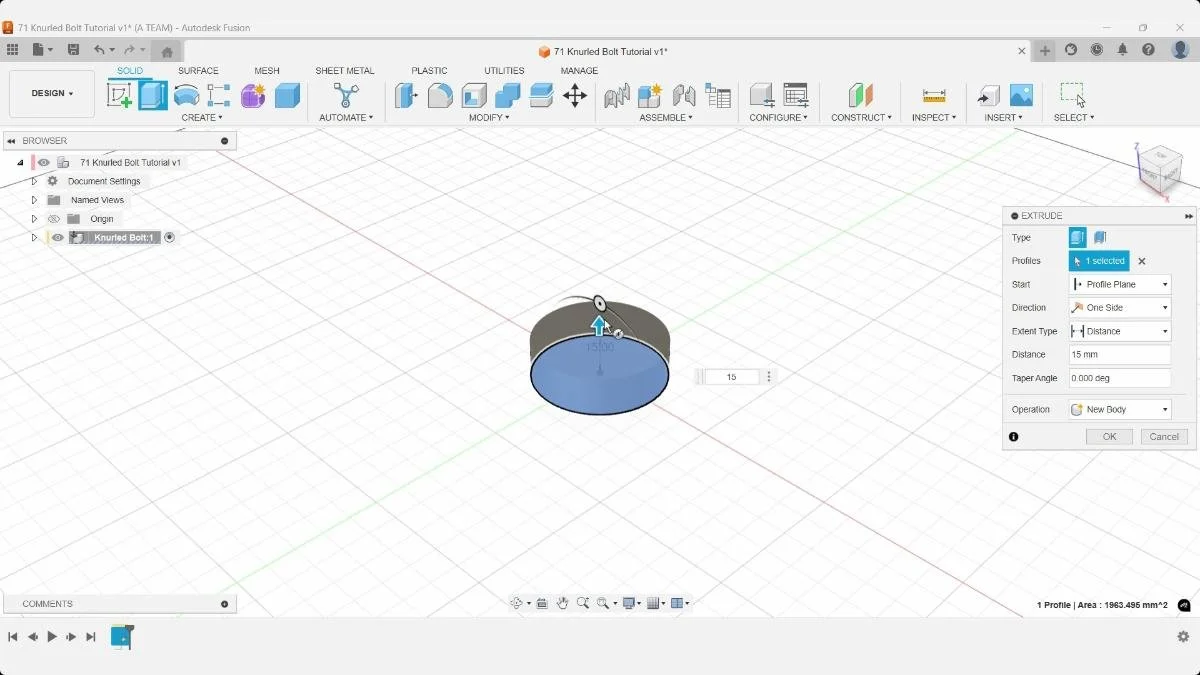

The circular sketch profile is extruded into a cylindrical body using a 15 mm distance. Jumping directly from sketching into the Extrude command speeds up the modeling workflow and reduces unnecessary timeline interactions.
Step 2: Add Chamfers Before Creating Complex Geometry
Before building the knurled pattern, add chamfers to the edges of the base body.
This is an important optimization strategy in Fusion. Applying chamfers early is significantly faster than adding them after generating a complex patterned feature. Once large feature patterns exist, even simple operations can become computationally expensive.
Adding the chamfers now keeps the timeline lighter and reduces unnecessary strain on your computer.

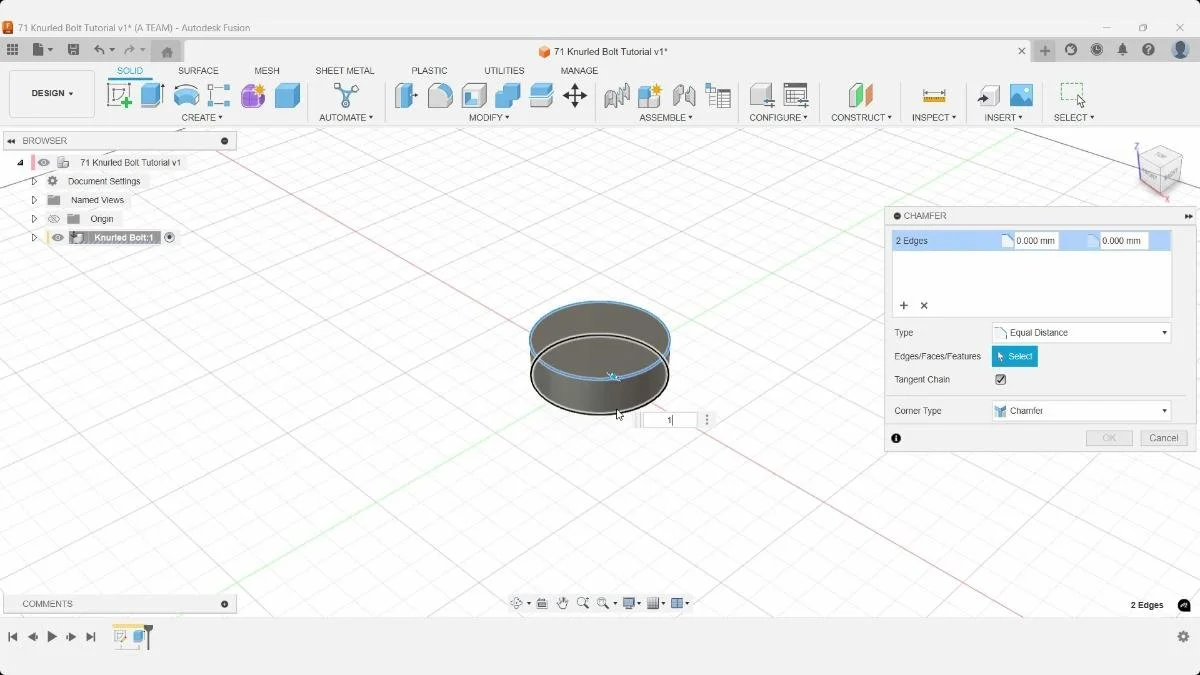

Chamfers are applied before generating the knurled pattern. Adding edge treatments early keeps the model computationally lighter since Fusion does not need to recalculate complex patterned geometry afterward.
Step 3: Create the Knurling Sketch Using Text
Create a new sketch.
To access the construction plane behind the body, press and hold the left mouse button until Fusion displays the deeper geometry selection menu. This is an extremely useful selection technique when working with overlapping geometry.

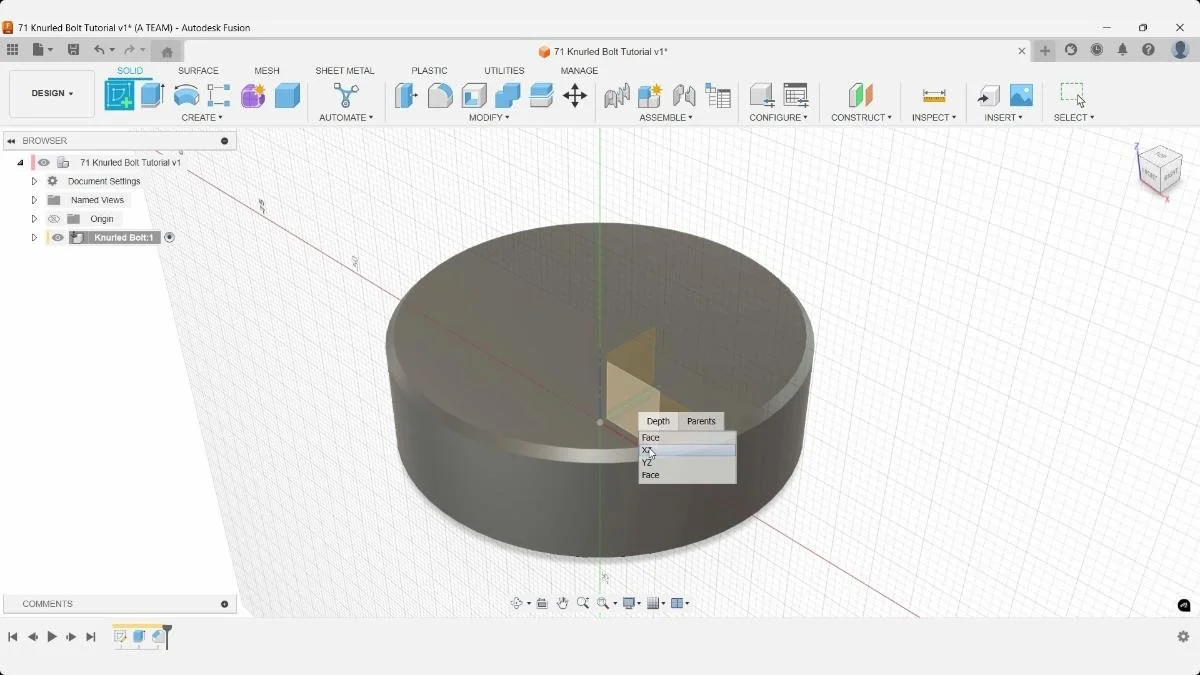

The selection depth menu is used to access the construction plane positioned behind the solid body. Holding the left mouse button exposes hidden geometry and improves precision when working with overlapping features.
Next, create sketch text and position the text window beside the cylindrical body. Make sure the text box is larger than the model with equal spacing above and below. This makes centering easier and improves pattern consistency later.
For this workflow, use the letter “X” as the knurling shape.
Set the text alignment to:
- Center
- Middle
This ensures the emboss feature stays properly aligned around the cylindrical body.
Arial tends to create a very thick pattern, so switching to a thinner font usually produces cleaner and more realistic knurling.
At this stage, the letter should sit centered beside the cylindrical body on the construction plane.

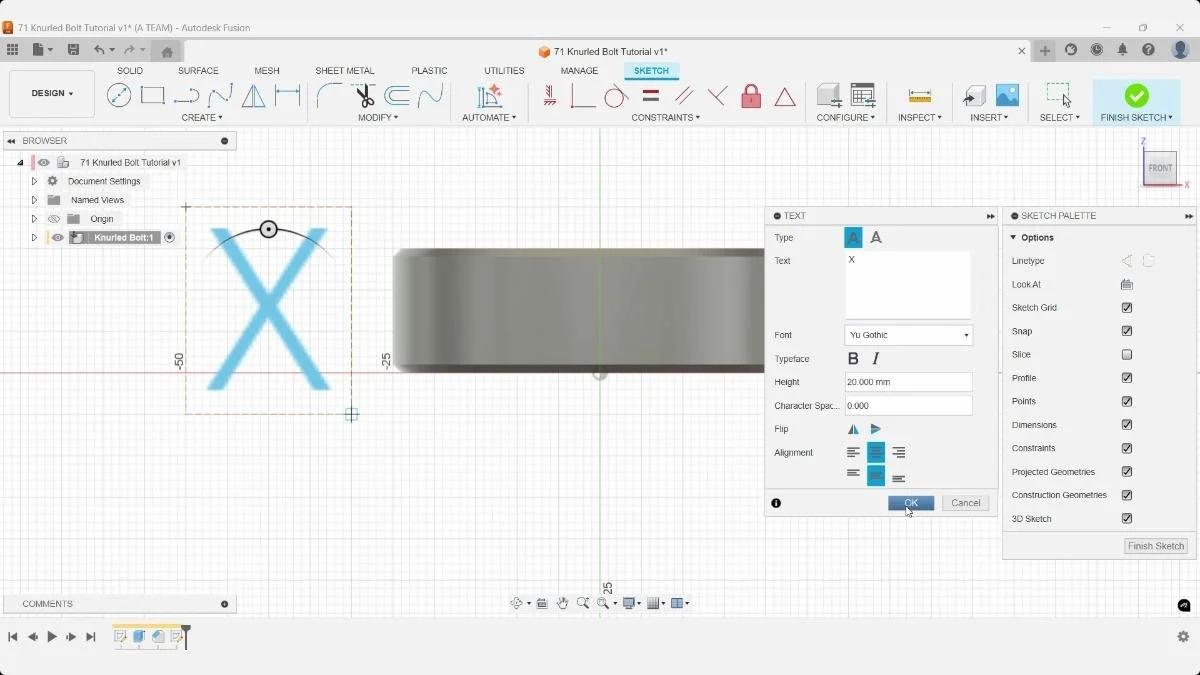

A sketch text object containing the letter X is positioned beside the cylindrical body with center and middle alignment enabled. The text acts as the base geometry for the future knurled emboss pattern.
Step 4: Use the Emboss Tool to Create the Pattern Geometry
Now the workflow becomes interesting.
Use the Emboss tool with the Deboss option enabled. The sketch text acts as the profile while the cylindrical surface becomes the target face.
Set the depth to 1 mm.
The Emboss tool is extremely effective for wrapping geometry around curved surfaces because it maintains consistent projection directly onto the face. Compared to manually projecting and cutting geometry, this workflow is both cleaner and faster.
You can experiment with different emboss depths depending on how aggressive or subtle you want the knurled texture to appear.

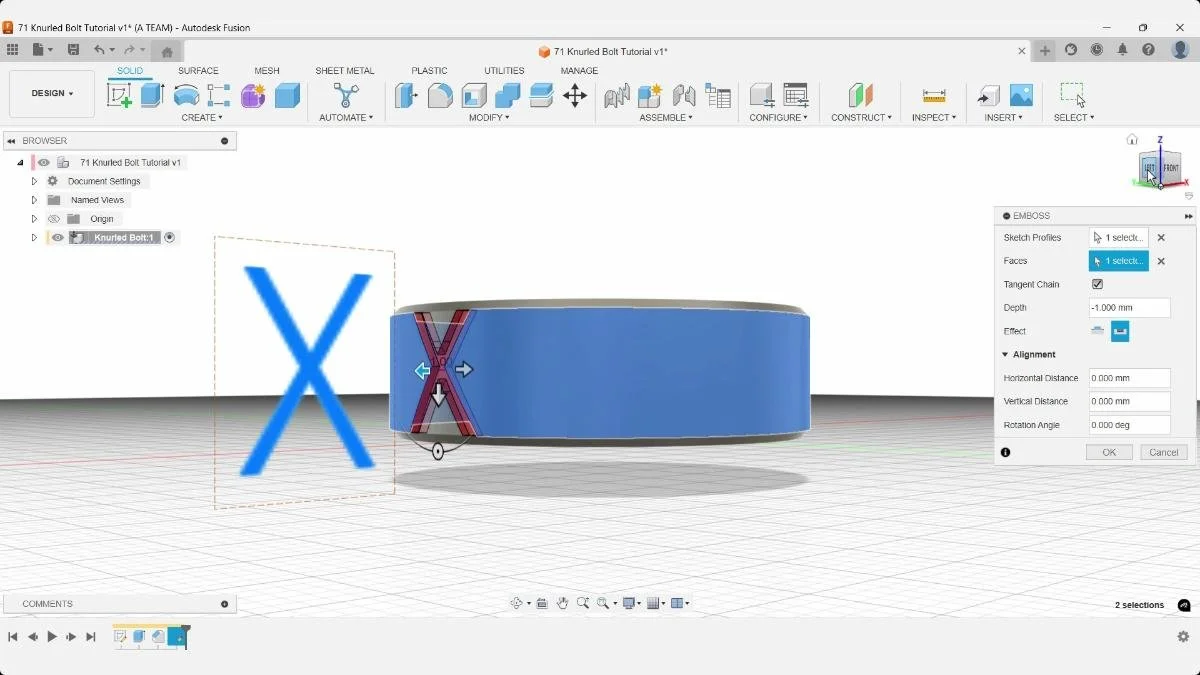

The Emboss tool projects sketch text directly onto the cylindrical surface using the Deboss option. This workflow produces consistent wrapped geometry without manually projecting or splitting faces.
Step 5: Generate the Diamond Knurl Pattern with Circular Pattern
The full knurl pattern is created using a circular pattern of the embossed feature.
Start the Circular Pattern command and set:
- Object Type: Features
Using feature patterns instead of sketch patterns keeps the sketches simpler and easier to edit later. It also reduces sketch constraint complexity.
If selecting the feature becomes difficult, zoom in closer for better precision.
Press and hold the left mouse button again to select the blue Z-axis positioned deeper inside the model. This becomes the rotation axis for the pattern.
Set the quantity to 50.
Before calculating the pattern, save your project. Complex patterns can become computationally heavy, especially on detailed models or slower systems. Saving beforehand minimizes the risk of losing progress if Fusion crashes during calculation.
Once calculated, the repeated embossed X-shapes create the diamond knurl appearance.

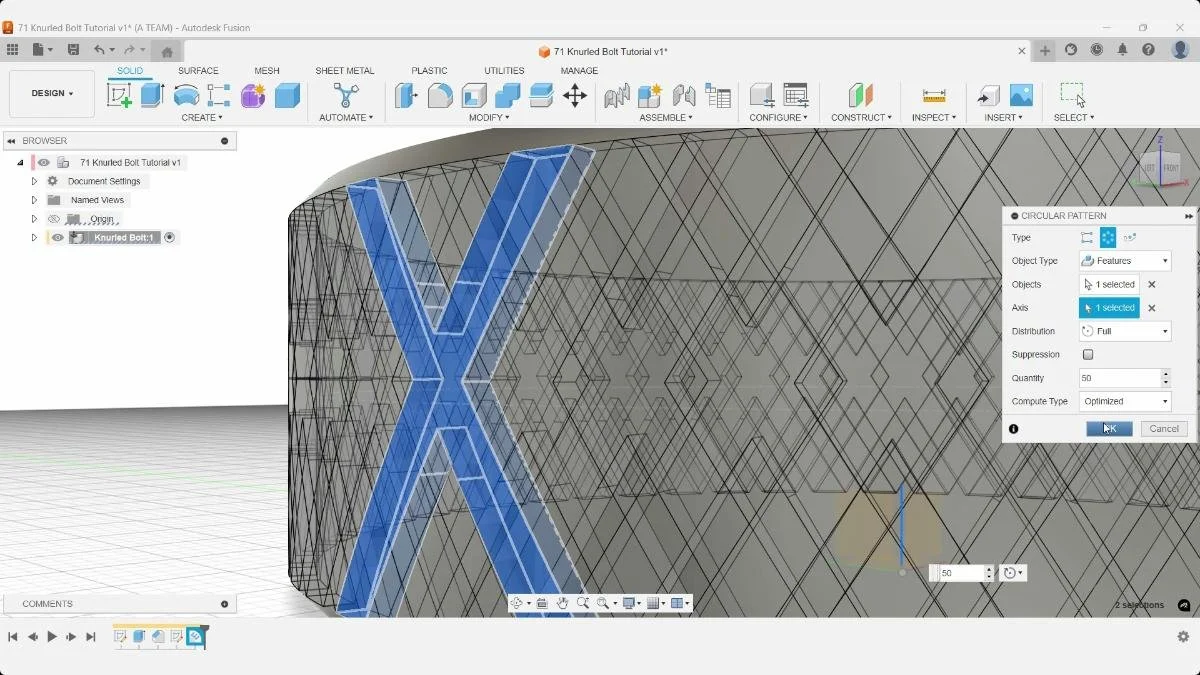

A circular pattern replicates the embossed feature around the cylindrical body to generate the diamond knurl texture. Using feature patterns instead of sketch patterns keeps sketches simpler and easier to edit later.
Step 6: Create the Threaded Shaft
Start a new sketch on top of the bolt body.
Again, keep the sketch centered and move directly into the Extrude command without manually finishing the sketch first.

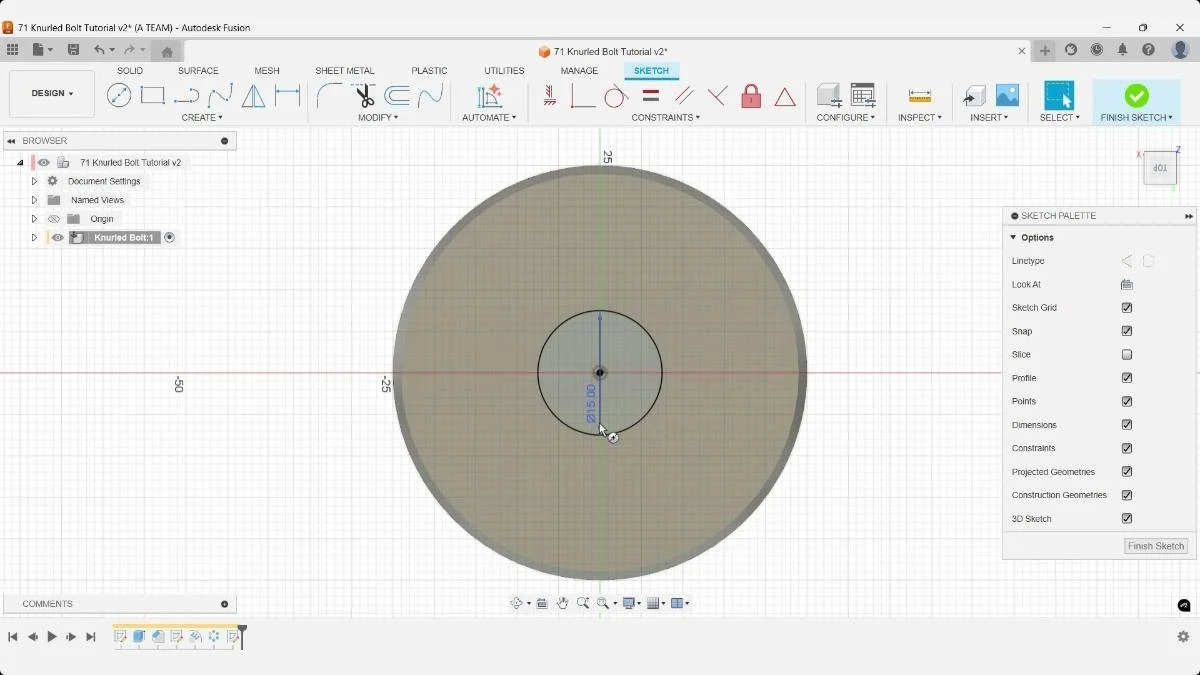

A centered circular sketch is created on top of the knurled base to define the threaded shaft diameter. Maintaining centered geometry improves alignment and keeps threaded operations fully symmetric.
Extrude the shaft upward to 75 mm using:
- Operation: Join
Keeping the bolt as a single body simplifies the threading workflow and keeps the component cleaner.

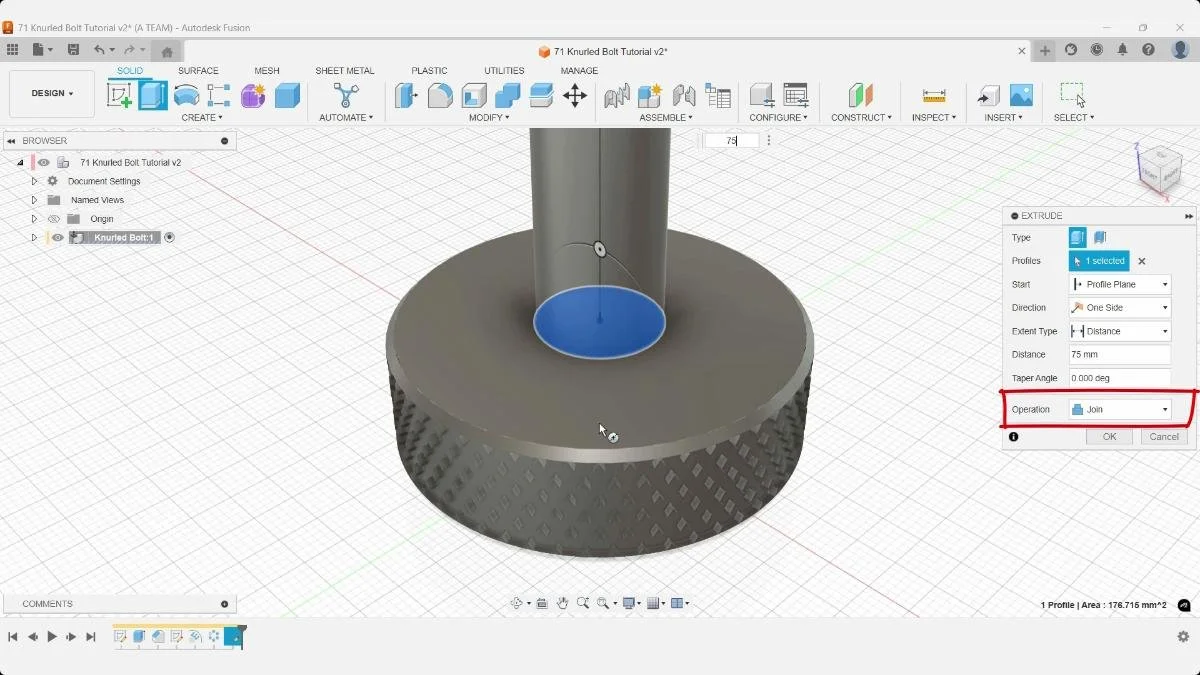

The shaft profile is extruded upward using the Join operation so the threaded section remains part of the same solid body. Single-body workflows simplify threading and downstream manufacturing drawings.
Step 7: Apply Threads for 3D Printing
Activate the Thread tool and select the cylindrical shaft.
Fusion provides several important threading options:
- Thread type
- Thread size
- Direction
- Cosmetic vs modeled threads
For visualization-only models, cosmetic threads help keep the file lightweight and responsive. However, if you plan to 3D print the bolt, you should enable fully modeled threads.
Disable “Full Length” if you only want threads on part of the shaft.
In this example:
- Total shaft length: 75 mm
- Threaded length: 60 mm
This creates a more realistic mechanical design and leaves room for non-threaded geometry near the bolt head.

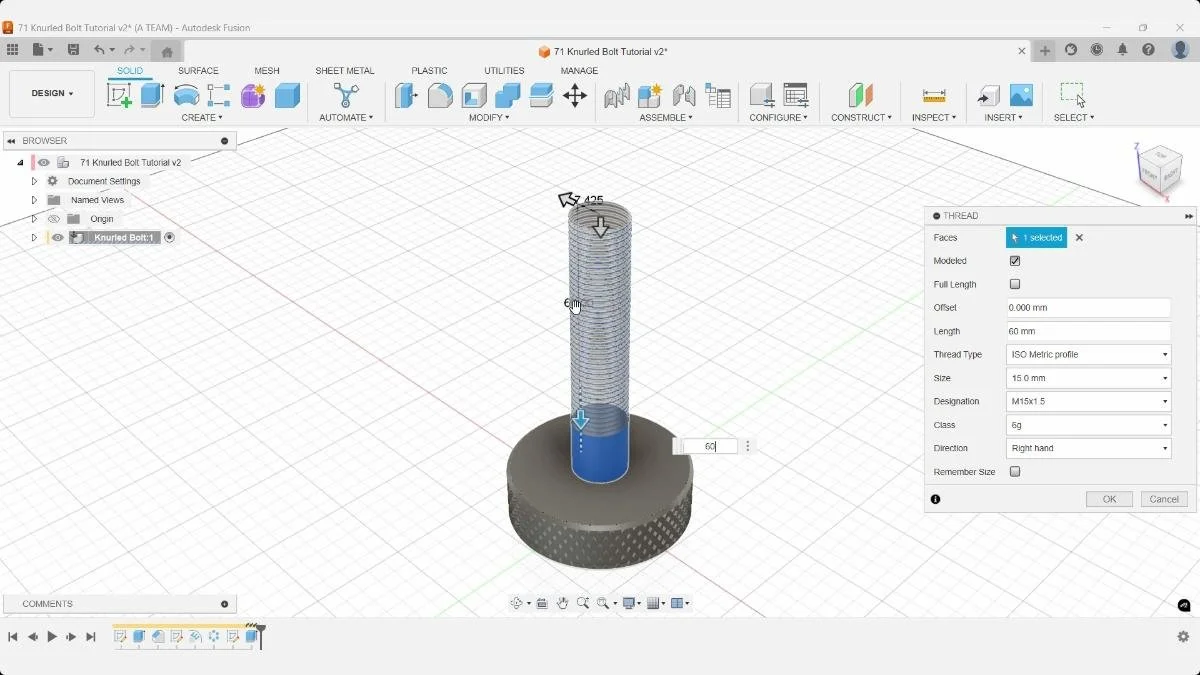

The Thread tool is configured with modeled threads enabled instead of cosmetic threads. Fully modeled threads are required for functional 3D printing because the geometry becomes part of the exported mesh.
Step 8: Create a Technical Drawing from the Design
With the modeling complete, switch to the Drawing workspace using:
- From Design

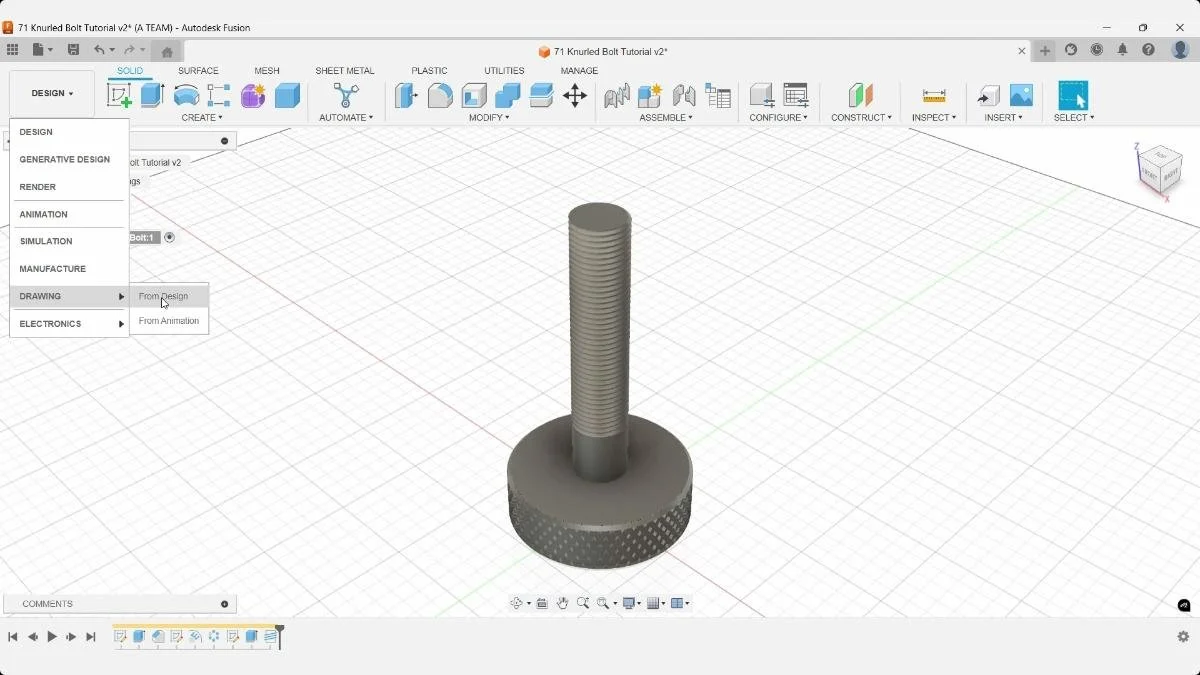

The Drawing workspace is launched directly from the design environment. Fusion allows drawings to be generated from existing components while preserving model associativity for future updates.
Fusion allows both automatic and manual drawing creation. In this workflow, you’ll create a manual drawing while still taking advantage of several automated tools.
You can configure:
- Units
- Sheet size
- Orientation
- Templates
The drawing opens in a separate file, which must be saved independently from the main design.

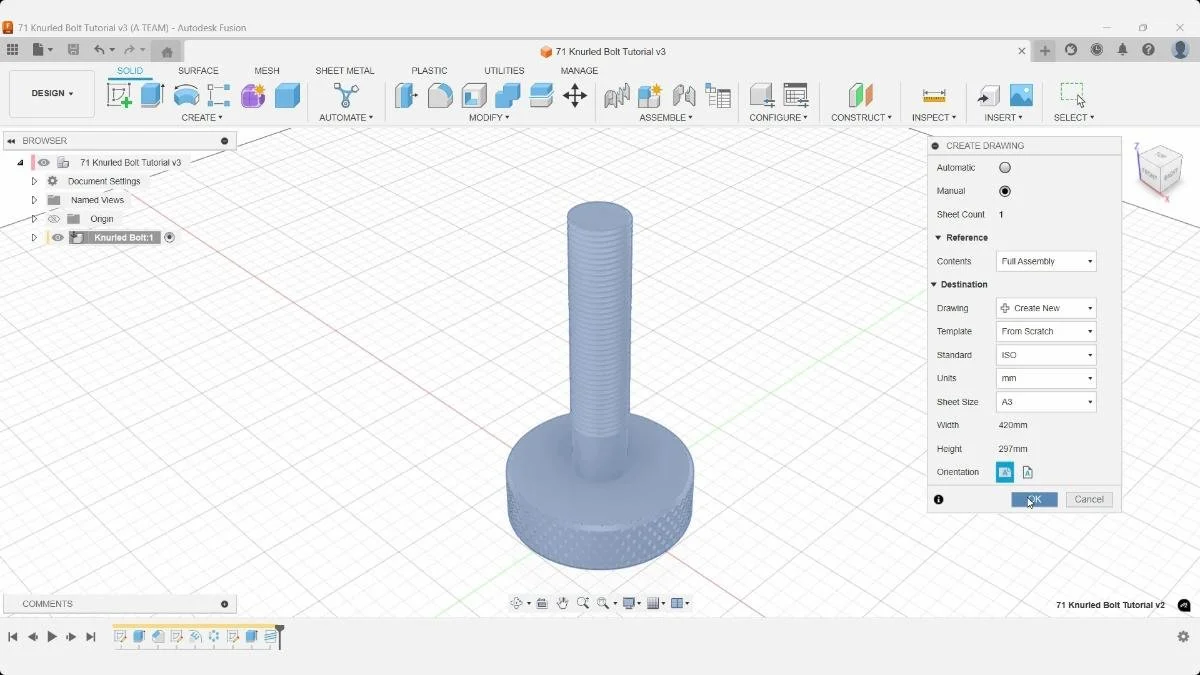

Drawing settings are configured manually with ISO standards, millimeter units, and A3 sheet size. Manual setup provides more control over layout and documentation quality than fully automated drawing generation.
Step 9: Add Base Views and Projected Views
Place a base view onto the drawing sheet.
Fusion allows quick adjustments to:
- Orientation
- Scale
- Display style
Once confirmed, the settings update automatically.

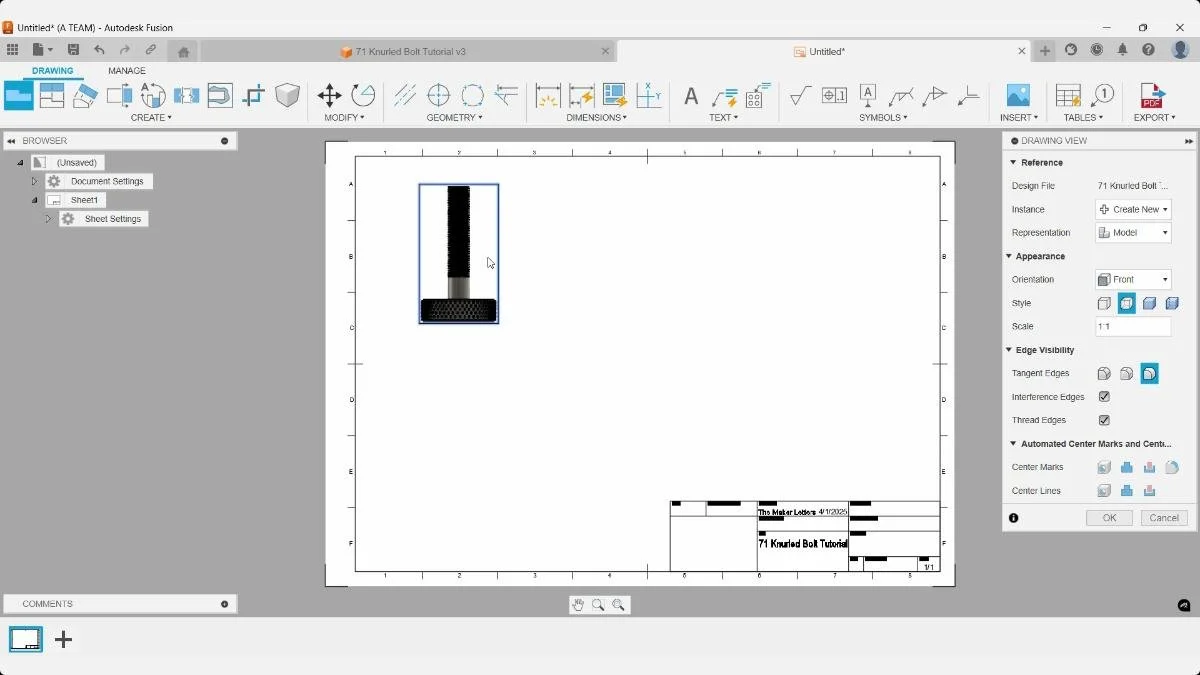

A base view of the knurled bolt is positioned on the drawing sheet with orientation and visual style controls available in the side panel. Base views establish the parent geometry for projected drawing views.
Next, use the Projected View tool.
Projected views inherit settings directly from the parent view, making it fast to create standard engineering layouts without repetitive setup work.
This is especially useful when preparing documentation for manufacturing or communicating dimensions clearly to other makers.

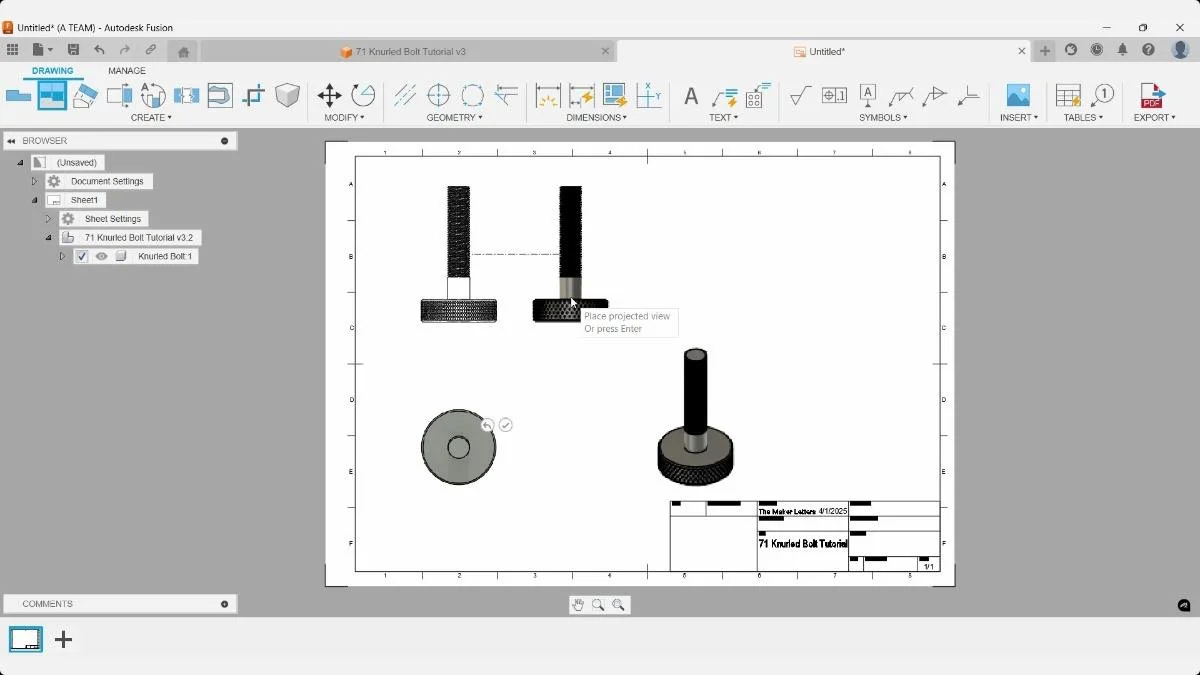

Projected views are generated from the parent base view to create standard orthographic drawing layouts. Projected views automatically inherit scale and orientation settings from the original view.
Step 10: Add Automated Dimensions
Fusion includes both manual and automated dimensioning tools.
In this workflow, use Auto Dimension to speed up the drawing process.
Fusion offers several dimensioning strategies:
- Baseline dimensions
- Chain dimensions
- Ordinate dimensions
- Overall dimensions
- Symmetric dimensions
- Symmetric with baseline dimensions
One major advantage is that automated dimensions will not overwrite dimensions you already placed manually.
You can also adjust dimension intensity to refine readability and reduce clutter in the final drawing.

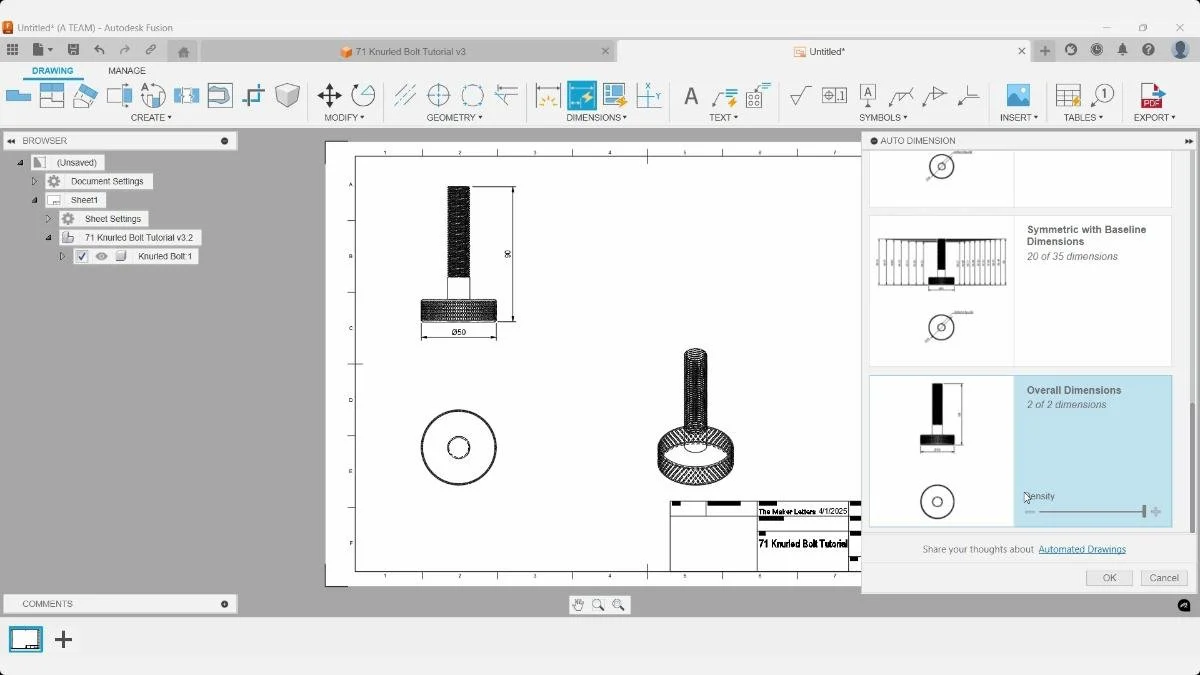

The Auto Dimension tool applies dimensions using predefined strategies such as overall dimensions and symmetric baseline dimensions. Automated dimensioning accelerates drawing creation while preserving manually placed dimensions.
Step 11: Export the Drawing
Once the drawing is complete, head to the export section in the upper-right corner.
Fusion supports several export formats:
- DWG
- DXF
- CSV
For most workflows, PDF is the fastest and easiest option for sharing or printing documentation.
A useful time-saving feature is enabling:
- Open PDF before exporting
This immediately previews the exported drawing so you can verify the layout before sending it to a client, workshop, or printer.

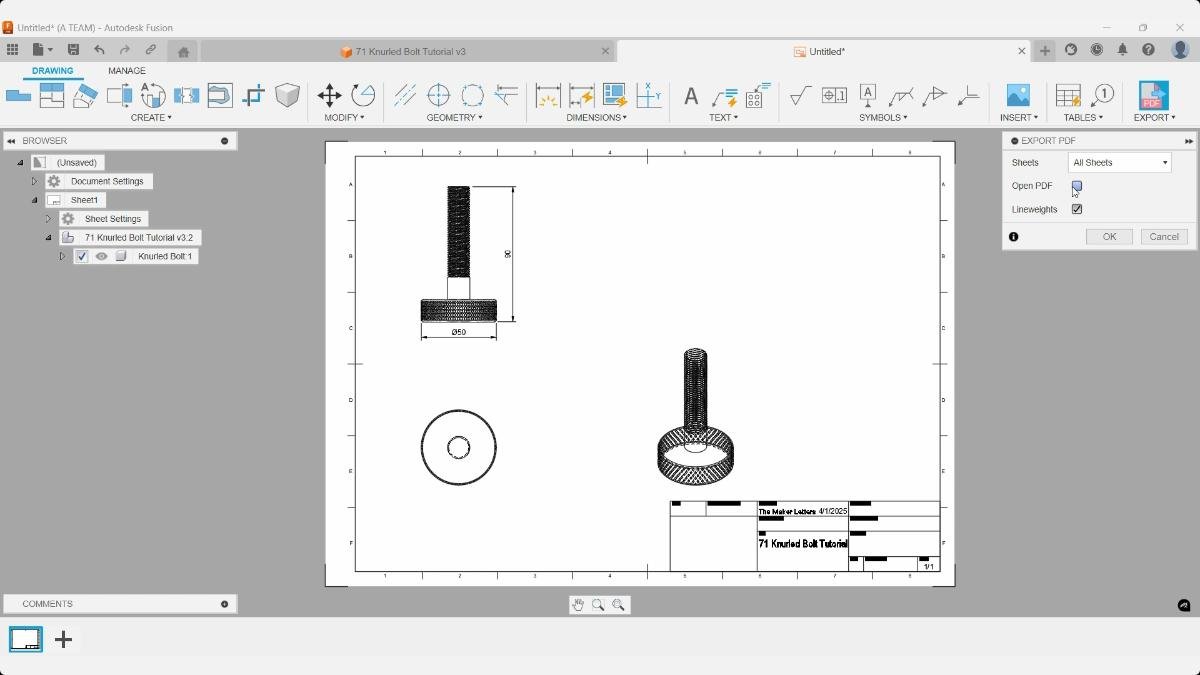

The completed technical drawing is exported as a PDF directly from the Drawing workspace. Enabling the open PDF option provides immediate verification of lineweights, dimensions, and layout before sharing or printing.
Key Takeaways
- Modeling around the origin improves symmetry and flexibility
- Applying chamfers before complex patterns improves performance
- The Emboss tool is an efficient way to generate knurled surfaces
- Feature patterns are often cleaner and easier to manage than sketch patterns
- Fully modeled threads are essential for functional 3D prints
- Fusion’s drawing workspace provides fast and professional manufacturing documentation
- Saving before heavy pattern calculations is a smart habit for large models
This workflow combines practical mechanical modeling techniques with performance-conscious Fusion strategies that scale well to more advanced CAD projects and functional 3D printed parts.
